CIRCULAR SAW
Thank you for buying this Ferm product.
By doing so you now have an excellent product,
delivered by one of Europe’s leading suppliers.
All products delivered to you by Ferm are
manufactured according to the highest standards
of performance and safety. As part of our
philosophy we also provide an excellent customer
service, backed by our comprehensive warranty.
We hope you will enjoy using this product for
many years to come.
The pictures mentioned in the text are
corresponding with the pictures at page 2
For your own safety and for the safety of
others, please read these instructions
carefully before using this appliance. It
will help you understand your product
more easily and avoid unnecessary risks.
Keep this instruction manual in a safe
place for future use.
Contents
1. Machine data
2. Safety instructions
3. Assembly and adjusting instructions
4. Operation
5. Maintenance
1. MACHINE DATA
Technical specifications
Voltage 220-240 V
Frequency 50 Hz
Power input 2200 W
No load speed 3900/min
Saw blade dimensions Ø235*30mm
Max sawing depth 90° 79 mm
Max sawing depth 45° 55 mm
IP Class IP 20
Weight 7.0 kg
Lpa (sound pressure level) 100+3 dB(A)
Lwa (sound power level) 111+3 dB(A)
ah(vibration value) 2.5+1.5 m/s2
Vibration level
The vibration emission level stated in this
instruction manual has been measured in
accordance with a standardised test given in
EN 60745; it may be used to compare one tool
with another and as a preliminary assessment of
exposure to vibration when using the tool for the
applications mentioned
- using the tool for different applications, or with
different or poorly maintainted accessories,
may significantly increase the exposure level
- the times when the tool is switched off or when
it is running but not actually doing the job, may
significantly reduce the exposure level
Protect yourself against the effects of vibration
by maintaining the tool and its accessories,
keeping your hands warm, and organizing your
work patterns
Product information

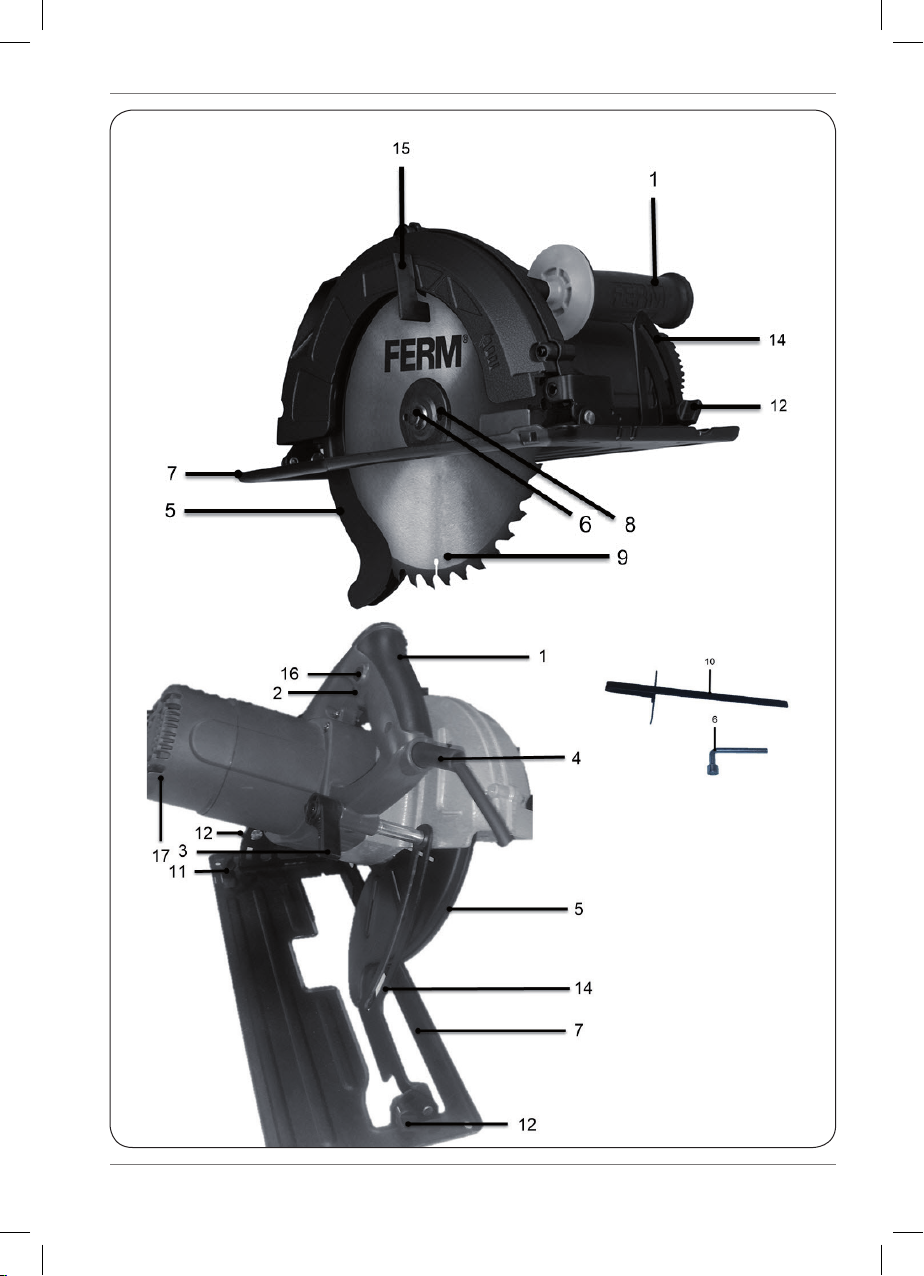

Fig. A
1. Handgrip
2. On/off switch
3. Cut depth clamping knob
4. Power cord
5. Saw blade safety guard
6. Disk exchange key
7. Soleplate
8. Retaining ring
9. Saw blade
10.Parallel guide
11.Parallel guideclamping knob
12.Sawing angle clamping knob
13.Shaft locking knob
14.Angle indicator
15.Knob
16.Safety switch
17.Carbon brush cover

4
EN
2. SAFETY INSTRUCTIONS
Explanation of the symbols
Denotes risk of personal injury, loss of life
or damage to the tool in case of non-
observance of the instructions in this
manual.
Indicates electrical shock hazard.
Keep bystanders away
Wear ear and eye protection
Wear a dust mask. Working with wood,
metals and other materials may produce
dust that is harmful to health. Do not
work with material containing asbestos
Danger
a) Keep hands away from cutting area and the
blade. Keep your second hand on auxiliary
handle, or motor housing. If both hands are
holding the saw, they cannot be cut by the blade.
b) Do not reach underneath the workpiece. The
guard cannot protect you from the blade below
the workpiece.
c) Adjust the cutting depth to the thickness of the
workpiece. Less than a full tooth of the blade
teeth should be visible below the workpiece.
d) Never hold piece being cut in your hands or
across your leg. Secure the workpiece to a
stable platform. It is important to support the
work properly to minimize body exposure,
blade binding, or loss of control.
e) Hold power tool by insulated gripping surfaces
when performing an operation where the
cutting tool may contact hidden wiring or its
own cord. Contact with a “live” wire will also
make exposed metal parts of the power tool
“live” and shock the operator.
f) When ripping always use a rip fence or straight
edge guide. This improves the accuracy of cut
and reduces the chance of blade binding.
g) Always use blades with correct size and
shape (diamond versus round) of arbour
holes. Blades that do not match the mounting
hardware of the saw will run eccentrically,
causing loss of control.
h) Never use damaged or incorrect blade
washers or bolt. The blade washers and bolt
were specially designed for your saw, for
optimum performance and safety of operation.
Causes and operator prevention of kickback
• Kickback is a sudden reaction to a pinched,
bound or misaligned saw blade, causing
an uncontrolled saw to lift up and out of the
workpiece toward the operator;
• When the blade is pinched or bound tightly
by the kerf closing down, the blade stalls and
the motor reaction drives the unit rapidly back
toward the operator;
• If the blade becomes twisted or misaligned
in the cut, the teeth at the back edge of the
blade can dig into the top surface of the wood
causing the blade to climb out of the kerf and
jump back toward the operator.
Kickback is the result of saw misuse and/or
incorrect operating procedures or conditions and
can be avoided by taking proper precautions as
given below.
a) Maintain a firm grip with both hands on the
saw and position your arms to resist kickback
forces. Position your body to either side of the
blade, but not in line with the blade. Kickback
could cause the saw to jump backwards,
but kickback forces can be controlled by the
operator, if proper precautions are taken.
b) When blade is binding, or when interrupting
a cut for any reason, release the trigger and
hold the saw motionless in the material until
the blade comes to a complete stop. Never
attempt to remove the saw from the work or
pull the saw backward while the blade is in
motion or kickback may occur. Investigate and
take corrective actions to eliminate the cause
of blade binding.
c) When restarting a saw in the workpiece, centre
the saw blade in the kerf and check that saw
teeth are not engaged into the material. If saw
blade is binding, it may walk up or kickback
from the workpiece as the saw is restarted.
d) Support large panels to minimise the risk of
blade pinching and kickback. Large panels tend
to sag under their own weight. Supports must

5
EN
be placed under the panel on both sides, near
the line of cut and near the edge of the panel.
e) Do not use dull or damaged blades.
Unsharpened or improperly set blades
produce narrow kerf causing excessive
friction, blade binding and kickback.
f) Blade depth and bevel adjusting locking levers
must be tight and secure before making cut.
If blade adjustment shifts while cutting, it may
cause binding and kickback.
g) Use extra caution when making a “plunge
cut” into existing walls or other blind areas.
The protruding blade may cut objects that can
cause kickback.
Safety instructions lower guard
a) Check lower guard for proper closing before
each use. Do not operate the saw if lower
guard does not move freely and close instantly.
Never clamp or tie the lower guard into the
open position. If saw is accidentally dropped,
lower guard may be bent. Raise the lower
guard with the retracting handle and make sure
it moves freely and does not touch the blade or
any other part, in all angles and depths of cut.
b) Check the operation of the lower guard spring.
If the guard and the spring are not operating
properly, they must be serviced before use.
Lower guard may operate sluggishly due to
damaged parts, gummy deposits, or a build-
up of debris.
c) Lower guard should be retracted manually
only for special cuts such as “plunge cuts”
and “compound cuts.” Raise lower guard by
retracting handle and as soon as blade enters
the material, the lower guard must be released.
For all other sawing, the lower guard should
operate automatically.
d) Always observe that the lower guard is
covering the blade before placing saw down
on bench or floor. An unprotected, coasting
blade will cause the saw to walk backwards,
cutting whatever is in its path. Be aware of the
time it takes for the blade to stop after switch
is released.
Before using the circular saw
Check the following points:
• Does the voltage of the motor correspond
with the mains voltage (appliances for a
mains voltage of 220-240 V
• Are the mains lead and the mains plug in
a good condition: solid, without any loose
ends or damage;
• Is the saw blade missing any teeth or
showing any cracks, it so must be replaced
immediately.
• Make sure the blade is secure.
• Use this circular saw to saw only wood,
wood-like products.
• Do not use circular saw blades wich are
deformed or damaged.
• Do not use HSS blades.
• Only use blades meeting the required
dimensions, as well as data and descriptions;
• Never apply any blades of which the thickness
is greater than that of the riving knife.
• Do not stop the blade of a circular saw by
pressing the blade from the side.
• Check that the blade guard can freely move
and fully closes.
• Never lock-up the guard in the open position.
• Never put sideward pressure on the blade.
This may cause the blade to break.
• Be careful when cutting wood with knots, nails
or cracks in it and/or dirt on it, as these can
cause the blade to get stuck.
• Never leave the circular saw unattended.
• Use this circular saw to saw only wood or
wood-like products.
Using the machine
• Use clamps or a vice to hold the work.
• Never remove wood chips and saw dust that is
close to the saw blade with your hands. If there
are small pieces of wood left between the
fixed and the movable parts, the circular saw
will have to be stopped. The plug needs to be
removed from the socket, before any left piece
can be removed.
• Check that the blade is suitable for the spindle
speed of the circular saw. Do not attempt
to cut before the circular saw has reached
full speed. Make sure the circular saw runs
without load (i.e. is not in contact with the
work) when you switch it on. The circular saw
must have reached its full speed first.
• Never cut wood that is thicker than the depth
of the saw blade.
• When cutting in wooden walls or floors, check
there is no wiring or piping where you intend to
cut.

6
EN
• Switch off the tool and wait until the blade has
stopped completely before moving the saw
away from the work or putting it down. Hearing
protection should be worn when using circular
saw.
Switch off the machine immediately when you
discover:
• A defective mains plug or mains lead;
• A defective switch.
• Overheating of the circular saw.
• Smoke or odeur caused by scorched
insulation.
Electrical safety
When using electric machines always observe the
safety regulations applicable in your country to
reduce the risk of fire, electric shock and personal
injury. Read the following safety instructions and
also the enclosed safety instructions. Keep these
instructions in a safe place!
Always check that the power supply
corresponds to the voltage on the rating
plate.
Class II machine – Double insulation –
You don’t need any earthed plug.
Replacing cables or plugs
If the mains cable becomes damaged, it must
be replaced with a special mains cable available
from the manufacturer or the manufacturer’s
customer service. Dispose of old cables or plugs
immediately after replacing them with new ones. It
is dangerous to connect the plug of a loose cable
to a socket.
Using extension cables
Only use an approved extension cable suitable
for the power input of the machine. The minimum
conductor size is 1.5 mm2. When using a cable
reel always unwind the reel completely.
3. ASSEMBLY AND ADJUSTING
INSTRUCTIONS
Before adjusting the saw, make sure the
plug is removed from the socket.
Setting the sawing angle (bevel)
• Loosen both knobs (12).
• Rotate the soleplate to the correct position (0°
- 45°), and tighten the knobs. The sawing angle
(bevel) can be read on the angle indicator (14).
Fitting the parallel guide
• Loosen knob (11).
• Insert the parallel guide into the slots provided.
• Set the correct cut width and tighten the knob
(11).
Setting the cutting depth
• Loosen knob (3).
• Move the soleplate (7) downwards.
• Tighten the clamping knob (3) once the correct
depth is set.
Exchanging or cleaning the saw blade
• Use the shaft locking knob (13) to prevent the
shaft from rotating.
• Next loosen the hexagon screw (6) in the centre
of the saw blade, using the key provided.
• Turn the safety guard to the rear, and hold it
there with the aid of the knob (15).
• Withdraw the retaining ring and the saw blade,
and clean the saw blade, or replace it with a
new one.
• Again place the saw blade back on the shaft.
• Allow the safety guard to return over the saw
blade by releasing the knob (15).
• Press the shaft locking knob (13) back in, refit
the retaining ring (8) and tighten the hexagon
screw (6) firmly once more.

7
EN
4. OPERATION
Use of hearing protection is
recommended while operating the
circular saw.
Switching On/Off
• Press knob (16) with your right-hand thumb
and keep it pressed.
• Press knob (2) to start the saw.
• Release knob (2) to stop the saw.
Operation
• Hold the work using clamps or a vice to have
both hands free to operate the saw.
• Switch on the saw and place the bottom plate
on the work.
• Slowly move the saw towards the previously
drawn cutting line and slowly press the tool
forward.
• Firmly press the bottom plate on the work,
otherwise the circular saw may start to vibrate,
causing the blade to break more easily.
Let the saw do the job. Do not put undue
pressure on the circular saw.
5. MAINTENANCE
Make sure that the machine is not live
when carrying out maintenance work on
the motor.
The machines have been designed to operate over a
long period of time with a minimum of maintenance.
Continuous satisfactory operation depends upon
proper machine care and regular cleaning.
Troubleshooting
Below we have listed a few probable causes and
solutions to which you can refer if your circular
saw does not function properly.
1. The temperature of the electric motor ex-
ceeds 70°C.
• The motor has been overloaded by working it
too hard.
• Cut more slowly and allow the motor to
cool down.
• The motor is defective.
• Please contact the service address on the
warranty card.
2. The tool does not work when switched on.
• Damaged cord and/or plug.
• Check cord and/or plug.
• Defective switch.
• Please contact the service address on the
warranty card.
3. When cutting it is very difficult to move the
work forward in a straight line and the cut is
not clean.
• The blade is bent or blunt.
• Replace the blade.
4. The circular saw makes a lot of noise and/
or does not run smoothly.
• The carbon brushes are worn.
• Please contact the service address on the
warranty card.
Cleaning
Keep the ventilation slots of the machine clean to
prevent overheating of the engine.
Regularly clean the machine housing with a
soft cloth, preferably after each use. Keep the
ventilation slots free from dust and dirt.
If the dirt does not come off use a soft cloth
moistened with soapy water. Never use solvents
such as petrol, alcohol, ammonia water, etc.
These solvents may damage the plastic parts.
Replacing hte carbon brushes
• Remove the screws (17).
• Withdraw the carbon brushes (18) from the
circular handsaw and inspect them for wear.
• Place the carbon brushes back in the brush
holders provided.
• Check that the copper contact on the carbon
brushes makes good contact with the copper
part in the brush holder.
• Replace the screws (17) and tighten them
firmly.
If the brushes have worn down to less
than 4 mm, replace.

8
EN
Lubrication
The machine requires no additional lubrication.
Faults
Should a fault occur, e.g. after wear of a part,
please contact the service address on the
warranty card. In the back of this manual you find
an exploded view showing the parts that can be
ordered.
ENVIRONMENT
To prevent damage during transport, the
appliance is delivered in a solid packaging which
consists largely of reusable material. Therefore
please make use of options for recycling the
packaging.
Faulty and/or discarded electrical or
electronic apparatus have to be
collected at the appropriate recycling
locations.
WARRANTY
The warranty conditions can be found on the
separately enclosed warranty card.

9

10
Spare parts list
CSM1042P
No Description Position
480230 Depth setting lever 2..4,36
480231 Switch 7
480232 Motor housing cover 15
480233 Carbon brush set 17
480234 Carbon brush holder set + spring set (2 sets) 18..20
480235 Stator 22
480236 Bearing cover 24
480237 Bearing 6000RS 25
480238 Rotor + isolation ring 26,27
480239 Bearing 6002RS 28
480240 Spindle lock lever 30
480241 Spindle lock spring 31
480242 Lower guard stop rubber + screw 34,35
480243 Bearing 6001-2Z 27
480244 Big gear 39
480245 Spindle + woodruff key 40,41
480246 Gearbox cover + cover plate 42
480247 Lower guard spring 46
480248 Lower guard 47
480249 Lower guard lever 48,49
480250 Bearing 6202 50
480251 Gearbox cover plate 51
480252 Inner flange 53
480253 Outer flange 55
480254 Disc bolt 57
480255 Angle screw set 59..61
480256 Base plate complete 59..66
480257 Parallel guide screw 65
410001 Side handle M10 68
480258 Parallel guide 69
480259 Disc exchange wrench wrench

11
Exploded view

WWW.FERM.COM ©2016 FERM B.V.
1611-28
