Ferno Compact 5 Track Chair User manual

User Manual
Compact 5 Track Chair
FERNO/MAN/0721/212-R2/UK
Stock Code 2003-0144
Read this Manual
and Retain for
Future Reference

2© Ferno (UK) Ltd. FERNO/MAN/0721/212-R2/UK
Compact 5 Track Chair
© Copyright Ferno UK. All Rights Reserved.
Chair/Track Serial Numbers: ________________________
________________________________________________
Location: on wheel axle, at base of chair
USERS’ MANUAL
To request additional free users’ manuals,
contact Ferno UK Customer Service, your
Ferno distributor, or visit www.ferno.co.uk.
Disclaimer
This manual contains general instructions for the use, operation
and care of this product. The instructions are not all-inclusive.
Safe and proper use of this product is solely at the discretion
of the user. Safety information is included as a service to the
user. All other safety measures taken by the user should be
within and under consideration of applicable regulations. It is
recommended that training on the proper use of this product be
provided before using this product in service.
Retain this manual for future reference. Include it with the
product in the event of transfer to new users. Additional free
copies are available upon request from Ferno Customer Service.
Proprietary Notice
The information disclosed in this manual is the property of Ferno
UK. Ferno UK reserves all patent rights, proprietary design rights,
manufacturing rights, reproduction use rights, and sales use
rights thereto, and to any article disclosed therein except to the
extent those rights are expressly granted to others or where not
applicable to supplier proprietary parts.
Limited Warranty Statement
The products sold by Ferno UK are covered by a limited warranty.
The complete terms and conditions of the limited warranty, and
the limitations of liability and disclaimers, are also available upon
request by calling Ferno UK on [phone].
Ferno UK Customer Services
Customer Service and product support are important
aspects of each Ferno product. Please have the product serial
number available when calling, and include it in all written
communications.
Telephone - Main Reception [phone]
Telephone - Sales Department [phone]
Telephone - Service Department [phone]
Email - Sales [e-mail]
Email - Service [email protected].uk
Web www.ferno.co.uk
Ferno (UK) Ltd, Ferno House, Stubs Beck Lane, Cleckheaton,
West Yorkshire, BD19 4TZ
ALL OTHER LOCATIONS
For assistance or information, please contact your Ferno
distributor. If you do not have a Ferno distributor, please contact
your nearest Ferno Customer Services oce.
USA HEADQUARTERS
Ferno-Washington, Inc., 70 Weil Way
Wilmington, Ohio 45177-9371, U.S.A.
Telephone Country Code +1.937.382.1451
Fax Country Code +1.937.382.6569
Internet www.ferno.com
FERNO S.r.l.
via B. Zallone, n. 26, 40066
Pieve di Cento, Bologna, Italy
+39.051.6860028

3
© Ferno (UK) Ltd. FERNO/MAN/0721/212-R2/UK
Compact 5 Track Chair
TABLE OF CONTENTS
Ferno Contact information_____________________ 2
1 - Safety Information __________________________ 4
1.0 Warning _______________________________ 4
1.1 Important ______________________________ 4
1.2 Caution ________________________________ 4
1.3 Safety and Instruction Labels_______________ 5
1.4 Symbol Glossary _________________________ 5
2 - Operator Skills and Training __________________ 6
2.0 Intended Use ___________________________ 6
2.1 Skills __________________________________ 6
2.2 Training________________________________ 6
2.3 Safety Precautions _______________________ 6
3 - About the Chair _____________________________ 7
3.0 General Specications ____________________ 7
4 - Quick Set-Up Guide _________________________ 8
4.0 Unfolding the Chair ______________________ 8
4.1 Folding and unfolding the Track ____________ 9
4.2 Folding the Chair _________________________10
4.3 Telescopic Carry Handles __________________10
5 - Using the Chair ______________________________11
5.0 Checking the Compact 5 Track _____________13
5.1 Folding and unfolding the Chair ____________11
5.2 Height positional upper handle ____________11
5.3 Extending carrying handles________________11
5.4 Patient restraints_________________________12
5.5 Folding foot plate________________________12
5.6 Compact 5 Track Chair wheels _____________12
5.7 Use of Track on Chair _____________________13
6 - Operating Procedure Guidelines _____________ 14
6.0 General usage information _____________ 14-16
6.1 Moving the chair ________________________16
6.2 Using the chair in ground level _____________16
6.3 Gliding the Chair down stairs_______________16
6.4 Using the chair up-stairs __________________17
7 - Wall Mounting Bracket ______________________ 18
7.0 Using the Wall Bracket ____________________18
8 - Care of the Compact 5 Track Chair ____________ 18
8.0 Maintenance ___________________________18
8.1 Disinfection & Cleaning ___________________18
8.2 Lubricating the chair _____________________19
8.4 Inspecting the chair _____________________20
9 - Service Support & Warranty _________________ 21
9.0 UK Service Support ______________________21
9.1 Worldwide _____________________________21
9.2 Terms and Conditions ____________________21
9.3 Service Maintenance History _______________21
Section Page
Illustrations
Figure 1 - Front view with arm rests in down position ______5
Figure 2 - Rear view with arm rests in down position _______5

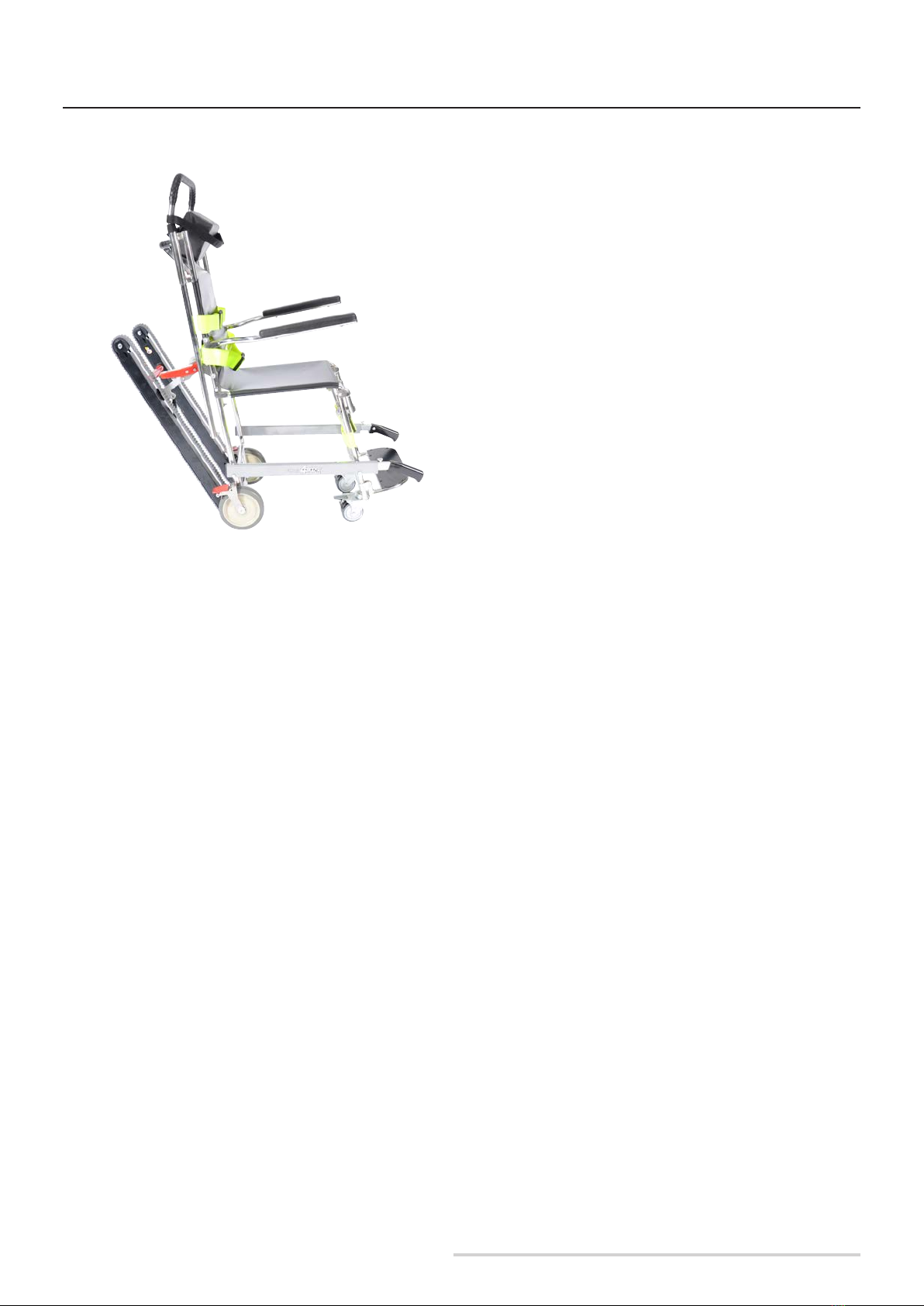

Figure 3 - Side view with extended track and foot plate ____7
Figure 4- Unfolding the chair for use ___________________8
Figure 5 - Release locking bar __________________________8
Figure 6 - Pull red release/locking knob to raise/lower handle _8
Figure 7 - Pull handle up-wards to raise _________________8

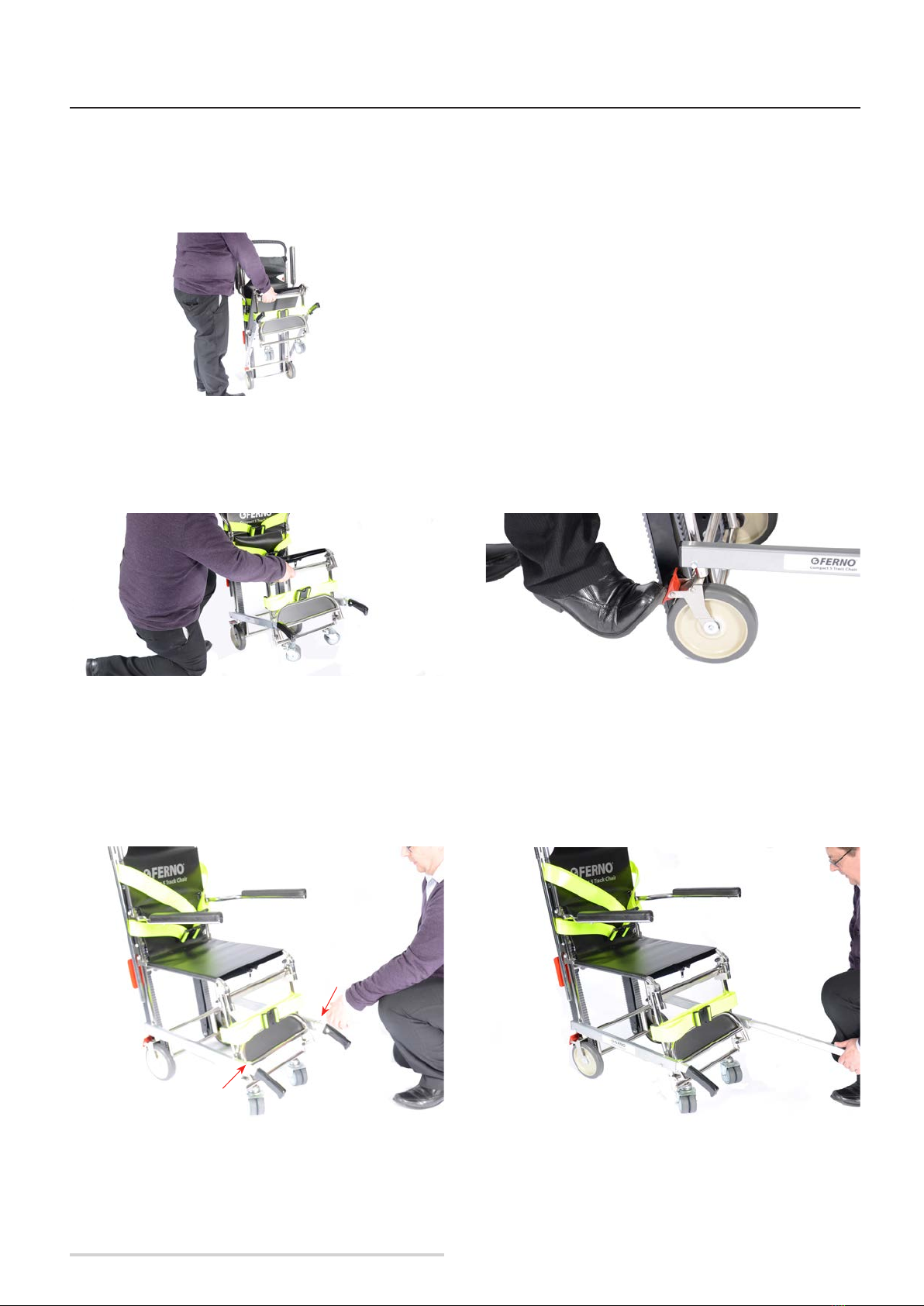

Figure 8 - Pull down foot plate ________________________9
Figure 9 - Feet positioning on foot plate ________________9
Figure 10 - Red handle for track deployment ______________9
Figure 11 - Ensuring tack is fully deployed _________________9
Figure12 - Pushredhandletoretractthe trackusingrightfoot_9
Figure 13 - Ensuring the track is fully retracted _____________9

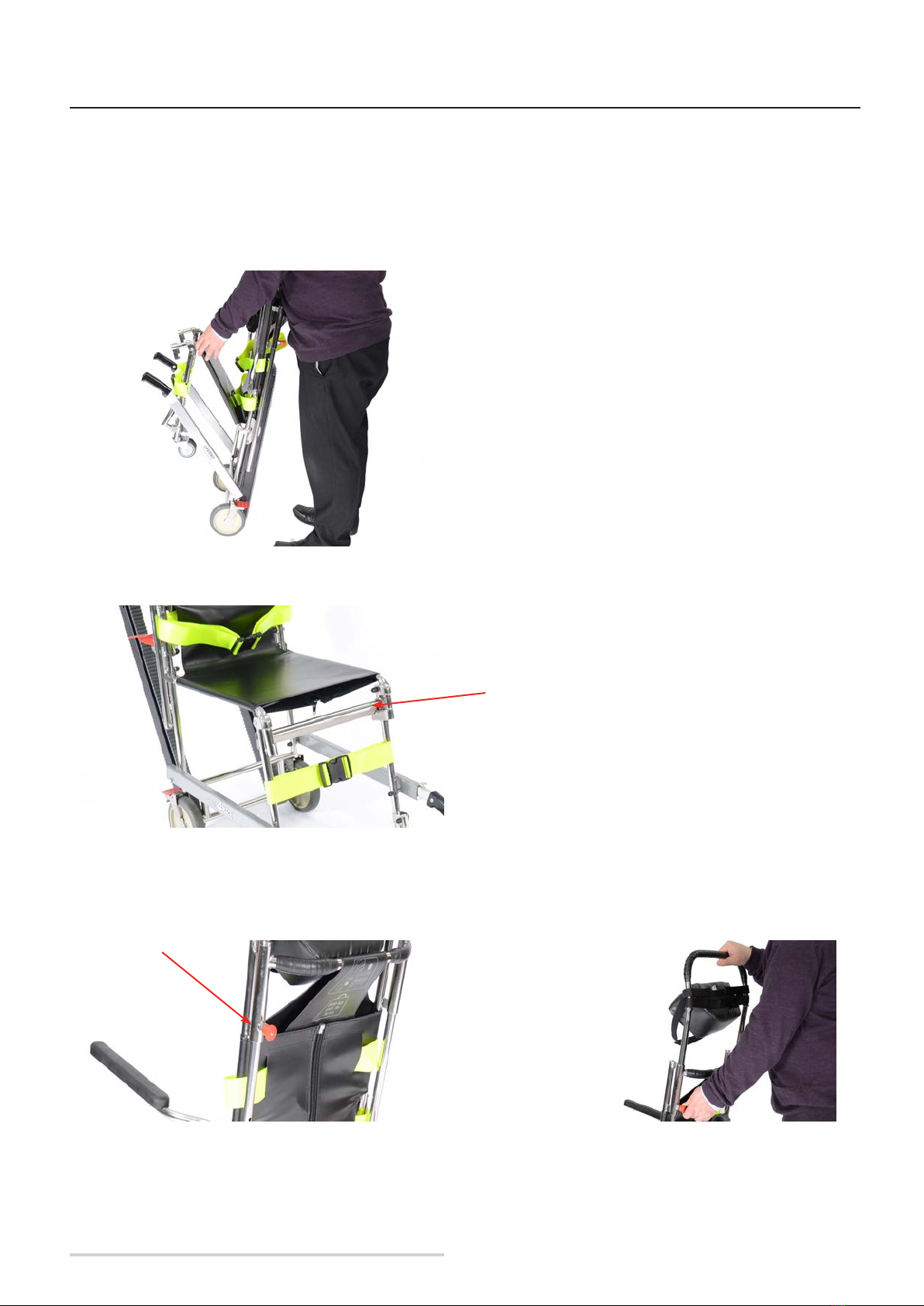

Figure14- Foldingposition ___________________________10
Figure 15 - Pull bar to fold chair ________________________10
Figure 16 - Lock wheels for stowage ____________________10
Figure17-Telescopichandlereleasebutton______________10
Figure 18 - Extending the telescopic handle ______________11
Figure 19 - Engaging wheel break _____________________12
Figure 20 - Red track closing handle ___________________13
Figure 21 -Operator Diagram 1________________________14
Figure 22 - Operator Diagram 2________________________15
Figure 23- Lubricating points 1________________________19
Figure 24 - Lubricating points 2________________________19
Section Page

4© Ferno (UK) Ltd. FERNO/MAN/0721/212-R2/UK
Compact 5 Track Chair
1  SAFETY INFORMATION
1.0 Warning
Warning notices indicate a potentially hazardous situation
which, if not avoided, could result in injury or death.
WARNING
Improper use of the chair can cause injury. Use the chair
only for the purpose described in this manual.
Untrained operators can cause injury or be injured.
Permit only trained personnel to operate the chair.
Improper operation can cause injury. Operate the chair
only as described in this manual.
An unattended patient can be injured. Stay with the
patient at all times.
An unrestrained patient can fall o the chair and be
injured. Use restraints to secure the patient on the chair.
Helpers can cause injury or be injured. Maintain control
of the chair, whilst directing all helpers.
Improper maintenance can cause injury. Maintain the
chair only as described in this manual.
Non Ferno parts and service can cause injury. Use only
Ferno parts and Ferno approved service on the chair.
Modifying the chair can cause injury and damage. Use the
chair only as designed by Ferno.
Attaching Non Ferno items to the chair can cause injury.
Use only Ferno approved items on the chair.
1.1 Important
Blood borne Disease Notice
To reduce the risk of exposure to blood borne diseases
such as HIV-1 and hepatitis when using the chair, follow the
disinfecting and cleaning instructions in this manual.
Bleach, phenols and iodine can cause damage. Do not apply
products containing these chemicals to the Chair.
Improper lubricants can cause damage. Use a liquid
lubricant oil such as " 3-IN-ONE Multi-purpose drip oil"
to lubricate the Chair where specied.
Trapping hazards are unavoidable in the design of this
equipment due to its folding action. Operate the folding
mechanism with care.
Safety Information
1.2 Caution
WARNING
It is recommended NOT to carry occupant with the
rear handle FULLY EXTENDED.
The upper handle is to be used for descending
stairs only at the maximum extended position.
WARNING
Do NOT exceed the safe working load of 200 kg

5
© Ferno (UK) Ltd. FERNO/MAN/0721/212-R2/UK
Compact 5 Track Chair
1.3 Safety and Instruction Labels
Safety and instruction labels place important information
from the users’ manual on the Chair.
Read and follow label instructions. Replace worn or
damaged labels immediately. Replacement labels are
available from Ferno UK.
1.4 Symbol Glossary
The symbols dened to the right are used on the Chair and/
or in this users’ manual. Ferno uses symbols recognised by
the International Standards Organisation (ISO).
Safe Working Load
Do Not
Lubricate
Safety Information
440 lb
200 kg
32 st

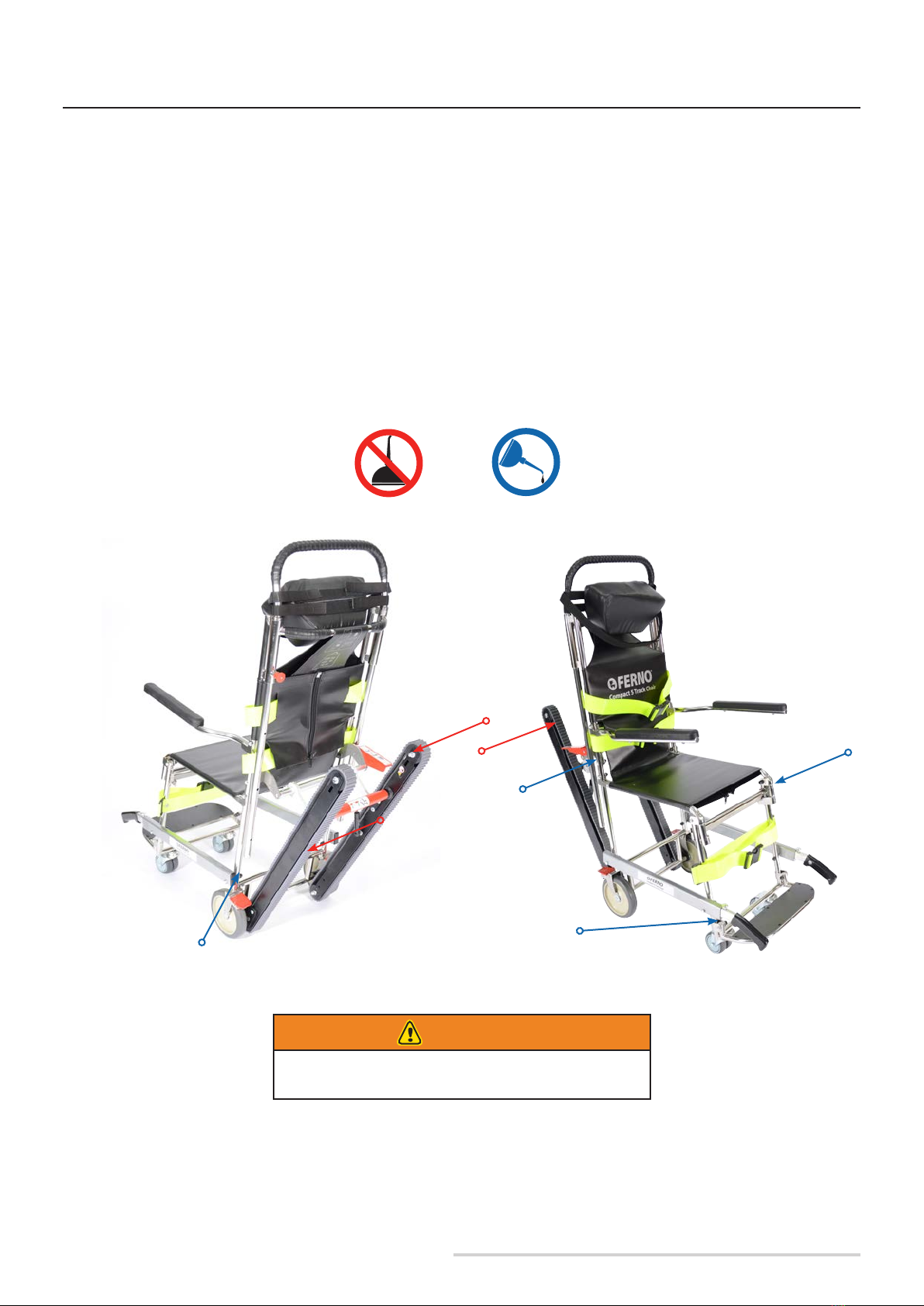

Figure 1 - Front view with armrests in down position Figure 2 - Rear view with track deployed and armrests
in down position
Instruction:
Closing Track
Instruction;
Opening Track
Product meets UK and EU Standards

6© Ferno (UK) Ltd. FERNO/MAN/0721/212-R2/UK
Compact 5 Track Chair
2  OPERATOR SKILLS AND TRAINING
2.1 Skills
Operators using the chair need:
● The strength, balance, coordination and common
sense to safely operate the Chair.
● The ability to select the proper equipment and
procedures for the circumstances.
● Operators should have been trained in the operation
of the Chair.
● The ability to understand and follow the procedures
described in this manual.
● Operators should have a working knowledge of
manual handling procedures.
WARNING
Untrained operators can cause injury or be injured.
Permit only trained personnel to operate the Chair.
2.2 Training
Operator trainees need to:
● Have followed a training plan.
● Read and understand the instructions in this manual.
● Practice using the fully-equipped Chair with weight
and under simulated conditions.
● Traineesshouldbetestedtoverifytheirunderstanding
of Chair operation.
● Keep training records. Annual refresher training for
all Chair operators is recommended.
WARNING
Improper use of the Chair can cause injury. Use the
Chair only for the purpose described in this manual.
Operator Skills and Training
2.0 Intended Use
For the purpose of this manual, the Compact 5 Track Chair will be referred to as the Chair and the person being
transported on the Chair will be referred to as the patient. The Chair is a handling device designed to transport a patient,
in a seated position, on stairs and level ground. The Chair will glide smoothly down a wide range of stair types and can
quickly return to a four wheel chair at the end of a run of stairs. When on two or four wheels it can rotate within its own
length making it ideal for half landings and similar restricted areas. Where conditions require, the chair may also be carried
using the anti-slip handle grip areas.
2.3 Safety Precautions
To ensure safety and satisfaction with your new Chair, all users should read these instructions and the individual portions
of recognised emergency care manuals that relate to the application and use of Chair. It is recommended that a minimum
of two trained operators control a loaded Chair on stairs, they should assess whether additional assistance is required.

7
© Ferno (UK) Ltd. FERNO/MAN/0721/212-R2/UK
Compact 5 Track Chair
3  ABOUT THE CHAIR
CHAIR FEATURES
● Chair folds to minimise stowage space.
● Track can be extended for descending stairs.
● Adjustable handle to enable correct posture for
operator.
● Anti-Bacterial properties within Restraints, Grip Tape,
and Seat Cover.
About the Chair
3.0 General Specications
Most general specications below are rounded to the
nearest whole number. For more information, contact Ferno
Customer Service (page 2).
Ferno reserves the right to change specications without
notice.
The Compact 5 Track is a carry chair with the capability of
deploying a track module to assist in the descent of stairs
where it is deemed appropriate by the operators to use as
a tracked chair.
Chair height from oor (folded) 1150 mm
Chair height 1130 mm
Height with rear handle extended 1600 mm
Seat height 510 mm
Seat width 380 mm
Seat depth 385 mm
Width (widest point) 435 mm
Weight of carry chair 16.4 kg
SWL / Max load capacity 200 kg
Strap type Biosafe
Strap length – Chest 1650 mm
Strap length – Waist 1650 mm
Strap length – Leg 1200 mm
Figure 3 - Side view, extended tracks and foot plate
● All dimensions are approximate
● Operators must consider the weight of the patient
and accessories when determining total load on the
Chair

8© Ferno (UK) Ltd. FERNO/MAN/0721/212-R2/UK
Compact 5 Track Chair
4  QUICK SETUP GUIDE
Operating the Chair
4.0 Unfolding the Chair
For the purpose of this guide, the Compact 5 Track Chair will be referred to as the Chair and the person being transported
on the Chair will be referred to as the patient.
The Chair will normally be left in the folded condition and the rst task will be to unfold and make the Chair safe for
transporting a patient.
2. Just below the seat there is a bar that automatically
locks the chair in to the seated position, ensure this is
engaged and secure before seating the patient in the
chair. (See g 5)
DO NOT PULL DOWN THE FOOT PLATE UNTIL PATIENT
IS SEATED.
1. Unbuckle the chest strap securing the chair and fold the
chair out into the seated position
Figure 4 - Unfolding the Chair for use
Figure 5 - Release locking Bar
Figure 6 - Pull red release/locking knob to raise and
lower handle
Figure 7 - Lift handle upwards to desired position with
other hand
3. The chair is tted with an adjustable height handle. To raise or lower the handle to the required position pull red release
knob on the back of the chair to release the locking pin whilst raising or lowering the handle to the required height.

9
© Ferno (UK) Ltd. FERNO/MAN/0721/212-R2/UK
Compact 5 Track Chair Operating the Chair
4.1 Folding and Unfolding Track
The track aids descent on stairs, do not unfold the track if the chair is not needed to descend stairs.
5. To unfold the track from the rear of chair pull the central red bar towards you until the track locks into position.
6. To fold the track into the back of the chair push the retract lever downwards as shown, until track is ush with the back of
the chair and locks in to position, using either your foot or hand.
Figure 8 - Pull down foot plate
4. Once the patient has been seated comfortably in the chair pull down the foot rest and place their feet on to it.
Fasten all restraining straps to secure the patient
4  QUICK SETUP GUIDE
4.0 Unfolding the Chair (cont.)
Figure 9 - Feet positioning on foot plate
Figure 10 - Red handle for track deployment Figure 11 - Ensuring the track is fully deployed
Figure 12 - Push red handle to retract the track using
right foot
Figure 13 - Ensuring the track is fully retracted

10 © Ferno (UK) Ltd. FERNO/MAN/0721/212-R2/UK
Compact 5 Track Chair
Operating the Chair
1. Foot rest and arm rest in up position and handles
retracted.
2. Squeeze the bar as shown in Fig 15, and collapse chair in to folded position. Use the chest restraint to wrap around the
chair to keep folded.
Figure 15 - Pull bar to fold chair
Figure 17 - Telescopic handle release button
Figure 14 - Folding position
4  QUICK SETUP GUIDE
4.2 Folding the Chair
Before folding the chair for storage ensure that the foot rest and armrests are in the up position and that all handles are not
extended.
Figure 16 - Lock wheels for stowage
Figure 18 - Pull telescopic handle to extend
4.3 Telescopic Foot-end Carry Handles
The chair is tted with telescopic carrying handles at the foot-end to aid transporting the chair down stairs using the tracks.
To change position of the handles press button (See g 17) and pull/push handles to extend or shorten.

11
© Ferno (UK) Ltd. FERNO/MAN/0721/212-R2/UK
Compact 5 Track Chair
(Refer to pages 8, 9 & 10 for the Quick Set-up Guide)
Compact 5 Track Chair Operation
The Chair folds for shipping and stowage.
To Unfold
1. Release the chest strap from the Chair and allow the chair to fold down into the seated position.
2. Completely unfold the Chair by rmly pushing up the back until an audible click is heard, this is the locking bar
engaging into the locking catches, visually conrm this.
To Fold
When folding the chair ensure the following procedure is carried out.
1. Fully lower the head-end adjustable handle (see g.7)
2. Check that the carrying handles at the front of the chair are not extended.
3. Ensure foot rest is folded up.
4. Ensure the track is folded ush with the back of chair.
5. To release the chair for folding pull the locking bar at front of the chair and fold the Chair forwards until it is at.
6. Stand the chair upright on the back wheels.
7. The Chair chest strap can be used to secure the Chair in the closed position.
5  COMPACT 5 TRACK CHAIR OPERATION
5.2 Height Positional Head-End Adjustable Handle
1. The head-end handle can be locked into three dierent positions to assist operations on stairs and also to allow for
height variations of operator.
2. To adjust the upper handle into alternative positions, pull the locking pin knob on the back of the chair to release
the locking pins whilst maintaining a grip on the adjustable upper handle. Lift or lower the handle and release the
knob at the desired height ensuring the locking pin is located in a hole and locked in place.
The following checks are required each day before the use of the Chair:
• Overall cleanliness of the Chair.
• Check that there are no bent or damaged parts, missing fasteners, etc.
• Check that the wheels rotate freely with no excess movement or damage.
• Check that the Chair unfolds and locks securely in the seating position for normal use.
• Check that the track system opens and closes correctly, examine the tracks for damage.
• Check the upholstery for cracks, splits or any loose fabric or stitching, etc.
• Check that the upholstery is correctly secured to the frame.
• Check that all restraints are present and functioning correctly.
If in any doubt then contact a Ferno Service Engineer.
5.0 Checking the Compact 5 Track
Regular cleaning helps reduce the risk of transmitting disease and enables the
equipment to function at its optimum.
5.1 Folding and Unfolding the Chair

12 © Ferno (UK) Ltd. FERNO/MAN/0721/212-R2/UK
Compact 5 Track ChairCompact 5 Track Chair Operation
WARNING
Only fully raise the handle when using the Chair to
descend stairs with the Track deployed.
5.4 Patient Restraints
Use the chest, waist and foot restraints to secure patient into the Chair. Assess patient condition to determine optimum
strapping procedure.
• ChestRestraint-.Thechest restraintisalsousedtosecurethechairclosedforstowage.Fastenthe chest restraintusing
plastic male/female buckle system. Pull at either side of the buckle to tighten the restraint.
• Waist Restraint -.The waist restraint is for extra security and comfort for the patient. Fasten the waist restraint using
plastic male/female buckle system. Pull at either side of the buckle to tighten the restraint.
• Foot Restraint - Once the patient’s feet are comfortably placed on the integral footrest, the loose foot restraint can be
fastened to secure the feet. Fasten foot strap using plastic male/female buckle system. Pull at either side of
the buckle to tighten the restraint. Remember that the foot restraint also protects the operator when moving the
Chair on stairs.
• Releasing Restraints -To release foot and lap restraints, squeeze the two sides of the tang on the buckle inward at the
same time and pull the buckle apart.
5.5 Folding Foot Plate
Please note: The foot plate must not be deployed until the patient is in a comfortable seated position as the chair may tip
forwards if the foot plate is used as a platform by the patient when being seated
• To Fold Foot Rest – Simply push the foot plate up against the chair.
• To Unfold Foot Rest – Pull the foot plate downwards into the correct position.
5.6 Compact 5 Track Chair Wheels
The Chair is tted with two large braked wheels to the rear and twin wheeled castors at the front of the chair below the foot
plate.
• The Chair may be wheeled using all four wheels where the front swivel castors provide excellent manoeuvrability,
alternatively, should conditions require, the chair may be tilted back and run on the two larger wheels.
ALWAYS inform the patient of your intensions.
• To apply the brakes on the rear wheels, press the brake pedal down. To release the brake push the lever on the top
of the wheel forward with your.
5.3 Foot-end Extending Carrying Handles
1. The telescopic carrying handles are located at the front of the chair just above the castor wheels and are to be used
in conjunction with the chair track. When using the Track, extend the handles to suit the height of
the operator.
2. The handles are easily extended or shortened by pressing down on the buttons located on the handles with the
thumb and pulling or pushing the handles to extend or shorten. Ensure the handles are locked before attempting to
move the chair.
Figure 19 - Engaging wheel break

13
© Ferno (UK) Ltd. FERNO/MAN/0721/212-R2/UK
Compact 5 Track Chair Compact 5 Track Chair Operation
5.8 Use of Track on Chair
In addition to the wheels the Chair is tted with a track system to allow the operators to glide the chair down stairs instead of
lifting and carrying.
Guidelines for using the track system
• Using the Chair on stairs requires a minimum of two trained operators. Ferno recommends using a third person as
a “spotter” (see, using the Chair on Stairs), wherever possible.
• Verify that the track is fully opened and locked into place before using it.
• Verify that the telescopic handles are extended and locked before lifting.
• Never lubricate track belts. Lubricated track belts can perform unpredictably, resulting in injury to the patient
and/or operators.
• Moisture, water, snow, ice or debris on or between the track and belts can cause irregular track-belt performance that
results in sudden changes in the weight operators must support. Make sure the track and track belts are clean and dry
before using the Chair on stairs.
• Always clear stairs of debris etc., which could interfere with the operation of the Chair or impede the operators.
Opening the Track
1. Graspthetopofthechairwithonehandandwiththeother graspthetrackreleasebar(redlabelled) located near the top
of the tracks and rmly pull it back until the track locks into the fully extended position. (See g. 10)
2. Verify that the lock is engaged by trying to push the track closed. If the lock is fully engaged the track will not fold
back.
Closing the Track
1. With one hand, grasp the track release bar (red labelled) located near the top of the tracks and with the other hand push
down on the track closing handle located on the right side of the tracks. Pushing the track closed with the track release
bar will assist this action. The track closing handle can also be operated using your foot to push down on the handle,
instead of pushing with your hand. (See image below or 4.2)
Figure 20 - Red track closing handle

14 © Ferno (UK) Ltd. FERNO/MAN/0721/212-R2/UK
Compact 5 Track Chair
6.0 General Information
IMPORTANT
Always inform the patient before a manoeuvre.
IMPORTANT
Chair operation requires a minimum of:
• Two trained operators when the Chair is being used to transport a patient on stairs.
• One operator only, can safely use the Chair on at surfaces including single steps, thresholds etc, however this must
be at the discretion of the operator who must assess all likely conditions.
• One operator can safely load/unload a patient using the Chair from a vehicle tted with a ramp, automatic tail-lift or
other approved mechanical lifting mechanism.
• Circumstance such as access, weather conditions or patient weight may require additional help when operating on
stairs; this must be assessed at the time. However the following is a suggested conguration.
Operating the Chair
WARNING
Improper use can cause injury.
Use the Chair only for the purpose described in this manual
6  OPERATING PROCEDURE GUIDELINES
Figure 21 - Operator Diagram 1

15
© Ferno (UK) Ltd. FERNO/MAN/0721/212-R2/UK
Compact 5 Track Chair
6  OPERATING PROCEDURE GUIDELINES
● Placement techniques, heavy patients, rough terrain or unusual circumstances may require more additional help; this
must be assessed at the time however the following is a suggested conguration.
WARNING
An unattended patient can be
injured. Stay with the patient
at all times
● Keep the load limit of the Chair in mind when working with a heavy patient. If it suspected that the load limit has been
exceeded then a full inspection of the Chair should be conducted, preferably by a Ferno Service Technician.
● Operators must take extra precautions when operating the Chair on uneven ground.
● Extra precautions should be taken to prevent the Chair from slipping in adverse, wet or icy weather conditions.
● Stay with the patient at all times and always use the patient restraints provided.
● Always follow good lifting procedures as specied in current manual handling regulations and your appropriate training
manual.
● Follow standard emergency patient-handling procedures when operating the Chair.
● Medical advice and manual handling protocols are beyond the parameters of the manual. It is the user’s responsibility
to ensure safe practices for both themselves and the patient.
WARNING
An unrestrained patient
can fall o the Chair and be
injured. Use restraints to
secure the patient on the
Chair at all times
Operating the Chair
Figure 22 - Operator Diagram 2

16 © Ferno (UK) Ltd. FERNO/MAN/0721/212-R2/UK
Compact 5 Track ChairOperating the Chair
6.1 Moving the Chair
•PlacethepatientontheChairusinglocalprotocolsforpatienthandling.Ensurethatthepatientisseatedwiththeirback
fully against the back panel and their head securely positioned within the head pad before deploying the patient
restraints.
•Chest waist and foot restraints must be applied before moving the Chair.
6.2 Using the Chair on Level Ground
• Before rolling the Chair on level ground, the head end operator adjusts the upper handle to the desired position for
comfortable use.
• Inform the patient so that they are aware about what is happening.
• Two castor wheels are axed to the foot end frame. These assist with movement on level ground and mean that the
Chair can be used without tilting backwards.
• The operator at the foot end of the Chair assists as required with obstacles like door frames or uneven surfaces.
The lower handle can be used to overcome larger obstacles.
6.3 Gliding the Chair Down Stairs
• It is strongly recommended that the following procedures be practiced with a chair loaded with dummy weights
such as bagged builders sand or gravel.
• Using the Chair on stairs requires a minimum of two operators. Use additional help as needed to control the Chair
(see page 14).
• It is recommended that the two operators face each other when transporting a patient down stairs. If available a third
person should assist by acting as a guide for the foot-end operator.
• Ensure the route down the stairs is clear of obstructions that could aect the safety of the operators or the function of
the tracks.
1. Head-end operator – fully extend the upper handle and ensure it is locked. (see page 8).
2. Head-end operator – deploy the track and ensure it is locked (see page 9)
3. Foot-end operator – take up position on the stairs facing the chair and extend the lower foot-end handles and
ensure they are locked in place (see page 10)
4. Both operators – working together, guide the Chair over the edge of the top step, allowing the track belts to
engage the step.
5. Both operators – move the Chair slowly downwards until the tracks are resting on the top two or three steps.
This establishes the glide angle. Ensure both operators are comfortable before proceeding.
6. To maintain the glide angle –
• Head-end operator – applies slight downward pressure on the extended upper handle holding the
chair into the stairs
• Foot-end operator – applies slight downward and forward pressure to the foot-end lift handles holding
the chair into the stairs and maintain glide angle.
7. Both operators – when chair reaches the bottom of the steps and rear wheels are on the oor, the foot end operator
releases the foot-end handle, the head-end operator tips the Chair forward until all four wheels are on the oor.
8. If this is the end of the stairs then the Head-end operator can fold the track and lower the upper handle to a
comfortable height.
TO PAUSE DURING DESCENT
To pause during the descent, tilt the Chair forward just enough to allow the rear
wheels to rest on the step while both operators hold the Chair in place.
To continue down the stairs, tilt back the Chair and regain the glide angle (see
step 5 above)
6  OPERATING PROCEDURE GUIDELINES

17
© Ferno (UK) Ltd. FERNO/MAN/0721/212-R2/UK
Compact 5 Track Chair
WARNING
When moving patients always inform them of what
you are going to do.
WARNING
Never leave a patient unattended in the Chair and
always use restraints.
WARNING
Avoid rapid chair repositioning as this may result
in patient injury. Support the Chair while adjusting
handles.
Operating the Chair
6  OPERATING PROCEDURE GUIDELINES
6.4 Using the Chair Up-Stairs
Once the patient is seated on the Chair and restrained, adjust the upper handle into a position that is comfortable for your
height. (See Section 5.2 on Upper Handle). The upper handle position can be changed to provide a better hand grip.
Note: the cross bar can also be used for lifting.
Always inform the patient about what is happening.
Once the head end and foot end operators are in their correct positions grasping the head-end and foot-end handles, the
head end operator leans the Chair backwards until the patient’s weight is on the transport wheels.
At this point, the lower handle is more easily accessible to the foot end operator. The Chair can then be rolled backwards
towards the foot of the stairs. The operators can then move the Chair, lifting the chair and patient and start to ascend the
stairs, always observing local manual handling protocols.
Upon reaching the top of the stairs, carefully lower the wheels to the oor and continue to move the patient to the required
destination by wheeling the chair on all four wheels.
WARNING
Never fully extend the head-end upper handle to its
fullest extension when lifting the chair.
Full extension should only be used when
descending stairs on the tracks.

18 © Ferno (UK) Ltd. FERNO/MAN/0721/212-R2/UK
Compact 5 Track ChairOperating the Chair
8  CARE OF THE COMPACT 5 TRACK CHAIR
8.0 Maintenance
The Chair requires regular inspection. Set up and follow a
maintenance schedule. The table to the right represents
minimum intervals for maintenance. Ferno recommend to
lubricate every 3 months and/or after a deep clean.
Keep maintenance records.
Whenusingmaintenanceproducts,followthemanufacturer's
directions and read the manufacturer's material safety data
sheets.
Alternatively the Chair can be inspected in line with the
Ambulance maintenance schedule.
Further details on maintenance are available from Ferno
UK Service Department or through approved service
technicians.
WARNING
Improper maintenance can cause injury. Maintain
the Chair only as described in this manual.
Recommended
Maintenance Intervals
Each Use As Needed 3 Months
Disinfecting •
Cleaning •
Inspecting •••
Lubricating •
8.1 Disinfection & Cleaning
Wipe all surfaces with disinfectant. Follow the disinfectant manufacturer’s instructions for application method and contact
time. Ferno recommends you inspect the Chair for damage as you clean and disinfect it.
1. Remove the chest restraint, Track and any accessories.
2. Hand clean all surfaces of the Chair with warm water and a mild detergent.
3. Rinse with warm, clear water. Dry the Chair with a towel and allow it to air-dry thoroughly prior to storage.
4. To disinfect: Apply disinfectant to the Chair, following the disinfectant manufacturer’s instructions for application
method and contact time.
7  WALL MOUNTING BRACKET
7.0 Using the Wall Bracket
• Using the Bracket plate as a template, mark the surface where the holes are to be drilled. Taking in to account
height of chair.
• Drill the holes, using the appropriate size drill bit to suit your ttings.
• Once the wall plugs have been tted into the drilled holes t the bracket plate (using the appropriate length screws)
then tighten screws appropriately.
• Place the folded chair, with track strapped to chair and track on the oor against the wall.
• Feed strap from wall bracket around chair foot rest and tighten to secure chair.
• Cover the chair with dust cover (optional)
• ENSURE STAFF ARE TRAINED IN THE USE OF THE CHAIR.
WARNING
Disinfectants and cleaners containing bleach,
phenolics, or iodides can cause damage. Do not use
products containing these chemicals.

19
© Ferno (UK) Ltd. FERNO/MAN/0721/212-R2/UK
Compact 5 Track Chair Maintenance
WARNING
Modifying the Chair can cause injury and damage.
Use the Chair only as designed by Ferno.
8.2 Lubricating the Chair
Disinfect and clean the Chair before applying lubricant. Use the lubricants designated below to lubricate the Chair. Do not
lubricate points marked with the “do not lubricate” symbol.
LUBRICATION POINTS
Use a small amount of lubricant. Lubricate identical points on each side of the Chair. (See blue arrow)
1. Push-to-close Latches Liquid lubricant oil such as " 3-IN-ONE Multi-purpose drip oil"
2. Locking Bar Liquid lubricant oil such as " 3-IN-ONE Multi-purpose drip oil"
3. Hinge Points Liquid lubricant oil such as " 3-IN-ONE Multi-purpose drip oil"
DO NOT LUBRICATE THE TRACK (See Red Arrows)
8  CARE OF THE COMPACT 5 TRACK CHAIR
Do Not Lubricate Lubricate
Figure 23 - Lubricating Points 1 Figure 24 - Lubricating Points 2

20 © Ferno (UK) Ltd. FERNO/MAN/0721/212-R2/UK
Compact 5 Track Chair
8.4 Inspecting the Chair
Have your service’s equipment maintenance technicians
inspect the Chair regularly. Follow the checklist below and
operate the Chair through all its functions as described in
this manual.
If inspection shows damage or excessive wear, remove the
Chair from service until repair is made.
IMPORTANT
Using abrasive cleaning compounds or applicators
on the Chair can cause damage. Do not use abrasive
materials to clean the Chair.
INSPECTION CHECKLIST
● Are all components present?
● Is the Chair and Track free of excessive wear?
● Are all screws, nuts, bolts, rivets, and roll pins
securely in place?
● Do all moving parts operate smoothly and
properly?
● Does the Chair lock properly into each position?
● Does the safety hook engage the safety bar?
● Does the Chair roll smoothly?
● Do the wheels have adequate tread?
● Are the restraints properly installed?
● Is restraint webbing in good condition with no cuts
or frayed edges?
● Are restraint buckles free of visible damage and do
they operate properly?
● Do the Track operate properly without interfering
with Chair operation?
IMPORTANT
Water under high pressure, or steam, can penetrate
joints, ush away lubricant, and cause corrosion. Use
caution when cleaning moving parts such as joints and
hinges, and reapply lubricant if needed (see right).
IMPORTANT
Lubricating parts that should not be lubricated allows
dirt and foreign particles to collect on those parts,
resulting in damage.
Maintenance
WARNING
Do NOT lubricate the track belts. Doing so will result
in a loss of friction, causing danger to the operator
and occupant when descending stairs.
8  CARE OF THE COMPACT 5 TRACK CHAIR
