Ferno 59T EZ Glide User manual

Users’ Manual
59T EZ Glide®Evacuation Chair
February 2013
Pub. No. 234-3298-03
Read this Manual and
Retain for Future Reference

2© Ferno-Washington, Inc 234-3298-03 February 2013
59T EZ Glide®
USERS’ MANUAL
To request additional free users’ manuals,
contact Ferno Customer Relations, your
Ferno distributor, or visit www.ferno.com.
Disclaimer
This manual contains general instructions for the use, operation
and care of this product. The instructions are not all-inclusive. Safe
and proper use of this product is solely at the discretion of the
user. Safety information is included as a service to the user. All
other safety measures taken by the user should be within and under
consideration of applicable regulations. It is recommended that
training on the proper use of this product be provided before using
this product in an actual situation.
Retain this manual for future reference. Include it with the product
in the event of transfer to new users. Additional free copies are
available upon request from Customer Relations.
Proprietary Notice
The information disclosed in this manual is the property of Ferno-
Washington,Inc.,Wilmington, Ohio,USA.Ferno-Washington,Inc.
reserves all patent rights, proprietary design rights, manufacturing
rights, reproduction use rights, and sales use rights thereto, and
to any article disclosed therein except to the extent those rights
are expressly granted to others or where not applicable to vendor
proprietary parts.
Limited Warranty Statement
The products sold by Ferno are covered by a limited warranty,
which is printed on all Ferno invoices. The complete terms and
conditions of the limited warranty, and the limitations of liability
and disclaimers, are also available upon request by calling Ferno at
1.800.733.3766 or 1.937.382.1451.
Ferno Technical Support
Customerservice and productsupport areimportant aspects ofeach
Ferno product. Please have the product serial number available
when calling, and include it in all written communications. For
technical support questions:
Telephone (Toll-free) 1.800.733.3766 ext. 1010
Telephone [phone] ext. 1010
Email quality[email protected]
Ferno Customer Relations
For ordering assistance or general information:
CANADA AND THE U.S.A.
Telephone (Toll-free) 1.877.733.0911
Telephone [phone]
Fax (Toll-free) 1.888.388.1349
Fax [phone]
Internet www.ferno.com
ALL OTHER LOCATIONS
Forassistance orinformation, pleasecontact yourFerno distributor.
If you do not have a Ferno distributor, please contact Ferno
Customer Relations:
Ferno-Washington, Inc., 70 Weil Way
Wilmington, Ohio 45177-9371, U.S.A.
Telephone [phone]
Fax [phone]
Internet www.ferno.com
Serial Number _________________________
Location: Seat panel rear frame

3
© Ferno-Washington, Inc 234-3298-03 February 2013
59T EZ Glide®
TABLE OF CONTENTS
Ferno Technical Support_______________________ 2
Ferno Customer Relations _____________________ 2
1 - Safety Information __________________________ 4
1.1 Warning _______________________________ 4
1.2 Important ______________________________ 4
1.3 Tip ____________________________________ 4
1.4 Bloodborne Disease Notice ________________ 4
1.5 Symbol Glossary _________________________ 5
1.6 Safety and Instruction Labels_______________ 6
2 - Operator Skills and Training __________________ 6
2.1 Skills __________________________________ 6
2.2 Training________________________________ 6
3 - About the Chair _____________________________ 7
3.1 Description _____________________________ 7
3.2 Chair Features___________________________ 7
3.3 General Specications ____________________ 7
3.4 Components____________________________ 8
4 - Setup______________________________________ 9
4.1 Attaching Patient Restraints _______________ 9
4.2 Restraint Congurations __________________ 9
4.3 Ankle Restraint _________________________ 10
5 - Chair Features _____________________________ 11
5.1 Folding and Unfolding the Chair ___________ 11
5.2 Track System___________________________ 12
5.3 Extending Lift Bar _______________________ 13
5.4 Telescoping Lift Handles _________________ 13
5.5 Footrest_______________________________ 14
5.6 Wheel Locks ___________________________ 14
6 - Using the Chair ____________________________ 15
6.1 Before Placing the Chair in Service _________ 15
6.2 General Guidelines for Use________________ 15
6.3 Transferring the Patient __________________ 16
6.4 Rolling the Chair________________________ 16
6.5 Transporting a Patient Down Stairs _________ 17
6.6 Transporting a Patient Up Stairs ___________ 19
6.7 Pausing On the Stairs ____________________ 20
6.8 Using Additional Help ___________________ 21
7 - Maintenance ______________________________ 22
7.1 Maintenance Schedule___________________ 22
7.2 Disinfecting/Cleaning Restraints ___________ 22
7.3 Disinfecting/Cleaning the Chair ___________ 22
7.4 Cleaning Tracks and Belts_________________ 22
7.5 Inspecting the Chair _____________________ 23
7.6 Lubricating the Chair ____________________ 24
7.7 Do Not Lubricate Track System ____________ 24
7.8 Reconditioning the Track Belts ____________ 25
7.9 Adjusting Track-Belt Tension ______________ 26
7.10 Removing and Attaching the ABS Panels ____ 28
8 - Accessories ________________________________ 29
9 - Parts and Service___________________________ 30
9.1 U.S.A. and Canada_______________________ 30
9.2 Worldwide ____________________________ 30
9.3 Parts List ______________________________ 30
9.4 Parts Diagrams _________________________ 31
Training Record_______________________________ 32
Maintenance Record __________________________ 32
Section Page Section Page

4© Ferno-Washington, Inc 234-3298-03 February 2013
59T EZ Glide®Safety Information
1  SAFETY INFORMATION
1.1 Warning
Warning notices indicate a potentially hazardous situation
which, if not avoided, could result in injury or death.
1.4 Bloodborne Disease Notice
To reduce the risk of exposure to bloodborne diseases such
as HIV-1 and hepatitis when using the chair, follow the
disinfecting and cleaning instructions in this manual.
1.3 Tip
Tips provide recommendations for easier use of the product.
Important
1.2 Important
Importantnoticesemphasizeimportantusageormaintenance
information. Failure to follow Important notices could result
in damage to the product or property damage.
WARNING
Untrained operators can cause injury or be injured.
Permit only trained personnel to operate the chair.
Improper use of the chair can cause injury. Use the chair
only for the purpose described in this manual.
Improperly attaching restraints can allow seat and back
panels to dislodge, resulting in injury. Restraints must
capture panel AND chair frame.
Using the chair with the track system unlocked can cause
injury. Verify that the track system is locked before
transporting the patient.
Lubricating the track system can result in injury to the
patient and/or operators. Never lubricate the tracks or belts.
Improper operation can cause injury. Operate the chair
only as described in this manual.
An unattended patient can be injured. Stay with the
patient at all times.
An unrestrained patient can fall o the chair and be
injured. Use restraints to secure the patient on the chair.
Helpers can cause injury or be injured. Maintain control
of the chair, operate the controls, and direct all helpers.
Improper maintenance can cause injury. Maintain the
chair only as described in this manual.
Attaching improper items to the chair can cause injury.
Use only Ferno-approved items on the chair.
Improper parts and service can cause injury. Use only
Ferno parts and Ferno-approved service on the chair.
Modifying the chair can cause injury and damage. Use the
chair only as designed by Ferno.

5
© Ferno-Washington, Inc 234-3298-03 February 2013
59T EZ Glide® Safety Information
1.5 Symbol Glossary
The symbols dened below are used on the chair and/or in this users’ manual. Ferno uses symbols recognized by the International
Standards Organization (ISO),American National Standards Institute (ANSI) and the emergency medical services industry.
General Warning of
Potential Injury
Open Track System
Do Not Pressure Wash
Load Limit
(Safe Working Load in
pounds, kilograms, stone)
500 lb
227 kg
35.7 st
Do Not
Lubricate Lubricate
Product meets European
Union Standards
Read the Users’Manual
Close Track System
Manufacturer
Chair Operation Requires
Two Trained Operators
2
Unlocked Locked
Authorized Representative in the
European Community
QR Code
(Access Online Material)

6© Ferno-Washington, Inc 234-3298-03 February 2013
59T EZ Glide®
2  OPERATOR SKILLS AND TRAINING
2.1 Skills
Operators using the chair need:
● a working knowledge of emergency patient-handling
procedures.
● the ability to assist the patient.
WARNING
Untrained operators can cause injury or be injured.
Permit only trained personnel to operate the chair.
2.2 Training
Operator trainees need to:
● read and understand this manual.
● be trained on the use of the chair.
● practice with the chair before using it with a patient.
● record their training information. A sample training
record sheet is provided on page 32.

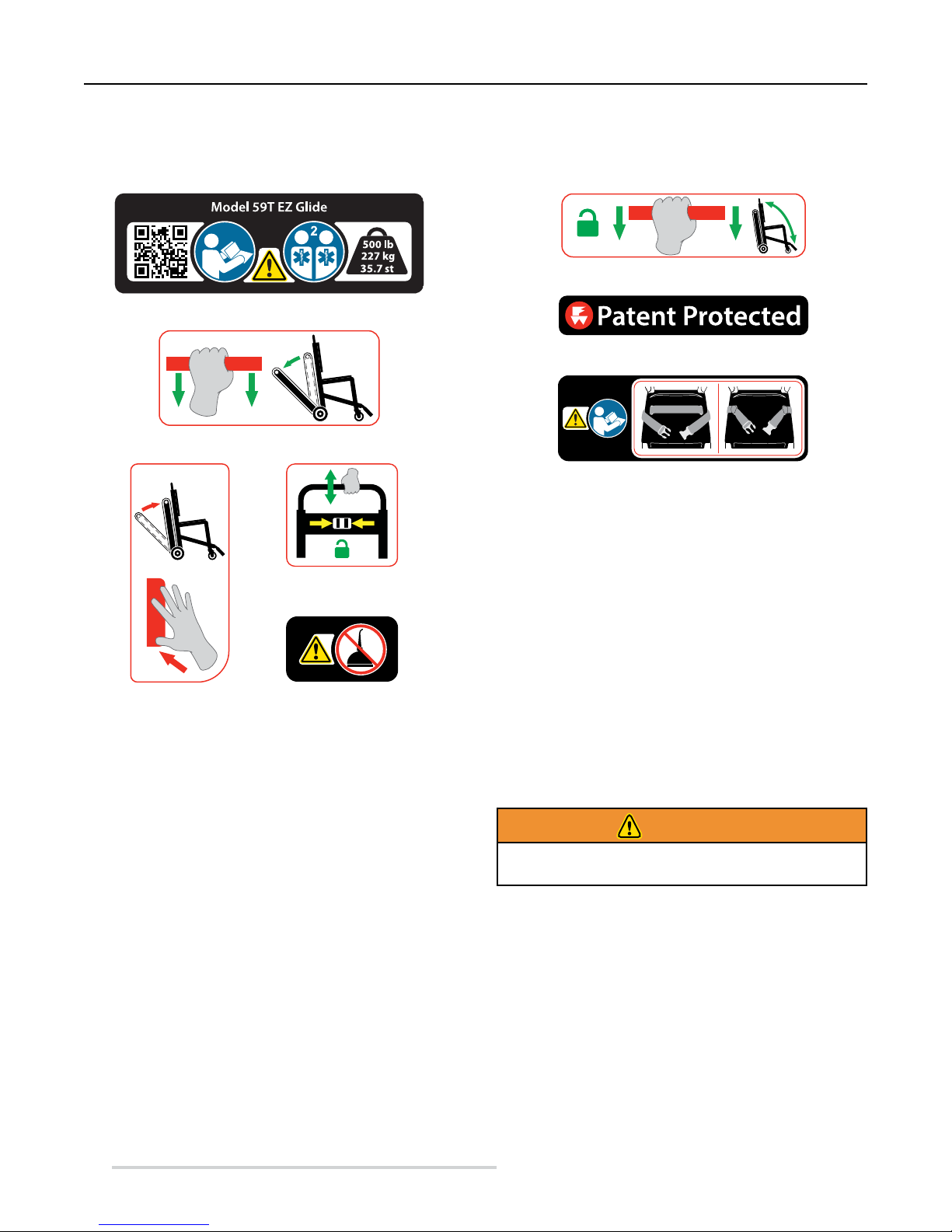

1.6 Safety and Instruction Labels
Safetyand instruction labels place important information from the users’manual onthechair. Read andfollowlabelinstructions.
Replace worn or damaged labels immediately. New labels are available from EMSAR (page 30) or from your distributor.
Safety Information, Operator Skills and Training
Safety Instruction: Attaching Restraints
Safe Use Guidelines
Instruction:
Adjusting Lift Bar
Risk of Injury: Do
Not Lubricate Tracks
Instruction:
Closing Tracks
Ferno Products are Protected by Patents Worldwide
Instruction: Folding/Unfolding the Chair
Instruction: Opening Tracks

7
© Ferno-Washington, Inc 234-3298-03 February 2013
59T EZ Glide®
3  ABOUT THE CHAIR
WARNING
Improper use of the chair can cause injury. Use the
chair only for the purpose described in this manual.
About the Chair
3.1 Description
The Ferno®Model 59T EZ Glide®Evacuation Chair
(referred to as the chair in this manual) is an emergency
patient-handling devices designed to transport a seated
patient up and down stairs and over at surfaces.
The chair is for professional use by a minimum of two
trained operators. A third person to “spot” may be required
by local protocols. Additional help may be required when
working with heavy patients.
Thechair is designed with belted tracks that enable operators
to “glide” the chair down stairs instead of carrying it.
3.2 Chair Features
● Belted track system for “gliding” chair down stairs
● Molded ABS seat and back panels
● Choice of color
● 5-position extending rear lift bar
● 5-position telescoping front lift handle (2)
● 6" rear locking wheel (2)
● 4" front swivel wheel (2)
● Folding footrest
● Ankle restraint
● Patient restraints (shown on page 8)
For chair accessories, including mounts and restraints, see
Accessories, page 29.
3.3 General Specications
Specications for the chair are shown in the table at right.
Ferno reserves the right to change specications without
notice. For more information, contact Ferno Customer
Relations or your Ferno distributor (page 2). Ferno reserves
the right to change specications without notice.
Load Limit
Inspect the chair if the load limit has
been exceeded (See Inspecting the
Chair, page 23).
500 lb
227 kg
35.7 st
Specication Imperial Metric
Load Limit 500 lb 227 kg
Load Limit (UK) 35.7 st
Weight* 33 lb 15 kg
Height
Maximum 63.5 1613 mm
Minimum 37.5 in 953 mm
Width
Overall 20.313 in 516 mm
Seat 16.5 in 419 mm
Depth (front to back)
Tracks closed,
Handles retracted
28.5 in 724 mm
Tracks Open,
Handles extended
51 in 1295 mm
Folded
Length x width x depth 37.5 in x
20.313 in x
8 in
953 mm x 516
mm x 200 mm
Wheels, Rear
Diameter 6 in 152 mm
Width 1.25 in 32 mm
Wheels, Front
Diameter 4 in 102 mm
Width 1.18 in 30 mm
Chair Construction Rectangular aluminum
Seat/Back Panels ABS Plastic
Wheel Bearings Sealed/greaseless
* Weight is without restraints or accessories

8© Ferno-Washington, Inc 234-3298-03 February 2013
59T EZ Glide®
Track (2)
4" Swivel Wheel (2) 6" Wheel with Lock (2)Folding Footrest
Telescoping Lift Handle (2)
Chair Lock Bar
Patient
Restraint (2)
Extending Lift Bar
Removable ABS Back
Panel with Restraint Slots
Removable ABS Seat
Panel with Restraint Slots
About the Chair
Restraint Options
(Contact Ferno for Details)
Model 430-P
Model 430
Coated Restraint
3.4 Components
Ankle Restraint
Belt (2)
Track Release Bar
IV Pole (Optional)
Extending Lift Bar
Lift Bar Release Tabs
Track Closing Handle
Locking Rear
Lift Handle
(Pair, Optional)
Wheel Lock (2)

9
© Ferno-Washington, Inc 234-3298-03 February 2013
59T EZ Glide®
4  SETUP
Setup
4.1 Attaching Patient Restraints
Use patient restraints to help hold the patient on the chair.
Each restraint must capture both the aluminum chair frame
and the seat or back panel. Follow local protocols when
attaching restraints.
USING TWOPIECE RESTRAINTS
1. Feed the loop of a restraint strap through a slot in the
seat or back panel.
2. Wrap the strap around the aluminum chair frame and
feed the male or female buckle through the loop, then
pull the strap tight against the frame and panel.
3. Repeat Steps 1-2 for the other half of the restraint.
USING ONEPIECE RESTRAINTS
Note:Two-piece restraints are recommended.
1. To attach the seat-panel restraint, lay the restraint
across the top of the seat panel and feed the male and
female ends of the restraint down through the slots.
2. Wrap the restraint around the aluminum chair frame
on each side of the chair, capturing both the panel and
the frame (Figure 1).
3. Buckle the restraint and adjust the length.
4. Repeat Steps 1-3 to attach the back-panel restraint.
Important
Restraint rules (also follow your local protocols):
● Use a minimum of two restraints.
● One restraint must be secured across the chair seat
to help hold the patient on the chair.
● Each restraint or strap must capture the aluminum
chair frame and the plastic panel.
WARNING
Improperly attaching restraints can allow seat and
back panels to dislodge, resulting in injury. Restraints
must capture panel AND chair frame.
4.2 Restraint Congurations
Follow local protocols when conguring and using
restraints. Two possible congurations are described below.
HORIZONTAL CONFIGURATION
Use one restraint for the chest and one restraint for the lap
(Figure 2). Use additional restraints as needed.
1. Attach the chest straps through the vertical slots in the
back panel.
2. Attach the lap straps through the seat panel slots.
CRISSCROSS CONFIGURATION
Use two restraints for the torso and a third restraint for the
lap (Figure 2).
1. Attach one strap of a restraint through a horizontal slot
on the back panel of the chair.
2. Attach the mating strap of the same restraint through
the seat panel slot on the opposite side of the chair.
3. Repeat with the second restraint, attaching its straps to
opposite sides of the chair.
4. Attach the lap restraint through the seat-panel slots.
Figure 1 - Restraint Capturing Frame and Panel
Capture Aluminum Frame and Panel at Each Side
Figure 2 - Horizontal Conguration (Left) and
Criss-Cross Conguration (Right)
Lap BeltLap Belt
Straps Must Capture Aluminum Frame and Panels

10 © Ferno-Washington, Inc 234-3298-03 February 2013
59T EZ Glide®Setup/Installation
4.3 Ankle Restraint
Use the ankle restraint to help keep the patient’s feet on the
footrest. Attach the two-piece ankle restraint to the front
legs of the chair. To attach the restraint:
1. Unbuckle the restraint to separate the straps.
2. Wrap a strap around one front leg of the chair and
thread the buckle through the loop, then pull the strap
tight around the chair leg (Figure 3).
3. Attach the remaining strap to the opposite front leg.
4. Buckle the restraint and adjust the length (Figure 4).
Figure 3 - Attaching the Ankle Restraint
Figure 4 - Ankle Restraint Attached

11
© Ferno-Washington, Inc 234-3298-03 February 2013
59T EZ Glide®
5  CHAIR FEATURES
Chair Features
Folding and Unfolding the Chair
The chair lock must be disengaged before you
begin folding or unfold the chair. Pull the lock
bar forward, then fold or unfold the chair.
When folding the chair, tilt the seat forward so
the swivel wheels rotate outward, away from
the seat.
UNFOLDING THE CHAIR
1. Stand beside the chair and grasp the lift bar with one
hand and the lock bar with the other hand.
2. Pull the lock bar forward (toward the front of the
chair), then pull the seat away from the lift bar until
the chair fully unfolds and the lock engages.
3. To verify the lock has engaged, hold the lift bar while
pulling up on the chair frame at the front of the seat.
The chair will not fold if the lock is engaged.
FOLDING AN OPEN CHAIR
1. Buckle the restraints and arrange the straps to prevent
interference with folding the chair.
2. Roll the chair backward to reverse the swivel wheels
(Figure 5).
3. Standing at the side of the chair, grasp the lift bar with
one hand and the lock bar with the other hand.
4. Pull the lock bar forward (Figure 6), toward the front
of the chair, then fold the seat toward the lift bar.
AS YOU FOLD THE SEAT: Tilt the chair forward
(Figure 7) to keep the swivel wheels rotated outward.
This prevents the wheels from holding the frame away
from the seat and allows the lock to engage.
5. Press the seat against the back-panel frame until the
lock engages (Figure 8).
6. Verify the lock has engaged by pulling the seat away
from the lift bar without pulling the lock bar. The seat
will not move if the lock is engaged.
Note:If the swivel wheels prevent the chair from locking in
the folded position, hold the chair at a greater tilt to allow
the swivel wheels to rotate away from the chair frame.
5.1 Folding and Unfolding the Chair
The red lock bar below the front edge of the seat disengages
the lock for unfolding and folding the chair. Before seating a
patient, verify that the chair is completely unfolded and the
lock is engaged.
Figure 7 - Folding
the Chair
Figure 8 - Engaging
the Lock
Figure 6 - Disengaging
the Lock Bar
Lock Bar
Figure 5 - Reversing
the Wheels
Swivel
Wheels
Reversed

12 © Ferno-Washington, Inc 234-3298-03 February 2013
59T EZ Glide®Chair Features
WARNING
Using the chair with the track system unlocked can
cause injury. Verify that the track system is locked
before transporting the patient.
WARNING
Lubricating the track system can result in injury to
patient and/or operators. Never lubricate the tracks
or belts.
5.2 Track System
The track system enables operators to glide the chair down
stairs instead of lifting and carrying it.
GUIDELINES FOR USE
● Using the chair on stairs requires a minimum of two
trained operators. Ferno recommends using a third
person as a “spotter” (see Transporting a Patient Down
Stairs, page 17).
● Verify that the track system is fully open and locked
before use.
● Never lubricate the belts. Lubrication can cause the
belts to perform unpredictably, resulting in injury to
the patient and/or operators.
● Moisture, water, snow, ice, or debris on or between the
tracks and belts can cause irregular belt performance that
results in sudden changes in the weight operators must
support. Make sure the tracks and belts are clean and dry
before using the chair on stairs.
● Moisture, water, snow, ice, or debris on the stairs can
cause poor footing for operators. To avoid possible
injury, clear the stairs or select an alternate route.
OPENING THE TRACK SYSTEM
1. Grasp the red release bar (Figure 9) and rmly pull the
track system away from the chair until it locks in the
open position.
2. Verify that track system has locked by trying to push
the tracks closed. If the lock is fully engaged, the track
system will not close.
CLOSING THE TRACK SYSTEM
With your hand, push the red closing handle down (Figure
10) until the track system closes completely.
Figure 9 - Opening the Track System
Figure 10 - Closing the Track System

13
© Ferno-Washington, Inc 234-3298-03 February 2013
59T EZ Glide® Chair Features
5.3 Extending Lift Bar
The rear operator uses the lift bar to guide and steer the chair
when rolling the chair and to control the chair on stairs.
The lift bar adjusts to ve locked positions (Figure 11).
Adjust the height according to operator preference and the
task or situation at hand.
RASING AND LOWERING THE LIFT BAR
1. Pinch and hold the release tabs together with one hand
to unlock the lift bar (Figure 12), then raise or lower
the lift bar with the other hand.
2. When the lift bar is near the desired position, let go of
the release tabs and raise or lower the lift bar until it
locks into position.
3. Verify that the lift bar is locked by trying to raise or
lower it without squeezing the release tabs. When the
lock is engaged the lift bar will not move.
5.4 Telescoping Lift Handles
The telescoping lift handles adjust to ve locked positions
(Figure 11).Adjust thehandles accordingto operator preference
and the task at hand.
EXTENDING/RETRACTING THE LIFT HANDLES
1. Press the release button (Figure 13) and push or pull
the handle near the desired stopping point.
2. Release the button and slide the handle a little forward
or backward until it locks into position.
3. Lock both handles at the same position. Verify that
both handles are locked by trying to push or pull them
without pressing the release buttons. When the locks
are engaged, the handles will not move.
Figure 12 - Pinch Tabs Together to Unlock Lift Bar
Figure 13 - Lift Handle Release Button
Figure 11 - Lift Bar and Lift Handle Positions
Lift Handle
5 Locking Positions
Lift Bar
5 Locking Positions

14 © Ferno-Washington, Inc 234-3298-03 February 2013
59T EZ Glide®
Chair Features
Footrest
Raise the footrest to the storage position
before transferring the patient onto or o
from the chair.
5.5 Footrest
The footrest has two positions: raised for storage, (Figure
14) and lowered for use (Figure 15).
To lower the footrest, swing it down until it stops.
To raise the footrest, swing it up until it stops.
GUIDELINES FOR USING THE FOOTREST
Use the footrest properly to ensure that is does not interfere
with patient’s or operators’feet.
● Before transferring the patient onto the chair, make
sure the footrest is raised in the storage position. Seat
the patient before lowering the footrest.
● When preparing to transfer the patient off the chair,
unfasten the ankle restraint and raise the footrest into
the storage position before unfastening the patient’s
torso and lap restraints. This will prevent the patient
from attempting to stand before the footrest has been
stored out of the way of his/her feet.
● Keep the footrest raised when it is not in use. Figure 14 - Footrest in Storage Position
Figure 15 - Footrest Lowered for Use
5.6 Wheel Locks
The rear chair wheels are tted with wheel locks to help
keep the chair from rolling during patient transfer.
Stay with the chair and maintain control of it at all times. Do
not use the wheel locks as a substitute for operator control.
To engage a wheel lock, press down the rear end of the lock
pedal (Figure 16).
To disengage a wheel lock, press down the forward end of
the lock pedal.
Figure 16 - Wheel Lock

15
© Ferno-Washington, Inc 234-3298-03 February 2013
59T EZ Glide®
6  USING THE CHAIR
Using the Chair
6.1 Before Placing the Chair
in Service
Personnel who will work with the chair need to read this
manual.
● Set up the chair, following the instructions in Setup
(pages 9-10).
● Conrm that the chair operates properly. See Inspecting
the Chair, page 23.
6.2 General Guidelines for Use
● Medical advice is beyond the parameters of this
manual.
● It is the users’ responsibility to ensure safe practices
for the patient and themselves.
● A minimum of two trained operators is required.
● Operators work together and maintain control of
the chair at all times.
● Followstandardemergencypatient-handlingprocedures
when operating the chair.
● Operators communicate with one another and use
coordinated movements to operate the chair.
● Ferno recommends that a third trained person serve as
a “spotter” while using the chair on stairs.
● Lift only the weight you can safely handle. Use
additional help when working with heavy loads
(patient and equipment). For placement of help, see
Using Additional Help, page 21.
● Stay with the patient at all times.
● Always use patient restraints to secure the patient on
the chair.
● Remove any water, ice, snow, or debris from the stairs
before using the chair on them.
● Remove any water, ice, snow, or debris from the track
and tread belts before using the chair on stairs.
● Verify that the track system is locked in the open
position before using the chair on stairs.
WARNING
Improper operation can cause injury. Operate the
chair only as described in this manual.
WARNING
An unattended patient can be injured. Stay with the
patient at all times.
WARNING
An unrestrained patient can fall o the chair and be
injured. Use restraints to secure the patient on the
chair.
WARNING
Lubricating the track system can result in injury to
patient and/or operators. Never lubricate the track
or belts.

16 © Ferno-Washington, Inc 234-3298-03 February 2013
59T EZ Glide®Using the Chair
6.3 Transferring the Patient
Always assist the patient onto and off from the chair.
ASSISTING THE PATIENT ONTO THE CHAIR
1. Unfold the chair and verify that it is locked.
2. Engage the wheel locks.
3. Verify that the footrest is in the storage position.
4. Assist the patient onto the chair using accepted
practices and following local protocols.
5. Fasten and adjust the torso and lap restraints.
6. Lower the footrest and place the patient’s feet on it.
7. Fasten and adjust the ankle restraint (Figure 17).
ASSISTING THE PATIENT OFF FROM THE CHAIR
1. Engage the wheel locks.
2. Unfasten the ankle restraint and raise the footrest to
the storage position.
3. Unfasten the torso and lap restraints.
4. Assist the patient off from the chair using accepted
practices and following local protocols.
6.4 Rolling the Chair
GENERAL GUIDELINES
● Roll the chair on smooth, at surfaces whenever
possible (Figure 18).
● For patient comfort, pull the chair backward over low
obstacles such as door sills.
● Close the track system and use the extending lift bar
and telescoping foot-end handles to lift and carry the
chair over curbs, high obstacles, and rough terrain.
● Use the track system to glide the chair down over
curbs or single steps (Figure 19).
TO ROLL THE CHAIR
1. Head-End Operator: Release the wheel locks.
2. Head-End Operator: Adjust the lift bar to a
comfortable height and grasp it to push and guide the
chair on all four wheels (Figure 18), or tilt the chair
back and roll it on its rear wheels.
3. Foot-End Operator: Assist the head-end operator as
needed and attend the patient.
Figure 17 - Patient Secured with Restraints
Figure 18 - Rolling the Chair
Figure 19 - Gliding Down a Step or Curb

17
© Ferno-Washington, Inc 234-3298-03 February 2013
59T EZ Glide® Using the Chair
6.5 Transporting a Patient
Down Stairs
GENERAL GUIDELINES
● Using the chair to move down stairs requires a
minimum of two trained operators working together.
Use additional help as needed to control the chair (see
Using Additional Help, page 21).
● Ferno recommends that the two operators face each
other when transporting a patient on stairs and that a
third trained person “spot” for the foot-end operator.
In some cases, the foot-end operator may be able to
descend the stairs facing forward, with his back to the
patient. Follow your local protocols for using chairs.
● Remove any water, ice, snow, or debris from the stairs
before using the chair on them.
● Remove any water, ice, snow, or debris from the track
system and belts before using the chair on stairs.
● Verify that the track system is locked in the open
position before using the chair on stairs.
● If the operators tire or need to attend the patient while
on stairs, see Pausing On the Stairs, page 20.
GLIDING THE CHAIR DOWN STAIRS
1. Head-end Operator: Roll the chair near the stairs and
engage the wheel locks.
2. Head-end Operator: Open the track system (See
Track System, page 12). Verify that it has locked.
3. Both Operators: Raise the lift bar and/or extend the
foot-end lift handles to the desired positions and verify
that all handles are locked (Figure 20).
4. Spotter: Stand below the foot-end operator with a
hand on the operator’s back to help steady and guide
him/her throughout the descent (Figure 20).
5. Head-end Operator: Disengage the wheel locks.
WARNING
Using the chair with the track system unlocked can
cause injury. Verify that the track system is locked
before transporting the patient.
The Landing Zone
Ferno recommends you visualize a“landing
zone”of at the top or bottom of the stairway.
The landing zone should provide enough
clear, safe space for the chair to be set on
all four wheels, away from the edge of the
stairway.
Figure 20 - Preparing to Descend
Spotter

18 © Ferno-Washington, Inc 234-3298-03 February 2013
59T EZ Glide®Using the Chair
6. Both Operators: Together, tilt the chair back until the
belts engage the oor (Figure 21).
7. Both Operators: Working together, guide the chair
slowly forward and downward until the tracks engage
two or three steps. This establishes the glide angle
(Figure 22).
8. Both Operators: To maintain the glide angle as you
descend, work together and:
○Head-end Operator: Apply slight downward
pressure on the extended lift bar.
○Foot-end Operator: Apply slight upward
pressure on the foot-end lift handles.
9. Both Operators: At the bottom of the stairway, tilt the
chair onto all four wheels.
10. If the chair has reached the destination, prepare the chair
for rolling by retracting the lift handles and lowering the
lift bar to a comfortable height. Close the track system.
11. To continue the descent, adjust the lift handles and
lift bar as needed to maneuver the chair to the next
stairway.
Note:In a narrow stairway, you may need to retract the
handles between each ight of stairs.
Figure 21 - Tilting the Chair Onto the Tracks
Figure 22 - Glide Angle
Figure 23 - Preparing to Roll the Chair

19
© Ferno-Washington, Inc 234-3298-03 February 2013
59T EZ Glide® Using the Chair
6.6 Transporting a Patient Up Stairs
GENERAL GUIDELINES
● Carrying the chair up stairs requires a minimum of two
operators. Use additional help as needed (see Using
Additional Help, page 21).
● Ferno recommends that the two operators face each
other when transporting a patient up stairs and that a
third person “spot” for the head-end operator. Follow
your local protocols for carrying chairs.
● If the operators tire or need to attend the patient while
on stairs, see Pausing On the Stairs, page 20.
CARRYING THE CHAIR UP STAIRS
1. Both Operators: Roll the chair to the bottom of the
stairs and position it with the patient’s back to the stairs.
2. Head-EndOperator: Extend the lift bar to the desired
position and verify that it is locked. Do not open the
track system.
3. Spotter: Stand above the head-end operator with a
hand on the operator’s back to help steady and guide
him/her throughout the ascent (Figure 24).
4. Foot-End Operator: Extend the foot-end lift handles
to the desired position and verify that both handles are
locked (Figure 24).
5. Both Operators and Spotter: Working together, the
operators grasp the lift bar and lift handles and carry
the chair up the stairs. The spotter keeps a hand on
the head-end operator’s back and provides verbal
guidance (Figure 25).
6. Both Operators: At the top of the stairs, the head-end
operator sets the rear wheels of the chair on the oor
and rolls the chair backward until the front wheels are
securely on the oor.
7. If the chair has reached the destination, prepare the chair
for rolling by retracting the lift handles and lowering the
lift bar to a comfortable height.
8. To continue the ascent, adjust the lift handles and
lift bar as needed to maneuver the chair to the next
stairway.
Note:In a narrow stairway, you may need to retract the
handles between each ight of stairs.
Figure 24 - Preparing to Carry the Chair
The Landing Zone
Ferno recommends you visualize a“landing
zone”of at the top or bottom of the stairway.
The landing zone should provide enough
clear, safe space for the chair to be set on
all four wheels, away from the edge of the
stairway.
Figure 25 - Carrying the Chair Up Stairs
Spotter
Transporting a Patient Up Stairs
The EZ Glide track system was designed to
assist in descending stairs. To ascend stairs,
lift and carry the chair. When carrying the
chair, close the track system to keep it out of
the way of the head-end operator.

20 © Ferno-Washington, Inc 234-3298-03 February 2013
59T EZ Glide®Using the Chair
6.7 Pausing On the Stairs
If the operators tire, or need to attend the patient during a
transport up or down stairs, the operators communicate and
work together to pause on the stairs (Figure 26).
PAUSING DURING A DESCENT
Both operators tilt the chair forward, off the tracks, to allow
the rear wheels to rest on the step. Both operators hold the
chair in place.
To resume a descent, both operators tilt the chair back to the
glide angle and engage the belts on the steps. Then, continue
down the stairs as instructed in Transporting the Patient
Down Stairs, pages 17-18.
PAUSING DURING AN ASCENT
Both operators set the chair down on its rear wheels on a
step. Both operators hold the chair in place (Figure 26).
To resume, lift and carry the chair as instructed in
Transporting the Patient Up Stairs, page 19.
Figure 26 - Pausing On the Stairs
