Ferno Venice Basic Operating instructions

User and
maintenance manual
Evacuation chair Model
Venice Basic, Venice Plus, Venice Power
Venice Clack locking system
Read this manual
carefully and keep it
for future reference
Rel.15012020 English (UK)

2© Ferno Washington Italia. Rel.15012020
Venice evacuation chair - Venice Clack locking system
© Copyright Ferno s.r.l. All rights reserved.
USER AND MAINTENANCE MANUAL
To request additional free copies of the
instruction manual, please contact Ferno
s.r.l.'s Customer Service.
Ferno Technical Support
Customer Service and Technical Support are important aspects of
every Ferno product. Before contacting us, note the serial number
of the product and specify it in all written communications. For all
queries concerning technical support, contact Ferno s.r.l.:
Telephone (toll-free in Italy) 800.501.711
Fax [phone]
E-mail [email protected]
Ferno Customer Service
For assistance and further information, contact Ferno s.r.l.'s
Customer Services:
MANUFACTURER
Ferno s.r.l., Via Benedetto Zallone 26
40066 - Pieve di Cento (BO) - ITALY
Telephone (toll-free in Italy) 800.501.711
Phone [phone]
Fax [phone]
Website www.ferno.it
Limitation of liability
This manual contains general instructions on the use and
maintenance of the product. The instructions do not cover all
possible applications and operations. The user is solely responsible
for proper and safe use of the product. The safety information is
provided as a service to the user and ensures only the minimum
required level of safety to prevent injury to operators and patients.
Any other safety measure implemented by the user must comply
with applicable regulations. Before using the product, it is strongly
recommended that staff be trained in its correct usage. Retain
this manual for future reference. In case of change of ownership,
ensure that the manual remains with the product. Additional free
copies can be obtained from Ferno s.r.l.'s Customer Service.
Intellectual property declaration
The information in this manual is the property of Ferno s.r.l. - Via
Benedetto Zallone 26, 40066 Pieve di Cento (Bologna) Italy.
All patent rights, design rights, construction, reproduction, use and
sale relating to any item covered in this manual are the condential
and exclusive property of Ferno s.r.l., except for rights expressly
transferred to third parties or not attributable to parties owned by
the supplier. It is prohibited to reproduce this manual, either in full
or in part, without the prior consent of Ferno s.r.l.
Limited warranty
Ferno products are covered by a 24-month warranty against
manufacturing defects. For the full terms and conditions of
warranty and liability, see Chapter 13 Warranty, page 54.

3
© Ferno Washington Italia. Rel.15012020
Venice evacuation chair - Venice Clack locking system
TABLE OF CONTENTS
Chapter/Section Page
Ferno Customer Service _______________________ 2
Ferno Technical Support _______________________ 2
1 - Safety information ___________________________ 4
1.1 Warning________________________________ 4
1.2 Important_______________________________ 4
1.3 Blood-borne diseases _____________________ 4
1.4 Load capacity ___________________________ 4
1.5 Compatibility with locking systems __________ 4
1.6 Disposal________________________________ 4
1.7 Glossary of symbols ______________________ 5
1.8 Information and safety labels _______________ 6
2- Operator training and skills ___________________ 7
2.1 Skills __________________________________ 7
2.2 Training ________________________________ 7
3 - The device__________________________________ 7
3.1 Description _____________________________ 7
3.2 CE Compliance __________________________ 7

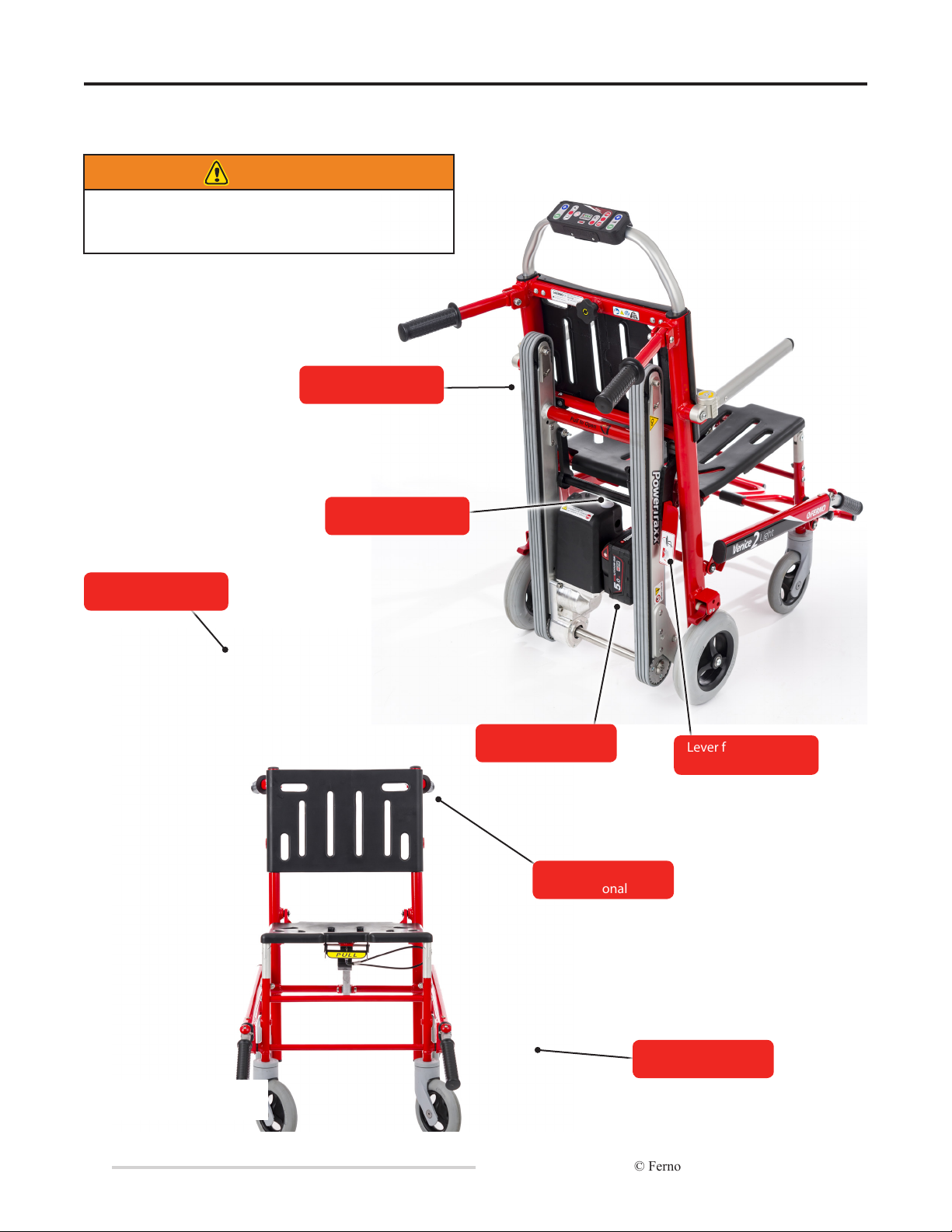

3.3 Components (Venice Basic) ________________ 8
3.4 Components (Venice Plus) _________________ 9
3.5 Components (Venice Power)_______________ 10

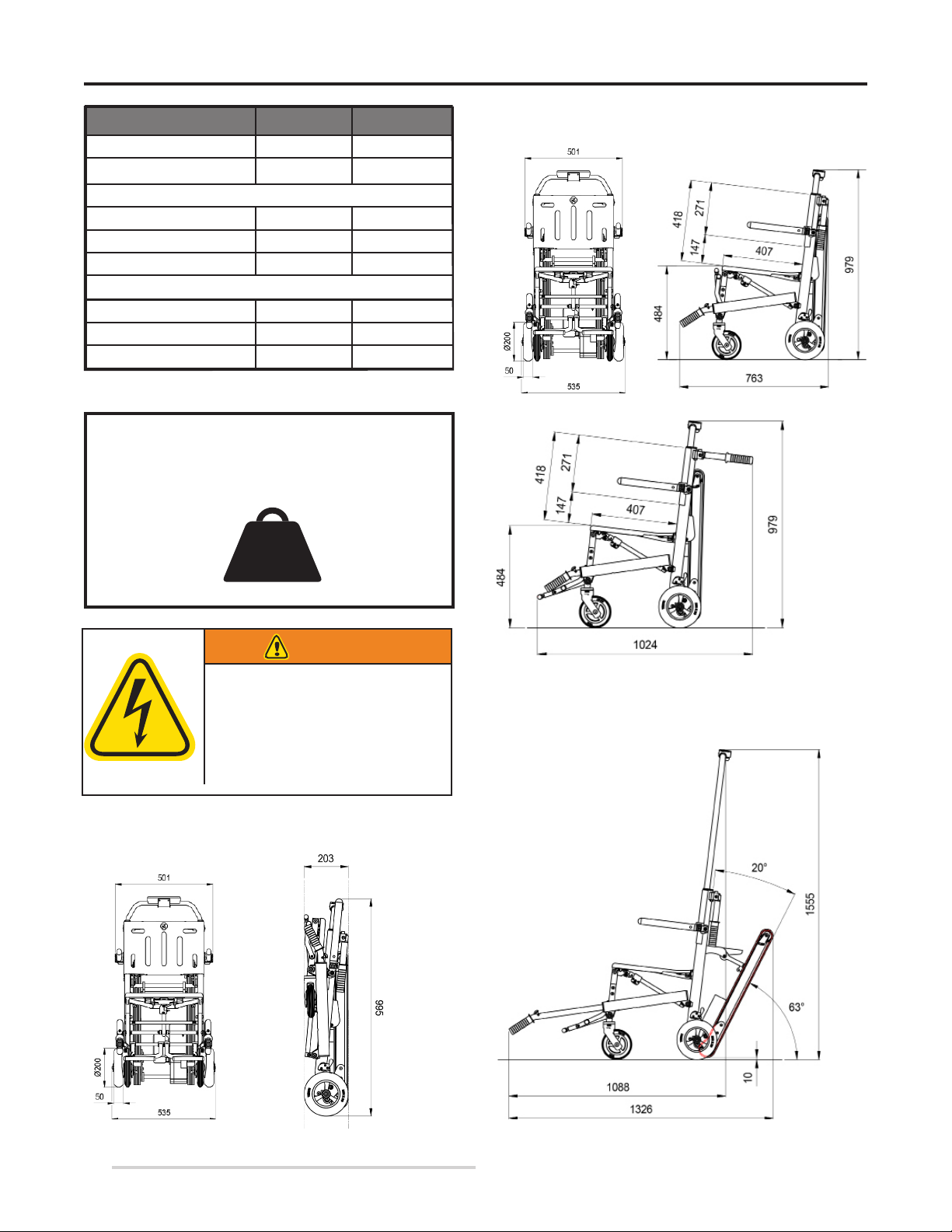

3.6 General specications ____________________ 11
4 - Accessories ________________________________ 13
4.1 Venice accessories (optional) ______________ 13
4.2 Standard components for Venice Power ______ 14
5 - Device conguration ________________________ 15
5.1 Initial setup ____________________________ 15
5.2 Restraint application _____________________ 15
5.3 Rear foldable handles ____________________ 17
5.4 Telescopic front handles __________________ 18
5.5 Rear wheel brakes _______________________ 18
6 - Using the chair _____________________________ 19
7 - Transferring the patient _____________________ 19
7.1 Using the Chair _________________________ 19
7.2 How to stop on the stairs__________________ 21
7.3 Additional help _________________________ 21
7.4 Going down the stairs with the manual track
chair (Venice Plus) ______________________ 22
8 - Venice power conguration___________________ 24
8.1 Initial setup ____________________________ 24
8.2 Motorised system _______________________ 25
8.3 Control Unit ___________________________ 26
8.4 Power button ___________________________ 27
8.5 Ascent and descent controls _______________ 27
8.6 Brake Button ___________________________ 28
8.7 Lights button ___________________________ 28
8.8 Speed Limiter SSL ______________________ 28
8.9 Selecting movement speed ________________ 28
8.10 Battery________________________________ 29
8.11 Inserting and removing the battery __________ 30
8.12 Battery warnings ________________________ 31
8.13 Battery charger _________________________ 32
8.14 Tracks ________________________________ 33
9 - Use of the venice power chair _________________ 34
9.1 Before putting the chair into service_________ 34
9.2 Instructions for Use______________________ 34
9.3 Transferring the patient ___________________ 35
9.4 Handling the chair_______________________ 35
9.5 Going down stairs _______________________ 35
9.6 How to stop on the stairs__________________ 36
9.7 Going up stairs _________________________ 36
9.8 Use without the motor____________________ 37
9.9 Additional help _________________________ 38
10 - Maintenance ______________________________ 39
10.1 Routine and preventive maintenance ________ 39
10.2 Disinfecting the device ___________________ 39
10.3 Cleaning the device ______________________ 40
10.4 Inspection _____________________________ 40
10.5 Lubricating the device ___________________ 40
10.6 Venice Power inspection__________________ 42
10.7 Control unit batteries_____________________ 43
10.8 Adjusting track tension ___________________ 44
10.9 Removing and tting the ABS panels________ 45
10.10 Auxiliary connection cable _______________ 46
11 - Venice clack locking system _________________ 47
Warning ___________________________________ 47
Operators’ knowledge ________________________ 48
Operator training and skills ____________________ 48
Description of the locking system_______________ 49
Instructions for use __________________________ 49
Locking system installation ___________________ 51
Wall mounting ______________________________ 51
Compatibility with ezclack ____________________ 52
12 - Technical support__________________________ 53
13 - Warranty ________________________________ 54
Training record _______________________________ 57

4© Ferno Washington Italia. Rel.15012020
Venice evacuation chair - Venice Clack locking system
1  SAFETY INFORMATION
1.1 Warning
The danger symbols draw attention to potentially dangerous
situations that, if disregarded, may result in accidents,
damage and/or injury.
WARNING
Untrained users may injure themselves, cause damage and/or
physical harm. Allow only trained and qualied sta to use the
device.
Improper use of the device may cause damage and / or injury. Use the
device as described in this manual.
Occasional assistants may cause damage and/or physical harm, or
injure themselves. Always keep the device under control, activate the
controls, and coordinate the assistants.
An unassisted patient is at risk of injury. Never leave the patient
alone, and always assist the patient when using the device.
Failure to use the restraints can cause the patient to fall and endanger
their safety. Always use restraints to secure the patient to the device.
Improper maintenance may cause serious accidents, injuries and/or
damage. Perform maintenance as instructed in this user manual.
The use of improper and/or unauthorised devices may cause
accidents, damage, and/or injury. Use only devices that have been
approved and authorised by Ferno s.r.l..
Unauthorised modications can cause injury and / or damage. Use
the device only as approved by Ferno.
Unauthorised repairs, and repairs carried out by people not
approved by Ferno s.r.l., will render all warranties null and void and
may compromise the safety of the device.
Non-original spare parts and inadequate repairs may cause damage
and/or injury. Use only original Ferno parts and refer exclusively to
Ferno s.r.l. Customer Support.
1.2 Important
Boxes labelled "Important" contain important
information on use and/or maintenance of the device.
Important
1.4 Load capacity
Observe the load capacity of the Venice device. Refer to
section 3.6 General specications, page 11.
1.3 Blood-borne diseases
To reduce the risk of exposure to infectious diseases that
may be transmitted by blood, such as HIV-1 or Hepatitis,
follow the instructions on disinfection and cleaning in this
manual carefully.
1.6 Disposal
CORRECT DISPOSAL OF THE BATTERIES
The batteries should be disposed of
properly at the end of their life-cycle. Do
not dispose of the batteries with household
waste. For proper disposal, contact the
appropriate authority.
The chair has a main rechargeable
lithium ion battery to power the motorised system, and two
non-rechargeable "AA" batteries for the control unit.
WEEE DIRECTIVE EU
Directive 2002/96/EC of the European Parliament and
Council on waste electrical and electronic equipment
(WEEE) restricts electrical and electronic equipment waste.
For proper disposal, contact the appropriate authority.
Li-ion
1.5 Compatibility with locking systems
The VENICE POWERTRAXX chair is designed to be used
with the Ferno VENICE CLACK locking system for storage.
Any other conguration is not compatible with the
specications and instructions contained in this manual.
Ferno s.r.l. is not liable for damages caused to users or
third parties arising from improper use of the VENICE
POWERTRAXX chair.

5
© Ferno Washington Italia. Rel.15012020
Venice evacuation chair - Venice Clack locking system
––lb
--kg
--st

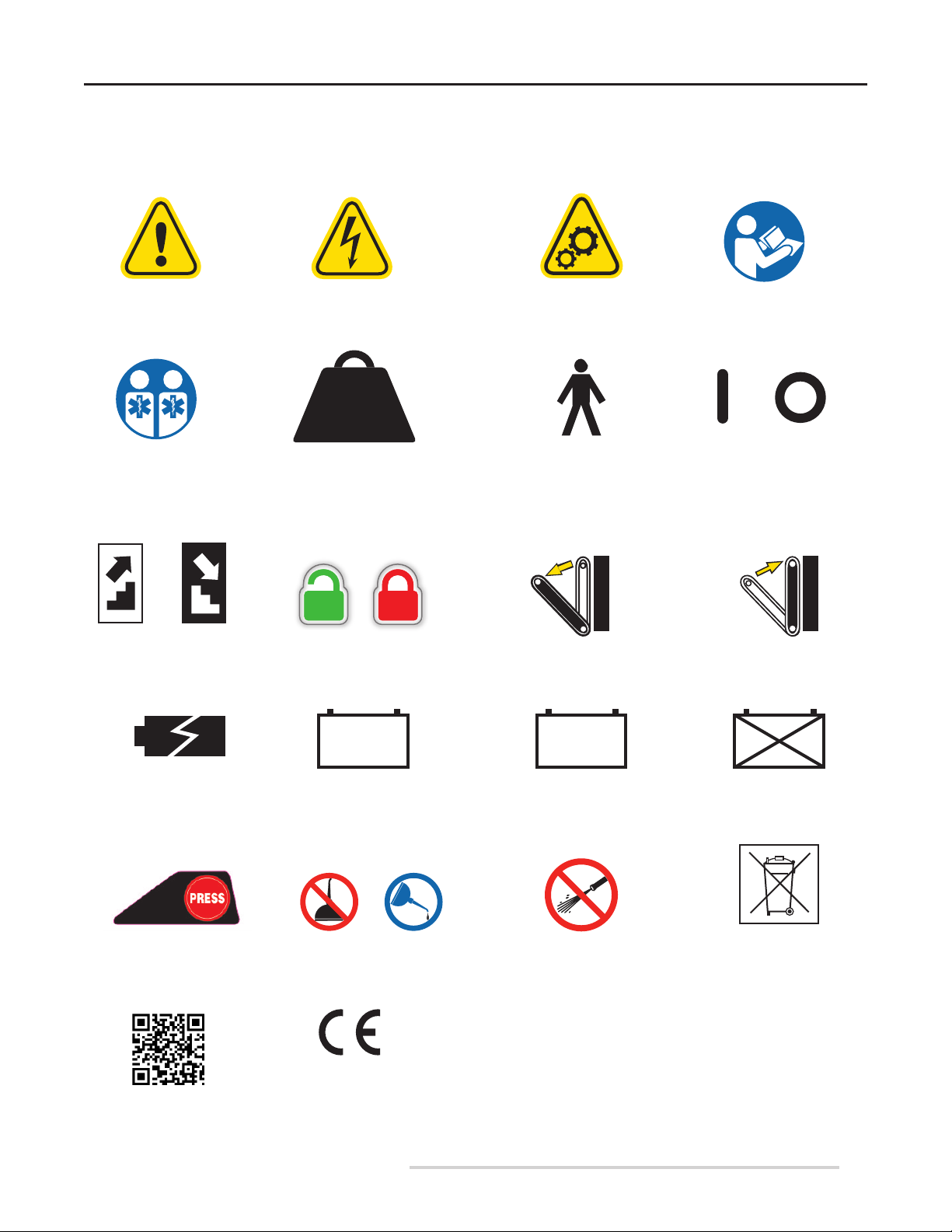

1.7 Glossary of symbols
The symbols used in this manual and/or on the chair's labels are dened below. The CE mark is present on the chair and in this manual.
WEEE Directive:
Dispose of batteries properly
ASCENT DESCENT
This product meets
European Union
Standards
Do not
lubricate
Lubricate
Unlocked Locked
Read the user manual
carefully
The chair requires at least
two qualied operators
for correct use.
2
Close the track carriage
Danger: Risk of injury Danger: Risk of electric
shock
Load capacity (in pounds,
kilos and stone)
OFFON
Do not wash with
high pressure jets
Open the track carriage
Battery charge is low (Replace the
control unit batteries)
Main battery charge is
OK
Main battery charge is low
OK
MAIN
BATTERY
CHECK
MAIN
BATTERY
Main battery charge is
insufcient
QR Code
Type B applied part
Danger: Mechanical risk
PRESS the red buttons on the main
battery to extract it

6© Ferno Washington Italia. Rel.15012020
Venice evacuation chair - Venice Clack locking system
1.8 Information and safety labels
The information and safety labels contain important information that the user needs to know.
Read and follow the label instructions. Replace worn and/or damaged labels immediately. To obtain replacement labels, contact
Ferno s.r.l.'s Customer Service (page 2). The labels shown below are attached to the device.
Label with serial number and load capacities
Label showing how to open the track carriage Label showing how to close the track carriage
238-1425-02 A 238-1425-02 B
238-1425-02 C (x2)
238-1425-02 D
238-1425-02 E
238-1425-02 F
238-1425-02 G
238-1425-02 H
2.69”
8.49”
.88”
1.19”
1.5”
2.99”
4.68”
2.22”
1.26”
.85”
1.5”
1.62”
3.67”
3.44”
1.60”
.35”
Do NOT lubricate label
238-1425-02 A 238-1425-02 B
238-1425-02 C (x2)
238-1425-02 D
238-1425-02 E
238-1425-02 F
238-1425-02 G
238-1425-02 H
2.69”
8.49”
.88”
1.19”
1.5”
2.99”
4.68”
2.22”
1.26”
.85”
1.5”
1.62”
3.67”
3.44”
1.60”
.35”
PUSH
to
Close

7
© Ferno Washington Italia. Rel.15012020
Venice evacuation chair - Venice Clack locking system
3  THE DEVICE
3.1 Description
The Ferno VENICE evacuation chair (hereinafter simply
referred to as "chair") is a device for transporting a
seated patient up and down stairs and over at surfaces.
The chair can be congured with a set of accessories and
is compatible with both manual and motorized tracks.
This system is powered by a rechargeable 28 VDC battery
(supplied as standard). The operator can control the chair by
means of an easily accessible and identiable control unit.
The control unit is mounted on the extendible carrying handle.
The chair should be used by duly trained operators only. The
chair is for professional use by at least 2 qualied operators.
Additional help may be required
to handle heavy patients and/or when the situation demands it,
and should always be provided according to local healthcare
regulations. A third operator may be required depending on
local regulations. Additional assistance may be required to
handle heavy patients and/or when the situation demands it,
and should always be provided according to local healthcare
regulations.
COMPONENTS SUPPLIED WITH THE DEVICE
● Front telescopic handles adjustable in 5 positions
● Rear closable handles
● Rear wheels of 200 mm - length 30 mm
● Front wheels of 150 mm - length 30 mm
● Patient restraint system
● User's manual
Read the user manual
carefully
The device requires at least
two qualied operators for
correct use.
2
2 OPERATOR TRAINING AND SKILLS
WARNING
Improper use of the device may cause damage and /
or injury. Use the device as described in this manual.
2.1 Skills
Operators who use the device must:
● have specic experience in patient handling and
transport procedures;
● possess the appropriate skills to assist the patient;
● record the training sessions on the form on page 55.
2.2 Training
Operators are required to:
● read and understand all information in this manual.
● attend a suitable training course on the use of the
device.
● practice with the device before using it in real
situations with patients.
● log the training sessions.
Important
Ferno s.r.l. is not liable for damages caused to users
and/or third parties arising from improper use of the
device, or if the Venice evacuation chair is used with a
device not approved by Ferno s.r.l..
WARNING
Any conguration unauthorised by Ferno s.r.l. could
cause damage and/or serious injury.
If used in a dierent conguration, contact the
Technical Service team at Ferno s.r.l. directly. (see
page 2).
3.2 CE Compliance
MEDICAL DEVICES DIRECTIVE
Ferno's products meet the requirements of
European Directive 93/42/EEC concerning
medical devices.
For more information: www.ferno.it
Label showing how to close the track carriage

8© Ferno Washington Italia. Rel.15012020
Venice evacuation chair - Venice Clack locking system
3.3 Components (Venice Basic)
SIDE VIEW
FRONT VIEW

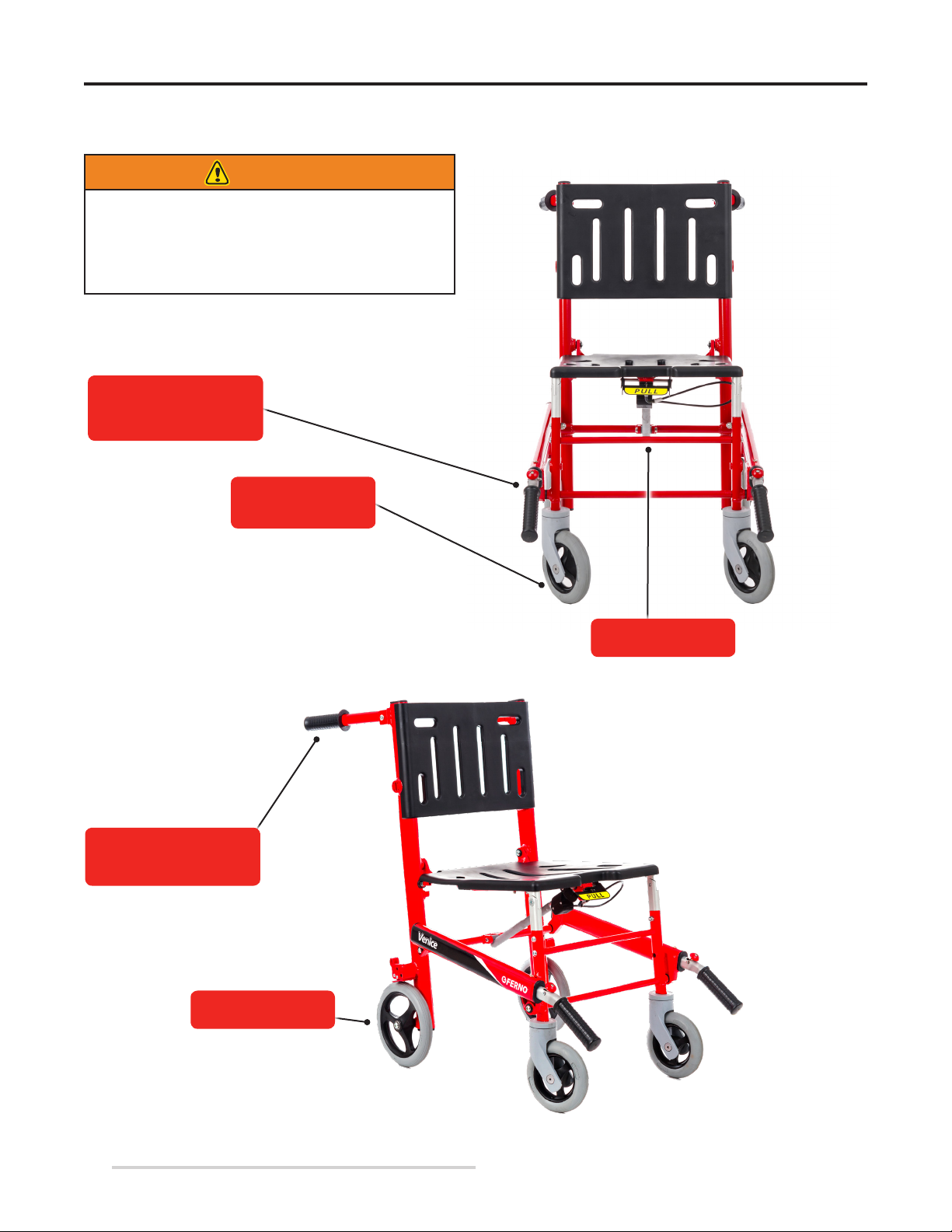

Rear closable handles
Telescopic handles
extensible in 5 positions
Rear wheels
of 200 mm
Locking lever
Front caster wheels of
150 mm
WARNING
The evacuation chair Model Ferno VENICE can be
congured with a set of accessories.
When a manual or motorised track is added, the
name changes into Venice Plus or Venice Power,
respectively.

9
© Ferno Washington Italia. Rel.15012020
Venice evacuation chair - Venice Clack locking system
SIDE VIEW
FRONT VIEW
Toothed track
3.4 Components (Venice Plus)
WARNING
The evacuation chair Model Ferno VENICE PLUS
can be congured with a set of accessories and is
equipped with a manual track.

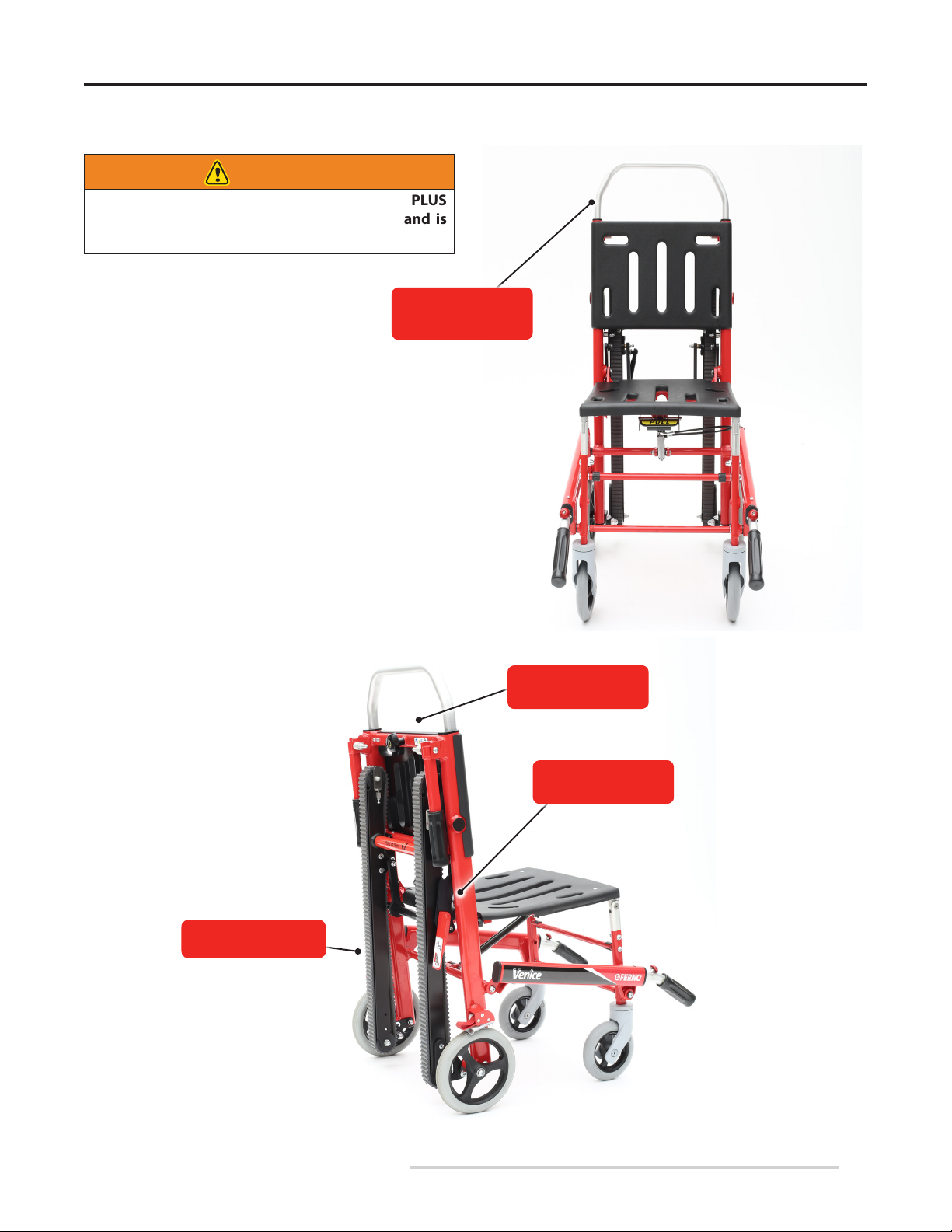

Extendible carrying
handle (with
adjustable height)
Handle adjustment
lever
Track carriage locking
system

10 © Ferno Washington Italia. Rel.15012020
Venice evacuation chair - Venice Clack locking system
3.5 Components (Venice Power)
WARNING
The evacuation chair Model Ferno VENICE POWER
can be congured with a set of accessories and is
equipped with a motorised track (Powertraxx).
Adjustable armrests
(optional)
Control unit
SIDE VIEW
REAR VIEW
Foot/leg rest (optional)
Motorised tracks
Safety lighting
Lever for closing the
track carriage
Main battery

11
© Ferno Washington Italia. Rel.15012020
Venice evacuation chair - Venice Clack locking system
3.6 General specications
Ferno reserves the right to change the specications without
notice. For further details, please contact Ferno's Customer
Service (page 2).
*With rear handles open
Load capacity
Never exceed the load capacity of the device. Inspect
the device if the load capacity has been exceeded.
230 kg
507 lb
36.2 st
Venice Basic closed
Venice Basic open
Specications
Load capacity 507 lbs 230 kg
Weight* 21.83 lbs 9.9 kg
Closed chair
Width 19.80 in 503 mm
Height 35.75 in 908 mm
Depth 8.03 in 203 mm
Open chair
Width 19.80 in 503 mm
Height 33.82 in 859 mm
Depth* 8.86 in 990 mm
Closed in
20 cm

12 © Ferno Washington Italia. Rel.15012020
Venice evacuation chair - Venice Clack locking system
Venice Power (full optional) closed
Venice Power (full optional) open
Specications
Load capacity 507 lbs 230 kg
Weight* 53.3 lbs 24,2 kg
Closed chair
Width 21.06 in 535 mm
Height 39.17 in 995 mm
Depth 7.99 in 203 mm
Open chair
Width 21.06 in 535 mm
Height 38.54 in 979 mm
Depth* 38.42 in 976 mm
Load capacity
Never exceed the load capacity of the device. Inspect
the device if the load capacity has been exceeded.
230 kg
507 lb
36.2 st
WARNING
DO NOT OPEN THE MOTOR
HOUSING.
There are no user serviceable
parts inside. Contact Ferno s.r.l. for
Technical Assistance.
*With rear handles open and footrest raised.

13
© Ferno Washington Italia. Rel.15012020
Venice evacuation chair - Venice Clack locking system
FOOT/LEG REST
Use as footrest
Loosen the nut and turn the rest towards the ground. Once
the desired position is achieved, tighten the nut until the
footrest is stable.
Use as leg rest
Loosen the nut and turn the rest upwards. Once the desired
position is achieved, tighten the nut until the footrest is
stable. Use the button on the nal part to adjust its length, it
can be extended as required.
Foot / leg rest
4.1 Venice accessories (optional)
The Venice chair can be congured with a set of accessories,
as well as with the manual track (Venice Plus) and the
motorised track (Venice Power).
ADJUSTABLE ARMRESTS
In order to raise or lower the armrests, bring them to the
desired position.
To widen the armrest: Activate the locking system by raising
the armrest and keeping it parallel to the ground, then widen
it up to the maximum extension. Make sure the armrest is
locked.
To narrow the armrest: Activate the locking system by
raising the armrest and keeping it parallel to the ground,
then take it back to the original position. Make sure the
armrest is locked (Figure 1 and 2).

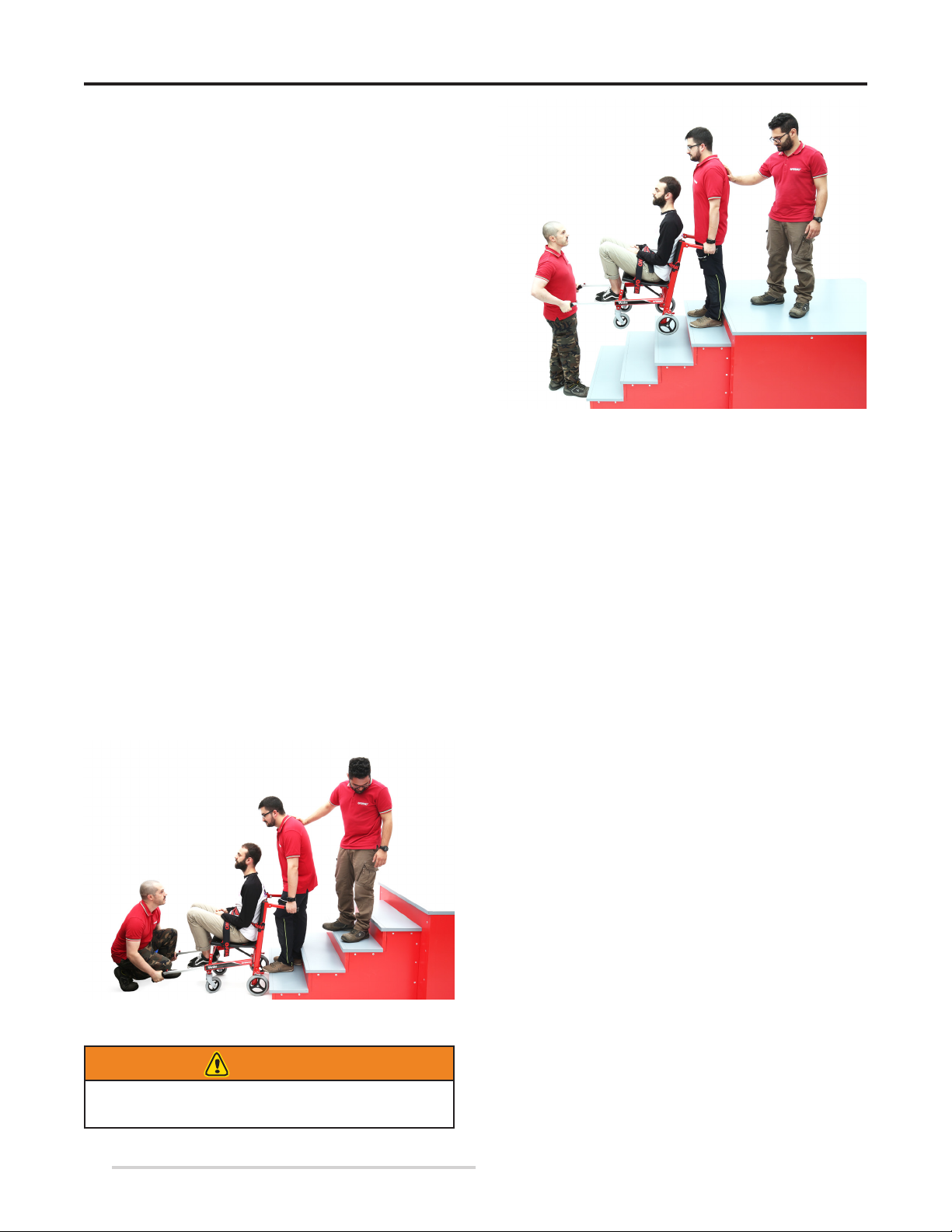

Figure 1
Figure 2
4  ACCESSORIES
Ferno offers several approved accessories for the Venice
chair. Always follow the directions in this instruction manual.
For more product information, contact Ferno Customer
Service (page 2).
WARNING
The use of improper and/or unauthorised devices
may cause accidents, damage, and/or injury.
Use only devices that have been approved and
authorised by Ferno s.r.l..

14 © Ferno Washington Italia. Rel.15012020
Venice evacuation chair - Venice Clack locking system
Battery charger
Main battery
Auxiliary connection cable
Small
storage bag
Serial port
Motorised system components
Port for auxiliary
cable
Tracks
Control unit
Speed button
Brake
button
Lights button
Front and Rear lighting system
4.2 Standard components for Venice
Power
● Motorised system for ascending and descending stairs
● Control unit
● Rechargeable 28V lithium-ion battery
● 1.5V AA alkaline batteries
● Battery charger
○220-240 VAC, 50/60 Hz (Europe); CE certicate
● Auxiliary connection cable
Green power light
Power button
Rear Light
Main battery
Motor housing

15
© Ferno Washington Italia. Rel.15012020
Venice evacuation chair - Venice Clack locking system
5  DEVICE CONFIGURATION
5.1 Initial setup
Before using the Venice device:
● Apply the restraints.
● Inspect the chair (see section 10.4 Inspection, page 40).
● Inspect all components supplied with the device.
5.2 Restraint application
Use restraints to secure the patient to the chair.
Each restraint must be fastened to both sides of the seat or
the backrest and to the aluminium frame of the chair. Always
secure all restraints before moving the chairs.
TWO-PIECE RESTRAINTS

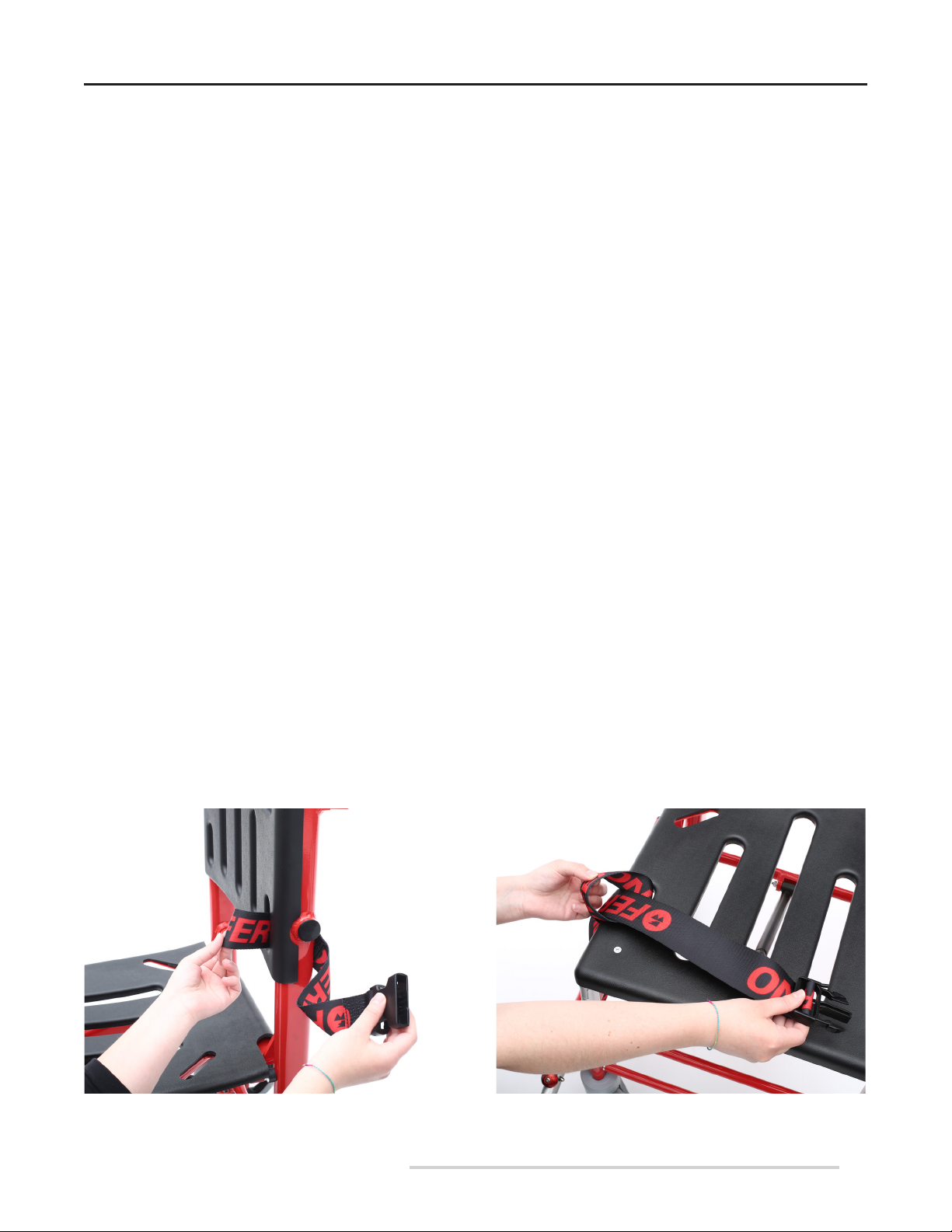

1. Slide the restraint through the opening on the seat or the
backrest panel (Figure 1 and 2).
2. Make sure that the restraint wraps around chair aluminium
frame. Make a knot by inserting buckle (male or female),
then pull the restraint so that it wraps around panel and
frame.
3. Repeat steps 1 to 2 for the other restraint end.
Figure 1 Figure 2

16 © Ferno Washington Italia. Rel.15012020
Venice evacuation chair - Venice Clack locking system
OPENING THE CHAIR

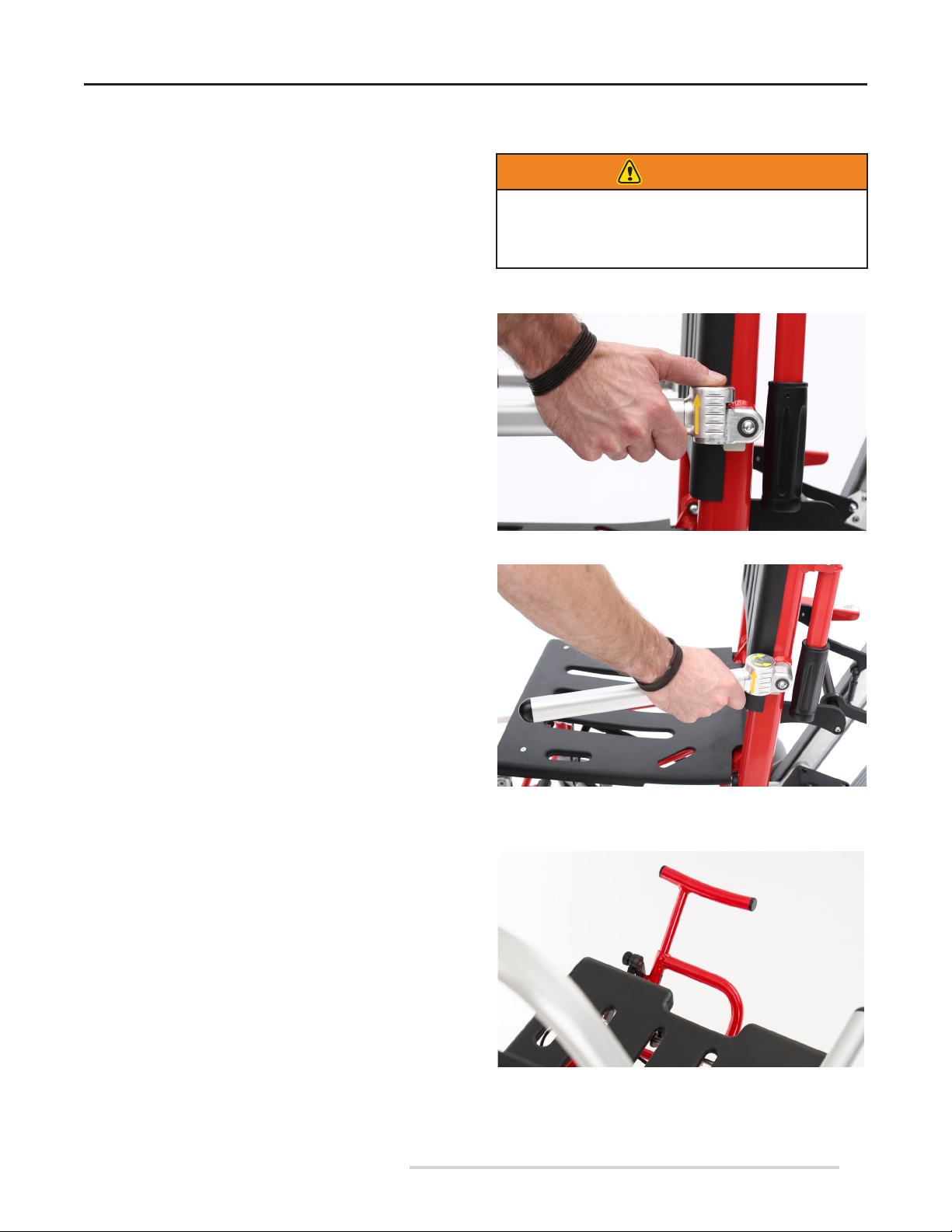

1. Stand close to the chair, hold the backrest
with one hand and the seat with the locking lever with the
other.
2. Activate the release lever and keep it pulled until the
operation is completed, then separate the seat from the
backrest until the chair is completely open, and lock it in
open position. (Figure 5)
3. Try to bring the seat closer to the backrest to make sure
that you reached the maximum opening and the locking
system works correctly.
Figure 4
Figure 5
CROSSED CONFIGURATION
Use two thorax restraints and a third femoral restraint
(Figure 4).
1. Secure one end of the rst thorax restraint through the
upper horizontal opening present onbackrest panel.
2. Secure the other end using the opening of the seat panel
on the opposite side of the chair.
3. Repeat the same operation for the second thorax restraint.
4. Secure the femoral restraint using the openings of the
chair seat.
5. Secure the foot restraint using the main frame.
CONFIGURATION OF THE RESTRAINTS
Two types of conguration are possible: horizontal and crossed.
HORIZONTAL CONFIGURATION
Use a thorax restraint and a femoral restraint (Figure 3).
1. Secure the thorax restraint using the vertical openings of
backrest panel.
2. Secure the femoral restraint using the openings of the seat
panel.
3. Secure the foot restraint using the main frame.
Figure 3

17
© Ferno Washington Italia. Rel.15012020
Venice evacuation chair - Venice Clack locking system
CLOSING THE CHAIR
1. Fasten the restraints and adjust them so as to avoid them
from hindering chair closure.
2. Stand close to the chair, hold the backrest with one hand
and the seat with the locking lever with the other.
3. Activate the locking lever and bring the seat closer to the
backrest.
4. Make sure that the chair is completely closed and the
locking system is engaged.
Note: Tilt the chair slightly forwards during the closing to
help the front wheels reach the correct position. (Figure 6)
Turn the front wheels inwards to block them with the
special magnets. (Figure 7)
5.3 Rear foldable handles
The operator positioned behind chair backrest can use the
rear foldable handles (Figure 8) to move the chair on at
surfaces and up and down the stairs.
Figure 6
Figure 7
Figure 8

18 © Ferno Washington Italia. Rel.15012020
Venice evacuation chair - Venice Clack locking system
5.4 Telescopic front handles
The chair is equipped with two telescopic front handles that
can be adjusted in 5 different positions (gure 9).
Use the handles in extended position only.
5.5 Rear wheel brakes
In order to engage the rear wheel brakes, push the red lever
down with the foot. (Figure 10)
Push the red lever up with the foot to disengage them.
(Figure 11)
Figure 9
Figure 10 Figure 11
TELESCOPIC HANDLE ADJUSTMENT
1. Push the red lever forwards and extract or close the
telescopic handles to the desired position.
2. Release the lever and let the handle slide forwards or
backward until correct locking.
3. Lock both handles in the same position.
4. Ensure that both handles are locked properly, trying to pull
or push them without activating the lever. If the locking
system is engaged correctly, the handles will not move.

19
© Ferno Washington Italia. Rel.15012020
Venice evacuation chair - Venice Clack locking system
WARNING
Improper use of the chair may cause damage and/
or injury. Use the chair as described in this manual.
WARNING
An unassisted patient is at risk of injury. Never leave
the patient alone, and always assist the patient
when using the chair.
Read the user manual
carefully
The device requires
at least two qualied
operators for correct use.
2
Before placing the chair into service
Staff using the chair must have carefully read and understood
the information contained in this manual.
Before any operation with the chair, ensure that:
● all the components and restraints are present, that the chair
does not show any signs of damage or wear, and that it is
fully operational.
● follow the instructions in chapter 5 Device conguration,
page 15.
7.1 Using the Chair
On the WAY UP THE STAIRS, the operators should lift the
chair with the patient seated.
● Before lifting the chair, check that the patient is properly
secured by the restraints. Use additional restraints and
assistance if necessary.
● Engage the rear brakes before climbing the stairs.
6  USING THE CHAIR
INSTRUCTIONS FOR USE
● This manual does not provide any medical instructions.
● It is the responsibility of the operators to follow correct
procedures and ensure the safety of both the patient and
themselves.
● This manual explains the use of the chair under ideal
conditions and is purely indicative.
● The chair should be used by a minimum of two duly
trained and qualied operators.
● The operators must work together and maintain the
control of the chair during all the operations.
● Follow procedures while complying with standard
regulations for moving the patient in an emergency.
● Ferno recommends the presence of a third trained person
as a supervisor when the chair is used on the stairs, both
for ascent and descent.
● Lift only the weight that you can safely support. Obtain
additional assistance for heavy loads (patient and
equipment).
7  TRANSFERRING THE
PATIENT
HELPING THE PATIENT SIT ON THE CHAIR
● Open the chair and make sure that it is correctly locked
in open position.
● Make sure that the chair is positioned/locked so that it
cannot move backward/forward.
● Assist the patient by following the acknowledged
procedures and local protocols.
● Fasten and adjust thorax and femoral restraints.
HELPING THE PATIENT TO STAND UP
● Make sure that the chair is positioned/locked so that it
cannot move backward/forward.
● Unfasten the thorax and femoral restraints.
WARNING
Make sure that all the locking systems of the chair
are closed when the patient sits.
If they are open, close them before seating the
patient.

20 © Ferno Washington Italia. Rel.15012020
Venice evacuation chair - Venice Clack locking system
On the WAY DOWN THE STAIRS, the operators should
lift the chair with the patient seated.
● Before lifting the chair, check that the patient is properly
secured by the restraints. Use additional restraints and
assistance if necessary.
● Engage the rear brakes before climbing the stairs.
● Ferno recommends that the two operators take opposite
sides, with one facing the other, during the transport on
the stairs and that a third trained operator assists thefoot
end operator. Follow local regulations concerning the
transport of chairs. Require additional help, if necessary.
● Carry the patient with the head end towards the top of the
stairs.
1.Operator at foot end: Extend the telescopic front handles
to the desired length. Ensure that the handles are properly
locked.
2.Operator at head end: Open the foldable handles.
3.Supervisor: Stand behind the foot end operator and,
keeping a hand on their back, guide them on the way
down the stairs.
4.Operators: Lift and transport the chair.
Supervisor: Keeping a hand on the back of the foot end
operator, control their movement.
5.Operator at foot end: Once the handling is completed,
close the telescopic front handles.
6.Operator at head end: Handle the chair on at surfaces.
● Ferno recommends that the two operators take opposite
sides, with one facing the other, when carrying the chair,
and that a third trained operator helps during the operation.
(Figure 1). However, if required, the operator at foot end
can turn forwards (with their back turned to the patient).
Follow local regulations for the transport of the chairs.
Ask for further assistance if necessary.
● Carry the patient with the head end towards the top of the stairs.
1. Operator at foot end: Extend the telescopic front handles
to the desired length. Ensure that the handles are properly
locked and retain your grip.
2. Operator at head end: Open the foldable carrying handles
3. Supervisor: Stand behind the head end operator and
guide them on the way up the stairs.
4. Operator at head end: Firmly grasp and check your
colleague.
5. Operators and Supervisor: The supervisor places one
hand on the upstream operator's back, guiding him/her
during transport operations. (Figure 2)
6. Both operators: Once the way up the stair is completed, they
must lay the chair on the ground, making sure it is stable.
7. Operator at foot end: Close the telescopic handles.
8. Operator at head end: Handle the chair on at surfaces.
WARNING
Make sure that all the operators are duly trained
and physically t to handle loads.
Figure 1
Figure 2
