Ferno EZ-Glide LBS User manual

User Manual
EZ-Glide®LBS Chair
FERNO/MAN/0721/210-R5/UK
Stock Code 2003-0141
Read this Manual
and Retain for
Future Reference

2© Ferno (UK) Ltd. FERNO/MAN/R4/0721/210-R5/UK
EZ-Glide® LBS

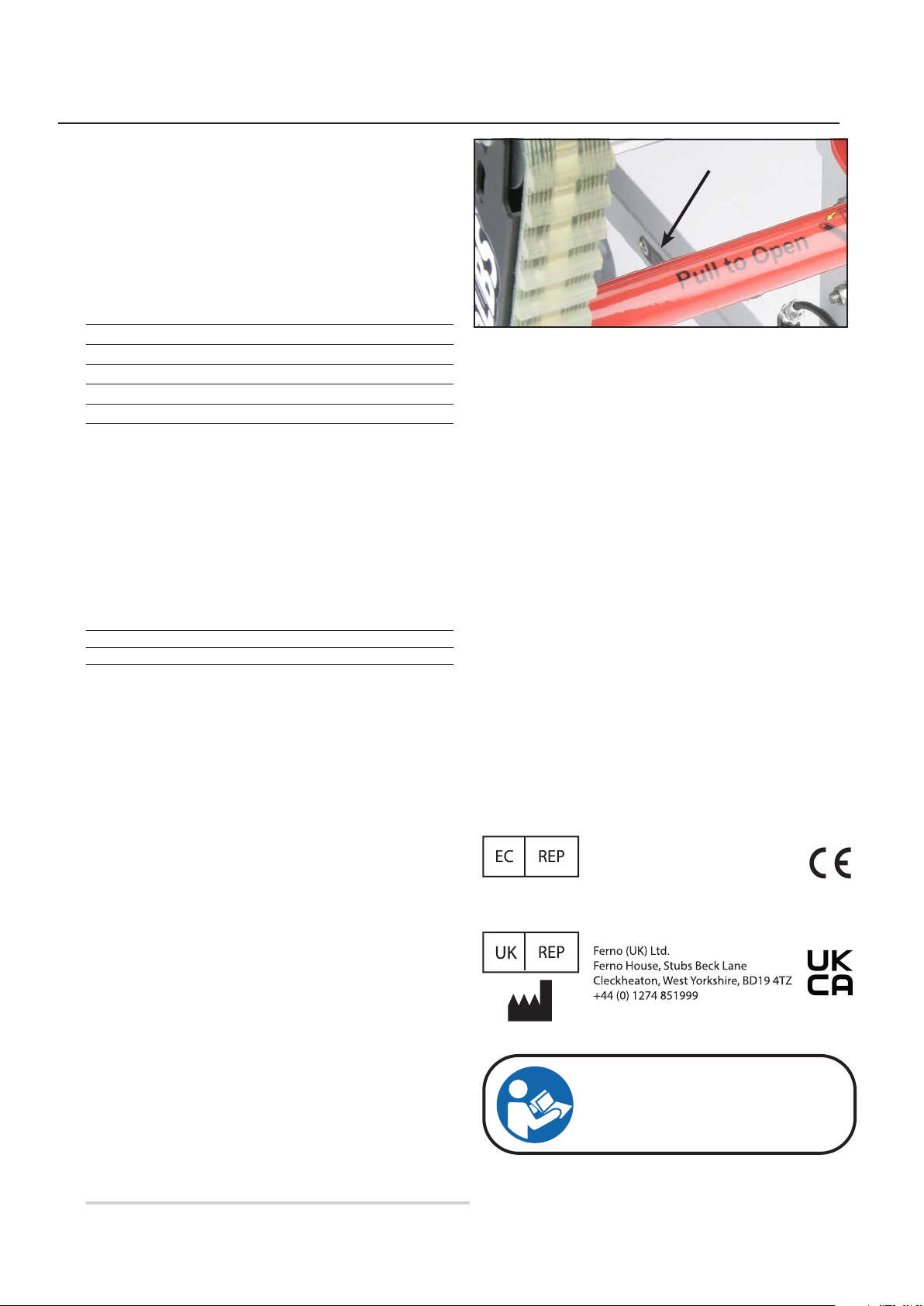

Serial Number _________________________
Location: Inner surface of bottom of chair frame
USERS’ MANUAL
To request additional free user manuals,
contact Ferno Customer Service, your Ferno
distributor, or visit www.ferno.co.uk.
© Copyright Ferno UK. All Rights Reserved.
Disclaimer
This manual contains general instructions for the use, operation
and care of this product. The instructions are not all-inclusive.
Safe and proper use of this product is solely at the discretion
of the user. Safety information is included as a service to the
user. All other safety measures taken by the user should be
within and under consideration of applicable regulations. It is
recommended that training on the proper use of this product be
provided before using this product in service.
Retain this manual for future reference. Include it with the
product in the event of transfer to new users. Additional free
copies are available upon request from Ferno Customer Service.
Proprietary Notice
The information disclosed in this manual is the property of Ferno
UK. Ferno UK reserves all patent rights, proprietary design rights,
manufacturing rights, reproduction use rights, and sales use
rights thereto, and to any article disclosed therein except to the
extent those rights are expressly granted to others or where not
applicable to supplier proprietary parts.
Limited Warranty Statement
The products sold by Ferno UK are covered by a limited warranty.
The complete terms and conditions of the limited warranty, and
the limitations of liability and disclaimers, are also available upon
request by calling Ferno UK on [phone].
Ferno UK Customer Services
Customer Service and product support are important
aspects of each Ferno product. Please have the product serial
number available when calling, and include it in all written
communications.
Manufactured by Ferno (UK) Ltd, Ferno House, Stubs Beck Lane,
Cleckheaton, West Yorkshire, BD19 4TZ
Telephone - Main Reception [phone]
Telephone - Sales Department [phone]
Telephone - Service Department [phone]
Email - Sales [e-mail]
Email - Service [email protected].uk
Web www.ferno.co.uk
ALL OTHER LOCATIONS
For assistance or information, please contact your Ferno
distributor. If you do not have a Ferno distributor, please contact
your nearest Ferno Customer Services oce.
USA HEADQUARTERS
Ferno-Washington, Inc., 70 Weil Way
Wilmington, Ohio 45177-9371, U.S.A.
Telephone Country Code +1.937.382.1451
Fax Country Code +1.937.382.6569
Internet www.ferno.com
FERNO S.r.l.
via B. Zallone, n. 26, 40066
Pieve di Cento, Bologna, Italy
+39.051.6860028

3
© Ferno (UK) Ltd. FERNO/MAN/R4/0721/210-R5/UK
EZ-Glide® LBS
1  SAFETY INFORMATION
Safety Information
1.1 Warning
Warning notices indicate a potentially hazardous situation
which, if not avoided, could result in injury or death.
WARNING
Untrained operators can cause injury or be injured. Permit
only trained personnel to operate the chair.
Improper use of the chair can cause injury. Use the chair
only for the purpose described in this manual.
Attaching one-piece restraints improperly can allow seat
and back panels to dislodge, resulting in injury. Restraints
must capture panels AND chair frame.
Using the chair with the track unlocked can cause injury.
Verify that the track is locked before transporting the
patient.
Lubricating the track system can result in injury to the
patient and/or operators. Never lubricate the track or
belts.
Improper operation can cause injury. Operate the chair
only as described in this manual.
An unattended patient can be injured. Stay with the
patient at all times.
An unrestrained patient can fall o the chair and be
injured. Use restraints to secure the patient on the chair.
Helpers can cause injury or be injured. Maintain control
of the chair, operate the controls, and direct all helpers.
Improper maintenance can cause injury. Maintain the
chair only as described in this manual.
Attaching improper items to the chair can cause injury.
Use only Ferno-approved items on the chair.
Improper parts and service can cause injury. Use only
Ferno parts and Ferno-approved service on the chair.
Modifying the chair can cause injury and damage. Use the
chair only as designed by Ferno.
1.2 Important
Important notices emphasise important usage or
maintenance information.
Important
1.3 Bloodborne Disease Notice
To reduce the risk of exposure to bloodborne diseases
such as HIV-1 and hepatitis when using the chair, follow
the disinfecting and cleaning instructions in this manual.
1.4 Symbol Glossary
The symbols dened below are used on the chair and
in this users’ manual. Ferno uses symbols recognized by
the International Standards Organization (ISO), American
National Standards Institute (ANSI) and the emergency
medical services industry.
General Warning of
Potential Injury
Load Limit
Read the Users’Manual Chair Operation Requires
Two Trained Operators
Do Not
Lubricate
Lubricate
Unlocked Locked
2
700 lb
318 kg
50 st
Close Track
System
Open Track
System
Product meets UK and EU Standards

4© Ferno (UK) Ltd. FERNO/MAN/R4/0721/210-R5/UK
EZ-Glide® LBS
Safety Information

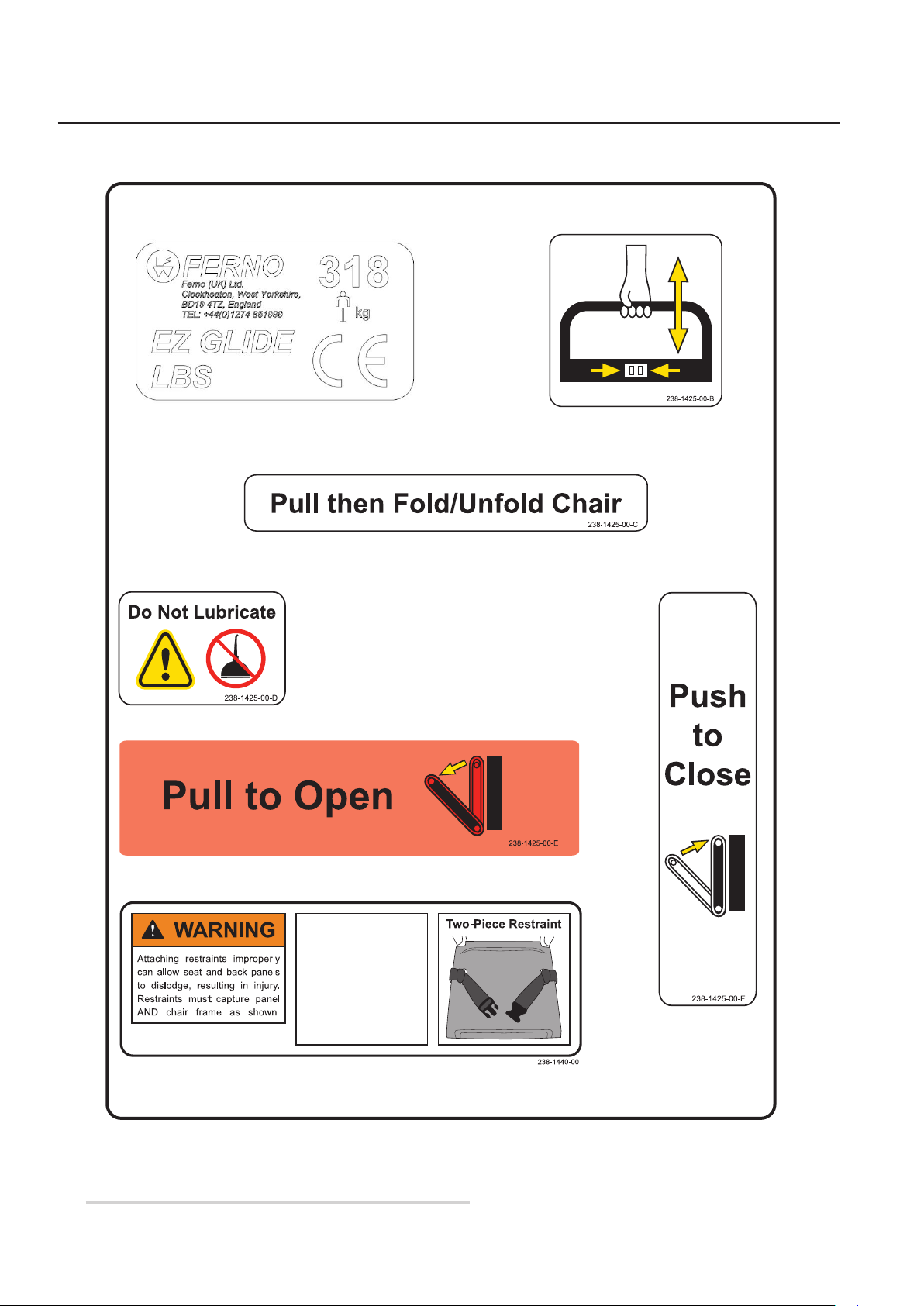

1.3 Safety and Instruction Labels
EZGLIDE® LBS CHAIR LABELS
Label C - Instruction for Folding and Unfolding Chair
Label 234-1440-00 Safety Instruction:
Label D
Safety Instruction:
Do NOT Lubricate
Track System
Label A
Basic Safety Guidelines and Load Limit Label B
Instruction for Adjusting Rear handle Height
Label F
Instruction for
Closing Track
Label E - Instruction for Opening Track

5
© Ferno (UK) Ltd. FERNO/MAN/R4/0721/210-R5/UK
EZ-Glide® LBS Operator Skills and Training
2  OPERATOR SKILLS AND TRAINING
2.1 Skills
Operators using the chair need:
● a working knowledge of emergency patient-
handling procedures.
● the ability to assist the patient.
WARNING
Untrained operators can cause injury or be injured.
Permit only trained personnel to operate the chair.
2.2 Training
Operator trainees need to:
● Read and understand this manual.
● Be trained on the use of the chair.
● Practice with the chair before using it with a patient.
● Record their training information. A sample training
record sheet is provided on page 34.

6© Ferno (UK) Ltd. FERNO/MAN/R4/0721/210-R5/UK
EZ-Glide® LBS
3  ABOUT THE CHAIR
3.1 Chair Description
The EZ-Glide®LBS (Large Body Surface) Evacuation Chair
(referred to as the chair in this manual) is an emergency
patient-handling devices designed to transport a seated
patient down stairs and over at surfaces.
The chair is for professional use by a minimum of two
trained operators. A third person to“spot”may be required
by local protocols, and additional help may be required
when working with heavy patients.
The EZ-Glide®LBS is designed with a braked, belted track
that enable operators to “glide” the chair down stairs
instead of carrying it.
CHAIR FEATURES:
● Belted track system for “gliding” chair down stairs
● Braked track system for controlled decent
● ABS seat and back panels
● 5-position extending handle at rear of chair
● 5-position telescoping front handles
● 6" rear locking wheels
● 5" front swivel wheels
● Folding footrest
● Ankle restraint
● Multiple patient restraint options
● Seat cushion
● Headrest
● Rear locking lift handles
● IV Bag Holder
● Winch Attachment
OPTIONAL ACCESSORIES:
● D size O2 Bottle Holder
● Floor Mount Lock
About the Chair
3.2 General Specications
Height
Maximum 1610 mm
Minimum 950 mm
Seat Height 485 mm
Width
Overall 595 mm
Seat 595 mm
Depth
Tracks Closed, Handles Retracted 850 mm
Weight*
EZ-Glide®LBS 28.6 kg
Load Limit 700 lb/318 kg/50 st
* without restraints or accessories
Turning Circle Radius 770 mm
Strap Type Biosafe
Some specications are rounded to the nearest whole number.
Ferno reserves the right to change specications without notice.
WARNING
Improper use of the chair can cause injury. Use the
chair only for the purpose described in this manual.
LOAD LIMIT
Inspect the chair if the load
limit has been exceeded.
700 lb
318 kg
50 st

7
© Ferno (UK) Ltd. FERNO/MAN/R4/0721/210-R5/UK
EZ-Glide® LBS
3.3 Components - EZ-Glide® LBS
About the Chair
To request additional free
users’ manuals, contact
Ferno Customer Service.
USERS’ MANUAL
Removable
PR Seat Cushion
Extending
Rear handle
IV Bag Holder
Removable
ABS Back Panel
with Restraint
Slots
Folding
Footplate
Telescoping
Front Handles
(2)
5" Swivel
Wheel (2)
6" Wheel
with Lock (2)
Patient
Restraint
Ankle
Restraint

8© Ferno (UK) Ltd. FERNO/MAN/R4/0721/210-R5/UK
EZ-Glide® LBS
4.1 Braked Track System
The EZ-Glide®LBS track system enables operators to
control the glide of the chair down stairs instead of lifting
and carrying it. The braked track system aids controlled
descent and has various levels of braking resistance which
should be preset prior to descending.
GUIDELINES FOR USING THE TRACK SYSTEM
● Using the chair on stairs requires a minimum of two
trained operators. Ferno recommends using a third
person as a “spotter”.
● Verify that the track system is fully opened and
locked into place before using it.
● Never lubricate track belts. Lubricated track belts
can perform unpredictably, resulting in injury to the
patient and/or operators.
● Moisture, water, snow, ice, or debris on or between
the track and belts can cause irregular track-belt
performance that results in sudden changes in the
weight operators must support. Make sure the track
and track belts are clean and dry before using the
chair on stairs.
● Water, snow, ice, or debris on the stairs can cause
poor footing for operators. To avoid possible injury,
clear the stairs or select an alternate route.
Using the Features
WARNING
Using the chair with the track unlocked can cause
injury. Verify that the track is locked before
transporting the patient.
WARNING
Lubricating the track system can result in injury to
patient and/or operators. Never lubricate the track
or belts.

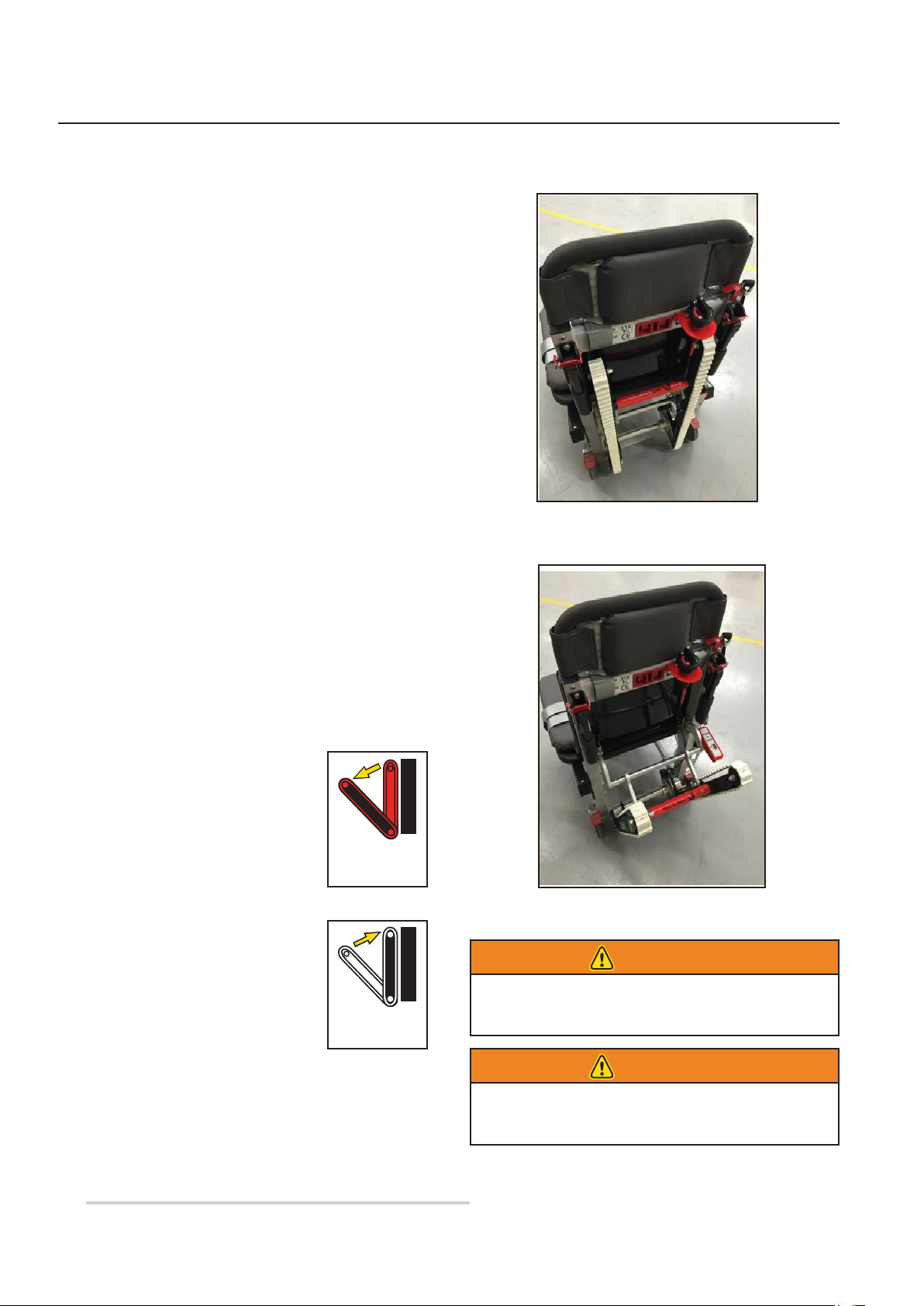

Track Deployed
OPENING THE TRACK
1. Grasp the track-release bar located
near the top of the track and rmly
pull it back until the track locks into
the fully extended position.
2. Verify that the lock is engaged by
trying to push the track closed. If
the lock is fully engaged the track
will not move.
Open Track
System
CLOSING THE TRACK
With your hand, push down on the red
track-closing handle until the track
closes completely. Close Track
System
4  USING THE FEATURES
Track Stored

9
© Ferno (UK) Ltd. FERNO/MAN/R4/0721/210-R5/UK
EZ-Glide® LBS
4.2 Extending Rear Handle
Grasp the rear handle to move, guide and control the
chair as you manoeuvre downstairs, along the ground
and around obstacles.
The rear handle adjusts to ve locked positions. Adjust the
height according to operator preference and the task or
situation at hand.
EXTENDING AND RETRACTING THE REAR
HANDLE
1. With one hand, squeeze the lift-bar release tabs
together and with the other hand grasp the rear
handle and raise or lower it.
2. Verify that the rear handle is locked by trying to raise
or lower it without squeezing the release tabs. When
the lock is engaged the rear handle will not move.
4.3 Telescoping Front Handles
The telescoping from handles can be adjusted to ve
locked lifting positions. Adjust the handles according to
operator preference and the task at hand.
EXTENDING AND RETRACTING THE FRONT
FOOTEND HANDLES
1. Pull the plunger knob and push or pull the handle
until it is near the stop point desired.
2. Release the knob and slide the handle a little forward
or backward until it locks into the stop point.
3. Verify that both handles are locked by trying to
push or pull them without pulling the release knobs.
When the locks are engaged, the handles will not
move.
Using the Features
Extending/Retracting front and rear handles
Rear Lift Handles
4.3 Rear Lift Handles
The rear lift handles lock in the stowed position, so press
red locking lever and pivot handle out to the position
shown, release lock making sure the handle doesn’t drop.
Reverse the above to stow the handles.
WARNING
Untrained operators can cause injury or be injured.
Permit only trained personnel to operate the chair.

10 © Ferno (UK) Ltd. FERNO/MAN/R4/0721/210-R5/UK
EZ-Glide® LBS
Footrest Lowered Ready for Use
4.4 Footrest
The footrest has two positions: raised, for storage, and
lowered for use.
To lower the footrest, swing it down until it stops.
To raise the footrest, swing it up until it stops.
GUIDELINES FOR USING THE FOOTREST
Use the footrest properly to ensure that is does not
interfere with patient’s or operators’ feet.
● Before transferring the patient onto the chair, make
sure the footrest is raised in the storage position.
● When preparing to transfer the patient o the chair,
unfasten the ankle restraint and raise the footrest
into the storage position before unfastening the
patient’s torso and lap restraints. This will prevent
the patient from attempting to stand before the
footrest has been stored out of the way of his/her
feet.
● Keep the footrest raised when it is not in use.
4.5 Wheel Locks
The rear wheels of the chair are tted with wheel locks to
help keep the chair from rolling during patient transfer.
Stay with the chair and maintain control of it at all times.
Do not use the wheel locks as a substitute for operator
control.
To engage a wheel lock, press down on the rear end of
the lock pedal.
To disengage a wheel lock, press down on the forward
end of the lock pedal.
4.6 IV Bag Holder
The IV Bag Holder is designed to t an IV bag above the
patients head.
To extend, press down on the end of the red lever and pull
up on the pole. There are three slots in the pole that locate
the lever and lock the pole in 3 set positions: Closed, semi
extended and fully extended.
To release the bag holder, press the red lever and gently
push the pole down.
Using the Features
Important
Raise the footrest into the storage position before
transferring the patient onto or o from the chair.
Wheel Lock Engaged Wheel Lock Disengaged

11
© Ferno (UK) Ltd. FERNO/MAN/R4/0721/210-R5/UK
EZ-Glide® LBS
5  USING THE CHAIR
5.1 Before Placing the Chair
in Service
● Personnel who will work with the chair need to read
this manual.
● Set up the chair ready for use.
● Conrm that the chair operates properly.
5.2 General Guidelines for Use
● Medical advice is beyond the parameters of this
manual.
● It is the users’ responsibility to ensure safe practices
for the patient and themselves.
● A minimum of two trained operators is required.
● Follow standard emergency patient-handling
procedures when operating the chair.
● Operators work together and maintain control of
the chair at all times.
● Operators communicate with one another and use
coordinated movements to operate the chair.
● Ferno recommends that a third trained person serve
as a “spotter” while the chair is being moved up or
down stairs.
● Lift only the weight you can safely handle. Use
additional help when working with heavy loads
(patient and equipment).
● Stay with the patient at all times.
● Always use patient restraints to secure the patient
on the chair.
Using the Chair
WARNING
Improper operation can cause injury. Operate the
chair only as described in this manual.
WARNING
An unattended patient can be injured. Stay with the
patient at all times.
WARNING
An unrestrained patient can fall o the chair and be
injured. Use restraints to secure the patient on the
chair.

12 © Ferno (UK) Ltd. FERNO/MAN/R4/0721/210-R5/UK
EZ-Glide® LBS
Using the Chair
5.3 Transferring the Patient
Always assist the patient onto and o from the chair.
ASSISTING THE PATIENT ONTO THE CHAIR
1. Engage the locks on the rear wheels.
2. Make sure the footrest is in the storage position.
3. Assist the patient onto the chair using accepted
practices and following local protocols.
4. Fasten and adjust the torso and lap restraints.
5. Lower the footrest and place the patient’s feet on it.
6. Fasten and adjust the ankle restraint.
ASSISTING THE PATIENT OFF FROM THE CHAIR
1. Unfasten the ankle restraint.
2. Raise the footrest to the storage position.
3. Unfasten the torso and lap restraints.
4. Assist the patient o from the chair using accepted
practices and following local protocols.
5.4 Rolling the Chair
GENERAL GUIDELINES
● Roll the chair on smooth, at surfaces whenever
possible.
● For patient comfort, pull the chair backward over
low obstacles such as door sills.
● Use the extending rear handle and telescoping
front handles to manoeuvre around and over small
obstacles, rough surfaces and rough terrain, but
only where possible and where enough operators
are available to safely control the chair, taking into
consideration manual handling protocols and
potential risks.
● Wherever possible use the tracks on the chair to
manoeuvre the chair down over curbs or single
steps.
TO ROLL THE CHAIR
1. Head-End Operator: Release the wheel locks.
2. Head-End Operator: Adjust the rear handle to a
comfortable height and grasp it to push and guide
the chair on all four wheels, or tilt the chair back and
roll it on its rear wheels.
3. Foot-End Operator: Assist the head-end operator
as needed and attend the patient.
5.5 Gliding the Chair Down Stairs
GENERAL GUIDELINES
● Using the chair on stairs requires a minimum of two
operators. Use additional help as needed to control
the chair.
● Ferno recommends that the two operators face each
other when transporting a patient down stairs and
that an optional third trained person “spot” is used
for the foot-end operator.
● For heavier-weight patients over around 150 kgs it
is recommended that 4 operators are always used,
and this should be assessed according to the patient
being transferred.
● Check that the stairway is stable and carpet or stair
covering is rmly attached to the stairs.
● Remove any water, ice, snow, or debris from the
stairs before using the chair on them.
● Remove any water, ice, snow, or debris from the
track and tread belts before using the chair on stairs.
● Verify that the track is locked in the open position
before starting down the stairs with the chair.
OVERVIEW OF BRAKING SYSTEM
1. The braking system on EZ-Glide® LBS is designed
to maintain direct control when transporting the
chair and occupant downstairs for a wide range of
patient weights, allowing the operator to increase
or decrease the braking force required according to
the weight of the patient being moved and the stair
type and angle of stair being negotiated down.
2. The track belt system on the chair creates friction
between the belt and the track frame, giving a
certain level of braking when going down stairs;
this is the basis by which all track chairs function
and operate. However with heavier-weight patients
that are typically carried on EZ-Glide LBS, to sustain
a controlled descent more braking may be required
additional to that of the “track belt system”, hence
the inclusion of a brake system on EZ-Glide LBS.

13
© Ferno (UK) Ltd. FERNO/MAN/R4/0721/210-R5/UK
EZ-Glide® LBS Using the Chair
OVERVIEW OF BRAKE CONTROLS

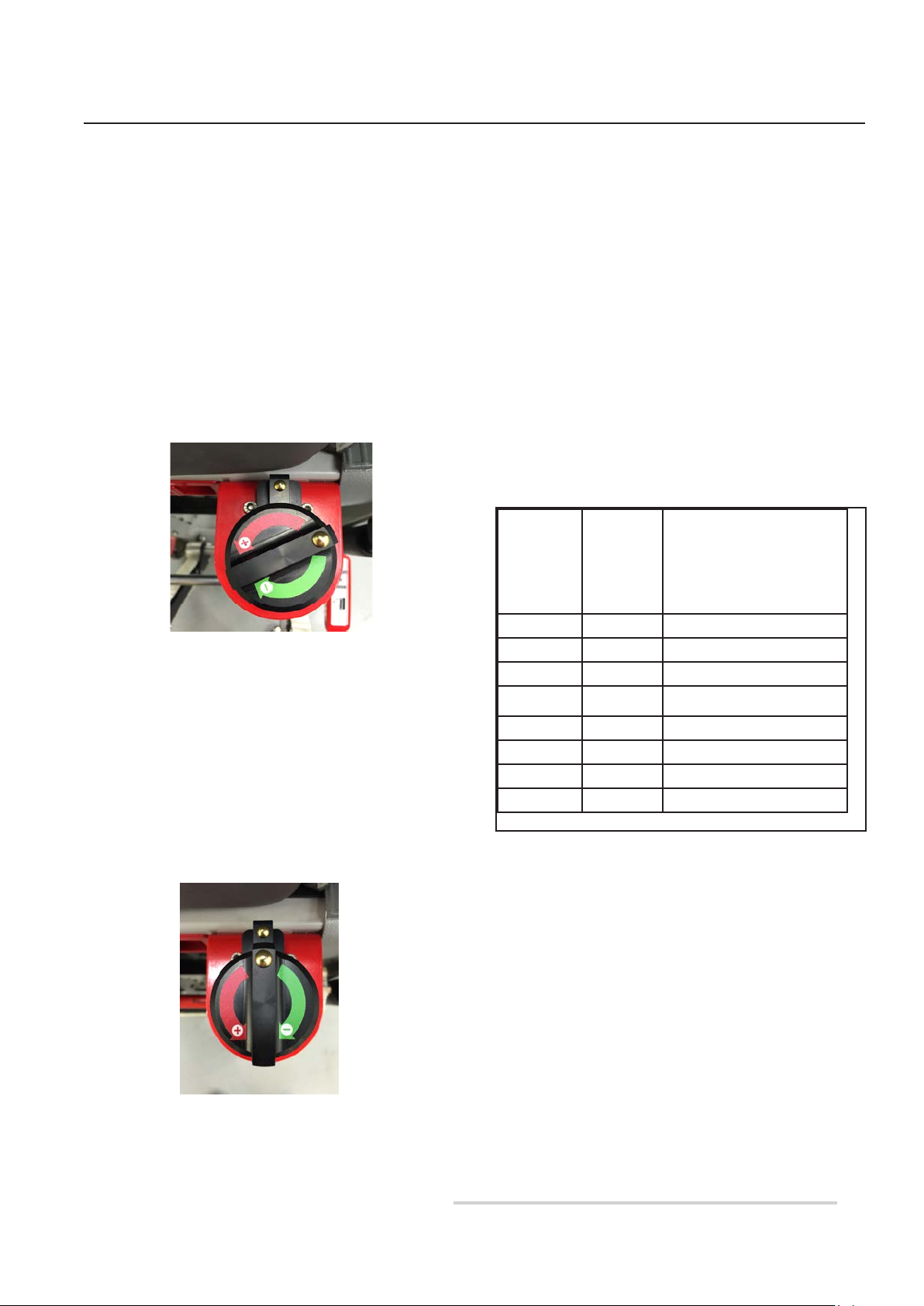

1. The EZ-Glide LBS brake system consists of a rotating
dial positioned on the top of the chair frame,
which when rotated in either direction increases or
decreases the force the brake pad exerts onto the
brake disc, thereby increasing or decreasing the
braking eect and subsequent speed of movement
of the tracks.
2. The rotating dial is connected to the brake system
using a tensioned cable.
3. Rotating the brake dial clockwise decreases the
braking (denoted by a green arrow and “-” sign)
4. Rotating the dial anti-clockwise increases the
braking (denoted by a red arrow and“+” sign)
OPERATION OF BRAKING SYSTEM
1. Before transporting a patient down stairs using EZ-
Glide LBS chair, the initial braking level needs to be
set on the chair.
2. First ensure that the brake is completely o, by
rotating the dial in a clockwise direction as far as
it will go (in the direction of green arrow). Once
reached the end point, where the dial will not turn
anymore, the 2 dot reference points should be
adjacent to each other as per photo below.
Patient
weight
(kgs)
Braking
level (No.
of turns)
Observations
0 0
50 0.5
100 1
150 1.5 Some track slippage with two operators, may
require 4 operators
200 1.5 4 operators required *
250 1 4 operators required *
300 0.5 4 operators required *
350 0.5 4 operators required *
BRAKING SYSTEM ADJUSTMENT
1. The brake setting should then be adjusted according
to the patient weight, by rotating the dial in an anti-
clockwise direction (in direction of the red arrow),
which will then increase the braking eect as the
dial is rotated. The brake dial will rotate a total of
2.5 complete turns, from fully clockwise position of
zero braking to the brake fully on after 2.5 turns ant-
clockwise.
2. Increase of weight of patient being transported
on the chair does not always directly equate to an
increase in braking required over the entire weight
range of the chair capacity. The below table shows
suggested initial brake level settings for moving a
patient, which are based on tests carried out on a
set of metal stairs with a step height (rise) of 170mm,
and tread depth of 270mm, and with a stair incline
of 32.5 degrees.
* Four trained operators are required to operate the chair due to oc-
cupancy weight. Extra care should be taken to ensure the track does
not slip on the stairs, ensuring that the chair is held into the stairs at
foot-end and head-end at all times.
1. The table above shows that for an increasing weight
of patient, up to around 150 kg the required braking
level increases linearly, from 1/2 a turn for a 50 kg
occupant up to 1.5 turns for a 150 kg occupant.
2. Above this weight, the braking level setting required
actually then reduces, decreasing from 1.5 turns at
150 kg to 0.5 turns for a patient weight of 300/350
kg, this being due to fact that the weight of the
patient in the chair actually creates more resistance
on the tracks (increased braking eect) with heavier-
weight occupant, and therefore less braking from
the brake system is actually required.

14 © Ferno (UK) Ltd. FERNO/MAN/R4/0721/210-R5/UK
EZ-Glide® LBS
Using the Chair
7. Both Operators: Working together, guide the chair
over the edge of the top step, allowing the track
belts to engage the step.
8. Move the chair slowly downward until the tracks are
resting on the top two or three steps.This establishes
the glide angle.
9. To maintain the glide angle as you descend, work
together as follows:
○The head-end operator applies slight downward
pressure on the extended rear handle.
○The foot-end operator applies slight upward
pressure on the front (foot-end) handles.
10. Both Operators: When the chair reaches the
bottom of the steps and the rear wheels are on the
oor, the head-end operator tips the chair forward
until all four wheels are on the oor and the foot-end
operator retracts the front handles.
11. Head-End Operator: Close the tracks and adjust
the rear handle to a comfortable height, then roll
the chair.
12. Oncetheoccupanthas been successfully transported
down the stairs, it is suggested to take the brake
o fully, by rotating the dial fully in the clockwise
direction until it stops, such that the chair is then
prepared ready for the next time it is used and the
operator can set the new required braking level.
To Pause During the Descent
To pause during the descent for readjustment of
the brake or other reasons, tilt the chair forward just
enough to allow the rear wheels to rest on the step
while both operators hold the chair in place.
To continue down the stairs, tilt the chair back to the
glide angle and engage the belts on the steps.
MOVING THE CHAIR DOWN STAIRS
1. Head-End Operator: Roll the chair to the stairs and
engage the wheel locks.
2. Foot-End Operator: Extend the front (foot-end)
handles to the desired stop point. Verify that both
handles are locked.
3. Spotter: Stand below the foot-end operator with
a hand on the operator's back to help steady and
guide him/her throughout the descent.
4. Head-End Operator: Pull the track system toward
yourself until the track locks open. Verify that the
track is locked.
5. Head-End Operator: Raise the rear handle to the
desired position and verify that it is locked.
6. Head-End Operator: Disengage the wheel locks
and tilt the chair back.
WARNING
Using the chair with the track unlocked can cause
injury. Verify that the track is locked before
transporting the patient.
WARNING
Lubricating the track system can result in injury to
patient and/or operators. Never lubricate the track
or belts.
1. Note that with stairs with a steeper incline, more
braking may be required as the patient weight is
further forward of the chair and this will therefore
cause more forward movement, meaning more
braking may be required
2. It is suggested that when transporting patients of
150 kgs and over that 4 operators are always used,
not just because of the weight of the patient but
also due to physical body mass of the patient and
to ensure full control and safety of the patient at all
times during the movement of the patient.
3. Prior to taking the patient down the stairs, the brake
should be initially set at the suggested level and the
chair then moved down the stairs following to the
standard procedures for operating a track chair, as
outlined in the EZ-Glide LBS user manual.
4. Once on the stairs and starting to transport the
occupant downstairs, if it is felt by the head-end and
foot-end operators(s) that the chair is totally under
control and tracks felt to be running away slightly,
even when holding the tracks into the stairs at
foot-end and head-end, then the decent should be
stopped and the brake increased by ½ turn, turning
the dial in an anti-clockwise direction (in the direction
of red arrow), increasing further if necessary until
such time as the movement of the chair is felt to be
controlled and the chair not running away.
5. If the chair is dicult to move and the tracks do
not seem to be rotating, even when a forward/
downwards pressure is being exerted by the head-
end operator, then the braking level should be
reduced by turning the dial ½ a turn in the clockwise
direction (in direction of green arrow) and decreased
further if required, until such time as the chair is
moving more freely, but still controlled.

15
© Ferno (UK) Ltd. FERNO/MAN/R4/0721/210-R5/UK
EZ-Glide® LBS
LOAD LIMIT
Inspect the chair if the load limit
has been exceeded.
Using the Chair
5.6 Using Additional Help
Operating the chair requires a minimum of two trained operators at all times for occupants being moved up to around 150
kgs and 4 operators for occupants over 150 kgs
Ferno recommends that the operators and helpers at opposite ends of the chair face each other when transporting a
patient up or down stairs, and that an additional trained person “spot” for the lead operator. However, all applicable local
protocols for carrying chairs should be followed.
The trained operators should maintain control of the chair and operate the controls, and the designated lead operator

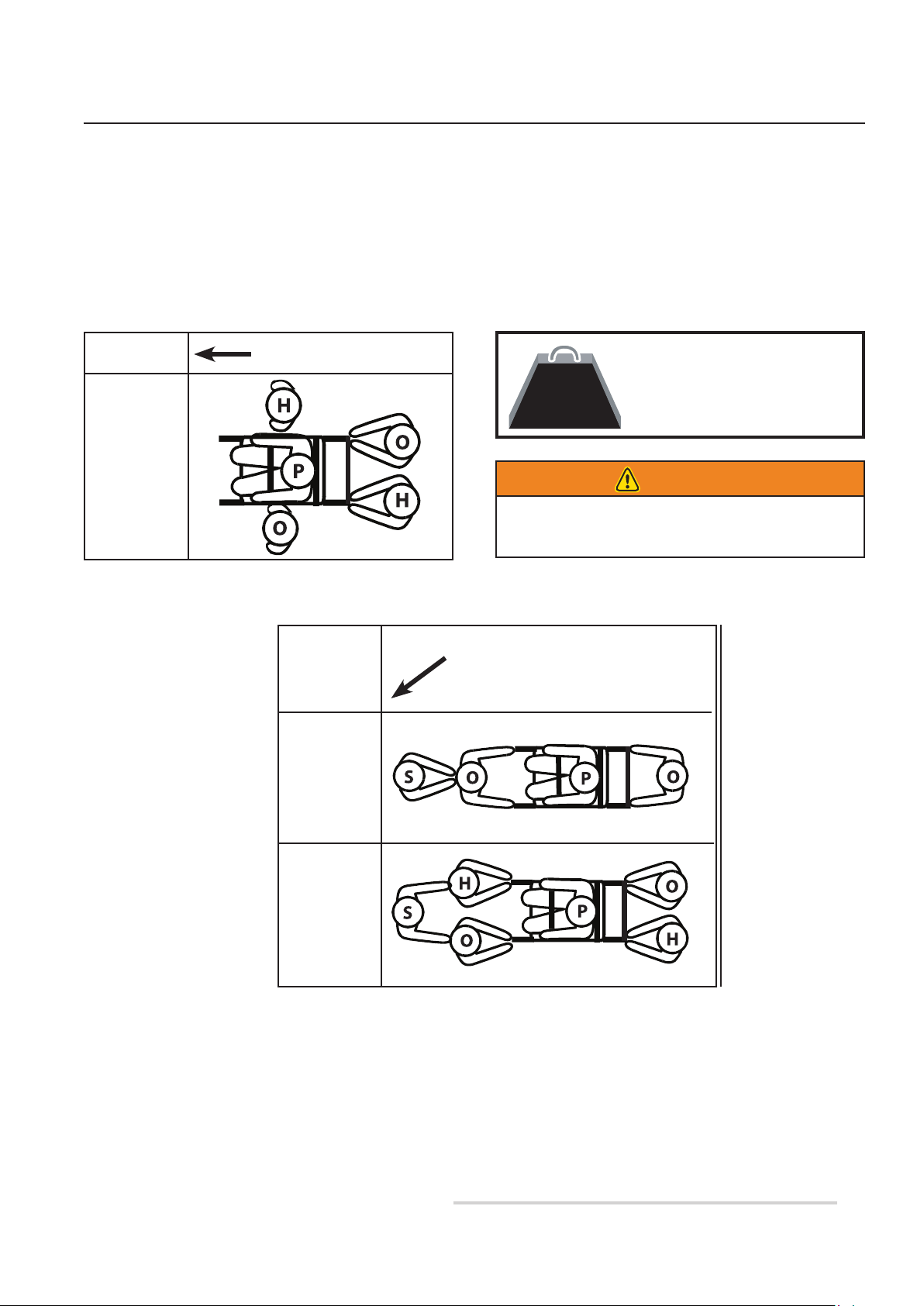

should direct all helpers. The chart below shows suggested placement for operators and helpers.
Key: O = Operator H = Helper S = Spotter P = Patient
Two
Operators
+
One
Helper
Direction
Gliding Down Stairs on Track System
Two
Operators
+
Three
Helpers
Two
Operators
+
Two
Helpers
Direction Rolling on Flat Surface
700 lb
318 kg
50 st
WARNING
Helpers can cause injury or be injured. Maintain
control of the chair, operate the controls, and direct
all helpers.

16 © Ferno (UK) Ltd. FERNO/MAN/R4/0721/210-R5/UK
EZ-Glide® LBS
6  MAINTENANCE
Maintenance
6.2 Disinfecting/Cleaning Restraints
Ankle Restraint: Place buckled restraint in a mesh bag
and launder in a washing machine using warm water, a
disinfectant soap, and gentle agitation. Hang the restraint
to dry. Do not put it in a dryer.
Chest and Lap Restraints: Disinfect and clean restraints
as directed in the restraint users’ manual.
6.3 Disinfecting/Cleaning Chair
To disinfect: Remove restraints and seat and backrest
panels or soft vinyl cover. Wipe all surfaces of the chair and
panels or cover with disinfectant. Follow the disinfectant
manufacturer’s directions for application method and
contact time.
To clean: Wash panels or cover, and all parts of the chair,
with warm water and a mild detergent. Rinse with clean
water. Dry with a towel or allow to air-dry.
6.4 Cleaning Track and Belts
To ensure predictable belt performance, it is important to
keep the track and belts free of oil, grease, dirt, and debris.
1. Hold the belts away from the track frame and remove
any debris.
2. Clean both sides of the track frame, and both belts,
with SD-20 All-Purpose Cleaner and a clean cloth.
Follow instructions on the container.
3. Dry track and belts thoroughly.
Important
Water under high pressure, or steam, can penetrate
joints, ush away lubricant, and cause corrosion. Use
caution when cleaning moving parts such as joints and
hinges.
Important
Using abrasive cleaning compounds or applicators
on the chair can cause damage. Do not use abrasive
materials to clean the chair.
Important
Disinfectants and cleaners containing bleach,
phenolics, or iodines can cause damage. Use caution
when disinfecting and cleaning with products
containing these chemicals.
WARNING
Improper maintenance can cause injury. Maintain
the chair only as described in this manual.
6.1 Maintenance Schedule
The chair requires regular maintenance. Set up and follow
a maintenance schedule. The table at right represents
minimum intervals for maintenance.
Keep maintenance records.
When using maintenance products, follow the
manufacturers’ directions and read the manufacturers’
material safety data sheets.
Minimum
Maintenance Intervals
Each Use As Needed Each Month
Disinfecting Chair •
Cleaning Chair •
Cleaning Track System •
Inspecting Chair • •
Inspecting Track System • •
Lubricating •

17
© Ferno (UK) Ltd. FERNO/MAN/R4/0721/210-R5/UK
EZ-Glide® LBS
TRAINING RECORD
Date Name Training Method

18 © Ferno (UK) Ltd. FERNO/MAN/R4/0721/210-R5/UK
EZ-Glide® LBS
MAINTENANCE RECORD
Date Maintenance Performed By
