Ferno EZ-Glide 59T User manual

Users’ Manual
July 2018
Pub. No. 234-3298-07
Read this Manual and Retain
for Future Reference
EZ-Glide®
Evacuation Chair
Models 59, 59T, 59T-LWH

© Ferno-Washington, Inc. / 234-3298-07 / July 2018
2
Serial Number _________________________
Location: Seat panel rear frame
USERS’ MANUALS
To request additional free users’ manuals,
contact Ferno Customer Relations, your Ferno
distributor, or www.ferno.com.
Disclaimer
This manual contains general instructions for the use, operation
and care of this product. The instructions are not all-inclusive. Safe
and proper use of this product is solely at the discretion of the user.
Safety information is included as a service to the user. All other safety
measures taken by the user should be within and under consideration
of applicable regulations and local protocol. Training on the proper use
of this product must be provided before using this product in an actual
situation.
Retain this manual for future reference. Include it with the product in
the event of transfer to new users. Additional free copies are available
upon request from Customer Relations.
Proprietary Notice
The information disclosed in this manual is the property of Ferno-
Washington, Inc., Wilmington, Ohio, USA. Ferno-Washington, Inc.
reserves all intellectual property rights, proprietary design rights,
manufacturing rights, reproduction use rights, and sales use rights
thereto, and to any article disclosed therein except to the extent those
rights are expressly granted to others or where not applicable to vendor
proprietary parts.
Limited Warranty Statement
The products sold by Ferno are covered by a limited warranty, which
is printed on all Ferno invoices. The complete terms and conditions of
the limited warranty, and the limitations of liability and disclaimers,
are also available upon request by calling Ferno at 1.800.733.3766 or
1.937.382.1451.
Ferno Customer Relations
For ordering assistance or general information:
CANADA AND THE U.S.A.
Telephone (Toll-free) 1.877.733.0911
Telephone [phone]
Fax (Toll-free) 1.888.388.1349
Fax [phone]
Internet www.ferno.com
ALL OTHER LOCATIONS
For assistance or information, please contact your Ferno distributor. If
you do not have a Ferno distributor, please contact Ferno Customer
Relations:
Ferno-Washington, Inc., 70 Weil Way
Wilmington, Ohio 45177-9371, U.S.A.
Telephone Country Code +1.937.382.1451
Fax Country Code +1.937.382.6569
Internet www.ferno.com
1.937.382.1451
44 (0) 1274 851999
UNIQUE DEVICE IDENTIFICATION SYSTEM
Ferno complies with the United States Food and Drug Administration’s
(FDA) Unique Device Identication (UDI) regulation to identify medical
devices. The UDI label contains information in human- and machine-
readable form. Device information is online at the FDA’s Global Unique
Device Identication Database (GUDID). The public can search and
download information at AccessGUDID at www.fda.gov.
The label is located either on the product or the product packaging.
Ferno-Washington Inc. | Wilmington, Ohio 45177 USA | +1.937.382.1451
Product Name/Model
(01) Global Trade Item Number
(11) Date of Manufacture
(21) Serial Number
Date of Manufacture
SN Serial Number
Manufacturer GS1 Data Matrix

© Ferno-Washington, Inc. / 234-3298-07 / July 2018 3
Ferno Customer Relations ________________________________ 2
1 - Safety Information _____________________________________ 4
1.1 Warning__________________________________________ 4
1.2 Important ________________________________________ 4
1.3 Tip ______________________________________________ 4
1.4 Bloodborne Disease Notice __________________________ 4
1.5 Symbol Glossary ___________________________________ 5
1.6 Safety and Instruction Labels: Model 59 ________________ 6
1.7 Safety and Instruction Labels: Model 59T, Model 59T-LWH _ 6
2 - Operator Focus ________________________________________ 7
2.1 Operator Training __________________________________ 7
2.2 Terms ____________________________________________ 7
2.3 Using Additional Help_______________________________ 8
3 - About the Chair ________________________________________ 9
3.1 Description _______________________________________ 9
3.2 General Specications ______________________________ 9
3.3 Components: Model 59 ____________________________ 10
3.4 Components: Model 59T, Model 59T-LWH _____________ 11
4 - Setup________________________________________________ 12
4.1 Attaching Patient Restraints_________________________ 12
4.2 Restraint Congurations____________________________ 12
4.3 Ankle Restraint ___________________________________ 13
5 - Features _____________________________________________ 14
5.1 Folding and Unfolding the Chair _____________________ 14
5.2 Track System (Models 59T, 59T-LWH Only) _____________ 15
5.3 Extending Lift Bar _________________________________ 16
5.4 Telescoping Lift Handles____________________________ 16
5.5 Footrest _________________________________________ 17
5.6 Wheel Locks _____________________________________ 17
5.7 Rear Lift Handles Model 59T-LWH Only ________________ 18
5.8 Rear Lift Handles Models 59, 59T (Optional) ____________ 19
6 - Using the Chair _______________________________________ 20
6.1 Before Placing the Chair in Service ___________________ 20
6.2 General Guidelines for Use__________________________ 20
6.3 Transferring the Patient ____________________________ 21
6.4 Rolling the Chair __________________________________ 21
6.5 Transporting a Patient Down Stairs (Model 59)__________ 22
6.6 Transporting a Patient Down Stairs
(Models 59T, 59T-LWH) _____________________________ 23
6.6 Transporting a Patient Up Stairs (All Models) ___________ 25
6.7 Pausing On the Stairs ______________________________ 26
7 - Maintenance _________________________________________ 27
7.1 Maintenance Schedule_____________________________ 27
7.2 Disinfecting/Cleaning Restraints _____________________ 27
7.3 Disinfecting/Cleaning the Chair______________________ 27
7.4 Cleaning Tracks and Belts ___________________________ 27
7.5 Inspecting the Chair _______________________________ 28
7.6 Lubricating the Chair ______________________________ 29
7.7 Do Not Lubricate Track System ______________________ 29
7.8 Reconditioning the Track Belts_______________________ 30
7.9 Adjusting Track-Belt Tension ________________________ 31
7.10 Removing and Attaching the ABS Panels ______________ 33
8 - Accessories___________________________________________ 34
9 - Parts and Service______________________________________ 35
9.1 U.S.A. and Canada_________________________________ 35
9.2 Worldwide_______________________________________ 35
9.3 Parts List ________________________________________ 35
9.4 Parts Diagrams ___________________________________ 36
Training Record__________________________________________ 37
Maintenance Record _____________________________________ 38
Notes __________________________________________________ 39
TABLE OF CONTENTS
Section Page Section Page

© Ferno-Washington, Inc. / 234-3298-07 / July 2018
4
Safety Information
1  SAFETY INFORMATION
1.1 Warning
Warning notices indicate a potentially hazardous situation which, if not
avoided, could result in injury or death.
1.4 Bloodborne Disease Notice
To reduce the risk of exposure to bloodborne diseases such as HIV-1
and hepatitis when using the chair, follow the disinfecting and cleaning
instructions in this manual.
1.3 Tip
Tips provide recommendations for easier use of the product.
WARNING
Untrained operators can cause injury or be injured.
Permit only trained personnel to operate the chair.
Improper use of the chair can cause injury. Use the chair
only for the purpose described in this manual.
Improperly attaching restraints can allow seat and back
panels to dislodge, resulting in injury. Restraints must
capture panel AND chair frame.
Using the chair with the track system unlocked can cause
injury. Verify that the track system is locked before
transporting the patient.
Lubricating the track system can result in injury to the
patient and/or operators. Never lubricate the tracks or belts.
Improper operation can cause injury. Operate the chair
only as described in this manual.
An unattended patient can be injured. Stay with the
patient at all times.
An unrestrained patient can fall o the chair and be
injured. Use restraints to secure the patient on the chair.
Helpers can cause injury or be injured. Maintain control
of the chair, operate the controls, and direct all helpers.
Improper maintenance can cause injury. Maintain the
chair only as described in this manual.
Attaching improper items to the chair can cause injury.
Use only Ferno-approved items on the chair.
Improper parts and service can cause injury. Use only
Ferno parts and Ferno-approved service on the chair.
Modifying the chair can cause injury and damage. Use the
chair only as designed by Ferno.
1.2 Notice
Notices emphasize important, but not hazard-related information.
Failure to follow Notices could result in product or property damage.
NOTICE

© Ferno-Washington, Inc. / 234-3298-07 / July 2018 5
Product meets
European Union Standards
Load Capacity
(Safe Working Load in
pounds, kilograms, stone)
General Warning of
Potential Injury
Do Not Pressure Wash
Operation Requires
Two Trained Operators
Read the Users’Manual
Safety Information
Open Track System Close Track System
1.5 Symbol Glossary
The symbols dened on this page are used on the chair and/or in this
users’ manual. Ferno uses symbols recognized by the International
Standards Organization (ISO), American National Standards Institute
(ANSI) and the emergency medical services industry.
Do Not
Lubricate
LubricateUnlocked Locked
500 lb
227 kg
35.7 st
QR Code
(Access Online Content)
Manufacturer Authorized Representative in the
European Community

© Ferno-Washington, Inc. / 234-3298-07 / July 2018
6
1.7 Safety and Instruction Labels:
Model 59T, Model 59T-LWH
Safety and instruction labels place important information from the
users’ manual on the chair. Read and follow label instructions. Replace
worn or damaged labels immediately.
Instruction:
Adjusting Lift Bar
Risk of Injury: Do Not
Lubricate Tracks
Instruction:
Closing Tracks
Ferno Products are Protected by Patents Worldwide
Instruction: Folding/Unfolding the Chair
Instruction: Opening the Tracks
Safety Instruction: Attaching Restraints
Safe Use Guidelines
1.6 Safety and Instruction Labels:
Model 59
Safety and instruction labels place important information from the
users’ manual on the chair. Read and follow label instructions. Replace
worn or damaged labels immediately.
Safe Use Guidelines
Instruction: Folding/Unfolding the Chair
Ferno Products are Protected by Patents Worldwide
Safety Instruction: Attaching Restraints
Safety Information

© Ferno-Washington, Inc. / 234-3298-07 / July 2018 7
Operator Focus
2  OPERATOR FOCUS
2.1 Operator Training
Operator using the chair:
● must read and understand this manual.
● must have training on proper use of the chair.
● must have a training on emergency-medical service and emergency
patient-handling procedures.
● must have the physical ability to assist the patient.
● must practice with the chair before using it with a patient.
● must keep training records. For a sample training record sheet, see
“Training Record” on page 37.
2.2 Terms
The following terms are used in this manual.
● INTERACTIVE CONTENT: For training videos and proper use of the
chair, scan a QR code in this manual, click a link in an electronic
version of this manual or visit our website at www.ferno.com.
● LOAD: The load is the overall weight of the patient plus equipment
placed on (or attached to) the chair.
● LOAD CAPACITY: Load capacity is the amount of weight the chair
is designed to hold. This includes the patient weight plus any
accessories attached to the chair (IV poles, bags, etc.)
● OPERATORS:Trained operators are referred to as Head-end Operator
and Foot-end Operator in this manual. Trained operators maintain
control of the chair, operate the controls, and direct helpers.
● SPOTTER: If available, Ferno recommends the use of a spotter
when moving the chair on stairs. The spotter stands behind the
backward-facing operator and helps steady and guide the operator.
WARNING
Untrained operators can cause injury or be injured.
Permit only trained personnel to operate the chair.

© Ferno-Washington, Inc. / 234-3298-07 / July 2018
8
Using the Chair
2.3 Using Additional Help
Operating the chair requires a minimum of two trained operators. Ferno
recommends:
● Position a trained operator at each end of the chair;
● Operators and helpers should face each other when transporting a
patient up or down stairs;
● A third trained person should serve as a spotter for the backward-
facing operator.
● Follow all applicable local protocols for carrying chairs.
Trained operators maintain control of the chair and operate the controls.
The designated lead operator should direct all helpers. The charts on
this page show suggested placement for operators and helpers.
Direction Descend Ascend
Two Operators and
One Helper OO
PS
Two Operators and
Three Helpers
Key: O = Operator H = Helper S = Spotter P = Patient
Direction Rolling on Flat Surface
Two Operators and
Two Helpers
Load Capacity
Inspect the chair if the Load Capacity has
been exceeded. See “Inspecting the Chair”
on page 28.
500 lb
227 kg
35.7 st
WARNING
Helpers can cause injury. Maintain control of the chair,
operate the controls, and direct all helpers.

© Ferno-Washington, Inc. / 234-3298-07 / July 2018 9
3  ABOUT THE CHAIR
About the Chair
3.1 Description
Note:In this manual, all chair models are referred to as “the chair” when
features or operation is identical. When a feature or operation diers, the
specic chair model name is used.
The chair is for professional use by a minimum of two trained operators.
A third person to serve as a spotter may be required by local protocols.
Additional help may be required when working with heavy patients.
The Ferno® Model 59 EZ-Glide® Evacuation Chair is an emergency
patient-handling device designed to transport a seated patient up and
down stairs and over at surfaces. The chair does not feature tracks.
Operators lift and carry the chair up or down stairs.
The Ferno® Model 59T or 59T-LWH EZ-Glide® Evacuation Chair are
emergency patient-handling devices designed to transport a seated
patient up and down stairs and over at surfaces. The chair is designed
with belted tracks that enable operators to “glide” the chair down stairs
instead of carrying it.
The dierence between models 59T and 59T-LWH is the weight of the
chair (see table at right), and the use of the rear lift handles. Rear lift
handles are available as an accessory to Model 59T. Model 59T-LWH
is constructed with two-stage, locking rear lift handles as standard
equipment.
POWERTraxx® conversion kits are available to provide a powered
track system for Models 59T or 59T-LWH. To purchase accessories, see
“Accessories” on page 34.
CHAIR FEATURES
● (59T, 59T-LWH) Belted track system for“gliding” chair down stairs
● Molded ABS seat and back panels
● Choice of color
● 5-position extending rear lift bar
● 5-position telescoping front lift handle (2)
● 6” rear locking wheel (2)
● 4” front swivel wheel (2)
● Folding footrest
● Ankle restraint
● Patient restraints (page 11)
3.2 General Specications
Specications for the chair are shown in the table at right. General
specications are rounded. Metric conversions are calculated before
rounding the Imperial measurement.
Ferno reserves the right to change specications without notice. For
more information, contact Ferno. See “Ferno Customer Relations” on
page 2
Specication Imperial Metric
Load Capacity 500 lb 227 kg
Load Capacity (UK) --- 35.7 st
Weight* Model 59 26 lb 12 kg
Weight* Model 59T 37 lb 17 kg
Weight* Model 59T-LWH 40 lb 18 kg
Height
Maximum 63.5 1613 mm
Minimum 37.5 in 953 mm
Width
Overall 20.313 in 516 mm
Seat 16.5 in 419 mm
Depth (front to back)
Model 59 27 in 690 mm
59T, 59T-LWH Tracks closed,
Handles retracted
28.5 in 724 mm
59T, 59T-LWH Tracks Open,
Handles extended
51 in 1295 mm
Folded
Model 59
Length x width x depth
37.5 in x
20.313 in x
9 in
953 mm x 516
mm x 225 mm
59T, 59T-LWH
Length x width x depth
37.5 in x
20.313 in x
10 in
953 mm x 516
mm x 250 mm
Wheels, Rear
Diameter 6 in 152 mm
Width 1.25 in 32 mm
Wheels, Front
Diameter 4 in 102 mm
Width 1.18 in 30 mm
Chair Construction Rectangular aluminum
Seat/Back Panels ABS Plastic
Wheel Bearings Sealed/greaseless
* Weight is without restraints or accessories
WARNING
Improper use of the chair can cause injury. Use the chair
only for the purpose described in this manual.
Load Capacity
Inspect the chair if the Load Capacity has
been exceeded. See “Inspecting the Chair”
on page 28.
500 lb
227 kg
35.7 st

© Ferno-Washington, Inc. / 234-3298-07 / July 2018
10
3.3 Components: Model 59
About the Chair
Removable
ABS Seat Panel with
Restraint Slots
Removable
ABS Back Panel with
Restraint Slots
Chair Lock
Bar
Extending Lift Bar
Folding Footrest
Telescoping Lift Handle (2)
Ankle Restraint
4" Swivel Wheel (2)
6" Wheel
with Lock (2)
Patient
Restraints
Lift Bar Release
Wheel Lock (2)
Locking Rear Handle
(Pair, Optional)

© Ferno-Washington, Inc. / 234-3298-07 / July 2018 11
About the Chair
Track (2)
4" Swivel Wheel (2) 6" Wheel with Lock (2)Folding Footrest
Telescoping Lift Handle (2)
Chair Lock Bar
Patient
Restraint (2)
Extending Lift Bar
Removable ABS Back Panel
with Restraint Slots
Removable ABS Seat Panel
with Restraint Slots
Restraint Options
(See “Accessories” on page 34)
Model 430P
Model 430
Ankle Restraint
Belt (2)
Track Release Bar
IV Pole (Optional)
Extending Lift Bar
Lift Bar Release Tabs
Track Closing Handle
Locking Rear
Handle
(Pair, Optional)
Wheel Lock (2)
3.4 Components: Model 59T, Model 59T-LWH

© Ferno-Washington, Inc. / 234-3298-07 / July 2018
12
4  SETUP
Setup
4.1 Attaching Patient Restraints
Use patient restraints to help hold the patient on the chair. Each
restraint must capture both the aluminum chair frame and the seat or
back panel. Follow local protocols when attaching restraints.
USING TWOPIECE RESTRAINTS
1. Feed a restraint strap loop through a slot in the seat or back panel.
2. Wrap the strap around the aluminum chair frame and feed the male
or female buckle through the loop, then pull the strap tight against
the frame and panel.
3. Repeat Steps 1-2 for the other half of the restraint.
USING ONEPIECE RESTRAINTS
Note:Two-piece restraints are recommended.
1. To attach the seat-panel restraint, lay the restraint across the
top of the seat panel and feed the male and female ends of the
restraint down through the slots.
2. Wrap the restraint around the aluminum chair frame on each side
of the chair, capturing both the panel and the frame (Figure 1).
3. Buckle the restraint and adjust the length.
4. Repeat Steps 1-3 to attach the back-panel restraint.

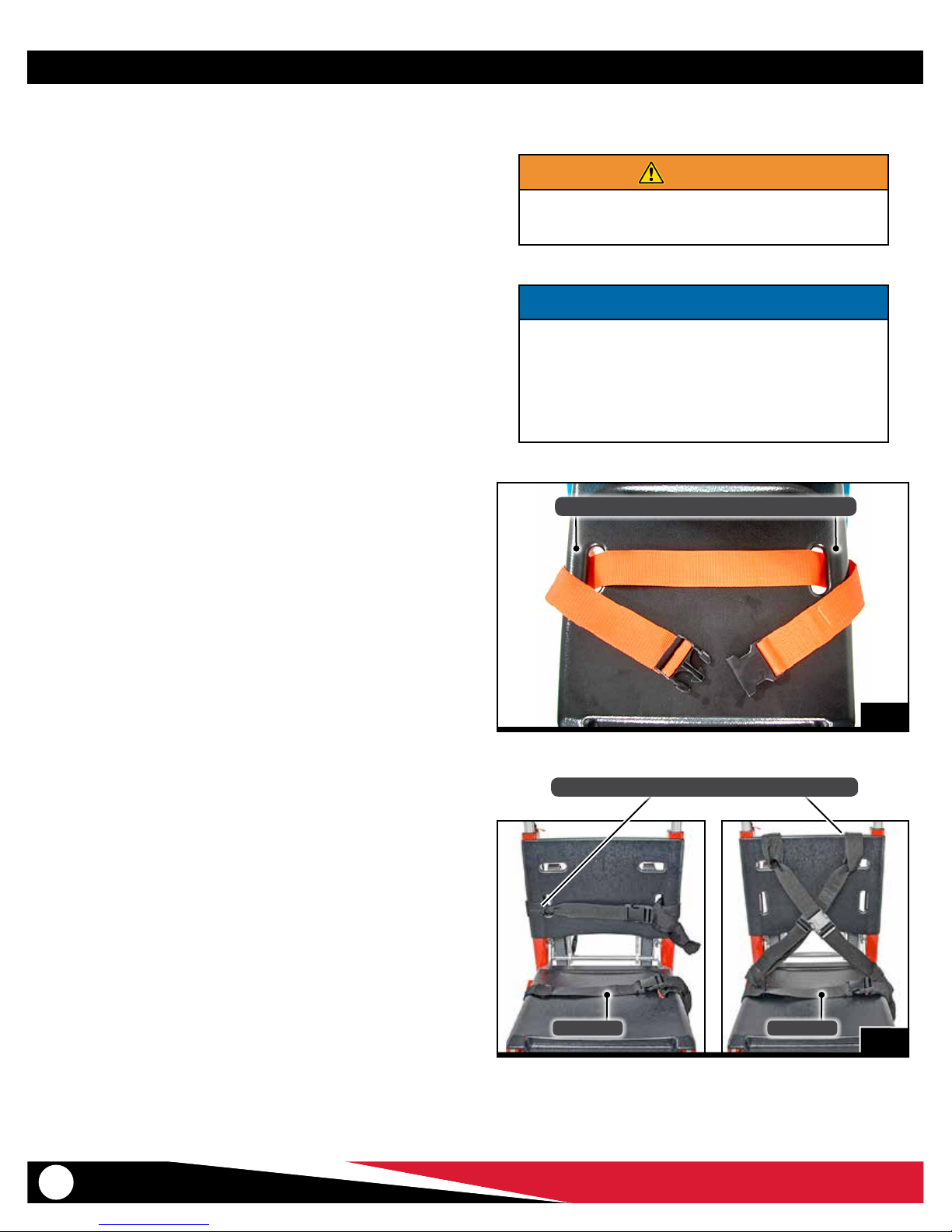

4.2 Restraint Congurations
Follow local protocols when conguring and using restraints. Two
possible congurations are described below.
HORIZONTAL CONFIGURATION
Use one restraint for the chest and one restraint for the lap (Figure 2).
Use additional restraints as needed.
1. Attach the chest straps through vertical slots in the back panel.
2. Attach the lap straps through the seat panel slots.
CRISSCROSS CONFIGURATION
Use two restraints for the torso and a third restraint for the lap (Figure 2).
1. Attach one strap of a restraint through a horizontal slot on the
back panel of the chair.
2. Attach the mating strap of the same restraint through the seat
panel slot on the opposite side of the chair.
3. Repeat with the second restraint, attaching its straps to opposite
sides of the chair.
4. Attach the lap restraint through the seat-panel slots.
WARNING
Improperly attaching restraints can allow seat and back
panels to dislodge, resulting in injury. Restraints must
capture panel AND chair frame.
2
Lap BeltLap Belt
Straps Must Capture Aluminum Frame and Panels
1
Capture Aluminum Frame and Panel at Each Side
NOTICE
Restraint rules (also follow your local protocols):
● Use a minimum of two restraints.
● One restraint must be secured across the chair seat to
help hold the patient on the chair.
● Each restraint or strap must capture the aluminum
chair frame and the plastic panel.

© Ferno-Washington, Inc. / 234-3298-07 / July 2018 13
Setup/Installation
4.3 Ankle Restraint
Use the ankle restraint to help keep the patient’s feet on the footrest.
Attach the two-piece ankle restraint to the front legs of the chair. To
attach the restraint:
1. Unbuckle the restraint to separate the straps.
2. Wrap a strap around one front leg of the chair and thread the
buckle through the loop, then pull the strap tight around the
chair leg (Figure 3).
3. Attach the remaining strap to the opposite front leg.
4. Buckle the restraint and adjust the length (Figure 4).
3
4

© Ferno-Washington, Inc. / 234-3298-07 / July 2018
14
5  FEATURES
Features
Folding and Unfolding the Chair
The chair lock must be disengaged before you
begin folding or unfold the chair. Pull the lock
bar forward, then fold or unfold the chair.
When folding the chair, tilt the seat forward so
the swivel wheels rotate outward, away from
the seat.
5.1 Folding and Unfolding the Chair
The red lock bar below the front edge of the seat disengages the lock for
unfolding and folding the chair. Before seating a patient, verify that the
chair is completely unfolded and the lock is engaged.
FOLDING THE CHAIR
1. Buckle the restraints and arrange the straps to prevent interference
with folding the chair.
2. Roll the chair backward to reverse the swivel wheels (Figure 5).
3. Standing at the side of the chair, grasp the lift bar with one hand
and the lock bar with the other hand.
4. Pull the lock bar forward or toward the front of the chair (Figure 6),
then fold the seat toward the lift bar.
AS YOU FOLD THE SEAT: Tilt the chair forward (Figure 7) to keep
the swivel wheels rotated outward. This prevents the wheels from
holding the frame away from the seat and allows the lock to engage.
5. Press the seat against the back-panel frame until the lock engages
(Figure 8).
6. Verify the lock has engaged by pulling the seat away from the lift
bar without pulling the lock bar. The seat will not move if the lock
is engaged.
Note:If the swivel wheels prevent the chair from locking in the folded
position, hold the chair at a greater tilt to allow the swivel wheels to rotate
away from the chair frame.
UNFOLDING THE CHAIR
1. Stand beside the chair and grasp the lift bar with one hand and
the lock bar with the other hand.
2. Pull the lock bar forward (toward the front of the chair), then pull
the seat away from the lift bar until the chair fully unfolds and the
lock engages.
3. To verify the lock has engaged, hold the lift bar while pulling up
on the chair frame at the front of the seat. The chair will not fold if
the lock is engaged.
5
Swivel Wheels
Reversed
6
Lock Bar
7 8

© Ferno-Washington, Inc. / 234-3298-07 / July 2018 15
Features
5.2 Track System
(Models 59T, 59T-LWH Only)
The track system enables operators to glide the chair down stairs
instead of lifting and carrying it.
GUIDELINES FOR USE
● Using the chair on stairs requires a minimum of two trained
operators. Ferno recommends using a third person as a “spotter”.
See “Transporting a Patient Down Stairs (Models 59T, 59T-LWH)”
on page 23.
● Verify that the track system is fully open and locked before use.
● Never lubricate the belts. Lubrication can cause the belts to perform
unpredictably, resulting in injury to the patient and/or operators.
● Moisture, water, snow, ice, or debris on or between the tracks and belts
can cause irregular belt performance that results in sudden changes in
the weight operators must support. Make sure the tracks and belts are
clean and dry before using the chair on stairs.
● Moisture, water, snow, ice, or debris on the stairs can cause poor
footing for operators. To avoid possible injury, clear the stairs or
select an alternate route.

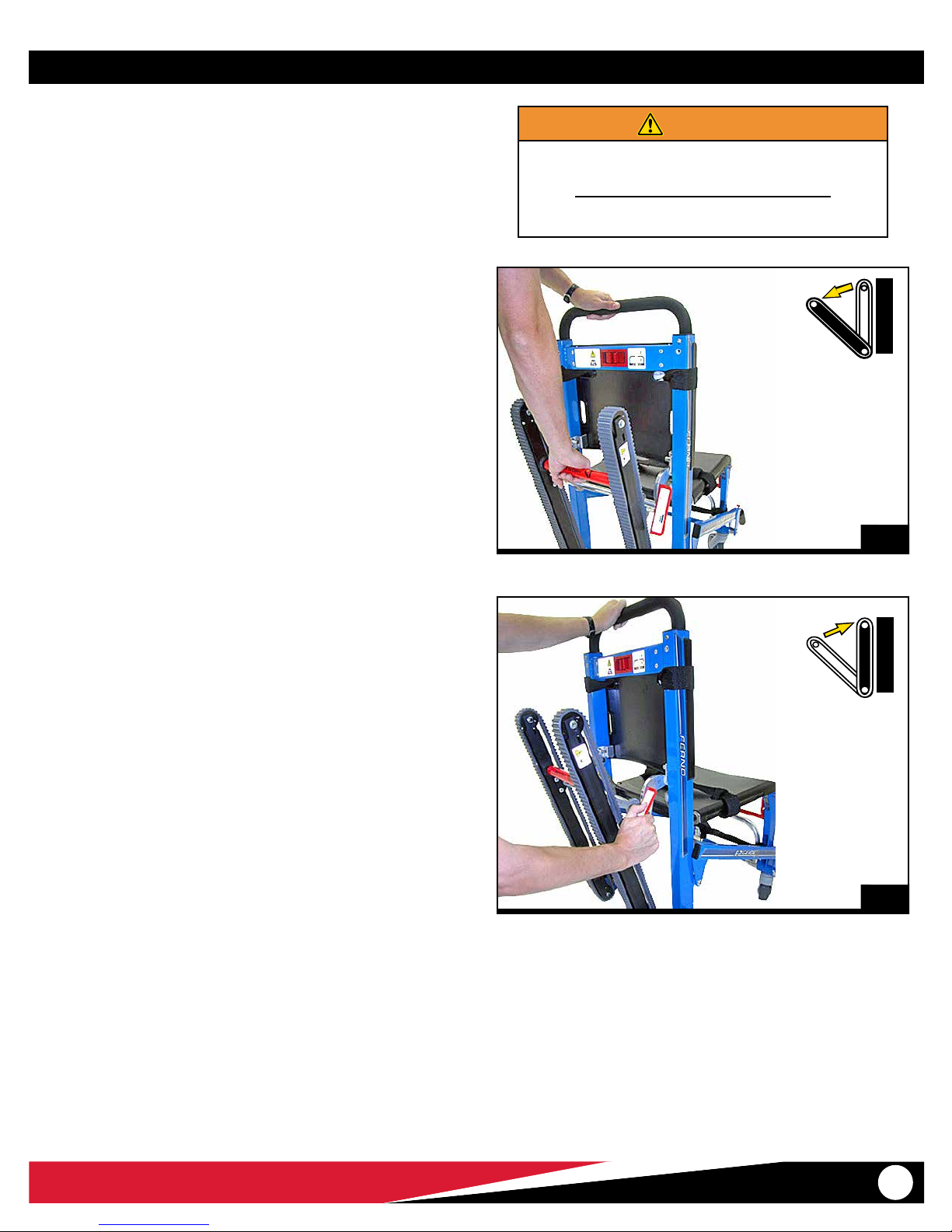

OPENING THE TRACK SYSTEM
1. Grasp the red release bar (Figure 9) and rmly pull the track
system away from the chair until it locks in the open position.
2. Verify that track system has locked by trying to push the tracks
closed. If the lock is fully engaged, the track system will not close.
CLOSING THE TRACK SYSTEM
With your hand, push the red closing handle down (Figure 10) until the
track system closes completely.
WARNING
Using the chair with the track system unlocked can
cause injury. Verify that the track system is locked before
transporting the patient.
Lubricating the track system can result in injury to patient
and/or operators. Never lubricate the tracks or belts.
9
10

© Ferno-Washington, Inc. / 234-3298-07 / July 2018
16
Features
5.3 Extending Lift Bar
The rear operator uses the lift bar to guide and steer the chair when
rolling the chair and to control the chair on stairs.
The lift bar adjusts to ve locked positions (Figure 11). Adjust the height
according to operator preference and the task or situation at hand.
RASING AND LOWERING THE LIFT BAR
1. Pinch and hold the release tabs together with one hand to unlock
the lift bar (Figure 12), then raise or lower the lift bar with the
other hand.
2. When the lift bar is near the desired position, let go of the release
tabs and raise or lower the lift bar until it locks into position.
3. Verify that the lift bar is locked by trying to raise or lower it without
squeezing the release tabs. When the lock is engaged the lift bar
will not move.
5.4 Telescoping Lift Handles
The telescoping lift handles adjust to ve locked positions (Figure 11).
Adjust the handles according to operator preference and the task at hand.
EXTENDING/RETRACTING THE LIFT HANDLES
1. Press the release button (Figure 13) and push or pull the handle
near the desired stopping point.
2. Release the button and slide the handle a little forward or
backward until it locks into position.
3. Lock both handles at the same position. Verify that both handles
are locked by trying to push or pull them without pressing the
release buttons. When the locks are engaged, the handles will not
move.
11
12
13
Lift Handle
5 Locking Positions
Lift Bar
5 Locking Positions

© Ferno-Washington, Inc. / 234-3298-07 / July 2018 17
Features
Footrest
Raise the footrest to the storage position
before transferring the patient onto or o
from the chair.
5.5 Footrest
The footrest has two positions: raised for storage (Figure 14), and
lowered for use (Figure 15).
To lower the footrest, swing it down until it stops.
To raise the footrest, swing it up until it stops.
GUIDELINES FOR USING THE FOOTREST
Use the footrest properly to ensure that is does not interfere with
patient’s or operators’feet.
● Before transferring the patient onto the chair, make sure the
footrest is raised in the storage position. Seat the patient before
lowering the footrest.
● When preparing to transfer the patient o the chair, unfasten the
ankle restraint and raise the footrest into the storage position
before unfastening the patient’s torso and lap restraints. This will
prevent the patient from attempting to stand before the footrest
has been stored out of the way of his/her feet.
● Keep the footrest raised when it is not in use.
5.6 Wheel Locks
The rear chair wheels are tted with wheel locks to help keep the chair
from rolling during patient transfer.
Stay with the chair and maintain control of it at all times. Do not use the
wheel locks as a substitute for operator control.
To engage a wheel lock, press down the rear end of the lock pedal
(Figure 16).
To disengage a wheel lock, press down the forward end of the lock
pedal.
14
15
16

© Ferno-Washington, Inc. / 234-3298-07 / July 2018
18
Features
19

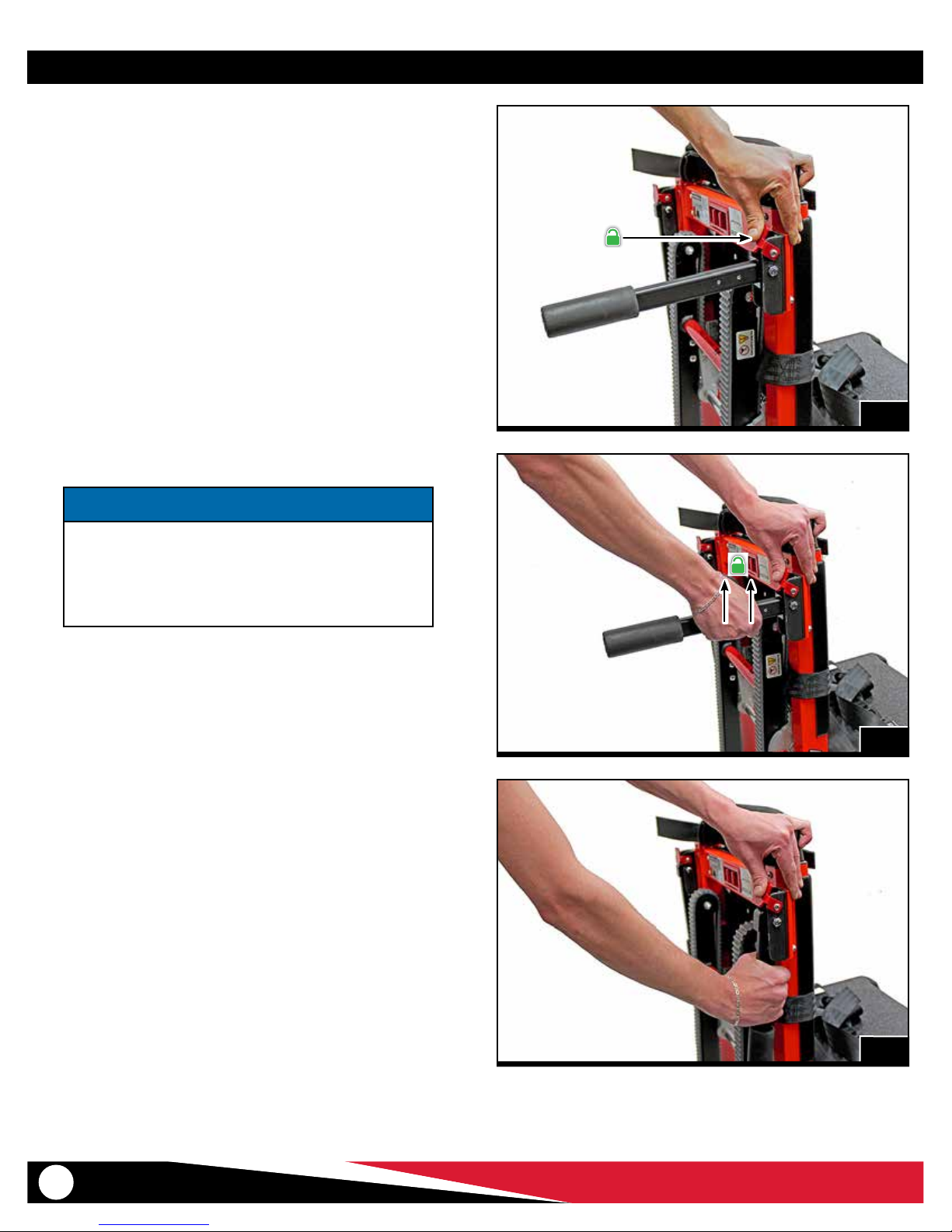

5.7 Rear Lift Handles
Model 59T-LWH Only
The Model 59T-LWH chair is constructed with two-stage locking handles
axed to the sides of the chair frame. Use the handles only as a pair. Do
not lift the chair using only one handle.
To raise the handles for use: Raise each handle until it locks with an
audible click.
To unlock and fold the handles:
To unlock and fold the handles, both locks must be disengaged.
1. Press and hold the red release lever to disengage the safety lock
(Figure 17).
2. With the red release lever still pressed, grasp the center of the
handle and lift the entire handle upward to unlock the secondary
lock (Figure 18). Keep the handle parallel with the oor as you
raise it.
3. Fold the handle and release the red release lever (Figure 19). 17
18
NOTICE
LIFT ONLY: Lift handles are designed for lifting and carrying
the chair only. Use the handles to lift and carry the chair up
stairs or over obstacles.
To tilt and roll the chair, use the lift bar. Do not press down on
the locked handles in order to tilt or turn the chair.

© Ferno-Washington, Inc. / 234-3298-07 / July 2018 19
Features
5.8 Rear Lift Handles
Models 59, 59T (Optional)
If the Model 59T chair was purchased with the optional locking rear
lift handles, or if you installed a kit, use the handles as follows. To order
handles, see “Accessories” on page 34.
● Use the handles only as a pair. Do not lift the chair using only one
handle.
● To raise a handle, lift the handle until it locks with an audible click.
● To lower a handle, press the red release lever toward the chair to
disengage the lock (Figure 20), then lower the handle.
● Keep the handles folded when not in use.
20
NOTICE
LIFT ONLY: Lift handles are designed for lifting and carrying
the chair only. Use the handles to lift and carry the chair up
stairs or over obstacles.
To tilt and roll the chair, use the lift bar. Do not press down on
the locked handles in order to tilt or turn the chair.

© Ferno-Washington, Inc. / 234-3298-07 / July 2018
20
6  USING THE CHAIR
Using the Chair
6.1 Before Placing the Chair
in Service
Personnel who will work with the chair need to read this manual.
● Set up the chair, following the instructions in this manual. See
“Setup”on page 12.
● Conrm that the chair operates properly. See“Inspecting the Chair”
on page 28.
6.2 General Guidelines for Use
● Medical advice is beyond the parameters of this manual.
● It is the users’ responsibility to ensure safe practices for the patient
and themselves.
● A minimum of two trained operators is required.
● Operators work together and maintain control of the chair at
all times.
● Follow standard emergency patient-handling procedures when
operating the chair.
● Operators communicate with one another and use coordinated
movements to operate the chair.
● Ferno recommends that a third trained person serve as a “spotter”
while using the chair on stairs.
● Lift only the weight you can safely handle. Use additional help
when working with heavy loads (patient and equipment). For
placement of help, see “Using Additional Help” on page 8.
● Stay with the patient at all times.
● Always use patient restraints to secure the patient on the chair.
● Remove any water, ice, snow, or debris from the stairs before using
the chair on them.
● Remove any water, ice, snow, or debris from the track and tread
belts before using the chair on stairs.
● Verify that the track system is locked in the open position before
using the chair on stairs.
WARNING
Helpers Improper operation can cause injury. Operate the
chair only as described in this manual.
An unattended patient can be injured. Stay with the
patient at all times.
An unrestrained patient can fall o the chair and be
injured. Use restraints to secure the patient on the chair.
Lubricating the track system can result in injury to patient
and/or operators. Never lubricate the track or belts.
NOTICE
LIFT ONLY: Lift handles are designed for lifting and carrying
the chair only. Use the handles to lift and carry the chair up
stairs or over obstacles.
To tilt and roll the chair, use the lift bar. Do not press down on
the locked handles in order to tilt or turn the chair.
