Fiberstars WPC-1 User manual

http://www.fiberstars.com
79-15053-00 REV. C Page 1 of 16
Installation Instructions: Read these instructions in
their entirety before performing any installation work.
Rated for use on 110/120VAC 60Hz and 220/240VAC 60Hz applications
WPC-1
ETL LISTED
Conforms to UL STD 508;
Certified to CSA STD
C22.2 No. 14
FOR USE WITH POOL AND SPA PRODUCTS

http://www.fiberstars.com
79-15053-00 REV. C Page 2 of 16
18
19
17
16
15
14
13
12
10
10
9
8
7
6
5
4
11
3
2
1
Accessory Items:
FP 1/2 Temperature Freeze Device
WE-65 65 ft Repeater Cord Extension Kit
DL-HUB Direct Light Hub Connection Kit
WPC-12V 12V Transformer for Fiberstars Light Streams LED Products
The WPC-1 consists of the following parts:
Item No. Qty. Component part No. Description
1 1 - WPC-1 Enclosure
2 1 94-15087-00 WPC-1 Enclosure Door
3 1 37-15000-00 Relay
4 1 41-15004-08 8 Position Terminal Block
5 1 42-15032-00 Timer
6 1 02-15268-00 Face Plate
7 2 02-15274-00 WPC-1 Mounting Bracket
8 1 41-15003-00 Grounding Bar
9 1 94-15090-00 WPC Receiver
10 6 10-15086-04 Face Plate and Mounting Bracket Screws
11 2 10-15089-06 Terminal Block Mounting Screw
12 2 10-15060-01 Relay Mounting Screw
13 8 10-15089-03 Timer and Receiver Mounting Screws
14 2 A11526 3-Position Toggle Switch
15 1 94-15092-00 WPC Repeater
16 2 10-15089-02 Freeze Device Mounting Screw (Optional equipment)
17 1 20-15013-00 Strain Relief
18 1 17-15005-00 Latch
19 2 10-15089-01 Latch Mounting Screws

http://www.fiberstars.com
79-15053-00 REV. C Page 3 of 16
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
2. Changes or modifications not expressly approved by Fiberstars Inc. could void the user's
authorit
y
to o
p
erate the e
q
ui
p
ment.
FCC WARNING
ELECTRICAL RATINGS
Do not exceed the maximum electrical ratings of the WPC-1. A circuit breaker rated at 20Amps
at 120VAC must be installed in the breaker panel to connect to the WPC-1 power input. Circuit
1 and Circuit 2 are each rated for use of up to 8Amps @ 120VAC. The Pump Relay is rated at
a
maximum of 3HP @ 240VAC.
Basic safety precautions should be observed when operating the WPC-1 product and other
associated equipment.
1. A qualified electrician must install the WPC-1 in accordance to the National and Local
Electrical Codes.
2. The WPC-1 must not be less then 5 feet (3 meters in Canada) from inside edge of pool.
ONLY USE COPPER CONDUCTORS.
3. Do not exceed the maximum ratings of individual components, wiring devices, and current
carrying capacity of conductors.
4. For the bonding, grounding, installing, and wiring of underwater lights to the WPC-1, refer
to Article 680 of the National Electrical Code or Article 68 of the Canadian Electrical Code.
5. This device should never operate equipment that could cause property damage, bodily
injury, or death should it be activated unexpectedly.
6.
Never allow children to operate the WPC
-
1 unsupervised.
SAVE THESE INSTRUCTIONS!
IMPORTANT SAFETY INFORMATION

http://www.fiberstars.com
79-15053-00 REV. C Page 4 of 16
HOT
NEUTRAL
T/C POWER
T/C NEUTRAL
Power Connections:
To wire the WPC-1 use insulate
d
COPPER wire only, 12 gauge minimum.
Run a ½” to ¾” conduit from the main
breaker panel to the WPC-1. Pull
appropriate wires from the main breake
r
p
anel to the WPC-1 unit. To make powe
r
connections remove 3/8 inches o
f
insulation from wire ends. Insert the bare
end of wires under the pressure plate o
f
terminals (Power Input, HOT). Use 1/8-
in. flat head screwdriver to tighten
terminal screws firmly (4.4 lb-in
minimum). Connect the house common
to the Power Inputs NEUTRAL terminal.
Connect another HOT wire to the
Timeclocks T/C POWER terminal.
Connect a house common to the
Timeclocks T/C NEUTRAL. Install a 20
Amp circuit breaker in the main breake
r
p
anel and connect the HOT wires from
the WPC-1.
LOCATION
Install the WPC-1 enclosure using the mounting plates included with each enclosure. The WPC-
1 is housed in a Type 3R rainproof enclosure and can be mounted anywhere between the pool
equipment and the breaker panel.
WIRING INSTRUCTIONS
FOLLOW PROPER WIRING PRACTICES IN ACCORDANCE WITH ALL LOCAL
REGULATORY REQUIREMENTS.
WARNING
•TURN OFF INCOMING POWER BEFORE SERVICING EQUIPMENT.
•ALL INSTALLATION AND MAINTENANCE WORK MUST BE PERFORMED BY
QUALIFIED ELECTRICAL PERSONELL ONLY.
•VERIFY ALL ELECTRICAL RATINGS BEFORE INSTALLATION IS COMPLETE.

http://www.fiberstars.com
79-15053-00 REV. C Page 5 of 16

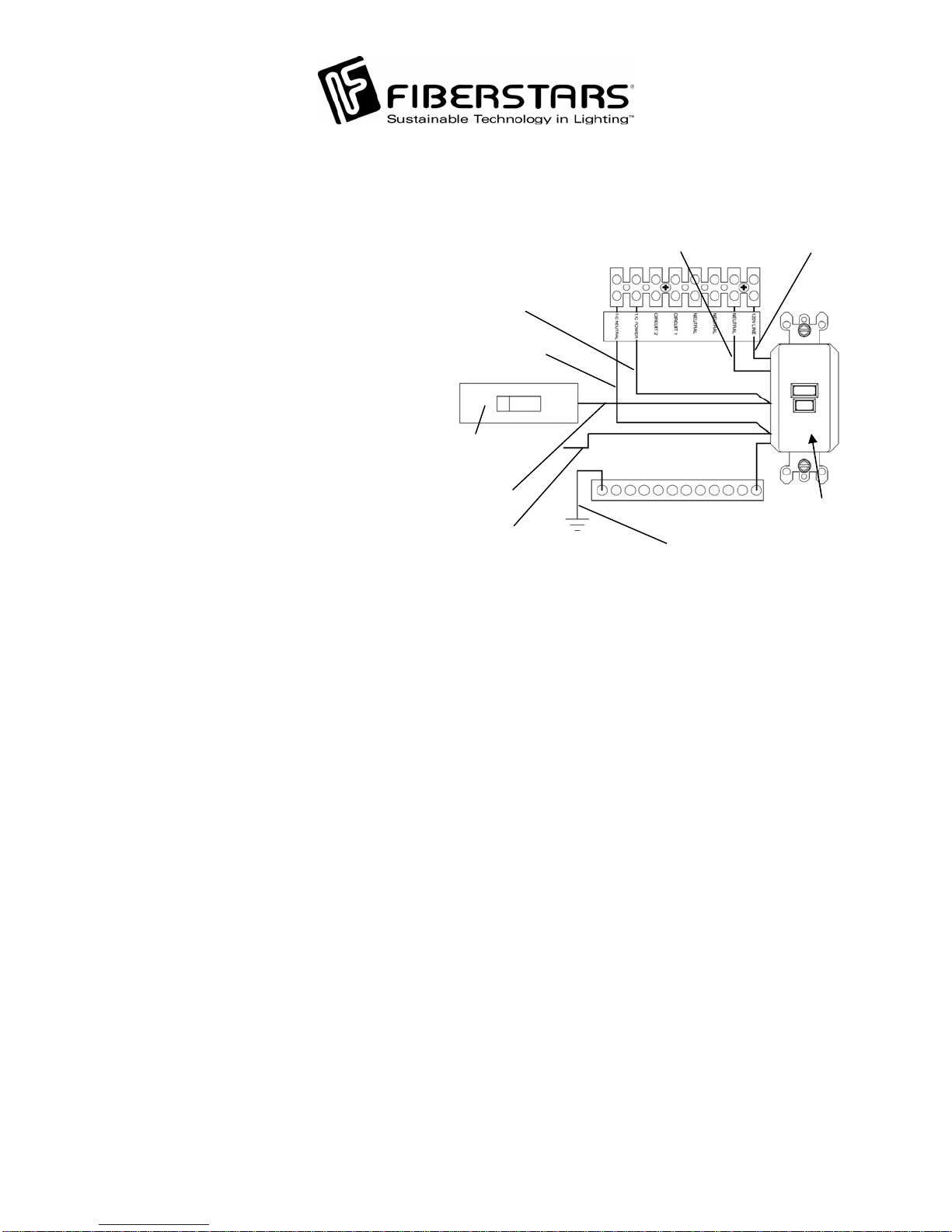

TO
N
EUTRAL BAR
DE
GROUND
HOT
LINE SI
T/C
N
EUTRAL
T/C POWER
HOT
LOAD SIDE
N
EUTRAL
LOAD SIDE
GFCI
120VAC 20AMP ERCIRCUIT BREAK
Power Connection with GFCI
To wire the WPC-1 with the use of
a
GFCI, punch out the GFCI knockou
t
on the side of the WPC-1 enclosure.
Install an outdoor rated GFCI. Using
COPPER wire only, 12 gauge
minimum, connect the GFCI from the
LOAD side to the HOT terminal on
the POWER INPUT of the WPC-1.
Connect the NEUTRAL from the
LOAD side of the GFCI to the
NEUTRAL terminal from the WPC-1.
Connect the GROUND of the GFCI to
the EQUIP. GND. bar. Wire the HOT
from the GFCI’s LINE side to the
20Amp circuit breaker in the main
b
reaker panel as discussed earlier.
Connect the NEUTRAL from the
GFCI’s LINE side to the house
common. From the GFCI’s LINE
side, connect a wire from the HOT to
the Timeclocks T/C POWER
terminal. From the NEUTRAL of the
LINE side on the GFCI, connect to the
T/C NEUTRAL on the terminal block.
NOTE: Do not connect the Timecloc
k
Inputs to the LOAD side of the GFCI.

http://www.fiberstars.com
79-15053-00 REV. C Page 6 of 16
If this product is used to connect underwater lights
directly, refer to 1999 NEC 680-21(b), 2002 NEC
680-24(b) or CEC 68-060, 062 and 066 for details.

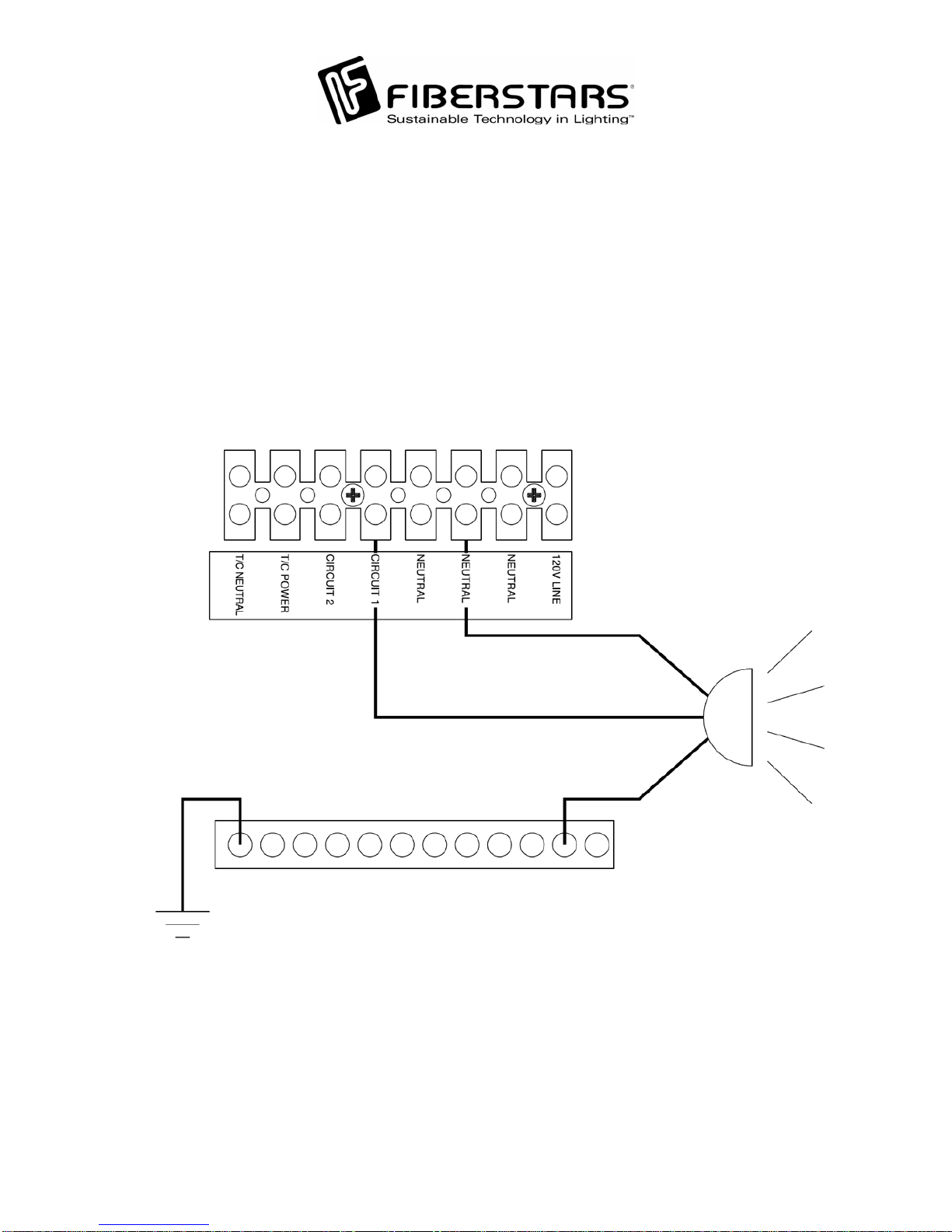

Hooking up Lights to Circuit 1 and Circuit 2
To connect a lighting product to the Circuit 1 and Circuit 2 switch, pull wires from the products
to the WPC-1 through conduits connected to the bottom of the WPC-1. As illustrated, connect
lights that will be operated by the Circuit 1 Switch to the Circuit 1 terminal. Connect the Neutral
to the Neutral terminal. Connect the Ground to the Equip. GND. bar. Repeat for Circuit 2. Do
not exceed 8Amps per circuit.
NOTE: Some models with optional equipment will have Circuit 1 or Circuit 2 or both Circuits
p
re-wired for other functions.

http://www.fiberstars.com
79-15053-00 REV. C Page 7 of 16
C/W CONTROL
LIGHT CONTROL
N
EUTRAL
Connecting Jazz, Jazz-Spa, System 6004, and System 6004-AS*
For proper operation of these products both Circuit 1 and Circuit 2 must be wired so that the
p
ower is controlled through Circuit 1 and the color wheels functions are controlled through
Circuit 2. Follow each products installation manual for proper installation. Run appropriately
rate wires from the unit to the WPC-1 no less then 12 Gauge COPPER wires. Connect the
Power to the Circuit 1 terminal at one end and to the BLACK wire on the Fiberstars unit.
Connect the neutral to the NEUTRAL terminal in the WPC-1 and to the WHITE wire on the
Fiberstars unit. Connect the grounding cable to the EQUIP. GND. and on the other end to the
GREEN cable. Finally, for synchronization operation, connect the C/W CONTROL cable to the
Circuit 2 terminal and on the other end to the RED wire on the Fiberstars unit. You may connec
t
up to 8Amps of Fiberstars units to Circuit 1.
NOTE: Some models with optional equipment will have Circuit 2 or Circuit 1 or both Circuits
p
re-wired for other functions and therefore eliminates the ability for this type of wiring.
If this product is used to connect underwater lights
directly, refer to 1999 NEC 680-21(b), 2002 NEC
680-24(b) or CEC 68-060, 062 and 066 for details.
* Or other two button Power/Color system, i.e. Pentair, Supervision, Fiberworks…

http://www.fiberstars.com
79-15053-00 REV. C Page 8 of 16
HI SPEED
LO SPEED
POWER IN
120V SECONDARY CONNECTED
TO 2 SPEED PUMP
240VAC CIRCUIT
BREAKER
2 SPEED PUMP
120V PRIMARY
NOTE: Pump Breaker MUST be turned OFF
before servicing as 2nd leg of 240V
circuit is HOT at all time!

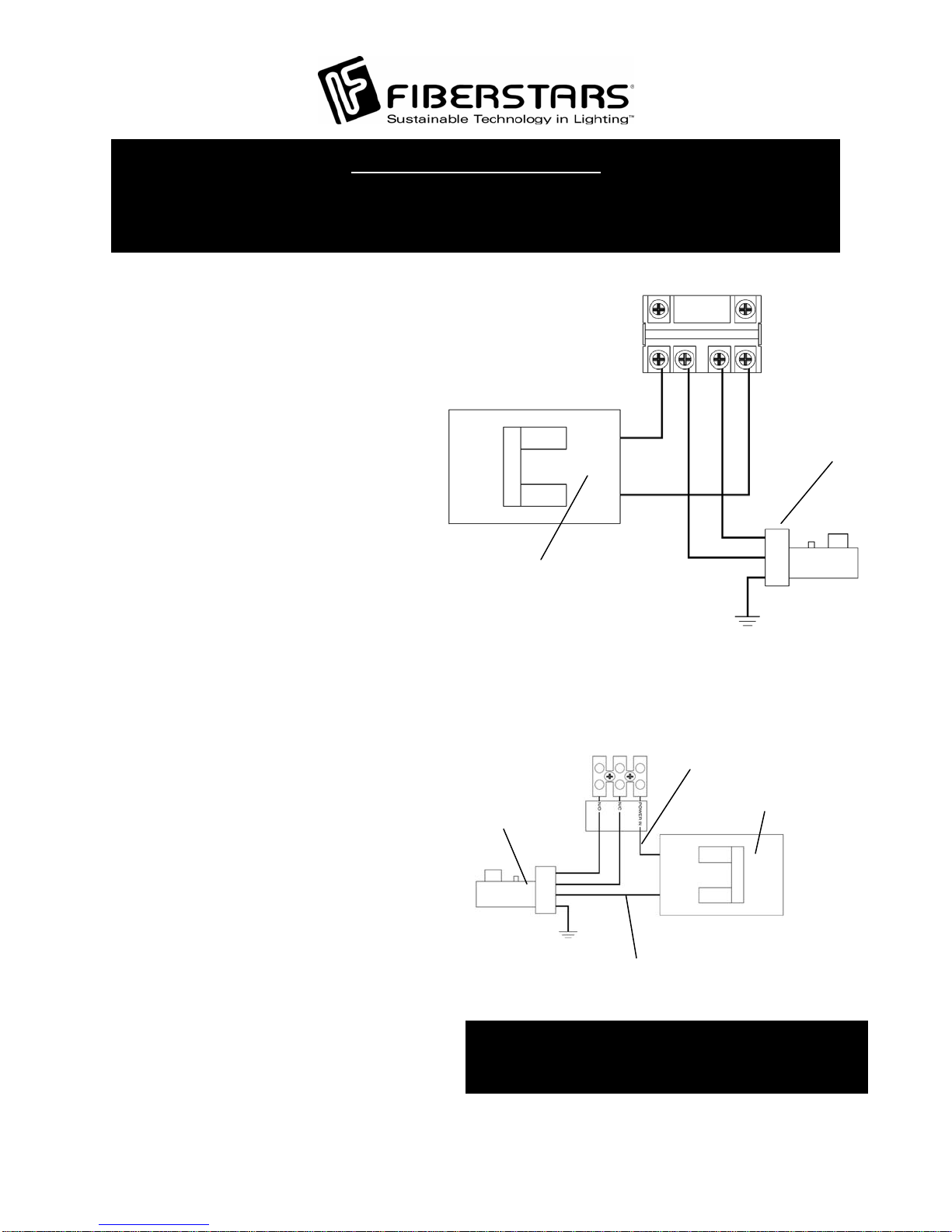

CONNECTING A 240VAC DUAL
SPEED PUMP
As illustrated, connect the Low Spee
d
wire to the Low Speed Load terminal o
n
the terminal block. Connect the High
Speed wire to the High Speed Loa
d
terminal on the terminal block. Connec
t
the 120V Primary from the 240V Circuit
Breaker to the 120V PRI INPUT terminal.
Directly connect the 120V Secondary
from the Circuit Breaker to the 2 Spee
d
Pump.
NOTE: The Secondary 120V must be
directly connected to the
pump for 240V operation.
240VAC Pump
240V Circuit
Breaker
CONNECTING A 240VAC SINGLE
SPEED PUMP
Connect a 240V 30AMP Circuit Breake
r
for each pump (if this control box is
equipped with optional pump relays).
Using an appropriately sized copper
wires connect to the outer contacts of the
JQX relays of the appropriate pumps as
shown. Run wires from the pump to the
inner contacts of the appropriate JQX
relay.
NOTE: This unit maybe equipped with
more then one JQX relay for pump
control.
PUMP CONNECTIONS
NOTE: Some models are ONLY equipped with Single Speed OR Dual Speed pump
connections.

http://www.fiberstars.com
79-15053-00 REV. C Page 9 of 16
OPEN WIRE FROM VALVE
CLOSE WIRE FROM VALVE
COMMON TO VALVE

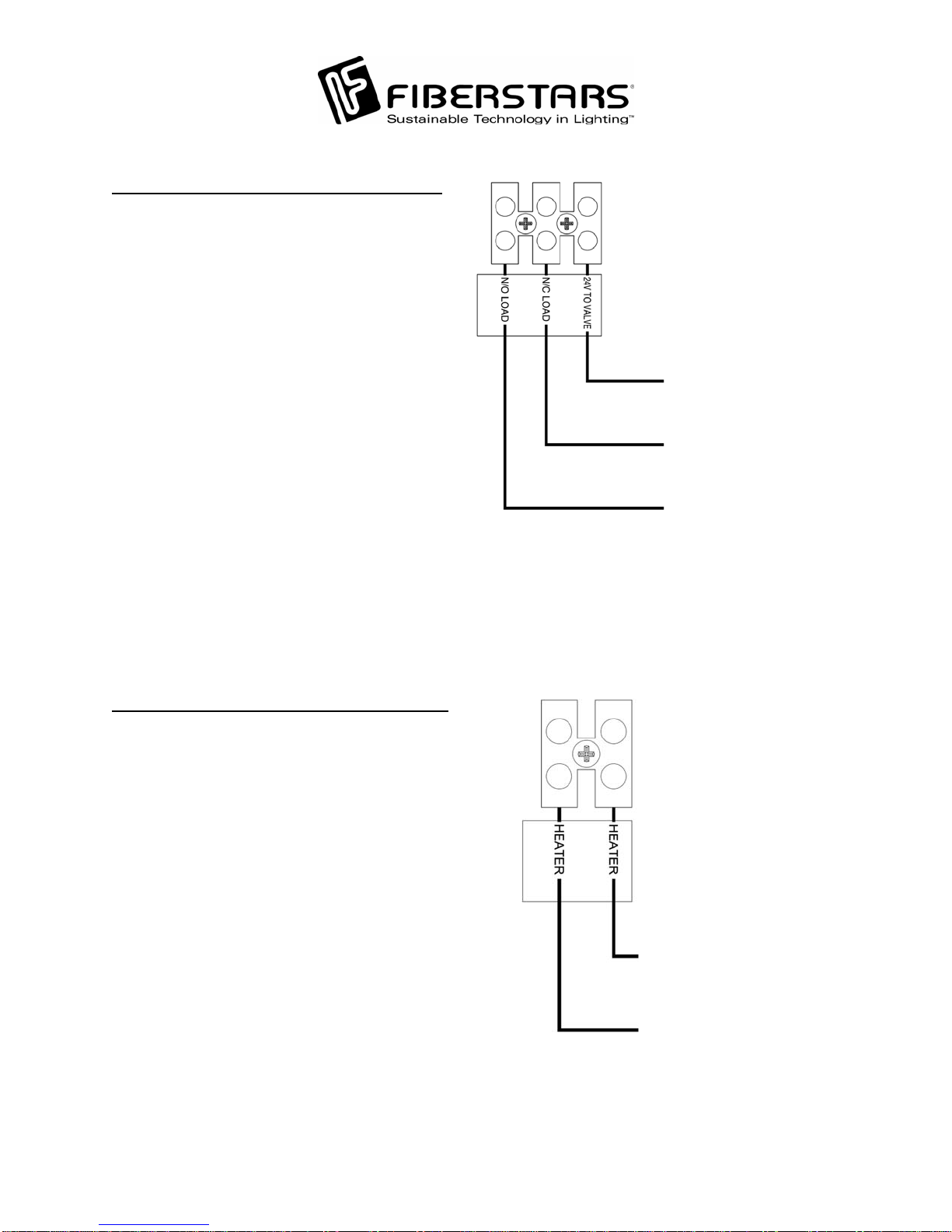

24V Valve Wiring (Optional Equipment).
To connect a 24V Valve, follow diagram as
shown. Connect one leg of the 24V
common to the 24V TO VALVE terminal.
Connect the Close wire to the NC LOAD
terminal and the Open wire to the NO
LOAD terminal.
TO HEATER
TO HEATER
Heater Connection (Optional Equipment).
To connect a heater, run the pilot wires from
the heater to the WPC unit. Connect the
wires to the terminal block labeled Heater.
NOTE: The Heater circuit onl
y
completes
the circuit of the Heater terminals when
the 24V Valve control is ener
g
ized to the
NO Load circuit.

http://www.fiberstars.com
79-15053-00 REV. C Page 10 of 16
FOR TEMPERATURE
FREEZE PROTECT
SWITCH OPTION
FOR USE ON WPC-2
AUXILIARY RELAY
KIT
