FIC VI35VL User manual

VI35VL
MAINBOARD
MANUAL
DOC No.: M03101
Rev. |:A0
Date |:2, 2003
Part No. |: 25-11127-00

Handling Precautions
Warning:
1. Static electricity may cause damage to the integrated circuits on
the motherboard. Before handling any motherboard outside of its
protective packaging, ensure that there is no static electric charge
in your body.
2. There is a danger of explosion if the battery is incorrectly
replaced. Replace only with the same or an equivalent type
recommended by the manufacturer.
3. Discard used batteries according to the manufacturer’s
instructions.
4. Never run the processor without the heatsink properly and firmly
attached. PERMANENTDAMAGE WILL RESULT!
Observe the following basic precautions when handling the motherboard
or other computer components:
Wear a static wrist strap which fits around your wrist and is
connected to a natural earth ground.
Touch a grounded or anti-static surface or a metal fixture such as a
water pipe.
Avoid contacting the components on add-on cards, motherboards,
and modules with the golden fingers connectors plugged into the
expansion slot. It is best to handle system components by their
mounting brackets.
The above methods prevent static build-up and cause it to be discharged
properly.
Trademark
All trademarks mentioned in this manual are registered properly of
the respective owners.
Handling Precautions
Thismanualmaynot,inwholeorinpart,bephotocopied,reproduced,
transcribed, translated, or transmitted in whatever form without the
written consent of the manufacturer, except for copies retained by the
purchaser for personal archival purposes.
Notice

i
Table ofContents
Table of Contents
Chapter 1 Overview
Package Checklist .......................................................................... 1-2
TheVI35VL Mainboard ............................................................. 1-3
Main Features................................................................................ 1-4
Chapter 2 Installation Procedures
QuickReference (from Page 2-2to 2-4) .......................................... 2-2
Mainboard Layout .................................................................... 2-2
(1).ClearCMOS, Clear Password,BIOSWrite Protect ...... 2-3
(2). Front Panel Block Cable Connection ........................... 2-3
(3).CPUFan Installation.................................................... 2-4
1).SetSystemJumper .................................................................... 2-4
ClearCMOS:CLR_CMOS ................................................. 2-4
ClearPassword:CLR_PWD............................................... 2-4
BIOSWrite Protect: BIOS_P.............................................. 2-5
2). Install Memory Modules .......................................................... 2-6
3). Install the CPU .......................................................................... 2-6
4). Install Expansion Cards ............................................................. 2-7
5). ConnectDevices ....................................................................... 2-9
FloppyDrive Connector .................................................... 2-9
IDEDevice Connectors ..................................................... 2-9
Power Connectors ............................................................. 2-10
System CaseAlarm Connector (mfg. optional).................. 2-10
CDAudio-In Connectors................................................... 2-11
Front Panel Block, IR, and Speaker Connector
.......................................................................................... 2-11
Fan Connectors ................................................................. 2-13
Wake-On-Lan Connector................................................... 2-13
Wake-On-Ring Connector ................................................. 2-14
SPDIF Out Connector ....................................................... 2-14
Quick Reference (German) G-1
Quick Reference (French) F-1
Quick Reference (Spanish) S-1
Quick Reference (Japanese) J-1
Quick Reference (Chinese) C-1
Quick Reference (Simplified Chinese) |||||||||||||SC-1

ii
VI35VLMainboardManual
SerialIRQ Connector......................................................... 2-15
PS/2 Keyboard and Mouse Connector.............................. 2-15
Universal Serial Bus Connectors....................................... 2-15
Serial Port Connectors....................................................... 2-16
Printer Connector .............................................................. 2-17
Audio I/O Jacks ................................................................ 2-17
LAN Connector ................................................................. 2-18
Game/MIDIConnector ...................................................... 2-18
Chapter 3 BIOS Setup
Main Features Setup...................................................................... 3-1
Advanced Features Setup ............................................................. 3-3
Onboard device Configuration.................................................. 3-5
I/O device Configuration ........................................................... 3-6
Hardware Monitor ..................................................................... 3-7
Power Features Setup .................................................................... 3-8
Boot Features Setup ...................................................................... 3-9
Exit Features Setup ........................................................................ 3-10

1 - 1
Overview
Overview
Chapter 1
ThemicroATX, 478-pin FC-PGA2 package mainboardsupports the latest gen-
eration Intel®P4 level processors that achieve from 1.4 to 2.8 GHz being with
twoDDRDIMM slots for total 2GB capacity.
The board is built around the new SiS645DXchip that provides the data
speedup to 400/533MHz andDDR333/DDR266/DDR200SDRAM.Theboard
with SiS962LsupportATA133 to ensure the high data transfer speeds espe-
cially for long sequential transfers required by audio/visual applications. The
board also supports six USB 2.0 ports that allow to connect with advanced
USB 2.0 peripheral devices in a more efficient way.
Expansion is provided by one AGP and three PCIs. I/O connections include
two serial ports, one parallel port, audio port for 2-channel, one LAN jack, one
PS/2 mouse and one PS/2 keyboard jack, six USB 2.0 ports, and one media
connector(Line-In,Line-Out, Mic-In,Game/Midi).
Other key features are Remote On/Off, Auto Power Failure Recovery, inte-
grated temperature monitoring and system fan control. Included also is soft-
ware utility CD with enhanced drivers containing a few bundled soft-ware
solutions.

1 - 2
VI35VLMainboardManual
NOTE: lst Utilities CD that contains patch files, onboard video/au-
dio chip drivers, related online help and other useful information
can be found in your mainboard package.
Please install it right after your Windows operating system installa-
tion is done.Place your lst Utilities CD in the drive, an operating
menu will appears in your monitor. Please select Auto Installation.
It will automatically detect which software tools (patch files, drivers)
that the mainboard needs. Press OK button to go through the whole
installation procedure in a very straight forward and easy way. It
also provides you with a custom way to select wanted patch files
and software drivers that for onboard chips use. The top menu of
thelst Utilities CDlists allthe functionsthat allowed bythis board.
NOTE: AbouttheUSB2.0 driver.
if you use-
Windows XP + Sevice Pack 1: it offers the driver.
Windows XP: download it from Microsoft web site.
Windows 2000/98SE/ME:
driver in lst Utilities CD, please manually installed it.
Package Checklist
If you discover any item below was damaged or lost, please contact your
vendor.
;The mainboard ;This user manual
;OneFDDcable ;|SoftwareCD
;OneATA/100cable ;|I/O shilding

1 - 3
Overview

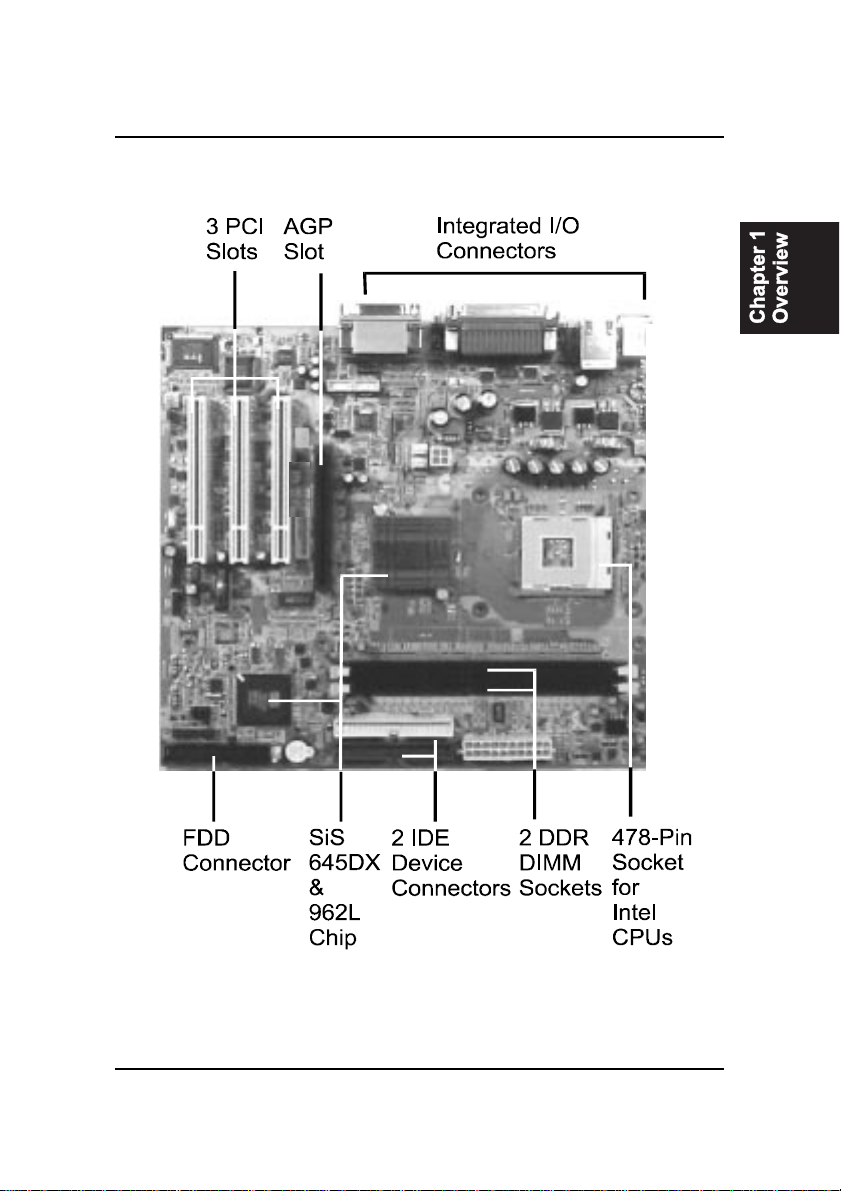

The VI35VL Mainboard

1 - 4
VI35VLMainboardManual


Integrated Onchip Audio Subsystem
Embeded audio features both traditional consumer digital audio channel
and the AC97 v2.2 compliant consumer digital audio slot. VRAmode is
also associated with both the AC97 audio link and the traditional con-
sumer digital audio channel.
Main Features


Easy Installation
||BIOS with support for Plug and Play, auto detection of IDE hard drives,
||LS-120|drives, IDE ZIPdrives,Windows 98SE,Windows ME, Windows
||NT, Windows 2000, Windows XP, and OS/2.


Leading Edge Chipset
SiS645DX Chipset (645DX + 962L) provides high performance, memory
controller, integrated AGPcompliant.


Advanced High Performance Memory Controller
Accepts up to 2GBDRAM using twoDDRDIMMs from 256 MB to total
3GB withsupportforDDR333/DD266/DDR200SDRAM.


Enhanced PCI Bus Master IDE ControllerwithUltraDMA33/66/100/
133 Support
Integrated Enhanced PCI Bus Master IDE controller features two dual-
channel connectors that up to four Enhanced IDE devices, including CD-
ROM and Tape BackupDrives, as well as HardDiskDrives supporting the
newUltraDMA133protocol.


AGPand PCI Expansion Slots
OneAGPBus expansion slot and three PCI Bus expansion slots provided
the room to install a full range of add-on cards.


Intel P4 Processors Support
IntelP4 478-pinFC-PGA2package:
1.4to 2.5GHz and up*(FSB 400) /1.73 to 2.8GHzandup* (FSB 533)
Celeron 1.7 to 2.2GHz and up* (FSB 400) (*: not tested yet)

1 - 5
Overview


Super Multi Input/Output (I/O) Support
The integrated functionalities ofAC97 interface, the Ethernet MAC, the
dual USB controllers, the IDE master/slave controllers, the PCI-to-LPC
bridge, I/O advanced programmable interrupt controller and legacy power
management. It utilizes an universal interface supporting the asynchro-
nous I/O of the X86 compatible CPUs, such as PIII, K7, P4.


Convenient Rear Panel USB Connection Support
Two USB ports integrated in the rear I/O panel and four extra USB ports
for either front or rear panel connection allow convenient and high-speed
Plug and Play connections to the growing number of USB compliant
peripheral devices on the market.

1 - 6
VI35VLMainboardManual
The Page Left Blank for Note

2 - 1
Installation Procedures
Chapter 2
Installation Procedures
The mainboard has several user-adjustable jumpers on the board that allow you to
configure your system to suit your requirements. This chapter contains information
on the various jumper settings on your mainboard.
To set up your computer, you must complete the following steps:
Step 1 - Set system jumpers
Step 2 - Install memory modules
Step 3 - Install the Central Processing Unit (CPU)
Step 4 - Install expansion cards
Step 5 - Connect ribbon cables, cabinet wires, and power supply
Step 6 - Set up BIOS software
Step 7 - Install supporting software tools
WARNING: Excessive torque may damage the mainboard. When
using an electric screwdriver on the mainboard, make sure that
the torque is set to the allowable range of 5.0 ~ 8.0kg/cm.
Mainboard components contain very delicate Integrated Circuit
(IC) chips. To prevent static electricity from harming any of the
sensitive components, you should follow the following precau-
tions whenever working on the computer:
1. Unplug the computer when working on the inside.
2. Hold components by the edges and try not to touch the IC
||||chips, leads, or circuitry.
3. Wear an anti-static wrist strap which fits around the wrist.
4. Place components on a grounded anti-static pad or on the bag
that came with the component whenever the components are
separated from the system.

2 - 2
VI35VLMainboardManual
Quick Reference (from Page 2-2 to 2-4)
Mainboard Layout
*WhenlinktoLine_Outjack,pleaseuseaspeakerthat with amplifier.
*ConnectorSerialIRQis for system integration use.

2 - 3
Installation Procedures
(2). FrontPanel Block CableConnection

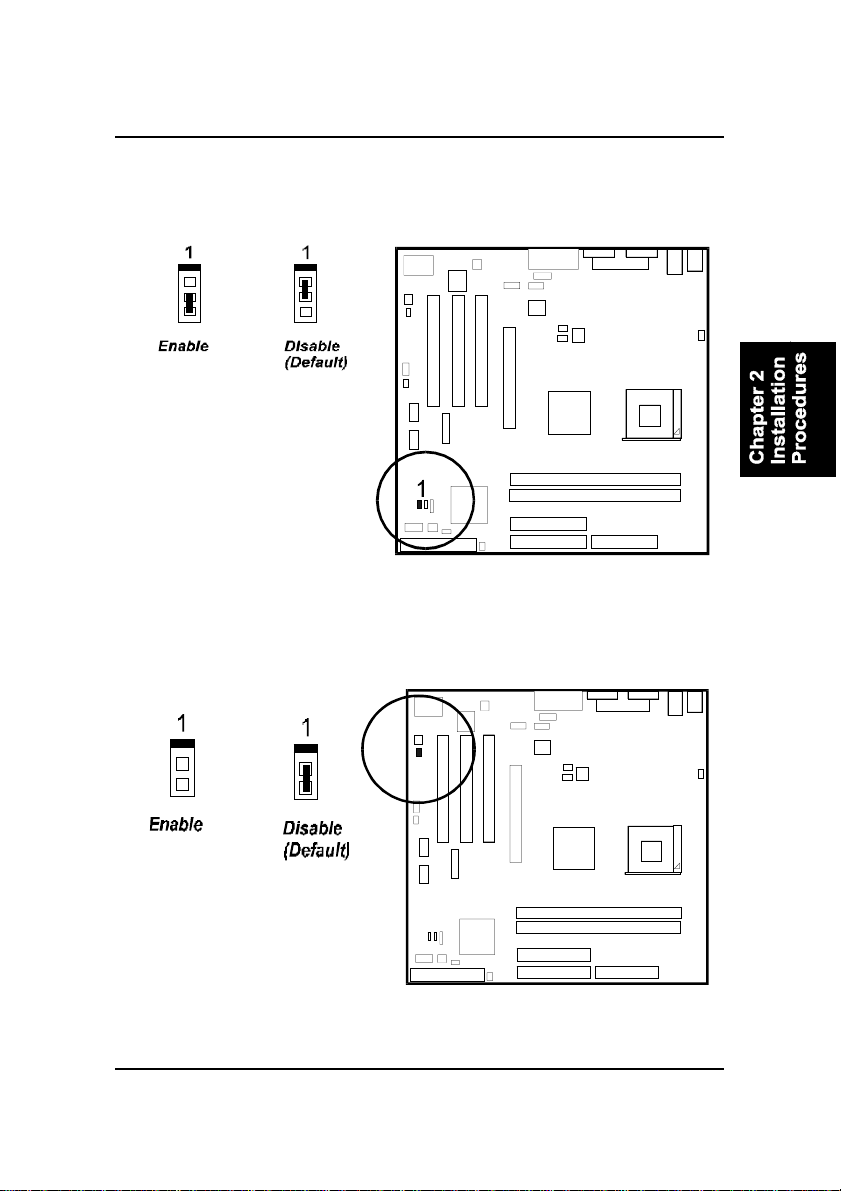

(1). Clear CMOS, Clear Password, BIOS Write Protect

2 - 4
VI35VLMainboardManual
1). Set System Jumper
(3). CPUFanInstallation
This connector is linked to the CPU fan. Without sufficientair circulation, the CPU
may overheat resulting in damage to both the CPU and the mainboard.
Damage may occur to the mainboard and/or the CPU fan if these pins are
usedincorrectly.Thesearenot jumpers, do not place jumper caps overthese
pins.
Clear Password: CLR_PWD
Clear CMOS: CLR_CMOS
(1) Turn off your computer
(2) Place the jumper cap onto the pinpair 2-3 at least 6 seconds to clear CMOS
(3) Place the jumper cap onto the pinpair 1-2 toNormal
(4) Turn on your computer until CMOS checksum error appears
(5) Hold down the Delete key when boots
(6) Enter the BIOS Setup to re-enter user preferences.
(1) Turn off your computer
(2) Move the jumper cap pinpair 2-3
(3) Turn on your computer
(4) Hold down the Delete key during bootup and enter BIOS Setup to clear it.

2 - 5
Installation Procedures

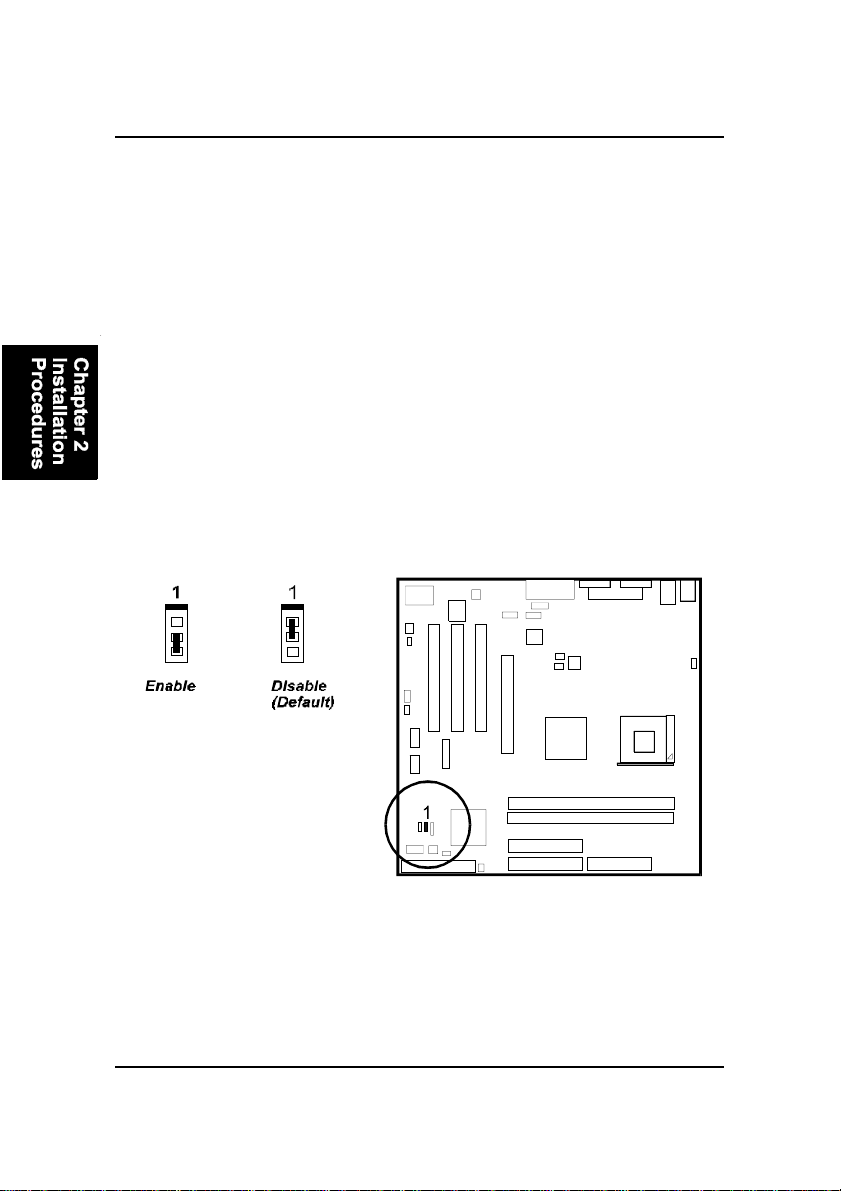

BIOS Write Protect: BIOS_P
The board provides users with a jumper for BIOS write protect. To short the
jumperwill allow usersto write BIOSROM.To openit will prevent BIOSfrom
writing.
(5) Turn off your computer
(6) Move the jumper cap pinpair 1-2 to disable this function
(7) Turn on your computer for the new settings to take effect.

2 - 6
VI35VLMainboardManual
To install the CPU, do the following:
1. Lift the lever on the side of the CPU socket.
2. Handle the chip by its edges and try not to touch any of the pins.
When you install your CPU on this
mainboard, please use a power
supply that designed an
manufactured only for CPU use.
YourCPU fansinkcombinedwith
its retention module must be completely closed and firmly attached on the top
of the processor.
3). Install the CPU
The mainboard has built-in
Switching Voltage Regulator to
support CPU Vcore autodetection.
That is, it has the ability to detect
and recognize the CPU voltage,
clock and ratio.
Press the clips with both hands to remove the DIMM.

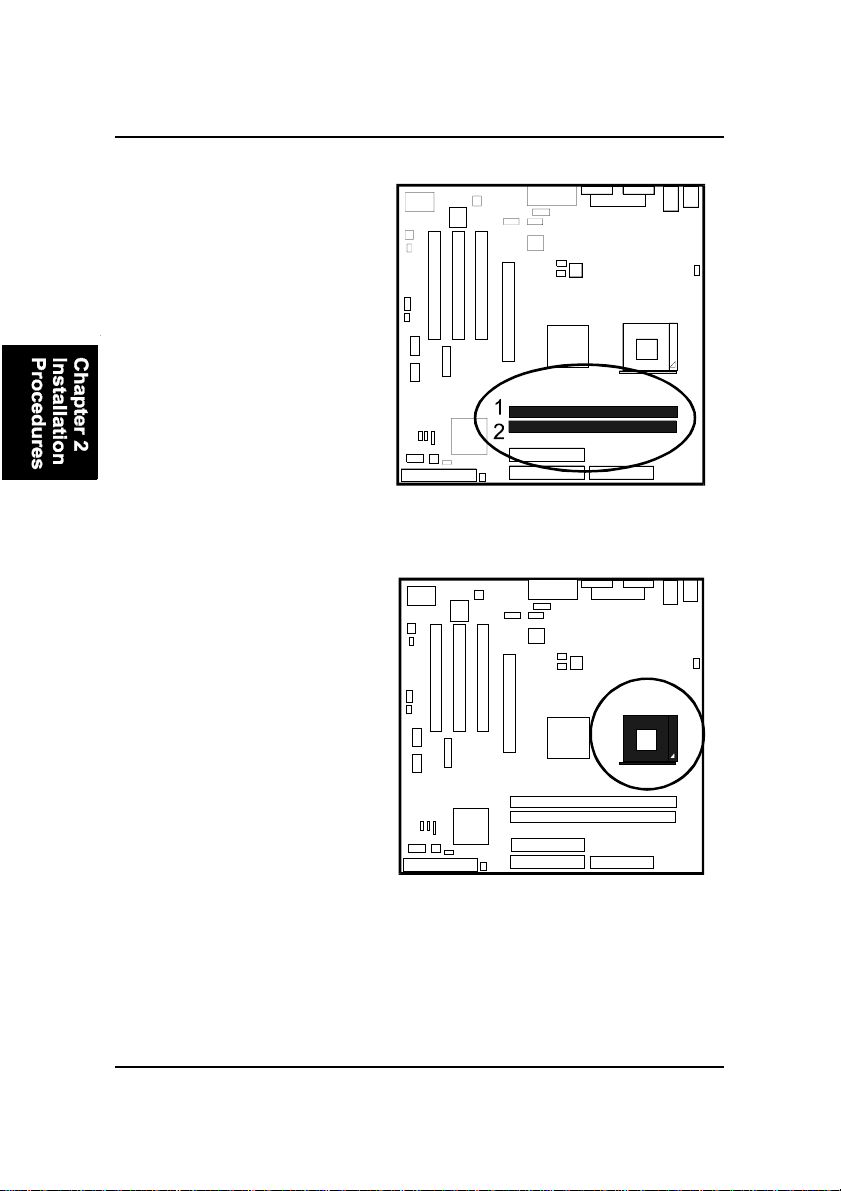

2). Install Memory Modules
1. Locate theDDRDIMM slots
on the mainboard.
2. Install theDDRDIMM
straight down into the slot
using both hands.
3. The clip on both ends of the
slot will close up to hold the
DIMM in place when the
DIMM reaches the slot
|bottom.

2 - 7
Installation Procedures
NOTE: Users The CPU installing procedures should be:
1. Insert the CPU (with its fansink and retention module) on the
socket.
2. Connect the 4-pin plug of the power supply.
3. Connect the 20-pin plug of the power supply
To remove the processor, please do it in reverse order.
3. Place the CPU in the socket.Do not force the chip. The CPU should slide
easily into the socket.
4. Swing the lever to the down position to lock the CPU in place.
5. Place the cooling fan with heatsink on top of the installed CPU.
4). Install Expansion Cards
This section describes how to
connect an expansion card to one
of your system expansion slots.
Expansion cards are printed
circuit boards that, when
connected to the mainboard,
increase the capabilities of your
system. For example, expansion
cards can provide video and sound
capabilities.The mainboard
features oneAGP and three
PCI bus expansion slots.
CAUTION: Make sure to unplug the power supply when adding or
removing expansion cards or other system components. Failure to
do so may cause severe damage to both the mainboard and
expansioncards.
Always observe static electricity precautions.
Please read Handling Precautions at the start of this manual.

2 - 8
VI35VLMainboardManual
5. Secure the board with the mounting screw removed in Step 2. Make
sure that the card has been placed evenly and completely into the
expansion slot.
6. Replace the computer system cover.
7. Setup the BIOS if necessary.
8. Install the necessary software drivers for the expansion card.
3. Holding the edge of the peripheral card, carefully align the edge
connector with the expansion slot.
4. Push the card firmly into the slot. Push down on one end of the
expansion card, then the other. Use this rocking” motion until the add
on card is firmly seated inside the expansion slot.
To install an expansion card, follow the steps below:
1. Remove the computer chassis cover and select an empty expansion
slot.
2. Remove the corresponding slot cover from the computer chassis.
Unscrew the mounting screw that secures the slot cover and pull
the slot cover out from the computer chassis. Keep the slot cover
mounting screw nearby.

2 - 9
Installation Procedures

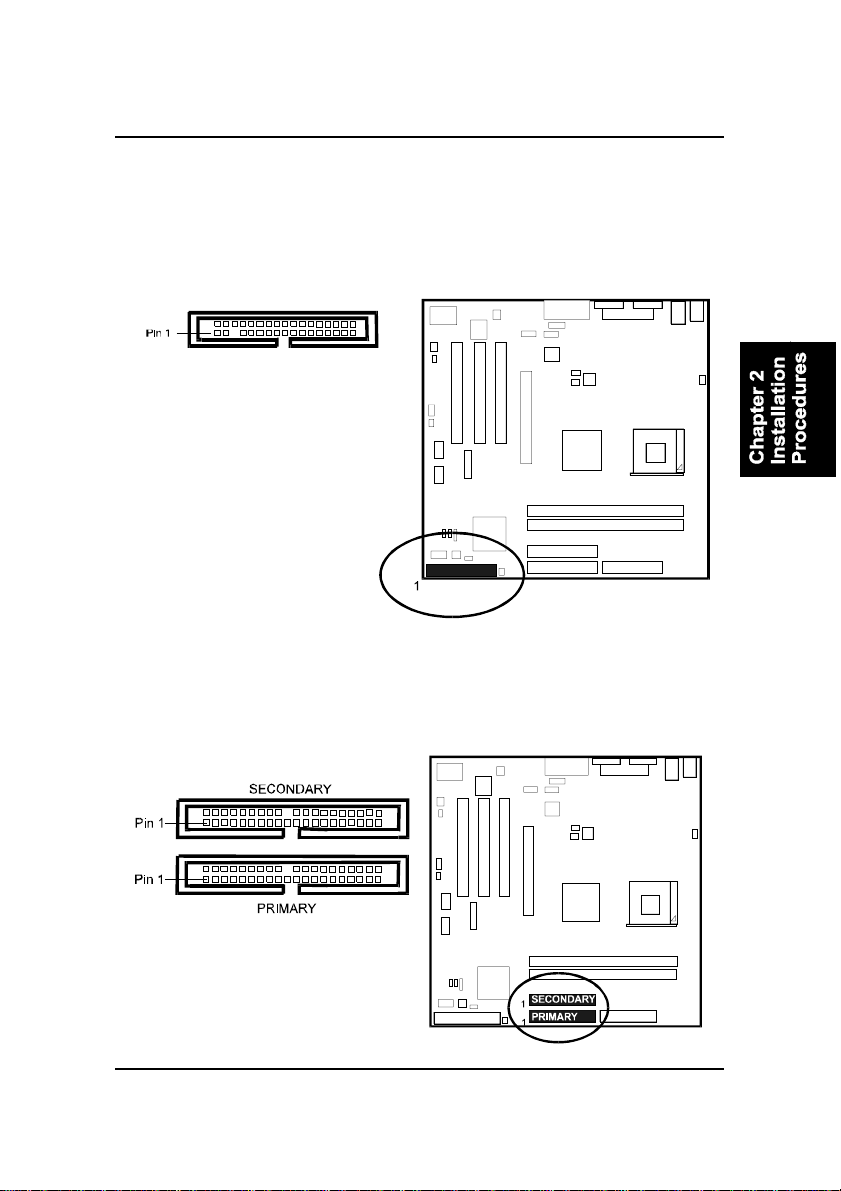

5). Connect Devices
Floppy Drive Connector
This connector provides the connection with your floppy disk drive.
The red stripe of the ribbon cable must be the same side with the Pin 1.
IDE Device Connectors
These two connectors are used for your IDE hard disk drives, CD drives, LS-
120|drives, or IDE ZIP drives. The red stripe of the ribbon cable must be the
same side with the Pin 1.

2 - 10
VI35VLMainboardManual
Power Connectors
The 20-pin male block connector is connected to theATX power supply. The
4-pinmaleblock connector isforthe 12V power use.The connectors are linked
with yourATX power supply. The plug from the power supply will only insert
in one orientation because of the different hole sizes. Find the proper orienta-
tion and push down firmly making sure that the pins are aligned.
System Case Alarm Connector (mfg. optional)
This 3-pin connector is used for some system integration use. If the system
chassis is open, the alarm sounds.
