FIC FS39 User manual

FS39
MAINBOARD
MANUAL
DOC No.: M00B02
Rev. :A0
Date : 12, 2000
Part No. : 25-11604-20
All manuals and user guides at all-guides.com

i

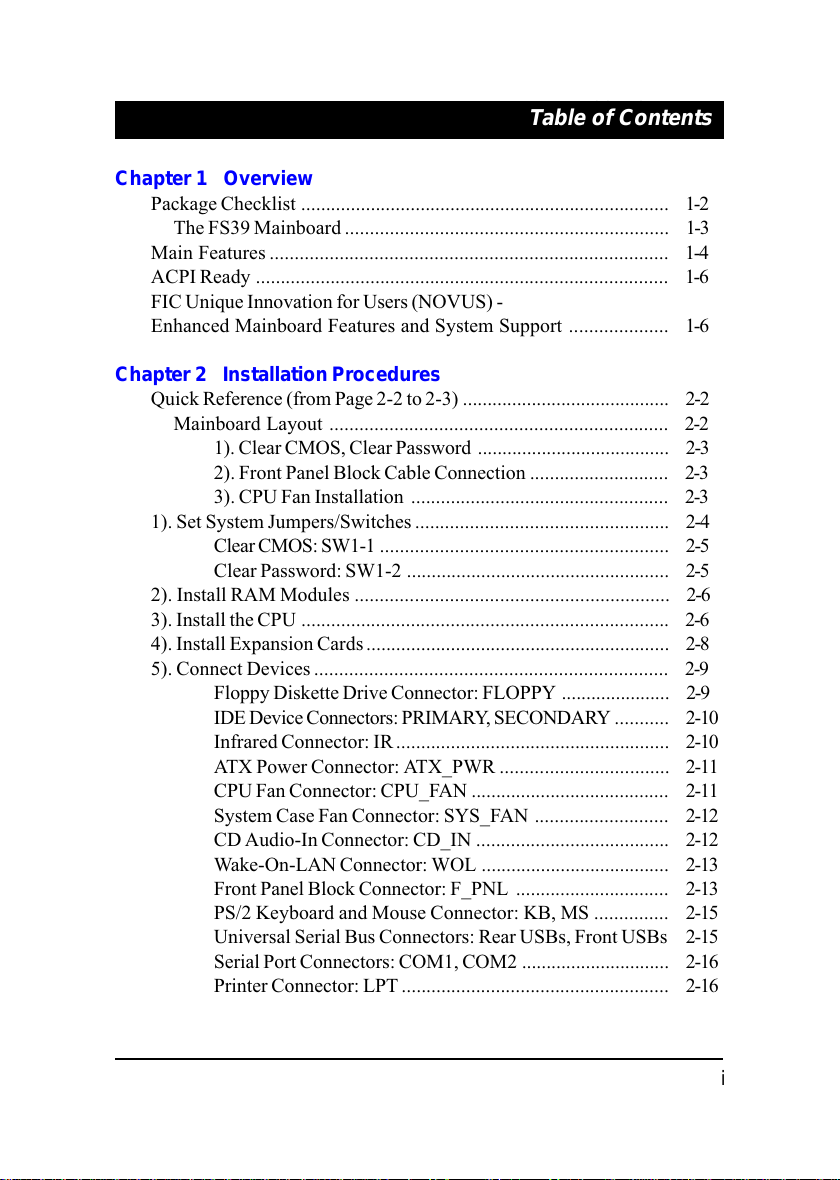

Tableof Contents
Table of Contents
Chapter 1 Overview
Package Checklist .......................................................................... 1-2
The FS39 Mainboard ................................................................. 1-3

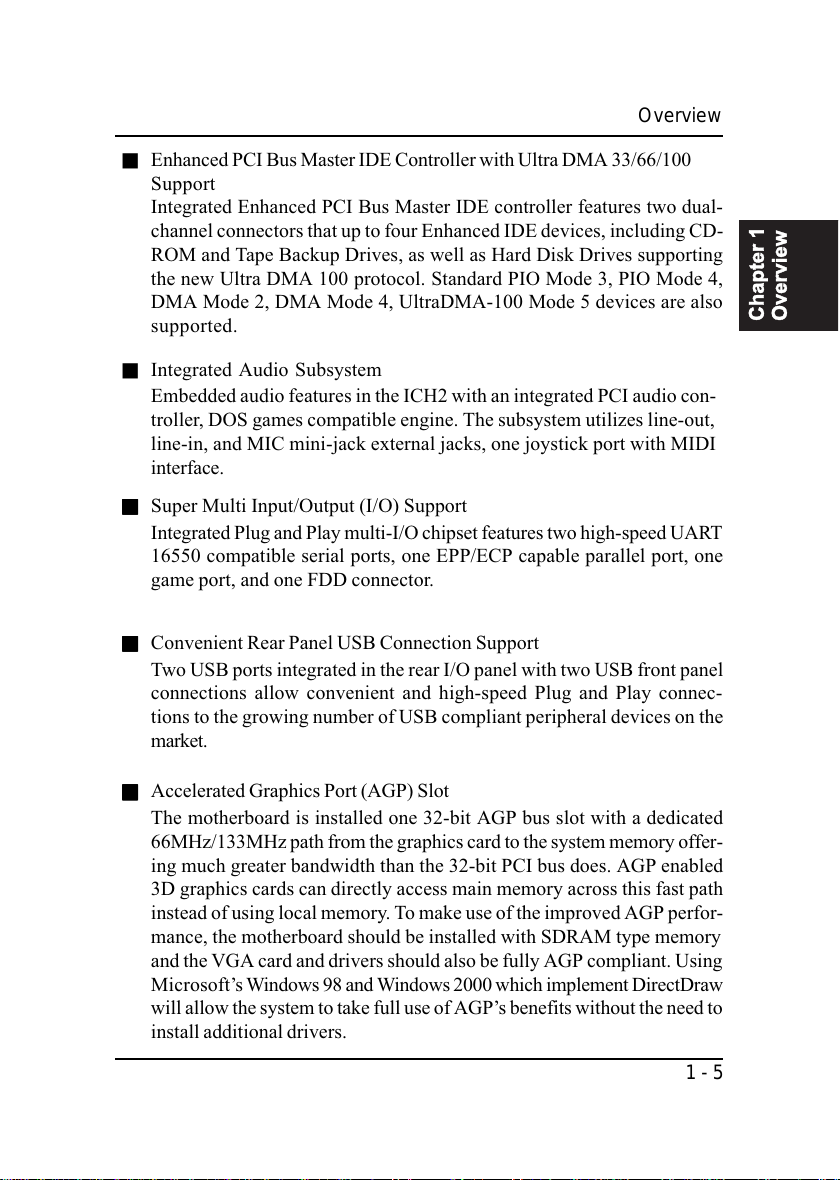

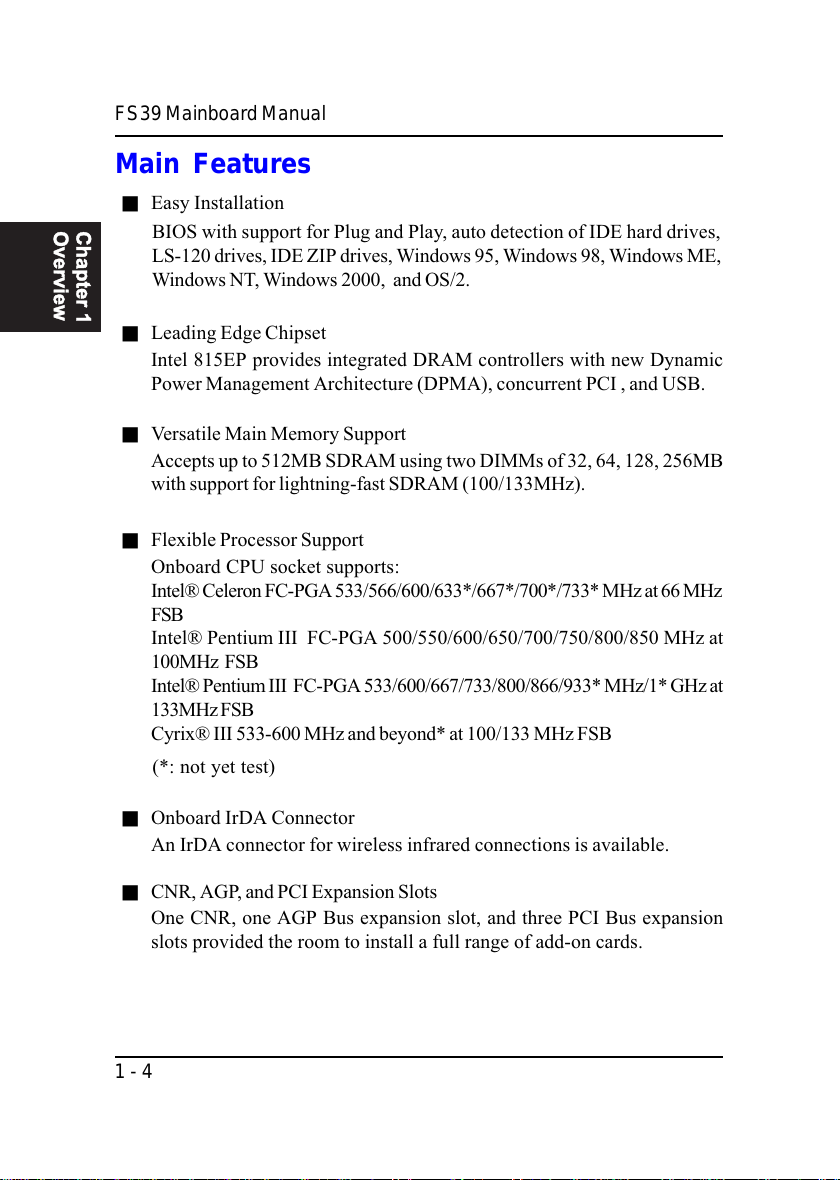

Main Features ................................................................................ 1-4
ACPI Ready ................................................................................... 1-6

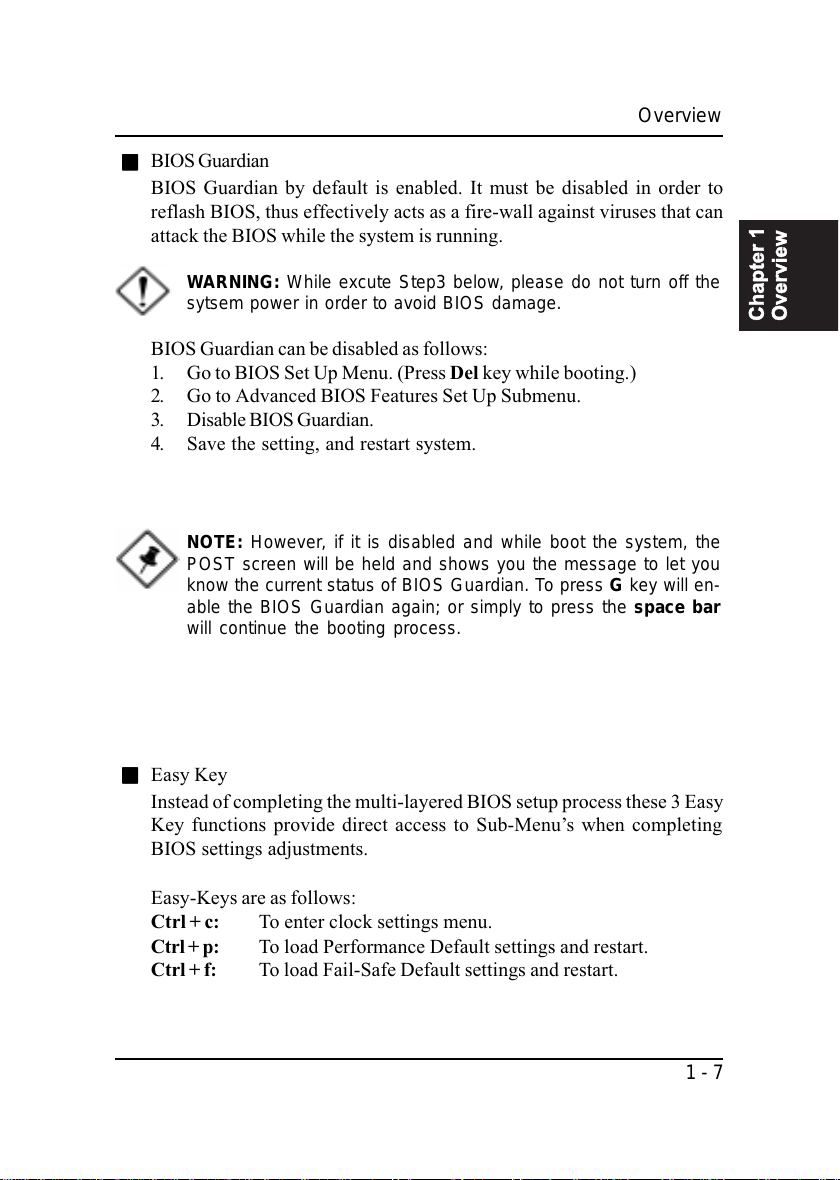

FIC Unique Innovation for Users (NOVUS) -
Enhanced Mainboard Features and System Support .................... 1-6

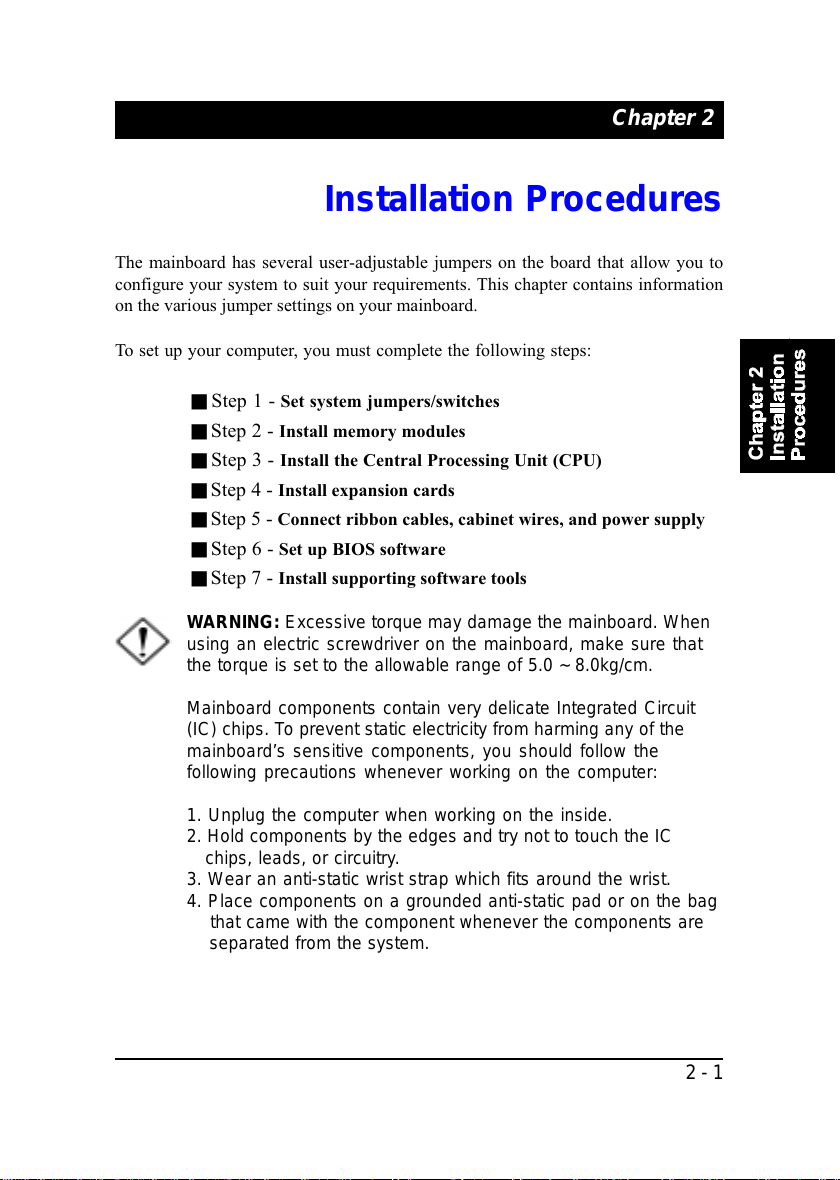

Chapter 2 Installation Procedures
Quick Reference (from Page 2-2 to 2-3) .......................................... 2-2

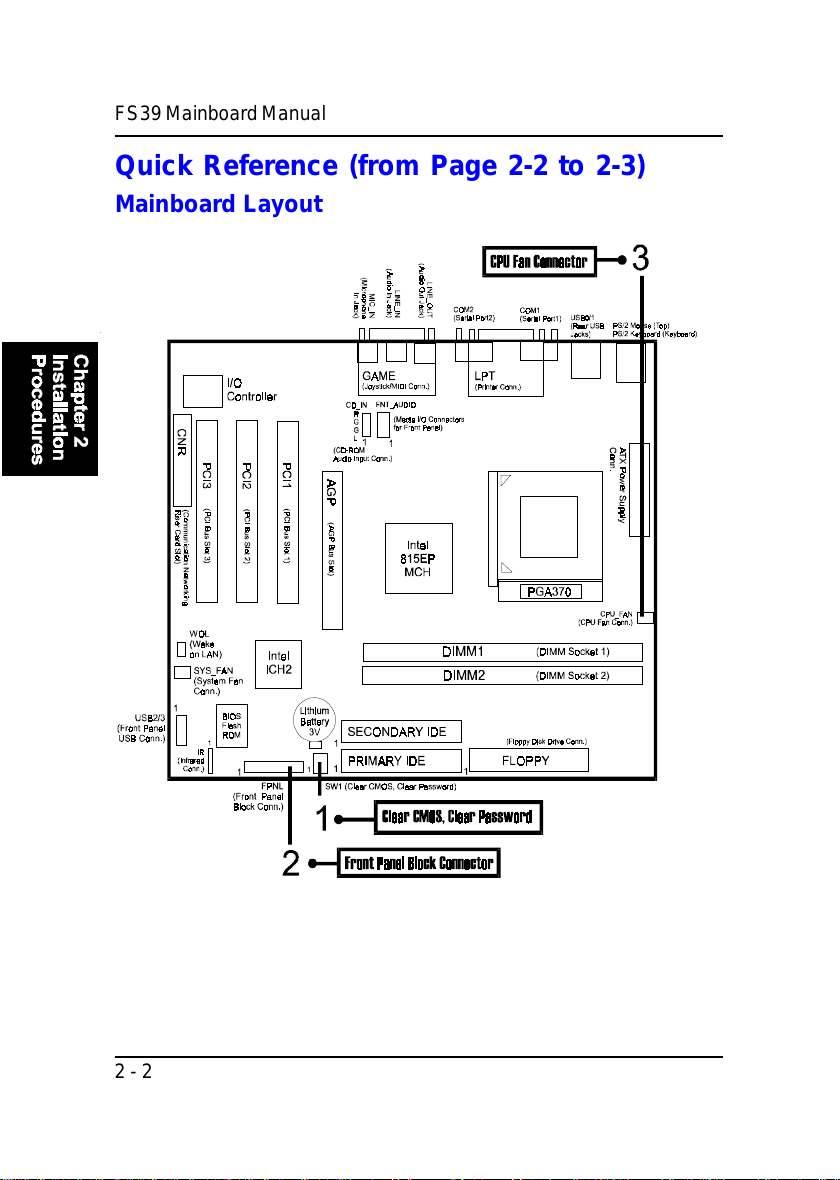

Mainboard Layout .................................................................... 2-2
1). Clear CMOS, Clear Password ....................................... 2-3
2). Front Panel Block Cable Connection ............................ 2-3
3). CPU Fan Installation .................................................... 2-3

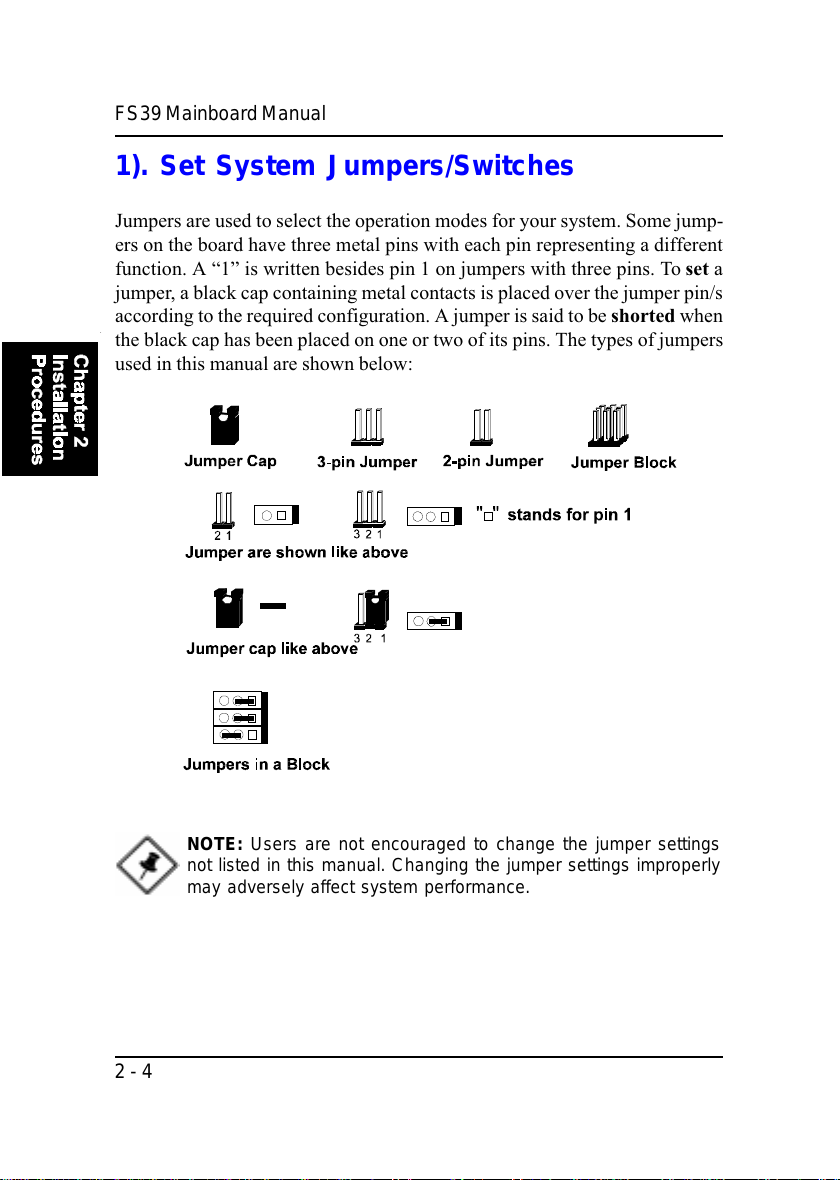

1). Set System Jumpers/Switches ................................................... 2-4
Clear CMOS: SW1-1 .......................................................... 2-5
Clear Password: SW1-2 ..................................................... 2-5
2). Install RAM Modules ............................................................... 2-6

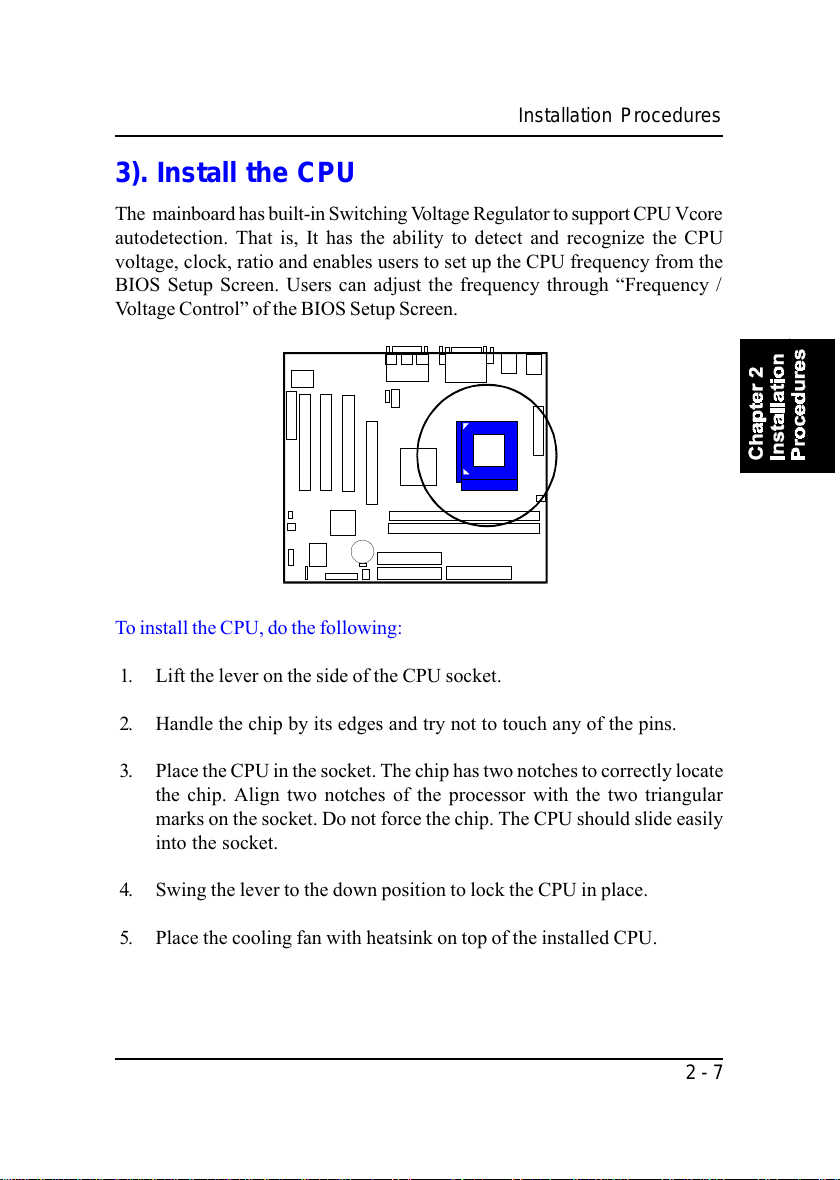

3). Install the CPU .......................................................................... 2-6

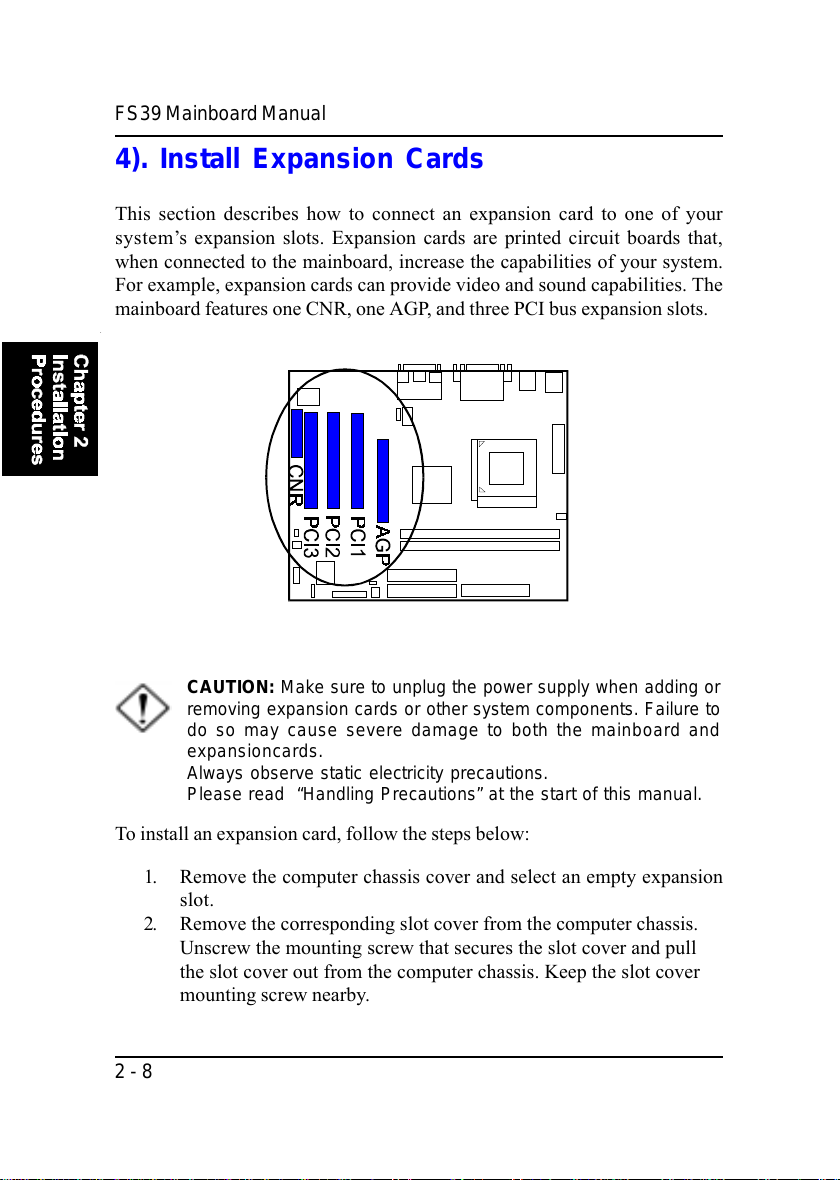

4). Install Expansion Cards ............................................................. 2-8
5). Connect Devices ....................................................................... 2-9
Floppy Diskette Drive Connector: FLOPPY ...................... 2-9
IDE Device Connectors: PRIMARY, SECONDARY ........... 2-10
Infrared Connector: IR ....................................................... 2-10
ATX Power Connector: ATX_PWR .................................. 2-11
CPU Fan Connector: CPU_FAN ........................................ 2-11
System Case Fan Connector: SYS_FAN ........................... 2-12
CD Audio-In Connector: CD_IN ....................................... 2-12
Wake-On-LAN Connector: WOL ...................................... 2-13
Front Panel Block Connector: F_PNL ............................... 2-13
PS/2 Keyboard and Mouse Connector: KB, MS ............... 2-15
Universal Serial Bus Connectors: Rear USBs, Front USBs 2-15
Serial Port Connectors: COM1, COM2 .............................. 2-16
Printer Connector: LPT ...................................................... 2-16
All manuals and user guides at all-guides.com

ii
FS39MainboardManual

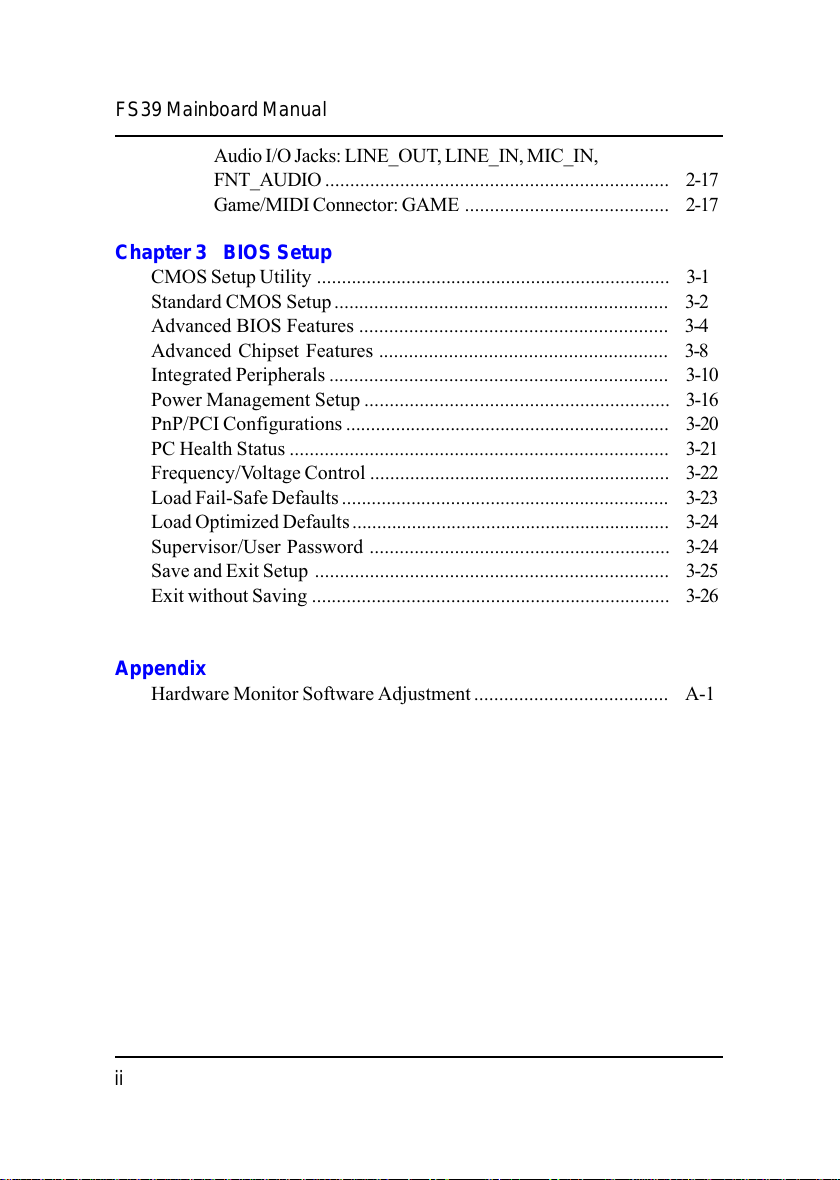

Audio I/O Jacks: LINE_OUT, LINE_IN, MIC_IN,
FNT_AUDIO ..................................................................... 2-17
Game/MIDI Connector: GAME ......................................... 2-17
Chapter 3 BIOS Setup
CMOS Setup Utility ....................................................................... 3-1
Standard CMOS Setup ................................................................... 3-2
Advanced BIOS Features .............................................................. 3-4
Advanced Chipset Features .......................................................... 3-8
Integrated Peripherals .................................................................... 3-10
Power Management Setup ............................................................. 3-16
PnP/PCI Configurations ................................................................. 3-20
PC Health Status ............................................................................ 3-21
Frequency/Voltage Control ............................................................ 3-22
Load Fail-Safe Defaults .................................................................. 3-23
Load Optimized Defaults ................................................................ 3-24
Supervisor/User Password ............................................................ 3-24
Save and Exit Setup ....................................................................... 3-25
Exit without Saving ........................................................................ 3-26
Appendix
Hardware Monitor Software Adjustment ....................................... A-1
All manuals and user guides at all-guides.com

1 - 1

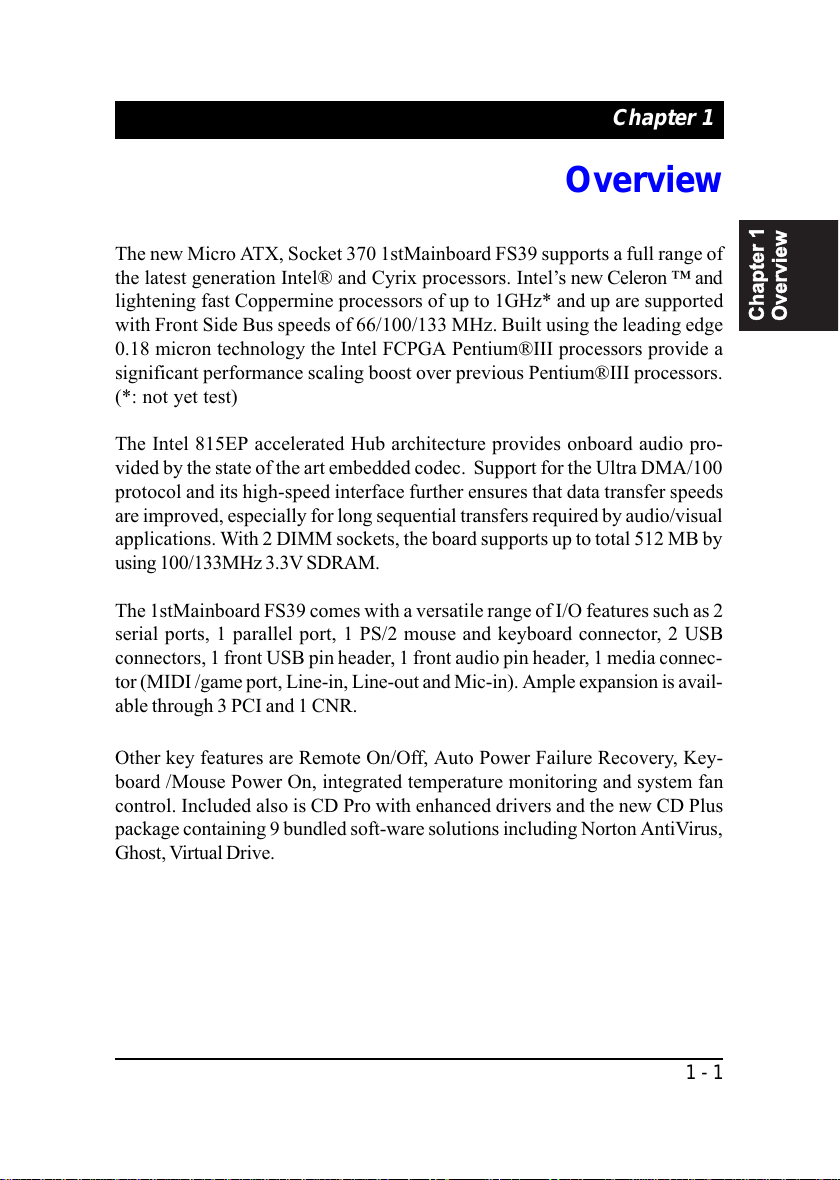

Overview
Overview
Chapter 1
The new Micro ATX, Socket 370 1stMainboard FS39 supports a full range of
the latest generation Intel® and Cyrix processors. Intels new Celeron  and
lightening fast Coppermine processors of up to 1GHz* and up are supported
with Front Side Bus speeds of 66/100/133 MHz. Built using the leading edge
0.18 micron technology the Intel FCPGA Pentium®III processors provide a
significant performance scaling boost over previous Pentium®III processors.
(*: not yet test)
The Intel 815EP accelerated Hub architecture provides onboard audio pro-
vided by the state of the art embedded codec. Support for the Ultra DMA/100
protocol and its high-speed interface further ensures that data transfer speeds
are improved, especially for long sequential transfers required by audio/visual
applications. With 2 DIMM sockets, the board supports up to total 512 MB by
using 100/133MHz 3.3V SDRAM.
The 1stMainboard FS39 comes with a versatile range of I/O features such as 2
serial ports, 1 parallel port, 1 PS/2 mouse and keyboard connector, 2 USB
connectors, 1 front USB pin header, 1 front audio pin header, 1 media connec-
tor (MIDI /game port, Line-in, Line-out and Mic-in). Ample expansion is avail-
able through 3 PCI and 1 CNR.
Other key features are Remote On/Off, Auto Power Failure Recovery, Key-
board /Mouse Power On, integrated temperature monitoring and system fan
control. Included also is CD Pro with enhanced drivers and the new CD Plus
package containing 9 bundled soft-ware solutions including Norton AntiVirus,
Ghost, Virtual Drive.
All manuals and user guides at all-guides.com

1 - 2
FS39MainboardManual

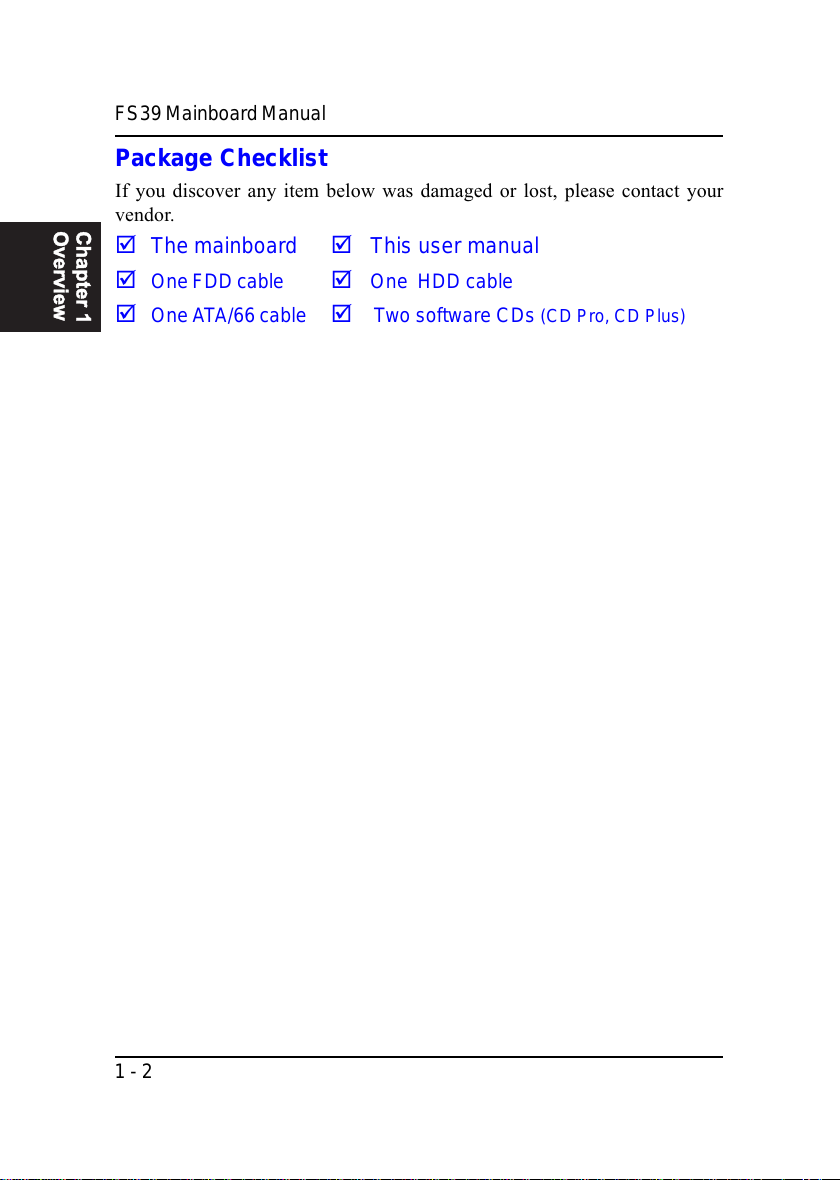

Package Checklist
If you discover any item below was damaged or lost, please contact your
vendor.
þThe mainboard þThis user manual
þOneFDD cable þOne HDD cable
þOneATA/66cable þ Two software CDs (CD Pro, CD Plus)
