OWNER’S MANUAL
General Information
Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your
Boom Assembly.
Retain a copy of your receipt for your unit, as it will be required
to validate any warranty service.
Warranted against manufacturer or workmanship defects from
date of purchase with copy of receipt:
Homeowner Usage: One Year.
Commercial Usage: 90 Days.
BEFORE RETURNING THIS PRODUCT
FOR ANY REASON, PLEASE CALL
1-800-831-0027
MONDAY-FRIDAY, 8:00 AM TO 5:00 PM CST
If you should have a question or experience a problem with
your Fimco Industries Product: Visit our website @
www.fimcoindustries.com or call the Toll free number above. Our
technical support representatives will be happy to help you.
In most cases a customer service rep. can resolve
the problem over the phone.
To obtain prompt, efficient service, always remember to give the
following information....
• Correct Part Description and/or part number
• Model number and Serial Number
Part descriptions and numbers can be obtained from the
illustrated parts list section(s) of this manual.
WARNING: Cancer and Reproducve Harm.
www.P65Warnings.ca.gov
WARNING: To reduce the risk of injury, the
user must read and understand the operator’s
manual before using this product.

Page 2
Contents
Technical Specs ......................................................................2Maintenance......................................................................4
Assembly Instrucons ............................................................2Winter Storage...................................................................4
Operaon ...............................................................................3Boom Exploded View/Parts List.........................................5
Calibraon ..............................................................................3Warranty ............................................................................6
Model: BK-70A (5301197)
(7-Nozzle Boom Assembly)
Technical Specicaons
• 7-Nozzle Boom Assembly
• 140” Spray Swath
• Break-Away Outer Boom Members
• Check Valve Strainers, 50 Mesh, 5 PSI
• AIXR11002VP, #2 (Yellow) 110° ps
(**) These ps provide excellent chemical and acid resistance with an exceponally long wear life.
110° wide tapered, at spray angle with air inducon technology for beer dri management.
Compact size prevents p damage.
These teejet ps produce large air-lled drops through a venture air aspirator.
This boom weighs approx. 21 Lbs.
Always check the vehicle load rang before using a boom with sprayer, ensuring total weight is acceptable.
Do not exceed the recommended rang.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~IMPORTANT~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
It is VERY important to test the sprayer, aer aaching any boom with plain water before actual spraying is aempted. This will
enable you to familiarize yourself with the sprayer and check for leaks without the possibility of losing any expensive chemicals.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~WARNING~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Read and Understand the Owner’s Manual before using this boom. Test and use in accordance to instrucons.
Read and Follow chemical label instrucons and wear protecve gear when lling, using, cleaning and servicing the
boom.
Exercise Cauon in vehicle handling when towing/hauling a lled sprayer to avoid loss of control or overturning.
Keep Sprayer and Spray materials away from other people, children and pets.
Do Not Turn on Power to the sprayer, unl ready to spray in order to avoid unintenonal spray release.
Do Not Use on steep slopes. A full sprayer could cause loss of control or overturn sprayer and vehicle.
Always operate up and down a slope, never across the face of a slope.
Keep all movement on slopes slow and gradual. Do not make sudden changes in speed, direcons or turning. Do not start or stop
suddenly when going uphill or downhill.
Stop on level ground, set the parking brake and shut o engine before leaving the operator’s posion for any reason.
Keep all parts in good condion and properly installed. Fix damaged or worn parts immediately.
Cauon should be taken when towing and/or using any sprayer. The sprayer combined with the weight distribuon, turning radius
and speed of vehicle can result in damage to vehicle, sprayer and/or boom or severe injury or death, if not used properly.
Improper use or handling of chemicals could result in serious injury or illness, or could cause damage to the environment.
Assembly Instrucons
Remove the parts to the boom assembly from the carton. Refer to the parts list and exploded view drawing to help idenfy all the
components.
• Center the center secon of the boom onto your boom mounts and secure in place with the hardware provided. Be sure that
the outer booms will fold ‘backwards’.
• Aach the nozzle harness assembly to the boom. Start by centering the middle nozzle on the boom.
• Route your boom feeder hose (not included), to the back end of the sprayer. Join the hose to the ‘cross ng’. Then clamp in
place with a hose clamp.
• Make sure all hose clamps are ght before tesng or spraying for the rst me.
• Your boom should be ready for operaon.
Aer assembling, sprayer will be ready to TEST w/plain water before actual use.

Page 3
Tesng the Sprayer
NOTE: It is VERY important to test the sprayer, aer aaching any boom with plain water before actual spraying is aempted. This
will enable you to familiarize yourself with the sprayer and check for leaks without the possibility of losing any expensive chemi-
cals.
Fill the tank about 1/2 full with plain water. When you are ready to spray, turn the boom valve to the “on” posion. This will start
soluon spraying from the ps of the boom. The pressure will decrease slightly when the boom is spraying. Adjust the pressure by
turning the “ON/OFF” valve lever on the bypass line valve. Make sure your paern is sucient. You may down-pressure the system
by ‘bypassing’ soluon back into the tank. This is achieved by opening the bypass valve. Regulang pressure is done in this manner.
Read the operang instrucons and inially begin spraying by closing the ‘bypass’ valve and opening the boom line valve. This will
enable the air in the line to be eliminated (purged) through all the ps, while building pressure. When everything tests all right (no
leaks and good pressure), add the desired chemicals to the mixture and water combinaon and start your spraying operaon.
Condions of weather and terrain must be considered when seng the sprayer. Do not spray on windy days. Protecve clothing
must be worn in some cases
Be sure to read the chemical label(s) before applicaon!
Operaon
Always ll the tank 1/2 full with water rst and then add the chemical slowly, mixing as you pour the chemical into the tank and
then ll the rest of the way. You may use the bypass in order to mix the chemical and water.
The nozzles on the boom will spray a 140 inch wide swath. However, it is necessary to overlap paerns 30% to get proper cover-
age. The rst pass will only cover a 112 inch wide swath, but each pass thereaer will provide a 140 inch swath of proper coverage.
The proper nozzle height should be a minimum of 16 - 18 inches above the object being sprayed. Check the nozzle paern by
spraying water on a concrete surface. Raise the boom to a higher mounng posion to get more spray paern overlap, if desired.
Adjusng Pressure
• When the bypass valve is closed, pressure is at the highest point.
• Opening the valve will decrease pressure.
Calibraon
Chemical labels may show applicaon rates in gallons per acre, gallons per 1000 square feet or gallons per 100 square feet. You will
note that the p chart shows 2 of these rang systems.
Once you know how much you are going to spray, then determine (from the p chart) the spraying pressure (PSI), and the spraying
speed (MPH).
Determining the proper speed of the pulling vehicle can be done by marking o 100, 200 & 300 feet. The speed chart indicates the
number of seconds it takes to travel the distances. Set the throle and with a running start, travel the distances. Adjust the throle
unl you travel the distances in the number of seconds indicated by the speed chart. Once you have reached the throle seng
needed, mark the throle locaon so you can stop and go again, returning to the same speed.
Add water and proper amount of chemical to the tank and drive to the starng place for spraying.
Pressure
(psi)
Capacity
(GPM)
1
MPH
2
MPH
3
MPH
4
MPH
5
MPH
6
MPH
8
MPH
10
MPH
15 .12 35.6 17.8 11.8 8.9 7.1 5.9 4.5 3.6
20 .14 41.6 20.8 13.8 10.4 8.3 6.9 5.2 4.2
30 .17 50.4 25.2 16.8 12.6 10.1 8.4 6.3 5.0
40 .20 59.6 29.8 19.8 14.9 11.9 9.9 7.4 5.9
15 .12 .41 .27 .20 .16
20 .14 .48 .32 .24 .19
30 .17 .58 .39 .29 .23
40 .20 .68 .45 .34 .27
AIXR11002VP Spray Tip Rate Chart (20" Spacing)
Gallons Per
Acre
Based on Water
Gallons Per
1000 Sq. Ft.
Based on Water
100 Ft. 200 Ft. 300 Ft.
1.0 68 sec. 136 205
2.0 34 68 102
3.0 23 45 68
4.0 17 34 51
5.0 14 27 41
6.0 11 23 34
7.0 9.7 19 29
8.0 8.5 17 26
9.0 7.6 15 23
10.0 6.8 14 20
Speed Chart
Time Required in seconds
to travel a distance of
Speed in M.P.H.
(Miles Per Hour)

Page 4
Using the Boom Nozzles
Four things must be considered before spraying with the boom.
 How much chemical must be mixed in the tank.
 Rate of spray (gallons per acre to be sprayed).
 What pressure (p.s.i.) will be used.
 Speed traveled (mph) while spraying.
 Refer to the chemical label to determine your chemical mixture
 See the p chart to determine the pressure to be used. The chart will also show the speed used when spraying.
 Start the pump and open the valve to the boom nozzles.
 Check the spray paern. Usually you can see the coverage beer on a solid concrete surface, such as a driveway.
 Raise or lower the nozzles so that you will have a good coverage paern. Generally the proper height will be about 18 inches
from the object(s) being sprayed.
Maintenance During/Aer Spraying
Periodically check the strainer on the sprayer and clean the screen on your intake line.
If sprayer becomes clogged during use, disconnue use immediately. DO NOT aempt to service while chemicals are in the sprayer
and power is connected.
Proper care and maintenance will prolong the life of your sprayer.
Aer use, drain the tank and store or dispose of chemical properly. Fill the sprayer half way with clean water. Start the pump and
allow the water to pump through the enre plumbing system and nozzles. Drain and then rell half full, add the recommended
amount of a good quality tank cleaner, such as FIMCO Tank Neutralizer and Cleaner. (If no tank cleaner is available, you may
substute dish soap for this step, about 1-2 oz. per gallon). But a neutralizer/cleaner should be used to thoroughly clean the
system. Turn pump on and circulate through system for 15 minutes and then spray out through boom and handgun nozzles. Rell
sprayer half way with clean water and repeat. Follow the chemical manufacturer’s disposal instrucons of all wash or rinsing
water.
Remove the ps and screens from the nozzle assemblies. Wash these items out thoroughly. Blow the orice clean and dry. If the
orice remains clogged, clean it with a ne bristle (NOT WIRE) brush or with a toothpick. Do not damage the orice. Water rinse
and dry the ps before storing.
WARNING: Some chemicals will damage the pump valves if allowed to soak untreated for a length of me! ALWAYS ush the
pump as instructed aer each use. DO NOT allow chemicals to sit in the pump for extended mes of idleness. Follow the chemical
manufacturer’s instrucons on disposal of all waste water from the sprayer.
CAUTION: Never use a metal object or other sharp item for cleaning a nozzle p. It is beer to use a nozzle brush (NOT wire brush)
or compressed air for p cleaning.
Winter Storage
It is essenal that you winterize your sprayer to avoid damage and to allow for opmal performance. The winterizaon process
should be undertaken before freezing condions and/or aer each season of use.
Before storing your sprayer for winter or long term storage, thoroughly clean and drain it as much as possible. Then pour enough
anfreeze into the tank so that when the pump is turned on you can pump the anfreeze throughout the enre plumbing system,
including the bypass. Make sure to operate the boom and handgun unl you see uid spraying from the nozzles. Leave any
remaining anfreeze in the tank. Before your next usage, rinse the anfreeze from the sprayer with clean water.
It is nearly impossible to drain all of the water from the sprayer and any trapped water can freeze in cold weather and damage
parts of the sprayer. Pumping the anfreeze through the system will displace the water and help prevent this damage.
1. Verify that the tank is empty and rinsed out. Pour 1-2 gallons of anfreeze into the tank.
A. 12-Volt Pump, use pink RV Anfreeze through the system. This will keep internal parts lubricated, protect
against corrosion and keep the unit from freezing.
Note: RV anfreeze is non-toxic and biodegradable and generally safer for the environment than automove
anfreeze.
B. Roller Pump, use a soluon of automove anfreeze (containing a rust inhibitor) through the enre plumbing
system.
2. Engage the pump and spray with the boom and spray gun (if applicable). Make sure that the anfreeze has been pumped
through the enre system, including all spray nozzles.
3. Before spraying in the spring, it is recommended to ush the sprayer with fresh water to cleanse it of the anfreeze and any
other buildup. It would also be benecial to do a thorough inspecon of all sprayer components before spraying.
Removing from storage: drain the anfreeze. Fill the tank with fresh water and run through the system. Dispose of anfreeze and
ush water properly.

Page 5

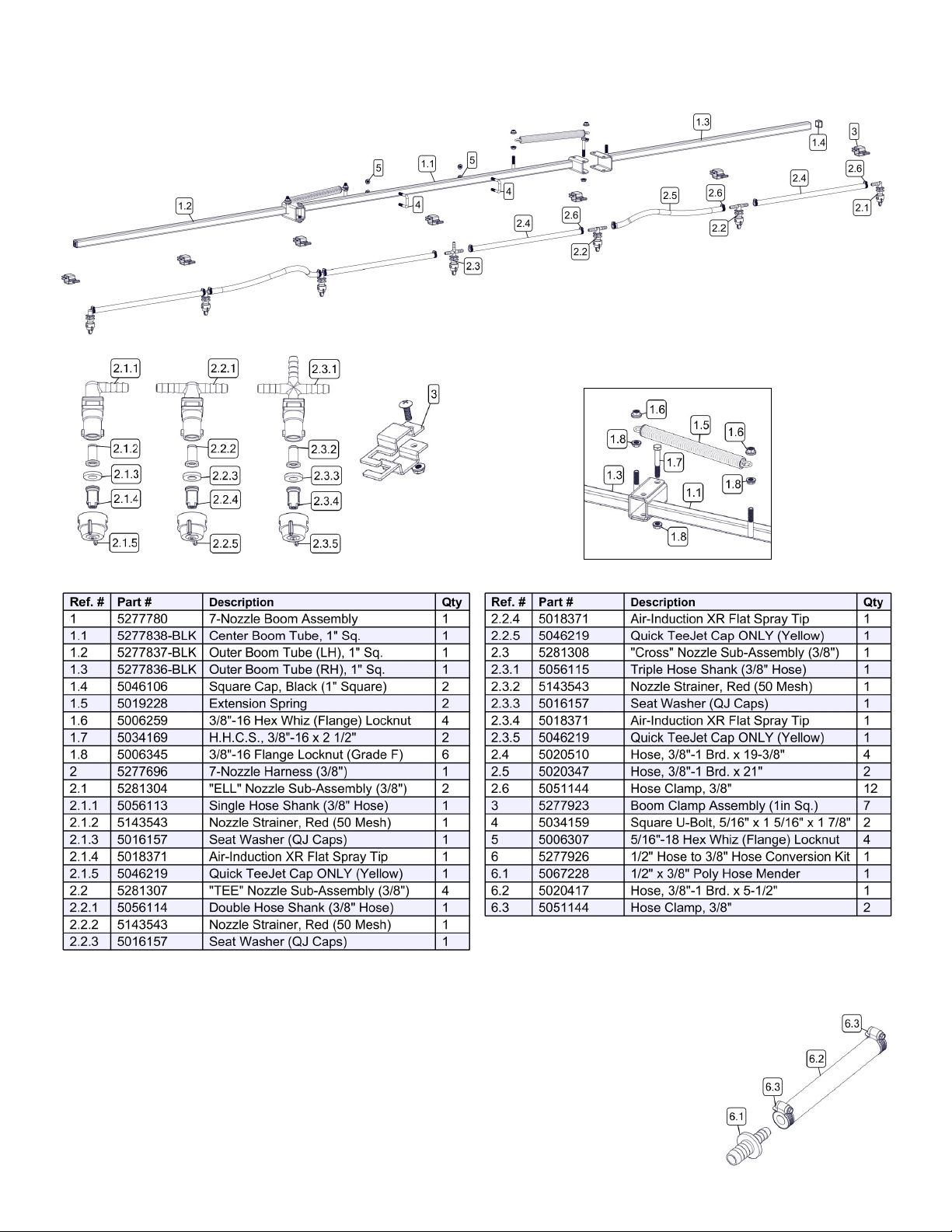

Exploded View/Parts List: BK-70A (5301197)
#5277926 1/2” to 3/8” Conversion Kit
If your exisng sprayer has a 1/2” I.D. hose supplying your original boom and you now have a boom
with 3/8” I.D. hose, this conversion kit allows you to easily convert your supply line to t onto the 3/8”
I.D. hose of your new boom.
Slip the hose mender’s 1/2” barb (larger side) into your exisng 1/2” feeder hose and clamp in place
with (exisng) original hose clamp. Slip the (included) 3/8” hose (5-1/2” long) onto the 3/8” barb of
the hose mender and clamp in place with one of the supplied hose clamps.
Now aach the open end of the hose onto the ng on your boom which accepts the feeder line
hose. Make sure you place the hose clamp onto that hose prior to aaching it to your boom.
Opposite side has typical hardware setup
See Hinge Detail
Clamp
Bag of 7: 5277730
Elbow Tee Cross
Hinge Detail

Page 6
LIMITED WARRANTY FOR NEW FIMCO, IND. EQUIPMENT
WHO MAY USE THIS LIMITED WARRANTY. This limited warranty (the “Limited Warranty”) is provided by Fimco, Ind. to the original purchaser
(“you”) of the Equipment (as dened below) from Fimco, Ind. or one of Fimco, Ind.’s authorized dealers. This Limited Warranty does not apply to
any subsequent owner or other transferee of the Equipment. THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO
HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.
WHAT THIS LIMITED WARRANTY COVERS AND FOR HOW LONG. Fimco, Ind. warrants that any new Equipment will be free from defects in
material and workmanship for a period of one (1) year (homeowner), 90 days (commercial user), aer delivery of the Equipment to you (the
“Warranty Period”). The Warranty Period is not extended if Fimco, Ind. repairs or replaces the Equipment.
WHAT IS NOT COVERED BY THIS LIMITED WARRANTY. This Limited Warranty does not apply to: (1) used Equipment; (2) any Equipment that has
been altered, changed, repaired or treated since its delivery to you, other than by Fimco, Ind. or its authorized dealers; (3) damage or deprecia-
on due to normal wear and tear; (4) defects or damage due to failure to follow Fimco, Ind.’s operator’s manual, specicaons or other wrien
instrucons, or improper storage, operaon, maintenance, applicaon or installaon of parts; (5) defects or damage due to misuse, accident or
neglect, “acts of God” or other events beyond Fimco, Ind.’s reasonable control; (6) accessories, aachments, tools or parts that were not manu-
factured by Fimco, Ind., whether or not sold or operated with the Equipment; or (7) rubber parts, such as res, hoses and grommets.
HOW TO OBTAIN WARRANTY SERVICE. To obtain warranty service under this Limited Warranty, you must (1) provide wrien noce to Fimco,
Ind. of the defect during the Warranty Period and within thirty (30) days aer the defect becomes apparent or the repair becomes necessary, at
the following address: Fimco, Ind., 1000 Fimco Lane, North Sioux City, SD 57049; and (2) make the Equipment available to Fimco, Ind. or an
authorized dealer within a reasonable period of me. For more informaon about this Limited Warranty, please call: 800-831-0027.
WHAT REMEDIES ARE AVAILABLE UNDER THIS LIMITED WARRANTY. If the condions set forth above are fullled and the Equipment or any part
thereof is found to be defecve, Fimco, Ind. shall, at its own cost, and at its opon, either repair or replace the defecve Equipment or part.
Fimco, Ind. will pay for shipping and handling fees to return the repaired or replacement Equipment or part to you.
LIMITATION OF IMPLIED WARRANTIES AND OTHER REMEDIES. THE REMEDIES DESCRIBED ABOVE ARE YOUR SOLE AND EXCLUSIVE REMEDIES,
AND FIMCO, IND.’S SOLE LIABILITY, FOR ANY BREACH OF THIS LIMITED WARRANTY. TO THE EXTENT APPLICABLE, ANY IMPLIED WARRANTIES,
INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIM-
ITED IN DURATION TO THE WARRANTY PERIOD, AND THE REMEDIES AVAILABLE FOR BREACH THEREOF SHALL BE LIMITED TO THE REMEDIES
AVAILABLE UNDER THIS EXPRESS LIMITED WARRANTY. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY
LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. IN NO EVENT SHALL FIMCO, IND.’S LIABILITY UNDER THIS LIMITED WARRANTY EX-
CEED THE ACTUAL AMOUNT PAID BY YOU FOR THE DEFECTIVE EQUIPMENT, NOR SHALL FIMCO, IND. BE LIABLE, UNDER ANY CIRCUMSTANCES,
FOR ANY CONSEQUENTIAL, INCIDENTAL, SPECIAL OR PUNITIVE DAMAGES OR LOSSES, WHETHER DIRECT OR INDIRECT. SOME STATES DO NOT
ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT
APPLY TO YOU.
Warranty
Based on the minimum overlap required to obtain uniform
distribuon with 110° ps and 20” spacing.
Suggested Minimum Spray Height: 16”-18” above what is
being sprayed (to plant, not ground).
Opmum Spray Height: 20”
• 110° wide, tapered at spray angle with air inducon
technology for beer dri management
• Made of 2-piece UHMWPE polymer construcon which
provides excellent chemical resistance, including acids,
as well as exceponal wear life
• Compact size to prevent p damage
• Excellent for systemic products and dri management
