Fimco LG-25-BL User manual

25 Gal. Corrosion-Resistant Polyethylene Tank •
12 Volt Diaphragm Pump, 3.8 g.p.m. - 45 p.s.i. •
Deluxe Pistol-Grip Handgun w/15 Ft. Handgun Hose •
26 Ft. max. vertical throw, 35 Ft. max. horizontal throw •
Pressure Gauge •
Adjustable Pressure •
28 Foot Spray Coverage w/(2) (Boomless) Nozzles •
Corrosion-Resistant Nozzles •
Caution: Always check the vehicle load rating before using
this sprayer. Care must be taken not to tip the vehicle over
backwards, especially when starting or accelerating.
Technical Specifications
[ Part Number: 5008348 (01/13) ] Printed in the U.S.A.
Model: LG-25-BL (5302183)
(25 Gallon ATV Dual Nozzle Sprayer)
Owner's Manual
General Information
Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your lawn
& garden/ATV sprayer. Please read it carefully, as it furnishes
information which will help you achieve years of trouble-free
operation.
Warranty/Parts/Service
Products are warranted for one year from date of purchase
against manufacturer or workmanship defects.
Commercial users have a 90 day warranty.
Your authorized dealer is the best source of replacement parts
and service. To obtain prompt, efficient service, always
remember to give the following information...
- Correct Part Description and/or part number.
- Model number/Serial number of your sprayer.
Part descriptions and part numbers can be obtained from the
illustrated parts list section(s) of this manual.
Whenever you need parts or repair service, contact your
distributor/dealer first. For warranty work, always take your
original sales slip, or other evidence of purchase date, to your
distributor/dealer.
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: [phone] : Toll Free Fax: [phone]
www.fimcoindustries.com
Assembly

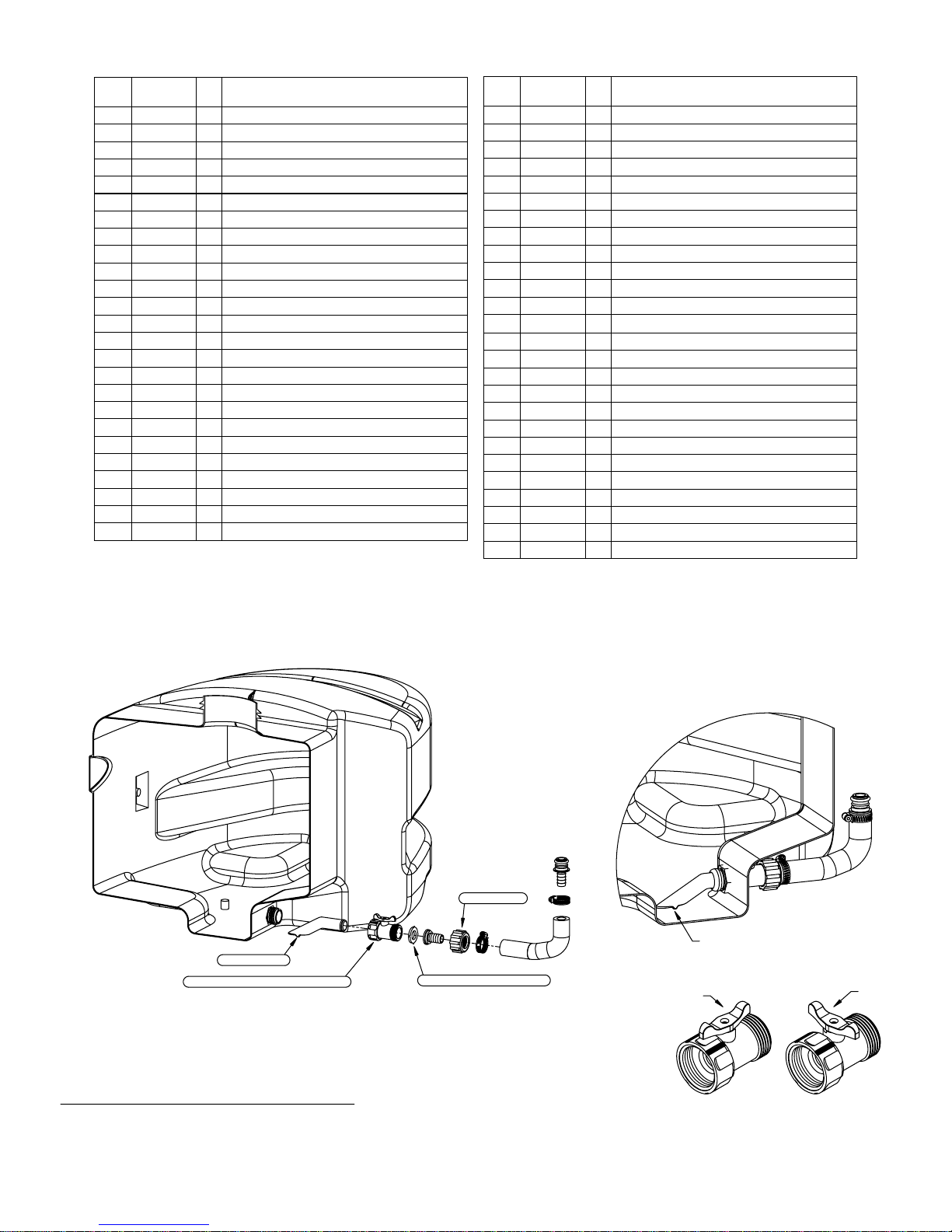

1. Install the tank mounting plates to the tank as shown in the
exploded view drawing. (if not done so already)
2. Place the tank, with the brackets attached, to your ATV carrier
rack. Attach the mounting brackets to the cross members of the
rack, using the hardware supplied. (See exploded view drawing)
3. Join the nozzle mounts (RH & LH) to the tank mounting
brackets with the hardware shown.
4. Attach the nozzle assemblies to the nozzle mounts with the
(2) clips as shown. Make sure the u-bolts are fastened through
the bracket(s) and up into the tank mounting bracket(s). Connect
the (2) hoses to these nozzle assemblies. Secure with a hose
clamp. The other ends of these hoses get attached to the "Y"
valve on of the manifold. Each nozzle will have its own shut-off
valve control.
5. Thread the pressure gauge into the reducing bushing at the
far end of the manifold assembly. Use a good grade of thread
sealant, or teflon tape, to insure no leaks.
6. Connect the wiring harness to the rear of the pump. Clip the
alligator clip ends to a fully charged 12 Volt battery. Red wire to
the 'Hot' connection, and black wire to the 'Ground'.

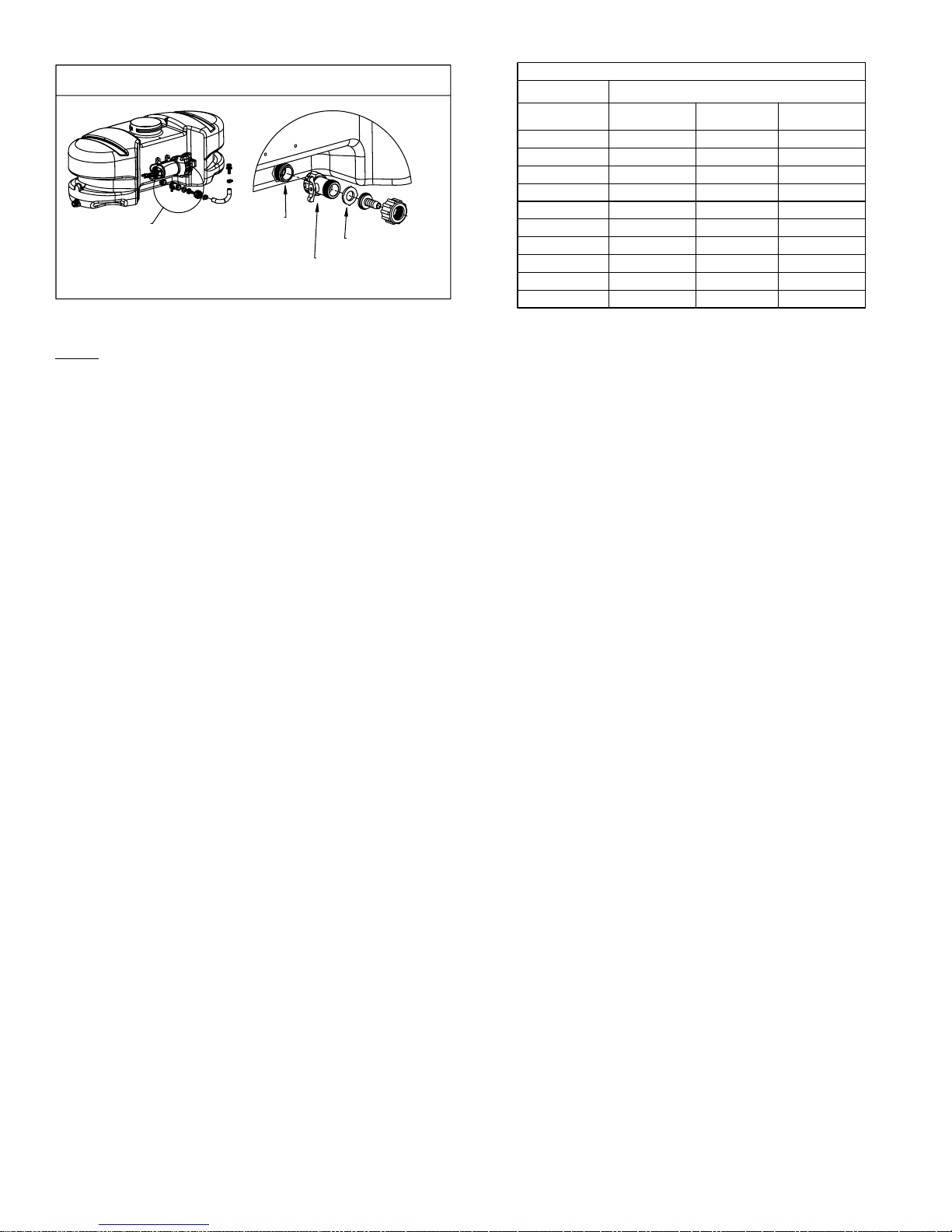

"ON/OFF" Valve
*** IMPORTANT REMINDER ***
A
Inlet from Tank
Filter/Screen
Detail A
"open" position before using your sprayer.
You must make sure the valve is in the
tank, towards the underside. (See Detail A).
valve located at the inlet location of the
This sprayer comes with an On/Off (shut-off)
Time Required in seconds to travel a distance of:
200 Ft.
(Miles per Hour)
100 Ft.
2.0
3.0
1.0
5.0
6.0
7.0
9.0
8.0
10.0
4.0
157.6
6.8 14
68 sec.
17
8.5
9.7
11
14
34
23
34
17
19
23
27
136 sec.
68
45
Speed in M.P.H.
Speed Chart
300 Ft.
23
20
51
34
41
29
26
68
102
205 sec.
Page 2
Operation
Your sprayer is equipped with (2) ON/OFF switches. One is on
the wire assembly that you hook up to your battery, the other is
on the pump itself, on the opposite end of the pressure switch.
The "-" is the "ON" position and the "o" is the "OFF" position for
the switches. Make sure both switches are depressed in the "-"
position for operation.

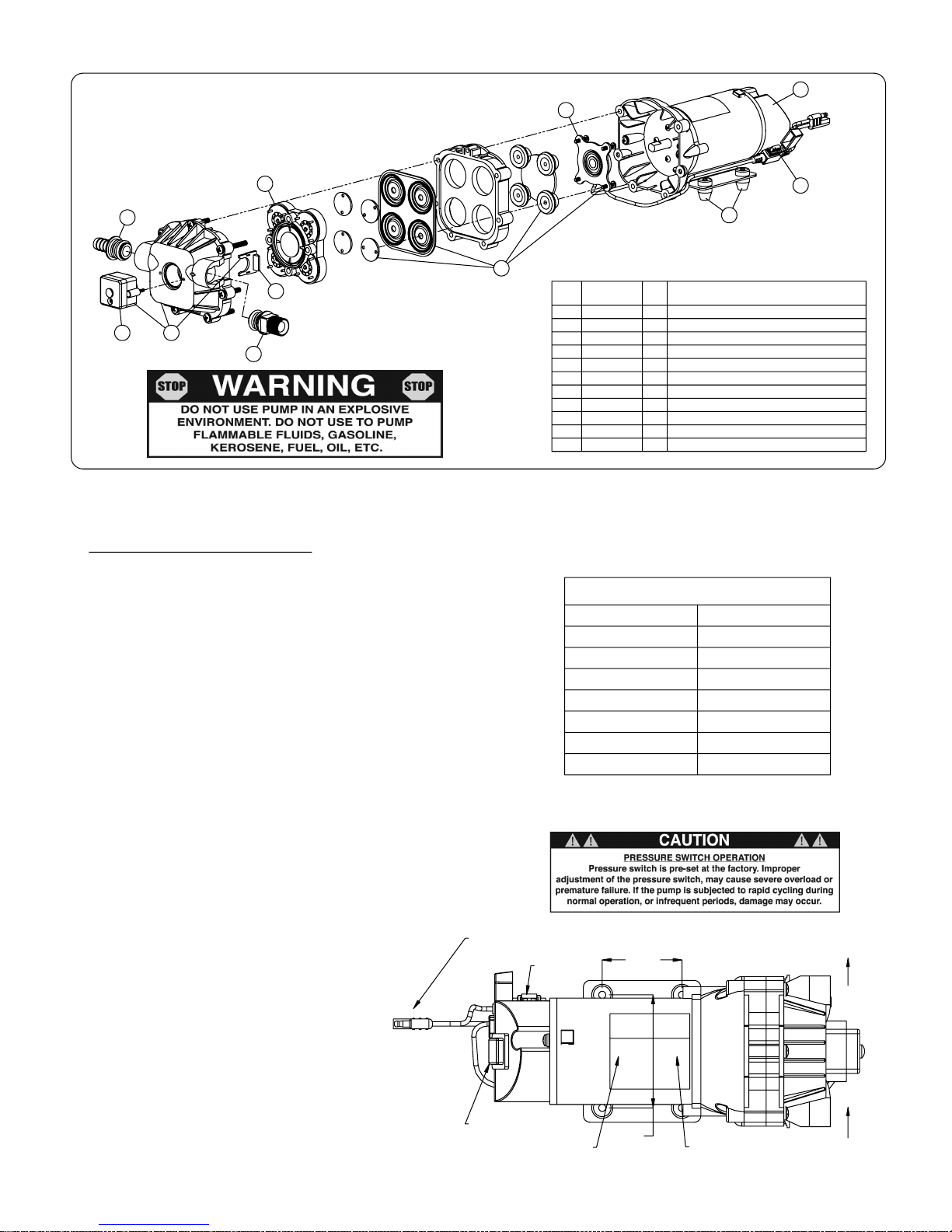

In addition to the ON/OFF switch, the pump is equipped with
an electronic pressure switch that is factory pre-set for it to
shut off at 45 p.s.i.. This switch assembly is the 'square box' on
the head portion of the pump.
Always fill the tank with a desired amount of water first, and
then add the chemical slowly, mixing as you pour the chemical
into the tank. You may use the handgun to spray into the
solution in order to mix the chemical and water.
Initially begin spraying by opening the handgun. This will
enable the air in the line to be purged through the handgun tip,
while building pressure.
The pumping system draws solution from the tank, through the
strainer/filter, and to the pump. The pump forces the solution
under pressure to the handgun and/or boom nozzles.
Open the handgun by squeezing the handle lever. •
Rotating the adjustable nozzle tip on the handgun will •
change the tip pattern from a straight stream to a cone
pattern (finer mist).
The pump's electronic pressure switch shuts the motor off •
when all lines are closed. The system will remain
pressurized, and the pump motor will restart automatically
when either the handgun, or boom line is opened. If the
bypass line valve is in the open position, the pump will not
shut off automatically.
Both nozzles spraying at the same time will allow a •
maximum coverage of 28 feet.
When it becomes necessary to clean the screen, you will •
need to shut off the ON/OFF valve down by the tank, on
the inlet side of the pump. Next, unscrew the knurled nut on
the outside of that valve. Remove the screen/washer which
is located in the knurled nut at that location. Rinse and tap
out the dirty screen and put back in it's original position
when clean. Do this on a regular basis to maintain a clean
screen.
Adjusting Pressure
- When the bypass valve is closed, pressure is at the highest
point.
- Opening the valve will decrease pressure.
Testing the Sprayer
NOTE:
It is VERY important for you to test your sprayer with plain
water before actual spraying is attempted. This will enable
you to check the sprayer for leaks, without the possibility of
losing any expensive chemicals.
Add water to the tank & drive to the starting place for spraying.
When you are ready to spray, turn the boom valves to the "on"
positions. This will start solution spraying from the tips of the
boom. The pressure will decrease slightly when the boom is
spraying. Adjust the pressure by turning the "ON/OFF" valve lever
on the bypass line valve.
Read the operating instructions and Initially begin spraying by
closing the 'bypass' valve (this is the center ON/OFF valve
located at the center port of your manifold assembly) and opening
the boom line "Y" valves. This will enable the air in the lines to be
eliminated (purged) through all the tips, while building pressure.
When everything tests all right (no leaks, & good pressure), add
the desired chemicals to the mixture and water combination and
start your spraying operation. Adjust the pressure and spray as
you did in the testing procedure.
Conditions of weather and terrain must be considered when
setting the sprayer. Do not spray on windy days. Protective
clothing must be worn in some cases.
Be sure to read the chemical label(s) correctly!
Calibration
Chemical labels may show application rates in gallons per acre,
gallons per 1000 square feet, or gallons per 100 square feet. You
will note that the tip chart shows all 3 of these rating systems.
Once you know how much you are going to spray, then
determine (from the tip chart) the spraying pressure (PSI), and
the spraying speed (MPH).
Determining the proper speed of the pulling vehicle can be done
by marking off 100, 200, & 300 feet. The speed chart indicates
the number of seconds it takes to travel the distances. Set the
throttle and with a running start, travel the distances. Adjust the
throttle until you travel the distances in the number of seconds
indicated by the speed chart. Once you have reached the throttle
setting needed, mark the throttle location so you can stop and go
again, returning to the same speed.
Add water and proper amount of chemical to the tank and drive
to the starting place for spraying.

PSI = Pounds Per Square Inch / GPM = Gallons Per Minute
Gallons per Acre Based on Water - 17 1/2" Spacing
Note: The same figures are used for 1, 2, or 3 nozzles.
Rate Chart for Boomless Nozzles
Gallons per 1000 Sq. Ft. Based on Water - 17 1/2" Spacing
Gallons per 100 Sq. Ft. Based on Water - 17 1/2" Spacing
MPH = Miles Per Hour / FPM = Feet Per Minute
The only difference will be with the width of the spray swath.
** The rate of spray as shown in the chart will remain the same with 1 or 2 Nozzles. **
1.68
G.P.M.
Capacity
(3 Nozzles)
2.05
2.40
P.S.I.
Pressure
30
40
20
1 MPH
0.090
0.078
0.064
0.045
0.039
0.032
2 MPH
28.0 14.020 1.68
2.05
2.40
2.40
2.05
(3 Nozzles)
Capacity
G.P.M.
1.68
P.S.I.
40
20
30
Pressure
40
30
1 MPH 2 MPH
0.64
0.78
0.90 0.45
0.32
0.39
34.4
39.6 19.8
17.2
G.P.M.
Capacity
(3 Nozzles)
Pressure
P.S.I.
1 MPH 2 MPH
8 MPH
0.012
0.010
0.008
5 MPH
0.018
0.016
0.013
0.030
0.026
0.021
3 MPH
0.020
0.023
0.016
4 MPH 6 MPH
0.015
0.013
0.011
8 MPH
8 MPH
0.10
0.12
0.08
5.6 4.7 3.59.4 7.0
5 MPH3 MPH 4 MPH
0.30
0.26
0.21
0.23
0.20
0.16
11.4
13.2 9.9
8.6
6 MPH
0.13
0.15
0.11
0.18
0.13
0.16
5.7
6.6
7.9
6.9
5.0
4.3
5 MPH3 MPH 4 MPH 6 MPH
After use, fill the sprayer tank part way with water. Start the
sprayer, and allow the clear water to be pumped through the
plumbing system and out through the spray nozzles.
Refill the tank about half full with plain water and use FIMCO Tank
Neutralizer and Cleaner, and repeat cleaning instructions above.
Flush the entire sprayer with the neutralizing/cleaning agent, then
flush out one more time with plain water. Follow the chemical
manufacturer's disposal instructions of all wash or rinsing water.
For the boom, (if applicable) remove the tips and screens from the
nozzle assemblies. Wash these items out thoroughly. Blow the
orifice clean and dry. If the orifice remains clogged, clean it with a
fine bristle (NOT WIRE) brush, or with a toothpick. Do not damage
the orifice. Water rinse and dry the tips before storing.
WARNING: Some chemicals will damage the pump valves if
allowed to soak untreated for a length of time! ALWAYS flush
the pump as instructed after each use.
After Spraying

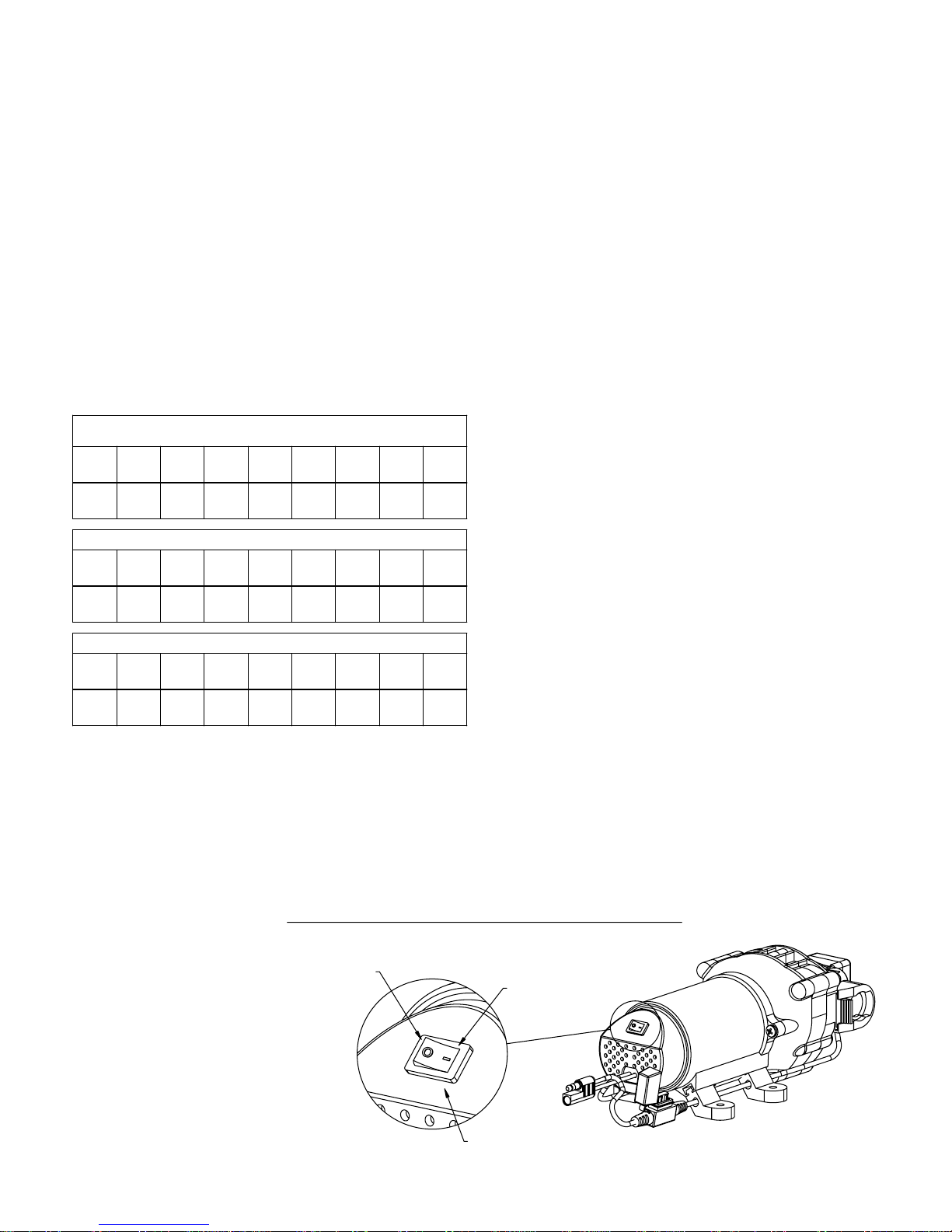

ON/OFF Switch Information For Your Sprayer
"o" is OFF
(12 Volt Pump)
"-" is ON
in the ON (-) position
This switch is shown
"ON" position before operating your sprayer.
Make sure BOTH of these switches are in the
number system, where 1=ON and 0=OFF)
(These symbols are based off the binary
"o" is for the OFF position
"-" is for the ON position
Things you need to know about the switches:
your battery connecting cable. (in most cases)
plastic cover. A similar switch will be located on
'rear' of the pump, located underneath a clear
switches. The one on the pump will be at the
Your sprayer may be equipped with (2) ON/OFF
Page 3
Winter Storage
Drain all water out of your sprayer, paying special attention to the
pump, handgun, and valve(s). These items are especially prone
to damage from chemicals and freezing weather.
The sprayer should be winterized before storage by pumping a
solution of RV antifreeze through the entire plumbing system.
This antifreeze solution should remain in the plumbing system
during the winter months. When spring time comes and you are
preparing your sprayer for the spray season, rinse the entire
plumbing system out, clearing the lines of the antifreeze solution.
Proper care and maintenance will prolong the life of your sprayer.
Using the Boom Nozzles
Four things must be considered before spraying with the boom:
How much chemical must be mixed in the tank. 1.
Rate of spray (gallons per acre to be sprayed) 2.
What pressure (p.s.i.) will be used. 3.
Speed traveled (mph) while spraying. 4.
- Refer to the chemical label to determine your chemical mixture.
- See the tip chart to determine the pressure to be used. The
chart will also show the speed used when spraying.
- Start the pump and open the valves to the boom nozzles.
- Check the spray pattern. Usually you can see the coverage
better on a solid concrete surface, such as a driveway.
- The boomless nozzles should be approx. 33" above the objects
being sprayed.

On/Off Switch
12 Volt Connection
Pump 'Model' Number
(Here on Label)
Pump Model: 5275704
Pump 'Serial' Number
(Here on Label)
Fuse
Inlet
Outlet
Available Replacement Parts
ends together. If your pump runs when you do this,
Make sure your on/off switches are in the 'on' position.
you are connected to a good 12 volt power source.
lead wire assembly & on the pump motor are
°
Make sure the 'ON/OFF' switches in both the
Check for defective pressure switch.
Check for defective or dirty check valve.
Check for leak in discharge line.
Check for low voltage.
Check for open bypass valve. (if equipped)
Check for empty product supply.
Motor continues to run after discharge is shut off:
Check for clogged strainer.
Discharge hose may be too long.
Check for debris in nozzle orifice.
Check for restriction in the discharge line.
Check for leaks in the discharge line.
Check for defective pressure switch.
Pulsating flow (surging):
Check for empty product supply.
Check for cracks in the pump housing.
Check for clogged strainer/filter.
Check for defective check valve.
Check for debris in the check valve assembly.
Check for air leaks in supply line.
Pump does not prime:
Check for low voltage at the power supply.
Check the fuse.
your pressure switch will need to be replaced.
red wires off of their terminals, and touch the two
Remove the cap to the pressure switch. Pull both
Check for defective pressure switch. Make sure
and 'O' is the 'OFF' position.
in the 'ON' position. "I" is the 'ON' position
°
°
°
°
°
°
°
°
°
°
°
°
°
°
°
°
°
°
°
°
°
Check for loose wiring connection(s).
Motor does not run:
Troubleshooting the Pump:
°
64
11
10
5
7
3.8 GPM @ Open Flow
Flow Rate:
Polypropylene
7.4 Amps @ 40 PSI
3.19
DC = Direct Current
PSI = Pounds per Square Inch
GPM = Gallons Per Minute
Liquid Temperature:
Diaphragm:
Wetted Parts Housing:
Motor Voltage:
Check Valve:
Port Type:
Current:
2.25
130
12 Volts DC
F max.
Santoprene
°
Plug-In Port
Viton
Port Kit Fitting, 1/2" Hose Barb
Cam/Bearing Kit, w/Set Screw
Diaphragm Kit w/Pistons & (4) Screws
Upper Housing w/Pressure Switch
On/Off Rocker Switch w/Cover
Pump Specifications
151688289
11
10
5168833
5168832
1
1
20408-000
2
6
8
7
4
5
3
8
No
Item
1
15157206
5168826
5168824
5157203
5168821
5157207
1
1
1
1
1
1
5075019
Number
Part
Qty
1
Port Kit Fitting, 1/2" MNPT
Check Valve w/O-Ring
Pressure Switch Assembly
Pkg. (2) Clips (Port Fitting)
15 Amp 'Mini Blade' Fuse
Pkg. (4) Grommets
Description
9
1
2
3
527xxxx 0101000000
Page 4

26
28
29
21
11
14
25
5 12 12
27
19
31.1
31.3
31.5
31.4
31.6
31.2
31.7
31.6
10
6
2
7
9
7
6
7
17
33
4
4
2
8
F
Pump/Manifold
Detail
22
20
30
32.5
23
32.10
32.6
32.11
32.3
32.4
32.7
24
32.6
32.8
32.1
32.2
3
15
1
18
32.9
32.6
32.11
32.3
Typical Nozzle Detail
12
4
2
9
16
33
8
13 6
Page 5
Exploded View Model: LG-25-BL (5302183)

Intake/Siphon Tube/Screen Detail of a Typical L&G/ATV Sprayer (not including the 'EC' units)
to Inlet of Pump
- Make sure the valve in turned to the 'Open' position before restarting your pump.
- Remove the screen and clean as necessary. Replace when done and reassemble the entire assembly.
- Swing (swivel) the intake assembly towards you. Look in the nut you JUST unscrewed. There is a screen/washer there.
- Unscrew the knurled nut from the shut-off valve, leaving the valve connected to the tank.
- Shut the nylon valve to the 'Closed' position. (lever is perpendicular to the flow of fluid)
It is at this location so you can shut off the flow of solution, to access your system's screen, for cleaning.
A nylon shut-off valve is threaded onto the pipe nipple, at the intake location on the tank.
(see Detail Views) Reach in and rotate it, as needed, if not already in this position.
which should be rotated so that it just touches the bottom of the tank surface.
The suction line of your sprayer should contain a 'siphon tube', or 'intake tube',
Strainer, 1" Filter Washer
Knurled Nut
'Cut' View of a 'Typical' Tank
Checking/Cleaning the sprayer's filter/screen:
Nylon Shut-Off Valve (3/4" GHT)
Siphon Tube
touches the bottom of the tank.
rotated so that the tube just
Make sure the siphon tube is
"Open"
Valve
(looking inside)
"Closed"
Valve
Page 6
Repair Parts List Model: LG-25-BL (5302183)
Item
No
Part
Number
Qty Description
1 5006209 1 Poly Knurled Swivel Nut, 3/4" FGHT
2 5006307 12 5/16"-18 Hex Whiz (Flange) Locknut
3 5016066 1 Garden Hose Washer
4 5020065 2 Hose, 3/8"-1 Brd. x 40"
5 5020215 1 Hose, 3/8"-1 Brd. x 15 Ft.
6 5034220 4 Round U-Bolt, 5/16"-18 x 1 5/16" x 1 3/4"
7 5034531 4 5/16"-18 x 5/8" Flange Lock Screw
8 5034562 4 5/16"-18 x 5/8" Flange Bolt w/Locking Patch
9 5038667 1 Tank Mounting Plate (L.H.) (ATV)
10 5038725 1 Tank Mounting Plate (R.H.) (ATV)
11 5051122 1 5/8" Black Nylon Loom Cable Clamp
12 5051144 6 Hose Clamp (3/8")
13 5053110 2 Plastic Retaining Clip 14 Ga. & 16 Ga.
14 5058188 1 Tank Lid w/Lanyard
15 5075018 1 Grommet
16 5095319 1 Nozzle Mount - QJ100 (Left Side)
17 5095320 1 Nozzle Mount - QJ100 (Right Side)
18 5100359 1 Poly Bypass "J" Hose (3.8/2.1 - 25 Gal.)
19 5100452 1 Siphon Tube
20 5117168 3 #10-24 x 1" Phillips Truss Head Machine Screw
21 5117234 1 #10-24 x 1/2" Phillips Truss Head Machine Screw
22 5117314 1 #10-24 x 3" Truss Head Machine Screw
23 5127192 1 Manifold Spacer (3.8gpm)
24 5167007 1 Pressure Gauge, 0-100 p.s.i.
25 5169243 1 25 Gallon (New Style) Tank
Item
No
Part
Number
Qty Description
26 5273959 1 Deluxe Pistol-Grip Handgun w/X-26 Tip
27 5274373 1 Drain Plug Cap, Tether, and Washer Assembly
28 5274443 1 Lead Wire Assembly (w/Switch), 96"
29 5274880 1 Handgun Clips & Screws (Pkg/2) (#10-24 Thread)
30 5275704 1 Gold Series 3.8 g.p.m. Pump
31 5275877 1 Intake Sub-Assembly
31.1 5143188 1 Nylon Shut-Off Valve (3/4" GHT)
31.2 5168833 1 Port Kit Fitting, 1/2" Hose Barb
31.3 5116242 1 Strainer, 1" Filter Washer
31.4 5149035 1 Poly Swivel, 1/2" Hose Barb
31.5 5006209 1 Poly Knurled Swivel Nut, 3/4" FGHT
31.6 5051114 2 Hose Clamp (3/8"-1/2")
31.7 5020497 1 1/2" Polyspring Hose x 6"
32 5277787 1 Manifold Assembly
32.1 5005190 1 Poly Adapter Coupler, 3/4" FGHT x 1/2" FNPT
32.2 5005195 1 Poly Adapter, 1/2" MNPT x 3/4" MGHT
32.3 5006209 3 Poly Knurled Swivel Nut, 3/4" FGHT
32.4 5010236 1 Poly Elbow, 1/2" FNPT x 1/2" FNPT
32.5 5010430 1 Port Kit Elbow, 1/2" FNPT
32.6 5016066 4 Garden Hose Washer
32.7 5041073 1 Poly Reducing Bushing, 1/2" MNPT x 1/4" FNPT
32.8 5143188 1 Nylon Shut-Off Valve (3/4" GHT)
32.9 5143204 1 Dual Hose Shut-Off "Y" Valve
32.10 5143405 1 Manifold w/Mounting Tab
32.11 5149034 3 Poly Swivel, 3/8" Hose Barb
33 5277798 2 Elbow Nozzle Assembly (Boomless Tips)
