Firesense PH08-SA User manual

- 1-
Patio Heater
Model: PH08-SA, PH08-SSA
Item #: 60804
Instruction Manual & Parts List
INSTALLER: Please leave this manual for the consumer.
CONSUMER: Please retain this manual for future reference.
MANUFACTURER: Changzhou Wellife Furnace Co., Ltd.
WARNING: For outdoor use only.
FOR YOUR SAFETY
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, immediately call
gas supplier.
FOR YOUR SAFETY
Do not store or use gasoline or other
flammable vapors or liquids in the
vicinity of this or any other appliance.
An LP-cylinder not connected for
use shall not be stored in the
vicinity of this or any other
appliance.
3177588

- 2-
DANGER CARBON MONOXIDE HAZARD
This appliance can produce carbon
monoxide which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed
space such as a camper, tent, car or
home.
WARNING :
For Outdoor Use Only
LPG Cylinders to be used must be constructed and
marked in accordance with US DOT specifications.
Storage of the heater indoors is permissible only
if the gas cylinder is turned off and removed.
NOTE:
Use only 20lb LP-Gas tank with size of
18.1in / 46cm(Height)*12.5in / 32cm
(Width).
Do not use if the environment temperature
is below 40 degrees F / 4.4 degrees C.
WARNING: Improper installation, adjustment,
alteration, service or maintenance can cause injury
or property damage. Read the installation,
operating and maintenance instructions thoroughly
before installing or servicing this equipment.
Tools needed:
●Open end wrench 10 & 13mm
(included)
NOT included:
●Adjustable opening wrench 8’’
long
●Philips screwdriver w/ medium
blade
●Spray bottle of soapy solution
for leak testing
Tools and parts needed for assembly

- 3-
NOTE: PLEASE READ THE FOLLOWING SAFETY RULES
WARNING:
PRECAUTIONS
This heater must only be used outdoors. Using this product in an enclosed area may
cause injury, death or property damage.
Only use in a well-ventilated space. Do not use in a building, garage, or any other
enclosed area.
Read the instructions before use. This heater must be installed in accordance
with local codes or, in the absences of local codes, with the National Fuel Code, ANSI
Z223.1. If applicable, the heater, when installed, must be electrically grounded in
accordance with local codes or, in the absence of local codes, with The National
Electrical Code, ANSI/NFPA70.
Do not use the heater in an explosive atmosphere. Keep the heater away from areas
where gasoline or other flammable liquids or vapors are stored.
Prior to use, check for damaged parts such as hoses, regulators, pilot or burner.
Turn off and disconnect LPG cylinder before moving the heater.
Do not attempt to alter this heater in any manner. EXAMPLE: Using the heater
without the top canopy reflector or radiant screen.
Do not use this heater in basements or below ground level. It must always be placed
on a solid and level surface.
Always ensure there is ample fresh air ventilation. For outdoor use ONLY.
Never replace or substitute the regulator with any regulator other than the factory
suggested replacement.
Do not clean the heater with cleaners that are combustible or corrosive.
Do not paint radiant screen, control panel, or top canopy reflector.
All leak tests should be done with a soapy solution. NEVER USE AN OPEN FLAME TO
CHECK FOR LEAKS.
The LPG cylinder should be turned off when the heater is not in use.
At least once a year, the unit should be inspected for the presence of spiders, spider
webs or other insects.

- 4-
CHECK THE HEATER IMMEDIATELY IF ANY OF THE FOLLOWING
EXIST:
1. The smell of gas in conjunction with extreme yellow colored tips of the burner flames.
2. The heater does not reach temperature.
3. The burner makes a popping noise during use (a slight popping noise is normal when
the burner is extinguished after using).
Children and adults should be aware of the hazards of high surface temperature, and
should stay away to avoid burns or clothing ignition.
Young children should be carefully supervised when they are in the area of the heater.
Clothing or other flammable material should not be hung from the heater, or placed on
or near the heater.
Any guard or other protective device removed for servicing the heater must be
replaced prior to operating the heater.
Installation and repair should be done by a qualified service person. The heater should
be inspected before use and cleaning may be required at least once a year, or as
necessary. It is imperative that the control compartment, burner and circulating
passageways of the heater are kept clean.
Keep the heater area clear of combustible materials such as gasoline and other flammable
vapors and liquids.
Do not obstruct the flow of combustion and ventilation air.
Keep the ventilation opening of the LPG cylinder enclosure free and clear of debris.
Storage of a heater indoors is permissible only if the LPG cylinder is turned off,
disconnected and removed from the heater.
Cylinders must be stored outdoors in a well-ventilated area out of the reach of
children. Disconnected cylinders must have threaded valve plugs tightly installed,
and must not be stored in a building, garage or any other enclosed area.
。
PRECAUTIONS

- 5-
1. Base assembly with
tank and control
housing
2. 2pcs wheels
3. Handle
4. 2pcs glass tube fixed
parts (one for top, one
for bottom)
5. 2pcs glass tube
6. Glass tube connector
7. 4pcs lower support
8. 4pcs upper support
9. 4pcs support connector
10.8pcs mesh guard
11.Upper plate
12.Top reflector
13.4pcs mesh fixed parts
(see exploded view
below)
14.3pcs gas cylinder fixed
parts and 3pcs
M8x25mm bolts (to
secure LPG cylinder on
base)
15.4pcs M12 screws
16.4pcs M5x10mm bolts
17.4pcs M6x12mm bolts
18.6pcs M6x12mm bolts
19.3pcs 3/16’’ screws
20.3pcs M4x8mm screws
21.3pcs M4x8mm screws
22.4pcs M4x8mm screws
23.8pcs M6x18mm bolts
24.8pcs M6 nuts
ASSEMBLY
# 13 (exploded view)

- 6-
WARNING: This appliance requires installation by a competent
person. Proper assembly is the responsibility of the installer.
Step 1
Attach the wheels (2) to the base assembly
(1)with 8pcs M6x18mm bolts (23) and
8pcs M6 nuts (24).
Step 2
Attach the handle (3) to the back
panel of the base assembly(1) with
4pcs M6x12mm bolts (17).
ASSEMBLY

- 7-
Step 3
Attach one of the glass tube fixed
parts (4) on the base assembly (1)
with 3pcs M4x8mm screws (20).
Step 4
Screw the 4pcs lower support (7)
into the holes located on the top
of the base assembly (1).
ASSEMBLY

- 8-
Step 5
Put the 4pcs of the support
connector (9) onto the tops
of the 4 lower supports (7).
Step 6
Screw the 4 upper supports (8)
onto the 4 lower supports (7).
ASSEMBLY

- 9-
Step 7
Fit one piece of the glass tube (5)
into the glass tube fixed part (4)
on top of the base assembly (1).
Insert the glass tube connector (6)
into the glass tube piece already
attached to the base assembly and
then lower the second piece of
glass tube over the glass tube
connector.
Step 8
Attach the other glass tube fixed
part (4) to the upper plate (11)
with 3 pcs M4x8mm screws (21).
ASSEMBLY

- 10-
Step 9
Put the assembled upper
plate from Step 8 on top
of the assembled support
connectors and use 4pcs
M12 screws (15) to secure it.
Step 10
Attach 4pcs mesh guard (10)
on the lower support connectors.
NOTE: The long side will connect
with the base assembly.
ASSEMBLY

- 11-
Step 11
Attach 4pcs mesh guard (10)
on the upper support connectors.
Step 12
Attach 4pcs mesh fixed parts (13) on
the assembled upper plate with
4pcs M4x8mm screws (22).
ASSEMBLY

- 12-
Step 13

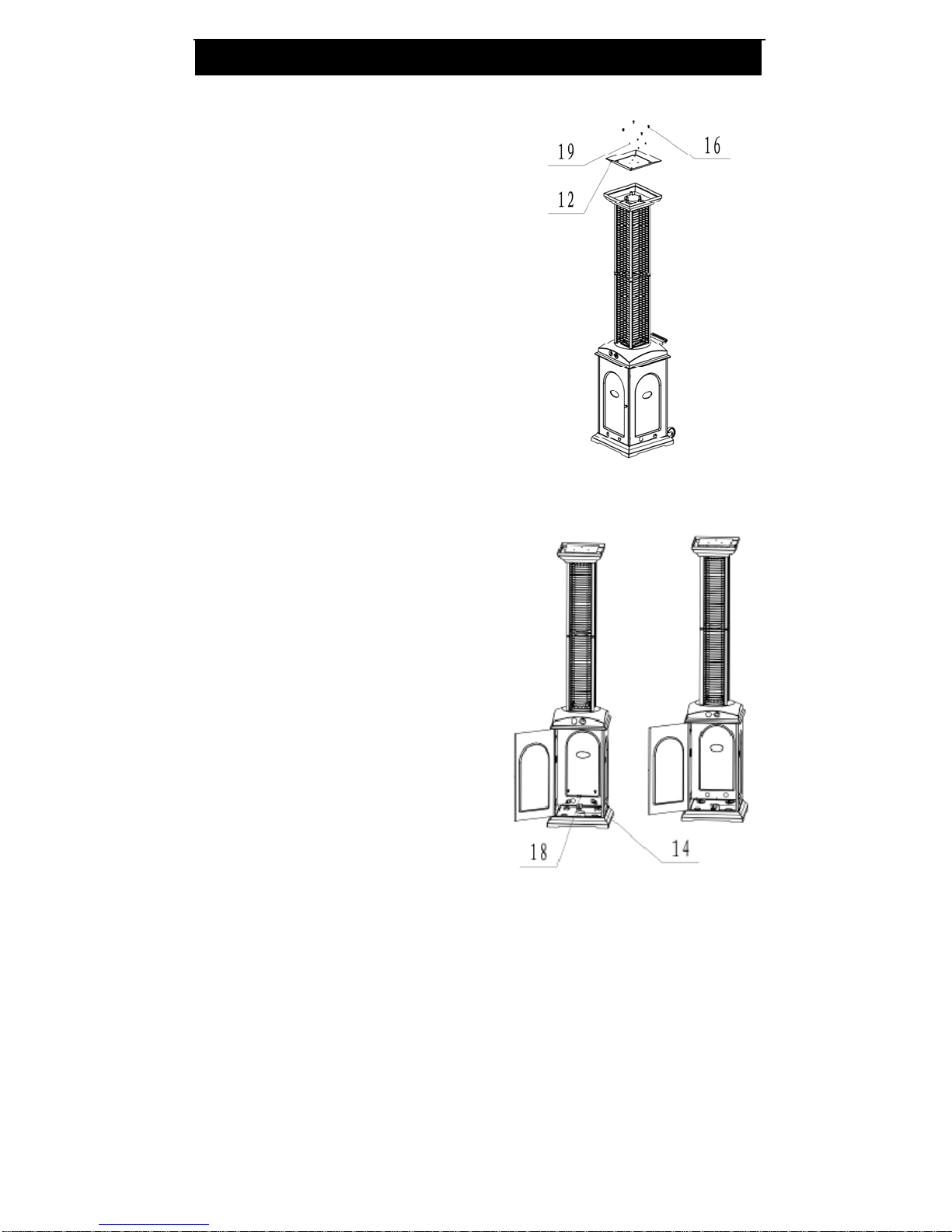

Attach the top reflector (12) on the
assembled upper plate with
3pcs 3/16’’ screws (19) and 4pcs
M5x10mm bolts (16).
Step 14
Open the front panel of base
assembly (1).
Attach 3pcs gas cylinder fixed
parts (14) on the base with
6pcs M6x12mm bolts (18).
ASSEMBLY

- 13-

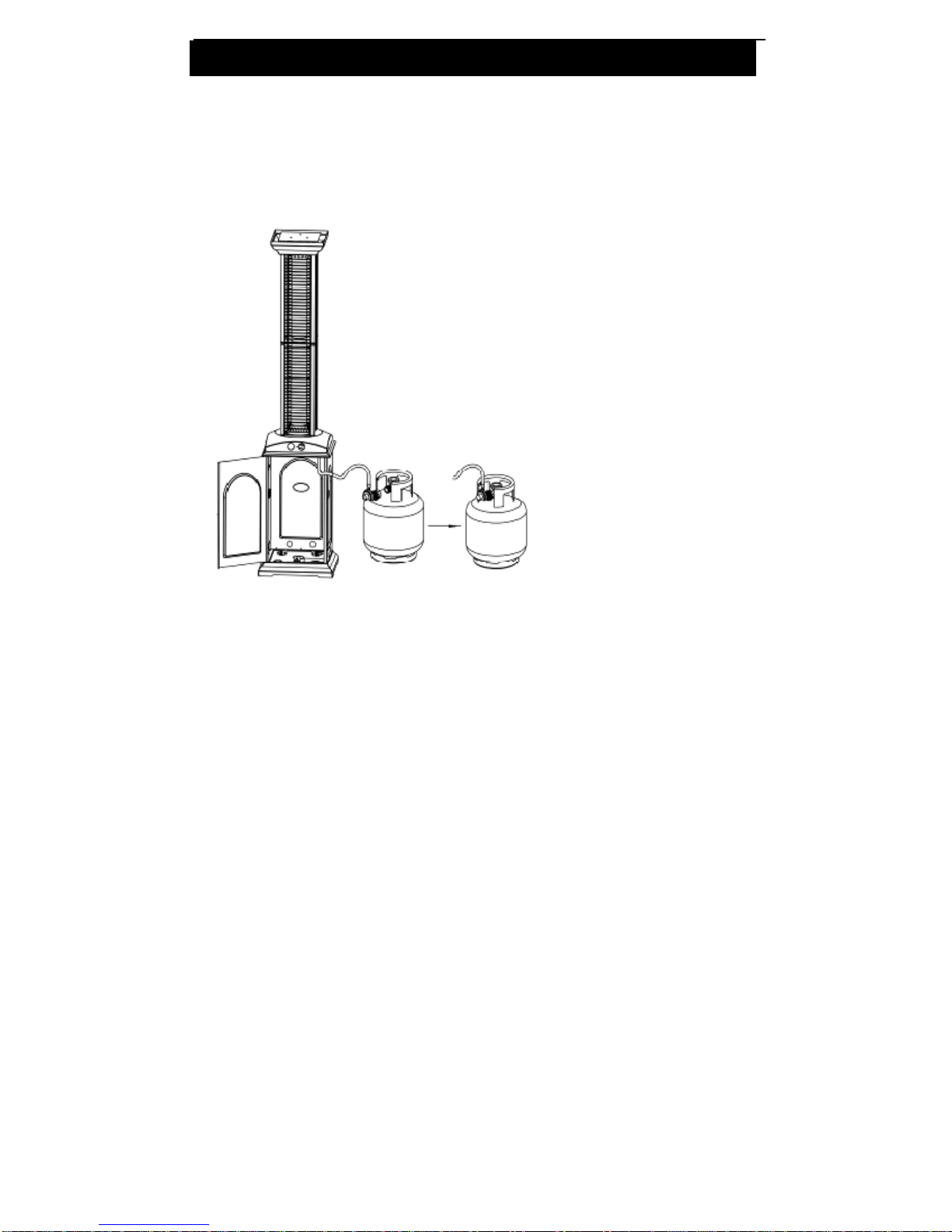

Step 15
Connect the regulator (Preassembled with the burner) to
the LPG cylinder and hand tighten, then put gas cylinder on
the base.
Warning: When connecting the gas cylinder and regulator, make sure
the connection is tight and always check for leaks. Please see page 14
“Check for Leak” for full instructions.
ASSEMBLY

- 14-
Check for Leak
Your patio heater has been checked at all factory connections for leaks,
but you should always check when you attach the LPG cylinder. To
check for leaks, follow these instructions:
--Assemble all gas connections;
--Connect regulator assembly to the propane tank;
--Make sure the heater valve is turned OFF.
1) Make soapy solution by mixing 1 part liquid dish soap and 3 parts
water.
2) Open the propane tank valve.
3) Spoon several drops (or use squirt bottle) of the soapy solution
onto the gas hose /regulator and regulator/cylinder connection.
4) Inspect the connections and look for bubbles.
5) If no bubbles appear the connection is safe.
6) If bubbles appear, there is leakage. Close the propane tank valve,
and loosen and re-tighten this connection.
7) Check for leakage again.
8) If bubbles still appear and the leak is with the regulator or hose,
close the propane tank valve and contact customer support. If a leak
is detected, DO NOT attempt to use the heater.
MAKE SURE to check all THREE connections between the cylinder and gas
line.
ASSEMBLY

- 15-
NOTE:
1) The cylinder must be provided with a shut off valve terminating in
a LPG supply cylinder valve outlet specified, as applicable, for
connection NO 510 in the standard for compressed gas cylinder
valve outlet and inlet connections, ANSI/CGA-v-1.
2) The cylinder supply system must be arranged for vapor
withdrawal.
3) The cylinder used must include a collar to protect the cylinder
valve.
Annually check operation:
A. Open the front panel of the base assembly.
B. Open the propane tank valve.
C. Spoon several drops (or use squirt bottle) of the solution onto gas
hose connection and pilot connection.
D. Inspect the connections and look for bubbles.
E. If no bubbles appear, the connection is safe.
F. If bubbles appear, there is a leak. Close the propane tank valve and
loosen and re-tighten this connection.
G. Check for leaks again.
H. If bubbles still appear, close the propane tank and refer to
instructions under #8 on page 14. DO NOT attempt to use the
heater.
ASSEMBLY

- 16-
WARNING: DO NOT attempt to operate the heater until you have read
and understand all precautions. Failure to do so can result in serious
personal injury, death or property damage.
Before Turning Gas Supply ON.
Your heater was designed and approved for OUTDOOR USE ONLY. DO NOT
use it inside a building or any other enclosed area.
Make sure surrounding areas are free of combustible materials such as gasoline
and other flammable vapors or liquids.
Ensure that there is no obstruction to air ventilation.
Be sure all gas connections are tight and there are no leaks.
Be sure the access panel is clear of debris.
Be sure any component removed during assembly or servicing is replaced and
fastened prior to starting.
Before Lighting
Heater should be thoroughly inspected before each use. Have a qualified service
person inspect the heater at least annually. If relighting a hot heater, always
wait at least 5 minutes.
OPERATION

- 17-
LIGHTING INSTRUCTIONS
TO TURN ON THE HEATER.
1. Turn the control knob “OFF”.
2. Slowly open the gas cylinder valve.
3. Press and turn the control knob to
“ ” position and hold for 30 seconds.
While holding down the control knob, press the igniter several
times until the pilot flame ignites. Release the knob after ignition.
Note: If the pilot flame does not light or it goes out, repeat Step 3.
To regulate the heat, turn the control knob to “LO” position or “HI”
position.
4. If the burner flame goes out accidentally or it is blown by wind,
turn off the heater and wait at least 5 minutes or more to let the
gas dissipate before relighting to avoid gas explosion. Repeat
steps 2 to 4.
NOTE:
· If a new tank has just been connected, please
allow at least one minute or more for the air in
the gas pipeline to purge out through the pilot hole.
· When lighting the pilot flame make sure that the
control knob is continuously depressed while
pressing the igniter button. Variable control knob
can be released after the pilot flame has been lit
for 20~30 seconds.
· Pilot flame can be watched and checked from the
peephole located on the base of burner.
TO TURN OFF THE HEATER.
1. Press and turn the control knob to
“OFF” position.
2. Turn off the valve on the gas cylinder and
disconnect the cylinder.
WARNING
FOR YOUR SAFETY
If at any time you are
unable to light burner
and smell gas, wait 5
minutes to allow gas to
dissipate before
attempting to light
heater. If after 1 minute
you are unable to light
burner, wait 5 minutes
and allow flammable
vapors to dissipate
before attempting to
light heater again.
OPERATION
WARNING
Heater will be hot after use. Handle with extreme care.

- 18-
CAUTION: WHEN CERTAIN MATERIALS OR ITEMS ARE LEFT UNDER THIS
HEATER WHILE IN USE, THEY WILL BE SUBJECT TO RADIANT
HEAT AND COULD BE SERIOUSLY DAMAGED.
This heater is to be used for the heating of outdoor patios, decks, spas, pool, and open working
areas. This heater is for outdoor use ONLY.

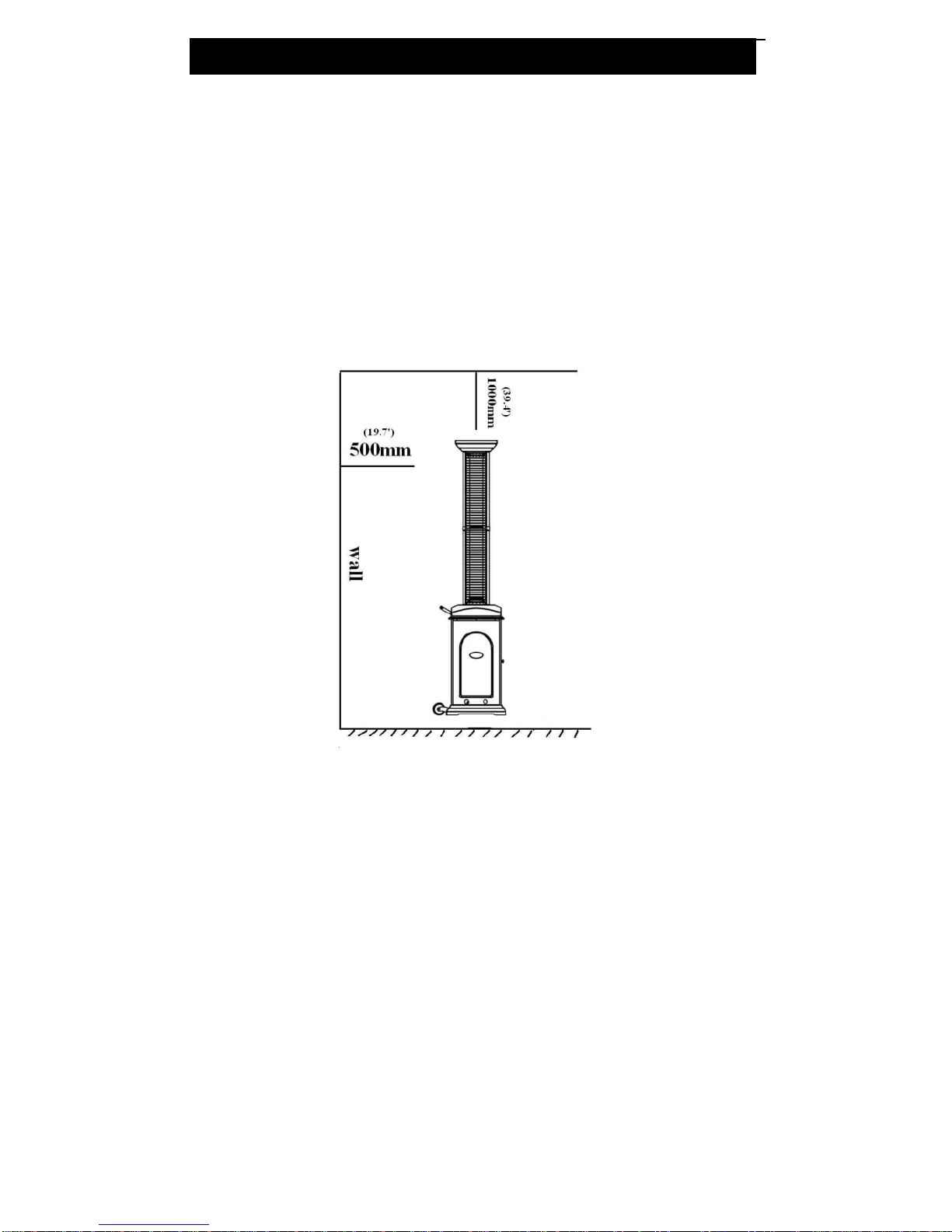

Always make sure that adequate fresh air ventilation is provided and follow the spacing tolerances
shown in the picture below. The minimum clearances must be maintained at all times.
This heater must be placed on level, firm ground.
Never operate in an explosive atmosphere. Keep away from areas where gasoline or other
flammable liquids or vapors are stored or used.
LOCATIONOFHEATER WHILEINUSE

- 19-
CLEANING AND MAINTENANCE
To enjoy years of outstanding performance from your
heater, make sure you perform the following maintenance
on a regular basis:
Keep exterior surfaces clean.
1. Use warm soapy water for cleaning. Never use flammable or corrosive cleaning agents.
2. While washing your heater, be sure to keep the area around the burner and pilot assembly dry
at all times. If the gas control is exposed to water in any way, DO NOT try to use it. It must
be replaced.
Keep the heater area free and clean from combustible materials, gasoline or other flammable
vapors and liquids. Visually check burner flames.
Visually check the hose assembly inside the post and check for any cracks or worn sections.
1. Unscrew gas hose and regulator hose with 3/4’’ inch open end wrench and adjustable
wrench.
2. Check if there are any cracks or worn sections on hose. If yes, contact your gas supplier
to replace the hose.
3. At least once a year, the unit should be inspected for the presence of spiders, spider
webs or other insects.
Air flow must be unobstructed. Keep controls, burner and circulating air passageways clean. Signs
of possible blockage include:
1. Gas odor with extreme yellow tipping of flame.
2. Heater does not reach the desired temperature.
3. Heater glow is excessively uneven.
4. Heater makes uneven popping noise.
Spiders and insects can nest in burner or orifices. This dangerous condition can damage heater
and render it unsafe for use. Clean burner holes by using a heavy-duty pipe cleaner. Compressed
air may help clear away smaller particles.
Carbon deposits may create a fire hazard. Clean dome and engine with warm soapy water if any
carbon deposits develop.
MAINTENANCE
NOTE:
In a salt-air environment (such as near an ocean), corrosion occurs more
quickly than normal. If the heater is exposed to this type of environment, you
should frequently check for corroded areas and repair them promptly.
WARNING
FOR YOUR SAFETY
DO NOT touch or move
heater for at least 45
minutes after use.
Allow all burner elements
to cool before touchin
g
.

- 20-
Problem Problem cause solution
Pilot will not light Gas valve may be
OFF Turn the gas valve ON
Tank fuel empty Refill LP gas tank
Air in supply system Purge air from lines
Loose connection Check all fittings
Pilot will not stay on Debris around pilot Clean dirty area
Loose connection Tighten connection
Thermocouple bad Replace thermocouple
Gas leak in line Check connections
Lack of fuel pressure Fuel tank is near empty
Burner will not light Pressure is low Fuel tank is near empty
Control valve not ON Turn valve to ON
Thermocouple bad Replace thermocouple
Pilot light assembly
bent or not in correct
location
Place pilot in proper
Position and retry
Burner flame goes
off immediately
after ignition
Low gas pressure Let the pilot flame stay lit
for 10 minutes before
setting variable knob to
“LO”
TROUBLESHOOTING
