Firesense 02412 User manual

Patio Heater
Instruction Manual
For outdoor use only
Uses propane or LPG only
Reflector: Dia.813mm (32")
Total height: 2241mm (88.2”)
Regulator outlet pressure: 28 mbar
Max. power: 13k W
Min.power: 5kW
Please retain this manual for reference.

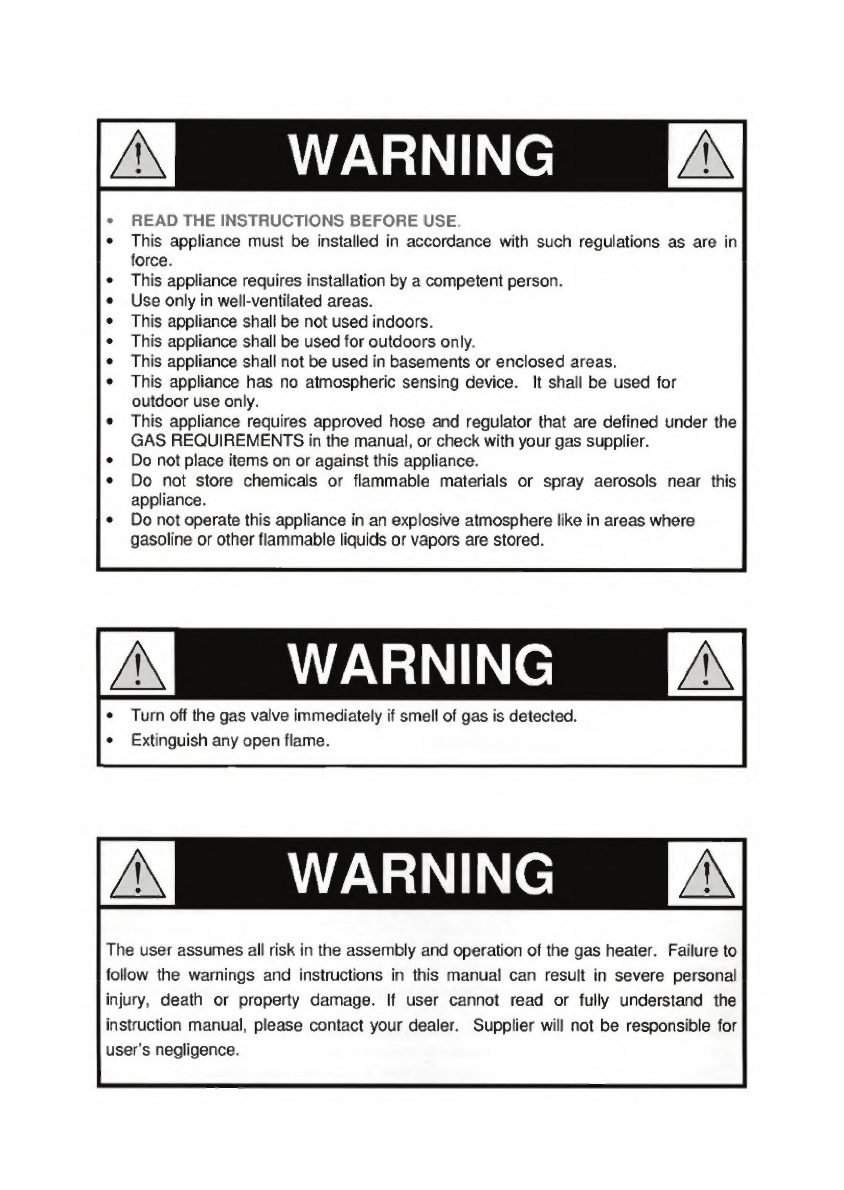

WARNING
• READ THE INSTRUCTIONS BEFORE USE.
• This appliance must be installed in accordance with such regulations as are in
force.
• This appliance requires installation by a competent person.
• Use only in well-ventilated areas.
• This appliance shall be not used indoors.
• This appliance shall be used for outdoors only.
• This appliance shall not be used in basements or enclosed areas.
• This appliance has no atmospheric sensing device. It shall be used for
outdoor use only.
• This appliance requires approved hose and regulator that are defined under the
GAS REQUIREMENTS in the manual, or check with your gas supplier.
• Do not place items on or against this appliance.
• Do not store chemicals or flammable materials or spray aerosols near this
appliance.
• Do not operate this appliance in an explosive atmosphere like in areas where
gasoline or other flammable liquids or vapors are stored.
A
WARNING
A
• Turn off the gas valve immediately if smell of gas is detected,
• Extinguish any open flame.
A
WARNING
The user assumes all risk in the assembly and operation of the gas heater. Failure to
follow the warnings and instructions in this manual can result in severe personal
injury, death or property damage. If user cannot read or fully understand the
instruction manual, please contact your dealer. Supplier will not be responsible for
user's negligence.

CAUTION
PLEASE READ CAREFULLY THE FOLLOWING SAFETY GUIDELINES BEFORE OPERATION.
• This patio heater Is for outdoor use only (see attached diagrammatical representations of outdoor
areas).
• This outdoor heater is not intended to be installed on recreational vehicles and'or boats.
• Do not use the heater Indoors.
• Do not use the heater in the basements or below ground level,
« Gas heater without atmospheric sensing device should only be used outdoors.
» The installation must conform to appropriate Slate regulations,
• Repair should be done by a qualified service person.
• Improper installation, adjustment, alteration can cause personal injury or property damage.
• Do not attempt to alter the unit in any manner,
• Never replace or substitute the regulator with any regulator other than the tactory-suggested
replacement.
• Remove packaging before use.
• Do not store or use gasoline or other tlammable vapors or liquids in the heater unit,
• Plumbing tape must be used tor all threaded gas connections to prevent leakage,
• The whole gas system, hose, regulator, pilot or burner should be inspected for leaks or damage before
use, and at least annually by a competent person.
• All leak tests should be done with a soapy water solution. Never use an open flame to check tor leaks,
• Do not use the heater until all connections have been leak tested.
• Turn off the gas valve immediately if smell of gas is detected.
• Do not transport the heater while it's operating,
• Do not move the heater alter it has been turned off until it is completely cooled,
• Keep the ventilation opening of the cylinder enclosure tree and clear of debris.
• Do not paint the radiant screen, control panel or top canopy reflector.
• Control compartment, burner and circulation air passageways of the heater must be kept clean.
Frequent cleaning may be required as necessary.
» The gas cylinder should be turned off when the healer is not in use.
• Check the heater Immediately it any of the following occurs:
The heater does not reach temperature.
The burner makes popping noise during use (a slight noise is normal when the burner is
extinguished).
Smell of gas in conjunction with extreme yellow tipping of the burner flames.
• Avoid inhaling fumes emitted from the heater's first use. Smoke and odor tram the burning of oils used
in manufacturing will appear. Both the smoke and odor will dissipate after approximately 30 minutes.
• The hose assembly must be located out of pathways where people may trip over it or in area where the
hose will not be subjected to accidental damage.
• Avoid twisting the flexible tubes and hoses.
• Any guard or other protective device removed lor servicing the heater must be replaced belore
operating the beater,
• Adults and children should stay away from high temperature surfaces to avoid burns or clothing ignition,
• Children should be carefully supervised when they are in the area of the heater.
• Clothing or other flammable materials should not be hung on the heater or placed on or near the heater.
-1 -

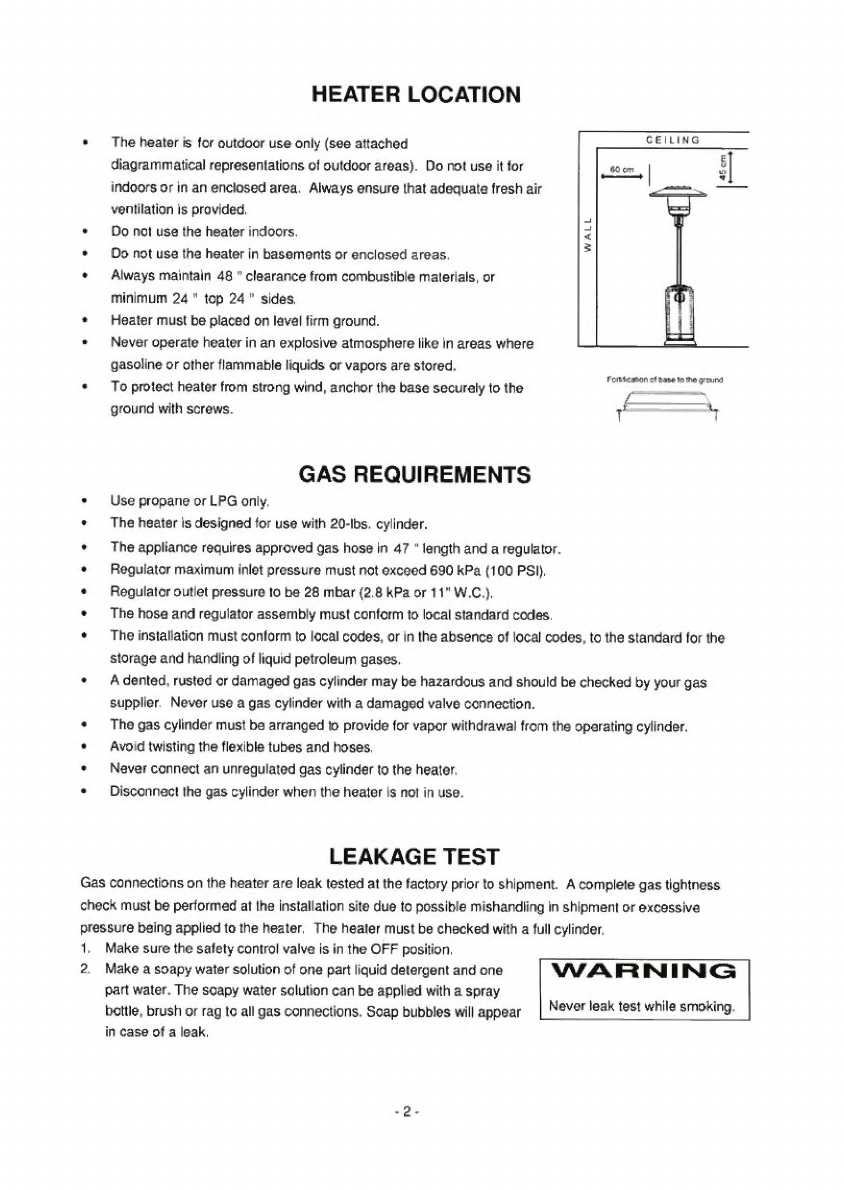

HEATER LOCATION
• The healer is for outdoor use only (see attached
diagrammatical representations of ouldoor areas). Do not use it for
indoors or in an enclosed area, Always ensure that adequate fresh air
ventilation is provided.
• Do not use the heater indoors,
• Do not use the heater in basements or enclosed areas,
• Always maintain 48 '' clearance from combustible materials, or
minimum 24 " top 24 " sides.
• Heater must be placed on level firm ground.
• Never operate heater in an explosive atmosphere like in areas where
gasoline or other flammable liquids or vapors are stored.
• To protect heater from strong wind, anchor the base securely to the
ground with screws.
GAS REQUIREMENTS
• Use propane or LPG only.
• The heater is designed for use with 20-lbs, cylinder.
• The appliance requires approved gas hose in 47 11 length and a regulator.
• Regulator maximum inlet pressure must not exceed 690 kPa (100 PSI).
• Regulator outlet pressure to be 28 mbar (2.8 kPa or 11” W.C.),
• The hose and regulator assembly must conform to local standard codes.
• The installation must conform to local codes, or in Ihe absence of local codes, to the standard for the
storage and handling of liquid petroleum gases,
• A dented, rusted or damaged gas cylinder may be hazardous and should be checked by your gas
supplier. Never use a gas cylinder with a damaged valve connection.
• The gas cylinder must be arranged to provide for vapor wllhdrawal from the operating cylinder.
• Avoid twisting the flexible tubes and hoses,
• Never connect an unregulated gas cylinder to the healer,
• Disconnect the gas cylinder when the heater is not in use,
LEAKAGE TEST
Gas connections on the heater are leak tested at the factory prior to shipmenl. A complete gas tightness
check must be performed at Ihe installation site due to possible mishandling in shipment or excessive
pressure being applied to the heater. The healer must be checked with a full cylinder.
1. Make sure the safety control valve Is in the OFF position.
2. Make a soapy water solution of one part liquid detergent and one
part water, The soapy water solution can be applied with a spray
bottle, brush or rag to all gas connections. Soap bubbles will appear
in case of a leak.
WARNING
Never leak test while smoking.
- 2 -

3. Turn the gas supply ON.
4. In case of a leak, turn off the gas supply. Tighten any leaking fittings, then turn the gas supply ON and
recheck. Contact your dealer or gas supplier for assistance if bubbles continue to appear.
5. Ensure you are using plumbing (teflon) tape on the threaded parts of all fittings.
DIAGRAMMATICAL REPRESENTATIONS OF OUTDOOR AREAS
- 3 -

-4 -

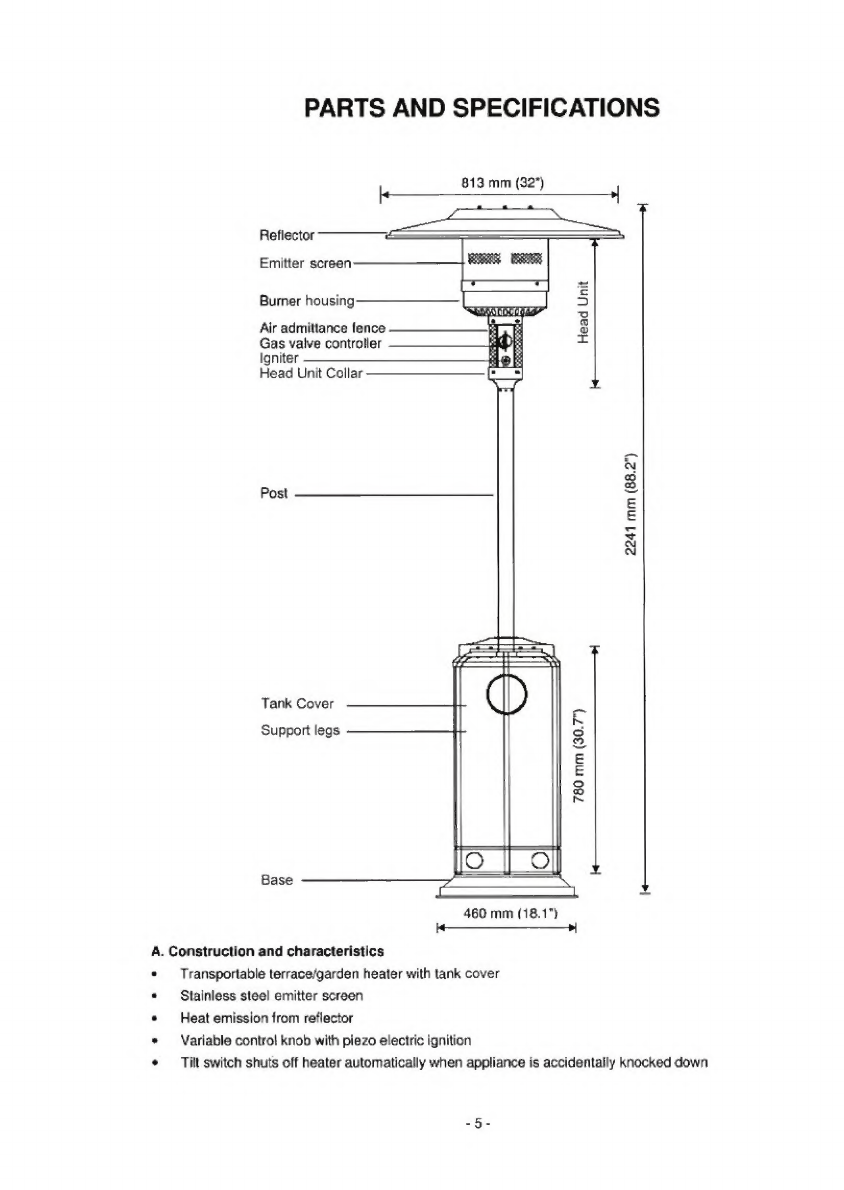

PARTS AND SPECIFICATIONS
A. Construction and characteristics
• Transportable terrace/garden heater with tank cover
• Stainless steel emitter screen
• Heat emission from reflector
• Variable control knob with piezo electric ignition
• Till switch shuts off heater automatically when appliance is accidentally knocked down
- 5 -

B. Specifications
• For outdoor use only
• Uses propane or LGP only
• Burner injector: 0,25 mm
• Burner pressure: 2.8 kPa
• Max. wattage: 13 kW
• Min. wattage: 5 kW
• Consumption: 450 g/hr - 870 g/hr
• Weight: Meta) w/ powder coating 20.5 kgs. (45.2 lbs.)
or Stainless steel 17.5 kgs. (38.6 lbs.)
• Height: 2241 mm (88.2”) including stand
• CSA approved
ASSEMBLY PARTS
Tools needed:
• Open end wrench 10 & 13 mm
• Adjustable opening wrench (2) 20 cm (8”) long
• Slip joint pliers 23 cm (9") long
• Philips screwdriver w/ medium blade
• Plumbing tape for joints
• Spray bottle of soap solution for leakage test
Parts supplied:
• Base with tank cover
• Assembly post with 3 pcs support legs,
• CSA approved gas hose 120 cm & pressure regulator
• Reflector 32 " with 6 pcs washers 08 mm and 3 pcs M8 castle
nuts
• 3 pcs 90 mm pins for reflector support
• 4 pcs bolts M6 x 10 mm for assembly post and burner
• 6 pcs bolts & nuts MS x 35 mm for post and post brackets
• 3 pcs bolts M8 x 16 mm for post brackets and stand
• 3 pcs ground fixture kits
• 6 pcs M6 x 10 mm ground fixer bolts & nuts
WARNING
This appliance required
regulator that is defined under
the GAS REQUIREMENTS, or
check with your gas supplier.
- 6 -

ASSEMBLY PROCEDURES
STEP 1
1 -1. Put the 3 pcs support legs on each position on the base as shown in the
picture.
1-2. Use 3 pcs M8 x 16 mm bolts to join the support legs and base.
STEP 2
2-1. Put the post support on the top of 3 pcs support legs .
2-2. Use 6 pcs M6 x 35 mm bolts and nuts to connect the post to the 3 pcs
support legs. Tighten the bolts and nuts.
STEP 3
Use 4pcs M6x12mm bolts to connect the first piece of the post assembly
to the post support.
STEP 4
Connect the second piece of the post assembly to the first
piece of the post assembly and screw on clockwise.
STEP 5
Place the tank cover on the base.

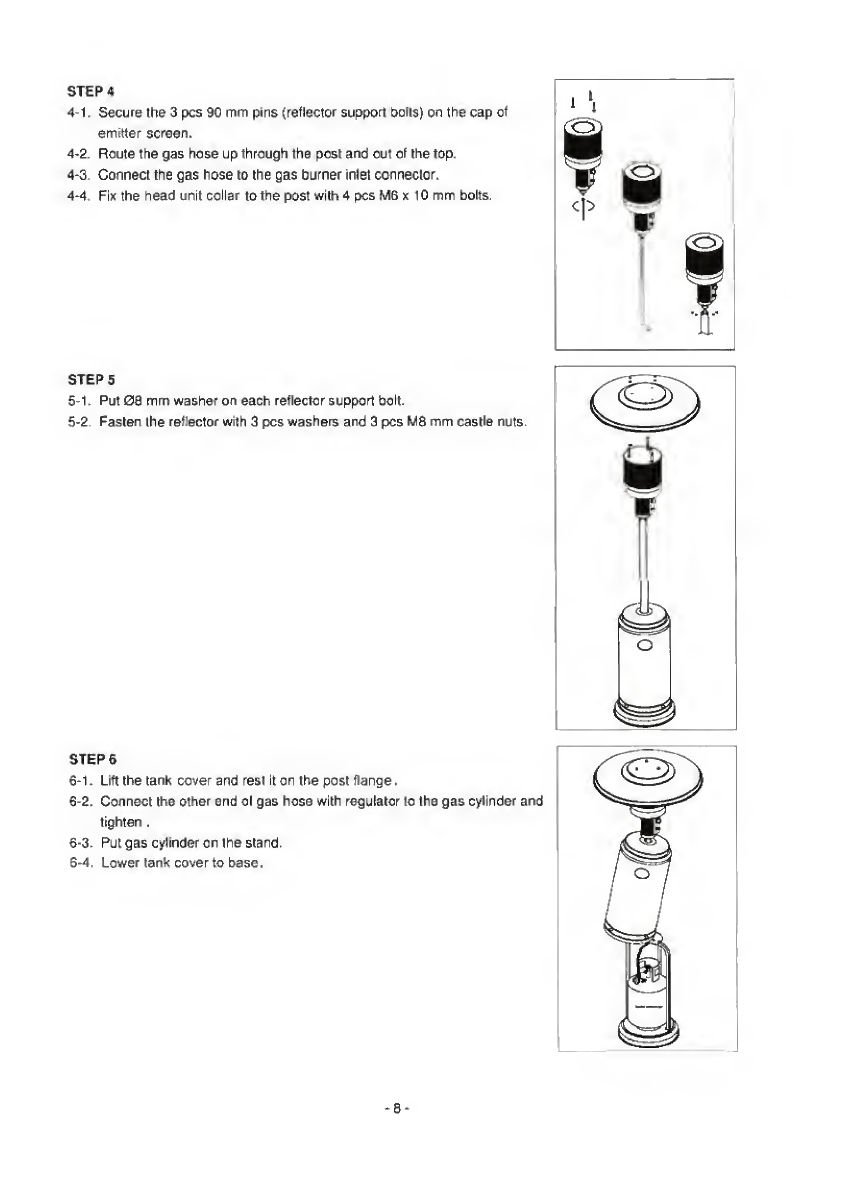

STEP 4
4-1. Secure the 3 pcs 90 mm pins (reflector support bolts) on the cap of
emitter screen.
4-2. Route the gas hose up through the post and out of the top.
4-3. Connect the gas hose to the gas burner inlet connector.
4-4, Fix the head unit collar to the post with 4 pcs M6 x 10 mm bolts.
STEP 5
5-1. Put 08 mm washer on each reflector support bolt.
5-2, Fasten the reflector with 3 pcs washers and 3 pcs MS mm castle nuts.
STEP 6
6-1, Lift the tank cover and rest It on the post flange.
6-2. Connect the other end o) gas hose with regulator to the gas cylinder and
tighten .
6-3. Put gas cylinder on the stand.
6-4. Lower tank cover to base.
- 8 -

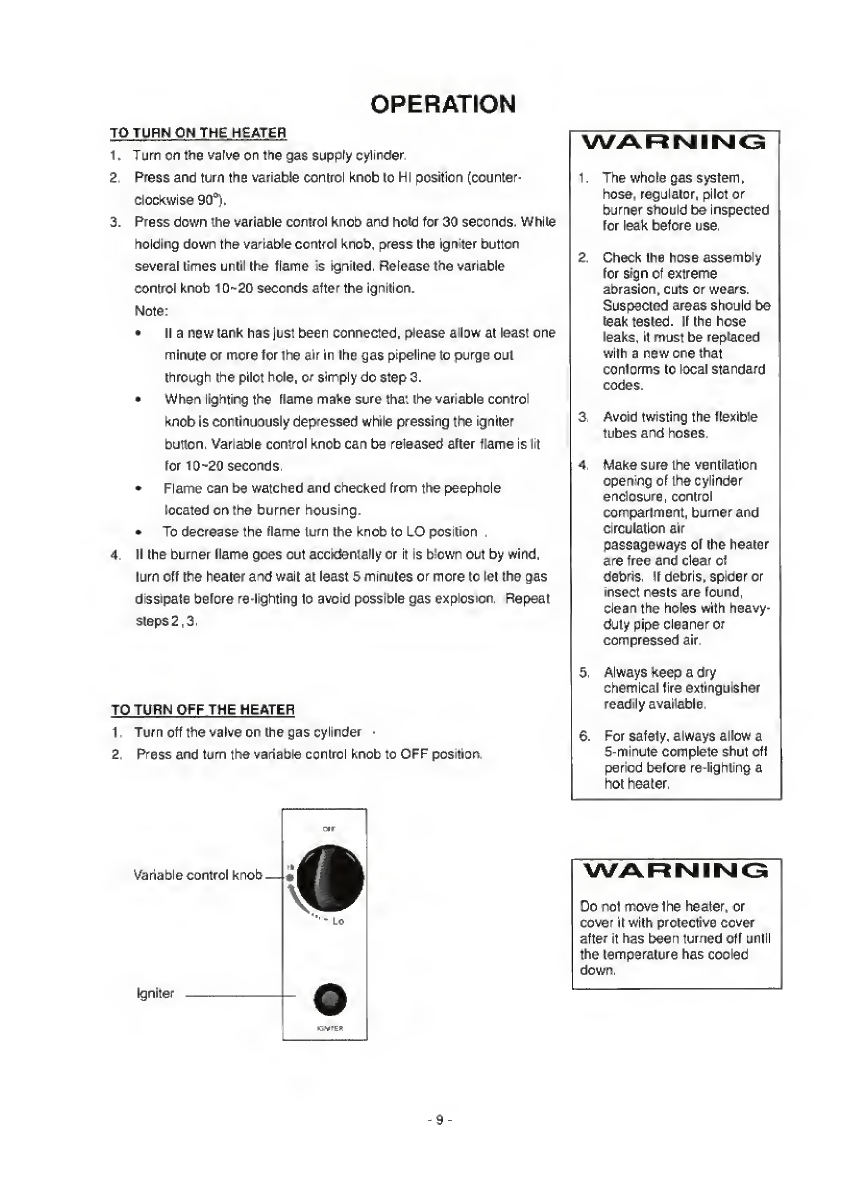

TQ TURN ON THE HEATEH
OPERATION
1. Turn on the valve on the gas supply cylinder.
2. Press and turn the variable control knob to HI position (counter¬
clockwise 90").
3. Press down the variable control knob and hold for 30 seconds. While
holding down the variable control knob, press the igniter button
several times until the flame is ignited, Release the variable
control knob 10-20 seconds after the ignition.
Note:
• II a new tank has Just been connected, please allow at least one
minute or more for the air in the gas pipeline to purge out
through the pilot hole, or simply do step 3.
• When lighting the flame make sure that the variable control
knob is continuously depressed while pressing the igniter
button. Variable control knob can be released after f lame is lit
for 10-20 seconds,
• Flame can be watched and checked from the peephole
located or* the burner housing.
• To decrease the flame turn the knob to LO position .
4. II the burner flame goes out accidentally or it Is blown out by wind,
I urn off the heater and wait at least 5 minutes or more to let the gas
dissipate belore re lighting to avoid possible gas explosion, Repeat
steps 2.3.
TO TURN OFF THE HEATEH
1. Turn off the valve on the gas cylinder •
2. Press and turn the variable control knob to OFF position.
WARNING
1. The whole gas system,
hose, regulator, pilot or
burner should be Inspected
for leak before use,
2. Check the hose assembly
for sign of extreme
abrasion, cuts or wears.
Suspected areas should be
leak tested. It the hose
leaks, it must be replaced
with a new one that
contorms to local standard
codes.
3. Avoid twisting the flexible
tubes and hoses.
4. Make sure the ventilation
opening of the cylinder
enclosure, control
comparlment, burner and
circulation air
passageways of the healer
are free and clear of
debris. If debris, spider or
insect nests are found,
clean the holes with heavy-
duty pipe cleaner or
compressed air,
5. Always keep a dry
chemical fire extinguisher
readily available.
6. For safety, always allow a
5-minute complete shut off
period before re-lighting a
hot heater.
WARNING
Do not move the heater, or
cover it with protective cover
after it has been turned off until
the temperature has cooled
down.
- 9 -

REPLACING THE GAS CYLINDER
1. Close the valve of the gas cylinder.
2. Disconnect the regulator from the cylinder following the instructions
that came with your regulator.
3. Replace the cylinder.
4. In the absence ot any flame, remove the plug or seal cap from the
cylinder valve.
5. Check for the presence and good state of the gasket before
connecting the regulator.
6. Perform leak test using soapy water solution.
STORAGE
• Always close the valve of the gas cylinder after use or in case of a disturbance.
• Remove the pressure regulator and the hose attachment if the heater is not to be used for a period of
time.
• Cylinder must be stored outdoors in a well-ventilated area out of the reach of children.
• Disconnected cylinder must have threaded valve plugs tightly installed and must not be stored in garage
or any other enclosed area.
• Storage of heater indoors is permissible only if the cylinder is disconnected and removed from the
heater
• Check the tightness of the gas valve and for damage. If you suspect a damage, have it changed by your
gas dealer.
• Never store liquid gas cylinder in a sub-terrain, or at places without adequate air ventilation.
CLEANING AND CARE
• Wipe oft powder coated surfaces with soft, moist rag and soap
water. Do not clean heater with cleaners that are combustible or
corrosive.
• Remove debris, spider and insect nests from ventilation opening of
the cylinder enclosure, control compartment, burner and circulation
air passageways of the heater with heavy-duty pipe cleaner or
compressed air to keep appliance clean and safe for use. Never
clear ports or other openings with toothpicks or other articles that will
break and block the ports.
• It carbon deposits develop, remove the reflector and flame screen
and clean them with soapy water. Do not paint the flame screen,
control panel or reflector.
• In a salt-air environment, such as near an ocean, corrosion occurs
more quickly than normal. Check frequently for corroded areas and
repair them promptly. We strongly encourage the use of a vinyl
cover in these areas.
WARNING
1. Do not perform
maintenance after heater
has been turned off until
completely cooled.
2. Do not expose the pilot,
controllers and parts
underneath the burner to
water. Do not use the
heater if any of these parts
are exposed to water until
the appliance is inspected
or repaired by a qualified
service person.
WARNING
1. Changing of cylinder must
be undertaken in a flame-
free atmosphere.
2. Make sure that all laps on
the consuming appliance
are in closed position.
- to-

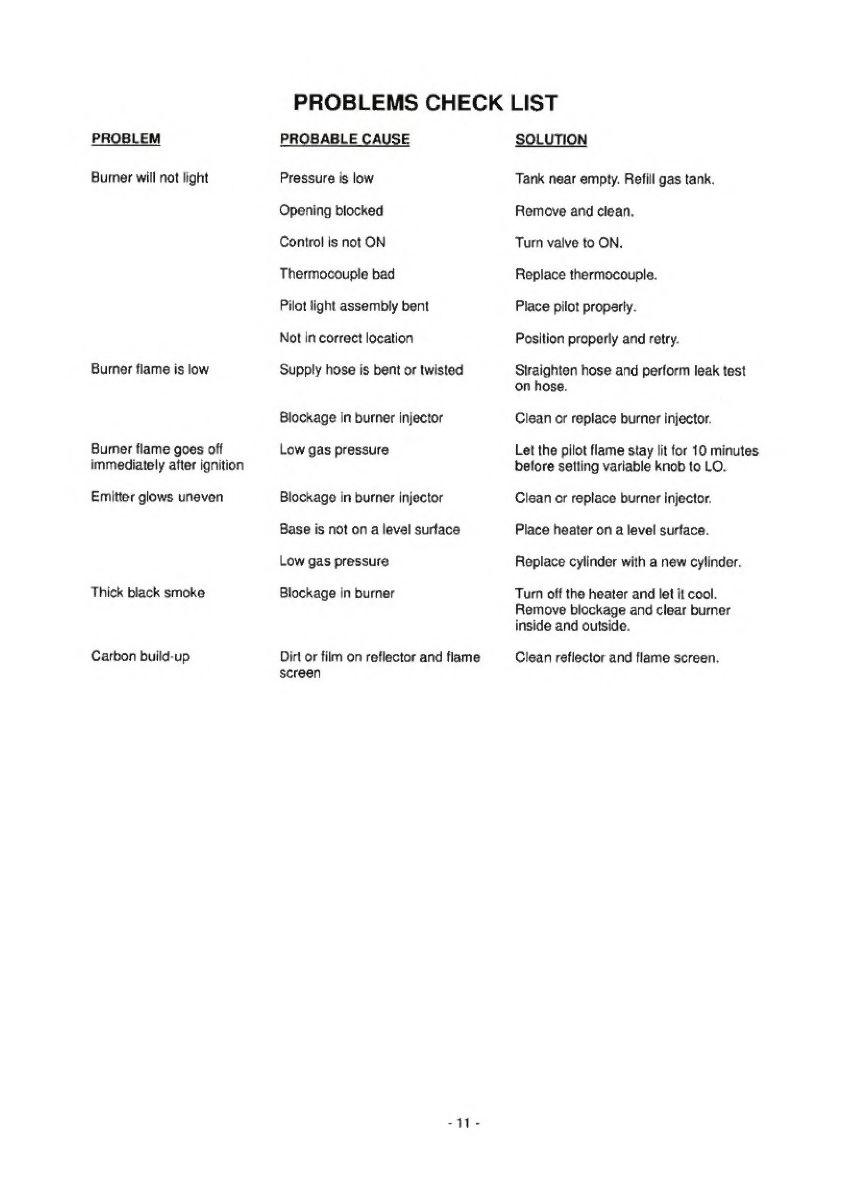

PROBLEMS CHECK LIST
PROBLEM PROBABLE CAUSE
SOLUTION
Burner will not light
Pressure is low
Tank near empty, Refill gas tank.
Opening blocked
Remove and clean.
Control Is not ON
Turn valve to ON.
Thermocouple bad
Replace thermocouple.
Pilot light assembly bent
Place pilot properly.
Not Incorrect location
Position properly and retry.
Burner flame is low
Supply hose is bent or twisted
Straighten hose and perform leak test
on hose.
Blockage in burner injector
Clean or replace burner injector.
Burner flame goes off
immediately after ignition
Low gas pressure
Lei Ihe pilot flame stay lit for 10 minutes
before setting variable knob to LO.
Emitter glows uneven
Blockage in burner injector
Clean or replace burner injector.
Base is not on a level surface
Place heater on a level surface.
Low gas pressure
Replace cylinder with a new cylinder.
Thick black smoke
Blockage in burner
Turn off the heater and let it cool,
Remove blockage and clear burner
inside and outside.
Carbon build-up
Dirt or film on reflector and flame
screen
Clean reflector and flame screen.
-11 -

Distributed By:
Well Traveled Living
716 S 8”' Street
Amelia Island, FL 32034
Toll Free: 866-WTL-SUPP
1 YEAR LIMITED WARRANTY-Customers in the Continental US
All components are warranted for a period of 1 year after date of purchase by the original owner against defects in
materials and workmanship under normal use. This warranty does NOT cover normal wear and weathering, assembly
and/or maintenance OR use in a commercial application. At Well Traveled Living's sole discretion, products under
warranty will be repaired and/or replaced at no charge to the customer. Any returns sent back to Well Traveled Living
must be sent via prepaid freight and in the original retail packaging.
For warranty service contact Well Traveled Living at the address, phone numbers or internet site and email listed in this
owner's manual. Be sure to have your sales receipt, date of purchase and catalogue/model numbers available when
calling. All warranty service will be coordinated by the Well Traveled Living's, Amelia Island, Florida service center.
This warranty is extended only to the original purchaser. Proof of purchase will be required before warranty service is
rendered. The sales receipt is the only valid proof of purchase. This warranty only covers failures due to defects in
materials or workmanship which occur during normal use. Failures and/or damage which result from accident, negligence,
misuse, abuse, neglect, mishandling, alteration or modification, failure to maintain, improper assembly or maintenance,
service by unauthorized agency or use of unauthorized components or damage that is attributable to acts of God are NOT
covered.
r *
Web: www.wtlivine.com
Email: [email protected]
" ■ THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED ABOVE*”
"•PURCHASER ASSUMES ALL RISKS IN THE ASSEMBLY AND OPERATION OF THIS UNIT*”
" ■ FAILURE TO FOLLOW WARNINGS AND OPERATIONAL INSTRUCTIONS CONTAINED IN THIS MANUAL CAN
RESULT IN SEVERE PROPERTY DAMAGE ANDIOR PERSONAL INJURY"*
IN NO EVENT WILL WELL TRAVELED LIVING, OR ITS DIRECTORS, OFFICERS OR AGENTS BE LIABLE TO THE
PURCHASER OR ANY THIRD PARTY, WHETHER IN CONTRACT, IN TORT, OR ON ANY OTHER BASIS, FOR ANY
INDIRECT, SPECIAL, PUNITIVE, EXEMPLARY, CONSEQUENTIAL, OR INCIDENTAL LOSS, COST, OR DAMAGE
ARISING OUT OF OR IN CONNECTION WITH THE SALE. MAINTENANCE, USE, OR INABILITY TO USE THE
PRODUCT, EVEN IF WELL TRAVELED LIVING OR ITS DIRECTORS, OFFICERS OR AGENTS HAVE BEEN
ADVISED OF THE POSSIBILITY OF SUCH LOSSES, COSTS OR DAMAGES, OR IF SUCH LOSSES, COSTS, OR
DAMAGES ARE FORESEEABLE. IN NO EVENT WILL WELL TRAVELED LIVING, OR ITS OFFICERS, DIRECTORS,
OR AGENTS BE LIABLE FOR ANY DIRECT LOSSES, COSTS OR DAMAGES THAT EXCEED THE PURCHASE
PRICE OF THE PRODUCT.
SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO THE PURCHASER.
This limited warranty gives you specific legal rights and you may also have other rights which vary from jurisdiction to
jurisdiction. The provisions of the United Nations Convention on Contracts for the Sales of Goods shall not apply to this
limited warranty or the sale of products covered by this limited warranty,
'***IMPORTANT NOTICE***
-Do NOT return to place of purchase-
For customer service and warranty issues
contact our Customer Service Center at:
(866)-985-7877 OR
Email: cservicef5)welltraveled.net
Customer Service Hours: Mon, - Fri. 9:00 a.m, - 6:00 p.m, (EST)
Fire Sense* and Well Traveled Living* are registered trademarks of Well Traveled Imports, Inc*. All assembly instruction presentations are the property of Well
Traveled Imports, Inc* and are protected by U.S. copyrights and trademarks. All rights reserved.
-12-
