First Degree Fitness E920A User manual

USER GUIDE
Wheelchair
Accessible
E920A

2

3
Introduction
Congratulations on your purchase of E920A.
FIRST DEGREE FITNESS is proud to present the Rower as a FULL COMMERCIAL USE
product featuring patented Adjustable Fluid Resistance.
As with any piece of fitness equipment, consult a physician before beginning your E920A
exercise program.
Follow all instructions carefully for correct assembly, tank filling, water treatment,
service and safety.
Access to our world-wide distributor and service network is available at
www.firstdegreefitness.com
Check contents of Box 1 and Box 2 to ensure all parts are present and correct prior to
assembly.
Training with the E920
WARNING
Do not remove hands while crank is in motion. The crank will continue to rotate and could
cause injury.

4
Contents
Safety ................................................................................... 5
Assembly ............................................................................... 7
E920A Box 1 & Box 2 Contents................................................ 8
Assembly Instructions ............................................................. 9
Operation Instructions 14
Bluetooth Auto-Adjust Monitor............................................... 19
Calibration Procedure ........................................................... 20
Maintenance & Troubleshooting 21
Tank Belt Adjustment 23
International Warranty........................................................... 24

5
Safety
Safety Information
•Before using this product, it is essential to read this ENTIRE operation manual and
ALL instructions. The Rower is intended for use solely in the manner described in this
manual.
•UNDERSTANDING EACH AND EVERY WARNING TO THE FULLEST IS IMPORTANT
•As with any piece of fitness equipment, consult a physician before beginning your
Rower exercise program.
•Please be aware that any fitness regiment, before being undertaken, is best preceded
by a physical checkup from a certified physician.
•Injuries to health may result from incorrect or excessive training.
• WARNING Heart rate monitoring systems may be inaccurate. Over exercise may
result in serious injury or death. If you feel faint, stop exercising immediately.
•Do not allow children unattended access to the machine.
•Please keep hands away from moving parts, as indicated by the warning label on the
Main Frame of your machine.
•If any of the adjustment devices are left projecting, they could interfere with the
user’s movement.
•Do not store in freezing conditions with water in the tank as it can expand and crack
the components.
Installation
•Place on a stable, flat surface in a horizontal position during use for maximum
stability.
•Check regularly and follow all instructions for maintenance as specified in this manual.
•Replace immediately any defective parts and do not operate unit until all repairs are
complete.

6
Safety
Proper Usage
• Do not use any equipment in any way other than designed or intended by the
manufacturer. It is imperative that FIRST DEGREE FITNESS equipment is used
properly to avoid injury.
• Injuries may result if exercising improperly or excessively. It is recommended that all
individuals consult a physician prior to commencing an exercise program. If at any time
during exercise you feel faint, dizzy or experience pain, STOP EXERCISING and consult
your physician.
• Keep body parts (hands, feet, hair, etc.), clothing and jewelry away from moving parts
to avoid injury.
• Follow instructions provided in this manual for correct foot position and basic rowing
techniques.
• For more detailed rowing techniques, please refer to our International website
www.firstdegreefitness.com
Inspection
• DO NOT use or permit use of any equipment that is damaged and/or has worn or broken
parts. For all FIRST DEGREE FITNESS equipment use only replacement parts supplied by
FIRST DEGREE FITNESS.
• EQUIPMENT MAINTENANCE - Preventative maintenance is the key to smooth operating
equipment as well as to keep your liability to a minimum. Equipment needs to be
inspected at regular intervals.
• Ensure that any person(s) making adjustments or performing maintenance or repair of
any kind is qualified to do so.
• DO NOT ATTEMPT TO USE OR REPAIR ANY ACCESSORY APPROVED FOR USE WITH THE
FIRST DEGREE FITNESS EQUIPMENT WHICH APPEARS TO BE DAMAGED OR WORN.
• Check regularly and follow all instructions for maintenance as specified in this manual.
• Replace immediately any defective parts and do not operate unit until all repairs are
complete.
Operating Warnings
• Keep children away from the equipment. Parents or others supervising children must
provide close supervision of children if the equipment is used in the presence of children.
• Do not allow users to wear loose fitting clothing or jewelry while using equipment. It is
also recommended to have users secure long hair back and up to avoid contact with
moving parts.
• All bystanders must stay clear of all users, moving parts and attached accessories and
components while machine is in operation.
• WARNING Do not insert fingers into tank!

7
Assembly
Live area and Training area
Seat Frame
Product Highlights
Main frame
Product Specifications
Product Class: SC
Braking System: Speed Independent
Product Net Weight: 90kg (198lb)
Product Gross Weight: 110kg (242lb)
Maximum Safe Operating Surface Area: 301cm (108.27”) Length x 222cm (87.40”) Width
Dimensions: 1810mm (71.26”) Length x 1020mm (40.16”) Width x 1480mm (58.27”) Height
Maximum User Weight: 150kg (330lb)
Footprint:2410mm x 1620mm or upright 1480mm x 1020mm
Control Arm
Telescoping tube / gas assisted shock
Complete Platform
10 x fluid Force
-massive range
Of resistance at
The turn of a lever
Auto-level, Bluetooth
monitor - real time
power in watts per
repetition

8

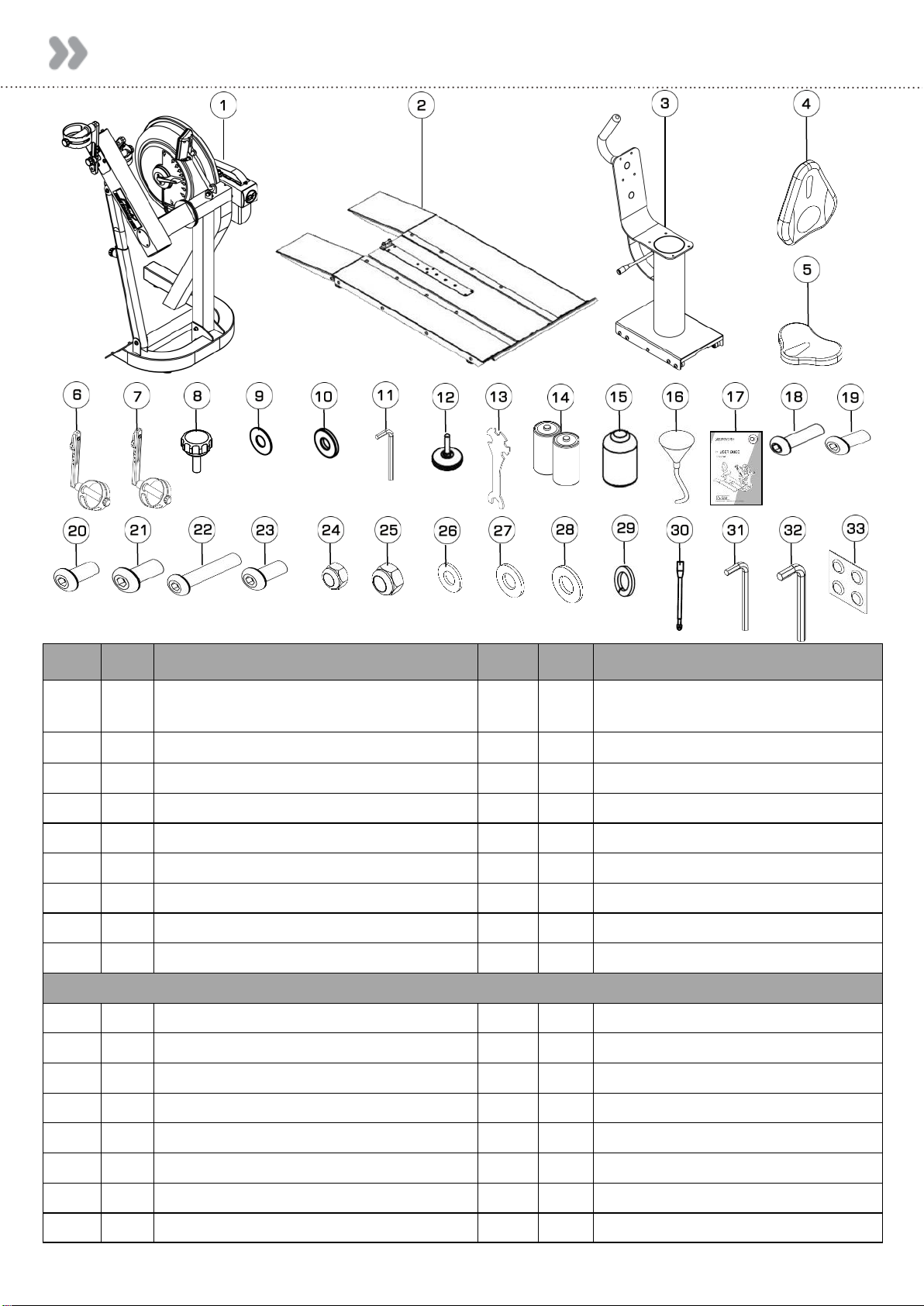

E920A Box 1 & 2 Contents
Item Qty.Description Item Qty. Description
1 1 Main Frame with Telescoping Tube
and Internal Gas Assist Shock 10 2 Plastic Spacer
2 1 Baseplate 11 1 3mm Allen Key
3 1 Seat Frame 12 9 Foot Levelers
4 1 Seat Back 13 1 Multi-tool
5 1 Lower Seat 14 2 D Cell Duracell Battery
6 1 Slider Arm Assembly Left 15 1 Touch up paint
7 1 Slider Arm Assembly Right 16 1 Funnel and Hose
8 2 Handle Lock Knob 17 1 Owners Manual
9 2 M12 Washer
Hardware KIT
18 8 M6x20mm Bolt 26 8 M6 Washer
19 4 M8x15mm Bolt 27 8 M8 Washer
20 8 M8x20mm Bolt 28 3 M10 Washer
21 4 M8x25mm Bolt 29 4 M8 Springs Washer
22 8 M8x45mm Bolt 30 1 Handle Bar & Nut Dome Head
23 3 M10x20mm Bolt 31 1 4mm Allen Key
24 4 M8 Nylock Nut 32 1 6mm Allen Key
25 2 M10 Nylock Nut 33 4 Water Treatment Tablet

9
Assembly Instructions
8

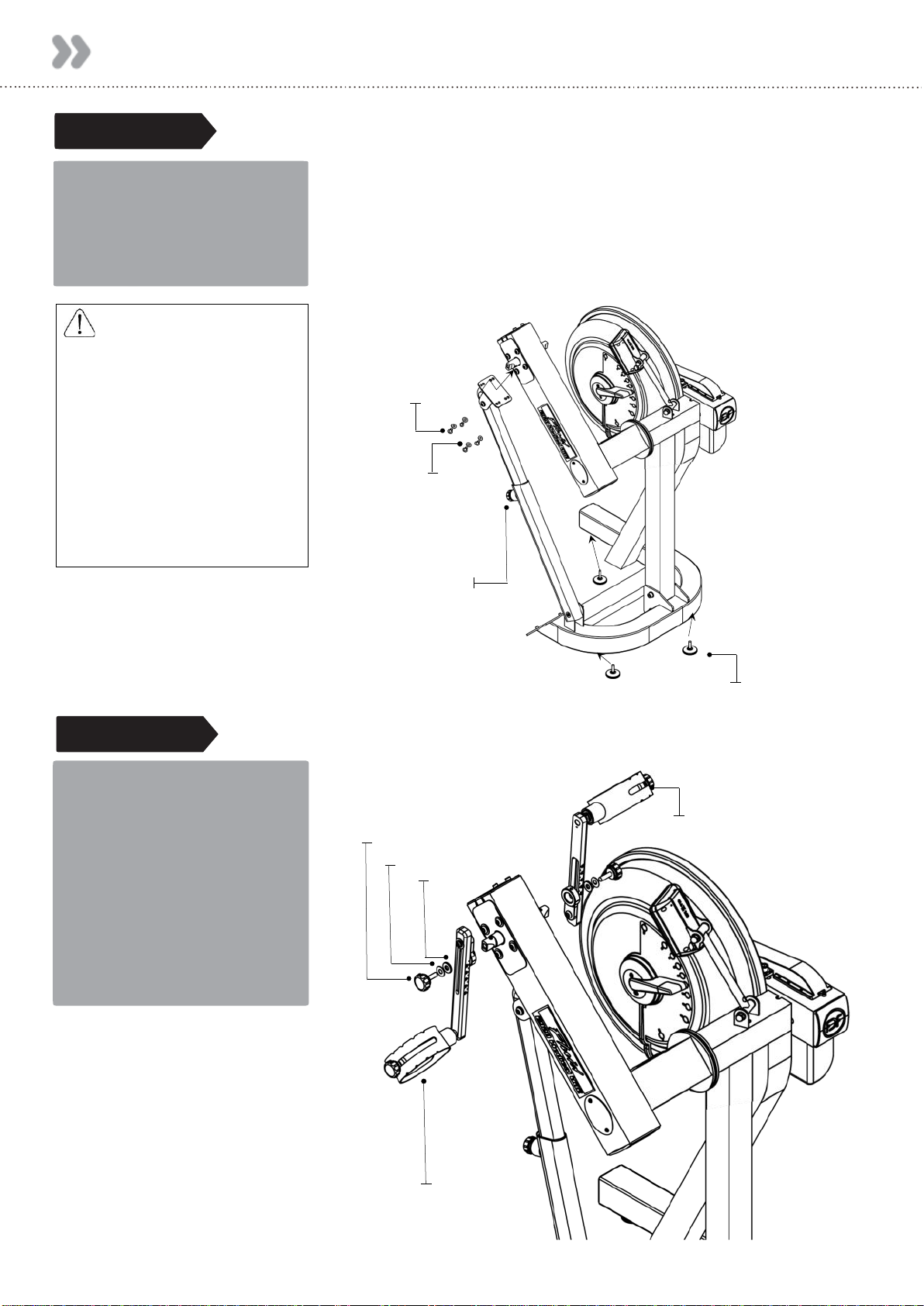

STEP 1 Main Frame Assembly Instructions
a) Attach Telescoping Tube to the underside of the
control arm using 4x M8x15mm Bolts[19] and 4x M8
Spring Washers[29].
b) Thread the 3x Foot levelers[12] into underside of base.
Adjust as required.
2
1
12
REQUIRED
4 x M8 x 15mm Blots [19]
4 x M8 Spring Washers [17]
3 x Foot Levelers [12]
1
STEP 2
CAUTION
The control arm is heavy and
may swing freely during this
stage of assembly. The
Adjuster Knob is pre-tightened
from the factory in the optimal
position for assembly in relation
to the control arm. Do not
loosen the Adjuster knob until
the Telescoping Tube has been
safely secured to the underside
of the control arm.

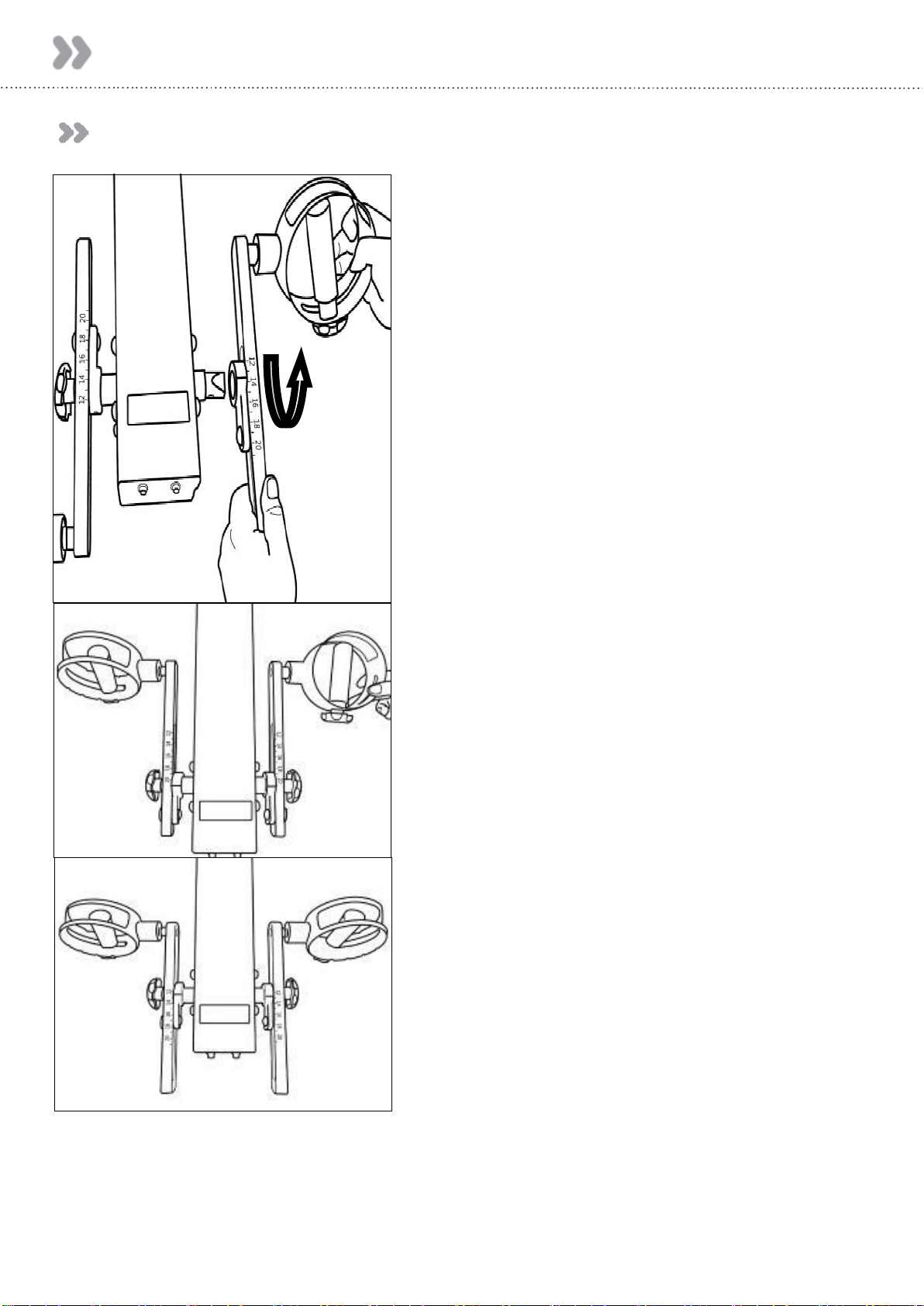

Slider Arm Kit Installation Instructions
M8 Spring Washers
Adjuster Knob
Foot Leveler
M8x15mm Bolts
REQUIRED
2 x Handle Lock Knobs [8]
2 x M12 Washer [9]
2 x Plastic Spacer [10]
Slider Arm Assembly Left [6]
Slider Arm Assembly Right [7]
3mm Allen Key [11]
Slider Arm Assembly Left
Slider Arm Assembly Right
Handle Lock Knobs
M12 Washer
Plastic Spacer
Note: Slider Arms are
marked ‘L’ and ‘R’.
Improper installation will
result in uneven Slider Arm
adjustment

10
Assembly Instructions

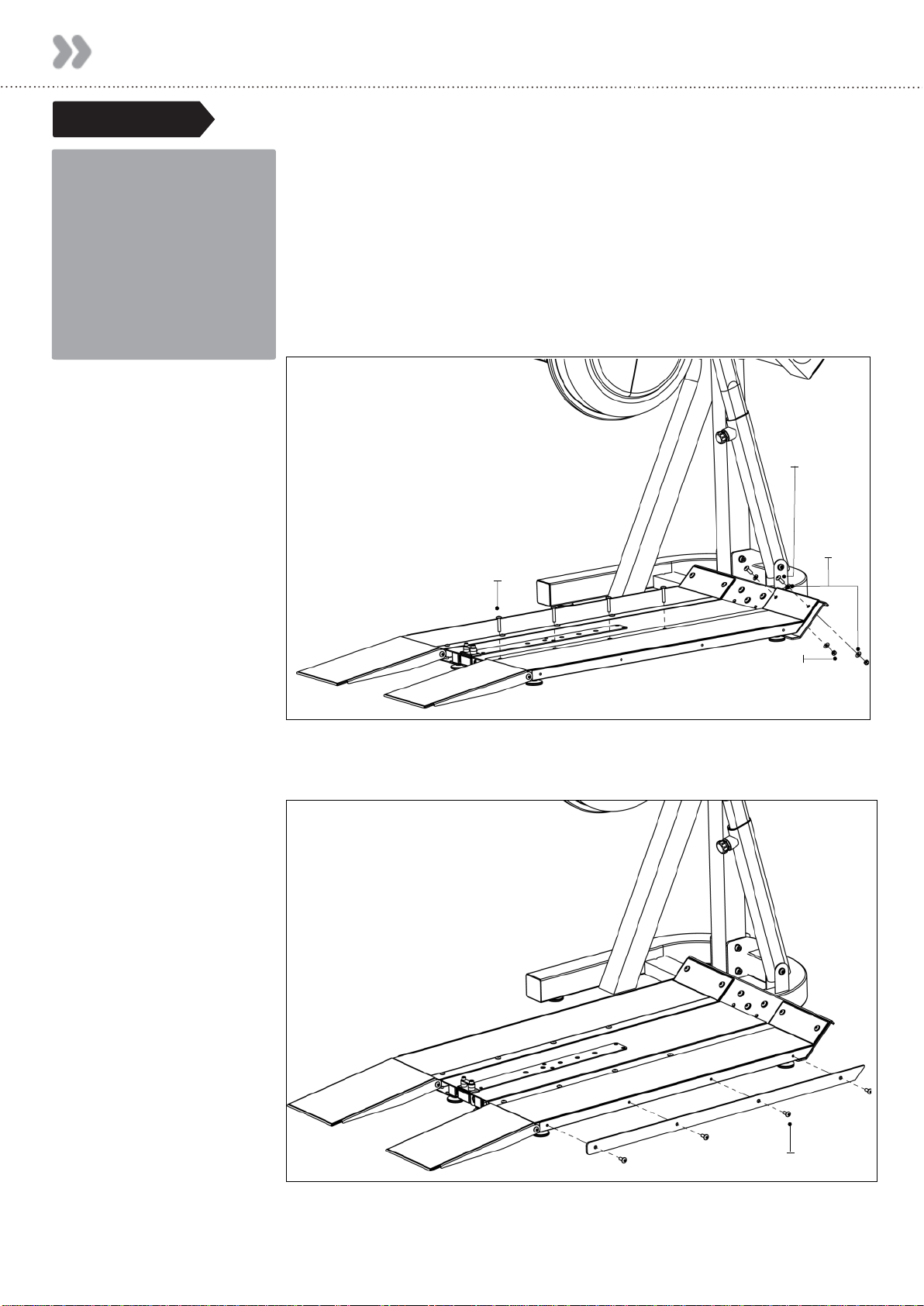

STEP 3a Installing Baseplate to the Main Frame
1
8
2
1
12
REQUIRED
T-Track
Ramp Right
Ramp Left
2 x PVC Side Covers
3 x M10x20mm Blots [23]
2 x M10 Nylock Nut [25]
3 x M10 Washer [28]
Remove contents from box
and make sure all parts are
present. Contents will
include the T-track, left/right
side ramps and Bolt pack
(note, this may also be
located with Seat Assembly).
Note hardware Bolt pack is
used for both Seat Assembly
and Baseplate.
a) Bolt the T-Track to the Main Frame as shown, using
3x M10x20mm Bolts[20], 2x M10 Nylock Nut[25]
and 3x M10 Washers[28]. Secure tightly.
T-Track
Ramp Left
Ramp Right
PVC Side Covers
M10 Nylock Nut
M10 x20mm Blot
M10 Washer

11
Assembly Instructions
STEP 3b Installing Baseplate to the Main Frame
2
1
12
REQUIRED
4 x M8 x20mm Bolts [20]
4 x M8 x25 Blots [21]
8 x M8 x45mm Blots [22]
4 x M8 Nylock Nut [24]
8 x M8 Washers [27]
1
b) Attach Left and Right Ramps to the T-Track using 8x
M8x45mm Bolts[22].
c) Once the Left and Right Ramps have been installed to
the sides of the T-Track, secure the front end of each
Ramp as shown using 4x M8x25 Bolts[21], 4x M8
Nylock Nut[24] and 8x M8 Washers[27].
8
M8 x20mm Blot
d) Install Yellow PVC side covers using 4x M8x20mm Bolt
[20].
M8 x45mm Blot M8 Washer
M8 Nylock Nut
M8 x25mm Blot

12
Assembly Instructions
STEP 4 Installing Seat Assembly
1
REQUIRED
Seat Frame [3]
Seat Back [4]
Lower Seat [5]
4 x M6x20mm Bolts [18]
4 x M6 Washer [26]
Handle Bar [30]
M10 Dome Nut [30]
a) Thread the Handle Bar[30] through the Shaft
b) Tighten the Handle Bar[30] with the M10 Dome Nut[30] .
c) Install Seat Back[4] with 4x M6x20 Bolts[18] and M6
Washer[26].
d) Install Lower Seat[5] with 4x M6x20 Bolts[18] and M6
Washer[26].
b)
a)
c)
d)
Seat Frame
Seat Back
Handle Bar
M6 x 20 Bolt
M6 Washer
M10 Dome Nut
Lower Seat

13
Assembly Instructions
STEP 5 Installing Seat to the Main Frame
a) Seat Stop: Must be lowered to allow seat onto
Baseplate track. Must ALWAYS be in the LOCKED
position when seat is occupied on Baseplate. Must
be lowered to allow seat removal. To LOCK, raise and
locate. To UNLOCK, lift and drop rearward.
CAUTION
The Seat Stop Must be in
the locked position whenever
the seat is in use..
WARNING
Do not under any
circumstances attempt to
remove / install seat while
occupied.
b) Seat Installation: Tilt the seat slightly upward to allow
the front rollers to engage the channel. Then, lift the
rear level and, while engaging the Seat Lock Release
Lever, slide the seat onto the Baseplate as shown.
Usage: The seat has four positions. To move forward
or rearward, depress the Seat Lock Release Lever
and move freely to whichever position you require.
c) To remove the seat: Lift and lower the Rear Safety lock,
depress the Seat Lock Release Lever and slide the seat
rearward.

14
Operation Instructions

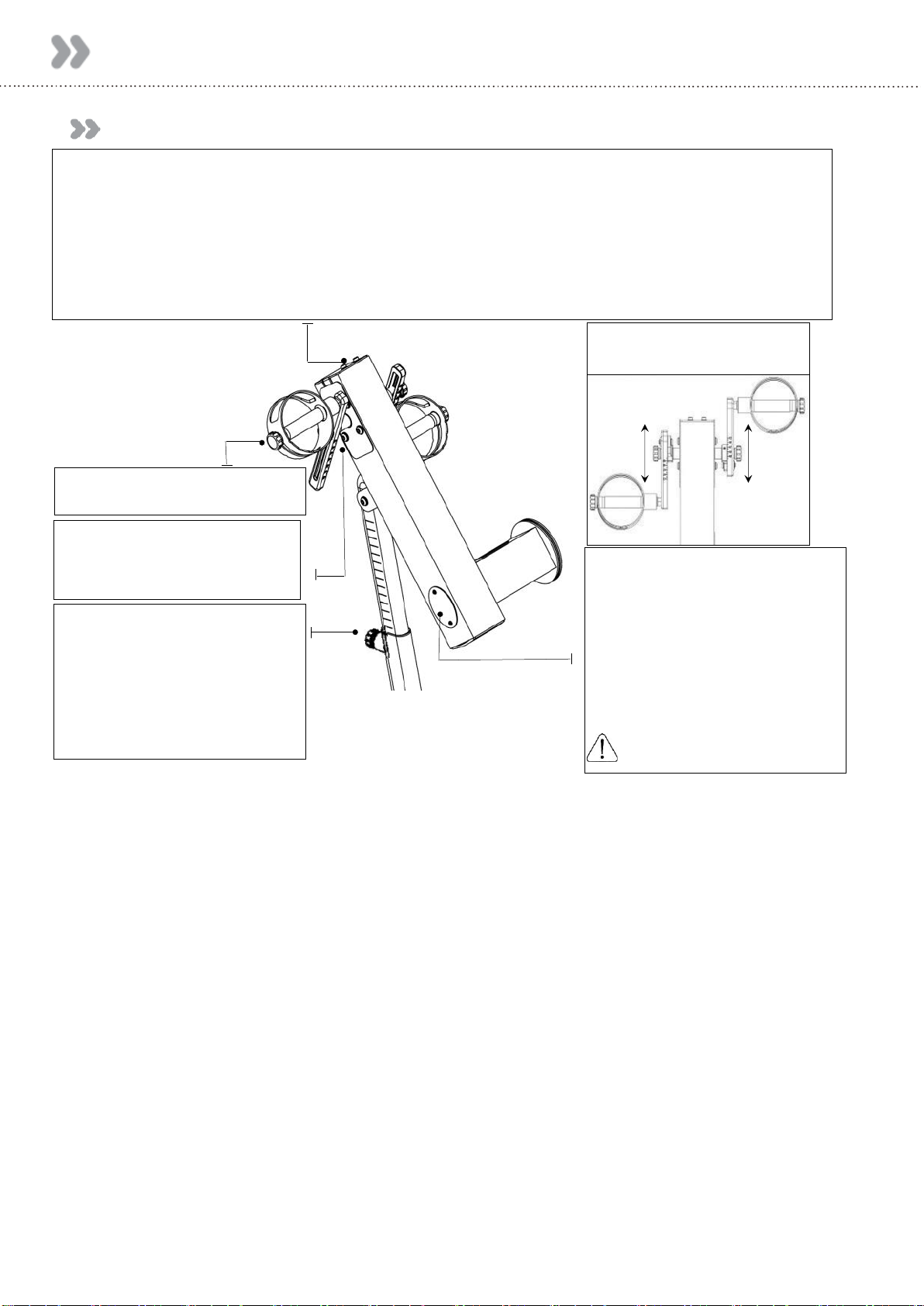

Chain Tensioning Bolts: Allows for tightening the chain or adjustment from side to
side. Make sure when tightening only to adjust the same amount for both Bolts,
otherwise the sprocket will be misaligned.
Note: Tightening the right Bolt only (turning clockwise) will pull the right side of the
crank assembly toward you, tightening the left will pull the left side toward you.
Use this feature to realign the rear with the front sprocket if needed or when
changing to a new chain.
E920 Control Arm
Handgrip: Loosen knob to adjust
handle position from 0-90 degrees.
Crank Arm Bolts: Loosen all 8
Bolts slightly before adjusting/
tightening chain.
Inspection plate: Open to check
chain tension.
With a screwdriver or other
implement, check tension just
behind front sprocket.
Note: A properly adjusted chain
will have 3mm-5mm of slack only.
See top of page for adjustment
details.
Warning: Do not check
chain tension by fingers!
Adjustment Knob: Loosen to
allow the control arm to travel
through 90 degrees of travel.
Note the Telescoping Tube is
gas assisted.
Tighten securely when desired
workout position is reached.
E920 Slider Arms: Refer
to following assembly page.

15
Operation Instructions
a) Mount the left Slider Arm onto the Axle using the yellow indicator hole to align
the slider and axle.
b) Tighten the set screw onto the Axle and into the yellow indicator hole using the
3mm Allen key.
c) Thread Adjustment Knob onto the Axle to secure the assembly.
d) Repeat steps 1-3 to install right Slider Arm onto the Axle.
a)
b)
c)
d)
The E920 Slider Arm Kit offers the user an entire
range of added resistance settings and the ability to
perform additional upper body workouts.
To adjust, simply loosen the Adjustment Knobs, move
Slider Arm to desired length and secure. Very little
tension is needed.
What do the numbers mean?
The numbers represent the length (in cm) from the
center of the Axle to the center of the Handgrip Shaft
Bolt. The shortest Slider Arm length is 12cm and the
maximum length is 21cm. The range of adjustment is
9cm.
Using Slider Arm
Slider Arm Kit Installation Instructions

16
Operation Instructions
Additional Exercises
Training can now be achieved with both left and
right Handgrips moving parallel , rather than in an
opposed motion.
a) On the right Slider Arm Assembly, remove the
Adjustment Knob, loosen set screw and remove
Assembly from the Axle.
b) As shown below, rotate right Slider Arm 180
degrees and reinstall onto the Axle. There is
an additional screw locator hole located on
opposite side of axle .

17
CAUTION
Use a drop cloth under
the Tank when filling to
avoid damaging to floor or
carpet.
Do not fill past the
calibration mark as
indicated on the Tank
level sticker or water
spillage may occur.

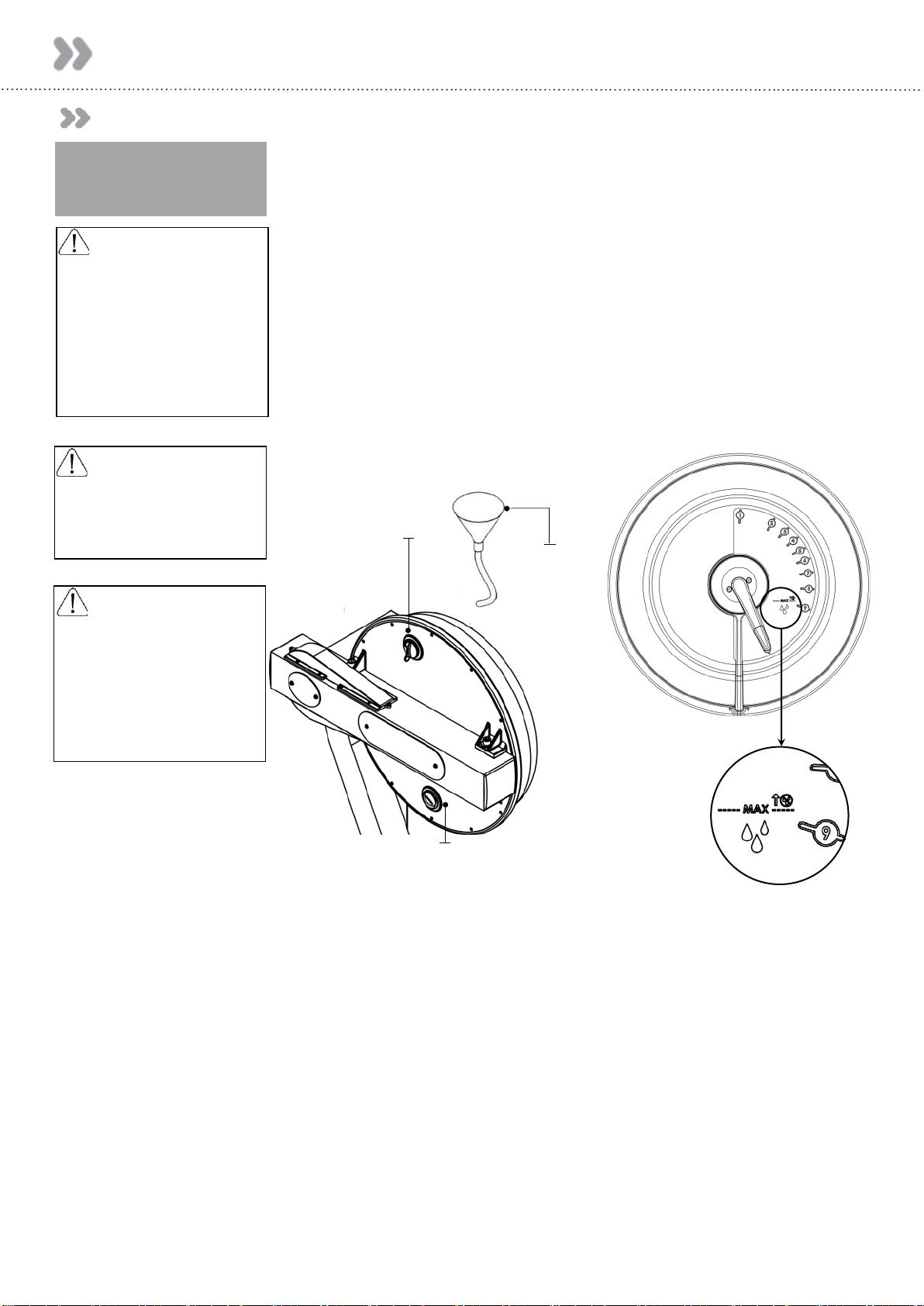

Tank Filling and Water Treatment
Operation Instructions
REQUIRED
Funnel and Hose[16]
a) Filling requires a large bucket (not supplied) and the
supplied water Funnel and Hose[16]. Filling will take
approximately 8 liters of water.
b) Open the yellow fill plug on the back of Tank and insert
hose (rotating the impeller slightly may be necessary
to allow the hose to pass). In areas where tap water
quality is known to be poor, F D F recommends the use
of distilled water.
c) Move the Tank adjuster handle to level 10 and begin
filling. Do not fill the Tank higher than the level
indicator on the front of the clear shell.
d) Once filling is complete follow the water treatment
schedule below.
INITIAL WATER TREATMENT
Add One Water Treatment Tablet per full Tank. Do NOT, UNDER ANY CIRCUMSTANCE,
USE A WATER TREATMENT TABLET OTHER THAN THOSE SUPPLIED WITH YOUR UNIT.
Your unit purchase includes 4xWater Treatment Tablets, which is sufficient for several
years of use.
To purchase additional Water Treatment Tablets, please consult your nearest regional
dealer/distributor or check our website at www.firstdegreefitness.com
WARNING
Impeller blades are sharp!
Do not Place fingers in
Tank to adjust impeller
position.
It is recommended to use
the end of the hose should
the impeller require
adjustment
CAUTION
In areas where tap water
quality is known to be
poor, FDF recommends
the use of distilled water.
NOTE: For simple, fast and efficient filling and/or drainage of the Fluid Tank, we have a
battery operated pump (rechargeable via USB) available as an option. We recommend
this to any commercial facility, with multiple units, that has a need to drain and refill
Tanks from time to time. To purchase, contact your nearest First Degree Fitness
distributor or go to our website on www.firstdegreefitness.com for details.
Note: The Lower Black Tank Plug is Permanently Sealed.
Orange Tank Plug
Water Funnel
and Hose
supplied with
unit

18
Operation Instructions
CHANGING RESISTANCE LEVEL
Changing resistance on your Unit is simple. The level
of resistance is determined by the level indicator lo-
cated on the front of the Tank. Level one indicates
lightest resistance, level ten represents heaviest
resistance. The Tank’s variable fluid resistance
technology ensures an instant catch and constant
resistance throughout the movement.
Your Unit computer will automatically adjust to the
resistance level selected on the Tank. Allow three to
four seconds after adjusting resistance handle for
the correct resistance level to be achieved.
LONG-TERM WATER TREATMENT
WARNING: DO NOT USE ANY OTHER WATER TREATMENT TABLET OTHER THAN THOSE SUPPLIED WITH
YOUR UNIT.
The amount of time between water treatments can vary greatly depending on your
unit’s location and exposure to sunlight. Typically you can expect to treat your Tank
water every 12-24 months. If water becomes discolored or shows signs of algae /
bacterial growth simply add one Water Treatment Tablet.

19

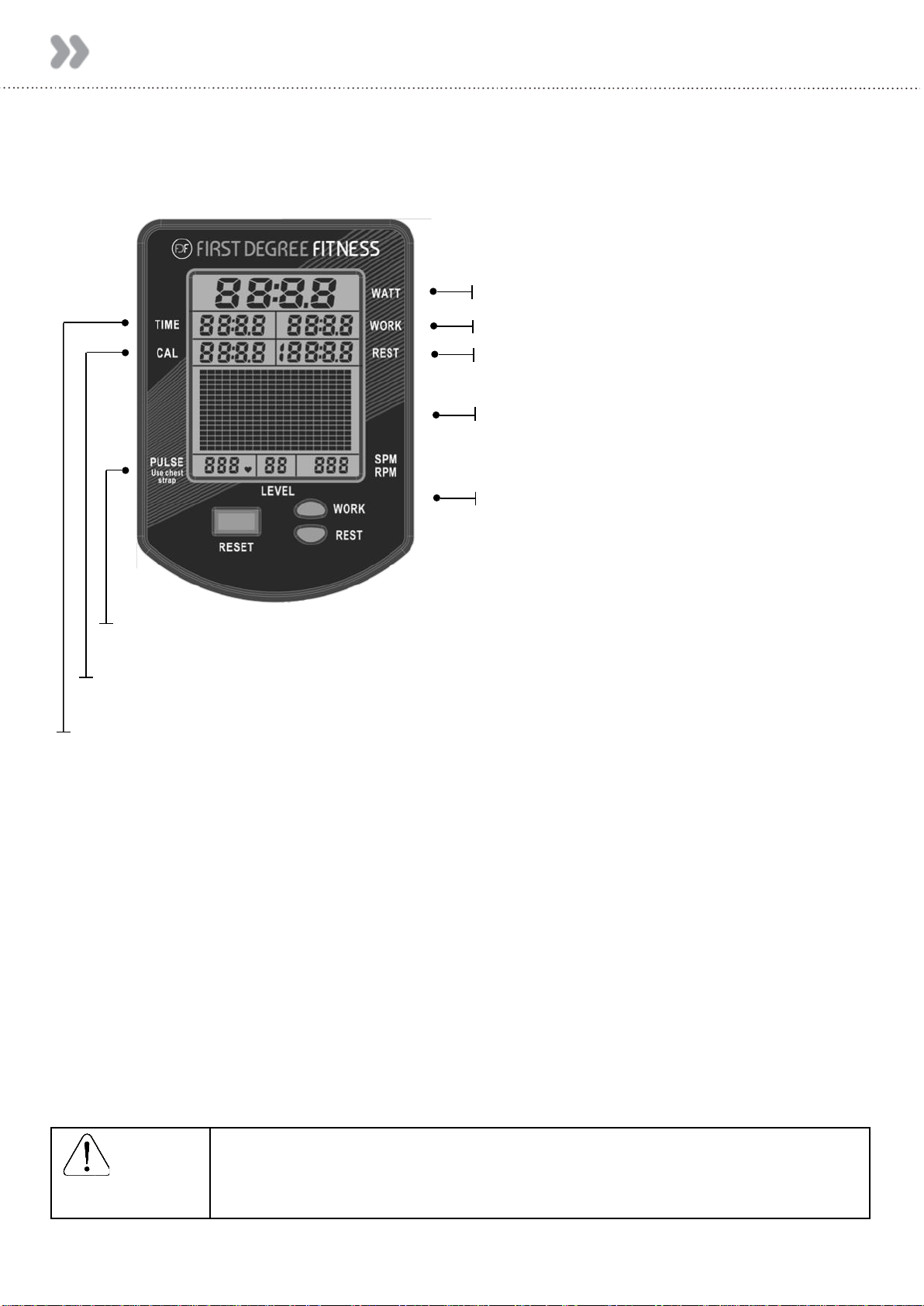

Bluetooth Auto-Adjust Monitor
Auto Start: Commence exercise to activate.
Reset all values: Press and hold RESET button for 3 seconds.
Auto Power Down: Over 5 minutes. All values revert to zero after restart.
WARNING:
Heart rate monitoring systems may be inaccurate, Over exercising
may result in serious injury or death. If you feel faint stop exercising
immediately and seek professional medical advice.
NOTE: Heart Rate Transmitter Chest Strap is sold separately.
WATT: Measures peak power in watts, calculating the strength and acceleration provided to accurately
measure a user’s power.
TRAINING DATA: Data gathered from each workout is displayed in a power curve and cumulative power
graph, enabling real-time comparisons for effective progressive training.
AUTO ADJUST LEVEL: Built in potentiometer automatically adjusts the computer’s resistance level
according to the position of the Fluid Force Lever on the Tank .
BLUETOOTH CONNECTIVITY: Each Unit is fitted with the most advanced console technology, enabling
Bluetooth connectivity with any compatible smart device. Designed to integrate with rowing and
fitness apps, the console will assist with effective training progression, capturing and comparing data
for the competitive individual. (Including FDF Power Zone APP available via FDF Website)
PULSE: Compatible with Polar Heart Rate Receiver and Transmitter Chest Strap.
WATT: Power measured in watts
WORK: Duration of exercise segment
POWER GRAPH: Press RESET to change display
from Power Curve to Cumulative Power Graph
LEVEL: Auto-level adjust to Fluid Force lever
CAL: Calories burned per hour at the current Watts. Shows total calories burned when exercise is
stopped.
REST: Duration of rest period
TIME: Auto start elapsed time.

20

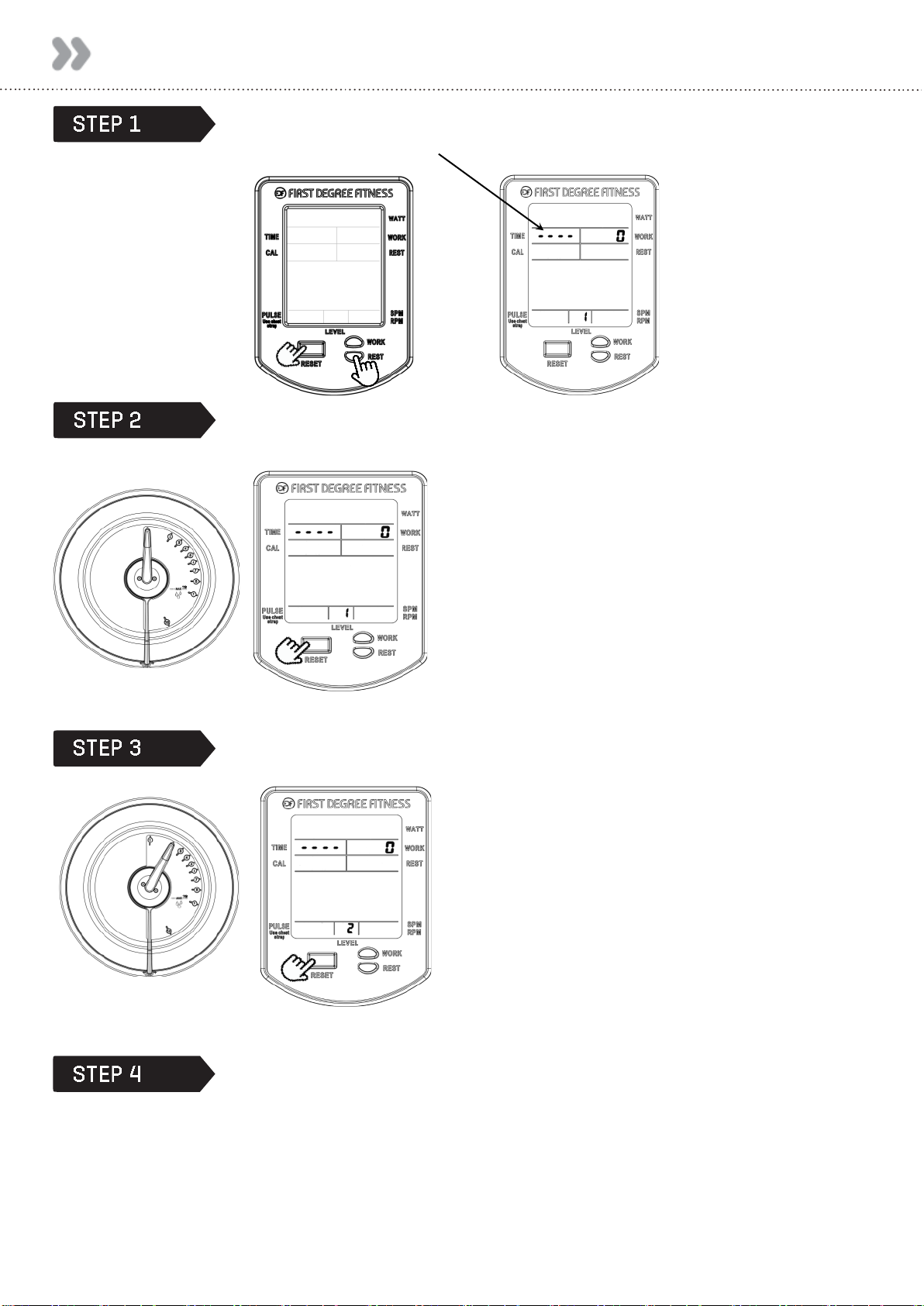

Calibration Procedure
Press and hold 「RESET」and「REST」for 5 seconds.
Display will show “ - - - - “
Turn handle to Level 1.
Press Reset.
Display will now show Level 2.
Level 1 Calibration is complete.
Turn handle to Level 2.
Press Reset.
Display will now show Level 3.
Level 2 Calibration is complete.
Repeat for 3,4,5,6,7,8,9,10. Level 10
Press Reset.
Repeat the steps back to level 1.
Calibration is complete.
