Impex STB-10105 User manual

NOTE:
Please read all instructions
carefully before using this
product
Table of Contents
Safety Notice
Important Assembly
Information
Care and Maintenance
Parts List
Warranty
Ordering Parts
Model
STB-10105
Retain This
Manual for
Reference
150825
OWNER'S
MANUAL
UTILITY BENCH
STB-10105
IMPORTANT: Please read this manual before commencing
assembly of this product.
IMPEX®INC.
2801 S. Towne Ave, Pomona, CA 91766
Tel: [phone] Fax: [phone]
www.impex-fitness.com
[e-mail]

©IMPEX INC. www.impex-fitness.com
1
TABLE OF CONTENTS
BEFORE YOU BEGIN....................................................................................…………1
IMPORTANT SAFETY NOTICES...................................................................……….. 2
EXERCISE GUIDELINES…………………………………………………………………. . 3
WARNING LABEL PLACEMENT.....….....................................................................…5
IMPORTANT ASSEMBLY INFORMATION..................................................................6
CARE AND MAINTENANCE, WEIGHT CAPACITY…………………………………….. 7
PARTS LIST…………………………………………………………………………………. 8
EXPLODED DIAGRAM………………………………………………………………………9
WARRANTY.................................................................................................…………...10
ORDERING PARTS.......................................................................................………….10
BEFORE YOU BEGIN
Thank you for selecting the STEEL BODY Utility Bench STB-10105 by IMPEX®
INC. For your safety and benefit, read this manual carefully before using the
equipment. As a manufacturer, we are committed to providing with you
complete customer satisfaction. If you have any questions, or find there are
missing or damaged parts, we guarantee you complete satisfaction through
direct assistance from our factory. To avoid unnecessary delays, please call our
TOLL-FREE customer service number. Our Customer Service Agents will
provide immediate assistance.
Toll-Free Customer Service Number
1-800-999-8899
Mon. – Fri. 9 a.m. – 5 p.m. PST
www.impex-fitness.com
[e-mail]

©IMPEX INC. www.impex-fitness.com
2
IMPORTANT SAFETY NOTICE
This exercise equipment is built for optimal safety. However, certain precautions apply whenever
you operate a piece of exercise equipment. Be sure to read the entire manual before you assemble
or operate your equipment. In particular, note the following safety precautions:
1. Keep children and pets away from the equipment at all times. DO NOT
leave children unattended in the same room with the equipment.
2. Only one person at a time should use the equipment.
3. If the user experiences dizziness, nausea, chest pain, or any other abnormal
symptoms, STOP the workout at once. CONSULT A PHYSICIAN
IMMEDIATELY.
4. Position the equipment on a clear, leveled surface. DO NOT use the equipment
near water or outdoors.
5. Keep hands away from all moving parts.
6. Always wear appropriate workout clothing when exercising. DO NOT wear
robes or other clothing that could become caught in the equipment. Running
or aerobic shoes are also required when using the equipment.
7. Use the equipment only for its intended use as described in this manual.
DO NOT use attachments not recommended by the manufacturer.
8. Do not place any sharp object around the equipment.
9. Disabled persons should not use the equipment.
10. Before using the equipment to exercise, always do stretching exercises to
properly warm up.
11. Never operate the equipment if the equipment is not functioning properly.
12. A spotter is recommended during exercise.
13. This equipment is designed and intended for home and consumer use only, not for
commercial use.
WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR
PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE OF
35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL INSTRUCTIONS
BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES NO
RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE SUSTAINED BY
OR THROUGH THE USE OF THIS PRODUCT.
SAVE THESE INSTRUCTIONS.

©IMPEX INC. www.impex-fitness.com
3
EXERCISE GUIDELINES
Building Muscle and Gaining Weight
Unlike aerobic exercise, which emphasizes endurance training, anaerobic exercise focuses on strength
training. A gradual weight gain can occur while building the size and strength of muscles. While
developing muscle mass, your body adapts to the stress placed upon it. You can modify your diet to
include foods such as meat, fish and vegetables. These foods help muscles recover and replenish
important nutrients after a strenuous workout.
Muscle Strength and Endurance
To achieve the greatest benefit from exercise, it is important to develop an exercise program that allows
you to work all of the major muscle groups equally.
To increase muscle strength, follow this principle:
Increasing resistance and maintaining the number of repetitions of an exercise results in increased
muscle strength.
To tone your body, follow this principle: Decreasing resistance plus increasing the number of repetitions of
an exercise results in increased body tone.
Once you feel comfortable with an exercise, you can change the resistance, the number of repetitions, or
the speed at which you do the exercise. It is not necessary to change all three variables. For example,
let’s say that you are training at 50 lb and performing the exercise 10 times in 3 minutes. When this
becomes too easy, you may decide to move up to lifting 60 lb. for the same number of repetitions in the
same amount of time. Lifting more weights fewer times most often develops muscle strength. To gain
both muscle strength and endurance, it is recommended that you perform each exercise 15 to 20 reps per
set.
Training Intensity
How hard you begin to train depends on your overall level of fitness. The soreness you experienced can
be lessened by decreasing the load you place on your muscles and by performing fewer sets. To avoid
injury, you should gradually work into an exercise program and set the load to your individual fitness level.
The load should increase as your fitness level increases.
Muscle soreness is common, especially when you first start exercising. If you are painfully sore for a long
time, it may be time to change your program. Eventually, your muscle system will become accustomed to
the stress and strain placed on it.

©IMPEX INC. www.impex-fitness.com
4
Beginning a Strength Building Program
Warming Up
To begin strength training, it is important to stretch and perform light exercise for 5 to 10 minutes. This
helps prepare the body for more strenuous exercise by increasing circulation, raising your body
temperature and developing more oxygen to your muscles.
Workout
For each workout, keep in mind that muscle soreness that lasts for a long period is not desirable and may
mean that injury has occurred.
Cool Down
At the end of each workout, perform slow stretching exercises for 5 to 10 minutes. Ease into each stretch
only going as far as you can. This stage allows your muscles to wind down after training.
To provide a total workout program it is also recommended that 2 to 3 days of aerobic exercise be
performed in addition to the strength training.
Drinking Water
For the body to function properly, it must be properly hydrated. If you are exercising, you should increase
your fluid intake. The reason for this is that the water you take in will leave your system through the
sweating mechanism that cools your body during exercise. The water you lose through exercise must be
replaced so that the muscles can recover properly.
Rest Day
Although you may not feel like doing it, taking a rest day at least once a week is important because it
gives your body a chance to heal itself. Continuously working your muscles will result in over training,
which will not benefit you in the long run.

©IMPEX INC. www.impex-fitness.com
5
WARNING LABEL PLACEMENT
The warning labels shown here have been placed on the Rear Base. If the labels are missing or illegible, please call
customer service at 1-800-888-8899 for replacements. Apply the labels in the location shown.

©IMPEX INC. www.impex-fitness.com
6
IMPORTANT ASSEMBLY INFORMATION
Tools required for assembling the bench: adjustable wrench and Allen wrench.
NOTE: It is strongly recommended that this equipment be assembled by two or more people
to avoid possible injury.
Ensure Carriage Bolts are inserted through the SQUARE holes on components that need to be
assembled. Attach washer only to end of the Carriage Bolt.
Use Allen Bolts or Hex Bolts inserted through the ROUND hole on components that need to be
assembled.
Always wait until all bolts are assembled onto the bench before tightening the bolts. Do not tighten
each bolt right after it is installed
Fasten Nuts and Bolts
Securely tighten all nuts and bolts after all
components have been assembled in current and
previous steps.
NOTE: Do not over tighten any component with
pivoting function.
Make sure all pivoting components are able to move
freely.
Do not tighten all nuts and bolts in this step.

©IMPEX INC. www.impex-fitness.com
7
CARE AND MAINTENANCE
1. Lubricate moving parts with WD-40 or light oil periodically.
2. Inspect and tighten all parts before using the equipment.
3. The equipment can be cleaned using a damp cloth and mild non-abrasive detergent.
DO NOT use solvents.
4. Examine the equipment regularly for signs of damages or wear.
5. Replace any defective components immediately and/or keep the equipment out of use until
repair.
6. Failure to examine regularly may affect the safety level of the equipment.
WEIGHT CAPACITY AND DIMENSION
1. Maximum weight capacity (including user weight): 800 lbs.
2. Assembled Dimension: 47” x 25.5” x 45”
BACKREST ADJUSTMENT ANGLES
Backrest adjustment angle ranges from 00 to 700.

©IMPEX INC. www.impex-fitness.com
8
STB-10105 PARTS LIST
PART
NO.
DESCRIPTION
SIZE
QUANTITY
1
Main Frame
1
2
Rear Base
1
3
Backrest Support
1
4
Seat Bracket
1
5
Seat Incline Support
1
6
Backrest Incline Support
1
7
Seat Pad
1
8
Backrest Board
1
9
L-shaped Lock Pin
Ø ⅜” x 6 ⅛”
1
10
Front Base
1
11
Incline Adjustment Base
2
12
Bracket
6 ¼” x 2”
1
13
Bracket
5 ½” x 2”
1
14
Grip
Ø ¾” x 2”
2
15
Roller Wheel
2
16
Lock Pin Plastic Grip
Ø ½” x 2 ¼”
1
17
End Cap
2” x 3”
1
18
Floor Cap
4 ⅛” x 4 ⅛”
4
19
End x Cap
1 ⅝” x 2 ⅜”
2
20
End Cap
1 ⅝” x ¾”
4
21
Bushing
Ø 1” x Ø ½” x ⅜”
10
22
Aircraft Nut
M8
2
23
End Cap
2 ½” x 2 ½”
1
24
Carriage Bolt
M10 x 2 ¾”
2
25
Allen Bolt
M10 x 6 ½”
1
26
Socket Head Allen Bolt
M10 x 3 ¾”
3
27
Allen Bolt
M12 x 7 ½”
1
28
Allen Bolt
M12 x 4”
1
29
Socket Head Allen Bolt
M10 x 4”
2
30
Socket Head Allen Bolt
M8 x 2 ⅜”
4
31
Socket Head Allen Bolt
M8 x 1 ¾”
2
32
Socket Head Allen Bolt
M8 x ¾”
4
33
Washer
Ø 1”
6
34
Washer
Ø ¾”
14
35
Washer
Ø ⅝”
12
36
Aircraft Nut
M12
3
37
Aircraft Nut
M10
8
38
Allen Bolt
M12 x 8 ½”
1
Allen Wrench（Tool）
6#
1
Allen Wrench（Tool）
8#
1

©IMPEX INC. www.impex-fitness.com
9

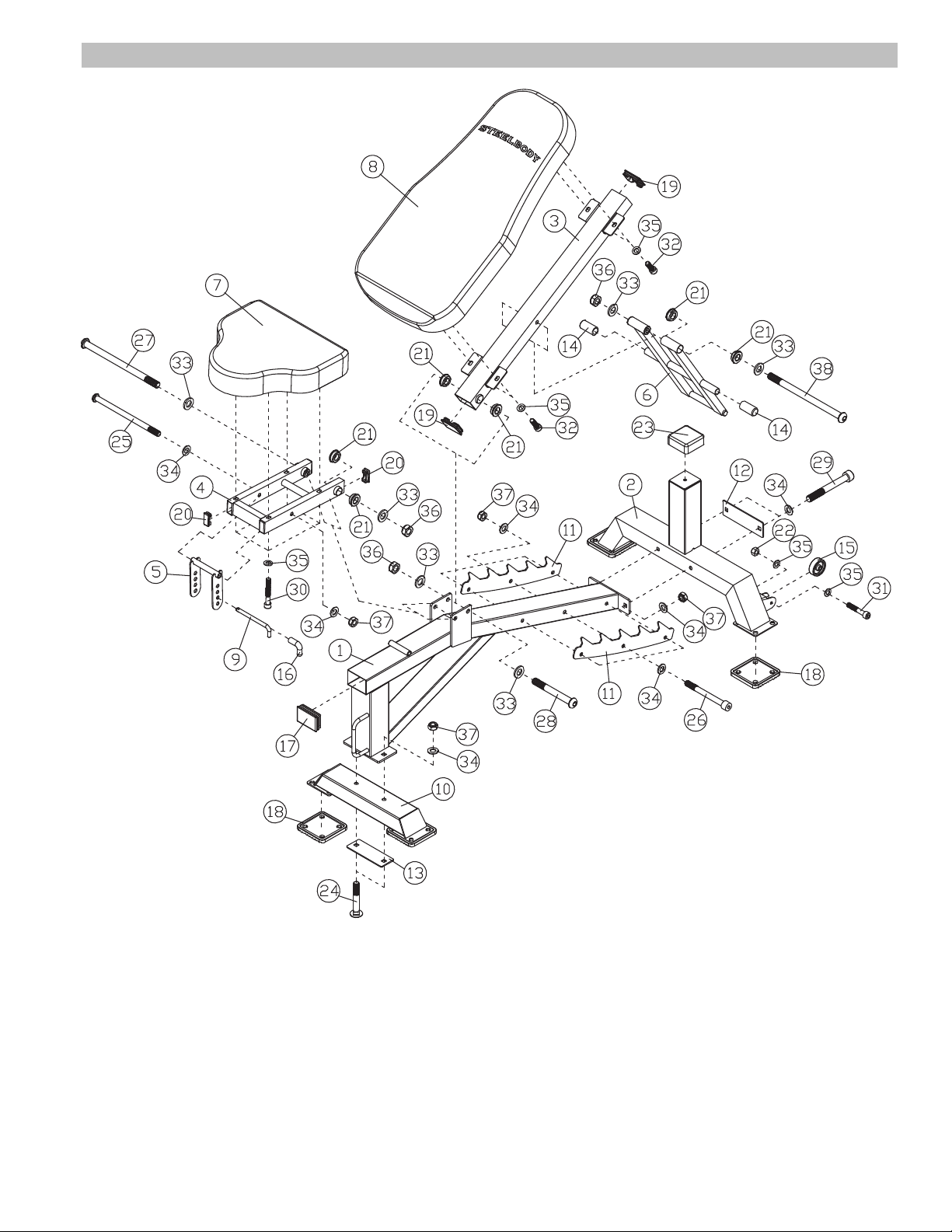

STB-10105 EXPLODED DIAGRAM

©IMPEX INC. www.impex-fitness.com
10
IMPEX®INC.
LIMITED WARRANTY
IMPEX Inc. ("IMPEX®") warrants this product to be free from defects in workmanship and material, under normal use and
service conditions, for a period of ten years on the Frames and two years on the parts from the date of purchase.
This warranty extends only to the original purchaser. IMPEX's obligation under this Warranty is limited to replacing
or repairing, at IMPEX's option.
All returns must be pre-authorized by IMPEX. Pre-authorization may be obtained by calling IMPEX Customer
Service Department at 1-800-999-8899. All freights on products returned to IMPEX must be prepaid by the
customer. This warranty does not extend to any product or damage to a product caused by or attributable to
freight damage, abuse, misuse, improper or abnormal usage. No other warranty beyond that specifically set forth
above is authorized by IMPEX.
IMPEX is not responsible or liable for indirect, special or consequential damages arising out of or in connection
with the use or performance of the product or other damages with respect to any economic loss, loss of property,
loss of revenues or profits, loss of enjoyments or use, costs of removal, installation or other consequential
damages or whatsoever natures. Some provinces do not allow the exclusion or limitation of incidental or
consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein.
Some provinces do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation
may not apply to you.
This warranty gives you specific legal right. You may also have other rights which vary from province to province .
Register on-line at www.impex-fitness.com
IMPEX®INC.
2801 S. Towne Ave.
Pomona, CA 91766
ORDERING REPLACEMENT PARTS
Replacement parts can be ordered by calling our Customer Service Department toll-free at 1-800-999-8899
during our regular business hours: Monday through Friday, 9 a.m. to 5 p.m. Pacific standard time.
[e-mail]
When ordering replacement parts, always give the following information.
1. Model
2. Description of Parts
3. Part Number
4. Date of Purchase
