Fisher & Paykel OR90SCG1X User manual

USER GUIDE
NZ AU
FREESTANDING COOKER
OR90SCG1X & OR90SCG1LX models

3
CONTENTS
Safety and warnings 2
Introduction 7
First use 9
Cooking guide 15
Oven functions 17
Cooking charts 20
Setting the timer 26
Auto Cook 27
Using your gas cooktop 30
Cooking guidelines and cookware 33
Using the storage compartment 35
Care and cleaning 36
Troubleshooting 54
Alert codes 58
Warranty and service 59
Registration
To register your product visit our website: fisherpaykel.com/register

4
SAFETY AND WARNINGS
!WARNING!
Explosion Hazard
Failure to follow this advice may result in
death or serious injury.
• Do not store flammable materials such as
gasoline near the cooktop.
• Do not use or store flammable materials in the
appliance drawer or near this appliance
• Do not spray aerosols on the vicinity of this
appliance while it is in operation.
!WARNING!
Electrical Shock Hazard
Failure to follow this advice may result in
electrical shock or death.
• Switch the cooker off at the wall before
replacing fuses or the oven lamp.
!WARNING!
Poisoning Hazard
Failure to follow this advice may result in
poisoning or death.
• Do not use this appliance as a space heater to
heat or warm the room. Doing so may result in
carbon monoxide poisoning and overheating of
the appliance.

5
SAFETY AND WARNINGS
!WARNING!
Cut Hazard
Failure to use caution could result in injury
or cuts.
• Take care - some edges are sharp.
!WARNING!
Fire Hazard
Failure to follow this advice may result in
overheating, burning, and injury.
• Never leave the cooktop unattended when
in use. Boilover causes smoking and greasy
spillovers that may ignite.
• Do not place aluminium foil, dishes, trays, water
or ice on the oven floor during cooking, as
doing so will irreversibly damage the enamel;
lining the oven with aluminium foil may even
cause fire.
• Never use your appliance for warming or
heating the room. Persons could be burned or
injured or a fire could start.
• Storage in or on appliance: flammable materials
should not be stored in an oven or near
its surface.

6
SAFETY AND WARNINGS
!WARNING!
Hot Surface Hazard
Failure to follow this advice could result in
burns and scalds.
• Accessible parts may become hot when this
cooker is in use.
• To avoid burns and scalds keep children away.
• Do not touch hot surfaces inside the oven.
• Use oven mitts or other protection when
handling hot surfaces such as oven shelves
or dishes.
• Take care when opening the oven door.
• Let hot air or steam escape before removing or
replacing food.
• Do not touch the cooktop components, burners,
trivets/pan supports or the base when hot.
• Before cleaning, turn the cooker off and make
sure it is cool.

7
SAFETY AND WARNINGS
IMPORTANT SAFETY INSTRUCTIONS!
zRead all the instructions before using the appliance. Use the appliance only for its
intended purpose as described in these instructions.
zProper installation: be sure your appliance is properly installed and earthed by a
qualified technician. A risk of tip-over exists when the appliance is not installed in
accordance with the installation instructions.
zDo not operate the appliance if it is damaged or not working properly. If you received a
damaged product, contact your dealer or installer immediately.
zClean only the parts listed in this manual.
zDo not modify this appliance.
zThis appliance is to be serviced only by an authorised person.
zIsolating switch: make sure this cooker is connected to a circuit which incorporates an
isolating switch providing full disconnection from the power supply.
zHousehold appliances are not intended to be played with by children.
zDo not leave children alone – Children should not be left alone or unattended in the
area where the appliance is in use. They should never be allowed to play with the
appliance or to sit or stand on any part of the appliance.
zChildren of less than 8 years old must be kept away from the appliance unless
continuously supervised. This appliance can be used by children aged from 8 years
and above, and persons with reduced physical, sensory or mental capabilities
or lack of experience and knowledge, if they have been given supervision or
instruction concerning the use of the appliance in a safe way and they understand
the hazards involved. Cleaning and user maintenance shall not be done by children
without supervision.
zDo not store things children might want above the oven. Children could be burned or
injured while climbing on the oven to retrieve items.
zSafe food handling: leave food in the oven for as short a time as possible before and
after cooking. This is to avoid contamination by organisms which may cause food
poisoning. Take particular care during warmer weather.
zDo not place aluminium foil, dishes, trays, water or ice on the oven floor during cooking
as this will irreversibly damage the enamel.
zDo not use aluminum foil to line any part of the oven, storage drawer or cooktop. This
will cause heat to be trapped underneath it. This trapped heat can upset the cooking
performance and damage the finish of the oven or cooktop parts.
zDo not stand on the door, or place heavy objects on it.
zDo not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass
since they scratch the surface, which may result in shattering of the glass.
zDo not use a steam cleaner to clean any part of the cooker.
zDo not use an asbestos mat or decorative covers between the flame and the saucepan
as this may cause serious damage to your cooktop.
zDo not store flammable items in the oven or storage drawer or on the cooktop surface.

8
SAFETY AND WARNINGS
IMPORTANT SAFETY INSTRUCTIONS!
zDo not place aluminium foil or plastic dishes on the cooktop burners.
zDo not let large saucepans or frying pans overlap the bench as this can deflect heat
onto your benchtop and damage the surface.
zDo not let large saucepans, frying pans or woks push any other pans aside. This could
make them unstable or deflect heat onto your benchtop and damage the surface.
zSaucepan handles may be hot to touch. Ensure saucepan handles do not overhang
other gas burners that are on. Keep handles out of reach of children.
zIf the electrical supply cord is damaged, it must only be replaced by an
authorised person.
zThis cooker is not to be used as a space heater, especially if it is installed in marine
craft or in a caravan.
zThe use of a gas cooking appliance results in the production of heat and moisture in
the room in which it is installed. Ensure the kitchen is well ventilated. Keep natural
ventilation holes open or install a mechanical ventilation device (mechanical extractor
hood). Prolonged intensive use of the appliance may call for additional ventilation, for
example opening of a window, or more effective ventilation, for example increasing the
level of mechanical ventilation where present.
zWear proper apparel. Do not wear loose fitting or hanging garments when using the
appliance. They could ignite or melt if they touch an element or hot surface and you
could be burned.
zAlways keep oven vents unobstructed.
zUse only dry oven mitts or potholders. Moist or damp potholders on hot surfaces could
result in burns from steam. Do not let potholders touch hot areas or heating elements.
Do not use a towel or a bulky cloth for a potholder. It could catch fire.
zCaution. Hot air can blow from the vent at the top of the oven as part of the oven’s
cooling system.
zPlacement of oven shelves: always position shelves in the desired location before
preheating the oven. If a shelf must be removed while the oven is hot, do not
let the oven mitts or potholder contact hot heating elements in the oven or the
base of the oven.
zIn the event of power failure while cooking, return the knobs in off position to prevent
overheating of the appliance.

9
INTRODUCTION
90cm models
OR90SCG1X
OR90SCG1LX

10
INTRODUCTION
Before you start
1 Make sure that the anti-tip bracket at the right rear of the cooker has been
properly installed.
2 Make sure that the installer has completed the ‘Final checklist’ in the
Installation instructions.
3 Read this guide, taking special note of the ‘Safety and warnings’ section.
4 Remove all accessories and packaging from the oven and cooktop. Recycle items that
you can. If any adhesive residue is left on surfaces, remove this using dishwashing liquid
on a soft cloth. Do not use any harsh or abrasive cleaners.
5 Make sure you follow the instructions under ‘First use’ before using your
cooker for cooking.

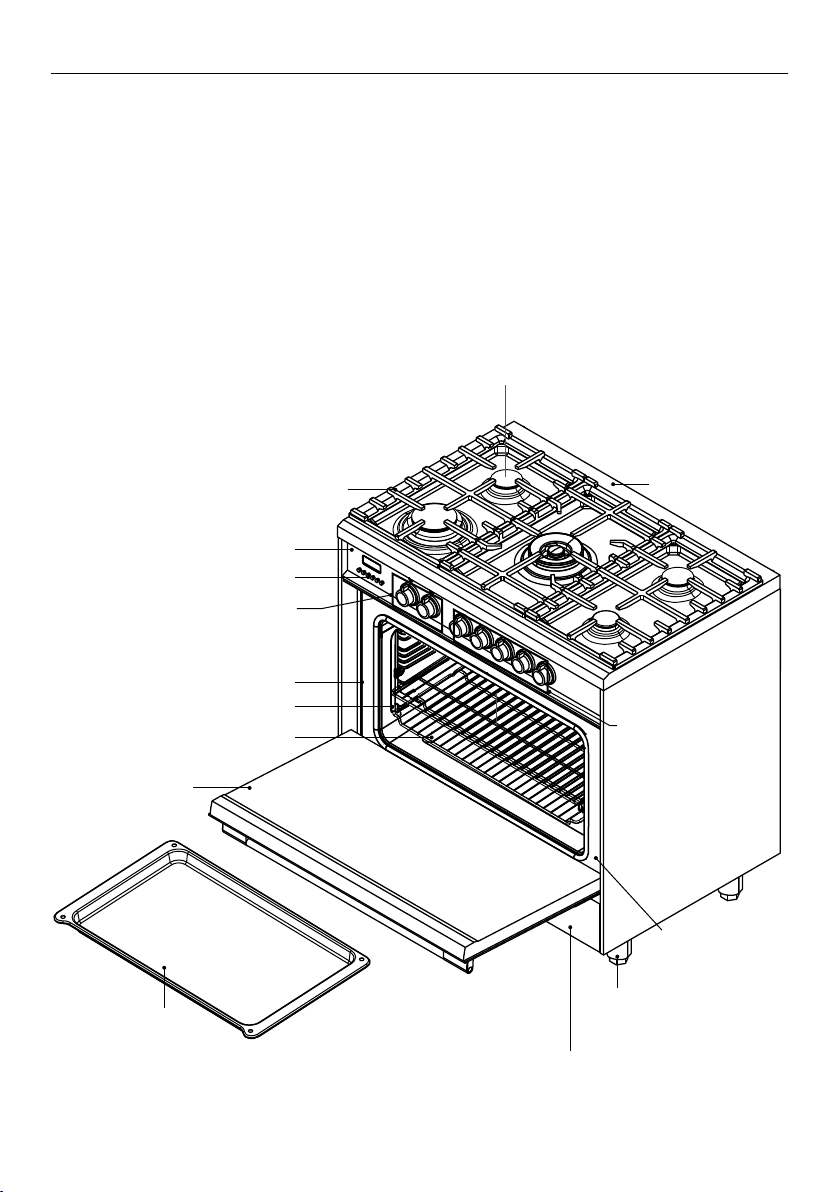

Control panel
Oven frame
Oven shelves
Oven door
Oven function and
temperature dials
Foot
Storage compartment
Roast pan
Label with
model and
serial numbers
Side racks
Back trim
Burner
Burner pan supports
Clock display and controls
Cooktop
burner dials
Overview
Features may vary.
Full extension sliding shelf
(not shown, some models only)

11
FIRST USE
S1 OR90 CLAS GAS CP
1 KDM
4/05/17
Released for prototype only LEP
2 KDM
8/06/17
Updated to include dash above hob
dials, repostioned FUNCTION and
TEMPERATURE
LEP
2576601 1:1 1/1
1. REFER F&P DRAWING No. XXXXX FOR PART FILE
2. ALL ARTWORK MUST BE APPROVED PRIOR TO MANUFACTURE
GRAPHICS TO BE LASER MARKED
GRAPHICS LOCATION
MODEL/FINISH
OR90 Series 1 Stainless Steel LASERMARKED PANTONE 440
GRAPHICS TREATMENT / COLOUR

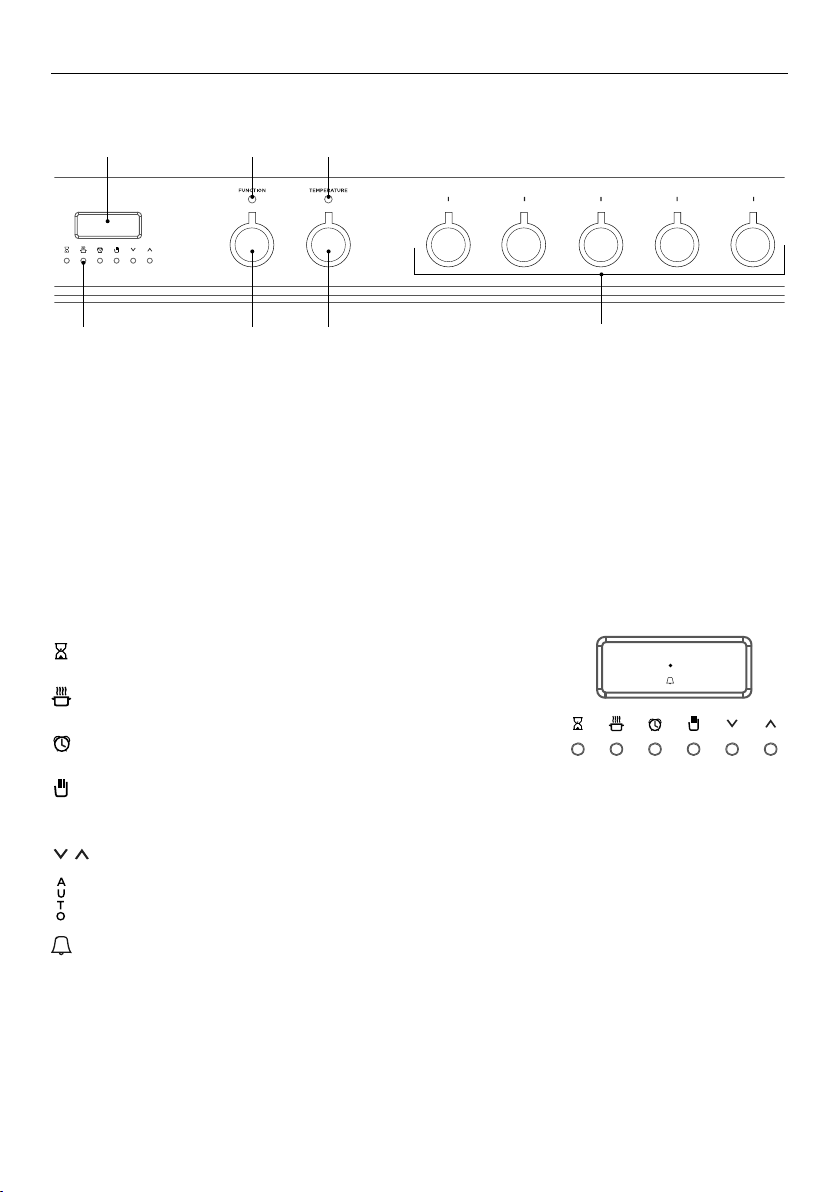

1 Clock controls
2 Clock display
3 Function dial
4 Temperature dial
5 Cooktop control dials
6 Function indicator light
7 Temperature indicator light
Clock display and controls
S1 OR90 CLAS GAS CP
1 KDM
4/05/17
Released for prototype only LEP
2 KDM
8/06/17
Updated to include dash above hob
dials, repostioned FUNCTION and
TEMPERATURE
LEP
2576601 1:1 1/1
1. REFER F&P DRAWING No. XXXXX FOR PART FILE
2. ALL ARTWORK MUST BE APPROVED PRIOR TO MANUFACTURE
GRAPHICS TO BE LASER MARKED
GRAPHICS LOCATION
MODEL/FINISH
OR90 Series 1 Stainless Steel LASERMARKED PANTONE 440
GRAPHICS TREATMENT / COLOUR
Timer (see ‘Setting the timer’)
S1 OR90 CLAS GAS CP
1 KDM
4/05/17
Released for prototype only LEP
2 KDM
8/06/17
Updated to include dash above hob
dials, repostioned FUNCTION and
TEMPERATURE
LEP
2576601 1:1 1/1
1. REFER F&P DRAWING No. XXXXX FOR PART FILE
2. ALL ARTWORK MUST BE APPROVED PRIOR TO MANUFACTURE
GRAPHICS TO BE LASER MARKED
GRAPHICS LOCATION
MODEL/FINISH
OR90 Series 1 Stainless Steel LASERMARKED PANTONE 440
GRAPHICS TREATMENT / COLOUR
Cook time (see ‘Auto Cook’)
S1 OR90 CLAS GAS CP
1 KDM
4/05/17
Released for prototype only LEP
2 KDM
8/06/17
Updated to include dash above hob
dials, repostioned FUNCTION and
TEMPERATURE
LEP
2576601 1:1 1/1
1. REFER F&P DRAWING No. XXXXX FOR PART FILE
2. ALL ARTWORK MUST BE APPROVED PRIOR TO MANUFACTURE
GRAPHICS TO BE LASER MARKED
GRAPHICS LOCATION
MODEL/FINISH
OR90 Series 1 Stainless Steel LASERMARKED PANTONE 440
GRAPHICS TREATMENT / COLOUR
End time (See ‘Auto Cook’)
S1 OR90 CLAS GAS CP
1 KDM
4/05/17
Released for prototype only LEP
2 KDM
8/06/17
Updated to include dash above hob
dials, repostioned FUNCTION and
TEMPERATURE
LEP
2576601 1:1 1/1
1. REFER F&P DRAWING No. XXXXX FOR PART FILE
2. ALL ARTWORK MUST BE APPROVED PRIOR TO MANUFACTURE
GRAPHICS TO BE LASER MARKED
GRAPHICS LOCATION
MODEL/FINISH
OR90 Series 1 Stainless Steel LASERMARKED PANTONE 440
GRAPHICS TREATMENT / COLOUR
Clock (see ‘Setting the clock’)
Cancel Auto Cook (see ‘Auto Cook’)
S1 OR90 CLAS GAS CP
1 KDM
4/05/17
Released for prototype only LEP
2 KDM
8/06/17
Updated to include dash above hob
dials, repostioned FUNCTION and
TEMPERATURE
LEP
2576601 1:1 1/1
1. REFER F&P DRAWING No. XXXXX FOR PART FILE
2. ALL ARTWORK MUST BE APPROVED PRIOR TO MANUFACTURE
GRAPHICS TO BE LASER MARKED
GRAPHICS LOCATION
MODEL/FINISH
OR90 Series 1 Stainless Steel LASERMARKED PANTONE 440
GRAPHICS TREATMENT / COLOUR
S1 OR90 CLAS GAS CP
1 KDM
4/05/17
Released for prototype only LEP
2 KDM
8/06/17
Updated to include dash above hob
dials, repostioned FUNCTION and
TEMPERATURE
LEP
2576601 1:1 1/1
1. REFER F&P DRAWING No. XXXXX FOR PART FILE
2. ALL ARTWORK MUST BE APPROVED PRIOR TO MANUFACTURE
GRAPHICS TO BE LASER MARKED
GRAPHICS LOCATION
MODEL/FINISH
OR90 Series 1 Stainless Steel LASERMARKED PANTONE 440
GRAPHICS TREATMENT / COLOUR
Scroll
Auto Cook indicator (see ‘Auto Cook’)
Timer indicator (see ‘Setting the timer’)
12 07
A
U
T
O
S1 OR90 CLAS GAS CP
1 KDM
4/05/17
Released for prototype only LEP
2 KDM
8/06/17
Updated to include dash above hob
dials, repostioned FUNCTION and
TEMPERATURE
LEP
2576601 1:1 1/1
1. REFER F&P DRAWING No. XXXXX FOR PART FILE
2. ALL ARTWORK MUST BE APPROVED PRIOR TO MANUFACTURE
GRAPHICS TO BE LASER MARKED
GRAPHICS LOCATION
MODEL/FINISH
OR90 Series 1 Stainless Steel LASERMARKED PANTONE 440
GRAPHICS TREATMENT / COLOUR
2
3 4 5
6 7
1
Control panel layout

12
FIRST USE
S1 OR90 CLAS GAS CP
1 KDM
4/05/17
Released for prototype only LEP
2 KDM
8/06/17
Updated to include dash above hob
dials, repostioned FUNCTION and
TEMPERATURE
LEP
2576601 1:1 1/1
1. REFER F&P DRAWING No. XXXXX FOR PART FILE
2. ALL ARTWORK MUST BE APPROVED PRIOR TO MANUFACTURE
GRAPHICS TO BE LASER MARKED
GRAPHICS LOCATION
MODEL/FINISH
OR90 Series 1 Stainless Steel LASERMARKED PANTONE 440
GRAPHICS TREATMENT / COLOUR
S1 OR90 CLAS GAS CP
1 KDM
4/05/17
Released for prototype only LEP
2 KDM
8/06/17
Updated to include dash above hob
dials, repostioned FUNCTION and
TEMPERATURE
LEP
2576601 1:1 1/1
1. REFER F&P DRAWING No. XXXXX FOR PART FILE
2. ALL ARTWORK MUST BE APPROVED PRIOR TO MANUFACTURE
GRAPHICS TO BE LASER MARKED
GRAPHICS LOCATION
MODEL/FINISH
OR90 Series 1 Stainless Steel LASERMARKED PANTONE 440
GRAPHICS TREATMENT / COLOUR

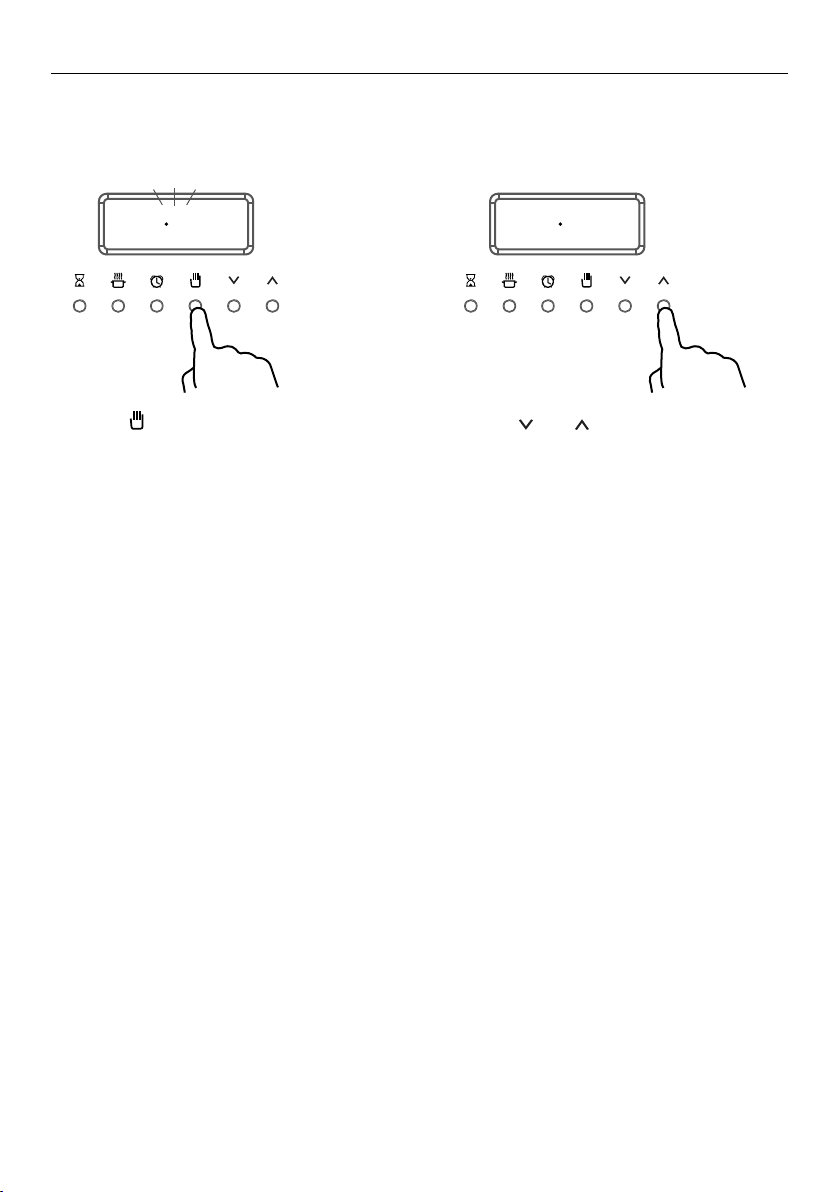

Setting the clock
When your oven is first turned on, or after a power cut, the display will flash. You will need
to set the clock in order to use the oven.
12 05
0 00
1 Press
S1 OR90 CLAS GAS CP
1 KDM
4/05/17
Released for prototype only LEP
2 KDM
8/06/17
Updated to include dash above hob
dials, repostioned FUNCTION and
TEMPERATURE
LEP
2576601 1:1 1/1
1. REFER F&P DRAWING No. XXXXX FOR PART FILE
2. ALL ARTWORK MUST BE APPROVED PRIOR TO MANUFACTURE
GRAPHICS TO BE LASER MARKED
GRAPHICS LOCATION
MODEL/FINISH
OR90 Series 1 Stainless Steel LASERMARKED PANTONE 440
GRAPHICS TREATMENT / COLOUR
to enter the clock display. 2 Press
S1 OR90 CLAS GAS CP
1 KDM
4/05/17
Released for prototype only LEP
2 KDM
8/06/17
Updated to include dash above hob
dials, repostioned FUNCTION and
TEMPERATURE
LEP
2576601 1:1 1/1
1. REFER F&P DRAWING No. XXXXX FOR PART FILE
2. ALL ARTWORK MUST BE APPROVED PRIOR TO MANUFACTURE
GRAPHICS TO BE LASER MARKED
GRAPHICS LOCATION
MODEL/FINISH
OR90 Series 1 Stainless Steel LASERMARKED PANTONE 440
GRAPHICS TREATMENT / COLOUR
and
S1 OR90 CLAS GAS CP
1 KDM
4/05/17
Released for prototype only LEP
2 KDM
8/06/17
Updated to include dash above hob
dials, repostioned FUNCTION and
TEMPERATURE
LEP
2576601 1:1 1/1
1. REFER F&P DRAWING No. XXXXX FOR PART FILE
2. ALL ARTWORK MUST BE APPROVED PRIOR TO MANUFACTURE
GRAPHICS TO BE LASER MARKED
GRAPHICS LOCATION
MODEL/FINISH
OR90 Series 1 Stainless Steel LASERMARKED PANTONE 440
GRAPHICS TREATMENT / COLOUR
to set the time.

13
FIRST USE
Positioning the shelves
zShelf positions are numbered from the bottom.
zPosition the shelves you will need before turning the oven on.
zFor advice on which shelf position to use, see sections ‘Oven functions’, ‘Cooking guide’,
and ‘Cooking charts’.
IMPORTANT!
Always position the oven shelves before turning the oven on. Remove any unused shelves
and baking utensils from the oven.
Oven shelves
1
2
3
4
5
6
7
Step-down wire shelfFlat wire shelf
1
2
3
4
5
6
7
1
2
3
4
5
6
7
Wire shelf
Safety stop
1
2
3
4
5
6
7
Slide
Wire shelf
Front stop
Safety stop
Front safety stop
Full extension sliding shelves
(some models only)
zThe wire shelves and slides are built
together as one unit.
zWhen positioned correctly, the slides
will prevent the wire shelves from tilting
when pulled forward.
zBeware: these shelves are heavy.

14
FIRST USE

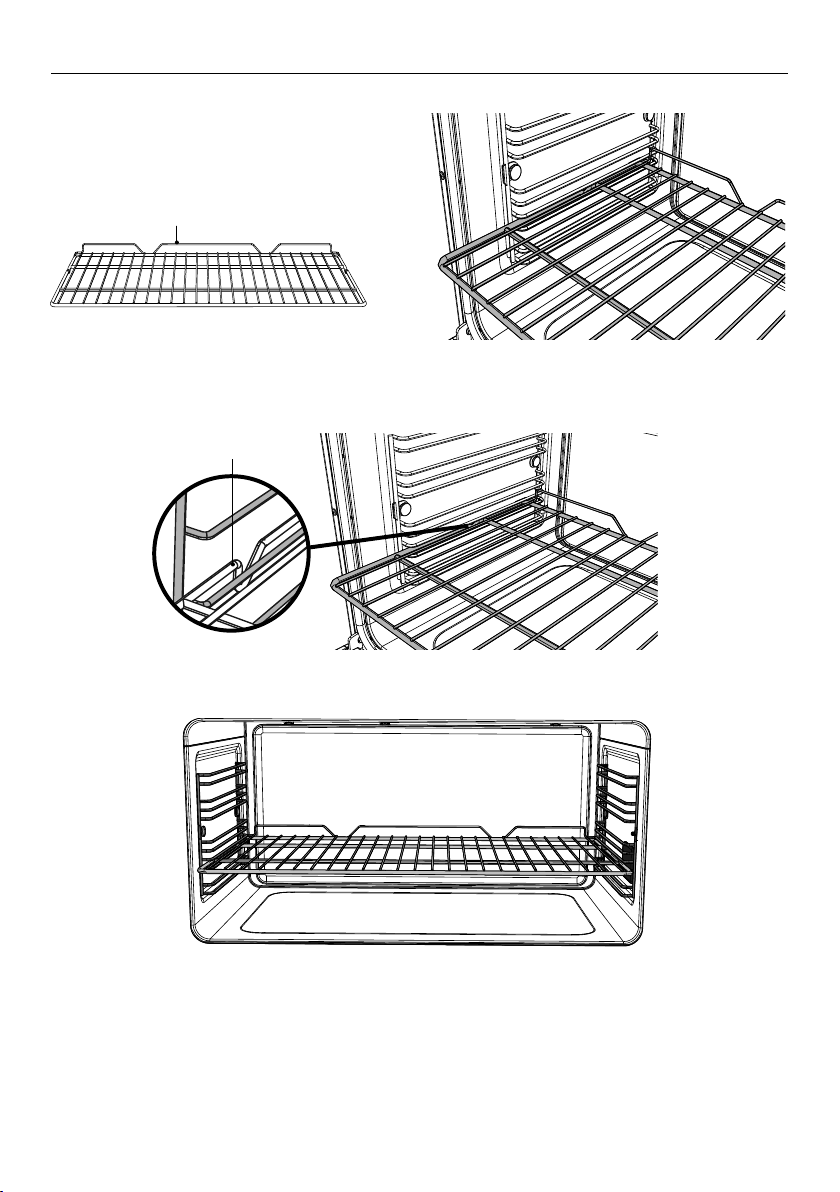

To insert the sliding shelves (some models only)
1 Make sure the guard rail is at the
back, facing up and the slides
are not extended.
3 Hook the rear tags over the wires of the
desired shelf position on both side racks.
To remove the shelves
1 Wait for the oven to cool down completely.
2 Hold the shelf firmly with both hands, making sure you grip the wire shelf too
to stop it sliding forward.
3 Pull the shelf forward about ¾ of the way.
4 Lift the rear of the shelf slightly so that the tags clear the side rack wires, then remove.
2 Hold the shelf firmly with both hands,
making sure you grip the wire shelf too
to stop it sliding forward.
4 Push the shelf all the way into the oven,
ensuring the front and rear tags either
side are securely locked behind the
side rack wires.
Guard rail
1
2
3
4
5
6
7
3
4

15
FIRST USE
To insert the shelves
1 Make sure the guard rail is at the
back, facing up.
3 Tilt the front up slightly to help the safety stops clear the side rack wires.
4 Lower the shelf back onto the side rack wires and slide all the way into the oven.
To remove the shelves
1 Wait for the oven to cool down completely.
2 Pull the shelf forward about ¾ of the way.
3 Tilt the front up slightly to help the safety stops clear the side rack wires.
4 Remove the shelf.
2 Position the shelf: it should rest on
the side rack wires, as shown.
Safety stop
Guard rail

16
FIRST USE
Conditioning the oven
It is important to condition your oven before using it for cooking and baking. Conditioning
will burn off any manufacturing residues and ensure that you get the best results right
from the start.
Before you start:
zMake sure you have removed all packaging and any cable ties used to secure the
shelving during transit.
zMake sure all shelves are fitted in the oven.
zMake sure you have set the clock. If the clock has not been set the cooling fans will come
on but the oven lights will remain off and the oven will not heat up.
2 Set the temperature to 200°C
for 30 minutes.
zWhile the oven is heating up, the
temperature indicator light will glow.
zWhen the oven has reached set
temperature, the temperature indicator
light will go out.
1 Select the Bake
GRAPHICS LOCATION
function.
zThe oven will come on.
3 After 10 minutes, select the Fan Grill
GRAPHICS LOCATION
function.
zHeat at 200°C for 10 minutes.
4 After 10 minutes, select the Fan Forced
GRAPHICS LOCATION
function.
zHeat at 200°C for 20 minutes.
Note:
There will be a distinctive smell and a small amount of smoke during the conditioning
process as manufacturing residue is burnt off. This is normal, but make sure the kitchen
is well ventilated while the oven is conditioning.
Once cooled, wipe out the oven with a damp cloth and mild detergent,
and dry thoroughly.
GRAPHICS LOCATION
GRAPHICS LOCATION
GRAPHICS LOCATION
GRAPHICS LOCATION
GRAPHICS LOCATION
GRAPHICS LOCATION
then...

17
COOKING GUIDE
Oven cooking guidelines
IMPORTANT!
zUse all the oven modes with the oven door closed.
zNever use aluminum foil to cover the oven shelves or to line the floor of the oven. The
trapped heat can irreversibly damage the enamel and may even cause fire.
zDo not place water, ice, or any dish or tray directly on the oven floor, as this will
irreversibly damage the enamel.
zDo not cover the grill pan with aluminum foil. This will catch the grease and
could cause fire.
zDo not use plastic wrap or wax paper in the oven.
zFor food safety reasons, do not leave food in the oven for longer than two hours before
and after cooking or defrosting. This is to avoid contamination by organisms which may
cause food poisoning. Take particular care during warmer weather.
zIn the event of power failure while cooking, return the oven dials in off position to
prevent overheating of the appliance.
Baking
zFor best results when baking, always preheat your oven. The temperature indicator will
go out when the set temperature is reached.
zWhile the oven is heating the grill element may be on.
zDo not open the door until at least ¾ of the way through cooking.
zMake sure cake pans do not touch each other or the sides of the oven.
zWhen baking double the recipe (especially cookies) cook time may need to increase.
zYour cookware will influence baking times. Dark pans absorb the heat more quickly than
reflective pans; glass cookware may require a lower temperature
zMulti-shelf baking may also require a slight increase in cooking time.
Shelf Position Guide
zSingle shelf: place your baking on a shelf that will have the top of your pan near the
center of the oven cavity.
zMulti shelf: always leave a space between shelves to allow the air to circulate.
BAKE VENT BAKE FAN BAKE GRILL
FAN GRILL
FAN FORCED
ROAST
CLASSIC BAKE
PASTRY BAKE
Lower
Element
(concealed)
Fans Upper Elements Shelf positions
BAKE VENT BAKE FAN BAKE GRILL
FAN GRILL
FAN FORCED
ROAST
CLASSIC BAKE
PASTRY BAKE
1
4
7
6
5
23

18
COOKING GUIDE
Roasting
zUse Fan Grill to roast whole chicken.
zFor other meats use Bake for a succulent juicy flavoursome roast.
zBoneless, rolled or stuffed roasts take longer than roasts containing bones.
zUse a meat thermometer to determine when meat is cooked.
zPoultry should be well cooked with the juices running clear and an internal
temperature of 75°C.
zFor crispy crackling first sear pork at a high temperature, then lower the temperature
to complete the cooking.
zIf multi-shelf cooking (eg if roasting meat on one shelf and vegetables on another)
use Fan Forced.
zCook larger cuts of meat for longer at a lower temperature. The meat will
cook more evenly.
zAlways roast meat fat side up. That way, basting may not be required.
zAlways rest the meat for at least 10 minutes after roasting to allow the juices to settle.
Remember the meat will continue to cook for a few minutes after removing it from
the oven.
Shelf Position Guide
Place the meat on a shelf so that the meat is in the centre of the oven or lower.
Grilling
zThis is a healthier alternative to frying.
zAlways grill with the oven door completely shut.
zFor best results allow 5 minutes of preheat before placing food in the oven.
zIf you use glass or ceramic pans, be sure they can withstand the high temperatures
of the grill.
zTo avoid piercing the meat and letting juices escape, use tongs or a spatula to turn
the meat halfway through cooking.
zBrush meat with a little oil to help keep the meat moist during cooking. Alternatively
marinade the meat before grilling (but be aware that some marinades may burn easily).
zWhere possible grill cuts of meat of a similar thickness at the same time. This will
ensure even cooking.
zAlways keep a close watch on your food while grilling to avoid charring or burning.
Shelf Position Guide
zFor thinner cuts of meat, toasting or browning foods, use a higher shelf position.
zThicker cuts of meats should be grilled on lower shelves or at a lower grill setting to
ensure even cooking.
Reheating
zUse Bake or Fan Bake to reheat food.
zAlways reheat food to piping hot. This reduces the risk of contamination by
harmful bacteria.
zOnce hot, set the oven temperature to WARM to keep food hot.
zNever reheat a food more than once.
zAny condensation that forms during the cooking process will collect in the drip channel,
below the door. This may be mopped up using a sponge once the oven has cooled.

19
OVEN FUNCTIONS
IMPORTANT!
zUse all the functions with the oven door closed.
zSafe food handling: leave food in the oven for as short a time as possible before and
after cooking or defrosting. This is to avoid contamination by organisms which may
cause food poisoning. Take particular care during warmer weather.
Upper outer and lower elements
zHeat comes from both the upper and lower elements. The fan is not used in this function.
zIdeal for cakes and foods that require baking for a long time or at low temperatures.
zThis function is not suitable for multi-shelf cooking.
Ideal for moist foods that take a longer time to cook eg rich fruit cake or bread.
Upper elements
zThis function delivers intense radiant heat from the upper elements.
zYou can set the intensity of the heat by altering the temperature setting.
zFor best results allow 5 minutes of preheat before placing food in the oven
zThe most suitable function for ‘finishing off’ many meals, for example browning the top
of potato gratin and frittata.
zEnsure you centre the dish under the inner grill element.
Ideal for toasting bread or for top browning to ‘finish off dishes’.
BAKE VENT BAKE FAN BAKE GRILL
FAN GRILL
FAN FORCED
ROAST
CLASSIC BAKE
PASTRY BAKE
TRUE AERO
Grill
GFX DIAL OR CON OVEN PYRO UL
1 KDM 19/06/17
Released for prototype only LEP
1576636 1:1 1/1
1. REFER F&P DRAWING No. 578509 FOR PART FILE
2. ALL ARTWORK MUST BE APPROVED PRIOR TO MANUFACTURE
Graphics location:
3mm
5mm
Graphics to be PRINTED:
(PANTONE 440)
This is not a cooking function
zOnly the oven light comes on. It remains on in all the cooking functions.
GFX DIAL OR CL OVEN FUNC MECH
1 KDM 19/05/17
Released for prototype only LEP
A KDM 26/10/17 LEP
A576585 1:1 1/1
1. REFER F&P DRAWING No. 578410 FOR PART FILE
2. ALL ARTWORK MUST BE APPROVED PRIOR TO MANUFACTURE
Graphics to be printed:
(PANTONE 423)
Graphics location:
4005570
Updated Pantone spec, updated FP
drawing ref, Released for pre production
Light
Bake
GFX DIAL OR CON OVEN PYRO UL
1 KDM 19/06/17
Released for prototype only LEP
1576636 1:1 1/1
1. REFER F&P DRAWING No. 578509 FOR PART FILE
2. ALL ARTWORK MUST BE APPROVED PRIOR TO MANUFACTURE
Graphics location:
3mm
5mm
Graphics to be PRINTED:
(PANTONE 440)
BAKE VENT BAKE FAN BAKE GRILL
FAN GRILL
FAN FORCED
ROAST
CLASSIC BAKE
PASTRY BAKE
TRUE AERO

20
OVEN FUNCTIONS
Fan and rear element
zBy using the central rear heating element and fan, hot air is blown into the cavity,
providing a consistent temperature at all levels, making it perfect for multi-shelf cooking.
zTrays of cookies cooked on different shelves are crisp on the outside and
chewy in the middle.
zMeat and poultry are deliciously browned and sizzling while remaining juicy and tender.
zCasseroles are cooked to perfection and reheating is quick and efficient.
zWhen multi-shelf cooking it is important to leave a gap between trays (eg use shelves 3
& 5) to allow the air to move freely. This enables the browning of foods on the lower tray.
zIf converting a recipe from Bake to Fan Forced, we recommend that you decrease the
bake time or decrease the temperature by approximately 20°C.
zFor items with longer bake times (eg over an hour) it may be necessary to decrease both
time and temperature.
Ideal for multi-shelf cooking biscuits, cookies, scones, muffins and cupcakes.
Fan plus upper elements
zThis function uses the intense heat from the upper elements for top browning and the
fan to ensure even cooking of foods.
zMeat, poultry and vegetables cook beautifully; food is crisp and brown on the outside
while the inside remains moist and tender.
Ideal for whole chicken, tenderloin of beef or grilling your favourite chicken, fish or steak.
Fan Grill
BAKE VENT BAKE FAN BAKE GRILL
FAN GRILL
FAN FORCED
ROAST
CLASSIC BAKE
PASTRY BAKE
TRUE AERO
GFX DIAL OR CON OVEN PYRO UL
1 KDM 19/06/17
Released for prototype only LEP
1576636 1:1 1/1
1. REFER F&P DRAWING No. 578509 FOR PART FILE
2. ALL ARTWORK MUST BE APPROVED PRIOR TO MANUFACTURE
Graphics location:
3mm
5mm
Graphics to be PRINTED:
(PANTONE 440)
This is not a cooking function
zOnly the oven light comes on. It remains on in all the cooking functions.
GFX DIAL OR CL OVEN FUNC MECH
1 KDM 19/05/17
Released for prototype only LEP
A KDM 26/10/17 LEP
A576585 1:1 1/1
1. REFER F&P DRAWING No. 578410 FOR PART FILE
2. ALL ARTWORK MUST BE APPROVED PRIOR TO MANUFACTURE
Graphics to be printed:
(PANTONE 423)
Graphics location:
4005570
Updated Pantone spec, updated FP
drawing ref, Released for pre production
Defrost
Fan Forced
GFX DIAL OR CON OVEN PYRO UL
1 KDM 19/06/17
Released for prototype only LEP
1576636 1:1 1/1
1. REFER F&P DRAWING No. 578509 FOR PART FILE
2. ALL ARTWORK MUST BE APPROVED PRIOR TO MANUFACTURE
Graphics location:
3mm
5mm
Graphics to be PRINTED:
(PANTONE 440)
BAKE VENT BAKE FAN BAKE GRILL
FAN GRILL
FAN FORCED
ROAST
CLASSIC BAKE
PASTRY BAKE
TRUE AERO
