Fisher & Paykel OR90SDBGFPX1 User manual

Care and cleaning
Before you start cleaning your cooker, please:
▪ Read these cleaning instructions and the ‘Safety and warnings’ section at the start of this user
guide.
▪ Turn the cooker off at the wall.
▪ Make sure the cooker is a safe temperature to touch.
▪ Do not use a steam cleaner.
▪ Do not keep flammable substances in the oven.
General advice
▪ Wipe down the cooktop and wipe out the oven after every use.
▪ Wipe up spills. Avoid leaving alkaline or acidic substances (such as lemon juice or vinegar) on the surfaces.
▪ Do not use cleaning products with a chlorine or acidic base.
Cleaning the outside of the cooker
▪ Do not use abrasive cleaners, cloths or pads on the outside surfaces.
▪ Immediately wipe off any caustic cleaners if they are spilled onto the oven door handle.
Wipe the outside surfaces often, using warm water and a mild household detergent. The stainless steel may also
be cleaned with a suitable cleaner and polish.
https://producthelp.fisherpaykel.com/nz/Cook/Freestanding_Cookers/Dual_Fuel/OR90SDBGFPX1/User_Guide_OR90SDBGF…
Updated: Thu, 06 Jan 2022 15:57:26 GMT
Powered by
1

If you choose to use a commercial stainless steel cleaner, please read the label to make
sure it does not contain chlorine compounds as these are corrosive and may damage the
appearance of your cooker.
Cleaning the gas cooktop
Maintenance
Period Description
Daily • Clean gas cooktop as per following instructions.
Monthly
• Remove all burner parts, and clean using a non-abrasive detergent. Rinse in cold water, dry
thoroughly, and replace.
• Clean the ignitor carefully, using a toothbrush and methylated spirits.
Every 3-4
years
• Contact your local authorised gas Service Agent to perform a thorough check on all gas
components on the gas cooker.
Burner parts and pan supports
• You can remove and clean these parts with hot soapy water or non-abrasive detergents. Clean spills regularly
before they become burnt on. Do not wash these parts in a dishwasher.
• After cleaning, check that the burners and their flame spreaders are dry before replacing correctly.
• It is very important to check that the burner flame spreader and the cap have been correctly positioned. Failure
to do so can cause serious problems.
To avoid damage to the electronic ignition, do not try to light a burner without all burner
parts in place
https://producthelp.fisherpaykel.com/nz/Cook/Freestanding_Cookers/Dual_Fuel/OR90SDBGFPX1/User_Guide_OR90SDBGF…
Updated: Thu, 06 Jan 2022 15:57:26 GMT
Powered by
2

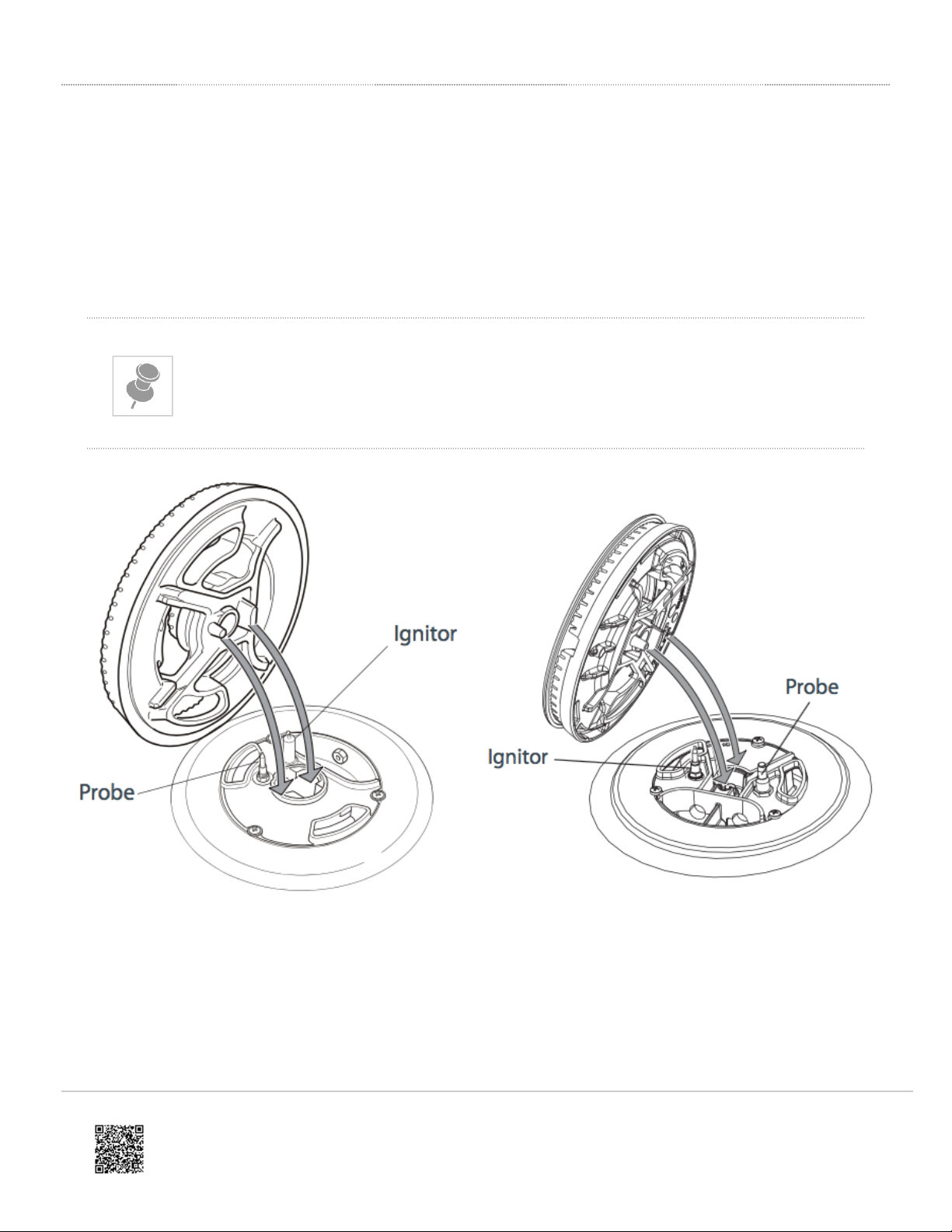

Replacing the semi-rapid burners
• Carefully replace the burner parts as per the following Figs. Check that:
• the ignitor is always clean to ensure trouble-free sparking.
• the probe is always clean to ensure correct operation of the safety valves (some models only) ote: both the
ignitor and probe must be very carefully cleaned using a toothbrush and methylated spirits (see Fig.26).
Fig. 30 Correct line-up of semi-rapid burner parts Fig. 31 Replacing the semi-rapid burner caps
https://producthelp.fisherpaykel.com/nz/Cook/Freestanding_Cookers/Dual_Fuel/OR90SDBGFPX1/User_Guide_OR90SDBGF…
Updated: Thu, 06 Jan 2022 15:57:26 GMT
Powered by
3

Replacing the triple-ring wok and dual burners
▪ Carefully replace the burner parts as per the following Figs.
▪ Fit the flame spreader to the housing as shown by the arrow in the Figs.32a-32b. Make sure the burner is not
able to rotate (Fig. 33).
Check that:
▪ the ignitor is always clean to ensure trouble-free sparking.
▪ The probe is always clean to ensure correct operation of the safety valves (some models only)
Both the ignitor and probe must be very carefully cleaned using a toothbrush and
methylated spirits (see Fig.26).
Fig. 32a Correct positioning of flame spreader -
triple-ring wok burner
Fig. 32b Correct positioning of flame spreader - dual
burner
https://producthelp.fisherpaykel.com/nz/Cook/Freestanding_Cookers/Dual_Fuel/OR90SDBGFPX1/User_Guide_OR90SDBGF…
Updated: Thu, 06 Jan 2022 15:57:26 GMT
Powered by
4

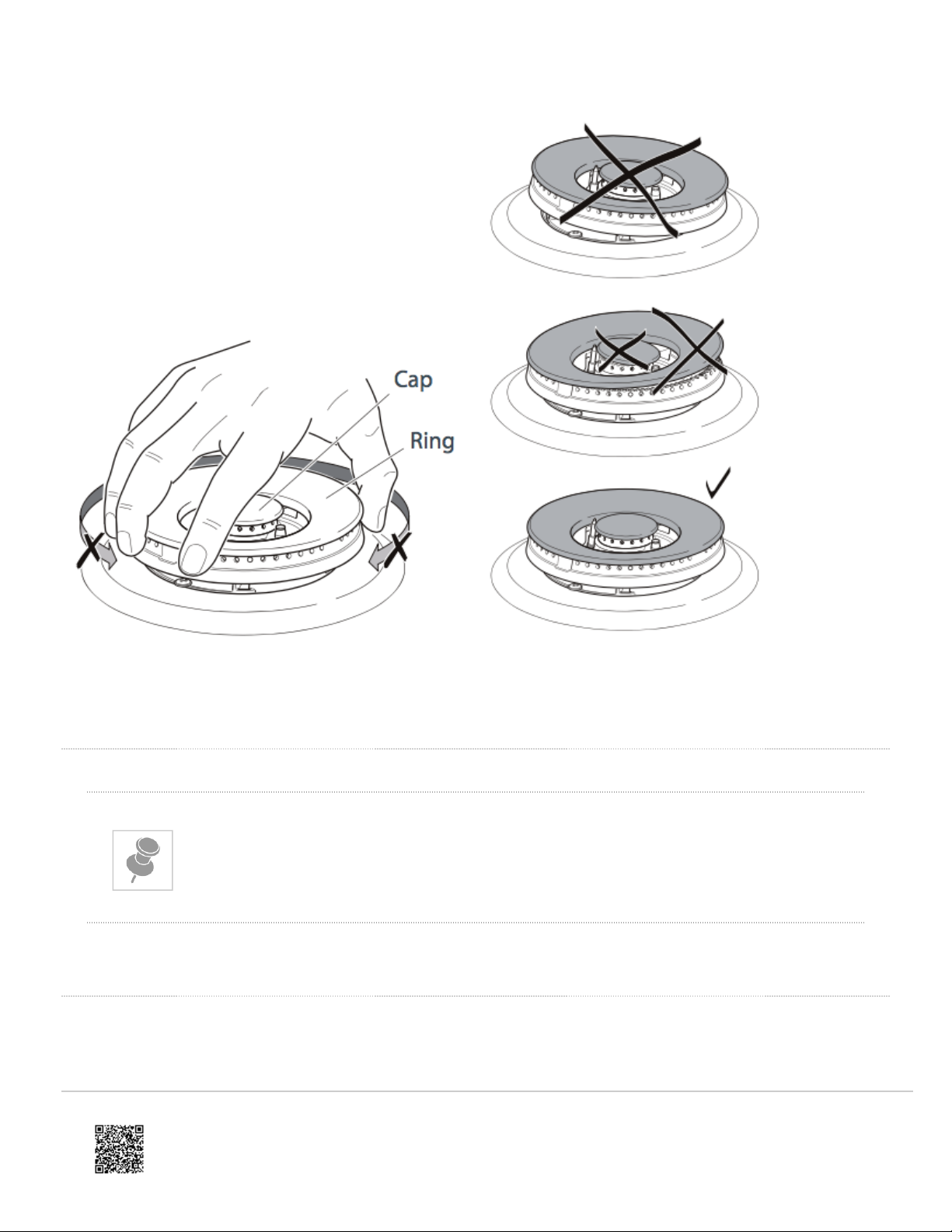

Fig. 33 Correct positioning of cap and ring - triple-
ring wok and dual burner
Fig. 34 Incorrect and correct positioning of cap and
ring - triple-ring wok and dual burner
Cleaning the inside of your oven
If using the Self Clean function remove all shelves and side racks first. See ‘Using the Self
Clean function’.
• Do not use abrasive cleaners, cloths or pads to clean the enamel.

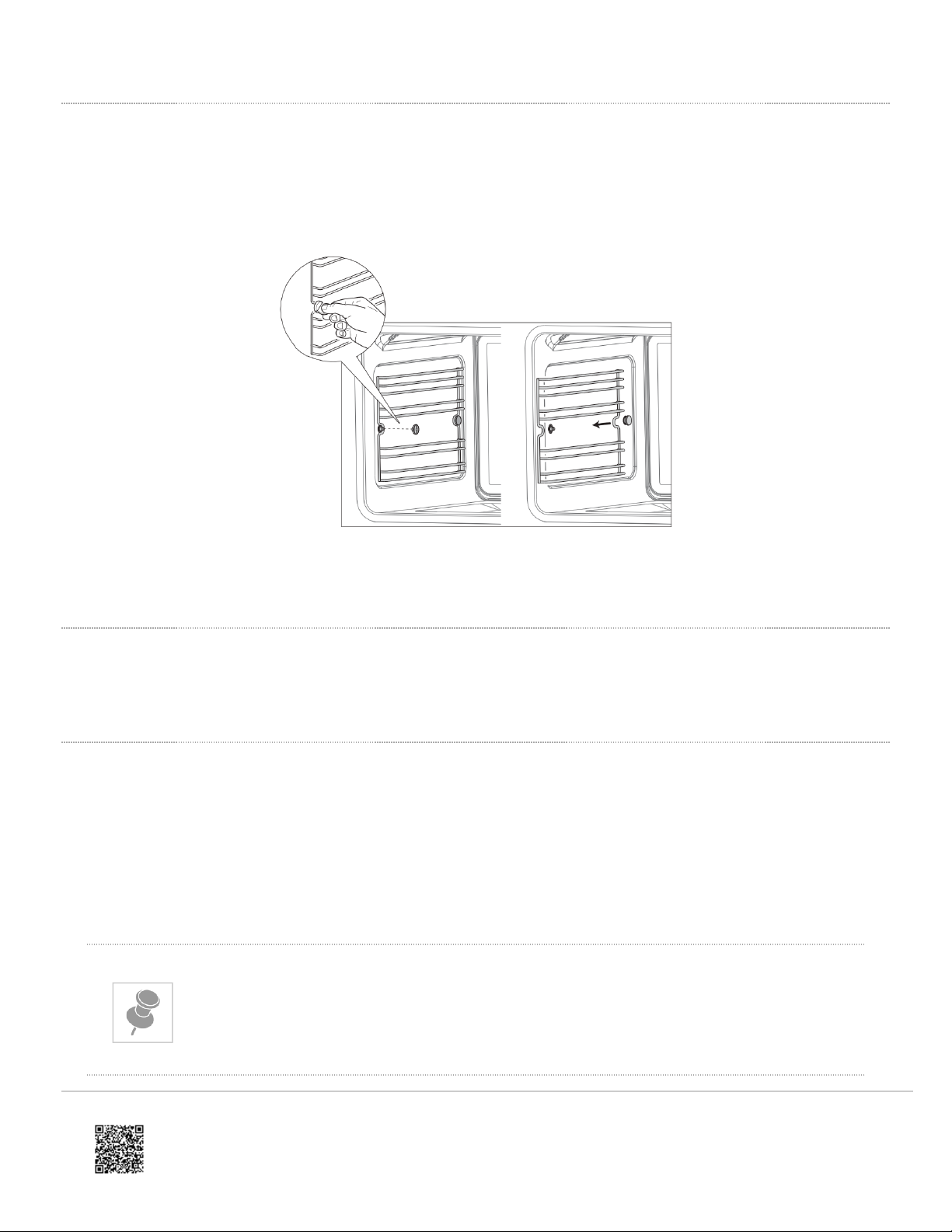

Removing the side racks
1. Using a small coin or a flat-head screwdriver, loosen and remove the front fixing screw.
2. Slide the side rack clear of the rear lock stud and remove.
https://producthelp.fisherpaykel.com/nz/Cook/Freestanding_Cookers/Dual_Fuel/OR90SDBGFPX1/User_Guide_OR90SDBGF…
Updated: Thu, 06 Jan 2022 15:57:26 GMT
Powered by
5

Refitting the side racks
3. Slide the side rack gently so it engages with the rear lock stud. Make sure that they are the right way up, as in
the illustrations, and then insert and tighten the front fixing screw.
4. If not already fitted, fit the telescopic sliding shelf supports. See “Care and cleaning’ for instructions.
Fig. 35 Removing the side racks
Cleaning the enamel cavity
Clean the enamel on the inside of the oven when it has cooled down, using household detergents. You may use
‘off the shelf’ oven cleaners, if you carefully follow the manufacturers’ instructions.
Cleaning the grill tray and shelves
Clean these in hot, soapy water.
After cleaning slide in the shelves, making sure that:
▪ they are between the two wires of a shelf position;
▪ the stop notches point down;
▪ the guard rail is at the back.
The grill tray should be positioned between the two wires of a shelf position and orientated
as shown.
https://producthelp.fisherpaykel.com/nz/Cook/Freestanding_Cookers/Dual_Fuel/OR90SDBGFPX1/User_Guide_OR90SDBGF…
Updated: Thu, 06 Jan 2022 15:57:26 GMT
Powered by
6

Fig. 36 Oven shelves and grill tray
Fitting and removing the sliding shelf supports
When fitting the sliding shelf supports, make sure that you fit:
▪ the side racks
▪ the slides to the top wire of a shelf position
▪ both sides of each pair of slides
▪ both slides on the same level.
Remove the side racks first to make removing the sliding shelf supports easier.
https://producthelp.fisherpaykel.com/nz/Cook/Freestanding_Cookers/Dual_Fuel/OR90SDBGFPX1/User_Guide_OR90SDBGF…
Updated: Thu, 06 Jan 2022 15:57:26 GMT
Powered by
7

Fig. 37a Fitting the sliding shelf supports
Fig. 37b Removing the sliding shelf supports
Storage Drawer
• The drawer opens like a normal drawer. The drawer slides prevent the drawer from sliding out.
To remove the drawer
1. Open the drawer fully.
2. Press the lever on the left guide rail down and the right guide rail up.
3. Holding the levers, disengage and remove the drawer. Do not use excessive force or you may damage the
drawer slides.
https://producthelp.fisherpaykel.com/nz/Cook/Freestanding_Cookers/Dual_Fuel/OR90SDBGFPX1/User_Guide_OR90SDBGF…
Updated: Thu, 06 Jan 2022 15:57:26 GMT
Powered by
8

Fig. 38 Removing the drawer
Replace the drawer
1. Insert the drawer rails into the guide rails.
2. Gently push the drawer in completely, the catches will automatically hook.
Fig. 39 Replacing the drawer
Replacing the oven light bulbs
The oven light bulbs (12V/20 W halogen) have a very long life, but if you should need to replace one, use only a
replacement bulb purchased from your nearest Fisher & Paykel dealer and follow these steps.
Oven bulb replacement is not covered by your warranty..
https://producthelp.fisherpaykel.com/nz/Cook/Freestanding_Cookers/Dual_Fuel/OR90SDBGFPX1/User_Guide_OR90SDBGF…
Updated: Thu, 06 Jan 2022 15:57:26 GMT
Powered by
9

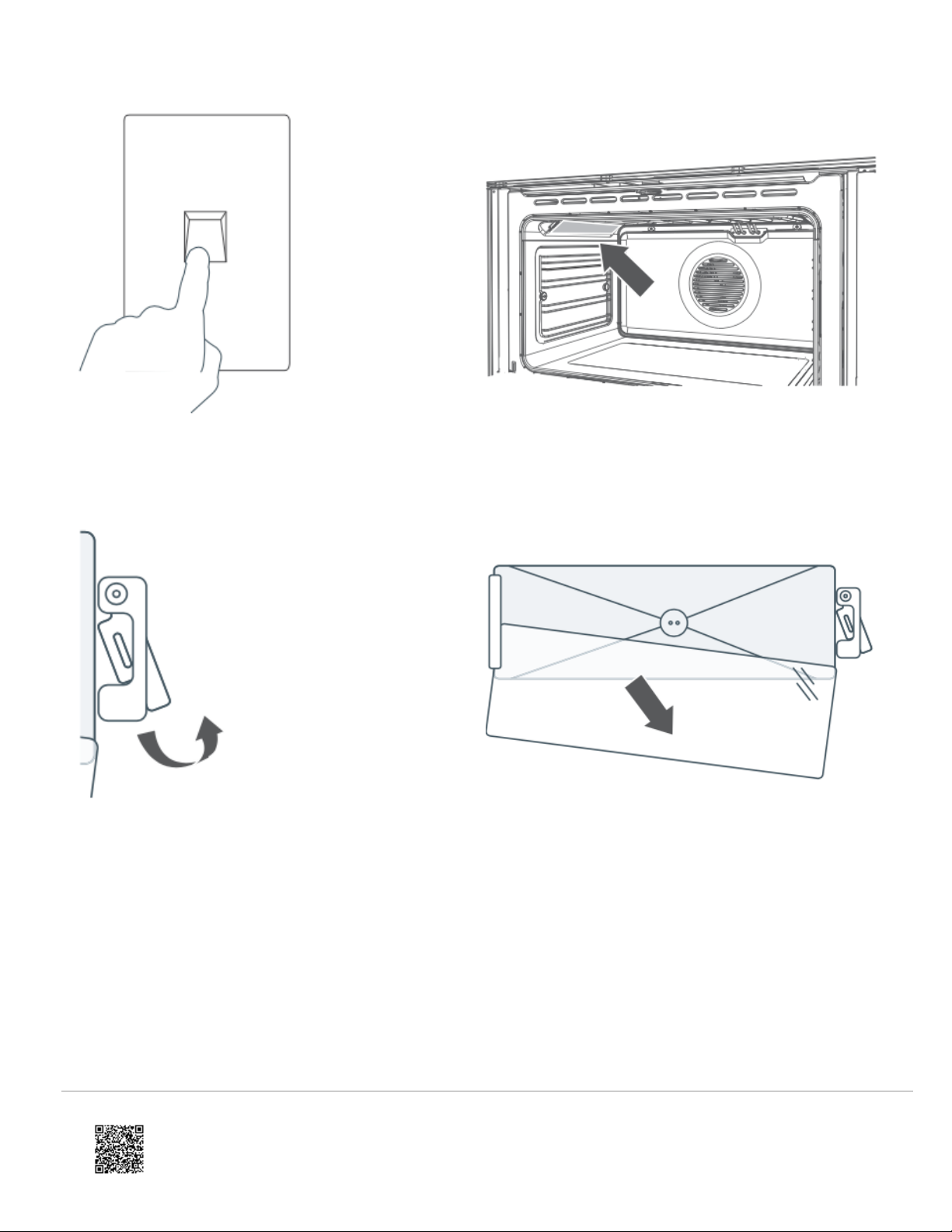

1. Allow the oven to cool down, then turn it off at the
mains power supply (wall switch).
2. Remove any oven shelves that may get in the way.
3. Using a flat-head screwdriver, twist and lift the retainer
clip upwards to release the glass cover. Hold the glass
cover to prevent it falling.
4. Carefully lift the glass cover out of the retaining
bracket in the back and pull out the faulty bulb.
https://producthelp.fisherpaykel.com/nz/Cook/Freestanding_Cookers/Dual_Fuel/OR90SDBGFPX1/User_Guide_OR90SDBGF…
Updated: Thu, 06 Jan 2022 15:57:26 GMT
Powered by
10

5. Hold the replacement bulb in a soft cloth or tissue
(touching the bulb will reduce its life span) and insert it
into the socket.
6a. Reposition the glass cover and twist the retainer clip
back in place.
6b .Turn the oven back on at the mains power supply
(wall switch).
Removing and replacing the door glass panes for cleaning.
Make sure you follow the precautions and instructions below very carefully. Replacing the glass panes and the
door incorrectly may result in damage to the oven and may void your warranty.
Your oven door has 4 panes of glass. The inner and middle panes may be removed for cleaning.
https://producthelp.fisherpaykel.com/nz/Cook/Freestanding_Cookers/Dual_Fuel/OR90SDBGFPX1/User_Guide_OR90SDBGF…
Updated: Thu, 06 Jan 2022 15:57:26 GMT
Powered by
11

• Switch the oven off at the wall before removing the door.
• Take care, the oven door is heavy. If you have any doubts, do not attempt to remove the door.
Make sure the oven and all its parts have cooled down. Do not attempt to handle the parts of a
hot oven.
• Take extreme care when handling the glass panes. Avoid the edges of the glass bumping
against any surface. This may result in the glass shattering.
• Don’t use oven cleaners or any other harsh/abrasive cleaners, cloths, scouring pads, steel wool
or sharp metal scrapers to clean the glass surfaces. These scratch the glass and may damage
its special coating, which in turn could result in the glass cracking or shattering.
• If you notice any sign of damage on any of the glass panes (such as chipping or cracks), do not
use the oven. Call your Authorised Repairer or Customer Care.
• Make sure you replace all the glass panes correctly. Do not use the oven without all glass panes
correctly in place.
• If the glass panes feel difficult to remove or replace, do not force them. Call your Authorised
Repairer or Customer Care for help.
Service visits providing assistance with using or maintaining the oven are not covered by
your warranty.

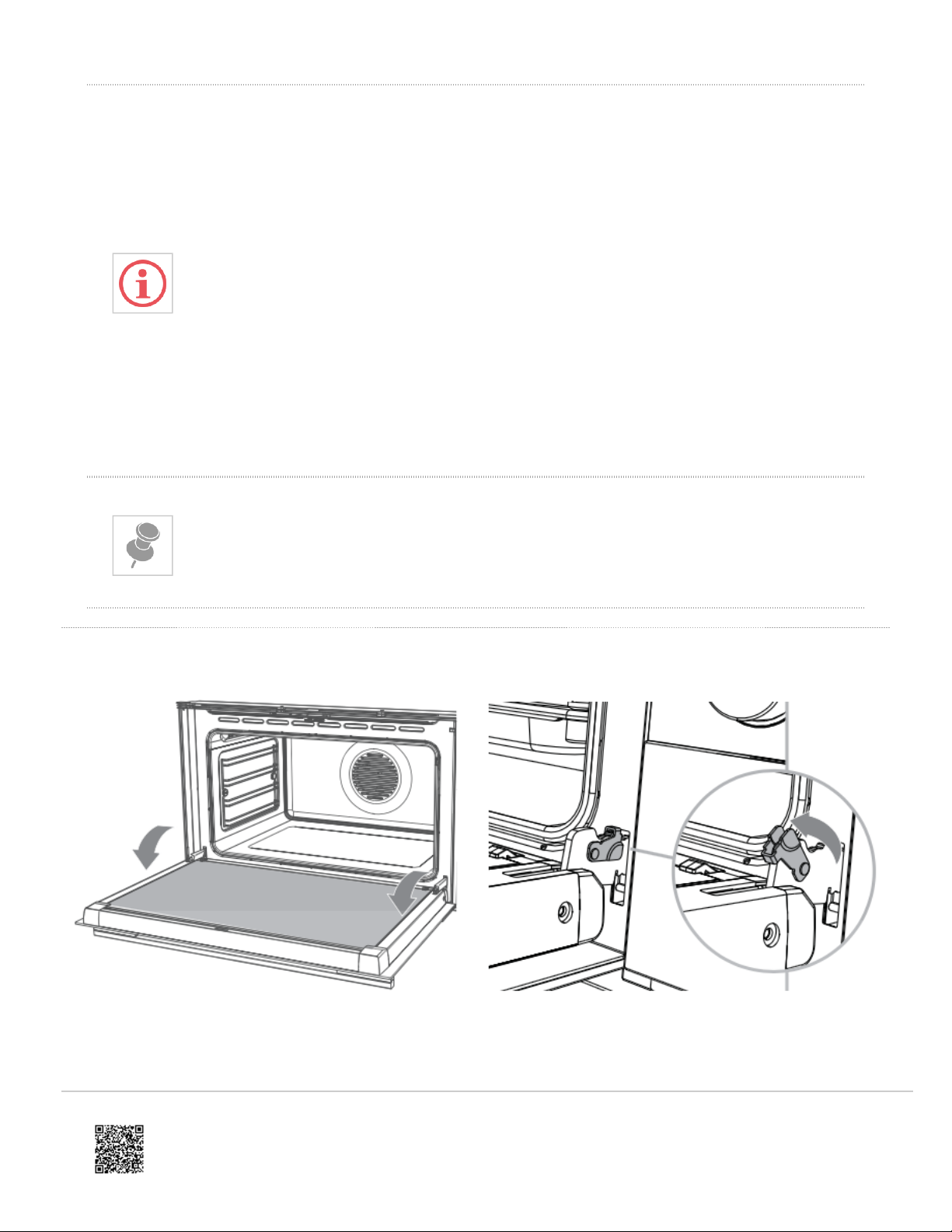

Removing the door
1a. Turn the oven off at the wall. Make sure you have
prepared enough space for resting the door and its glass
2. Open the levers on the left and right hinges to their full
extent, as shown.
https://producthelp.fisherpaykel.com/nz/Cook/Freestanding_Cookers/Dual_Fuel/OR90SDBGFPX1/User_Guide_OR90SDBGF…
Updated: Thu, 06 Jan 2022 15:57:26 GMT
Powered by
12

panes on a clean, flat surface.
1b. Open the door to its full extent.
3. Gently close the door until the left and right hinge
levers are hooked to the door.
4. Hold the door firmly, as shown.
5a. Lift the door and disengage the hinges.
5b. Rest the door on a soft surface. Ensure you lay it
with the handle side down.
https://producthelp.fisherpaykel.com/nz/Cook/Freestanding_Cookers/Dual_Fuel/OR90SDBGFPX1/User_Guide_OR90SDBGF…
Updated: Thu, 06 Jan 2022 15:57:26 GMT
Powered by
13

Remove the inner and middle glass panes
1. Press down on both tabs (1) to release the glass
retainer (2). 2. Lift the inner pane (D) slightly (1), then gently slide out
(2).
3. Slide the first middle pane (C) slightly towards yourself
(1), then lift (2) and slide out (3).
4. Slide the second middle pane (B) slightly towards
yourself (1), then lift (2) and slide out (3).
After cleaning, replace the glass panes
When replacing the glass panes, make sure that:
• you replace all three panes correctly, as shown. Each pane must be in the position described below in order to
fit into the door and to ensure that the oven operates safely and correctly.
• you take extra care not to bump the edges of the glass against any object or surface.
• you do not force any of the panes into place. If you are experiencing difficulties replacing the panes, remove
https://producthelp.fisherpaykel.com/nz/Cook/Freestanding_Cookers/Dual_Fuel/OR90SDBGFPX1/User_Guide_OR90SDBGF…
Updated: Thu, 06 Jan 2022 15:57:26 GMT
Powered by
14

them and start the process again from the beginning. If this still does not help, call Customer Care.
The two middle panes (B and C) are identical.

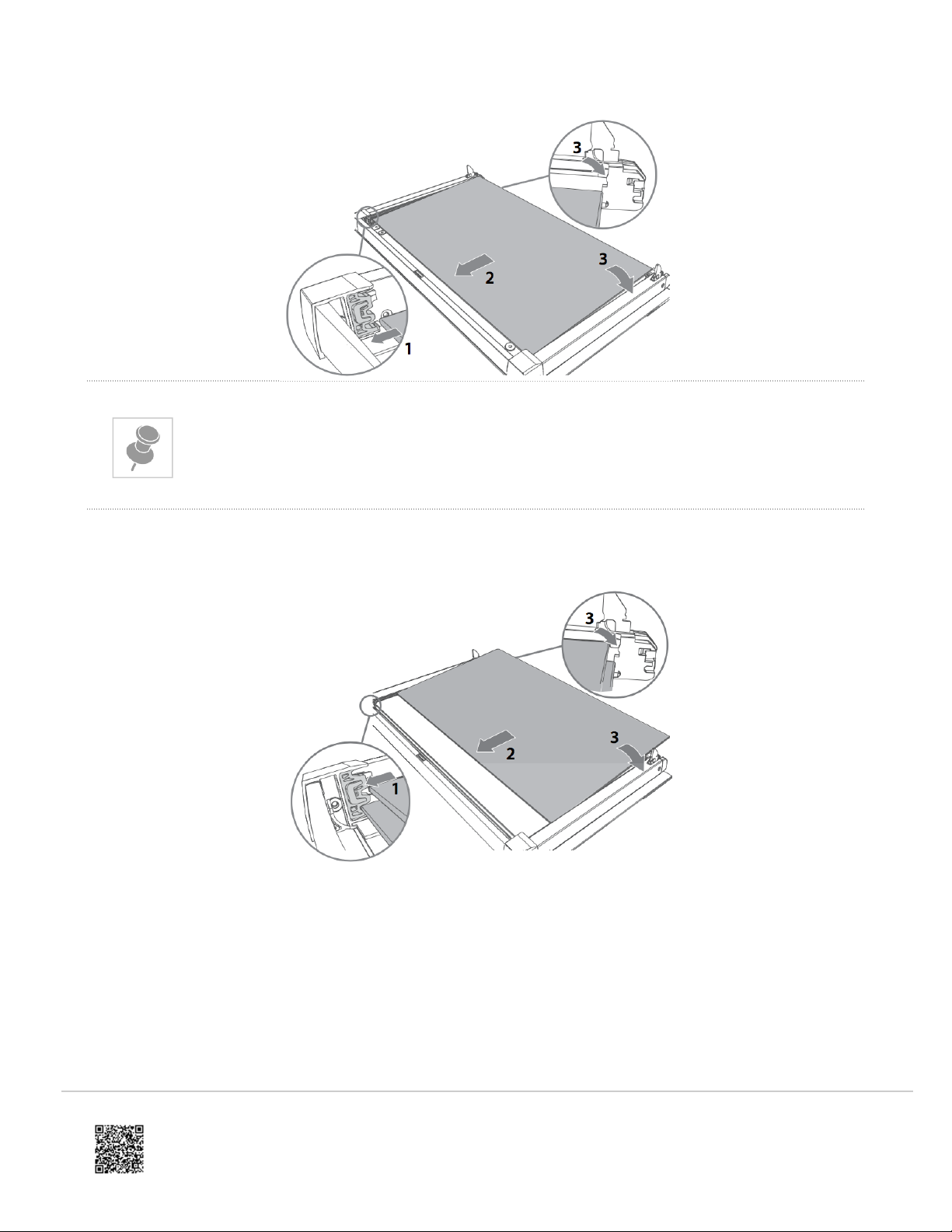

1. Take the middle pane (B) and hold it firmly. Insert it in the lowest pair of grooves (1), push it slightly towards
yourself (2) and gently lower into place (3).
2. Take the other middle pane (C) and hold it firmly. Insert it in the next pair of grooves (1), push it slightly towards
yourself (2) and gently lower into place (3).
https://producthelp.fisherpaykel.com/nz/Cook/Freestanding_Cookers/Dual_Fuel/OR90SDBGFPX1/User_Guide_OR90SDBGF…
Updated: Thu, 06 Jan 2022 15:57:26 GMT
Powered by
15

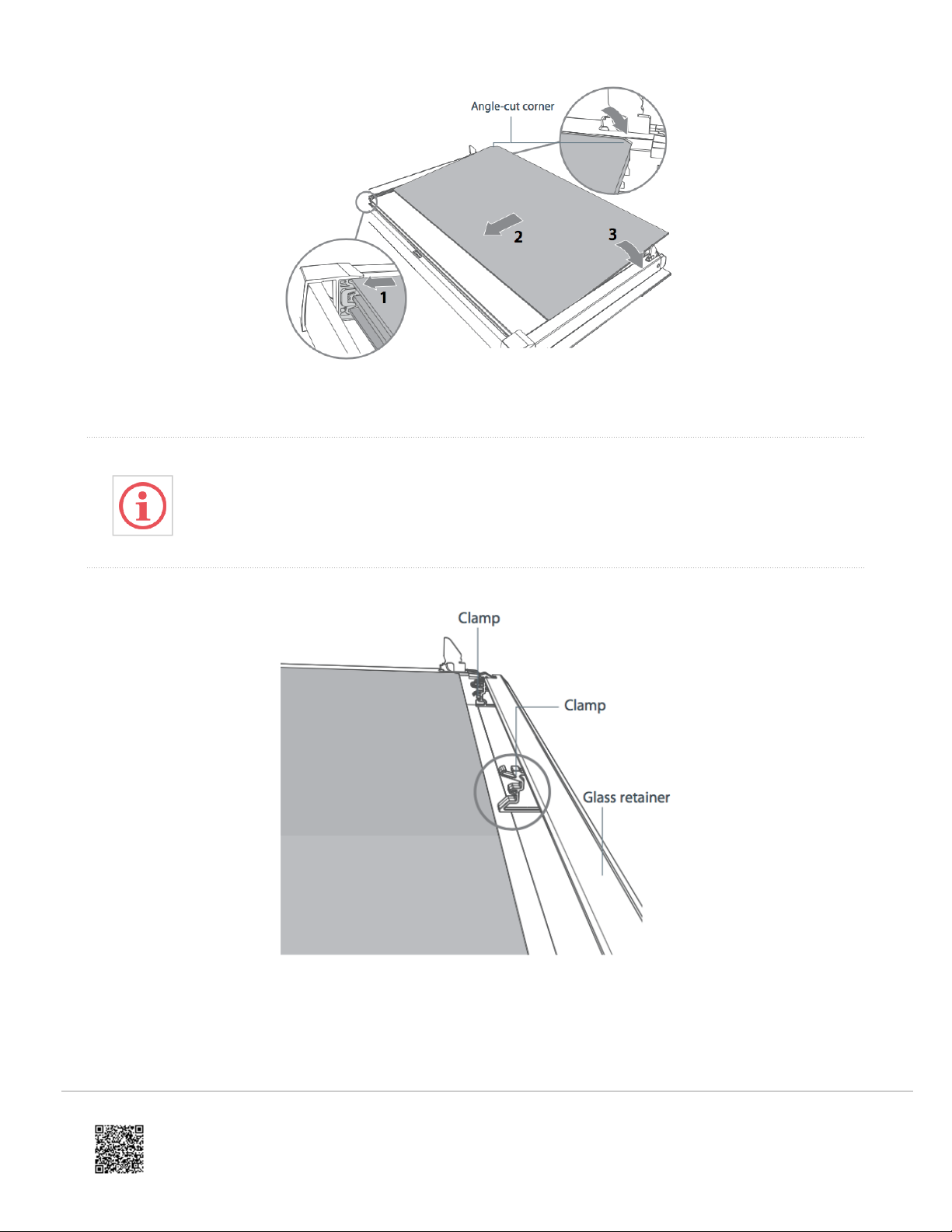

3. Take the inner pane (D), holding it with the angle-cut corner orientated as shown. Insert it in the uppermost pair of
grooves (1), push it slightly towards yourself (2) and gently lower into place (3).
Make sure that the angle-cut corner of the inner pane (D) is at the bottom of the oven door,
on the left-hand side. It has to be in this position for the door to function correctly.
4. Position the glass retainer, as shown. It should sit on the bottom edge of the outer glass (A). Check that the
clamps of the glass retainer are not deformed or damaged.
https://producthelp.fisherpaykel.com/nz/Cook/Freestanding_Cookers/Dual_Fuel/OR90SDBGFPX1/User_Guide_OR90SDBGF…
Updated: Thu, 06 Jan 2022 15:57:26 GMT
Powered by
16

5. Gently push the glass retainer back into place. You should be able to hear the tabs on both sides click as they lock
the glass retainer in.
Make sure the glass retainer is correctly and firmly in place and that the glass panes are
secure.
https://producthelp.fisherpaykel.com/nz/Cook/Freestanding_Cookers/Dual_Fuel/OR90SDBGFPX1/User_Guide_OR90SDBGF…
Updated: Thu, 06 Jan 2022 15:57:26 GMT
Powered by
17

Refit the door
1. Hold the door firmly.
2. Insert the hinge tongues into the slots, making sure
that the notches on both sides drop into place as shown.
3. Open the door to its full extent. 4a. Fully close the levers on the left and right hinges, as
shown.
https://producthelp.fisherpaykel.com/nz/Cook/Freestanding_Cookers/Dual_Fuel/OR90SDBGFPX1/User_Guide_OR90SDBGF…
Updated: Thu, 06 Jan 2022 15:57:26 GMT
Powered by
18

4b. Close the door, turn the power supply to the oven on
at the wall.

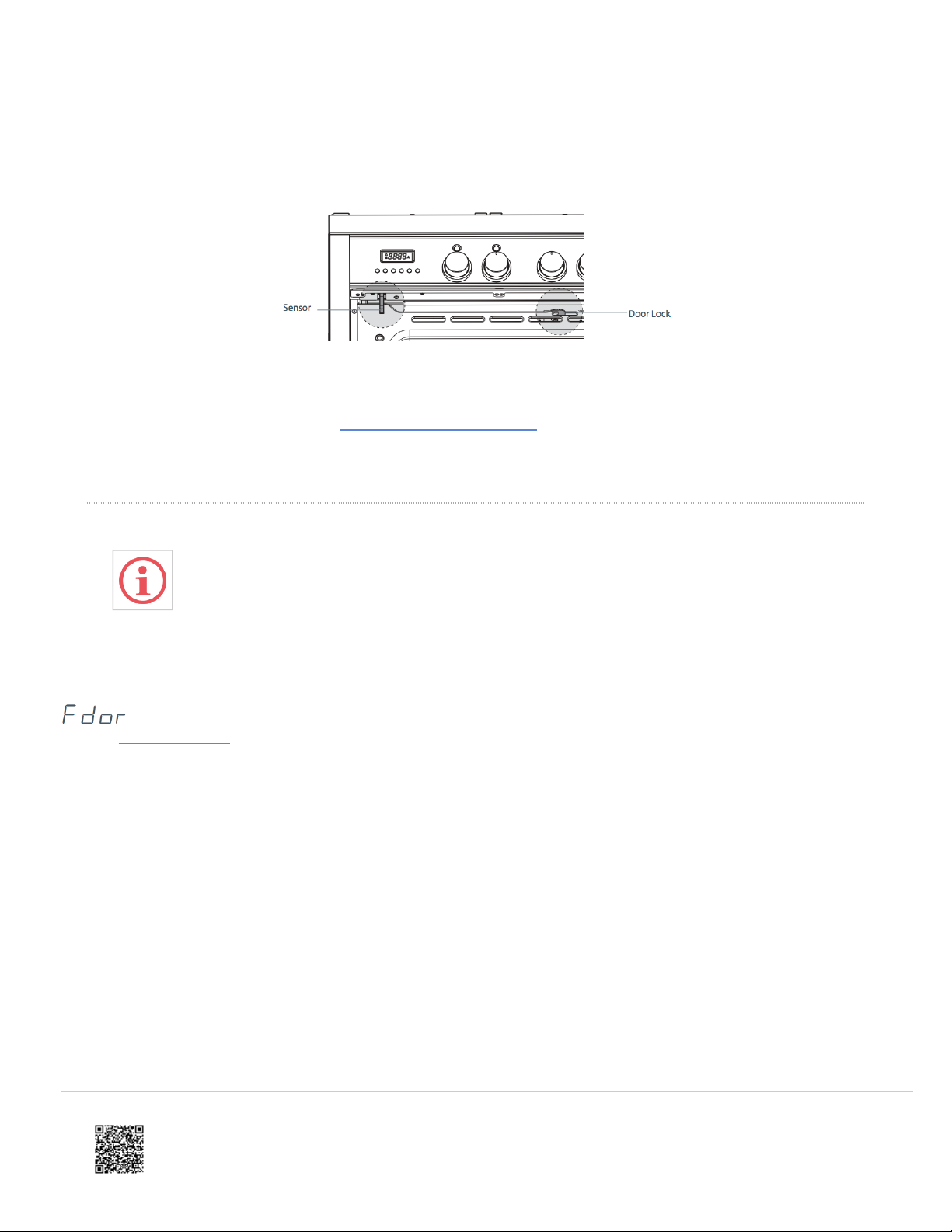

5. Check the door shuts completely and that the door lock (at top centre of door) is not obstructing the door.
6. Check the door sensor (top left) is correctly operating:
▪ start a ‘Self Clean’ cycle (see ‘Using the Self clean function’)
▪ wait five minutes - the door lock indicator light should turn on.
▪ after five minutes turn the function dial to O (Off ).
Do not continue with the Self Clean cycle if the side racks or shelves are in the oven.
If the door lock indicator light does not turn on, or the display shows
refer to ‘Troubleshooting’.
https://producthelp.fisherpaykel.com/nz/Cook/Freestanding_Cookers/Dual_Fuel/OR90SDBGFPX1/User_Guide_OR90SDBGF…
Updated: Thu, 06 Jan 2022 15:57:26 GMT
Powered by
19
