Fisher & Paykel CI302CTB1 User manual

Induction cooktop
CI302CTB1 , CI604CTB1, CI704CTB1,
CI804CTB1, CI904CTB1
models
NZ AU GB IE HK SG
INSTALLATION INSTRUCTIONS
591060B 02.16
www.fisherpaykel.com

1
IMPORTANT!
SAVE THESE INSTRUCTIONS
The models shown in this installation guide may not be available in all markets and are subject to change at any time. For current details about model and specification availability in your country, please go to our
website www.fisherpaykel.com or contact your local Fisher & Paykel dealer.
1SAFETY AND WARNINGS
WARNING!
Electrical shock hazard
Disconnect the appliance from
the mains electricity supply
before carrying out any work or
maintenance on it.
Connection to a good earth wiring
system is essential and mandatory.
Alterations to the domestic wiring
system must only be made by a
qualified electrician.
Failure to follow this advice may
result in electrical shock or death.
WARNING!
Cut Hazard
Take care - panel edges are sharp.
Failure to use caution could result
in injury or cuts.
IMPORTANT SAFETY INSTRUCTIONS
 Particular attention shall be given to
the relevant requirements regarding
ventilation.
 Read these instructions carefully before
installing this product.
 Please make this information available
to the person installing the appliance as
it could reduce your installation costs.
 This appliance is to be installed and
serviced only by an authorised person.
 Installation must comply with your
local building and local electricity
regulations.
 The manufacturer accepts no
responsibility for the incorrect
installation of appliances. Incorrect
installation may result in personal injury,
damage to property and may invalidate
any warranty or liability claims.
 Do not modify this appliance.
 Do not use or store flammable materials
on or near this appliance.
 Packing elements (eg plastic bags,
polystyrene foam, staples, packing
straps etc) and tools should not be left
around during and after installation,
especially if they are within easy reach
of children, as these may cause serious
injuries.
!
!

2
1SAFETY AND WARNINGS
IMPORTANT SAFETY INSTRUCTIONS
Before you install the appliance, please make sure that
 a suitable disconnection switch is
incorporated in the permanent wiring,
mounted and positioned to comply with
the local wiring rules and regulations.
A means of disconnection with at least
a 3 mm air gap contact separation in
all poles must be incorporated into the
fixed wiring in accordance with the
wiring rules, unless the local wiring rules
allow for alternative means.
 the benchtop is made of a heat resistant
material.
 the power supply cable is not accessible
through cupboard doors or drawers.
 there is adequate flow of cool air from
the cabinetry to the base of the cooktop.
You may ventilate from adjacent
cupboards, but ensure that the available
air supply will not be restricted.
 the ventilation area must be at least two
50mm diameter holes or of an equivalent
area.
 the isolating switch is easily accessible
by the customer.
 you use heat-resistant and easy-to-clean
finishes (such as ceramic tiles) for the
wall surfaces surrounding the cooktop.
 the cooktop will not be installed directly
above a dishwasher, fridge, freezer,
washing machine or clothes dryer, as
the humidity may damage the cooktop
electronics.
IMPORTANT SAFETY INSTRUCTIONS
 if the cooktop is installed above an oven,
the oven has a built-in cooling fan.
 the installation will comply with all
clearance requirements and applicable
standards and regulations.
 you consult local building authorities and
by-laws if in doubt regarding installation.
When you install the appliance
 We do not recommend you flush mount
or seal this appliance into the bench
with silicone or glue. Doing so will make
future servicing difficult. Fisher & Paykel
will not be liable for any costs associated
with removing or replacing a sealed-in
appliance, nor for repairing any damage
that may be incurred by doing this.
 Seal exposed bare edges of the cutout
with an oil-based paint or moisture-
proof polyurethane to prevent possible
moisture creeping between the cooktop
trim and the benchtop.
 Take extreme care not to chip, crack,
or break the top glass surfaces during
installation. A heavy metal tool or part
accidentally dropped on the glass could
damage it.
 If, after following the instructions given,
correct performance cannot be achieved,
please contact your nearest Fisher
& Paykel Authorised Service Centre,
Customer Care, or contact us through
our local website listed at the end of this
document.

3
2PARTS SUPPLIED
Clamping brackets (4)
and screws (4)
CI302CTB only
Clamping brackets (2)
and screws (2)
Installing multiple products
 Note: We recommend installing products in separate cutouts with a minimum distance of 5 mm between the glass edges.
 If installing multiple products adjacent to each other within the same cutout, a separate joining strip kit is required for installation.
 The kit is available from the nearest Fisher & Paykel Authorised Service Centre or our website www.fisherpaykel.com.
 If installing different products adjacent to each other (eg a wok burner next to an induction cooktop), the minimum clearance measurements for the different products may vary.
Always use the greater distance.
Foam tape (1)

4
J
K
L
B
C
fg H
* POWER CORD
e
d
A
II
3PRODUCT & CABINETRY DIMENSIONS
PLAN
FRONT
PLAN
FRONT PROFILE
CI302CTB CI604CTB CI704CTB CI804CTB CI904CTB
PRODUCT AND CABINETRY DIMENSIONS mm mm mm mm mm
AHeight of chassis (below top of benchtop) 54 56 56 56 56
BOverall width of product 300 600 700 800 900
COverall depth of product 530 530 530 530 530
DHeight from benchtop surface to top of cooktop surface 55555
EWidth of chassis 255 555 555 755 755
FDepth of chassis 497 485 485 485 485
GDistance from front of cooktop to front of chassis 16 23 23 23 23
HDistance from back of cooktop to back of chassis 16 23 23 23 23
IDistance from side of cooktop to side of chassis 23 23 73 23 73
JOverall width of cutout 260 560 560 760 760
KOverall depth of cutout 505 490 490 490 490
LCorner radius of cutout max. 10 max. 10 max. 10 max. 10 max. 10
* Note:
CI604CTB, CI704CTB1, CI804CTB, CI904CTB models
Electrical connection is made at the centre rear.
CI302CTB models
Electrical connection is made at the left rear.
Note cutout position is centred to the cooktop.

5
C
C
A
BD
E
C
C
A
BD
E
ISO
FRONT
CI302CTB CI604CTB CI704CTB CI804CTB CI904CTB
CLEARANCE DIMENSIONS mm mm mm mm mm
AMinimum clearance from rear edge of cutout to nearest combustible surface 30 30 30 30 30
BMinimum clearance from glass surface to rangehood 650 650 650 650 650
CMinimum clearance from side edges of cutout to nearest combustible surface 30 30 80 30 80
DMinimum clearance from benchtop to overhead cabinet not directly above the
cooktop 450 450 450 450 450
EMinimum clearance below top of benchtop to:
Rear top of oven* installed below cooktop or cabinetry 72 72 72 72 72
* The oven installed below the cooktop MUST have a cooling fan.
4CLEARANCE DIMENSIONS
Note cutout position is centred to the cooktop.
min. 75 mm
Alternatively
2x 50mm holes
in side wall
to allow adequate
cool air
min. 4 mm
min. 4 mm
Drawer or other obstruction
Oven with cooling fan
Ventilation gap
must be present
20 mm
Alternatively
2x 50mm holes
in side wall
to allow adequate
cool air
E
WARNING!
This cooktop requires
adequate supply of cool air
to fully function.
The base of the cooktop
must have direct
unrestricted ventilation to
the room where the
cooktop is installed. Follow
the requirements shown.
!

6
LX
B
C
fg H
* POWER CORD
e
d
A
II
G
K
L
G
H
H

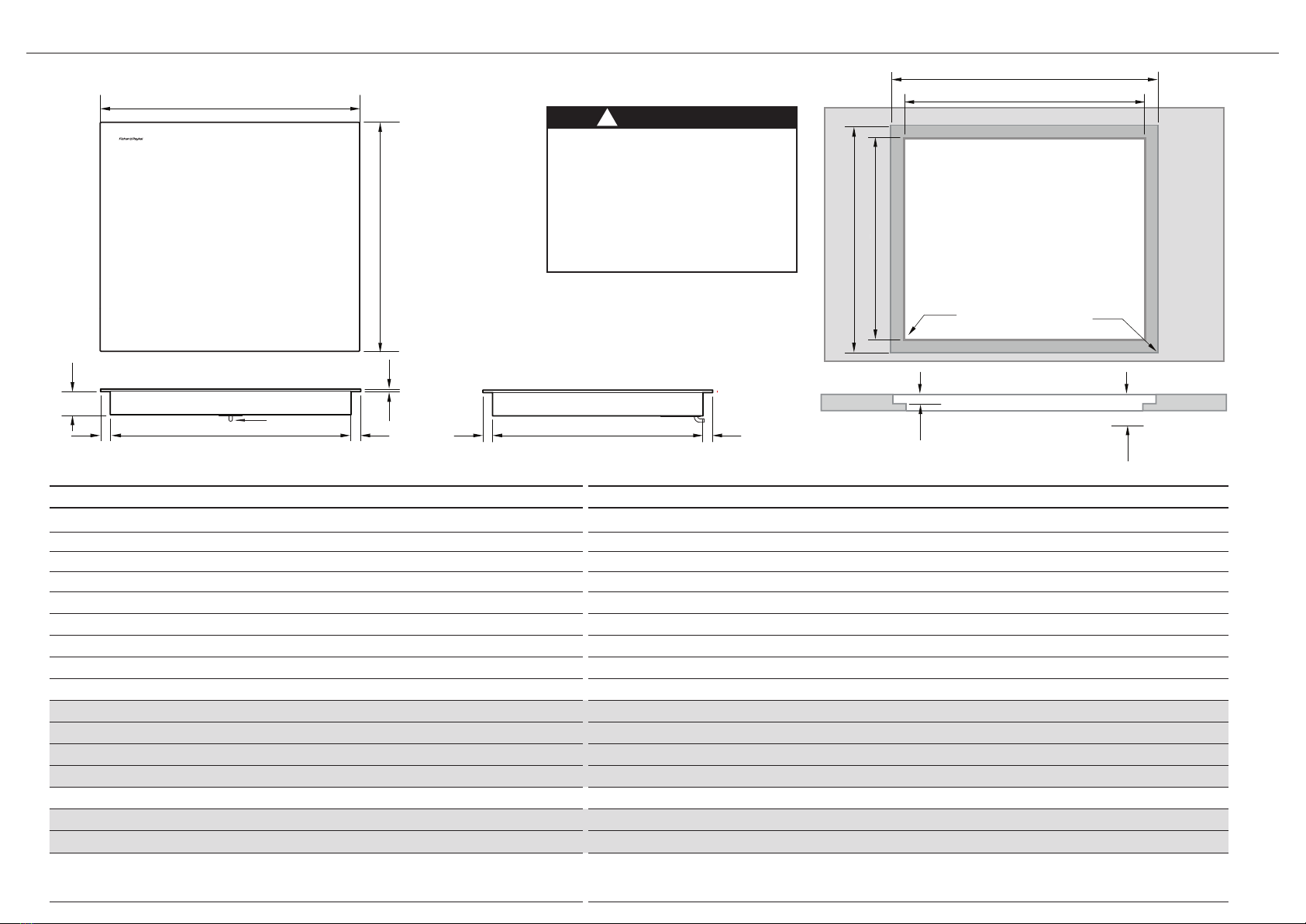

5FLUSH MOUNTING INSTALLATION (NOT RECOMMENDED)
WARNING!
We do not recommend flush mounting and
sealing as servicing requires the cooktop to
be removed from the benchtop. The owner
carries all risk for flush mounting the cooktop.
The owner must ensure the cooktop has been
cut out from the benchtop before servicing
can be carried out. Fisher & Paykel will not be
liable for any costs associated with removing
or replacing a flush-mounted and/or sealed-in
product, nor for repairing any damage that
may be incurred by doing this.
!
PLAN
FRONT
PLAN
FRONT PROFILE
CI302CTB CI604CTB CI704CTB CI804CTB CI904CTB
PRODUCT AND CABINETRY DIMENSIONS mm mm mm mm mm
AHeight of chassis (below top of benchtop) 54 56 56 56 56
BOverall width of product 300 600 700 800 900
COverall depth of product 530 530 530 530 530
DHeight from benchtop surface to top of cooktop surface 55555
EWidth of chassis 255 555 555 755 755
FDepth of chassis 497 485 485 485 485
GDistance from front of cooktop to front of chassis 16 23 23 23 23
HDistance from back of cooktop to back of chassis 16 23 23 23 23
IDistance from side of cooktop to side of chassis 23 23 73 23 73
JOverall width of routered recess 305 605 605 755 905
GIWidth of cutout 260 560 560 760 760
HOverall depth of routered recess 535 535 535 535 535
HIDepth of cutout 505 490 490 490 490
LCorner radius of cutout max. 10 max. 10 max. 10 max. 10 max. 10
JCorner radius of routered recess max. 2 max. 2 max. 2 max. 2 max. 2
KHeight of routered recess 55555
L
Minimum clearance below top of benchtop to:
rear top of oven* installed below cooktop or cabinetry
thermal protection barrier
77
77
77
77
77
77
77
77
77
77
Note cutout position is centred to the cooktop.

7
5FLUSH MOUNTING INSTALLATION (NOT RECOMMENDED)
1
2
2
1
3
5 mm
min. 150 OC rated
TO REMOVE PRODUCT
x 4
16 - 50mm
1
2
2
1
3
5 mm
min. 150 OC rated
TO REMOVE PRODUCT
x 4
16 - 50mm
1
2
2
1
3
5 mm
min. 150 OC rated
TO REMOVE PRODUCT
x 4
16 - 50mm
1
2
2
1
3
5 mm
min. 150 OC rated
TO REMOVE PRODUCT
x 4
16 - 50mm
1
2
2
1
3
5 mm
min. 150 OC rated
TO REMOVE PRODUCT
x 4
16 - 50mm
Ensure silicone does not leak underneath glass.
12-40mm 40mm +
12-40mm 40mm +
view from below
No. of brackets and slot positions depends on model
Fit a minimum of 2 brackets on opposing sides
AROUTER THE BENCHTOP TO THE SPECIFIED DEPTH
DAPPLY SILICONE
BFIT THE CLAMPING BRACKETS
EWIPE OFF EXCESS SILICONE
CMASK OFF THE AREA TO BE SILICONED
FIF REMOVING PRODUCT, CUT
AROUND THE SILICONE
Note cutout position is centred to the cooktop.

8
6DISCARD PACKAGING
8APPLY ADHESIVE FOAM TAPE AROUND GLASS EDGE
7PLACE COOKTOP UPSIDE DOWN
9LOWER GENTLY INTO THE CUTOUT
Recycle responsibly
IMPORTANT! - To avoid damage to the glass, ensure there is a protective cover underneath it.
IMPORTANT!
Beware sharp edges
1Apply the foam seal around the glass
overhang, 5 mm in from the edge
of the glass, with the adhesive side
facing down to form a continuous
seal around the cooktop.
2Using a sharp cutter or trimmer
knife, trim the excess sealing
material around the edge of the
cooktop. Take care not to damage
the benchtop.
Foam Tape
Adhesive side
Ensure edge of tape
lines up with outer
edge of cooktop

9
!0 CONNECTING THE COOKTOP TO THE MAINS POWER SUPPLY
!1 FIT CLAMPING BRACKETS BASED ON THE
BENCHTOP THICKNESS !2 SECURE TO BENCHTOP
IMPORTANT!
 This cooktop must be connected to the mains power supply only by a suitably qualified
person.
 To connect the cooktop to the mains power supply, do not use adapters, reducers, or
branching devices, as they can cause overheating and fire.
 The power supply cable must not touch any hot parts and must be positioned so that its
temperature will not exceed 75 oC at any point.
Check with an electrician whether the domestic wiring system is suitable without alterations.
Any alterations must only be made by a qualified electrician.
Before connecting the cooktop to the mains power supply check that:
 The domestic wiring system is suitable for the power drawn by the cooktop.
 The voltage corresponds to the value given in the rating plate
 The power supply cable sections can withstand the load specified on the rating plate.
Power supply
CI302CTB 3700W@ 220-240V 1N ~ 16A*
CI604CTB 7400W @ 220-240V 1N - 32A
CI704CTB 7400W @ 220-240V 1N - 32A
CI804CTB 7400W @ 220-240V 1N ~ 32A
CI904CTB 7400W @ 220-240V 1N - 32A
*The CI302CTB comes supplied with a cable. This must be wired into a suitably rated plug,
permanent connection outlet or power isolator.
12-40mm 40mm +
12-40mm 40mm +
12-40mm 40mm +
view from below
Repeat on all the other brackets
PE
1
2
3
4
5
NL
Single-phase connection
220-240V~
Two-phase connection
380-415V 2N~
CI604CTB, CI704CTB, CI804CTB, CI904CTB
No. of brackets and slot positions depends on model
Fit a minimum of
2 brackets on opposing sides
Secure on at least 2
opposing sides
E
Brown
(Live)
L
N
Ensure cable
clamp is tightened
with screw
(you may have
to remove the
screw rst
before tting
the clamp)
Unclip
and lift up
Blue
(Neutral)
Green
& Yellow
(Earth)

10
!1 FINAL CHECKLIST
TO BE COMPLETED BY THE INSTALLER
Complete and keep for safe reference:
Model
Serial No.
Purchase Date
Purchaser
Dealer Address
Installer’s Name
Installer’s Signature
Installation Company
Installation Date
Is the cooktop earthed?
Check that there is an adequate and constant flow of cool air from the cabinetry to the
base of the cooktop.
Check that the power supply cable is not accessible via cupboard doors or drawers and
that it is NOT touching the cooktop.
Is the cooktop clamped down securely?
Check that the pan detection feature is working correctly. Turn on each cooking zone
without putting any cookware on them. Are all the displays flashing?
Check that all the cooking zones function correctly. Place suitable pans with water in
them on each zone, then turn all of them on to a high setting. Is the water heating?
Are all touch controls and displays functioning?
To check that the ‘hot surface’ indicators function correctly, turn off all the zones.
Is Hdisplayed in all the cooking zone displays?
Have you demonstrated the basic operation to the customer?
Make sure you explain to the customer about
1the importance of taking note of the safety warnings at the beginning of the user
guide, especially for persons with pacemakers or other electrical implants.
2the ‘hot surface’ indicators.
3using induction suitable cookware only.
4the pan detection feature.

11

591060 B 02.16
www.fisherpaykel.com
Copyright © Fisher & Paykel Appliances. 2015. All rights reserved.
The product specifications in this booklet apply to the specific products
and models described at the date of issue. Under our policy of continuous
product improvement, these specifications may change at any time. You
should therefore check with your Dealer to ensure this booklet correctly
describes the product currently available.
NZ AU GB IE HK SG
