Fisher & Paykel OB60BCEX User manual

USER GUIDE
GB IE
BUILT-IN OVEN
Models
OB60BCEX
OB60B77CEX
OB60DDEX

1
Contents
Safety and warnings 2
Oven controls and setting the clock 6
First use 8
Using your oven 9
Oven functions 10
Baking charts 12
Using the electronic timer 16
Automatic cooking 17
Care and cleaning 18
Troubleshooting 28
Warranty and service 29
Important!
SAVE THESE INSTRUCTIONS
The models shown in this user guide may not be available in
all markets and are subject to change at any time. For current
details about model and specification availability in your
country, please visit our local website listed on the back cover
or contact your local Fisher & Paykel dealer.

2Safety and warnings
Your built-in oven has been carefully designed to operate safely during normal cooking
procedures. Please keep the following guidelines in mind when you are using your oven:
WARNING!
Hot Surface Hazard
Accessible parts may become hot when
this oven is in use.
To avoid burns and scalds, keep children
away.
Do not touch hot surfaces inside the
oven.
Use oven mitts or other protection
when handling hot surfaces such as
oven shelves or dishes.
Take care when opening the oven door.
Let hot air or steam escape before
removing or replacing food.
Failure to follow this advice could result
in burns and scalds.
WARNING!
Electrical Shock Hazard
Disconnect the oven from the
power supply before any cleaning or
maintenance.
Failure to do so may result in death or
electrical shock.

3
Safety and warnings
Important safety instructions
Isolating switch: make sure this oven is
connected to a circuit which incorporates an
isolating switch providing full disconnection
from the power supply.
Household appliances are not intended to be
played with by children.
This appliance can be used by children aged
from 8 years and above and persons with
reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they
have been given supervision or instruction
concerning use of the appliance in a safe way
and understand the hazards involved. Children
shall not play with the appliance. Cleaning and
user maintenance shall not be made by children
without supervision.
Safe food handling: leave food in the oven for
as short a time as possible before and after
cooking. This is to avoid contamination by
organisms which may cause food poisoning.
Take particular care during warmer weather.
Do not place aluminium foil, dishes, trays, water
or ice on the oven floor during cooking as this
will irreversibly damage the enamel.
Do not stand on the door, or place heavy objects
on it.
Do not use harsh abrasive cleaners or sharp
metal scrapers to clean the oven door glass since
they scratch the surface, which may result in
shattering of the glass.

4Safety and warnings
Important safety instructions
Do not use a steam cleaner to clean any part of
the oven.
Caution. Hot air can blow from under the control
panel as part of the oven’s cooling system.
Do not keep flammable substances in the oven.
Do not operate your appliance by means of
an external timer or separate remote-control
system.
If the power supply cable is damaged, it must be
replaced by the manufacturer, its service agent
or similarly qualified person in order to avoid a
hazard.
Under unfavourable electrical supply conditions,
the appliance may cause temporary voltage
drops.

5

6Oven controls and setting the clock
Fig. 1 Control panel- Double models with seven-function full oven and two-function compact oven
23
14 5
678
Fig. 2 Control panel- Double models with two seven-function ovens (full or compact upper oven)
23
14 5
678
1 Control buttons
2 Upper oven function knob
3 Upper oven temperature knob
4 Lower oven function knob
5 Lower oven temperature knob
6 Lower oven temperature indicator light
7 Upper oven temperature indicator light
8 Clock display

7

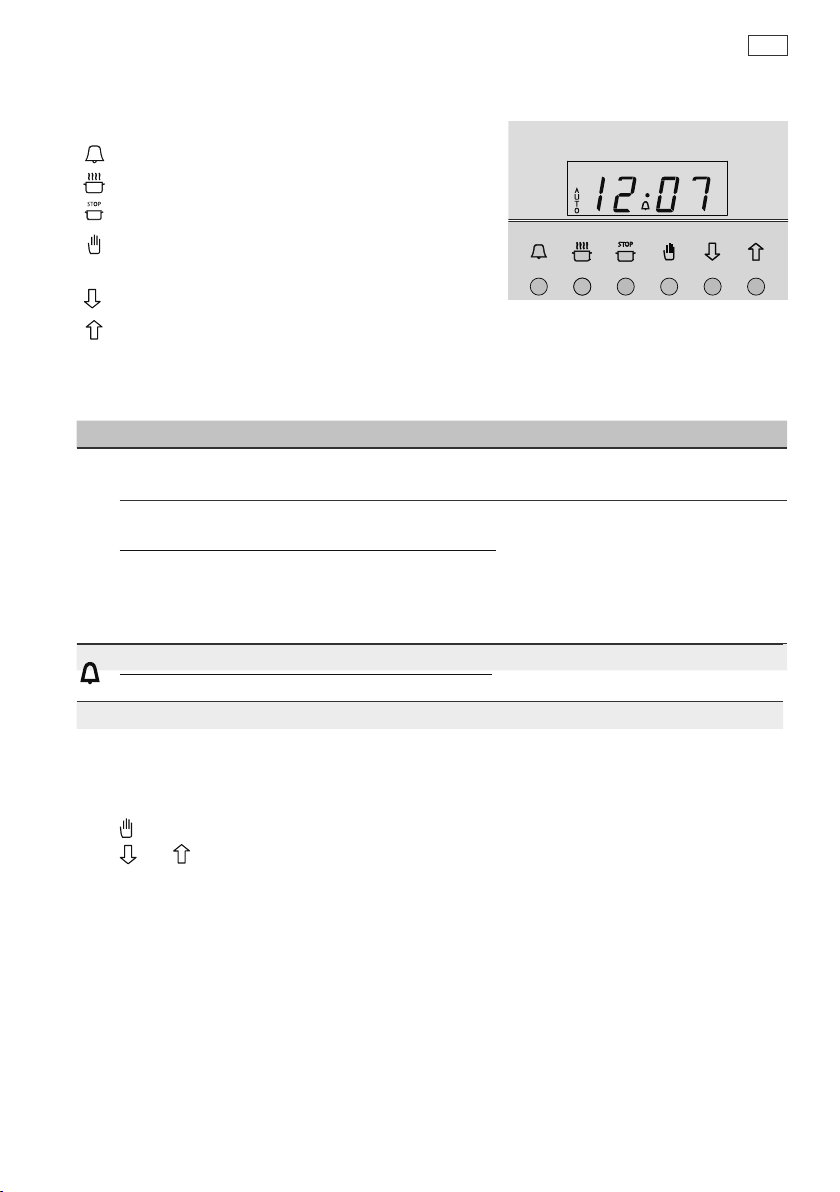

Buttons
sets the timer
sets the cooking time for automatic cooking
sets the stop time for automatic cooking
sets the clock, returns oven to manual mode,
cancels automatic cooking
decreases time and beep volume
increases time
Illuminated symbols
To set the clock
When the power to the oven is turned on or restored after a power failure, 0.00 and AUTO will
flash in the display.
1 Press .
2 Press and until you have the correct time of day.
Oven controls and setting the clock
Fig. 3 Clock display and
control buttons
If the display shows It means that... For more information
A
U
T
O
flashing with
0.00 The clock needs to be set. See instructions below.
steadily lit The oven is set for automatic
cooking.
See section ‘Automatic cooking’
flashing and
beeping
Automatic cooking has finished
or has been set incorrectly (the
stop time is before the time of
day).
steadily lit The timer is set. See section ‘Using the electronic timer’
flashing and beeping The set time is up.

8First use
Important!
Not all models have all of the features and accessories listed above. For information on accessories, contact
Customer Care.
Before using your new oven for cooking or baking, please:
1 Read this user guide, taking special note of the ‘Safety and warnings’ section.
2 Remove all accessories and packaging. Make sure you peel any protetctive film off the surfaces.
Discard the film immediately, keeping it out of reach of children.
3 If your model has side catalytic panels and sliding shelf supports, check that these are fitted. If
they aren’t, see ‘Care and cleaning’ for instructions.
4Set the clock. The oven will not work until this has been done. See ‘Oven controls and setting
the clock’ for instructions.
5
Slide in the shelf/shelves and grill tray as shown in ‘Using your oven’.
6 Condition the oven. Heat it on maximum temperature for the times below:
60 minutes using Bake
30 minutes using Fan Forced
15 minutes using Grill
Note: some of these functions may not be available in some models.
There will be a distintcive smell during the conditioning. This is normal, but make sure your
kitchen is well ventilated.
7 Once cooled, wipe out the oven with a damp cloth and mild detergent, and dry thoroughly.
Fig. 4 Oven parts
(ovens vary – drawing for purposes of illustration only)
1 Control panel
2 Knobs
3 Side rack
4 Grill tray
5 Oven door and handle
6 Step-down oven shelf
7 Flat oven shelf
8 Side catalytic panel
9 Rubber seal
Not illustrated:
Sliding shelf supports
Fat filter
Grill rack
Baking tray
2
2
6
9
7
3
4
8
5
1

9
1 Slide in the shelves you will need, making sure that:
they are between the two wires of a shelf position or
on the sliding shelf supports
the stop notches point down
the guard rail is at the back.
Note: the grill tray should be positioned between the two
wires of a shelf position or on the sliding shelf supports.
2 Select a function.
The oven light(s) will come on.
3 Set the temperature.
The temperature indicator light will come on.
It will go out when the oven has reached the set
temperature.
During cooking
The temperature indicator light may come on and go out
again as the oven maintains the temperature.
A cooling fan may automatically come on at different times
and blow out warm air below the control panel. It may continue
to run even after the oven has been turned off. This is normal.
Set the temperature back to off (0) before changing functions.
When you have finished cooking
Turn both the function and temperature knobs to the off (0) position.
Using your oven

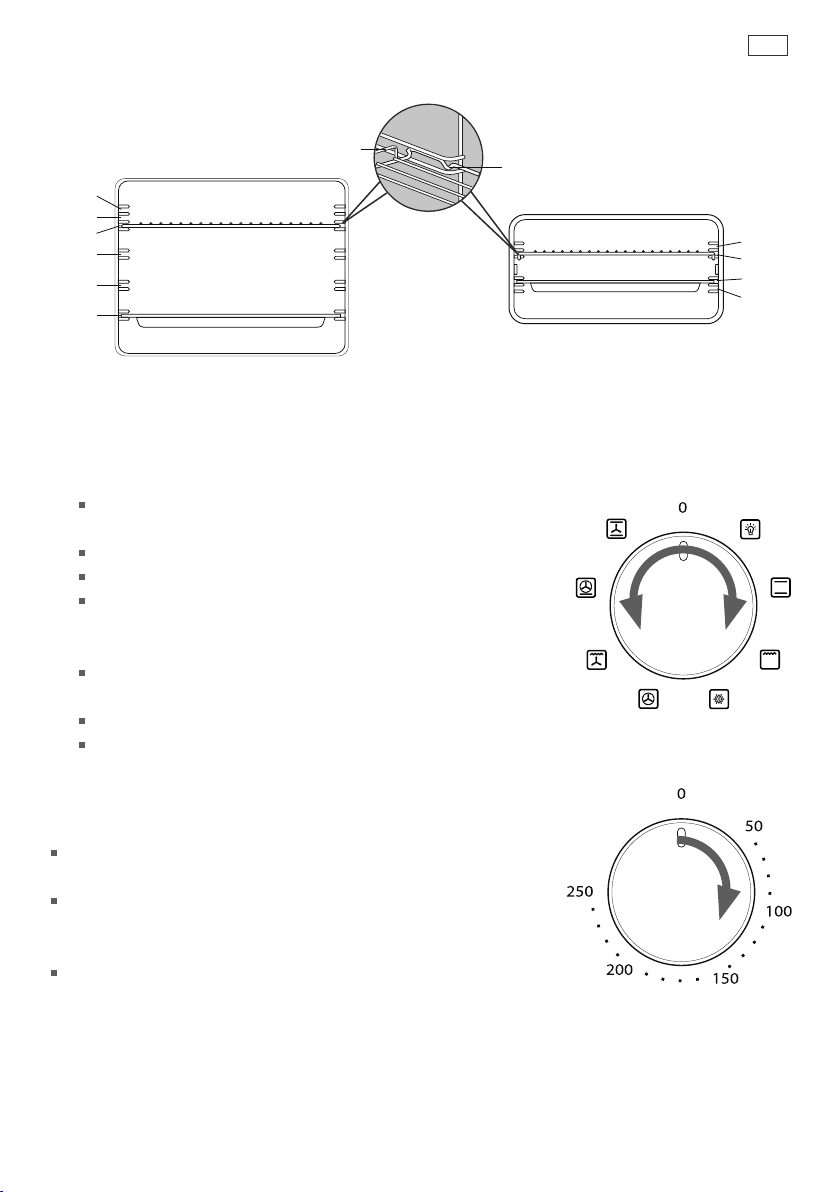

Fig. 6 Turning the function knob
(functions and knobs may vary)
Fig. 7 Turning the temperature knob
(knobs may vary)
Fig. 5 Positioning the shelves and
grill tray – full and compact ovens
Shelf positions Guard rail
Stop notch
Shelf positions
4
3
4
5
6
2
1
2
1
3

10 Oven functions
Oven functions may vary depending on your model
OVEN LAMP
Only the oven light comes on. It remains on in all the cooking functions.
BAKE
This is the traditional method of baking. It is best to bake on only one shelf at a time in this
function. Ideal for large cakes and dishes that bake for several hours.
GRILL
Use with the oven door closed and the temperature set no higher than 225°C. For best results,
use the topmost shelf position when you want quick browning (eg toast).
DEFROST
Only the oven fan comes on. Use with the temperature set to off (0). The fan circulates air
around the oven, speeding up the defrosting process by approximately 30%. Note: this function
is not for cooking food.
FAN FORCED
Great for multi-shelf cooking. The consistent temperature ensures baking is well risen. Cookies
are crisp on the outside and chewy in the middle, meat and poultry are deliciously browned and
sizzling while remaining juicy and tender.
FAN GRILL
Use with the oven door closed and the temperature set no higher than 220°C. Ideal for roasting
tender cuts of meat and poultry. Use lower shelf positions for larger items eg a whole chicken.
OR WARM
Use this function to keep cooked food hot and to warm plates and serving dishes. To reheat food
from cold, set the temperature to 150°C and reduce it to 70-100°C only when the food is piping
hot. Note: this function is not for cooking and the temperature cannot be set higher than 150°C.
FAN BAKE (upper oven only)
Ideal for dishes like lasagne that need to brown on top and also single trays of small cakes or
biscuits that bake in less than an hour.
FAN BAKE (ENERGY SAVING — lower oven only)
This function reduces the appliances energy consumption. Ideal for gentle cooking over a longer
period of time. For best results, cook small portions on a single shelf and always use with the
oven door closed. It is not necessary to preheat the oven. Cooking times may be longer than
standard functions. Do not use this function to preheat the oven for other functions.

11
Important!
Safe food handling: leave food in the oven for as short a time as possible before and after cooking or
defrosting. This is to avoid contamination by organisms which may cause food poisoning. Take particular
care during warmer weather.
Notes on baking:
Preheat the oven before baking.
Do not place anything, including water, ice or aluminium foil on the oven floor.
Remove the fat filter before baking (some models only).
Using the fat filter (some models only)
Use the fat filter only when roasting meat and poultry on Fan Bake, Fan Grill or
Fan Forced. It helps to keep your oven clean and reduces splatter and smoking.
Clean the fat filter after every use. See ‘Care and cleaning’.
Remove the fat filter before baking: gripping the top flap, slide up to unhook it from the rear
panel.
To replace the fat filter: align with the circle in the rear panel, then slide down to hook into place.
Important!
If the fat filter is not cleaned after every use, the grease build-up will block and shorten the life of the fan
element.
Oven functions
Fig. 8 Removing and replacing the fat filter

12 Baking charts
Please note:
The settings in the following charts are guidelines only. Follow the instructions in your recipe or
on packaging and be prepared to adjust the oven settings and baking times to achieve the best
possible results for you.
Shelf positions are counted from the oven floor up (1 is the lowest, 4 or 6 the highest).
Arrange oven shelves before you turn the oven on, then preheat the oven to the required
temperature (until the temperature indicator light goes out).
Full ovens are ideal for multi-shelf baking or larger items.
Compact ovens are the ideal and most energy-efficient choice for baking small or flat items (eg
cookies, pizza) on a single shelf; however, they have not been designed for multi-shelf baking.
Settings in bold indicate the recommended oven function.
Baking chart - full ovens
The shelf positions recommended below use the flat oven shelf (not the step-down shelf)
used either with or without sliding shelf supports. Note: the step-down shelf and sliding shelf
supports are not supplied with all models.
BAKE
Food Shelf position Temperature (
O
C) Time (mins)
Small cakes single shelf 2 180-190 13-17
multi shelf not recommended
Scones single shelf 2 210-230 8-12
multi shelf not recommended
Sponge
two small (20 cm),
staggered on shelf 2 170-190 25-35
one large (26 cm) 2 175 30-40
Light fruit cake 2 155-165 80-100
Rich fruit cake exact baking time
will depend on size 2 130-150 3-6 hours
Apple pie 1 185 35-45
Custard tart 1 220, then 180* 10, then 20-30*
continued...
* This is a two-stage baking process: adjust the temperature after the first stage.

13
Baking charts
Baking chart - full ovens
FAN BAKE
Food Shelf position Temperature (
O
C) Time (mins)
Small cakes single shelf 2 150-170 13-17
multi shelf not recommended
Scones single shelf 2 200-220 8-12
multi shelf not recommended
Sponge
two small (20 cm),
staggered on shelf 2 160-175 20-30
one large (26 cm) 2 150 30-40
Light fruit cake 2 150-160 80-100
Rich fruit cake not recommended
Apple pie 1 160 35-45
Custard tart not recommended
FAN FORCED
Food Shelf position Temperature (
O
C) Time (mins)
Small cakes single shelf 2 150-170 13-17
multi shelf 1 and 5** 150-170 15-20
Scones single shelf 2 210-230 8-12
multi shelf 1 and 5** 210-230 10-14
Sponge
two small (20 cm),
staggered on shelf 2 170-190 25-35
one large (26 cm) 2 175 30-40
Light fruit cake 2 155-165 80-100
Rich fruit cake exact baking time
will depend on size 2 130-150 3-6 hours
Apple pie 1 185 35-45
Custard tart not recommended
** Use the flat shelf in position 1 and the step-down shelf in position 5.

14 Baking charts
Baking chart - compact ovens
The shelf positions recommended below use the step-down shelf without sliding shelf supports.
BAKE
Food Shelf position Temperature (
O
C) Time (mins)
Small cakes 2 180-190 13-17
Scones 2 210-230 8-12
Sponge
two small (20 cm),
staggered on shelf 2 170-190 25-35
one large (26 cm) 2 175 30-40
Light fruit cake 2 155-165 80-100
Rich fruit cake exact baking time
will depend on size 2 130-150 3-6 hours
Apple pie 1 185 35-45
Custard tart 1 220, then 180* 10, then 20-30*
continued...
* This is a two-stage baking process: adjust the temperature after the first stage.

15
Baking charts
Baking chart - compact ovens
FAN BAKE
Food Shelf position Temperature (
O
C) Time (mins)
Small cakes 2 150-170 13-17
Scones 3 200-220 8-12
Sponge
two small (20 cm),
staggered on shelf 2 160-175 20-30
one large (26 cm) 2 150 30-40
Light fruit cake 2 150-160 80-100
Rich fruit cake not recommended
Apple pie 1 160 35-45
Custard tart not recommended
FAN FORCED
Food Shelf position Temperature (
O
C) Time (mins)
Small cakes 2 150-170 13-17
Scones 2 210-230 8-12
Sponge
two small (20 cm),
staggered on shelf 2 170-190 25-35
one large (26 cm) 2 175 30-40
Light fruit cake 2 150-160 80-100
Rich fruit cake exact baking time
will depend on size 2 130-150 3-6 hours
Apple pie 1 185 35-45
Custard tart not recommended

16
You can use the timer at any time, even when
the oven is not in use.
Important!
The timer does NOT turn the oven off.
To set the timer
1 Press . 0.00 will show and the symbol
will start flashing.
2 Press and to set the time you want (up to 23 hours
and 59 minutes, in 1-minute steps).
After a few seconds, the clock will show the
time of day with the
symbol steadily lit.
The timer is now counting down.
To check the remaining time
Press .
To cancel the timer
1 Press .
2 Press until the time is reset to 0.00
After a few seconds, the clock will show the time of day.
When the set time is up
The timer will beep and the
symbol will flash. Press to stop the beeping and turn the timer
off.
After a few seconds, the clock will show the time of day.
To adjust the beep volume
Press to hear the next volume level. The last one selected will be stored.

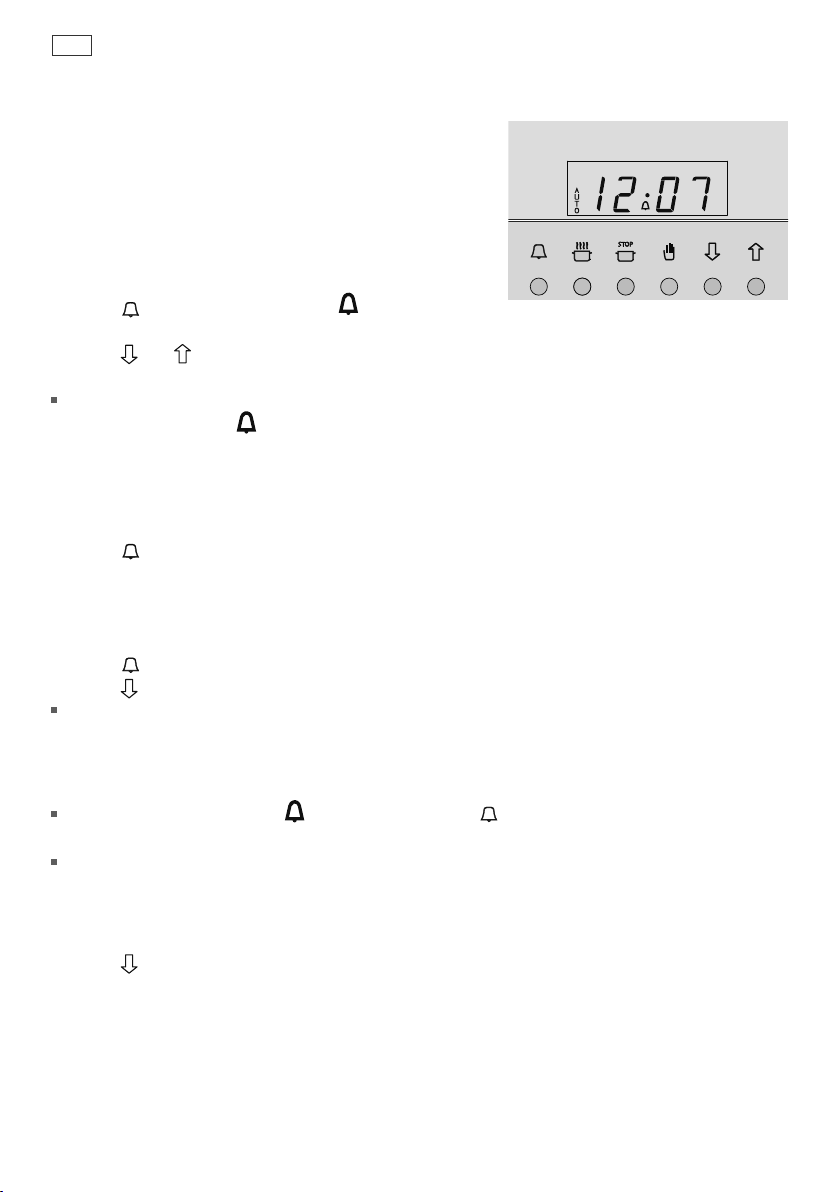

Fig. 9 Six-button clock display
and control buttons
Using the electronic timer

17
Automatic cooking
Important!
In double models with compact upper ovens,
only the lower (main) oven can
be set for automatic cooking.
In double models with two full ovens,
only the upper oven can be set for automatic cooking.
To set the oven for automatic cooking
1 Set the oven:
Check the clock shows the correct time (eg 12:07).
Select the function and set the temperature. The oven will turn on.
2 Set the cooking time:
Decide how long the food will take to cook, allowing time for preheating if necessary
(eg 40 minutes).
Press .
Use and to set the cooking time. AUTO will show in the display.
3 Set the stop time:
Decide when you want your food to be ready by (eg 13:30).
Press .
Use and to set the stop time.
You can turn the oven on manually and set it to turn off automatically by setting the stop time
(step 3 above).
When automatic cooking is set
If there is time before cooking starts, the oven will turn off and the current time of day and AUTO
will show in the clock display, indicating that the oven is set for automatic cooking. Note: the
cooling fan may stay on.
The oven will automatically turn on at the required time (eg 12:50) and turn off at the set stop
time (eg 13:30).
To see the remaining cooking time, press .
To see the set stop time, press .
To cancel automatic cooking, press and turn the function and temperature knobs to 0 (off).
When the stop time is reached
The oven will turn off, the timer will beep and AUTO will flash.
1 Press to stop the beeping and return the oven to manual mode.
2 Turn the function and temperature knobs to O (off).

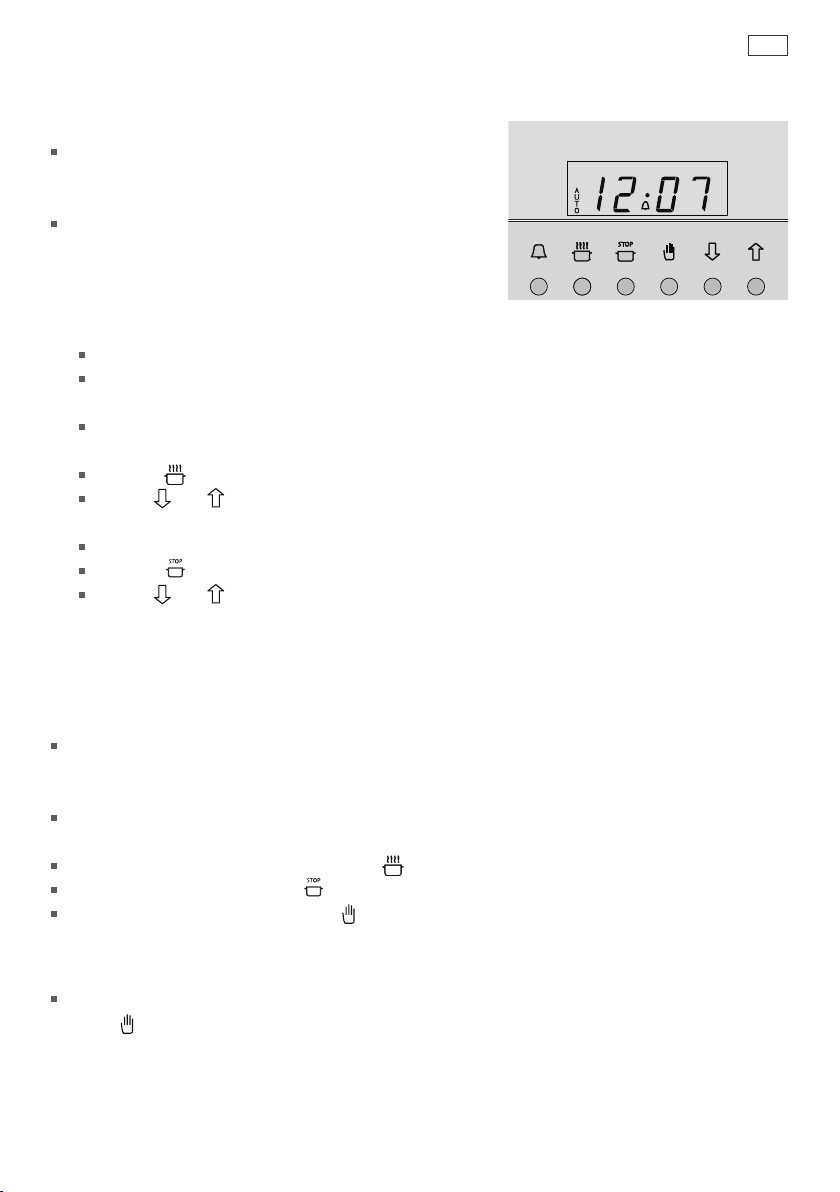

Fig. 10 Six-button clock display
and control buttons

18
Important!
Always disconnect the oven from the power supply before any cleaning or maintenance.
When you turn the power back on after cleaning, you will have to set the clock.
Do not use abrasive cleaners, cloths or pads to clean any part of your oven. Some nylon scourers
may also scratch. Check the label.
See the following pages for instructions on removing and refitting different parts of the oven for
cleaning.
Before cleaning, make sure the oven is a safe temperature to touch.
Do not use a steam cleaner.
What? How? Important!
General advice Wipe out the oven after every
use.
Wipe up spills as soon as the
oven is a safe temperature to
touch.
Avoid leaving alkaline or acidic
substances (such as lemon juice,
vinegar or salty spills) on the oven
surfaces.
Do not use cleaning products with
a chlorine or acidic base.
Stainless steel
surfaces
1 Wipe the soiling off with a
cloth using a mild household
detergent or stainless steel
cleaner.
2 Wipe the surface dry.
3 Use a suitable stainless steel
polish.
Immediately wipe off any caustic
cleaners if they are spilled onto
the oven door handle or the knobs.
Glass surfaces Wipe with a damp cloth or use a
glass cleaner.
Do not use harsh abrasive cleaners
or sharp metal scrapers since they
scratch the surface and may result
in the glass shattering.
Oven cavity
(enamel)
1 Remove everything from the
oven: all shelves and trays, the
side racks, the catalytic panels
and fat filter if supplied.
2 Remove the oven door (see
instructions on following
pages).
3 Wipe the inside of the oven
using a household detergents
or an ammonia-based cleaner.
4 Wipe clean with a damp cloth
and allow to dry completely.
To make cleaning the oven ceiling
easier, the grill element in some
full ovens can be lowered.
See Fig. 12.
If using ‘off the shelf’ oven
cleaners, always follow the
manufacturer’s instructions.
Side racks, oven
shelves, trays
Clean these using a solution of
detergent and hot water. They
are also dishwasher safe.
If badly soiled, soak in a solution
of hot water and biological
clothes washing powder to
make cleaning easier.
Care and cleaning
