USER GUIDE
NZ AU
BUILT-IN OVEN
OB90S9LEX1 model

1
CONTENTS
IMPORTANT!
SAVE THESE INSTRUCTIONS
The models shown in this user guide may not be available in all markets and are subject to
change at any time. For current details about model and specification availability in your
country, go to our website fisherpaykel.com or contact your local Fisher&Paykel dealer.
Safety and warnings 2
Introduction 6
Control panel 7
First use 8
Using your oven 9
Oven functions 10
Using the rotisserie 12
Using the timer 14
Automatic cooking 15
Cooking chart 17
User preference settings 18
Sabbath setting 20
Care and cleaning 22
Troubleshooting 29
Alert codes 31
Warranty and service 32

2
Your oven has been carefully designed to operate safely during normal cooking procedures.
Please keep the following safety instructions in mind when you are using it:
!WARNING!
ELECTRIC SHOCK HAZARD
Turn the oven off at the wall before replacing the oven lamp.
Failure to follow this advice may result in electric shock or death.
!WARNING!
FIRE HAZARD
Carefully follow the instructions for starting a Self Clean cycle.
Do not place combustible materials (eg wood, fabric, plastic) in the
oven during a Self Clean cycle.
Do not place aluminium foil, dishes, trays, water or ice on the oven
floor during cooking, this will irreversibly damage the enamel.
Lining the oven with aluminium foil may cause fire.
Never use your appliance for warming or heating the room.
Persons could be burned or injured or a fire could start.
Flammable materials should not be stored in an oven or near
its surface.
Failure to follow this advice may result in overheating, burning,
and injury.
!WARNING!
HOT SURFACE HAZARD
To avoid burns and scalds, keep children away from this appliance.
Surfaces of the appliance may become hot enough to cause burns.
Examples include the oven vent, the surface near the oven vent, and
the oven door.
Do not touch heating elements or interior surfaces of the oven.
Heating elements may be hot even though they are dark in colour.
Use protection when handling hot surfaces such as oven shelves
or dishes.
Use care when opening the oven door. Let hot air or steam escape
before removing or replacing food.
During and after use, do not touch, or let clothing or other
flammable materials contact heating elements or interior surfaces of
the oven until they have had sufficient time to cool.
Failure to follow this advice could result in burns and scalds.
SAFETY AND WARNINGS

3
SAFETY AND WARNINGS
!WARNING!
CUT HAZARD
Take care— some edges are sharp.
Failure to use caution could result in injury or cuts.
IMPORTANT SAFETY INSTRUCTIONS
Read this user guide carefully and keep for future reference.
WARNING!
 Do not attempt to operate this oven with the door open. Keep the door closed to
prevent harmful exposure to microwave energy.
 Do not place any object between the oven front face and the door, or allow food or
cleaner residue to accumulate on sealing surfaces.
 Do not operate the oven if it is damaged. Ensure the oven door is closed properly
and there is no damage to the:
– Door (bent)
– Hinges and latches (broken or loosened)
– Door seals and sealing surfaces.
 Ensure the oven is adjusted or repaired only by a Fisher & Paykel trained and
supported service technician.
 if the door or door seals are damaged, do not operate the oven until it has been
repaired by a Fisher & Paykel trained and supported service technician.
 Follow the basic precautions to reduce the risk of fire, electric shock, injury to persons
or exposure to excessive microwave oven energy when using your appliance.
Installation
 This appliance is intended to be used for normal personal, family or household use.
 This is a built-in oven intended to be installed in a cavity only.
 Ensure that all the packing materials are removed from the inside of the door.
 DO NOT use the oven outdoors.
 Check the oven for any damage, such as misaligned or bent door, damaged door seals
and sealing surface, broken or loose door hinges and latches and dents inside the
cavity or on the door. If there is any damage, do not operate the oven and contact a
Fisher & Paykel trained and supported service technician.
 This microwave oven must be placed on a flat, stable surface to hold its weight and
the heaviest food likely to be cooked in the oven.
 Do not place the oven where heat, moisture or high humidity are generated or near
combustible materials.

4
SAFETY AND WARNINGS
Electrical
 Never unplug your appliance by pulling on the power cord. Always grip the plug
firmly and pull straight out from the outlet.
 Do not plug in any other appliance at the same power point as your appliance or
use extension cords or double adapters or ungrounded (two prong) adapters.
 If the power supply cord is damaged, it must only be replaced by a
Fisher & Paykel trained and supported service technician.
 All electrical repairs must be carried out by a Fisher & Paykel trained and
supported service technician or qualified electrician in order to avoid a hazard.
 Ensure that the appliance is switched off before replacing the lamp to avoid the
possibility of electric shock.
 It is hazardous for anyone other than a Fisher & Paykel trained and supported
service technician or qualified electrician to carry out any service or repair
operation that involves the removal of a cover which gives protection against
exposure to microwave energy.
Disposal/Recycling
The packaging materials for this appliance are recyclable.
Operation
 Do not use the cavity for storage purposes. Do not leave paper products,
cooking utensils or food in the cavity when not in use.
 Watch cooking time. Cook for the shortest amount of time indicated and add
more as needed.
 Do not operate your appliance by means of an external timer or separate remote
control system.
 Always position the shelves in the desired location while the oven is cool
(before preheating). If a shelf must be removed while the oven is hot, do not let
the oven mitts or potholder contact hot heating elements in the oven or the base
of the oven.
Food Safety
 Use only utensils that are suitable for use in ovens.
 Be fire wise. Switch off or unplug the appliance and keep the door closed if
smoke is observed in order to stop any flames.
 Do not heat unopened food containers. They can build up pressure that may
cause the container to burst and result in injury.
 Food severely overcooked can smoke or ignite.
 Cover food items while cooking. Covers prevent spattering and help food items
to cook evenly.
Child Safety
 Keep the appliance and its cord out of reach of children aged less than 8 years.
 Ensure that children (aged 8 years and above) and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge can
only use the appliance if they are supervised or have been given instruction on
how to use the appliance safely and understand the hazards involved.
 Never allow children to play with the appliance.

5
IMPORTANT!
Ensure that your oven is regularly cleaned to avoid damage to its surface that can
result in hazards or potential injury.
Cleaning
 Clean the oven regularly and remove any food deposits. Failure to maintain the oven
in a clean condition could lead to deterioration of the surface that could adversely
affect the life of the appliance and possibly result in a hazardous situation.
 Do not clean the appliance with a steam cleaner.
 Always unplug the appliance from the power supply before cleaning.
 Clean the cavity of the oven after using with a slightly damp cloth.
 Clean the accessories with soapy water.
 The door frame, seal and neighbouring parts must be regularly cleaned with a
damp cloth.
 Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door
glass, this may scratch the surface which may result in shattering of the glass.
SAFETY AND WARNINGS

6

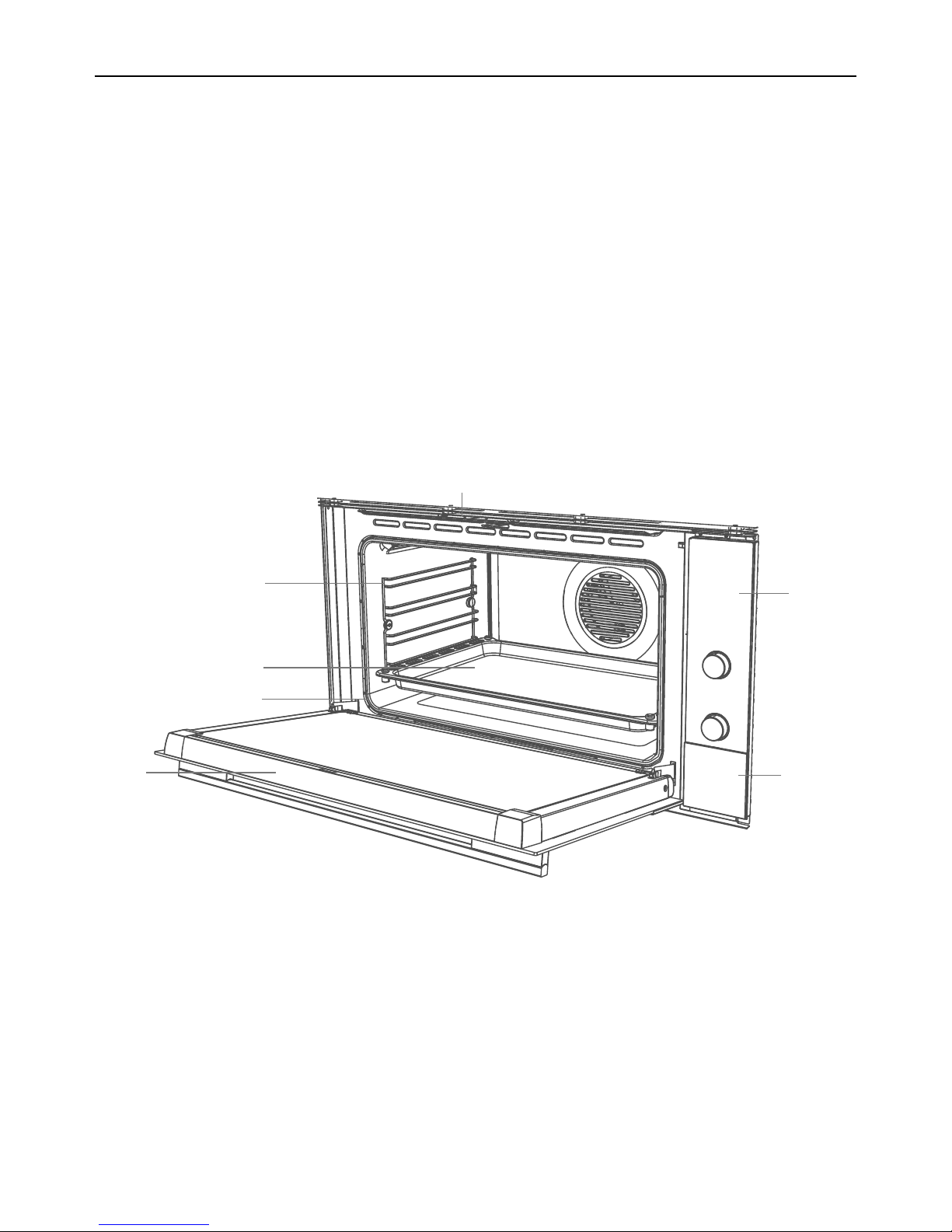

1Oven vent louvres
2Control panel
3Stainless steel strip
4Side racks
5Grill tray and rotisserie
6Oven door and handle
7Oven seal
2
4
3
5
6
7
1
Congratulations on your new purchase. Your oven has a number of features to make
cooking a great experience for you:
 a choice of nine oven functions, including Rotisserie (optional and can be purchased
separately as a kit)
 intuitive electronic controls and displays
 illuminated halos around the dials for visual feedback
 preference settings — see ‘User preference settings’ and ‘Sabbath setting’.
Before you start
 Make sure the installer has completed the ‘Final checklist’ in the Installation instructions.
 Read this guide, taking special note of the ‘Safety and warnings’ section.
 Remove all the packaging and check that you have all the accessories listed below.
 Make sure you follow the instructions under ‘Setting the clock and first use’ before
using your oven for cooking or baking.
Not illustrated:
 Baking tray
 Step-down oven shelf
 Oven shelf
 Grill rack
INTRODUCTION

7
-+

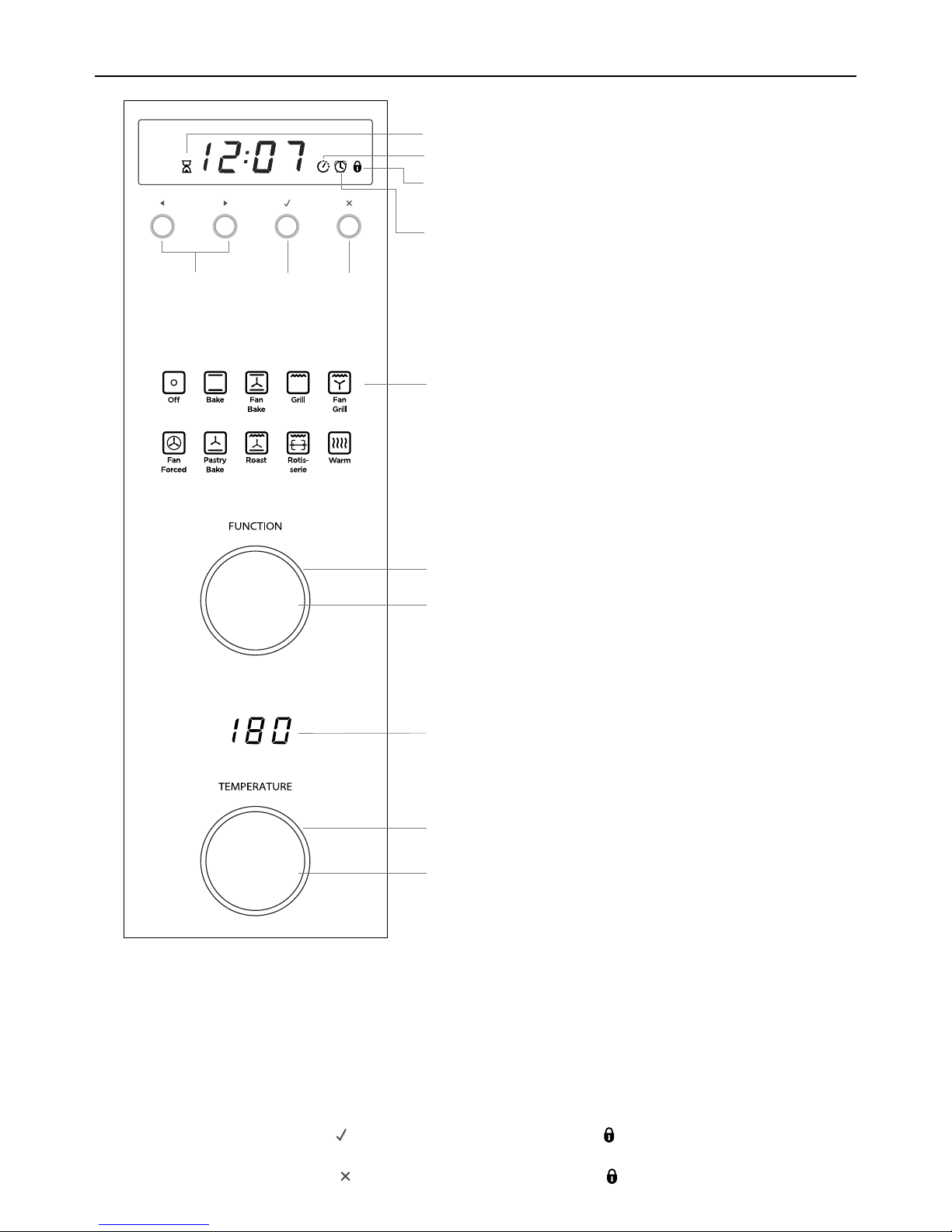

CONTROL PANEL
Locking the control panel
You can lock the control panel to prevent unintended use (eg children playing with
theoven). Doing so will disable the dials and all the buttons.
To lock the control panel
1Make sure the oven is not in use (the function dial is turned to Off) and neither
automatic cooking nor the timer is set (no indicator is lit in the display).
2Press and hold the select
-+
-+-+
button until the lock indicator
-+
comes on.
To unlock the control panel
Press and hold the cancel
-+
-+-+
button until the lock indicator
-+
flashes and then goes out.
Cooking time indicator (see ‘Automatic cooking’)
Stop time indicator (see ‘Automatic cooking’)
Control lock indicator (see ‘Locking the control panel’).
Function indicators (see ‘Oven functions’)
Function dial (see ‘Using your oven’)
Function dial halo
Temperature dial halo
Temperature dial (see ‘Using your oven’)
Temperature indicator
Scroll Select Cancel
Timer indicator (see ‘Using the timer’)

8
FIRST USE
Setting the clock
When your oven is first turned on, or
after a power cut, the display will flash.
You will need to set the clock in order
to use the oven.
1The display will flash 24 Hr.
4Press the left and right
scroll
-+
-+-+
-+
-+-+
buttons to set the time.
2Press the right scroll
-+
-+-+
button to scroll
between 24 Hr and 12 Hr
3Press the select
ERUTAREPMETNOITCNUF
button to confirm.
5Press the select
ERUTAREPMETNOITCNUF
button to confirm.
The time set will now be steadily lit.
Changing the time
Set the clock within the user
preference menu.
5Press the left and right scroll
-+
-+-+
-+
-+-+
buttons to set the time.
6Press the select
ERUTAREPMETNOITCNUF
button to confirm.
3Press the right scroll
-+
-+-+
button to scroll
between 24 Hr, 12 Hr or OFF to
turn the display off (see ‘Setting User
preferences’ for more information).
4Press the select
ERUTAREPMETNOITCNUF
button to confirm.
1To enter the user preference menu,
press and hold the left and right scroll
-+
-+-+
-+
-+-+
buttons together for 3 seconds.
 The display will either flash 12 Hr
or 24 Hr
2Press the select
ERUTAREPMETNOITCNUF
button to confirm.
The display will flash.

9

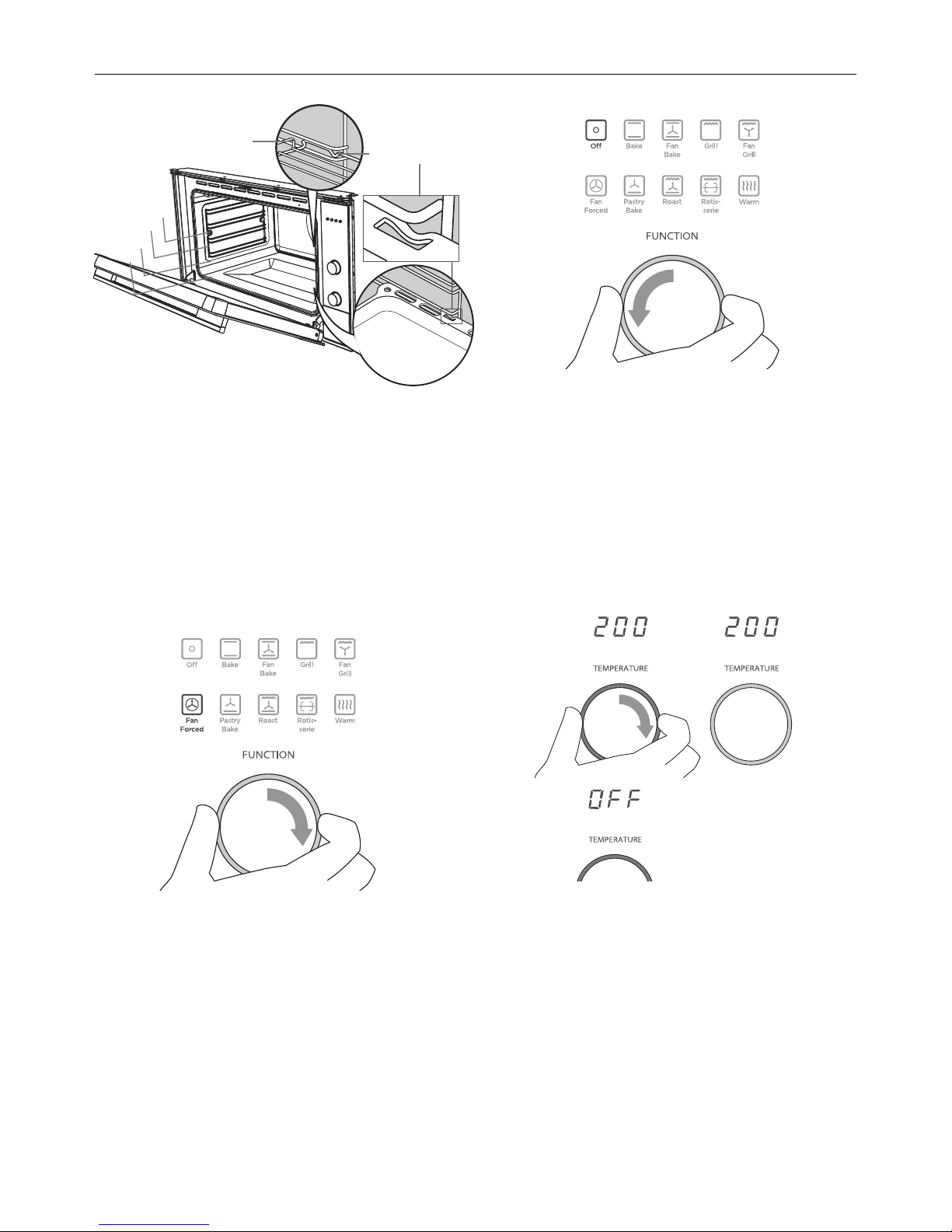

3Set the temperature.
 While the oven is heating up, the halo
will glow red and the temperature
indicator will alternately show the
actual and settemperatures.
 When the oven has reached set
temperature, a long tone will sound
and the halo will turn white.
Note: Grill provides instant radiant heat,
so the halo will stay red and there will be
no tone.
-+
-+-+
2Select a function.
 The halo will glow white.
-+
-+-+
4When you have finished
cooking, turn the function
dial to Off.
-+
-+-+
- - - - - -
-+
-+-+
1Insert the shelves that you need.
Ensurethat,
 they are between two wires of a
shelfposition
 the stop notches point down
 the guard rail is at the back.
Note: The grill tray should be positioned
between the two wires of a shelf
position and orientated as shown.
Shelf
positions
Guard rail
Stop notch
1
2
3
4
USING YOUR OVEN

10
OVEN FUNCTIONS
-+
Off
Selecting this will turn the oven off.
-+
Bake
This is the traditional method of baking. It is best to bake on only one shelf at a time in
this function. Ideal for large cakes and dishes that bake for several hours.
-+
Fan Bake
Ideal for dishes like lasagne that need to brown on top and also single trays of small
cakes or biscuits that bake in less than an hour.
-+
Grill
Grill is the most suitable function for ‘finishing off’ many meals, for example browning
the top of potato gratin and frittata. Use Grill to toast bread or to grill your favourite
chicken, fish and steak. Note: heat levels are from LO (50% power) to HI (100%power),
with settings from 1 to 9 in between. Grill provides instant radiant heat, so the
temperature dial halo will stay red.
-+
Fan Grill
Ideal for roasting tender cuts of meat and poultry. Use the lower shelf positions for
larger items eg a whole chicken.

11

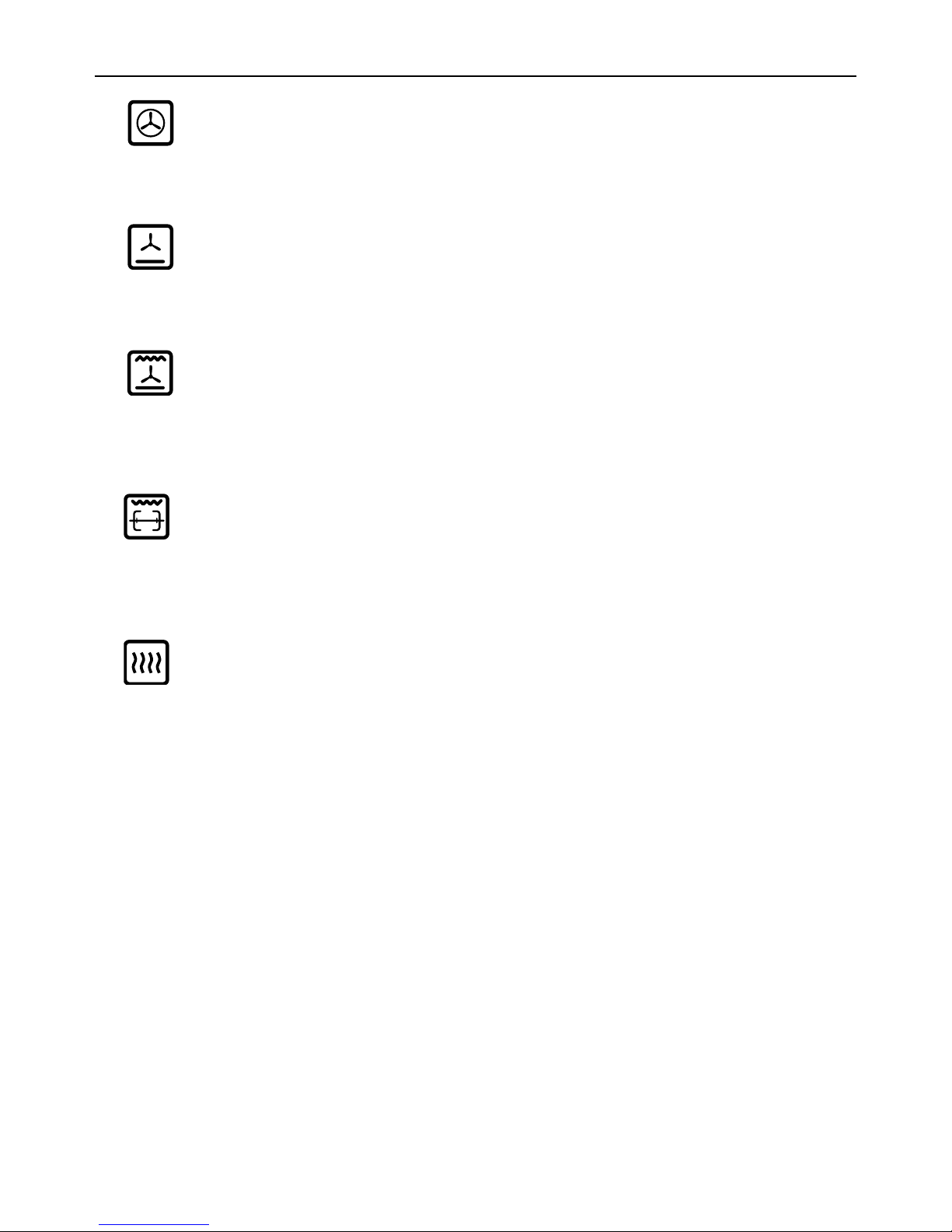

OVEN FUNCTIONS
-+
Fan Forced
Great for multi-shelf cooking. The consistent temperature ensures baking is well risen.
Cookies baked on Fan Forced are crisp on the outside and chewy in the middle.
-+
Pastry Bake
Excellent for sweet and savoury pastry foods, for moist breads and brownies and
cookies that you want extra chewy.
-+
Roast
No pre-heating of the oven required. The meat is seared during an initial 20-minute
grilling stage, then baked at the set temperature for the rest of the time, producing a
tender, juicy, and flavourful roast. Great for roasting vegetables too.
-+
Rotisserie (optional)
Rotisserie is a delicious way to cook meat and poultry. The slowly rotating food is
basted continuously in its own juices, making it tender on the inside and well browned
and full of flavour on the outside. See ‘Using the rotisserie’.
-+
Warm
Use this function to keep cooked food hot and to warm plates and serving dishes.
To reheat food from cold, use a cooking function at 150°C, then switch to Warm set
between 70-90°C only when the food is piping hot. Note: this function is not for
cooking food and the temperature cannot be set higher than 90°C.
This function is also ideal for proving bread dough. Set the temperature to 40 °C.

12
USING THE ROTISSERIE
Lock stud
Rotate the fork screws to
loosen and tighten
Fork
Skewer
Rotisserie drive hole
IMPORTANT!
If you want to use the rotisserie, a rotisserie kit is available separately for purchase.
Contact your dealer for availability.
1 Prepare the rotisserie supports.
 Place the grill tray on the benchtop.
 Insert the supports into the lock
studs making sure the supports
faceinwards.
 Push the supports all the way down
to lock them in firmly.
2Secure the meat. Slide one fork onto
the skewer first, followed by the meat
and the the second fork.
IMPORTANT!
Take care, the forks are sharp!
When securing the meat, ensure that:
 the skewer goes through the centre
of the meat
 the forks hold the meat firmly in
place
 the fork screws are tightened
 there are no loose or projecting
parts. Poultry should be trussed.
Note: the rotisserie can rotate up to
6kg of meat.
3Position the skewer on the supports.
 Place the skewer on the supports,
and check that the meat does not
touch the grill tray.
 Twist the handle off. It must not be
left in the oven.
4Place the rotisserie in the oven.
 Slide the grill tray all the way to the
back on shelf position 1.
 Push the skewer through the hole
cover on the right-hand wall of the
oven, then insert it fully into the
rotisserie drivehole.

13
USING THE ROTISSERIE
When you have finished using the rotisserie
1Turn the oven off.
2Using oven mitts, carefully disengage the right end of the skewer from the
rotisseriedrive hole.
3Slide out the grill tray and place it on a heat-resistant surface.
4Twist the handle onto the left end of the skewer.
5Lift the skewer off the supports by the handle.
6Loosen the fork screws and slide the meat off the skewer.
Tips for using the rotisserie
 For food safety reasons, we do not recommend using the rotisserie with stuffed meat.
 If your meat is too big or heavy (over 6 kg) for the skewer, place it on top of the grill
rack in the grill tray, and use Fan Forced. This function will give a result similar to
arotisserie.
 Use a meat thermometer to ensure that meat is cooked through to a safe temperature.
 See ‘Care and cleaning’ for advice on cleaning the rotisserie parts.
5Select the Rotisserie function.
 The skewer will start rotating.
 Check that the meat does not touch
the grill tray or the grill element at
the top of the oven.
6Set the temperature.
 We recommend around 210 °C.
Note: The rotisserie will not rotate
when the oven door is open.
-+
-+-+
-+
-+-+

14
USING THE TIMER
 You can use the timer at any time even if you are not using the oven.
 If the time is more than an hour, the display will count down in minutes (hr:min).
If it is less than an hour, it will count down in seconds (min:sec).
 You can set the timer for up to 23 hours 59 minutes.
IMPORTANT!
The timer does NOT turn the oven off.
1Select the timer
-+
-+-+
bypressing the right
scroll
-+
-+-+
button once.
 The timer
-+
-+-+
indicator
will appear and the
colon will flash.
3Set the time by pressing
the scroll
-+
-+-+
-+
-+-+
buttons.
 Holding the buttons
down will speed up
thescrolling.
-+
-+-+
5If you want to check the time
of day, you can toggle between
this and the timer countdown by
pressing the scroll
-+
-+-+
-+
-+-+
buttons.
-+
-+-+
4Press the select
ERUTAREPMETNOITCNUF
button to confirm.
 The timer will then begin to
countdown.
2Press the select
ERUTAREPMETNOITCNUF
button
to confirm.
 The display will flash
to indicate the timer
is ready to be set.
-+
-+-+
-+
-+-+
-+
-+-+
To modify the timer setting
1Ensure the display shows the remaining time counting down.
2Press the select
ERUTAREPMETNOITCNUF
button.
3Press the scroll
-+
-+-+
-+
-+-+
buttons to set a new time.
4Press the select
ERUTAREPMETNOITCNUF
button to confirm.
To cancel the timer setting
1Ensure the display shows the remaining time counting down.
2Press the cancel
ERUTAREPMETNOITCNUF
button until the display shows the time of day and the timer
-+
-+-+
indicator disappears.
When the set time is up
 The display will show 0:00 and a tone will sound every 15 seconds.
 Press any button to stop the tone sound. The display will revert to showing time of day.

15
AUTOMATIC COOKING
 You can set the oven to automatically turn on later, cook for a preset time
(cookingtime), then automatically turn off at a preset stop time. See the example
and instructions below (steps 1 to 7).
 If you start cooking manually and only want the oven to turn off automatically
aftera set cooking time, simply set the cooking time following steps 1 to 3 below.
The oven will automatically turn off when the cooking time is over.
IMPORTANT!
Remove your food from the oven as soon as possible after cooking or defrosting.
This is to avoid contamination by organisms which may cause food poisoning.
Take particular care during warmer weather.

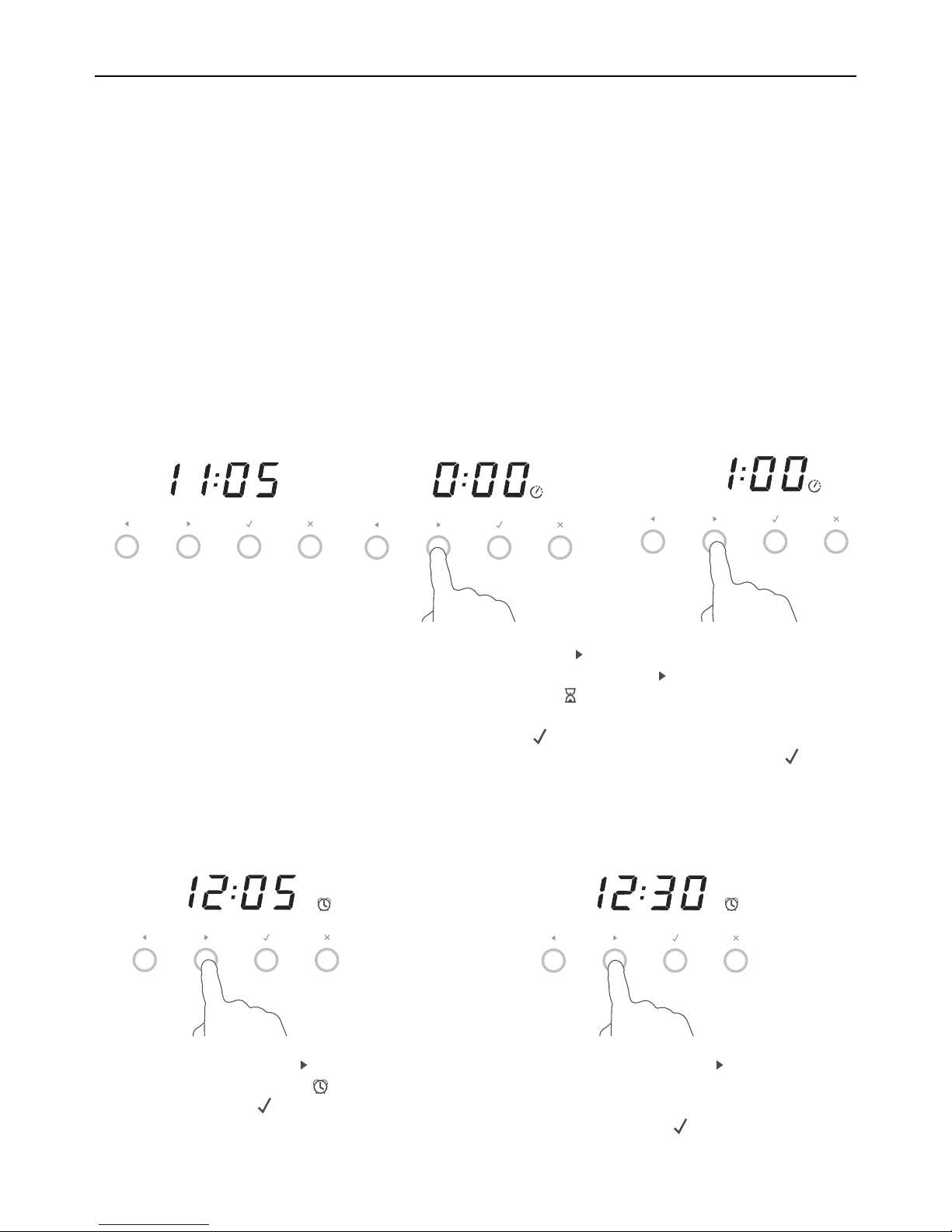

Example: It is 11:05 am. You want your food to cook for 1 hour, and you would like
itto be ready by lunchtime (12:30 pm).
Set the cooking time
Set the stop time
-+
-+-+
-+
-+-+
-+
-+-+
-+
-+-+
-+
-+-+
1Check the clock shows
the correct time of day.
6Press the right scroll
-+
-+-+
button once to
scroll to the stop time
-+
-+-+
indicator.
7Press the select
ERUTAREPMETNOITCNUF
button to confirm.
4Press the right scroll
-+
-+-+
button to set the
cooking time. Ensureyou
allow for preheat time in
yourcalculation.
5Press the select
ERUTAREPMETNOITCNUF
button
to confirm.
2Press the right scroll
-+
-+-+
button twice to scroll
to the cooking time
-+
-+-+
indicator.
3Press the select
ERUTAREPMETNOITCNUF
button to confirm.
8Press the right scroll
-+
-+-+
button to set
the time you would like your food to
be ready by (ie the stop time).
9 Press the select
ERUTAREPMETNOITCNUF
button to confirm.

16
AUTOMATIC COOKING

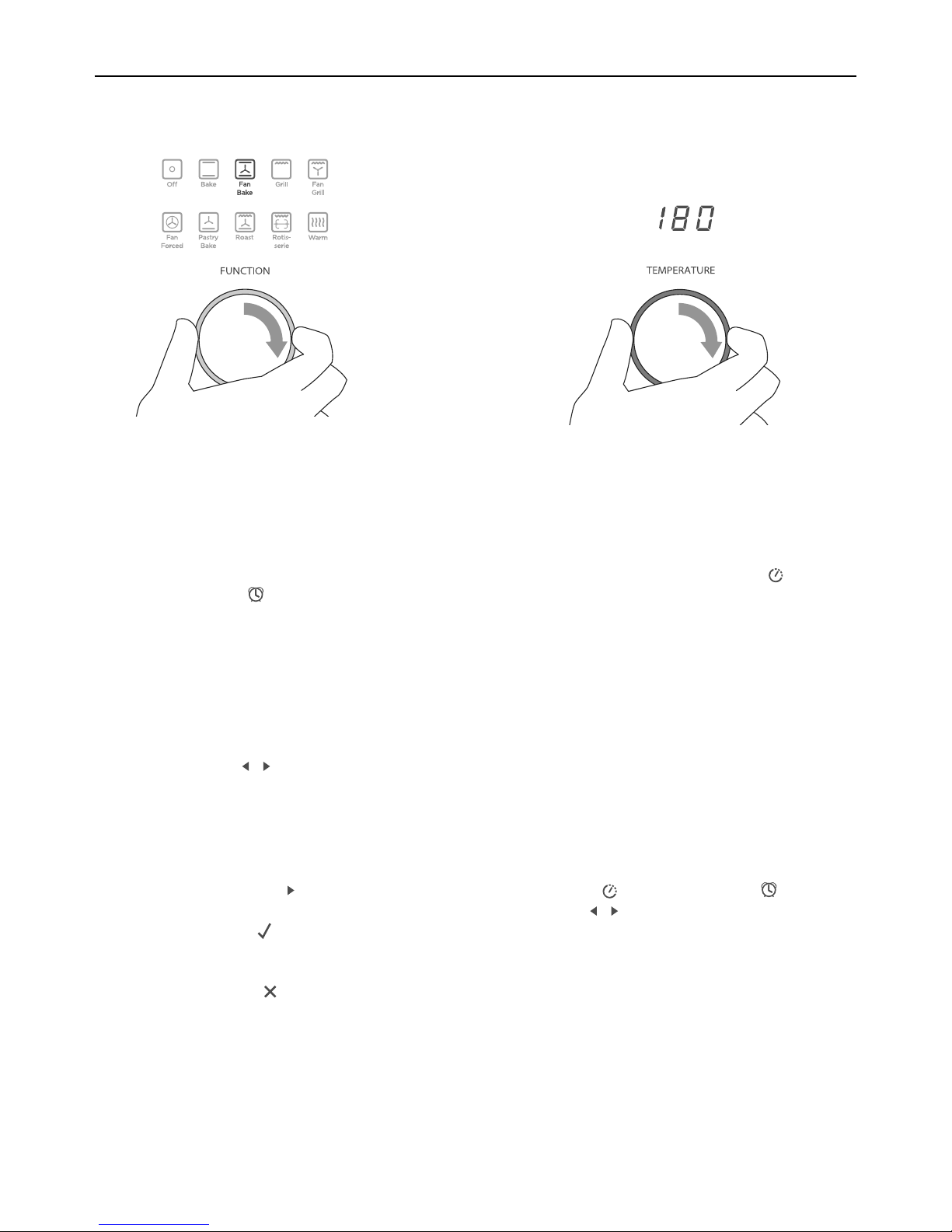

!1 Set the temperature.
When automatic cooking is set
 The oven and the lights will stay off, the halos will be unlit, but your oven is now set
forautomatic cooking. It will automatically turn on at the required time.
 In a few seconds, the display will show the time of day with the cooking time
-+
-+-+
andstop time
-+
-+-+
indicators lit.
Note: you can modify the function and temperature while the oven is waiting to
startcooking.
When the stop time is reached
The oven will automatically turn off and a long tone will sound.
To check the set cooking time and stop time
Use the scroll
-+
-+-+
-+
-+-+
buttons.
To cancel automatic cooking
Turn the function dial to Off.
To change the cooking or stop time
Use the right scroll
-+
-+-+
button to scroll to the cooking time
-+
-+-+
or the stop time
-+
-+-+
, press
to select the one you want to change and use the scroll
-+
-+-+
-+
-+-+
buttons to change the time.
Press the select
ERUTAREPMETNOITCNUF
button to confirm.
To see the current time of day
Press the cancel
ERUTAREPMETNOITCNUF
button.
!0 Select a function.
Select function and temperature
-+
-+-+
-+
-+-+

17
COOKING CHART
Note:
 The settings in the following chart are guidelines only. Follow the instructions in your
recipe or on food packaging and be prepared to adjust the oven settings and baking
times to achieve the best possible results for you.
 Shelf positions are counted from the base up (1 is the lowest, 4 the highest).
 Arrange oven shelves before you turn the oven on, then preheat the oven to the
required temperature. Place items in the oven only when the long tone has sounded
andthe temperature dial halo has turned from red to white.*
 Single shelf positions below use the flat oven shelf; where a multi shelf arrangement
isrecommended, the higher position uses the step-down shelf.
 Due to the width of the oven, a single shelf can usually accommodate double the
standard recipe.
FOOD ARRANGEMENT SHELF
POSITION(S)
BEST
FUNCTION
TEMP
(OC) TIME
Small cakes single shelf 2 Bake 180-190 13-17 mins
multi shelf 1 and 3 Fan Forced 160-170 16-23 mins
Scones single shelf 2Fan Forced 210-230 8-12 mins
multi shelf 1 and 3 Fan Forced 210-230 8-16 mins
Sponge 2 small pans (20 cm),
on single shelf
2 Bake 170-190 25-35 mins
1 large pan (26 cm) 2 Bake 175 30-40 mins
Light fruit cake 2 pans (21 cm),
onsingle shelf
2 Bake 155-165 1 hr 30 mins
Rich fruit cake exact baking time
will depend on size
2 Bake 130-150 3-6 hrs
Apple pie single shelf 1 Bake 185 35-45 mins
Quiche single shelf 1 Bake 180-200 30-40 mins
Meringues single shelf 1 Bake 100-120 1 hr
Bread rolls single shelf 1 Bake 210-230 15-20 mins
Muffins 2 x 12 muffin trays
on single shelf
3Fan Forced
or Fan Bake
190-200 10-15 mins
Pastry case
(baked ‘blind’)
1 flan tin (21 cm) 1 or 2 Pastry Bake 200 10 mins with beans,
then 10mins without
Roast Chicken Rotisserie 1 Rotisserie 210 20-30 mins/
450gms
Roast beef
(boneless)
single shelf 1 or 2 Roast 160-170 35-40 mins/
450gms
Lasagna single shelf 2Fan Bake 175-180 40-50 mins
* Note: the colour change and tone may occur some time after the set temperature has been reached.
Thisis because—when heating up from cold—your oven is designed to initially heat to a temperature
somewhat higher than what you have set. This is to provide optimal baking conditions right from the start.

18
USER PREFERENCE SETTINGS
You can set your oven to:
 display the temperature in degrees Celsius or Fahrenheit
 give audio feedback (tones and beeps) or operate quietly
 display time as 12-hr or 24-hr
 operate with the display off
 have its lights on or off during cooking
 operate in Sabbath setting (see ‘Sabbath setting’ following).
Note: you cannot change user preference settings when the oven is set for
automaticcooking.
How to change preference settings
1Check the display shows the time of
day and the function dial is set to OFF.
 If you’re unsure, press the cancel
ERUTAREPMETNOITCNUF
button twice.
3Press the right scroll
-+
-+-+
button to scroll
to the setting you want to change.
Refer to the table following.
4Press the select
ERUTAREPMETNOITCNUF
button to select
the particular setting.
 The display will flash.
2Press and hold the scroll
-+
-+-+
-+
-+-+
buttons
together for 3 seconds to enter the
user preference menu.
-+
-+-+
-+
-+-+
-+
-+-+
-+
-+-+
-+
-+-+
