Fisher & Paykel OB60 Series Mounting instructions

GB IE
Built-in oven
OB60 double oven
under bench models
Installation instructions
and User guide

1
Safety and warnings 2
Installation instructions 6
Using your oven for the first time 14
Clock and timer 15
Using the multifunction lower oven 16
Lower oven cooking functions 17
Automatic cooking 18
Using the upper oven for the first time 19
Upper oven cooking functions 20
Care and cleaning 21
Warranty and service 31
Important!
SAVE THESE INSTRUCTIONS
The models shown in this user guide may not be available in all markets and are
subject to change at any time. For current details about model and specification
availability in your country, please visit our local website listed on the back cover
or contact your local Fisher & Paykel dealer.
Contents

2Safety and warnings
WARNING!
Cut Hazard
Take care - panel edges are sharp.
Failure to use caution could result in injury or cuts.
WARNING!
Electrical Shock Hazard
Always disconnect the oven from the mains electricity supply before
carrying out any maintenance operations or repairs.
Failure to do so may result in death or electrical shock.
Important safety precautions
To avoid hazard, follow these instructions carefully before installing or using this product.
Please make this information available to the person installing the product as it could reduce
your installation costs.

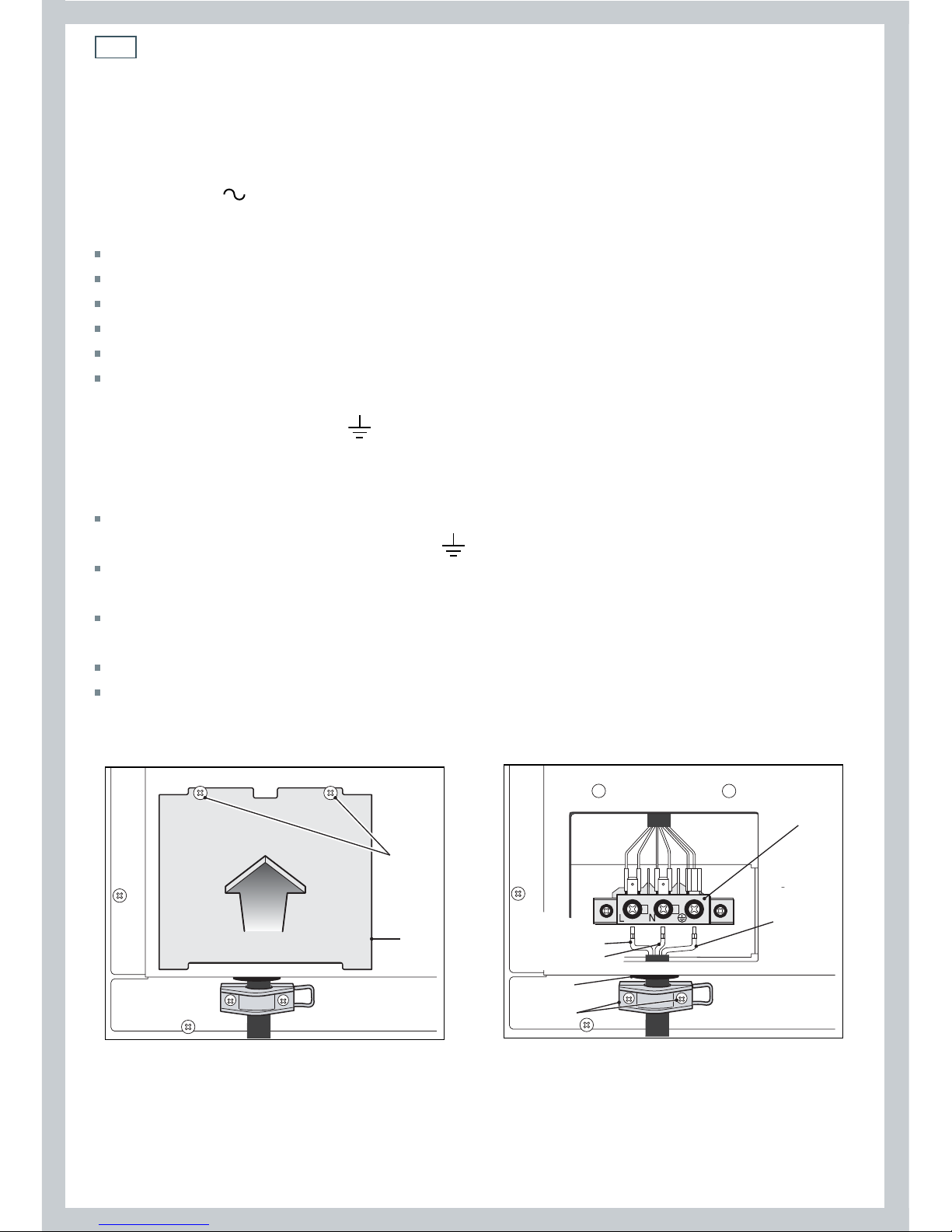

This oven is to be installed and connected to the electricity supply only by an authorised person.
If the installation requires alterations to the domestic electrical system call a qualified electrician.
The electrician should also check that the socket cable section is suitable for the electricity drawn
by the oven.
The oven must be earthed.
To connect the oven to the mains, do not use adapters, reducers or branching devices as they can
cause overheating and burning.
Installation must comply with your local building and electricity regulations.
Failure to install the oven correctly could invalidate any warranty or liability claims.
Before you install the oven, please make sure that
The cabinetry surrounding the oven is made of heat resistant material. It must be capable of
resisting temperatures of 75
o
C above room temperature.
The adhesive which bonds the plastic laminate to the cavity can withstand at least 150
o
C. This is
to avoid delamination.
A suitable disconnection switch is incorporated in the permanent wiring, mounted and positioned
to comply with the local wiring rules and regulations. The switch must be of an approved
type installed in the fixed wiring and provide a 3 mm air gap contact separation in all poles in
accordance with the local wiring rules.
The electrician allows at least 1.5 m (and not more than 2 m) free length of connection cable
within the cavity for ease of installation and servicing of the product. The mains cable should not
touch any hot metal parts.
Installation

3
The benchtop and oven cavity are square and level, and are the required dimensions.
The oven door can open fully without obstruction.
When you install the oven
Do not seal the oven into the cabinetry with silicone or glue. This makes future servicing difficult.
Fisher & Paykel will not cover the costs of removing the oven, or of damage caused by this
removal.
Use the supplied screws to secure the oven to the cabinetry. Do not over-tighten the screws. (See
Fig. 1)
Do not stand on the door, or place heavy objects on it.
Do not lift the oven by the door handle.
Safety and warnings
Fig. 1 Securing the oven to the cabinetry

4
Operation
Your built-in oven has been carefully designed to operate safely during normal cooking
procedures. Please keep the following guidelines in mind when you are using your oven:
WARNING!
Hot Surface Hazard
Accessible parts may become hot when this oven is in use.
To avoid burns and scalds keep children away.
Do not touch hot surfaces inside the oven.
Use oven mitts or other protection when handling hot surfaces such as oven
shelves or dishes.
Take care when opening the oven door.
Let hot air or steam escape before removing or replacing food.
Failure to do so could result in burns and scalds.
WARNING!
Electrical Shock Hazard
Switch the oven off at the wall before replacing fuses or the oven lamp.
Failure to do so may result in death or electrical shock.
Safety and warnings

5
Important safety precautions
Isolating switch: make sure this oven is connected to a circuit which incorporates an isolating
switch providing full disconnection from the power supply.
Household appliances are not intended to be played with by children.
Children, or persons with a disability which limits their ability to use the appliance, should have a
responsible person to instruct them in its use. The instructor should be satisfied that they can use
the appliance without danger to themselves or their surroundings.
Safe food handling: leave food in the oven for as short a time as possible before and after
cooking. This is to avoid contamination by organisms which may cause food poisoning. Take
particular care during warmer weather.
Do not place aluminium foil, dishes, trays, water or ice on the oven floor during cooking as this
will irreversibly damage the enamel.
Do not stand on the door, or place heavy objects on it.
Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since
they scratch the surface, which may result in shattering of the glass.
Do not use a steam cleaner to clean any part of the oven.
If the supply cord is damaged, it is replaced by the manufacturer, its service agent, or a similarly
qualified person in order to avoid a hazard.
Caution. Hot air can blow from under the control panel as part of the oven's cooling system.
Safety and warnings

6Installation instructions
To build in the double oven
Important!
If you are planning to install a cooktop directly above the oven, make sure the installation will comply with
the cabinetry and ventilation requirements of the cooktop as well as those of the oven. Bench heights,
benchtop thicknesses and cooktop installation requirements vary: some cooktops may not be able to be
installed directly above the oven.
Installation “A” between existing side cabinets (560 or 600 mm gap) (Figs. 2a, 2b, 3a, 3c)
Mount the 2 (two) metal supports “B” (supplied with the appliance in a separate kit) as indicated
in Fig. 2b, 3c).
Fig. 3c only, prepare 2 wood uprights “A” (width 20-50 mm, thickness 18 mm, length 650 mm);
mount the 2 wood uprights “A” to the cabinet walls as indicated in Fig. 3c.
Build in the double oven making it slide on the metal supports “B”.
Installation “B” between side cabinets by removing previous housing (Figs. 3b, 3c)
Remove previous housing.
Mount the 2 (two) metal supports “B” (supplied with the appliance in a separate kit) as indicated
in Fig. 3c).
Prepare 2 wood uprights “A” (width 20-50 mm, thickness 18 mm, length 650 mm); mount the 2
wood uprights “A” to the cabinet walls as indicated in Fig. 3c.
Build in the double oven making it slide on the metal supports “B”.
Installation “C” by using housing unit (Figs. 4a, 4b)
Remove the upper cross member support as indicated in Fig. 4a.
Cut the bottom of the housing as indicated in Fig. 4a.
Screw oven base housing to adjoining cabinetry by suitable screws (not supplied) as indicated in
Fig. 4b.
Check the position of the cabinet legs to ensure the cut-out does not interfere with the legs’
support. Otherwise the cabinet may have to be removed as in installation type "B".
Mount the 2 (two) metal supports “B” (supplied with the appliance in a separate kit) as indicated
in Figs. 4b).
Build in the double oven making it slide on the metal supports “B”.
Fixing the double oven

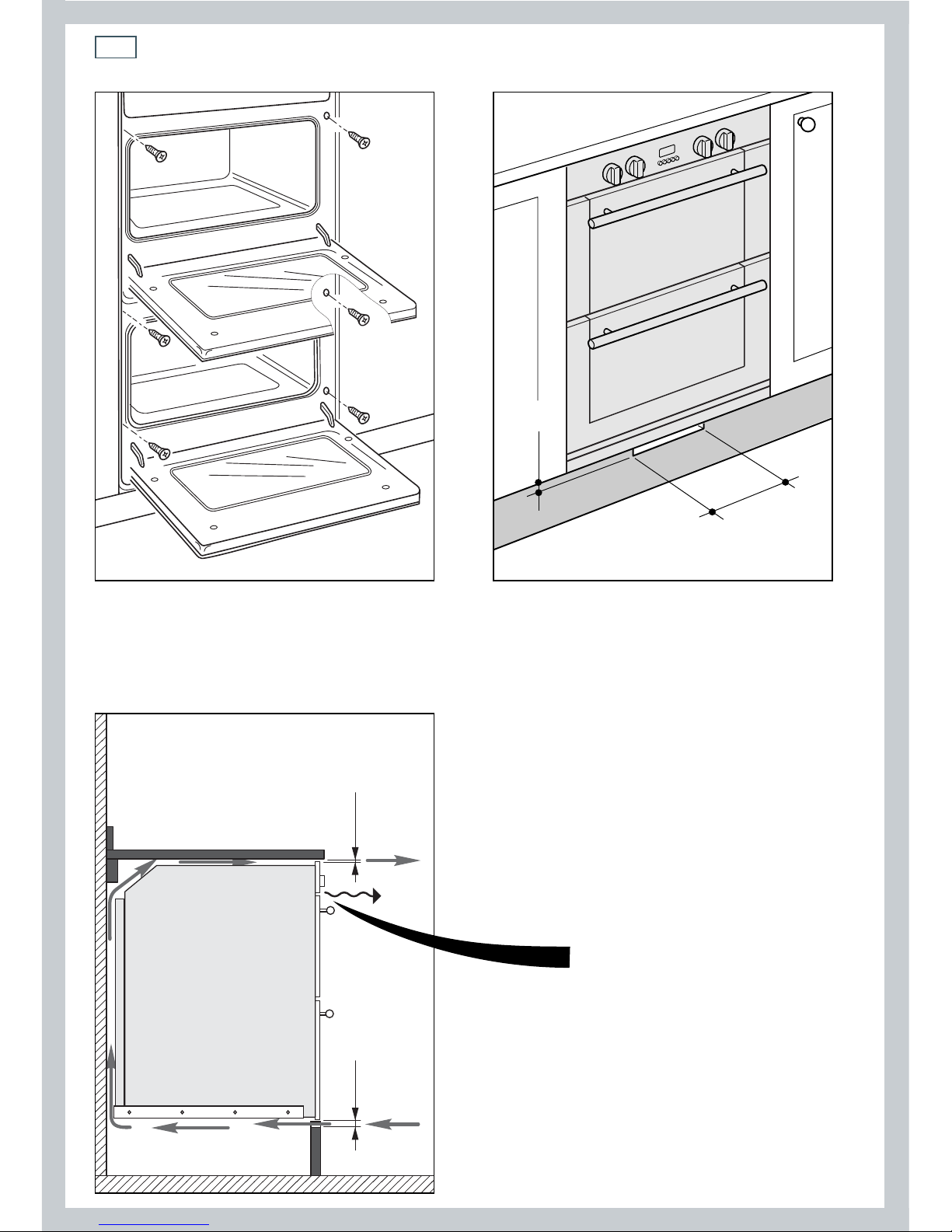

The double oven should then be secured by 6 screws fitted into the holes provided at the sides
of the oven (Fig. 5). If you open the oven doors, you will see some screw holes. Remember the
housing should not be free standing but be secured to the wall and/or adjacent fittings.
Note:
It is essential that when installing your double oven, adequate air circulation is available within
the installation. Inadequate air circulation may greatly impair the performance of your double
oven and may affect adjacent cabinets due to an increase in temperature. Adjust the hinges of
furniture door adjacent to the double oven to allow a 5 - 7 mm gap between the furniture door
and the oven frame.

7
Installation instructions
544
20
538
718
595
42
560
B
WARNING !
VERY IMPORTANT
The underside of the
cabinet shall be
opened to allow 
correct air circulation.
720 min (*)
B
Support base
570 min
(*)Measure calculated from the
underneath of the benchtop to the top
support base of the “B” supports.
INSTALLATION“A”
Fig. 2a
Fig. 2b
Support base
Important!
The underside of the cabinet
shall be opened to allow
correct air circulation.

8Installation instructions
544
20
538
718
595
600
WARNING !
VERY IMPORTANT
The underside of the
cabinet shall be
opened to allow 
correct air circulation.
720 min (*)
B
570 min
20
22
15
20 - 50
18
A
B
650
A
Support base
(*)Measure calculated from the underneath of
the worktop to the top support base of the
“B” supports.
INSTALLATION “B”
Pre existing
600 mm cabinetry
INSTALLATION “B”
Fig. 3b
Fig. 3c
(*)Measure calculated from the underneath
of the worktop to the top support base of the
“B” supports.
Support base
Important!
The underside of the cabinet
shall be opened to allow
correct air circulation.
Fig. 3a
