Fisher & Paykel HS60XW4 User manual

BUILT-IN SLIDEOUT
RANGEHOOD
HS60XW4, HS60LXW4, HS60LRX4
and HS90X4 models
INSTALLATION GUIDE / USER GUIDE
NZ AU

1
IMPORTANT!
SAVE THESE INSTRUCTIONS
The models shown in this User guide may
not be available in all markets and are
subject to change at any time. For current
details about model and specification
availability in your country, go to our
website fisherpaykel.com or contact your
local Fisher&Paykel dealer.
Registration
Register your product with us so we can
provide you with the best service possible.
To register your product visit our website:
fisherpaykel.com
CONTENTS
Safety and warnings 3
Installation instructions 5
Operating instructions 10
Cleaning and maintenance 11
Parts and accessories 13
Customer care 14
Service and Warranty 15

3
!WARNING!
Electric Shock Hazard
All electrical work must be done in accordance with local and/or
national electrical codes as applicable. If you are unfamiliar with
methods of installing electrical wiring, employ the services of a
qualified electrician. Turn off power at service entrance before
installing wiring or servicing this product.
!WARNING!
11.2 kg
(HS90X4)
11 kg
(HS60XW4)
8.3 kg
(HS60LRX4)
8.1 kg
(HS60LXW4)
Weight Hazard
The rangehood is heavy. Ensure adequate care is taken when
installing the rangehood to prevent personal injury.
The rangehood must be installed onto a solid wall, stud,
beam or truss. Weight of the product:
 11.2 kg (HS90X4)
 11 kg (HS60XW4)
 8.3 kg (HS60LRX4)
 8.1 kg (HS60LXW4)
IMPORTANT SAFETY INSTRUCTIONS
WARNING! When using this appliance always exercise basic safety precautions
including the following:
 Read the entire set of instructions before installing or using this appliance.
 Please make this information available to the person installing the appliance— doing
so could reduce your installation costs.
 Always switch the power off prior to installation, servicing or cleaning of the rangehood.
 This appliance must be installed and connected to the mains power supply only
by a suitably qualified person according to these installation instructions and in
compliance with any applicable local building and electricity regulations.
Failure to install the appliance correctly could invalidate any warranty or liability claims.
 To comply with electrical safety regulations, the rangehood must be plugged into
a socket near the appliance. The socket must be accessible, or have an accessible
isolating switch, to enable the end user to isolate the rangehood from the power for
the purpose of internal cleaning or maintenance.
 A power outlet should be within 750mm of the motor assembly and can either be on
the wall, behind the chimney or in the ceiling.
 If the supply cord of this equipment is damaged, it must only be replaced by the
manufacturer, its service agent or similarly qualified person in order to avoid a hazard.
SAFETY AND WARNINGS

4
 Ducting accessories are not supplied. All ducting must comply with local requirements
and building codes.
 Attention should be given to ensure that any applicable regulations concerning
the discharge of exhaust air are fulfilled.
 Before connecting any pipes, consult municipal ordinances to ensure that any
applicable regulations concerning the discharge of exhaust air are adhered to
and request permission from the person in charge of the building.
 Exhaust air must not be discharged into an existing flue that is used for exhausting
fumes from appliances burning gas or other fuels.
 There shall be adequate ventilation of the room when the rangehood is used
at the same time as appliances burning gas or other fuels.
 The minimum distance between the supporting surface for cooking vessels on
the cooktop and the lowest part of the rangehood shall be 600mm or 650 mm
if installed over a gas cooktop.
 Stainless steel is very easily damaged during installation if abraded or knocked by
tools. It is recommended to protect the top of the rangehood with cardboard or
polystyrene during the installation to minimise the risk of damage occurring.
 To reduce the risk of damage occurring to the cooktop, it is recommended that
the surface of the cooktop is protected with cardboard or a similar object during
installation of the rangehood.
 This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning the use of the
appliance by a person responsible for their safety.
 Children should be supervised to ensure they do not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
 You must read the details concerning the method and frequency of cleaning.
 There is a fire risk if cleaning is not carried out in accordance with the instructions.
 Never leave frying food unattended since grease can overheat and catch fire.
The risk of fire is even greater in the case of used oil.
 Do not flambé under the rangehood.
 Never use the rangehood without the filters in place.
 During an electrostatic discharge (ESD) it is possible that the device will stop
working. By switching the device off and on the device will again work as intended.
 CAUTION: accessible parts may become hot when used with cooking appliances.
 Remove all packaging, including protective wrappings, before use.
SAFETY AND WARNINGS

5
INSTALLATION INSTRUCTIONS

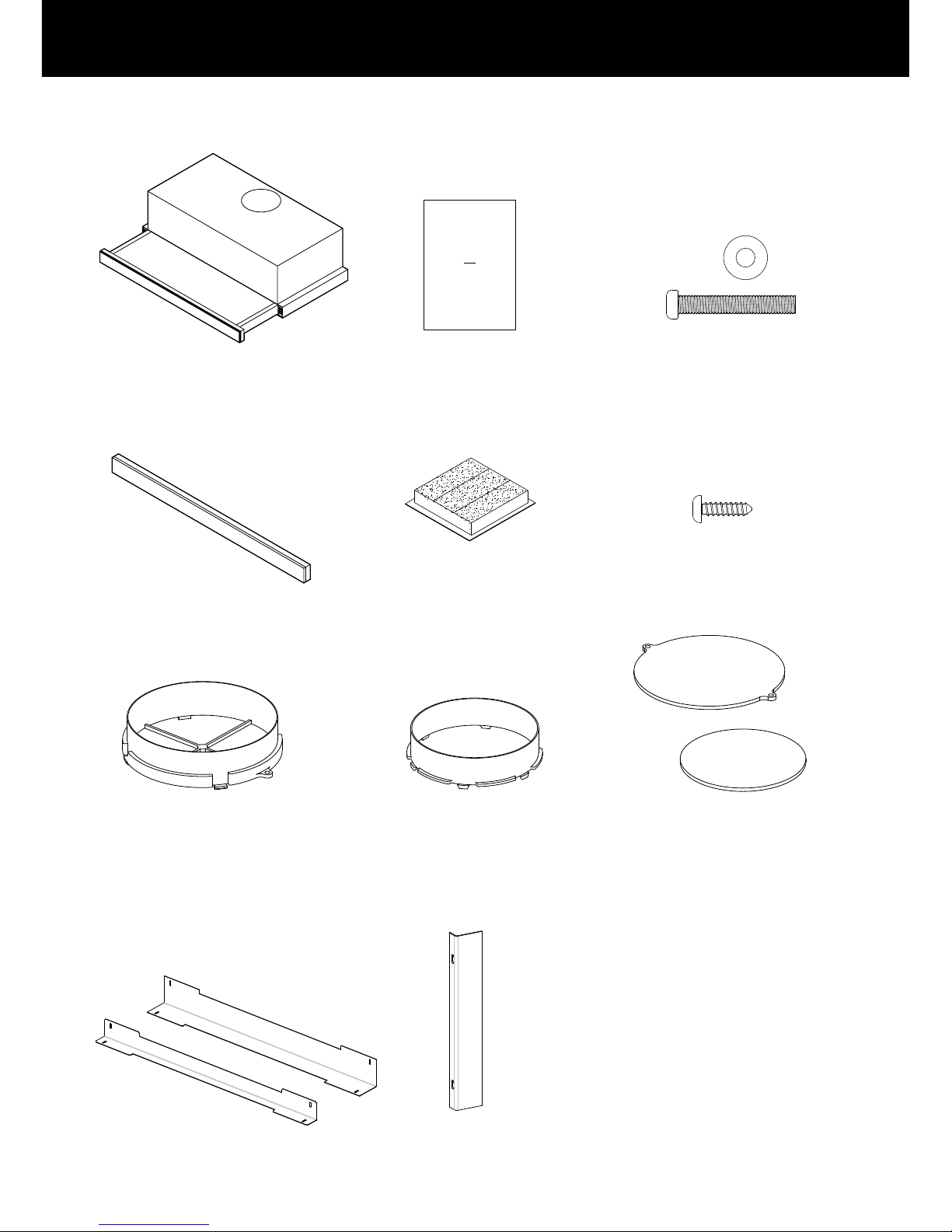

Contents of packaging
Screw M6x40 mm
(including washer)
(4)
Rangehood
(1)
Installation guide/
User guide
(1)
Spacer Rear
(2)
Spacer Lateral
(2)
Ducting adapter —
rear extraction
(1) HS60LXW4
andHS60LRX4
Duct hole covers
(2) HS60LXW4
andHS60LRX4
Ducting adapter —
top extraction
(1)
BUILT-IN SLIDEOUT
RANGEHOOD
HS60XW4, HS60LXW4, HS60LRX4
and HS90X4 models
INSTALLATION GUIDE / USER GUIDE
NZ AU
Screw 3x12 mm
(6)
Carbon filters (2)
(HS60LRX4)
Handle (1)
(HS60XW4)
(HS60LXW4)
(HS60LRX4)

INSTALLATION INSTRUCTIONS
6

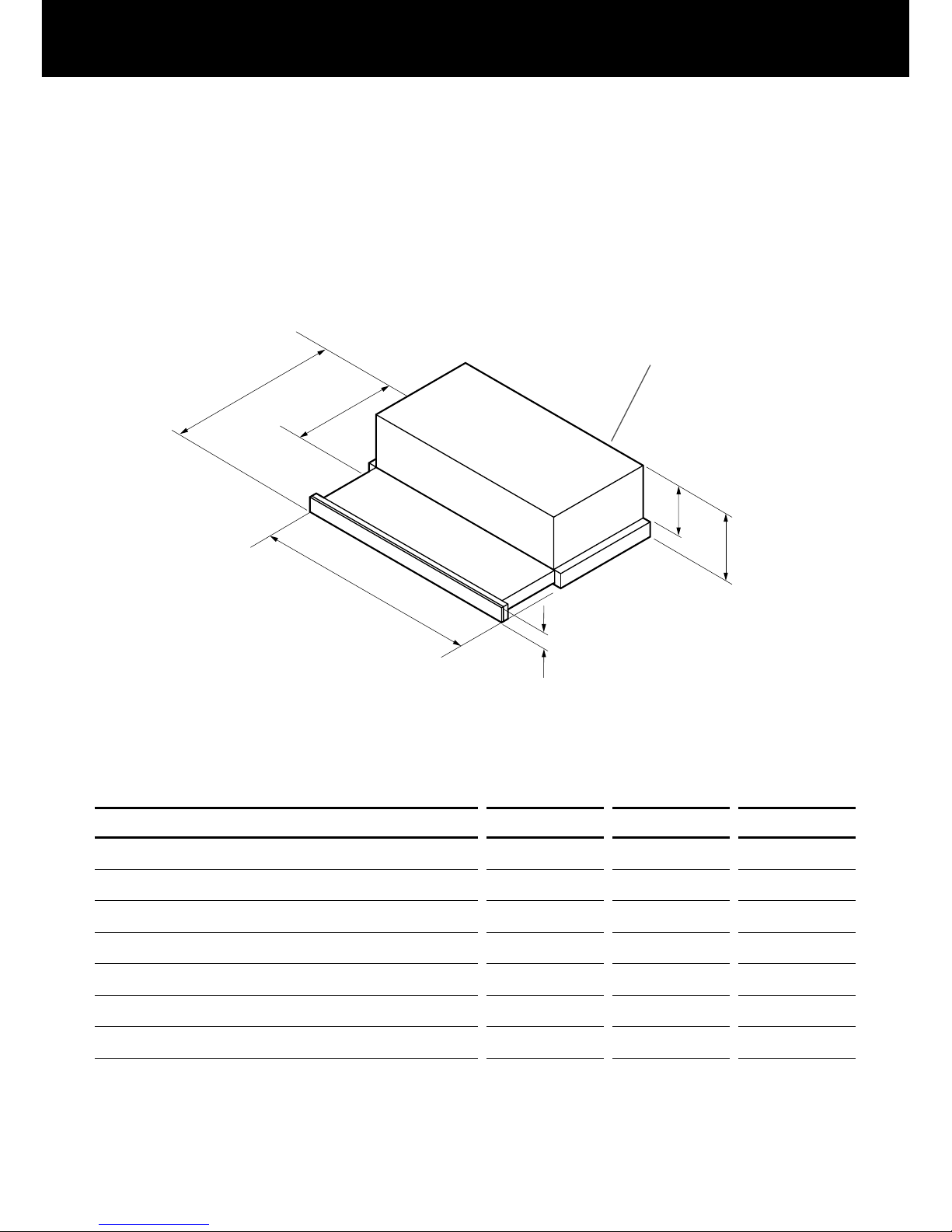

Product dimensions
HS60LRX4 HS90X4
HS60XW4
HS60LXW4
PRODUCT DIMENSIONS mm mm mm
AOverall height of product 180 180 180
BOverall width of product 598 898 598
COverall depth of chassis 280 280 280
DOverall depth of chassis (fully extended) 460 460 460
EHeight of handle 70 40 40
FInstalled chassis height 140 140 140
Power cord length 1500 1500 1500
IMPORTANT!
Actual product dimensions may vary by ±2mm.
Read the entire instructions before installing the rangehood.
C
A
B
D
F
E
Power cord

INSTALLATION INSTRUCTIONS
7
2 mm
C
D
B
Panel heights
Positioning
A B
Gas Burner
Height of rangehood
Read the entire instructions BEFORE installing the rangehood.
 Ascertain the desired installation height of the rangehood.
 When installing the rangehood, the lower edge of the unit must be a minimum of
600 mm above electric cooktop surface; 650 mm above gas cooktop cooking surface;
and up to a maximum of 750 mm.
 Any installation above 750 mm will compromise the extraction performance.
RECIRCULATED DUCTED
HS60LRX4 (front)
HS60LXW4 (front)
HS60LRX4 (top & rear)
HS60LXW4 (top & rear)
HS60XW4 (top only)
HS90X4 (top only)
MINIMUM CLEARANCES mm mm
AHeight (top of cooktop to base of rangehood)
Electric cooktop
Gas cooktop
min. 600 – max. 750
min. 650 – max. 750
min. 600 – max. 750
min. 650 – max. 750
BHeight (top of cooktop to base of shelf
whererangehood is attached)
Electric cooktop
Gas cooktop
min. 781 – max. 931
min. 831 – max. 931
min. 781 – max. 931
min. 831 – max. 931
CDepth of installation (cabinet cavity) min. 283 min. 283
DHeight of installation (cabinet cavity) max. 108 max. 138

INSTALLATION INSTRUCTIONS
8
WARNING!
Failure to install the screws or fixing device in accordance with these instructions
may result in electrical hazards. The manufacturer is not liable for any damage caused
by not following these instructions.
Before installing your rangehood
 Read the instructions carefully.
 Unpack the cooker hood and check that all functions are working.
 Ensure that the voltage (V) and the frequency (Hz) indicated on the serial plate match
the voltage and frequency at the installation site.
 Protect the hob surface below with cardboard, or the like, to prevent damageoccurring
whilst the cooker hoodis beinginstalled above.
 Fit the 125 mm ducting adapter to the cooker hood using the screws supplied.

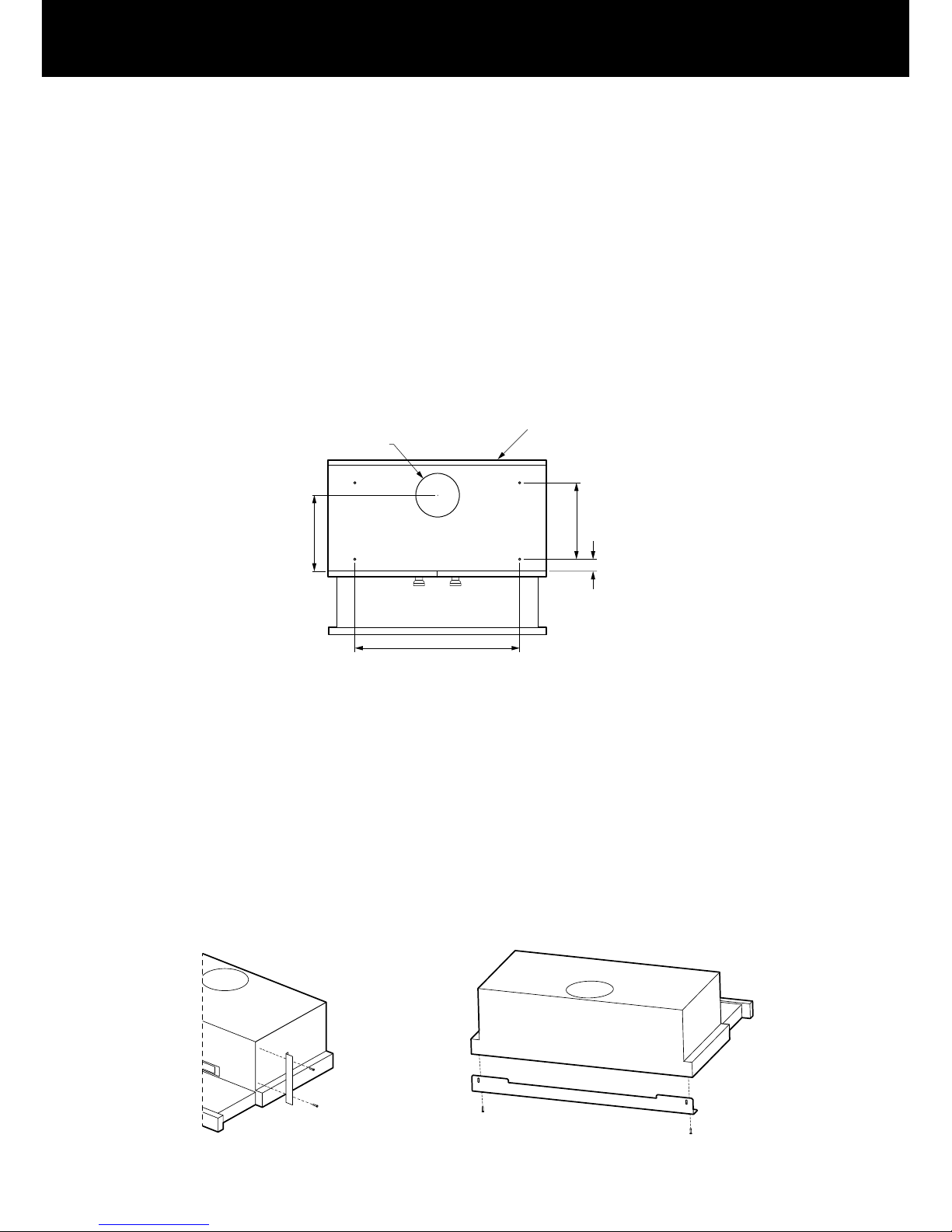

Fig.1 Mounting to underside of cabinetry
FIG. 8
210 mm
35 mm
453/753 mm
Wall
209 mm
Ø125 – 130 mm
Fig.3 Spacer Rear
Screw shall be fixed into
lower face of the hood
Fig.2 Spacer Lateral
FIG. 5
Mounting the rangehood to the underside of cupboard
 Attach the rangehood to a shelf mounted at the preferred height in your wall units,
bydrilling 4 holes, 7 mm in diameter, (see Fig.1) and fixing with the 4screws supplied.
Note: When installing the rangehood cover the space between the product and the wall
with the adjustable lateral and rear spacer supplied (Fig.2 and Fig.3).
 Connect 125 mm or 100 mm ducting to the blower outlet and plug in rangehood.

INSTALLATION INSTRUCTIONS
9

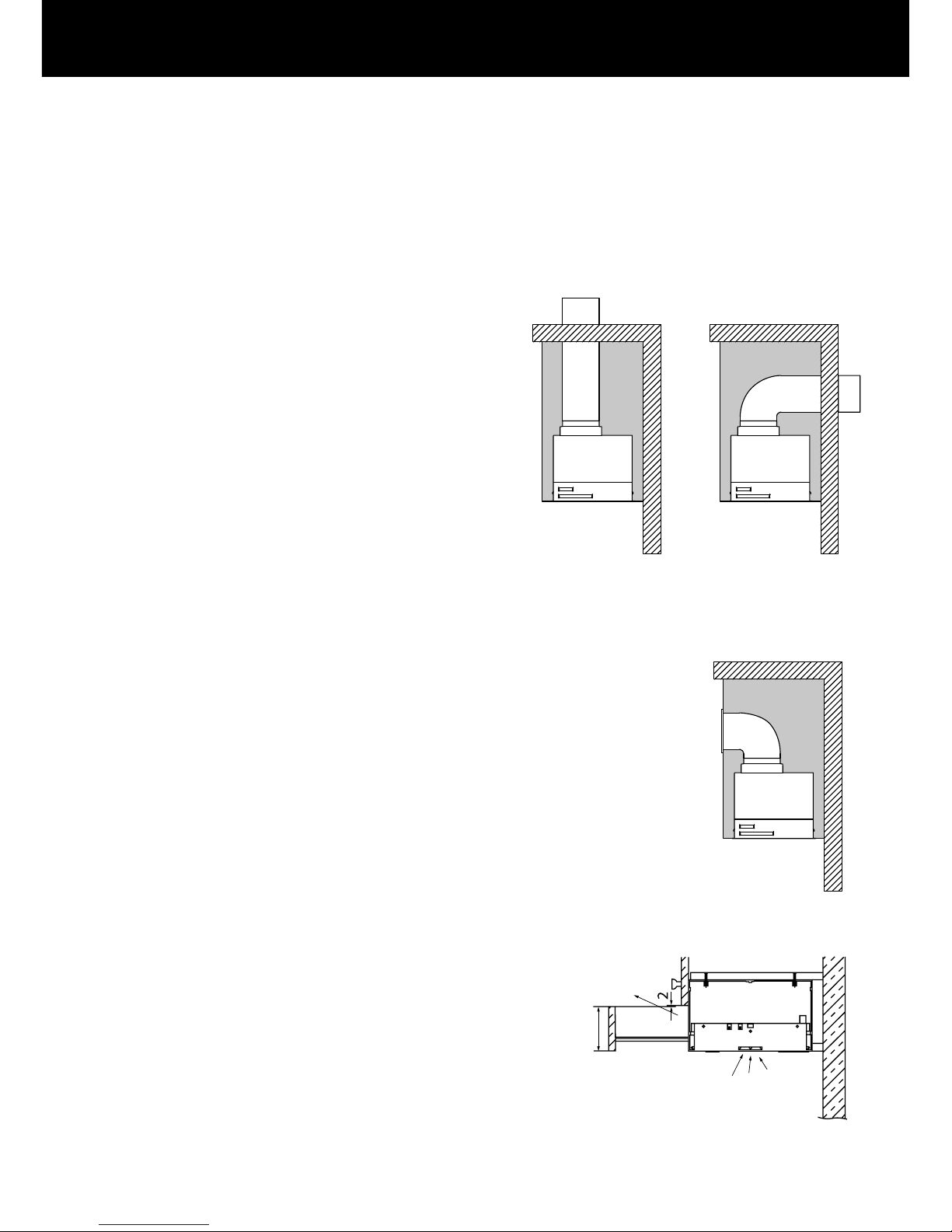

Venting requirements
IMPORTANT!
To reduce risk of fire and to properly exhaust air, be sure to duct air outside!
Do not vent exhaust air into wall or ceiling cavities, attics, crawl spaces, or garages.
This rangehood can be installed to operate with the exhaust air ducted externally from
the kitchen or with the exhaust air recirculating within the kitchen.
External venting
 Use the shortest and straightest duct route
possible. Elbows and transitions increase
noise and reduce air flowefficiency.
 Use rigid or semi-rigid ducting 125 mm
diameter for top duct with a 135 mm
(minimum) round hole in the wall or ceiling.
Indifficult installations where flexible ducting
is required ensure that it is pulled tight.
Note: HS60LXW4 and HS60LRX4 can also
be rear ducted with 100 mm ducting, in this
case a110 mm hole is required in the wall
orceiling.
Recirculating
This rangehood can be installed to recirculate within
thekitchen where ducting externally is not practical.
Thecarbon filters fit on the blowers within the cavity of the
range hood and absorb odours as they pass over the filters.
The exhaust air then passes through the blower unit and
thediverter before recirculating back into the kitchen.
To operate this rangehood with the air recirculating
thefollowing is required:
Ducted recirculation through cabinetry:
 Carbon filters (refer to ‘Parts and accessories’).
 125 mm or 100 mm ducting. The ducting diameter must
match the diameter or the blower outlet.
 125 mm louvered vent.
Front recirculation
(With products: HS60LRX4)
 This model comes with two carbon filters and a
70 mm handle assembled.
 No duct holes are required in cabinetry.
70
Panel heights
Cooking fumes
Filtered air
Recirculate with carbon filters
Vent through roof Vent through exterior wall

10
Control panel features
Light switch — left hand side
The light can be operated
independentlyfromthe fan.
Fan switch — right hand side
The fan can be run at different speeds
depending on the cooking requirements.
Operating instructions
1Pull out the front panel more than 50 mm. The front panel has to be pulled to its
maximum extension so as to optimise the extraction capacity.
2Switch on the lamps (A).
3Select air flow speed to suit your cooking requirements. The fan switch (B) has the
following functions:
0Stop
ILow speed
II High speed
OPERATING INSTRUCTIONS
Front panel
AB

11
WARNING!
Unplug or disconnect the appliance from the power supply
before servicing or cleaning.
IMPORTANT!
 Never use abrasive or oil based cleaners.
 Wear gloves to protect against sharp edges.
General maintenance
The manufacturer is not liable for any damage caused by not following these instructions.
The rangehood should be cleaned regularly using warm water with soap or mild liquid
detergents. This ensures that no build-up of grease occurs as these deposits are
corrosive. Do not use abrasives or harsh detergents/cleaning fluids.
Note: in areas of high humidity and coastal environments cleaning should be carried
outmore frequently.
Aluminium filter
The grease filter must be periodically cleaned (at least every two months).
Remove the grease filter and wash either by hand using hot soapy water or place
inthedishwasher with recommended dishwashing detergent for your dishwasher.
Note:
 Some discolouration of the frame may occur.
 When installing or replacing a filter, remove the protective plastic covering from the filter.
CLEANING AND MAINTENANCE

12
WARNING!
When replacing the bulb, let the bulb cool, and assure that power to the rangehood has
been turned off. Use new bulbs according to that indicated on the rangehood nameplate.
Carbon filter for all recirculating installations
(Optional: HS60LXW4, HS60XW4, HS90X4)
(With product: HS60LRX4)
Active carbon filters are disposable items designed to remove grease and
odours fromcooking vapours before the air is channelled back into the kitchen.
Theactivecarbon filters must be replaced periodically to work properly, at least every
three months, depending on the frequency with which the rangehood is used.
Note:
 Fully saturated carbon filters can become a barrier to air movement, impeding the
rangehood’s performance.
 In the event of fire, fully grease laden filters could be flammable and therefore regular
replacement is recommended.

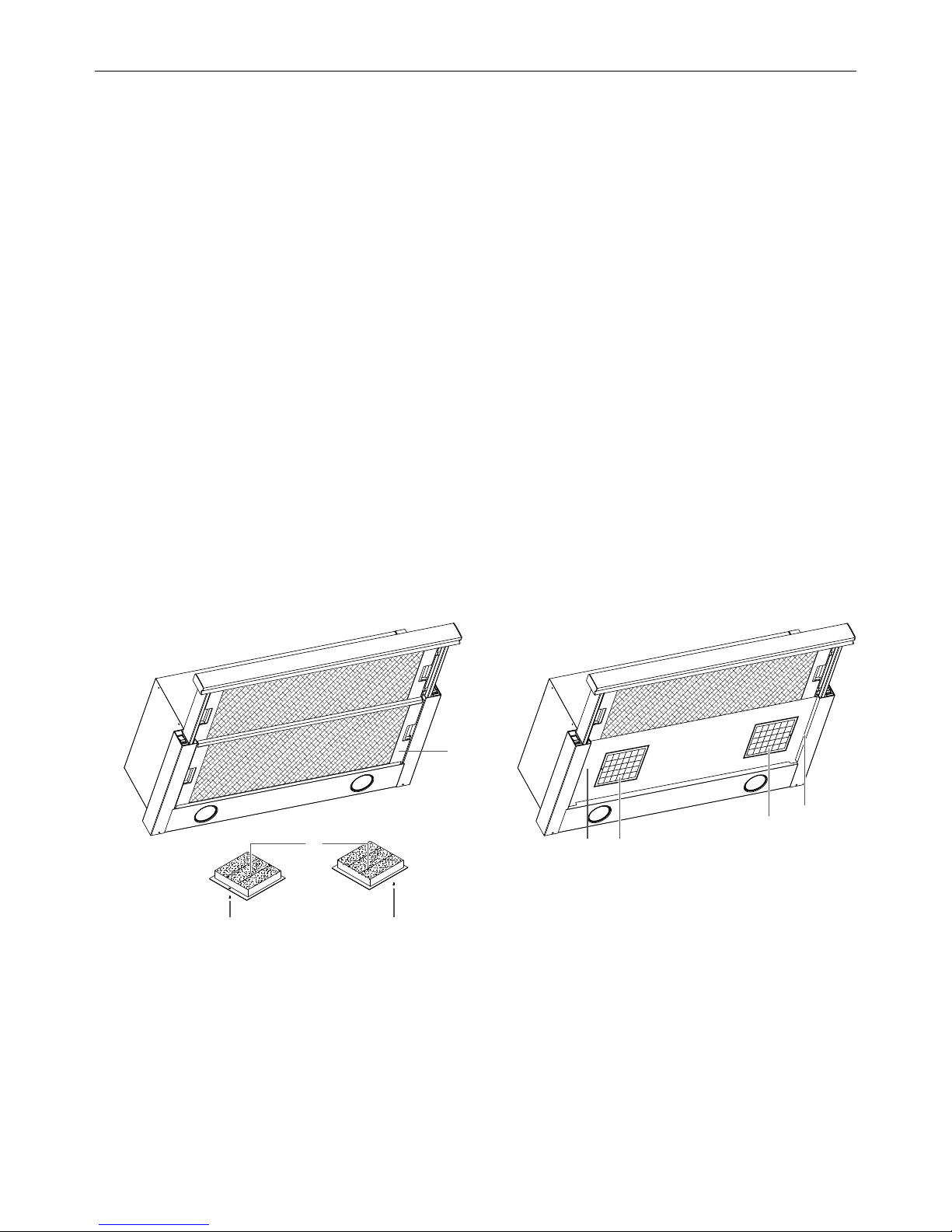

Replacement
To replace carbon filters (C), proceed as follows:
1 Remove aluminium filter (A).
2 To remove carbon filter undo and remove the screw (B).
3 To install follow above steps in reversed order.
A
B B
C
CB
CB
Carbon filter replacement
Light bulb replacement
(230 Volt / 50 Watt light bulb)
1 To replace a light bulb, first disconnect the rangehood from its power supply.
2 Apply finger pressure to the face of the light bulb and twist one quarter turn
anti-clockwise — the light bulb will now be free to drop out.
3 Remove the faulty bulb and fit replacement bulb into the lamp holder.
4 Refit the light bulb by applying finger pressure and twist one quarter turn clockwise.
Note: replacement bulbs are not covered by Manufacturer’s Warranty.
CLEANING AND MAINTENANCE

13
ACCESSORY PART NUMBER
Replacement aluminium filter x2 (HS60) 792391
Replacement aluminium filter x2 (HS90) 792392
Recirculation charcoal filter x2 792390
Light bulb 792461
Ducting kit 125 mm (eaves) PD-RHK125E
Ducting kit 125 mm (wall) PD-RHK125W
Ducting kit 125 mm (roof) PD-RHK125T
PARTS AND ACCESSORIES

14
Before you call for service or assistance...
Check the things you can do yourself. Refer to your User guide and check that:
1 Your product is correctly installed.
2 You are familiar with its normal operation.
If after checking these points you still need assistance or parts, go online to our
websitefisherpaykel.com to book a service, or contact Customer Care.
In New Zealand if you need assistance…*
Visit our website and book a service, or call our Customer Care Centre.
Toll Free: 0800 FP CARE or 0800 372 273
Website: fisherpaykel.com
Postal address: Fisher&Paykel Appliances Ltd, PO Box 58550, Botany, Auckland 2163
If you need service…*
Fisher&Paykel has a network of Fisher&Paykel trained and supported service
technicians responsible for servicing only Fisher&Paykel branded appliances.
Visit our website, ask your local Fisher&Paykel dealer, or speak to our Customer Care
Centre for a recommended service technician in yourarea.
In Australia if you need assistance…*
Visit our website and book a service, or call our Customer Care Centre.
Toll Free: 1300 650 590
Website: fisherpaykel.com
Postal address: Fisher&Paykel Appliances Ltd, PO Box 798, Cleveland QLD 4163
If you need service…*
Fisher&Paykel has a network of Fisher&Paykel trained and supported service
technicians responsible for servicing only Fisher&Paykel branded appliances.
Visit our website, ask your local Fisher&Paykel dealer, or speak to our Customer Care
Centre for a recommended service technician in yourarea.
*If you call, write or contact our website, please provide your name and address, model
number, serial number, date of purchase and a complete description of the problem.
This information is needed in order to better respond to your request for assistance.
Product details can be found under the aluminium filter.
Registration
Register your product with us so we can provide you with the best service possible.
To register your product visit our website: fisherpaykel.com
CUSTOMER CARE

15
For details of your manufacturer’s warranty and contacts for servicing, refer to your
separate service and warranty book provided with your appliance.
This product has been designed for use in a normal domestic (residential environment).
This product is not designed for any commercial use. Any commercial use by the
customer will affect this products manufacturer’s warranty
SERVICE AND WARRANTY
Complete and keep for safe reference:
Model
Serial No.
Purchase Date
Purchaser
Dealer
Suburb
Town
Country

NZ AU
104032B 04.19
FISHERPAYKEL.COM
© Fisher&Paykel Appliances 2019. All rights reserved.
The product specifications in this booklet apply to the specific products
and models described at the date of issue. Under our policy of continuous
product improvement, these specifications may change at any time. You
should therefore check with your Dealer to ensure this booklet correctly
describes the product currently available.
