INSTALLATION INSTRUCTIONS
USER GUIDE

1
CONTENTS
3
5
14
15
17
18
Safety and warnings
Installation instructions
Operating instructions
Cleaning and maintenance
Parts and accessories
Customer Care
IMPORTANT!
SAVE THESE INSTRUCTIONS
The models shown in this user guide may
not be available in all markets and are
subject to change at any time. For current
details about model and specification
availability in your country, please go to
our website www.fisherpaykel.com or
contact your local Fisher & Paykel dealer.
Registration
Register your product with us so we can
provide you with the best service possible.
To register your product visit our website:
www.fisherpaykel.com

3
SAFETY AND WARNINGS
!WARNING!
12.8 kg
(HC60)
15 kg
(HC90)
Weight Hazard
The rangehood is heavy. Please ensure adequate care is taken when
installing the rangehood to prevent personal injury. The rangehood
must be installed onto a solid wall, stud, beam or truss. Weight of the
HC60PLX4 is 12.8 kg and weight of HC90PLX4 is 15 kg.
!WARNING!
Electric Shock Hazard
Always disconnect the appliance from the mains power supply before
carrying out any maintenance or repairs. Alterations to the domestic
wiring system must be made by a qualified electrician.
Failure to follow this advice may result in electric shock or death.
IMPORTANT SAFETY INSTRUCTIONS
WARNING! When using this appliance always exercise basic safety precautions
including the following:
Please read the entire set of instructions before installing or using this appliance.
Please make this information available to the person installing the appliance – doing
so could reduce your installation costs.
Always switch the power o prior to installation, servicing or cleaning of the rangehood.
This appliance must be installed and connected to the mains power supply only
by a suitably qualified person according to these installation instructions and in
compliance with any applicable local building and electricity regulations. Failure to
install the appliance correctly could invalidate any warranty or liability claims.
To comply with electrical safety regulations, the rangehood must be plugged into
a socket near the appliance. The socket must be accessible, or have an accessible
isolating switch, to enable the end user to isolate the rangehood from the power for
the purpose of internal cleaning or maintenance.
A power outlet should be within 750 mm of the motor assembly and can either be on
the wall, behind the chimney or in the ceiling.
If the supply cord of this equipment is damaged, it must only be replaced by the
manufacturer, its service agent or similarly qualified person in order to avoid a hazard.
Ducting accessories are not supplied. All ducting must comply with local requirements
and building codes.
Attention should be given to ensure that any applicable regulations concerning the
discharge of exhaust air are fulfilled.
Before connecting any pipes, consult municipal ordinances to ensure that any
applicable regulations concerning the discharge of exhaust air are adhered to and
request permission from the person in charge of the building.

4
SAFETY AND WARNINGS
Exhaust air must not be discharged into an existing flue that is used for exhausting
fumes from appliances burning gas or other fuels.
There shall be adequate ventilation of the room when the rangehood is used at the
same time as appliances burning gas or other fuels.
The minimum distance between the supporting surface for cooking vessels on the
cooktop and the lowest part of the rangehood shall be 600 mm or 650 mm if installed
over a gas cooktop.
Stainless steel is very easily damaged during installation if abraded or knocked by
tools. It is recommended to protect the top of the rangehood with cardboard or
polystyrene during the installation to minimise the risk of damage occurring.
To reduce the risk of damage occurring to the cooktop, it is recommended that
the surface of the cooktop is protected with cardboard or a similar object during
installation of the rangehood.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning the use of the appliance
by a person responsible for their safety.
Children should be supervised to ensure they do not play with the appliance. Cleaning
and user maintenance shall not be made by children without supervision.
You must read the details concerning the method and frequency of cleaning.
There is a fire risk if cleaning is not carried out in accordance with the instructions.
Never leave frying food unattended since grease can overheat and catch fire. The risk
of fire is even greater in the case of used oil.
Do not flambé under the rangehood.
Never use the rangehood without the filters in place.
During an electrostatic discharge (ESD) it is possible that the device will stop
working. By switching the device o and on the device will again work as intended.
CAUTION: accessible parts may become hot when used with cooking appliances.
Remove all packaging, including protective wrappings, before use.
For Australia and New Zealand: Range hoods and other cooking fume extractors may
adversely aect the safe operation of appliances burning gas or other fuels (including
those in other rooms) due to back flow of combustion gases. These gases can
potentially result in carbon monoxide poisoning. After installation of a range hood or
other cooking fume extractor, the operation of flued gas appliances should be tested by
a competent person to ensure that back flow of combustion gases does not occur.

5
INSTALLATIONINSTRUCTIONS
Contents of packaging
Upper chimney bracket
(1)
Installation instructions
User guide manual
(1)
Chimney
(1)
125 mm diameter
ducting adapter
(1)
Expansion plug
(8)
Upper chimney
(1)
Rangehood
(1)
150 mm diameter
ducting adapter
(1)
Chimney bracket
(1)
30 mm self tapping screw
(4)
10 mm self tapping screw
(4)
Chimney Pyramid Rangehood
HC60PLX4 and HC90PLX4 models
NZ AU
INSTALLATION INS TRUCTIONS
USER GUIDE

6
INSTALLATIONINSTRUCTIONS

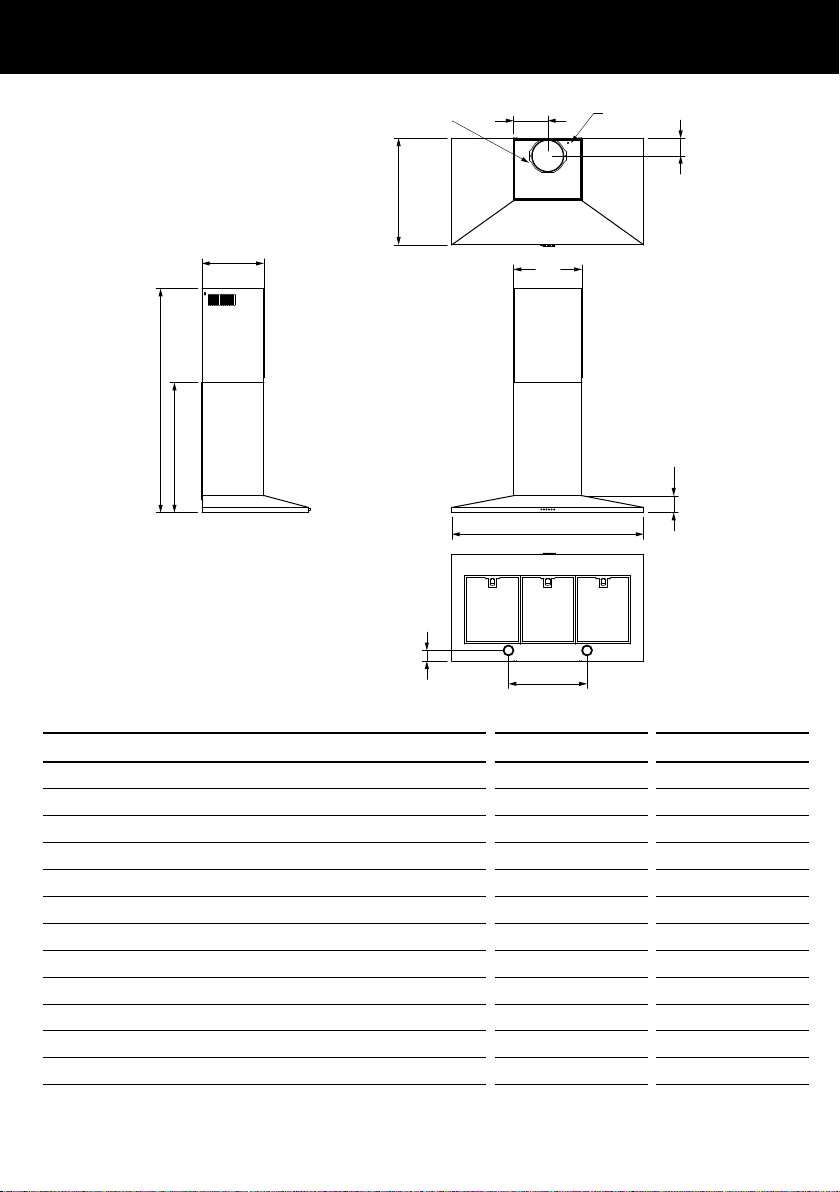

Product dimensions
HC60PLX4 HC90PLX4
PRODUCT DIMENSIONS mm mm
AOverall height of product min. 610 – max. 1050 min. 610 – max. 1050
BOverall width of product 598 898
COverall depth of product 500 500
DHeight of product 80 80
EWidth of chimney 320 320
FDepth of chimney 290 290
GDistance from centre of ducting outlet to back of product 80 80
HDistance from centre of ducting outlet to side of chimney 160 160
IDiameter of ducting outlet 150 150
JDistance between centre of lights 235 370
KDistance between centre of lights to back of product 50 50
Length of power cord 1400 1400
IMPORTANT!
Actual product dimensions may vary by ± 2 mm.
Please read the entire instructions before installing the rangehood.
A
max
A
min
F
J
b
d
K
g
H
c
Power cord
e
I
Ø

7
INSTALLATION INSTRUCTIONS
Height of rangehood
INSTALLATION DIMENSIONS mm
LInstallation height
Ducted
Recirculation
min. 650 – max. 1050
min. 690 – max. 1050
MHeight top of cooktop to base of product
Electric cooktop
Gas cooktop
min. 600 – max. 750
min. 650 – max. 750
L
M
Rangehood installation height above the cooktop is the user’s preference.
Lower installation heights will improve the eciency of capturing cooking odours,
grease, and smoke. This rangehood must be installed between the minimum and
maximum dimensions indicated in the table above.

8
INSTALLATIONINSTRUCTIONS
Venting options
Attention should be given to ensure that any applicable regulations concerning the
discharge of exhaust air are fulfilled.
The rangehood can be installed to operate with the exhaust air ducted externally from
the kitchen, or installed to operate with the exhaust air recirculating within the kitchen.
Ducted
For ducted installation it is recommended that 150 mm diameter, rigid or semi-rigid
ducting is used. This will require a 160 mm (min) round hole in the ceiling or wall.
Care should be taken to position the hole correctly.
For optimal eciency use the shortest and straightest duct route possible and use rigid
or semi-rigid ducting for reduced noise and increased airflow. Flexible metal ducting
should only be used as a last resort (ie in dicult installations) and if used ensure that it
is straight and smooth and extended as much as possible.
Recirculating
To enable the product to operate with the air recirculating, please purchase a
recirculation diverter and carbon filters (refer to the ‘Parts and accessories’ section).
The recirculation diverter is required to channel the air out the side vents at the top
of the chimney and the carbon filters are required to remove odours.
Note: a ducting hole is not required in the wall or ceiling if the rangehood is installed
to operate with exhaust air recirculating.

9
INSTALLATION INSTRUCTIONS
WARNING!
This product is heavy and requires two persons for installation.
Installation work and electrical wiring must be done by qualified person(s)
Failure to install the screws or fixing device in accordance with these instructions
IMPORTANT!
Wear gloves to protect against sharp edges.
Installation
1Preparing for installation:
Before installing your rangehood:
Please read the instructions carefully.
Unpack the rangehood.
Ensure that the voltage (V) and the frequency (Hz) indicated on the serial plate
match the voltage and frequency at the installation site.
Check that all functions are working.
Check that the area behind the installation surface to be drilled is clear of any
electrical cables or pipes, etc.
The rangehood surfaces can be damaged during installation if grazed or knocked
by tools. Please take care to protect the surfaces during installation.
Protect the cooktop surface with cardboard, or the like, to prevent damage occurring
whilst the rangehood is being installed above.
Temporarily mark the height of the bottom of the rangehood and the centre of the
cooktop on the wall according to the information given in the ‘Installation instructions
– Height of rangehood’ section.
The wall used for mounting the rangehood should have sucient strength and a
flat surface.
2Attach chimney brackets and rangehood mounting screws to the wall
Attach the chimney bracket and upper
chimney bracket in the location shown
in Fig.2 (refer to page 10) and 3 (refer
expansion plugs if attaching to masonry).
Attach the upper rangehood mounting
screws in the locations shown in Fig.2
(refer to page 10) and 3 (refer to page 11).
Use the 30 mm screws (and expansion
plugs if attaching to masonry).
Ensure that there is a 2 mm gap between
the screw head and the wall (see Fig.1).
Fig.1
2 mm

1010
HC60PLX4 HC90PLX4

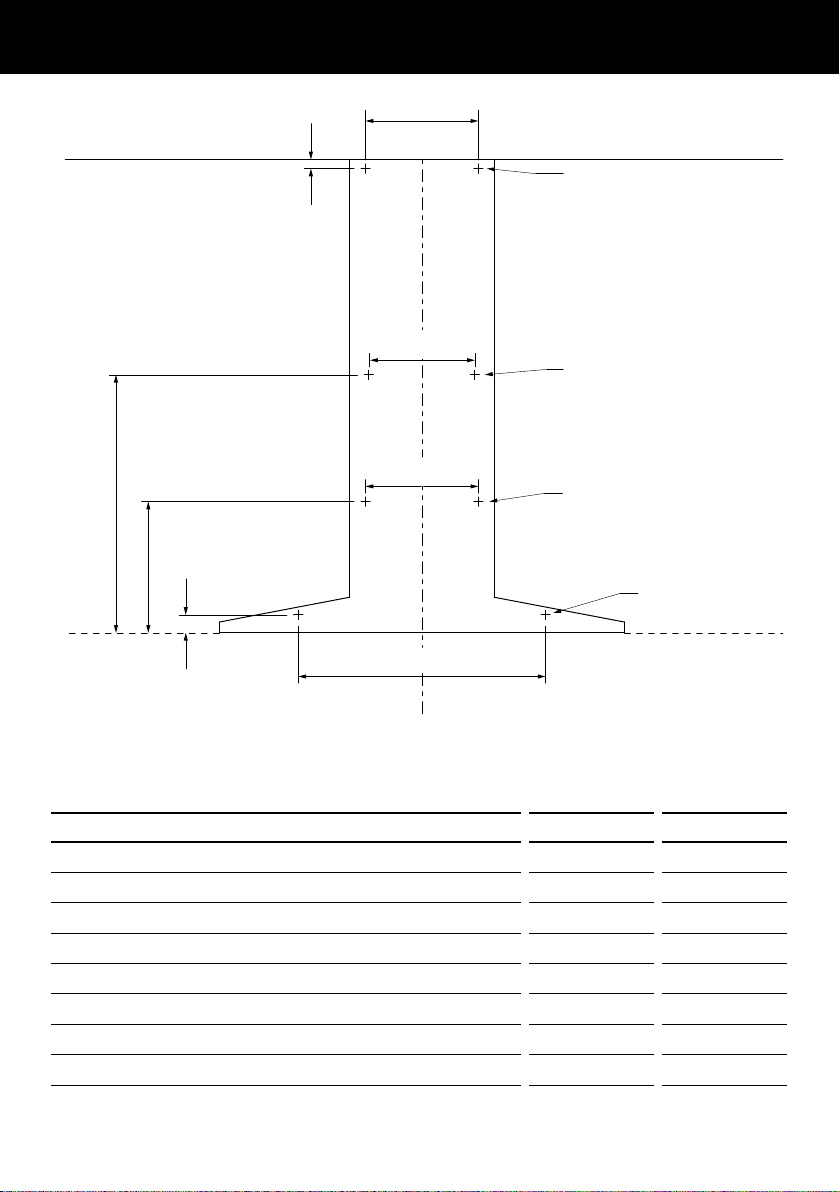

PRODUCT DIMENSIONS mm mm
NLower rangehood attachment point width 440 550
oLower rangehood attachment point height 40 40
pUpper rangehood attachment point width 250 250
qUpper rangehood attachment point height 295 295
rChimney bracket attachment point width 235 235
sChimney bracket attachment point height 575 575
tUpper chimney bracket attachment point width 250 250
uUpper chimney bracket attachment point height 25 25
Fig.2
Upper chimney bracket
attachment points
Chimney bracket
attachment points
Upper rangehood
attachment point
Lower rangehood
attachment point
u
s
q
O
P
r
T
N
INSTALLATIONINSTRUCTIONS

11
INSTALLATION INSTRUCTIONSINSTALLATION INSTRUCTIONS
Fig.3
3Attach the ducting adapter to the rangehood
Place the ducting adapter onto
the rangehood and screw it in
place using the 10 mm screws.

12
INSTALLATIONINSTRUCTIONS
4Wall mounting

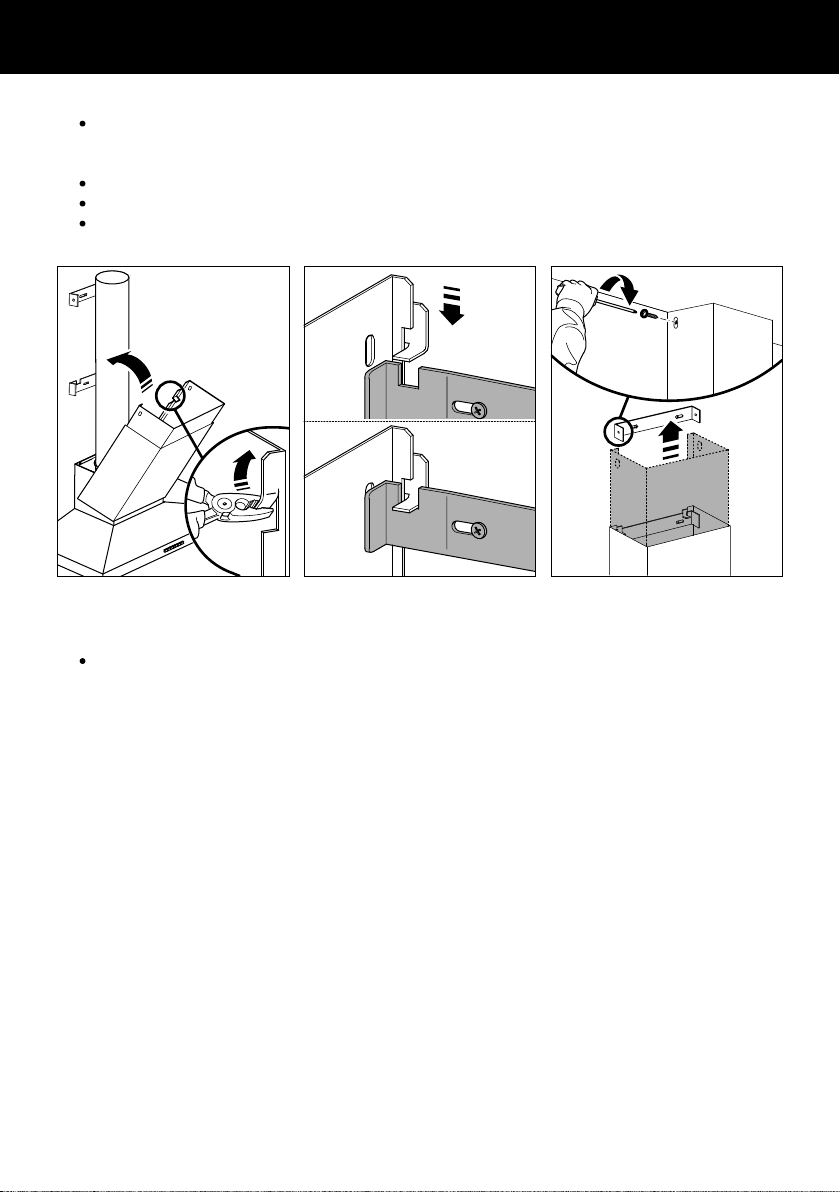

Remove the filters – pull the relative catch and tilt the filter downwards until it
disengages from the supports.
Hang the rangehood o the upper rangehood mounting screws with 2 mm gap.
Hang o the keyhole attachment points on the back of the rangehood then tighten
the screws.
Attach the lower rangehood mounting screws to fix the rangehood to the wall.
Refit the filters.

13
INSTALLATION INSTRUCTIONS
5Attach ducting
Attach ducting to the ducting adapter using aluminium duct tape and vent outside.
6Attach chimney
Bend the tabs on the chimney (A).
Place chimney around the hood chassis and hang o the bracket (B).
Extend the upper chimney and attach to the chimney bracket with 10 mm screws (C).
A B C
7Remove packaging
Remove all packaging and protective wrappings.

14
OPERATING INSTRUCTIONS
Control panel
Note: we recommend turning your rangehood on before you start cooking
for optimal performance.
Extractor fan
operating control
pilot light
Lighting
on and o
Extractor
fan o Extractor fan speed 1, 2 and 3

15
CLEANINGAND MAINTENANCE
WARNING!
Unplug or disconnect the appliance from the power supply before servicing
or cleaning.
IMPORTANT!
Never use abrasive or oil based cleaners.
Wear gloves to protect against sharp edges.
Maintenance
The rangehood should be cleaned regularly using a mild, liquid detergent and a clean
soft cloth to avoid a build-up of grease occurring. Avoid the use of corrosive chemicals,
abrasive cleaning products, hard brushes and steel wool pads. Grease deposits are
corrosive which can cause damage to your rangehood.
Note: in areas of high humidity or coastal environments, cleaning should be carried out
more frequently.
Aluminium filters
Depending on use, and at least once a month, the aluminium grease filters should be
removed and cleaned with hot soapy water or in a dishwasher.
If washed in a dishwasher, the filters should be placed in an upright position to prevent
food from falling on them.
After rinsing and drying, refit the filters.
Note: some discolouration of the frames may occur.
Removing the aluminium filters:
1Pull the relative catch, tilting the filter
downwards until it disengages from
2Reverse these instructions when refitting
the filters.

16
CLEANING ANDMAINTENANCE
WARNING!
When replacing the bulb, let the bulb cool, and assure that power to the rangehood
has been turned o. Use new bulbs according to that indicated on the rangehood
nameplate.
Carbon filters – for use in recirculation mode
Active carbon filters are disposable items designed to remove grease and odours
from cooking vapours before the air is channelled back into the kitchen. The active
carbon filters must be replaced periodically to work properly, at least every three
months, depending on the frequency with which the rangehood is used.
Note: fully saturated carbon filters can become a barrier to air movement therefore
limiting rangehood performance. In the event of fire, grease laden filters could
be flammable and therefore regular replacement is recommended.
Replacing the light bulb
Note: replacement bulbs are not covered by arranty.

17
PARTS AND ACCESSORIES
ITEM REFERENCE NUMBER
bulb
Aluminium filter 792527
Recirculation carbon filter x2 792481
Recirculation diverter 791820
PD-RHK150E
PD-RHK150W

CUSTOMER CARE
Before you call for service or assistance...
Check the things you can do yourself. Refer to the installation instructions and your user
guide and check that:
1Your product is correctly installed.
2You are familiar with its normal operation.
If after checking these points you still need assistance or parts, please refer to your
nearest Authorised Service Centre, Customer Care, or contact us through our website
www.fisherpaykel.com.
In New Zealand if you need assistance…*
all Customer Care Centre
.
Toll Free: 0800 FP CARE or 0800 372 273
Website: www.fisherpaykel.com
Postal address: Fisher & Paykel Appliances Ltd, PO Box 58550, Botany, Auckland 2163
If you need service…*
Fisher & Paykel has a network of independent Fisher & Paykel Authorised Repairers
whose fully trained technicians can carry out any service necessary on your appliance.
Your dealer or our Customer Care Centre can recommend a Fisher & Paykel Authorised
Repairer in your area.
In Australia if you need assistance…*
all the Fisher & Paykel Customer Care Centre
.
Toll Free: 1300 650 590
Website: www.fisherpaykel.com
Postal address: Fisher & Paykel Appliances Ltd, PO Box 798, Cleveland QLD 4163
If you need service…*
Fisher & Paykel has a network of Fisher & Paykel trained and supported service
technicians responsible for servicing only Fisher & Paykel branded appliances. Our
Customer Care Centre can recommend a Fisher & Paykel trained and supported service
technician in your area.
*If you call, write or contact our website please provide: your name and address, model
number, serial number, date of purchase and a complete description of the problem.
This information is needed in order to better respond to your request for assistance.
Product details can be found under the aluminium filter.
Registration
Register your product with us so we can provide you with the best service possible. To
register your product visit our website: www.fisherpaykel.com
18
