Fisher & Paykel HP60IHCB4 User manual

USER GUIDE
UK IE EU
INTEGRATED INSERT COOKER HOOD
INTEGRATED
HP60IHCB4, HP90IHCB4 models

3
CONTENTS
Safety and warnings 4
Cooking considerations 7
First use 8
Wi-Fi connection 9
Light settings 10
Care and cleaning 11
Parts and accessories 13
Troubleshooting 14
Manufacturer’s Warranty 15
Customer care 16
European Directive 2012/19/EU on Waste
ElectricalandElectronic Equipment(WEEE) 18
Registration
To register your product visit our website: fisherpaykel.com/register

4
SAFETY AND WARNINGS
WARNING!
Electric Shock Hazard
Failure to follow this advice may result in
electrical shock or death.
• Always disconnect the appliance from the
mains power supply before carrying out
any maintenance or repairs. Failure to do
so can result in death, electric shock, fire
or injury to persons.
• Do not immerse cord or plugs in water or
other liquid.
WARNING!
Weight Hazard
Failure to follow this advice may result in
personal injury.
• The appliance is heavy. Please ensure
adequate care is taken when installing the
appliance to prevent personal injury. The
appliance must be installed onto a solid
wall, stud, beam or truss.
• Product weight: cooker hood from 6.4kg
– 26kg. Refer to your installation guide for
exact model weights.
WARNING!
Cut Hazard
Failure to use caution could result in injury.
• Take care: some edges are sharp.
• Wear gloves to protect against
sharp edges.

5
SAFETY AND WARNINGS
READ AND SAVE THIS GUIDE
WARNING!
When using this appliance always exercise basic safety precautions includingthe following:
General
z This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning the use of the appliance by
a person responsible for their safety.
z Children should be supervised to ensure they do not play with the appliance.
z Cleaning and user maintenance shall not be made by children without supervision.
z Do not flambé under the cooker hood.
z CAUTION: accessible parts may become hot when used with cooking appliances.
z Remove all packaging, including protective wrappings, before use.
z The room must have adequate ventilation when the cooker hood is used at the same
time as appliances burning gas or other fuels.
z The cooker hood may stop working during an electrostatic discharge (eg lightning).
Switch off the electricity supply to the cooker hood and reconnect after one minute.
z Never leave frying food unattended since grease can overheat and catch fire. The risk of
fire is even greater in the case of used oil.
Installation
z Please read the entire set of instructions before installing or using this appliance.
z Please make this information available to the person installing the appliance – doing so
could reduce your installation costs.
z Always switch the power off prior to installation, servicing or cleaning of the appliance.
z This appliance must be installed and connected to the mains power supply only by a
suitably qualified person according to these installation instructions and in compliance
with any applicable local building and electricity regulations. Failure to install the
appliance correctly could invalidate any warranty or liability claims.
z To comply with electrical safety regulations, the appliance must be plugged into
a socket near the appliance. The socket must be accessible, or have an accessible
isolating switch, to enable the end user to isolate the appliance from the power for the
purpose of internal cleaning or maintenance.
z A power outlet should be within 750mm of the cooker hood and can either be on the
wall or in the ceiling.
z If the supply cord of this equipment is damaged, it must only be replaced by the
manufacturer, its service agent or similarly qualified person in order to avoid a hazard.
z All ducting must comply with local requirements and building codes.
z Attention should be given to ensure that any applicable regulations concerning the
discharge of exhaust air are fulfilled.
z To reduce risk of fire and to properly exhaust air, be sure to duct air outside — do
not vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces,
or garages.
z Before connecting any pipes, consult municipal ordinances to ensure that any
applicable regulations concerning the discharge of exhaust air are adhered to and
request permission from the person in charge of the building.
z To reduce the risk of damage occurring to the cooktop, it is recommended that
the surface of the cooktop is protected with cardboard or a similar object during
installation of the cooker hood.

6
SAFETY AND WARNINGS
z When cutting or drilling into wall or ceiling, do not damage electrical wiring and other
hidden utilities.
z WARNING: Failure to install the screws or fixing device in accordance with these
instructions may result in electrical hazards.
z Exhaust air must not be discharged into an existing flue that is used for exhausting
fumes from appliances burning gas or other fuels.
z When the cooker hood and appliances supplied with energy other than electricity are
simultaneously in operation, the negative pressure in the room must not exceed 4 Pa
(4 × 10-5 bar).
z CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal
cut-out, this appliance must not be supplied through an external switching device, such
as a timer, or connected to a circuit that is regularly switched on and off by the utility.
z The minimum distance between the supporting surface for cooking vessels on the hob
and the lowest part of the cooker hood shall be 600mm, or 650mm if installed over a
gas hob. If the instructions for installation for a gas hob specify a greater distance, this
has to be taken into account.
z The distance of 65cm can be reduced for:
– non-combustible parts of cooker hoods, except grease filters, and/or
– parts operating at safety extra low voltage, provided these parts do not give
access to live parts if deformed.
Maintenance
z Unplug or disconnect the appliance from the power supply before servicing or cleaning.
z You must read the details concerning the method and frequency of cleaning.
z There is a risk of fire if cleaning is not carried out in accordance with the instructions in
your user guide.

7
COOKING CONSIDERATIONS
Induction
Induction cooktops use energy-efficient technology that only heats the contents of a
cooking pot, not the surrounding air. As a result, there is more likelihood of condensation on
cooker hood filters, splashbacks and surrounding cabinetry than when you use traditional
electric or gas cooktops.
Other factors that influence condensation are room temperature, humidity, natural
ventilation of the room, size of the cookware and how the induction cooktop is being
used. For example, rapid boiling increases the likelihood of condensation. It is important to
understand that neither the cooker hood nor the induction cooktop are faulty.
Reducing condensation
z When boiling, use the cooker hood on a lower speed setting and the induction cooktop
on a lower heat setting.
z Switch the cooker hood on 5 minutes before cooking and let it run for at least 5minutes
after cooking.
Gas
Cooker hood surfaces may become hot if using a powerful gas cooktop or multiple gas
burners operating at the same time. This effect can be reduced by using the maximum
speed setting to enable hot air to be extracted quickly.
Optimising performance
z Turn your cooker hood on for a few minutes before cooking. This will establish air
currents up through the cooker hood, remove hot air from your kitchen and keep the
cooker hood surface cool.
z Reduce fan speed for normal use and increase it for high heat, strong odours or fumes.

8
FIRST USE
Control panel
1 Power
Press to turn the rangehood on/off. The fan automatically turns
on at lowest fan speed and lights turn on to the last used level.
Fan will turn off after 4 hours with no interaction.
2 Timer
Press to turn the timer on. The fan operates for 5 minutes at the
current speed and 2 minutes at each descending speed before
turning off.
3 Lights Press to turn lights on/off or change settings. Refer to
‘Light settings’.
4 Reduce fan speed Press to reduce fan speed.
5 Fan speed indicator Illuminates to indicate fan speed.
6 Increase fan speed Press to increase fan speed.
7 Boost Press to turn the fan onto boost speed. Reverts to speed 4 after
5 minutes.
8 Wi-Fi Press to start Wi-Fi connection process.
9 Link mode
Press to start linking to a compatible cooktop, then follow
instructions on the cooktop to connect. Rangehood will turn on/
off automatically while cooking.
!0 Filter cleaning mode Illuminates to indicate filters require cleaning. Press once
to reset.
1 2 3 4 5 6 7 8 9 !0

9
WI-FI CONNECTION
Your appliance may be connected to your home wireless network and operated remotely
using the app.
Getting started
z Ensure your home Wi-Fi network is turned on.
z You will be given step-by-step guidance on your mobile device.
z It may take up to 10 minutes to connect your appliance.
z For further guidance and troubleshooting, please refer to the app.
On your mobile device:
1 Download the app from www.fisherpaykel.com/connect
2 Register and create an account.
3 Add your appliance and set up the Wi-Fi connection.
Press Wi-Fi button. It will start to flash.
Follow the instructions in the app to
complete the connection within 15 minutes.
Press and hold Wi-Fi button for 5 seconds
until it flashes, or open the app and
remove rangehood.
Connection will time out after 15 minutes.
1
2
Connecting to your home Wi-Fi
Disconnecting from your home Wi-Fi

10
LIGHT SETTINGS
With rangehood ON, press and hold Lights
button to adjust brightness level. You can
also adjust brightness via the app.
Lights can be adjusted for brightness or colour temperature. They will turn off after 12 hours
with no interaction.
With rangehood OFF, press and hold Light
button until adjacent buttons flash red for
WARM or white for COLD.
Press again to switch between options. To
confirm, press and hold until flashing stops.
You can also change colour temperature
via the app.
Adjusting brightness level
Changing colour temperature

11
Disconnect the product from the power source before undertaking any cleaning. Clean
your cooker hood regularly using a mild, liquid detergent and a clean soft cloth to avoid a
build-up of grease. Avoid the use of corrosive chemicals, abrasive cleaning products, hard
brushes and steel wool pads. In areas of high humidity or coastal environments, cleaning
should be carried out more frequently.
Do not operate the hood without filters in place.
Aluminium filters
z Clean the filters at least once a month. Filters may need to be cleaned more frequently
depending on the cooking methods used and frequency of use.
z Aluminium filters should be removed and cleaned with hot soapy water or in
a dishwasher.
z If washed in a dishwasher, the filter should be placed in an upright position to prevent
food from falling on them.
z After rinsing and drying, refit the filters.
CARE AND CLEANING

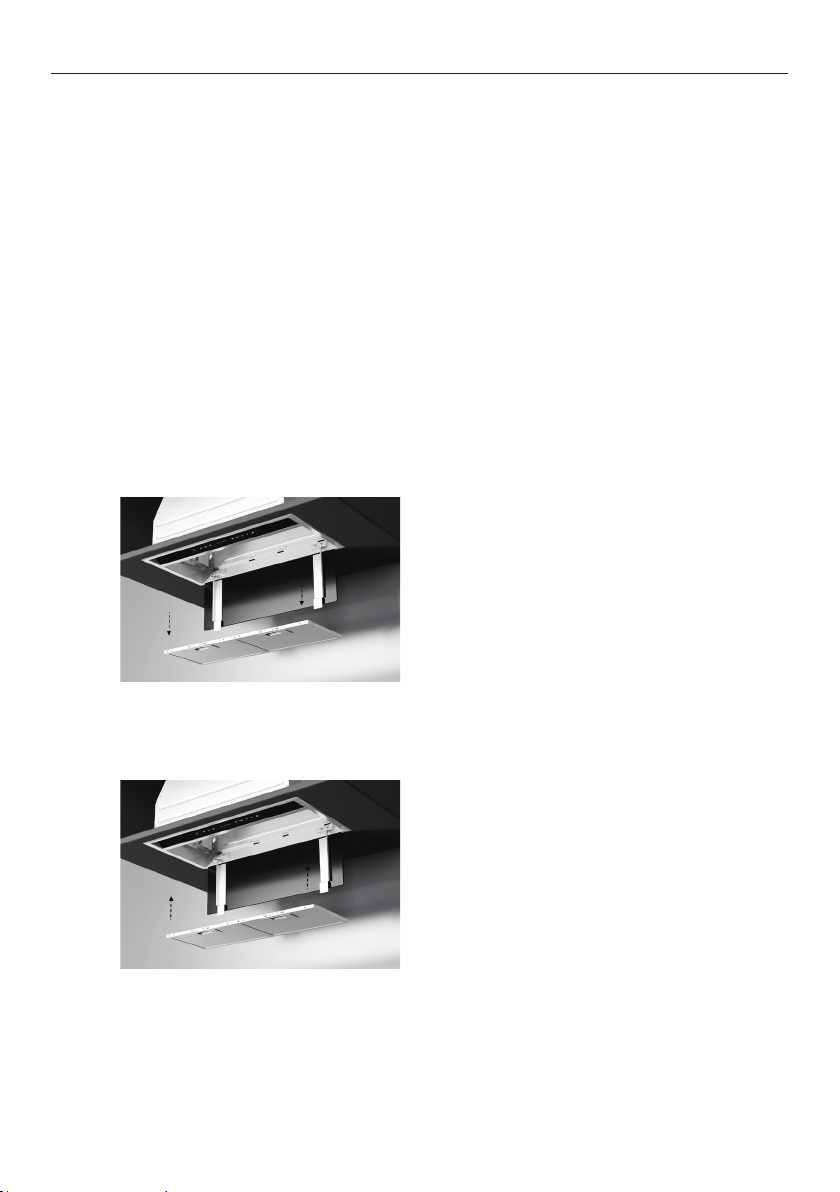

Open the perimeter plate.
Pull the catch and tilt the filter downwards
until it disengages from thesupports.
Place the filter into the support at the rear
of the cooker hood. Push the filter back
into place.
Close the perimeter plate.
1
2
Removing the aluminium filters
Replacing the aluminium filters

12
Replacing LED lights
Please contact your Fisher & Paykel trained and supported service technician. Refer to
fisherpaykel.com for contact details.
CARE AND CLEANING
Carbon filters (some models only)
Carbon filters are for use in recirculating mode. They are disposable and must be replaced
at least every three months to ensure the performance of the cooker hood. In the event of a
fire, grease-laden filters could be flammable.
Removing the carbon filters
Remove the aluminium filters from the cooker
hood before removing the carbon filters.
Place a new carbon filter on each side of the
motor inlet and turn until they clip into place.
Refit aluminium filters.
1
2
Replacing the carbon filters

13
PARTS AND ACCESSORIES
ITEM REFERENCE NUMBER
Aluminium filter 60cm 792942
Aluminium filter 90cm 792943
Carbon filter x 2 793599

14
TROUBLESHOOTING
If there is a problem with your cooker hood, please check the following points before
contacting your local Fisher & Paykel trained and supported service technician or the
Customer Care Centre.
PROBLEM POSSIBLE CAUSE WHAT TO DO
Airflow is lower
than expected
The ducting is blocked. Check the ducting and external vent
for kinks or blockages.
Incorrect ducting used. Check that the correct ducting has
been used as per the installation
guide.
Ducting route is very long. Check the ducting route is as short
as possible.
Incorrect ducting used in
installation.
Check ducting is installed as per the
installation guide.
Ducting installed incorrectly. Check ducting is installed as per
installation guide, with no loose
sections, kinks or vibrations.
Wi-Fi button is
flashing white
Cooker hood is trying to reconnect
to the Wi-Fi network.
Check your Wi-Fi router.
Cooker hood is still connected to
old Wi-Fi network.
Press and hold Wi-Fi button until it
flashes red. Open SmartHQ App and
follow instructions on screen.
App not working to
control cooker hood
You are not connected to the
internet.
Check your Wi-Fi router.
Link button
flashing white
Cooker hood is trying to reconnect
to the cooktop.
Check your cooktop.
Excessive
condensation forms
on the cooker hood
Using an induction cooktop. Condensation can be minimised.
Refer to ‘Cooking considerations’.
High ambient temperature,
humidity or low natural ventiliation
in the room.
Height of cooker hood installation.

15
MANUFACTURER’S WARRANTY
You automatically receive a 2-year manufacturer’s warranty with the purchase ofthis
product covering parts and labour for servicing within the country of purchase.
Fisher & Paykel undertakes to:
Repair or, at its option, replace without cost to the owner either for material or labour any
part of the product, the serial number of which appears on the product, which is found to
be defective within TWO YEARS of the date of purchase.
Note: this Manufacturer’s Warranty is an extra benefit and does not affect your legal rights.
This Manufacturer’s Warranty DOES NOT cover
A Service calls which are not related to any defect in the product. The cost of a service
call will be charged if the problem is not found to be a product fault. For example:
1 Correcting the installation of the product.
2 Instructing you how to use the product.
3 Replacing house fuses or correcting house wiring or plumbing.
4 Correcting fault(s) caused by the user.
5 Noise or vibration that is considered normal, eg drain/fan sounds, refrigeration noises
oruserwarning beeps.
6 Correcting damage caused by pests, eg rats, cockroaches, etc
7 Replacement light bulbs.
B Defects caused by factors other than:
1 Normal domestic use; or
2 Use in accordance with the product’s user guide.
C Defects to the product caused by accident, neglect, misuse or ‘act of God’.
D The cost of repairs carried out by non-trained and supported service technicians or
thecost of correcting such repairs.
E Normal recommended maintenance as set out in the product’s user guide.
F Repairs when the appliance has been dismantled, repaired or serviced by other than
aFisher&Paykel trained and supported service technician or the selling dealer.
G Pick-up and delivery.
H Transportation or travelling costs involved in the repair when the product is
installed outside the Fisher&Paykel trained and supported service technician’s
normal service area.
Nothing in this Manufacturer’s Warranty is intended to, or does, limit any rights you may
have under law to recover the costs of inspecting or returning the goods to us.
This product has been designed for use in a normal domestic (residential) environment.
This product is not designed for commercial use (whatsoever). Any commercial use by
acustomer will affect this product’s Manufacturer’s Warranty.
Service under this Manufacturer’s Warranty must be provided by a Fisher&Paykel trained
and supported service technician (refer to the ‘Customer Care’ section at the back of this
book). Suchservice shall be provided during normal business hours. ThisManufacturer’s
Warranty certificate should be shown when making any claim.
Please keep this user guide in a safe place.

16
CUSTOMER CARE
Before you call for service or assistance...
Check the things you can do yourself. Refer to your user guide and check that:
1 Your product is correctly installed.
2 You are familiar with its normal operation.
If after checking these points you still need assistance or parts, please refer to your nearest
Authorised Service Centre, Customer Care, or contact us through our local website listed on
the back cover.
In United Kingdom if you need assistance…*
Call the Fisher & Paykel Customer Care Centre and talk to one of our
Customer CareConsultants.
Phone: [phone]
Fax: [phone]
Website: www.fisherpaykel.com
Postal address: Fisher & Paykel Appliances Ltd, Maidstone Road, Kingston, MiltonKeynes,
Buckinghamshire, MK10 0BD
In Ireland if you need assistance…*
Phone: [phone] or 01-8077960
Fax: [phone]
Website: www.fisherpaykel.com
Postal address: Fisher & Paykel Appliances, Unit D2, North Dublin Corporate Park, Swords,
Co. Dublin
*If you call, write or contact our website please provide: your name and address, model
number, serial number, date of purchase and a complete description of the problem. This
information is needed in order to better respond to your request for assistance.
Product details can be found on the inside of the chassis.
The filters need to be removed to be able to see them.
Registration
Register your product with us so we can provide you with the best service possible.
To register your product visit our website: www.fisherpaykel.com

17
CUSTOMER CARE
Complete and keep for safe reference:
Model
Serial No.
Purchase Date
Purchaser
Dealer
Suburb
To w n
Country

18
EUROPEAN DIRECTIVE 2012/19/EU ON WASTE
ELECTRICALANDELECTRONIC EQUIPMENT(WEEE)
EU This appliance is marked according to the European Directive 2012/19/EU on
WasteElectrical and Electronic Equipment (WEEE). By ensuring this product is disposed of
correctly, you will help prevent potential negative consequences for the environment and
human health, which could otherwise be caused by inappropriate handling of this product.
The symbol marked on the serial plate, or on the documents accompanying theproduct,
indicates that this appliance cannot be treated as household waste. Itshallbe handed over
to the applicable collection point for the recycling of electrical and electronic equipment.
Disposal of the appliance shall be carried out in accordance with the local environment
regulations for waste disposal.
For more detailed information about treatment, recovery and recycling of this product,
please contact your local city office, your household waste disposal service or your
Fisher & Paykel retailer/dealer from whom you purchased this product.

106076A 07.2
FISHERPAYKEL.COM
© Fisher & Paykel Appliances 2023. All rights reserved.
The models shown in this guide may not be available in all markets
and are subject to change at any time.
The product specifications in this guide apply to the specific products and
models described at the date of issue. Under our policy of continuous product
improvement, these specifications may change at any time.
For current details about model and specification availability in your country,
please go to our website or contact your local Fisher&Paykel dealer.
