Fisher & Paykel HF60CSW2 Mounting instructions

NZ AU
Installation instructions
and User guide
Freestanding canopy
HF60CSW2 & HF60CSX2 models

1
Contents
Safety and warnings 2
Getting started quickly 9
Cleaning and maintenance 10
Manufacturer’s Warranty 12
Customer Care 13
Important!
SAVE THESE INSTRUCTIONS
The models shown in this User Guide may not be available in all markets and are
subject to change at any time. For current details about model and specification
availability in your country, please visit our local website listed on the back cover
or contact your local Fisher & Paykel dealer.

2
Important!

Please read the entire set of instructions before installing the rangehood.

This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety.

There must be adequate ventilation of the room when the rangehood is used at the same time
as appliances burning gas or other fuels. (A partial vacuum in the room could result in too high a
concentration of gas in the air).

You must read the details concerning the method and frequency of cleaning.

There is a fire risk if cleaning is not carried out in accordance with the instructions.

Do not flambé under the rangehood.

Exhaust air must not be discharged into an existing flue that is used for exhausting fumes from
appliances burning gas or other fuels.

The minimum distance between the cooktop surface and the filters of the rangehood shall be
600 mm, or 650 mm if installed over a gas cooktop.

Attention should be given to ensure that any applicable regulations concerning the discharge of
exhaust air is fulfilled.

If the supply cord of this equipment is damaged it must only be replaced by the manufacturer, its
service agent or similarly qualified person in order to avoid a hazard.

Always switch the power off prior to installation, servicing or cleaning the rangehood.

Never use the rangehood without the filters in place.

A power outlet should be within 750 mm of the motor assembly and can be either on the wall,
behind the chimney or in the ceiling.

To comply with electrical safety regulations, this canopy must be plugged into a socket near the
appliance. The socket must be accessible, or have an accessible isolating switch, to enable the end
user to isolate the canopy from the power for the purpose of internal cleaning or maintenance.

Ducting accessories are not supplied. All ducting must comply with local requirements and
building codes.
WARNING!
Electrical Shock Hazard
All electrical work must be done in accordance with local and/or national
electrical codes as applicable. For safety, this product must be earthed. If
you are unfamiliar with methods of installing electrical wiring, employ the
services of a qualified electrician. Turn off power at service entrance before
installing wiring or servicing this product.
WARNING!
5.5 kg
5.5 kg
Weight Hazard
The rangehood is heavy. Please ensure adequate care is taken when installing
the rangehood to prevent personal injury. The rangehood must be installed
onto a solid wall, stud, beam or truss. Weight of the product is 5.5 kg.
Safety and warnings

3
Installation instructions
Contents of packaging

1 x freestanding canopy

1 x installation instructions

2 x aluminium mesh filters

1 x outlet ducting collar
Typical equipment required

Electric drill

Screwdriver

Duct tape

Jig saw

Ladder

Ducting

Tape measure

Drill bits

Spirit level
Accessories
Accessory Part Number
Light bulb SES 230 V / Max. 40 W 791778
Charcoal filter 791777
Replacement aluminium filter 791779
Height of rangehood

Where an electric cooktop is installed beneath the canopy, the distance between the top of the
cooktop and the underside of the rangehood must be a minimum of 600 mm and a maximum
of 750 mm.

Where a gas fuelled cooktop is installed beneath the canopy, the distance between the top
of the pot rests and the underside of the rangehood must be a minimum of 650 mm and a
maximum of 750 mm.
Note: your relevant gas or local building authority may specify different height requirements.
Care should be taken to comply with any applicable regulations concerning the discharge of
exhaust air.

4
Installation instructions
Ducting options
Recirculation
For recirculation, please purchase a charcoal filter, which is fitted onto the motor behind the
aluminium filters supplied with the hood. The charcoal filter purifies the air before allowing the
air to return back to the kitchen through the air vents at the front of the hood.
Note: a ducting hole is not required in the wall or ceiling if the canopy is fitted with a charcoal filter.
Ducting
For ducted installation, it is recommended that you use 125 mm diameter, rigid or semi‑rigid
ducting.
Efficiencies in the performance of your canopy are enhanced by the use of smooth, straight and
short ducting options.
We recommend using solid, galvanised or plastic, smooth‑walled ducting which helps to reduce
noise and increase airflow.
The use of flexible ducting is not recommended. If there is no other option available, the flexible
ducting must be pulled as tight as possible.
All ducting must comply with local requirements and building codes.
Note: we recommend an Easy Fit by Fisher & Paykel or a UNIDUCT ducting system, products that
have been designed to expel air efficiently.
Preparing the rangehood for installation

Before installing the rangehood, please carefully read through the installation instructions in full.

Prior to drilling any holes, check that the area behind the surface to be drilled is clear of any
electrical cables or pipes, etc.

Take care when installing the rangehood as stainless steel is easily damaged during installation if
scratched or knocked by tools.

Protect the cooktop below, using cardboard or a similar protective cover, to prevent damage
on installation.

5
Installation instructions

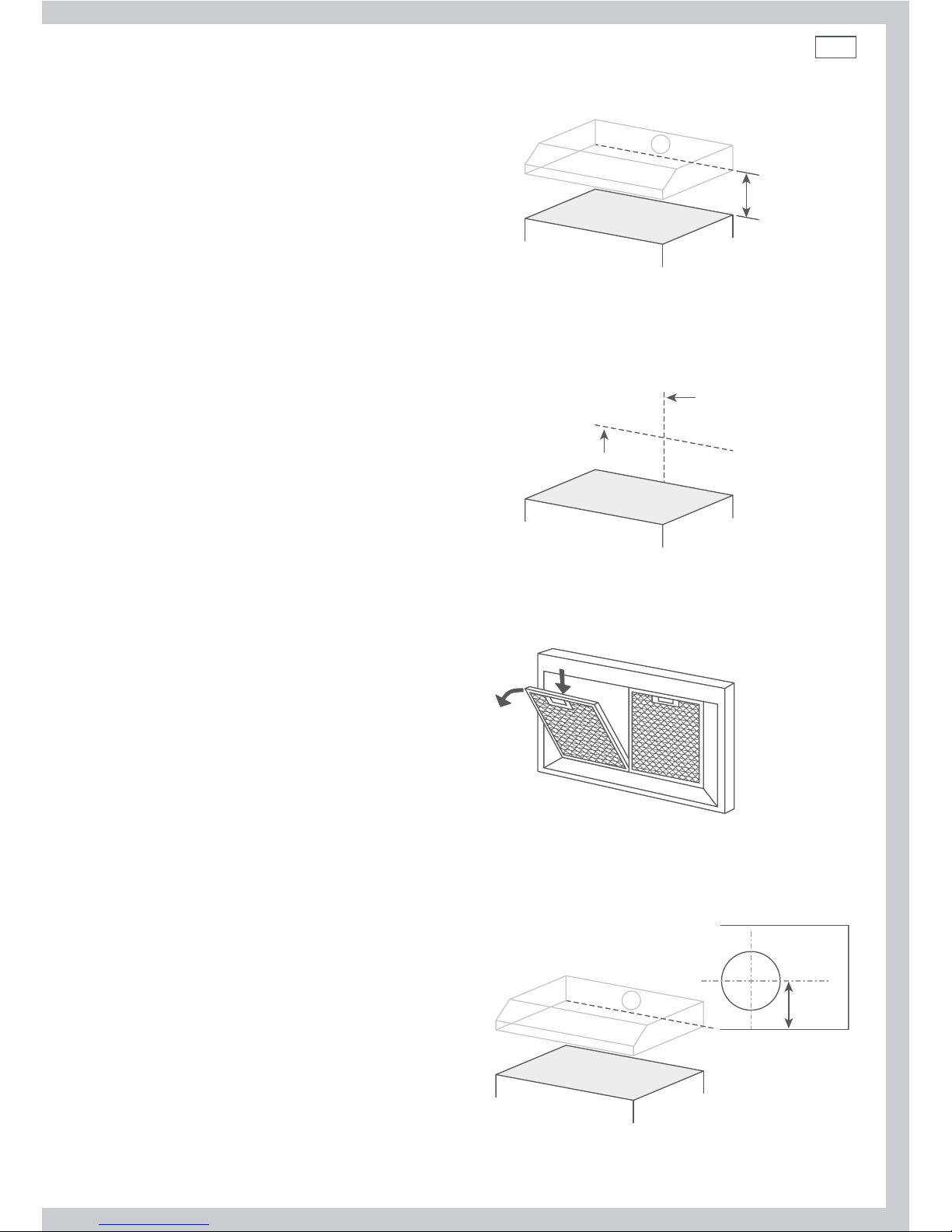

Rear venting installation
1
Establish the desired height of the
rangehood above the cooking surface
according to the ‘Installation height
requirements’ on page 4. Measure this
distance from the top of the cooking
surface and, using a spirit level, draw a
light horizontal line on the wall. Make sure
that the line can easily be erased or will be
hidden after installation. This is where the
bottom of the rangehood will sit (fig.1).
2
Mark the position of the rangehood on
the wall. Using a spirit level, also mark a
vertical line intersecting the horizontal
line, (ensuring that the line can easily be
erased or will be hidden after installation)
showing the position where the centre of
the rangehood will be. This is normally over
the centre of the cooktop (fig.2).
3
Remove the grease filters (this is to make
installation easier). Press inward on the
catch, found on the handle, and pull the
filter downward (fig.3).
4
Determine the position of the 133 mm
diameter cutout required for rear external
ducting out through the wall. From the
point where the horizontal and vertical lines
drawn earlier intercept, use a spirit level
and pencil to mark the centre point of the
cutout hole required 70 mm above the first
horizontal as shown in fig.4.
Fig.1 Establishing height of rangehood
60 –75 cm
Fig.2 Marking the position of the rangehood on the wall
Benchtop
Bottom of rangehood
Rangehood centre
Fig.3 Removing the grease filters
Fig.4 Measuring the cutout for air outlet diameter
70 mm

6
Installation instructions
5
Determine location of the fixing “keyholes”
on the wall. The hood is secured to the
wall by two “keyholes” located on the rear
panel of the hood in the top left and right
hand corners. From the point where the
horizontal and vertical lines drawn earlier
intercept, use a spirit level and pencil and
draw another horizontal line 120 mm above
the first horizontal line (ensuring that the
line can easily be erased or the line will be
hidden after installation) as shown in fig.5.
This now indicates where the top of the
“fixing keyholes” are. Where the vertical line
meets the top horizontal line (just drawn),
measure and mark both sides of the vertical
line, showing where to drill.
6
Drill holes and secure the rangehood to the
wall. Depending on the wall type (concrete,
drywall, etc) drill/screw appropriate fittings
in the two locations just marked. The
rangehood should now be able to be hung
on these bolts/screws through the two
keyholes in the hood.
7
Create additional means of attachment.
Keyholes alone are insufficient means of
attachment. There are two extra holes
found on each side of the back panel.
Select one on each side and fit screws (with
an anchor if required) to ensure proper
attachment, as shown in fig.6. Ensure all
fixings are secure.
8
If ducting externally, assemble and fit
ducting as per manufacturer’s instruction.
9
Test the operation of the rangehood. Plug the rangehood in and test its operation on all speed
levels. This will ensure that any imperfections in the installation, such as unwanted sounds or
lack of suction can be addressed. Over 95% of service calls are a result of faulty installation.
Please be aware that in the event of a service call for a faulty installation, you will be charged as
this is not covered under the manufacturer’s warranty.
538 mm
269 mm
120 mm
Fig.5 Determining location of the two fixing “keyholes”
Extra fitting holes
Keyholes
Fig.6 Creating additional means of attachment

7
Installation instructions
Setting your hood to recirculate
Note: an additional charcoal filter (fig.7) is required to
be fitted when setting the hood to recirculation mode.
1
Remove the grease filters.
2
Locate the lever positioned on the motor
casing above the left hand light fitting (fig.8).
The factory default setting for the lever is to the
‘ducted’ position which is required for externally
ducted installations.
3
Slide the lever across to the right hand side
(fig.9) ensuring the lever is sitting beyond the
moulded catch. This redirects the air back into
the kitchen via the front air vent.
4
Fit the charcoal filter onto the clips located in
the centre of the motor casing grill (fig.10).
5
Turn the charcoal filter to clockwise to lock
the filter into position on the clips.
6
The hood is now set to recirculation mode.
The charcoal filter is a disposable item and it
is recommended to replace every 3 – 6 months
depending on use.
Fig.12 Hook the charcoal filter onto the locking
clips and turn it clockwise.
Fig.13 Charcoal filter in locked position.
Fig.7 Charcoal filter required.
Fig.8 Lever set to external ducting position.
Fig.10 Locking clips on motor casing. Fig.11 Attaching the charcoal filter.
Ducted Recirculate
Fig.9 Lever set to recirculating position.
Ducted Recirculate

8
Installation instructions
Under cupboard installation

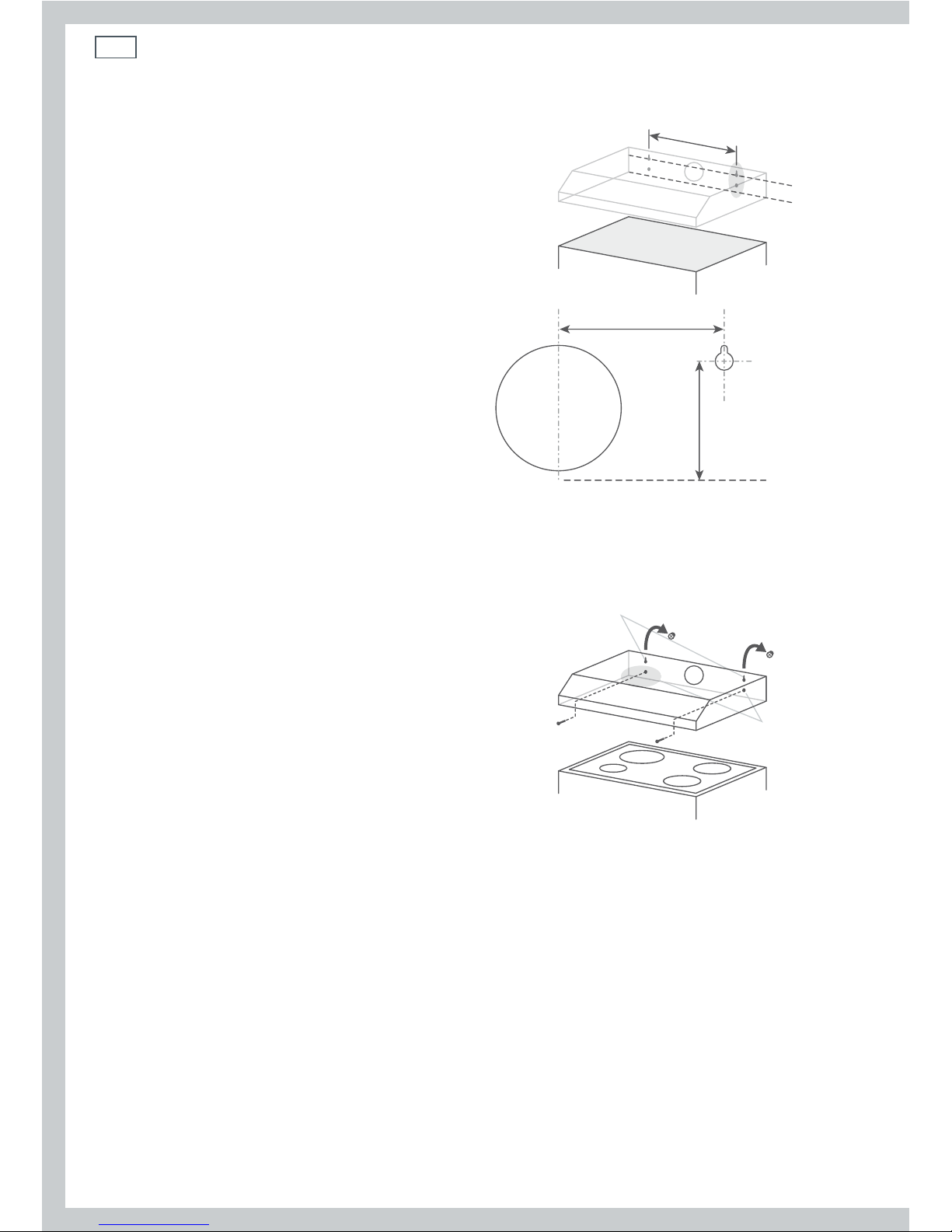

1
Ensure the fitted height of the rangehood
above the cooking surface is in
accordance with the ‘Installation height
requirements’ on page 4.
2
Remove the grease filters (this is to make
installation easier). Press inward on the
catch, found on the handle, and pull the
filter downward.
3
Mark the position of the rangehood
(ensuring that the line can easily be
erased or will be hidden after installation)
showing the position where the centre
of the rangehood will be. This is normally
over the centre of the cooktop.
4

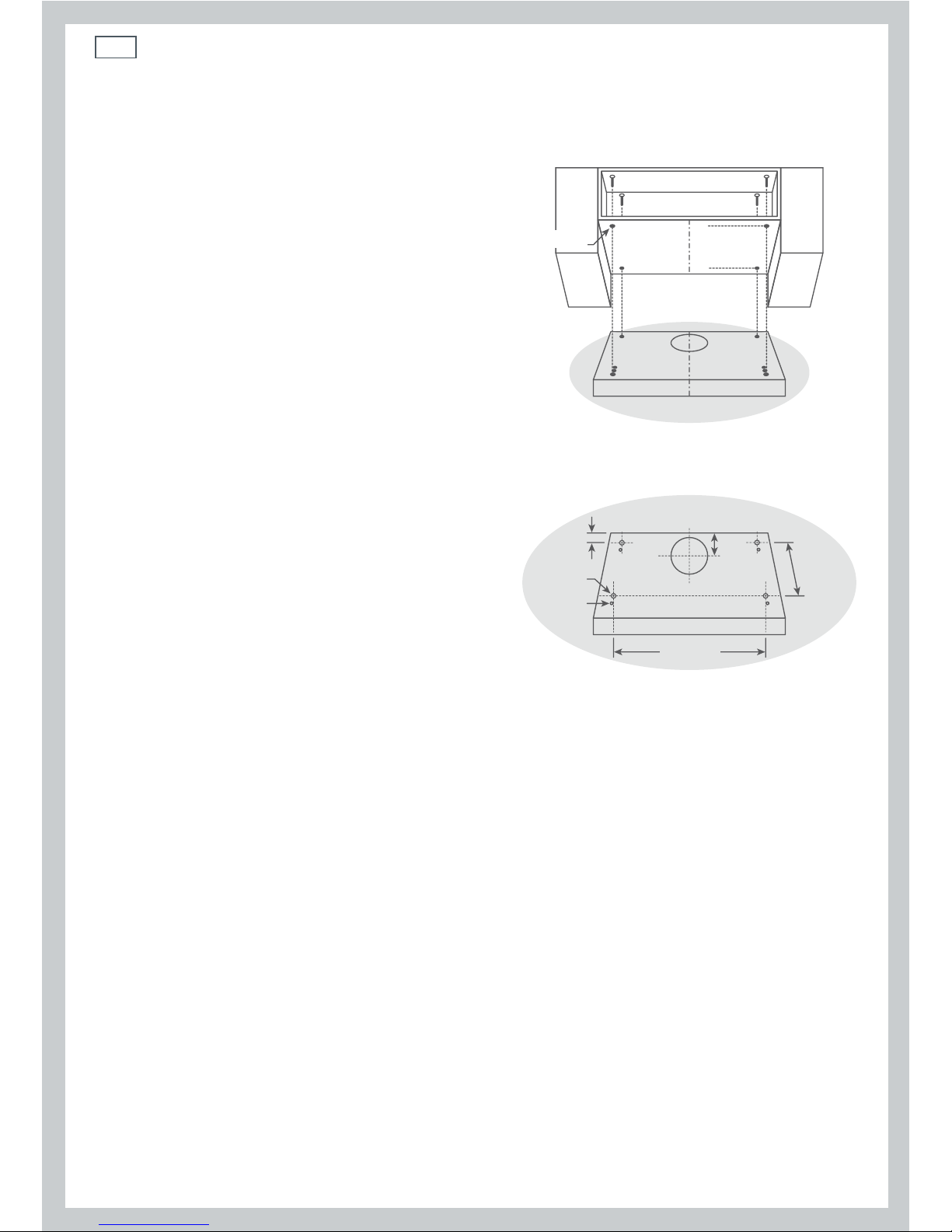

Determine the position of the 133 mm
diameter cutout required for external
ducting on the underside of the cabinetry.
Mark the centre point of the cutout
87 mm in from the position where the
back of the hood will sit under the
cabinetry.
5
Determine location of the fixing
“keyholes”. The hood is secured to the
underside of the cabinetry by four
“keyholes” located on the top panel of the
hood. From the line where the back edge
of the hood will sit, measure and mark where to drill.
6
Drill 6 mm diameter holes and secure the rangehood to the cabinetry using the small wood
screws supplied. The rangehood should now be able to be hung on these screws through the
four keyholes in the hood.
7
Create additional means of attachment. Keyholes alone are insufficient means of attachment.
There are extra holes found on top panel of the hood. Select one on each side and fit screws to
ensure proper attachment, as shown in (fig.15). Ensure all fixings are secure.
8
If ducting externally, assemble and fit ducting as per manufacturer’s instruction.
9
Test the operation of the rangehood. Plug the rangehood in and test its operation on all speed
levels. This will ensure that any imperfections in the installation, such as unwanted sounds or
lack of suction can be addressed. Over 95% of service calls are a result of faulty installation.
Please be aware that in the event of a service call for a faulty installation, you will be charged as
this is not covered under the manufacturer’s warranty.
Ø 6 mm
530 mm
265 mm
60 mm
Extra safety holes
Keyholes
Fig.15 Mounting under cupboard
87 mm
Fig.14 Finding centre line

9

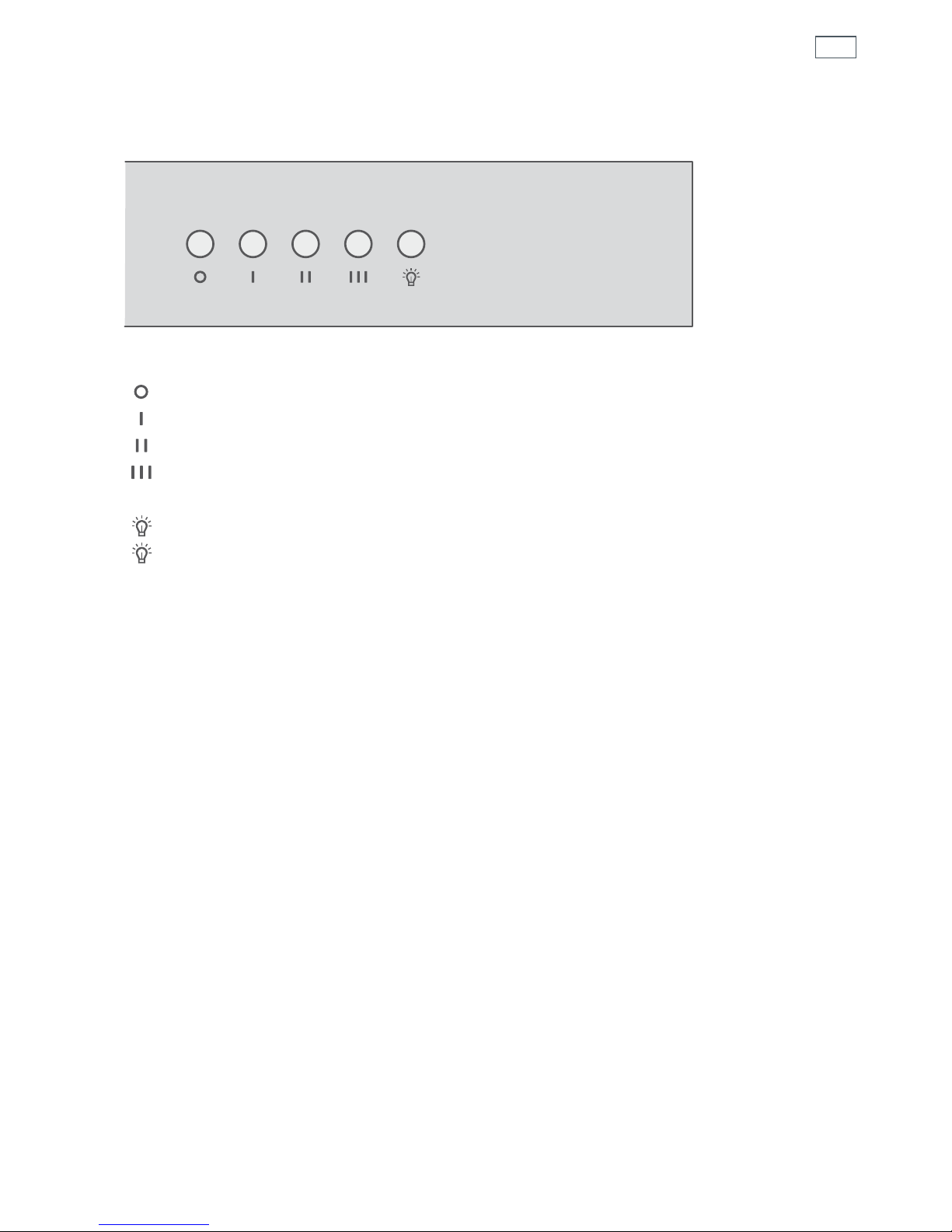

Control panel
Fig.16 Slide control
= Fan Off
= Fan On / Low
= Fan On / Medium
= Fan On / High
= Lights On
= Lights Off
Getting started quickly

10
Cleaning and maintenance
Caution!
Never use abrasive or oil based liquid cleaners.
General maintenance
The manufacturer is not liable for any damage caused by not following these instructions.
The freestanding canopy should be cleaned regularly using warm water with soap or mild liquid
detergents. This ensures that no build‑up of grease occurs as these deposits are corrosive.
Do not use abrasives or harsh detergents/cleaning fluids.
Note: in areas of high humidity and coastal environments cleaning should be carried out frequently.
Aluminium filters
The grease filters must be periodically cleaned (at least every two months).
Remove the grease filters and wash them either by hand using hot soapy water or place them in the
dishwasher using mild detergent. Badly smoked filters may be cleaned with “cookware cleaners”.
Note: some discolouration of the frame may occur.
Charcoal filters
Charcoal filters are designed to remove grease and odours from cooking vapours, prior to the
cleansed air re‑entering the kitchen (when the rangehood is in recirculating mode). Charcoal
filters are disposable items and it is recommended that these should be replaced every three
to six months depending on use.
Note:

Fully saturated charcoal filters can become a barrier to air movement, impeding the wall
canopy’s performance.

In the event of fire, fully grease laden filters could be flammable and therefore regular
replacement is recommended.

In ducted installations, conventional aluminium filters are recommended.
For replacement charcoal filters, ducting accessories, spare parts and service, please contact your
local supplier or Fisher & Paykel Customer Care Centre.
Light bulb replacement
(SES 230 V / Max. 40 W)
1
Switch off the power to the rangehood.
2
Remove the aluminium mesh filters (or charcoal filters if fitted).
3
Unscrew the old bulb, and screw in the new replacement bulb.
4
Refit aluminium mesh filters.

11
Manufacturer’s Warranty
You automatically receive a 2 year Manufacturer’s Warranty with the purchase of this
Product covering parts and labour for servicing within the country of purchase.
Fisher & Paykel undertakes to:
Repair or, at its option, replace without cost to the owner either for material or labour any
part of the Product, the serial number of which appears on the Product, which is found to
be defective within TWO YEARS of the date of purchase.
This Warranty DOES NOT cover
A
Service calls which are not related to any defect in the Product. The cost of a service call will be
charged if the problem is not found to be a Product fault. For example:
1. Correcting the installation of the Product.
2. Instructing you how to use the Product.
3. Replacing house fuses or correcting house wiring or plumbing.
4. Correcting fault(s) caused by the user.
5. Noise or vibration that is considered normal, eg drain/fan sounds, refrigeration noises
or user warning beeps.
6. Correcting damage caused by pests, eg rats, cockroaches, etc.
B Defects caused by factors other than:
1. Normal domestic use or
2. Use in accordance with the Product’s User Guide.
C Defects to the Product caused by accident, neglect, misuse or Act of God.
D The cost of repairs carried out by non‑authorised repairers or the cost of correcting such
unauthorised repairs.
E Normal recommended maintenance as set out in the Product’s User Guide.
F Repairs when the appliance has been dismantled, repaired or serviced by other than a
Fisher & Paykel Authorised Repairer or the selling dealer.
G Pick‑up and delivery.
H Transportation or travelling costs involved in the repair when the Product is installed outside the
Fisher & Paykel Authorised Repairer’s normal service area.
This Product has been designed for use in a normal domestic (residential) environment. This
Product is not designed for commercial use (whatsoever). Any commercial use by a Customer will
affect this Product’s Warranty.
Service under this Manufacturer’s Warranty must be provided by a Fisher & Paykel Authorised
Repairer (refer to the ‘Customer care’ section at the back of this book). Such service shall be provided
during normal business hours. This Warranty certificate should be shown when making any claim.
Note
This Warranty is an extra benefit and does not affect your legal rights.
Please keep this User Guide in a safe place.

12
Before you call for service or assistance…
Check the things you can do yourself.
Refer to your User Guide and check:
1
Your appliance is correctly installed.
2
You are familiar with its normal operation.
If after checking these points you still need assistance, please refer to your nearest Fisher & Paykel
Authorised Repairer, or contact us through our local website listed on the back cover.
In New Zealand if you need assistance...*
Call your Fisher & Paykel retailer who is trained to provide information on your appliance, or if we
can be of any further help, please contact our Customer Care Centre,
Toll Free: 0800 FP CARE or 0800 37 2273 Fax: [phone]
Email: [e-mail] Postal address: PO Box 58732, Botany, Manukau 2163
If you need service...*
Fisher & Paykel has a network of independent Fisher & Paykel Authorised Repairers whose fully
trained technicians can carry out any service necessary on your appliance. Your dealer or our
Customer Care Centre can recommend a Fisher & Paykel Authorised Repairer in your area.
In Australia if you need assistance...*
Call the Fisher & Paykel Customer Care Centre and talk to one of our Customer Care Consultants.
Toll Free: 1 300 650 590 Fax: [phone]
Email: [e-mail] Postal Address: PO Box 798, Cleveland QLD 4163
If you need service...*
Fisher & Paykel has a network of qualified Fisher & Paykel Authorised Repairers responsible for
servicing only Fisher & Paykel branded appliances. Our Customer Care Centre can recommend a
qualified Fisher & Paykel Authorised Repairer in your area.
*If you call, write or contact our website please provide: your name and address, model number,
serial number, date of purchase and a complete description of the problem. This information is
needed in order to better respond to your request for assistance.
Product details
Fisher & Paykel Appliances, Ltd
Model/Serial No.
Date of Purchase Purchaser
Dealer Suburb
Town Country
Customer Care

NZ AU 02.2011F&P PN - 791785B
www.fisherpaykel.co.nz
www.fisherpaykel.com.au
Copyright © Fisher & Paykel 2011. All rights reserved.
The product specifications in this booklet apply to the specific products
and models described at the date of issue. Under our policy of continuous
product improvement, these specifications may change at any time. You
should therefore check with your Dealer to ensure this booklet correctly
describes the product currently available.
