Fisher & Paykel HPB3019-6 User manual

INTEGRATED RANGE HOOD
HPB011-4, HPB011-6, HPB019-6, HPB611-6,
HPB619-6, HPB619-12, HPB4819-12,
HP019 (Shell), HP619 (Shell) & HP4819 (Shell) models
HOTTE ENCASTRABLE
Modèles HPB011-4, HPB011-6, HPB019-6, HPB611-6,
HPB619-6, HPB619-12, HPB4819-12,
HP019 (Coque), HP619 (Coque) et HP4819 (Coque)
USER GUIDE
GUIDE D’UTILISATION
US CA

English Page 1–18
Français Page 21–38

1
CONTENTS
IMPORTANT!
SAVE THESE INSTRUCTIONS
The models shown in this User guide may
not be available in all markets and are
subject to change at any time. For current
details about model and specification
availability in your country, please go to
our website fisherpaykel.com or contact
your local Fisher & Paykel dealer.
Registration
Register your product with us so we can
provide you with the best service possible.
To register your product visit our website:
fisherpaykel.com
Introduction 3
Safety and warnings 4
Special features 8
For best performance 9
Operating instructions 10
Cleaning and maintenance 14
Troubleshooting 16
Parts and accessories 17
Service and warranty 18
EN

3
INTRODUCTION
Welcome to the family of Fisher & Paykel appliances. Our team has spent thousands
ofhours designing, engineering and testing this Integrated Range Hood to ensure
youget the perfect product for your home. For more information on your product
please visit fisherpaykel.com or contact our Customer Care team.
EN

4
SAFETY AND WARNINGS
!WARNING!
Weight Hazard
The appliance is heavy. Please ensure adequate care is taken when
installing the appliance to prevent personal injury.
Weight of the products are:
HPB3011-4 = 36lb (17kg)
HPB3011-6 = 36lb (17kg)
HPB3019-6 = 46lb (21kg)
HPB3611-6 = 41lb (19kg)
HPB3619-6 = 51lb (23kg)
HPB3619-12 = 68lb (31kg)
HPB4819-12 = 77lb (35kg)
HP3019 (shell) = 29lb (13kg)
HP3619 (shell) = 35lb (16kg)
HP4819 (shell) = 43lb (20kg)
!WARNING!
Electric Shock Hazard
Always disconnect the appliance from the mains power supply before
carrying out any maintenance or repairs.
Installation work and electrical wiring must be done by qualified
person(s) in accordance with all applicable codes and standards,
including fire-rated construction.
Failure to do so can result in death, electric shock, fire or injury
topersons.

5
SAFETY AND WARNINGS
IMPORTANT SAFETY INSTRUCTIONS
READ THE ENTIRE SET OF INSTRUCTIONS BEFORE INSTALLING OR USING THIS
APPLIANCE. A copy of the user guide and installation guide for this product can
alsobe found at fisherpaykel.com.
 CAUTION: For general ventilating use only. Do not use to exhaust hazardous
or explosive materials and vapors.
 WARNING: To reduce the risk of fire, electric shock, or injury to persons, observe
thefollowing:
– Use this unit only in the manner intended by the manufacturer. If you have
questions, contact the manufacturer. For residential use only.
– Before servicing or cleaning unit, switch power off at service panel and lock
the service disconnecting means to prevent power from being switched
on accidentally. When the service disconnecting means cannot belocked,
securelyfasten a prominent warning device, such as a tag, to theservicepanel.
– Installation work and electrical wiring must be done by qualified person(s) in
accordance with all applicable codes and standards, including fire-rated construction.
– Sufficient air is needed for proper combustion and exhausting of gases
throughthe flue (chimney) of fuel burning equipment to prevent back drafting.
Follow the heating equipment manufacturer’s guideline and safety standards
such as those published by the National Fire Protection Association (NFPA),
andthe American Society for Heating, Refrigeration and Air Conditioning
Engineers (ASHRAE), and the local code authorities.
– When cutting or drilling into wall or ceiling, do not damage electrical wiring
andother hidden utilities.
– Ducted fans must always be vented to the outdoors.
– This unit must be grounded.
 CAUTION: To reduce the risk of fire and to properly exhaust air, be sure to duct air
outside. Do not vent exhaust air into spaces within walls or ceilings or into attics,
crawl spaces, or garages.
 WARNING: To reduce the risk of fire, use only metal ductwork.
 WARNING: To reduce the risk of fire or electric shock, do not use this fan with any
solid-state speed control device.
 WARNING: To reduce the risk of a range top grease fire:
– Never leave surface units unattended at high settings. Boilovers cause smoking
and greasy spillovers that may ignite.
– Heat oils slowly on low or medium settings.
– Always turn hood ON when cooking at high or when flambéing food
(ieCrepesSuzette, Cherries Jubilee, Peppercorn Beef Flambé)
– Clean ventilating fans frequently. Grease should not be allowed to accumulate
on fan or filter.
– Use proper pan size. Always use cookware appropriate for the size of the
surfaceelement.
 WARNING: To reduce the risk of injury to persons in the event of a range top grease
fire, observe the following:
*
– Smother flames with a close-fitting lid, cookie sheet, or metal tray, then turn off
the burner. Be careful to prevent burns. If the flames do not go out immediately,
evacuate and call the fire department.
EN
*Based on “Kitchen Firesafety Tips” published by NFPA.

6
SAFETY AND WARNINGS
– Never pick up a flaming pan – you may be burned.
– Do not use water, including wet dishcloths or towels – a violent steam explosion
will result.
– Use an extinguisher only if:
– You know you have a Class ABC extinguisher, and you already know how
to operate it.
– The fire is small and contained in the area where it started.
– The fire department is being called.
– You can fight the fire with your back to an exit.
 WARNING: Unplug or disconnect the appliance from the power supply before
servicing or cleaning.
IMPORTANT!
 This device complies with Industry Canada’s licence-exempt RSSs. Operation is
subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may
causeundesired operation of the device.
FCC CAUTION: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of FCC Rules. Operation is Subject to following
twoconditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received including interference that
cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated so there
is at least 8 inches (20 cm) between the radiator and your body. This device and its
antenna(s) must not be co-located or operated in conjunction with any other antenna
or transmitter.

7
SAFETY AND WARNINGS
IC Notice
This device contains licence-exempt transmitter(s)/receiver(s) that comply with
Innovation, Science and Economic Development Canada’s licence-exempt RSS(s).
Operation is subject to the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause
undesired operation of the device.
This equipment complies with IC RSS-102 radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated so there
is at least 8 inches (20 cm) between the radiator and your body. This device and its
antenna(s) must not be co-located or operated in conjunction with any other antenna
or transmitter.
WARNING!
This product contains a chemical known to the State of California to cause cancer,
birth defects or other reproductive harm. For more information on these regulations
and a list of chemicals, visit: https://oehha.ca.gov/proposition-65/general-info/
proposition-65-plain-language.
!WARNING: Chemical Burn Hazard. Keep batteries away from children.
This product contains a lithium button/coin cell battery. If a new or used lithium
button/coin cell battery is swallowed or enters the body, it can cause severe
internalburns and can lead to death in as little as 2 hours. Always completely
securethe battery compartment. If the battery compartment does not close
securely,stop using the product, remove the batteries, and keep it away from
children. If you think batteries might have been swallowed or placed inside any part
ofthe body, seek immediate medical attention. Even used cell batteries may cause
injury so ensure they are kept away from children and disposed of properly.
READ AND SAVE THESE INSTRUCTIONS
EN

8
SPECIAL FEATURES
Remote control
Selected models have a remote control provided with the range hood. This remote
canalso be purchased as an optional accessory for other models of this range hood.
The remote is designed to make your range hood easier to use. Itallows you to
adjustthe fan speed and brightness of lighting without touching the range hood.
Clean filter reminder
The clean filter reminder light will illuminate to remind you to clean the filters.
Refertothe ‘Cleaning and maintenance’ section of this user guide for details of
howtoclean your filters.
Delayed shut off
This feature allows you to delay the shut off on the range hood for up to 25minutes.
This enables you to continue to remove steam and cooking odors after cooking
iscomplete.
Heat guard
When excessive heat is detected in the cooking area, a sensor will automatically
turn the fan on at speed 5 and illuminate both fan speed buttons on the control
panel. Oncetheheat decreases the fan speed will gradually reduce and return to
theoriginalfan speed selected.

9
EN
FOR BEST PERFORMANCE
This range hood should be turned on for a few minutes before cooking in order to
establish air currents upward through the range hood. This will also enable hotair
removal from your kitchen and keep the range hood surface cool. When heat, smoke,
moisture, grease and cooking odors are produced, they will be carried outside instead
ofdrifting into other rooms.
Use the low fan speeds for normal use and the higher fan speeds for high heat,
strongodors or fumes.
Range hood width
 The range hood width is recommended to be no less than the width of the cooktop.
 A wider range hood can be used to increase the capture area if space is not restricted.
 The range hood should ideally be centered above the cooktop for proper performance.
Induction cooking considerations
Induction cooktops use energy efficient technology that only heats the contents
of acooking pot. Unlike gas or traditional electric cooktops, the surrounding air
does notget heated when using an induction cooktop. As a result, range hood
filters, splashbacks and surrounding cabinetry do not get warmed up, increasing
the likelihoodof condensation on these cooler surfaces. Other factors like ambient
temperature, humidity, natural ventilation of the room, size of the cookware
andhowtheinduction cooktop is being used also influence condensation.
Forexample,aggressive boiling on high cooktop heat settings like PowerBoost
increasesthe rate at which water is evaporated, increasing thelikelihood of
condensation. It is important to understand that neither the range hood northe
induction cooktop are faulty as a resultof this phenomenon.
Condensation can be minimized by:
 Installing the range hood at the maximum height above the cooktop.
 Using the range hood on a lower speed setting when boiling.
 Using the induction cooktop on a lower heat setting when boiling.
 Switching the range hood on 5minutes before cooking and letting it run for
atleast5minutes after cooking. Refer to the ‘Delayed shut off’ section for
detailsonhowto usethe timed shut off feature of this range hood.
Gas cooking considerations
Using a powerful gas cooktop or multiple gas burners operating at the same
timecancause the range hood surfaces to become hot. This effect can be
reduced by:
– Using the maximum speed setting to enable hot air to be extracted quickly.
– Installing the range hood at the maximum recommended height.
Consultthecooktop installation and user guide for details on the
installationheight of the range hood.

10
OPERATING INSTRUCTIONS

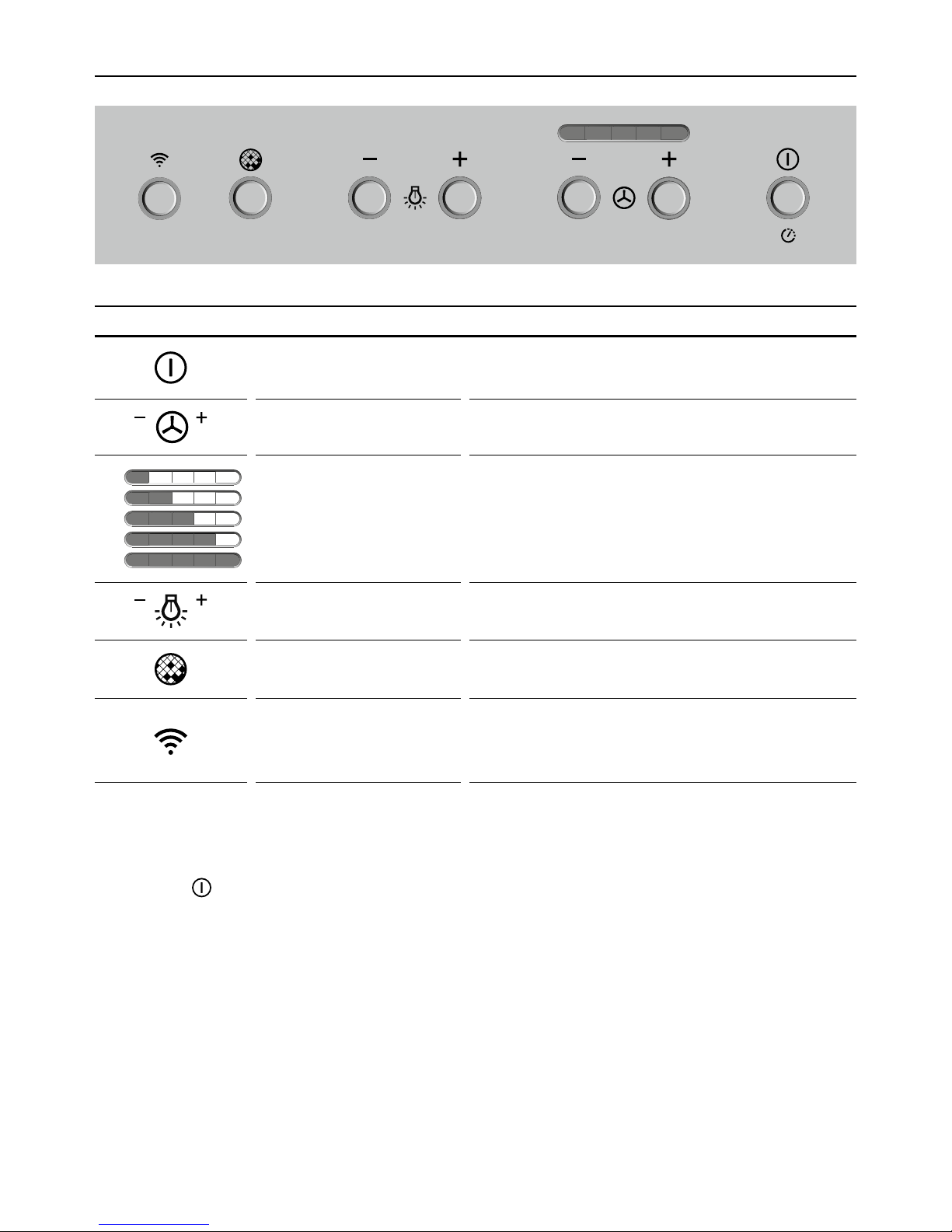

RANGE HOOD CONTROL PANEL FEATURES
Power Turns your range hood ON and OFF.
Alsoallows you to delay shut off.
Fan speed Allows you to change the fan speed.
1
2
3
4
5
Fan speed indicator Indicates the current speed of the fan.
1 is the lowest fan speed and 5 the highest.
Light Allows you to adjust the level of lighting.
Clean filter reminder Button will illuminate red indicating when
your filters require cleaning.
WiFi Button will be illuminated by a solid white
light when WiFi is activated.
Visit fisherpaykel.com/connected for details.
Power
On/Off
Use the button to turn your range hood ON and OFF. When you turn your
rangehood on it will remember the last setting used for your fan speed and
lightinglevel withthe following exceptions:
 If the fan was off, it will turn on at fan speed1.
 If the lighting was off, it will turn on at the lowest lighting level.
Note: The fan and lighting can be turned off independently.

11
EN
OPERATING INSTRUCTIONS
Delayed shut off
To use delayed shut off:
 Press and hold the button, the light around the button will blink.
 The fan speed will operate for 5minutes, starting at the current speed and then at
eachdecreasing speed before turning OFF (the fan will stop and the light will go out).
 To increase the delayed shut off time, press and hold the button again, you will hear
a beep. Each beep indicates the delayed shut off time has been increased by 5minutes.
The maximum delayed shut off time is 25minutes.
To cancel delayed shut off:
 Press the button once.
Fan speed
 To turn the fan ON, press the button.
 Press the button to increase the fan speed.
 To go straight to the MAX fan speed, press and hold the button. The fan will go
straight to speed5.
 To decrease the fan speed press the button.
 To turn the fan OFF, press and hold the button.
Light
 To turn the light ON, press the button.
 Press the button again to increase the brightness of the lighting.
 Press and hold the button to go straight to the brightest lighting.
 Press the button to decrease the brightness of the lighting.
 To turn the light OFF, press and hold the button.
Clean filter reminder
The clean filter button will blink red for 3seconds when the range hood is turned
on,then remain illuminated red until the filters are cleaned and the clean filter reminder
is reset.
To reset the clean filter reminder:
Once the filters have been cleaned and replaced in the range hood the clean filter
reminder should be reset.
 Press and hold the button.
Note: Refer to ‘Filter cleaning’ for details on how to remove and replace your filters.

12
Remote control (selected models or optional extra)
Selected models have a remote control provided with the range hood. This remote
canalso be purchased as an optional accessory for other models of this range hood.
The remote is designed to make your range hood easier to use. Itallows you to adjust
the fan speed and brightness of lighting without touching the range hood.
REMOTE CONTROL FEATURES
Fan speed Allows you to adjust the speed of the fan.
Light Allows you to adjust the level of lighting.
Battery indicator Illuminates when the battery is running low.
Signal indicator Indicates if the remote control is paired with
therange hood.
OPERATING INSTRUCTIONS
Press = Fan ON/adjust speed
Long press = Fan OFF
Press = Light ON/adjust lighting
Long press = Light OFF
Fan speed
 To turn the fan ON, press the button once.
 Press the button to increase/decrease the fan speed. The fan speed will increase
witheach button press until it reaches fan speed5, at the next button press it will
returnto fan speed1.
 To turn the fan OFF, press and hold the button.

13
EN
OPERATING INSTRUCTIONS
Light
 To turn the light ON, press the button once.
 To increase/decrease the brightness press the button. The light brightness will
increase with each button press until it reaches its highestlevel, at the next button
pressit will return to the lowest level.
 To turn the light OFF, press and hold the button.
Battery indicator
The battery indictor will illuminate when the battery is running low and needs to
bereplaced.
Signal indicator
The signal indicator will illuminate when your range hood is paired with the remote.
Theremote can then be used to control the fan speed and brightness of the lighting.
Remote pairing
 For selected models your remote will be paired with your range hood in the factory
prior to delivery.
 All other models, where the remote has been purchased as an optional extra, the
remotewill be paired by your Fisher & Paykel trained service technician after they
installthe remote receiver in your range hood.

14
CLEANING AND MAINTENANCE
WARNING!
 Before servicing or cleaning your range hood, switch the power off at the control
panel and disconnect the power to prevent power from being switched on accidentally.
 Allow the appliance to cool after the power has been turned off before servicing.
IMPORTANT!
 Wear gloves to protect against sharp edges.
Clean your range hood regularly to avoid the build-up of grease. Grease deposits
arecorrosive and may damage the range hood. Use warm water with a mild liquid
detergent and a clean soft cloth to wipe down all surfaces of the range hood.
Do NOT use the following to clean your range hood, they will damage and/or
discolorthe surfaces:
 Corrosive chemicals.
 Abrasive cleaning products.
 Citrus-based cleaning products.
 Hard brushes and steel wool.
Note: In areas of high humidity or coastal environments, cleaning should be carried
outmore frequently.
Filter cleaning
IMPORTANT!
 The filters can cause damage and/or injury if dropped. Ensure you use two hands
toremove and replace the filters.
To remove the filters:
1Pull the filter toward you to release the back of the filter from the range hood (refer to A).
2Lower the back of the filter and remove from the front of the range hood (refer to B).
Clean the filters at least once a month. Filters may need to be cleaned more frequently
depending on the cooking methods used and frequency of use. The clean filter reminder
will illuminate to remind you to clean the filters.
To clean your filters:
 Remove the filters with two hands.
 Wash with a mild liquid detergent and hot water or in the dishwasher. If washed in the
dishwasher, the filters should be placed in an upright position.
 After cleaning and drying, refit the filters.
Note: Do NOT operate the range hood without the filters in place. The filters help
prevent damage to the inside of the range hood.
A B

15
EN
CLEANING AND MAINTENANCE
Replacing the LED lights
To replace the LED lights please contact your Fisher & Paykel trained and supported
service technician. Refer to fisherpaykel.com or your separate service and warranty
bookprovided with your range hood for contact details.

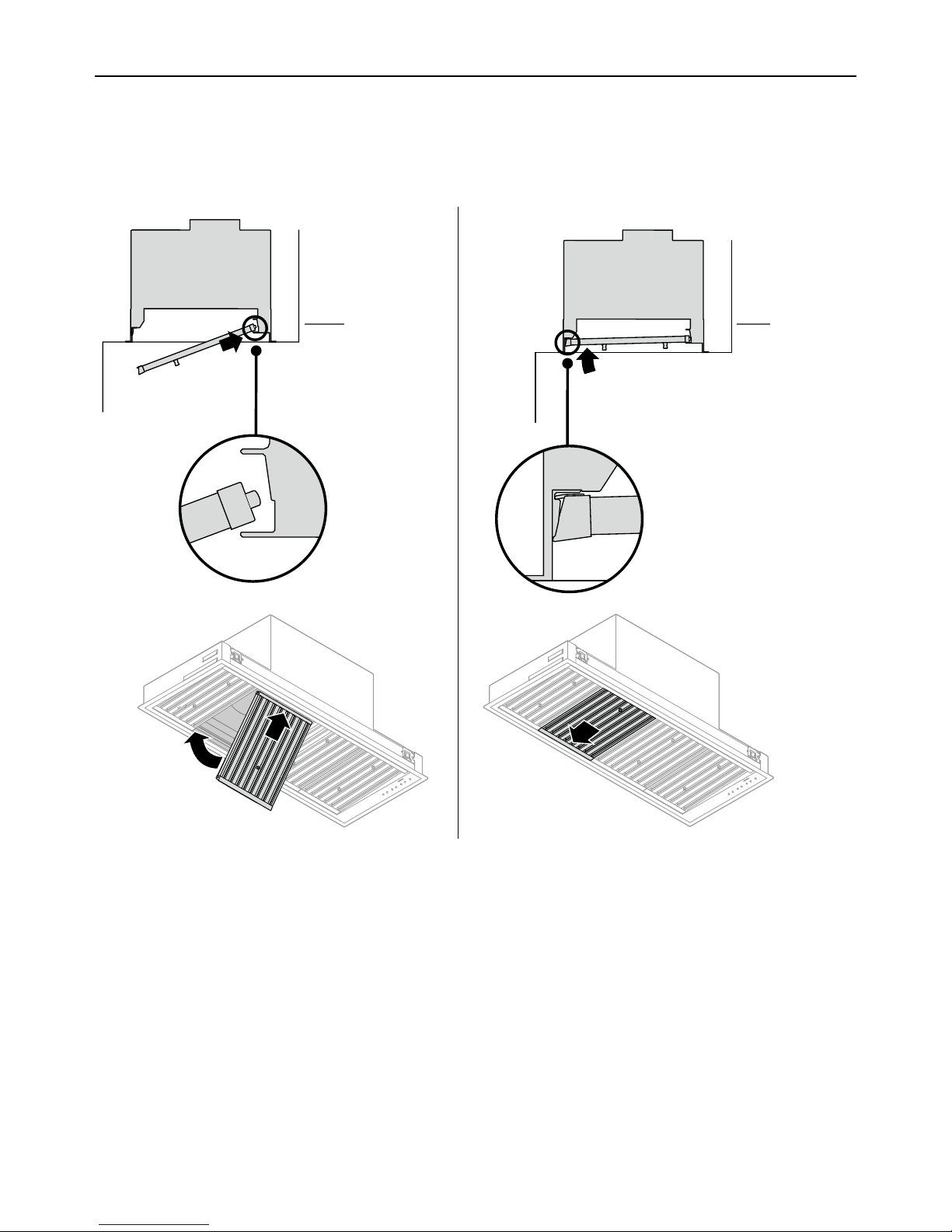

Recirculation kit—Carbon filters
Selected models of this range hood can be fitted with optional recirculation kit
which has active carbon filters to remove odors from cooking vapors before the air is
channelled back into the kitchen. These filters must be replaced at least every 3months.
To order this kit visit fisherpaykel.com.
To replace the filters:
1Place the front end of the filter against the inside front of the range hood (refer to C),
slide the filter toward you and push the back up into the range hood (refer to D) until it
firmly seats into place.
Front of
range hood
CD
Front of
range hood

16
PROBLEM POSSIBLE CAUSES WHAT TO DO
Fan has turned
off automatically.
Fan, light and
power buttons
will illuminate red.
This blower is equipped with
a sensor to automatically
turnOFF the fan when
excessive heat is detected
bythe range hood.
Removethe source of heat,
wait until the control panel
buttons are no longer illuminated
before attempting to restart the
rangehood.
Fan has turned
on automatically.
The fan speed
buttons will
illuminate red.
The heat guard sensor has
activated. The range hood has
detected high temperature
and has turned the fan on
automatically.
Tooverride press the fan speed
buttons or turn the range hood
on/off. We recommend leaving
therange hood on to remove
excess cooking heat.
Refer to ‘Heat guard’ for
furtherdetails.
Filter will not
fit back into
therange hood
The filter has been inserted
thewrong way around.
Turn the filter the other way
roundand try to insert again
following the steps detailed in
‘To replace the filters’.
Filter alert
buttonis lit red
Filters require cleaning. Turn off the range hood, remove
the filters, clean filters and replace.
Refer to ‘Filter cleaning’ for
furtherdetails.
Grease is
dripping from
therange hood
The filters are saturated with
grease and need to be cleaned.
Turn off the range hood, remove
the filters, clean filters and replace.
Refer to ‘Filter cleaning’ for
furtherdetails.
Excessive
condensation
appears on the
range hood
surfaces
 Using an induction cooktop
 High ambient temperature,
humidity or low natural
ventilation in the room
 Height of rangehood
installation.
Condensation can be minimized,
refer to ‘For best performance’
fordetails.
The lighting is
too dim
Lighting brightness needs
tobe increased.
Press the button to increase
the brightness of the lighting.
Press and hold the button to go
straight to the brightest lighting.
Refer to ‘Light’ for further details
on adjusting the brightness.
Range hood
surfaces
discolored
Incorrect cleaning product
hasbeen used.
Refer to ‘Cleaning and Maintenance’.
TROUBLESHOOTING

17
EN
Filters
 77/8” x 87/8” (200mm x 225mm)
 77/8” x 117/8” (200mm x 300mm)
 153/4” x 8” (400mm x 225mm)
 153/4” x 117/8” (400mm x 300mm)
Recirculation kit – Carbon filters (2)
Remote control
Parts
Accessories
¾” OD x 3/16”ID
Flat Washer
#10-32
Pan Head
Pozi Drive
Wall Plug
#8 x 3/4”
Truss Head
Philips Drive
Self Tapping Screw
¼-20 x ½”
Pan Head
Philips Drive
Machine Screw
M4 x8
Pan Head
Torx Drive
Machine Screw
#10x 3”
Countersunk
Pozidrive
Self tapping Screw
FP Pro Hood Fasteners
Remote control kit – Remote control (1),
Wireless receiver (1)
PARTS AND ACCESSORIES
Duct adapter including 5/16” (8mm) T20 drive screws (4)
 HPB3011-6, HPB3019-6, HPB3611-6, HPB3619-6, have 8” (203mm) outlet
 HPB3619-12, HPB4819-12, have 10” (254mm) outlet

18
SERVICE AND WARRANTY
For details of your manufacturer’s warranty and contacts for servicing, please refer
toyour separate service and warranty book provided with your range hood.
Complete and keep for safe reference:
Model
Serial No.
Purchase Date
Purchaser
Dealer
City
State
Zip
Country
