Fisher & Paykel HP90IHCB3 Wiring diagram

Built-in integrated cooker hood
HP90IHCB3 model
GB IE
INSTALLATION INSTRUCTIONS
USER GUIDE

1
CONTENTS
Introduction 3
Safety and warnings 4
Installation instructions 7
About your cooker hood – Energy efficiency 15
Operating instructions 16
Cleaning and maintenance 17
Parts and accessories 18
Manufacturer’s Warranty 19
Customer Care 20
ImpORTANT!
SAVE THESE INSTRUCTIONS
The models shown in this user guide may
not be available in all markets and are
subject to change at any time. For current
details about model and specification
availability in your country, please go to
our website www.fisherpaykel.com or
contact your local Fisher & Paykel dealer.
Registration
Register your product with us so we can
provide you with the best service possible.
To register your product visit our website:
www.fisherpaykel.com

3
INTRODUCTION
Thank you for purchasing a Fisher & Paykel product.
Thousands of hours go into the design, engineering, testing and perfecting of each
Fisher & Paykel appliance. The care and attention given to creating these beautiful
products doesn’t stop once it has found its home with you.
This use and care manual will answer most of your questions about the set-up, use and
on-going maintenance of your Fisher & Paykel product; however if you require further
information about your product and its use please consult our website for solutions
and further contact information to discuss with a service representative.
To ensure you receive all relevant product updates and the best service possible,
please register your Fisher & Paykel products through our website.

4
SAFETY AND WARNINGS
!WARNING!
10.5 kg
Weight Hazard
The cooker hood is heavy. Please ensure
adequate care is taken when installing the
cooker hood to prevent personal injury. The
cooker hood must be installed onto a solid
wall, stud, beam or truss. Weight of the
product is 10.5 kg.
!WARNING!
Electric Shock Hazard
Always disconnect the appliance from the
mains power supply before carrying out any
maintenance or repairs. Alterations to the
domestic wiring system must only be made
by a qualified electrician. Failure to follow this
advice may result in electrical shock or death.
IMPORTANT SAFETY INSTRUCTIONS
WARNING!
When using this appliance always exercise basic
safety precautions including the following:
• Please read the entire set of instructions before
installing the cooker hood.
• This appliance can be used by children aged from
8years or above and persons with reduced physical,
sensory or metal capabilities or lack of experience
or knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe

5
SAFETY AND WARNINGS
way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without
supervision.
• The installation of Fisher & Paykel cooker hoods
must comply with the information in this guide.
Failure to install the cooker hood in accordance with
these installation instructions may result in electrical
hazards, injury, and damage to your appliance and
loss of warranty. Failure by the installer to install
the screws or fixing devices in accordance with
these installation instructions may result in electrical
hazards. Please install the appliance as detailed in
these instructions.
• There shall be adequate ventilation of the room
when the cooker hood is used at the same time
asappliances burning gas or other fuels.
• You must read the details concerning the method
and frequency of cleaning.
• There is a fire risk if cleaning is not carried out in
accordance with the instructions.
• Do not flambé under the cooker hood.
• Exhaust air must not be discharged into an existing
flue that is used for exhausting fumes from appliances
burning gas or otherfuels.
• The minimum distance between the supporting
surface for cooking vessels on the hob and the
lowest part of the cooker hood shall be 600mm,
or 650mm if installed over a gas hob.
• Attention should be given to ensure that any
applicable regulations concerning the discharge
ofexhaust air is fulfilled.

6
SAFETY AND WARNINGS
• If the supply cord of this equipment is damaged
it must only be replaced by the manufacturer, its
service agent or similarly qualified person in order
toavoid a hazard.
• Always switch the power off prior to installation,
servicing or cleaning the cooker hood.
• Never use the cooker hood without the filters
inplace.
• Stainless steel or powdercoat is very easily damaged
during installation if abraded or knocked by tools.
It is recommended to protect the top of the cooker
hood with cardboard or plastic bag during the
installation to minimise the risk of damage occurring.
• To reduce the risk of damage occurring to hob,
it is recommended that the surface of the hob is
protected with cardboard or a similar object during
installation of the cooker hood.
• A power outlet should be within 750 mm of the
motor assembly and can be either on the wall,
behind the chimney or in the ceiling.
• To comply with electrical safety regulations, this
cooker hood must be plugged into a socket near the
appliance. The socket must be accessible, or have an
accessible isolating switch, to enable the end user
to isolate the cooker hood from the power for the
purpose of internal cleaning or maintenance.
• Ducting accessories are not supplied. All ducting must
comply with local requirements and building codes.
• CAUTION: accessible parts may become hot when
used with cooking appliances.

7
INSTALLATION INSTRUCTIONS
Contents of packaging
9x13mm screw
(2)
Installation instructions
User guide manual
(1)
125mm ducting
adapter (1)
Cooker hood
(1)
Built-in integrated cooker hood
HP90IHCB3 model
GB IE
INSTALLATION INSTRUCTIONS
USER GUIDE
150mm ducting adapter
with non return flap
(1)

8
INSTALLATION INSTRUCTIONS
Product and cabinetry cutout dimensions
A
D
F
C B
E
H
I
N
M
K
J
Power cord location
ØL
G
O

9
INSTALLATION INSTRUCTIONS
HP90IHCB3
PRODUCT DIMENSIONS mm
AOverall height of product 315
BOverall width of product 830
COverall depth of product 280
DThickness of flange 2
EWidth of chassis 790
FDepth of chassis 255
GHeight of side of chassis 120
HWidth of top surface of chassis 220
ILength of angled surface of chassis 335
JDistance from centre of ducting outlet to back of chassis 145
KDistance from centre of ducting outlet to side of chassis 395
LDiameter of ducting outlet 150
MDistance between centre of lights 285
NDistance from centre of light to back of product 115
Length of power cord 750
CABINETRY CUTOUT DIMENSIONS
Overall width of cutout 800
Overall depth of cutout 260
OBase of brackets/clips to bottom of chassis min. 15 – max. 40
ImpORTANT!
Actual product dimensions may vary by ± 2mm.

10
INSTALLATION INSTRUCTIONS

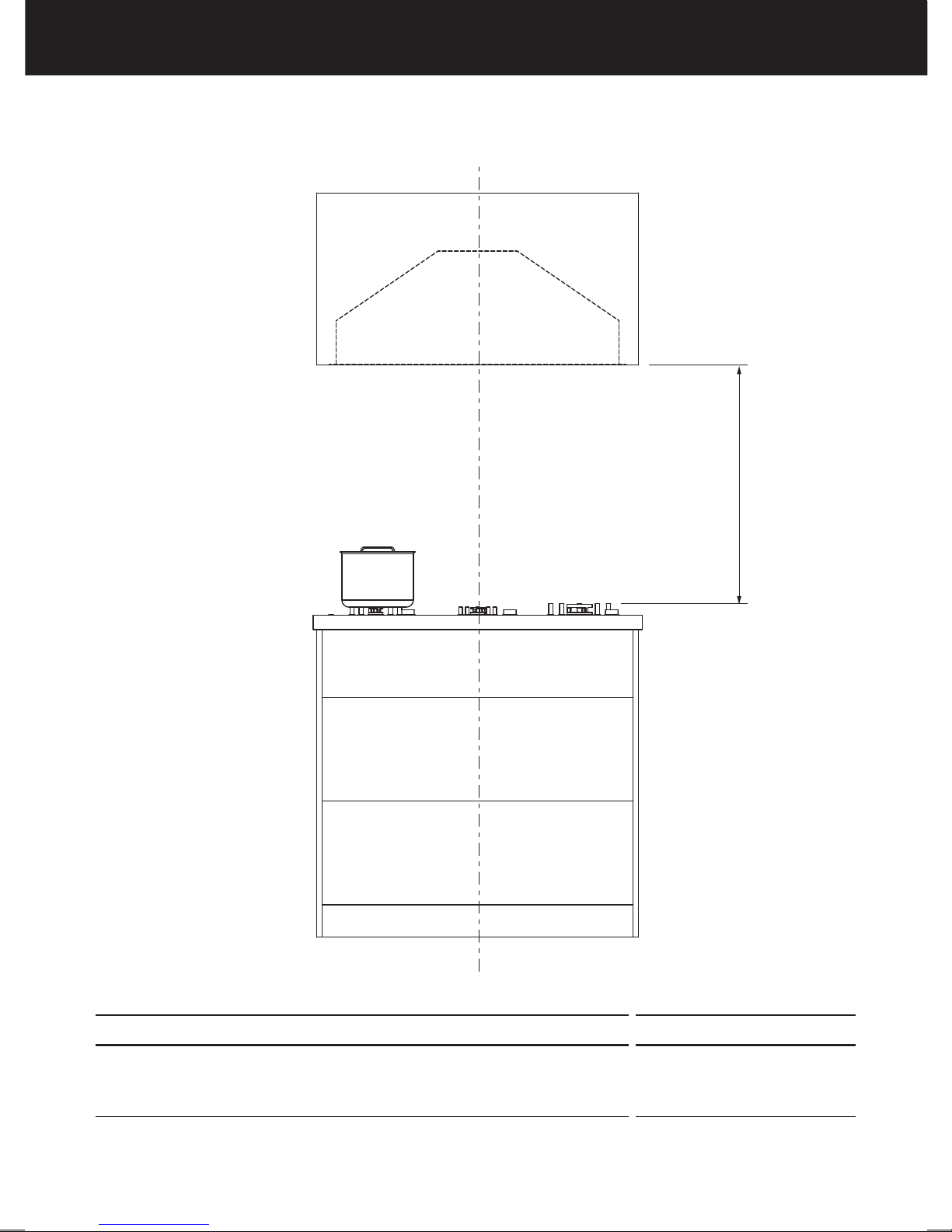

Height of cooker hood
MINIMUM CLEARANCES mm
PHeight top of hob to base of product
Electric hob
Gas hob
min. 600 – max. 750
min. 650 – max. 750
P

11
INSTALLATION INSTRUCTIONS
Venting options
Attention should be given to ensure that any applicable regulations concerning the
discharge of exhaust air are fulfilled.
The cooker hood can be installed to operate with the exhaust air ducted externally from
the kitchen, or installed to operate with the exhaust air recirculating within the kitchen.
Ducted
For ducted installation it is recommended that 150mm diameter, rigid or semi-rigid
ducting is used. This will require a 160mm (min) round hole in the ceiling or wall. Care
should be taken to position the hole correctly.
For optimal efficiency, use rigid or semi-rigid ducting for reduced noise and increased
airflow. Flexible ducting should only be used as a last resort (ie in difficult installations)
and if used, ensure that it is pulled tight.
Recirculating
This cooker hood can be installed to operate in recirculation mode, where ducting
outside is not a practical option. Ensure that the top ducting outlet is not obstructed.
Even a partial obstruction will restrict the efficiency of the cooker hood. To enable the
product to operate with the air recirculating, please purchase carbon filters (refer to
‘Parts and Accessories’). The carbon filters are required to remove odours.

12
INSTALLATION INSTRUCTIONS
Installation
WARNING!
This product is heavy and requires two persons for installation.
WARNING!
Failure to install the screws or fixing device in accordance with these instructions may
result in electrical hazards.
The manufacturer is not liable for any damage caused by not following these instructions.
1Prepare for installation.
Before installing your cooker hood:
 Please read the instructions carefully.
 Unpack the cooker hood and check that all functions are working.
 Ensure that the voltage (V) and the frequency (Hz) indicated on the serial plate
match the voltage and frequency at the installation site.
 The stainless steel and glass surfaces of the cooker hood are very easily damaged
during installation if grazed or knocked by tools. Please take care to protect the
surfaces during installation.
 Protect the hob surface below with cardboard, or the like, to prevent damage
occurring whilst the cooker hood is being installed above.
2Fit the 150mm ducting adapter with non return flap to the cooker hood using the
screws supplied.
3Provide an opening on the underside of the cupboard (see product and cabinetry
cutout dimensions).
width
depth
2.3
2.2
2.1
x4

13
INSTALLATION INSTRUCTIONS

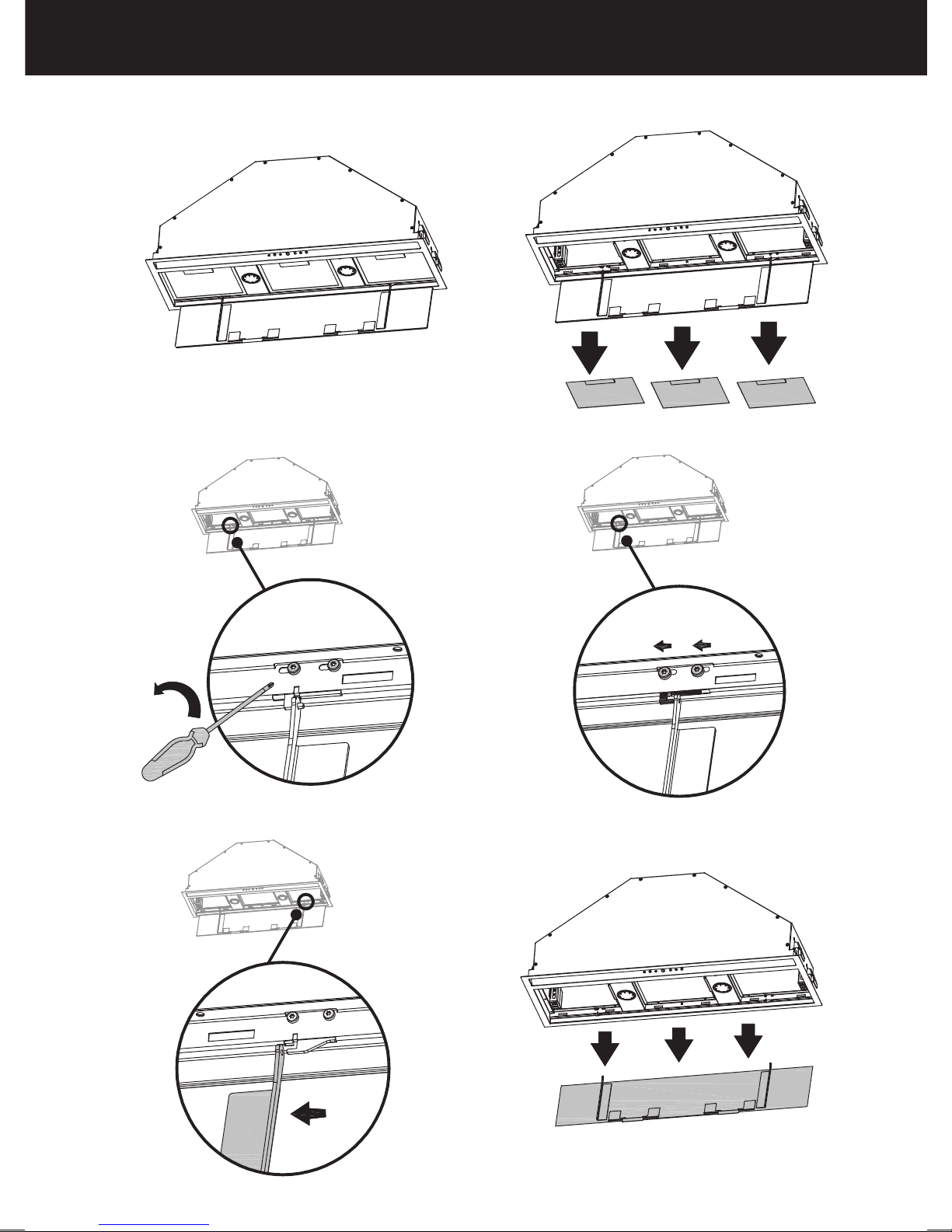

4Remove the filters and face plate of the cooker hood.
A B
C
360˚
1
A B
C
360˚
2
A
B
C
360˚
A
B
C
360˚
A B
C
360˚
A B
C
360˚
3 4
5
6

14
INSTALLATION INSTRUCTIONS

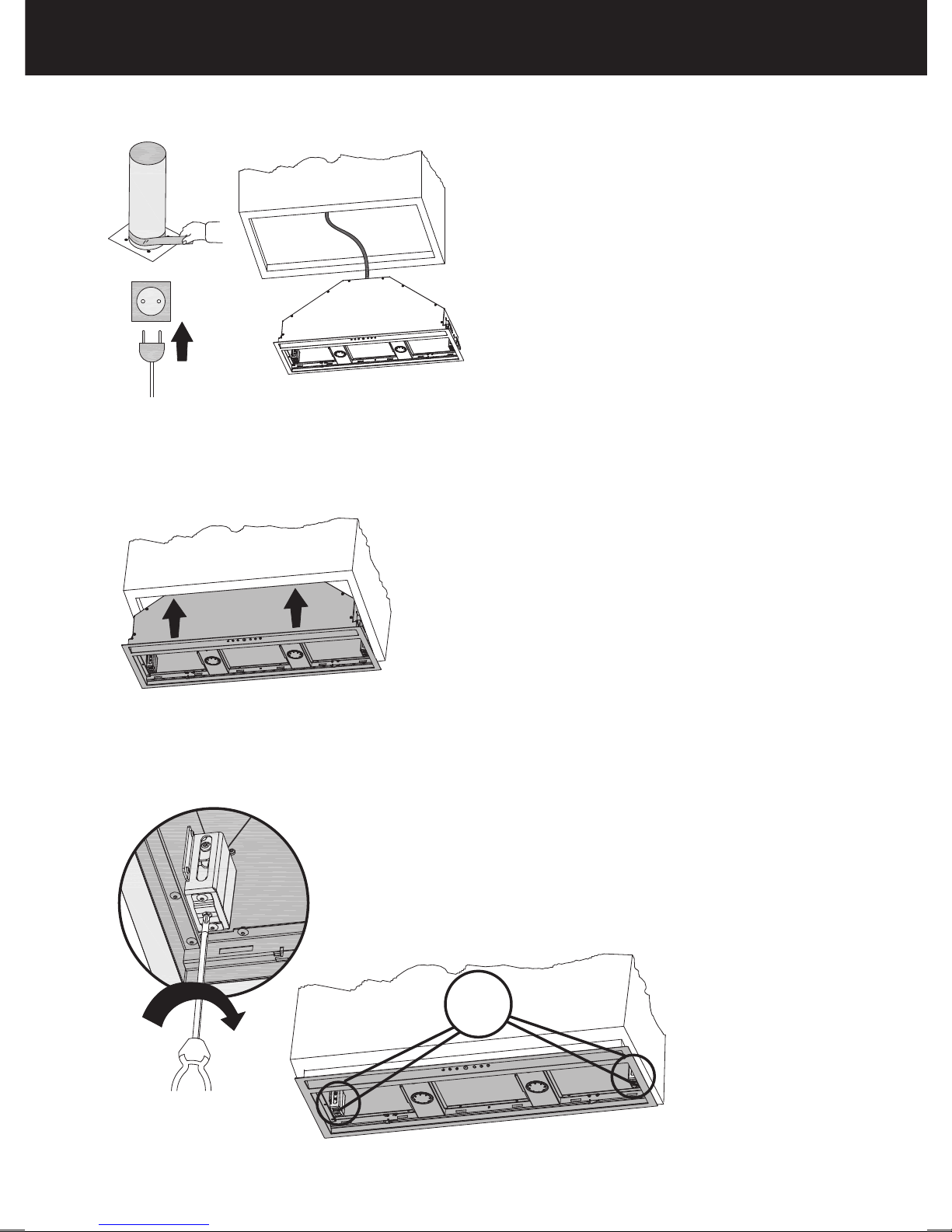

5Connect duct and plug cooker hood in.
6Lift the cooker hood and fit through the opening of the cupboard till the spring loaded
brackets / clips hold the product in place.
7Secure cooker hood while tightening the 4 brackets / clips.
width
depth
2.3
2.2
2.1
x4
width
depth
2.3
2.2
2.1
x4
width
depth
2.3
2.2
2.1
x4

15
ABOUT YOUR COOKER HOOD – ENERGY EFFICIENCY
Product Fiche
EN61591
MODEL HP90IHCB3
Annual Energy Consumption (kWh/annum) 32.2
Time Increase Factor 1
Energy Efficiency Index 52.8
Energy Efficiency Class A
Fluid Dynamic Efficiency 28.5
Fluid Dynamic Efficiency Class A
Lighting Efficiency 16.1
Lighting Efficiency Class C
Grease Filtering Efficiency 91.2
Grease Filtering Efficiency Class B
Airflow at Min. Speed (m³/hr) 200
Airflow at Max. Speed (m³/hr) 525
Airflow at Boost Speed (m³/hr) 710
Airborne noise at minimum (dB) 40
Airborne noise at maximum (dB) 64
Airborne noise at Boost (dB) 67
Airflow At Best Efficiency Point (m³/hr) 348.4
Electrical Power Input At Best Efficiency Point (W) 76.1
Lighting Nominal Power (W) 7
Lighting Average Illumination (lux) 113
Power consumption in Off mode (W) 0.41
Power consumption in Standby mode (W) 0.41

16
OPERATING INSTRUCTIONS

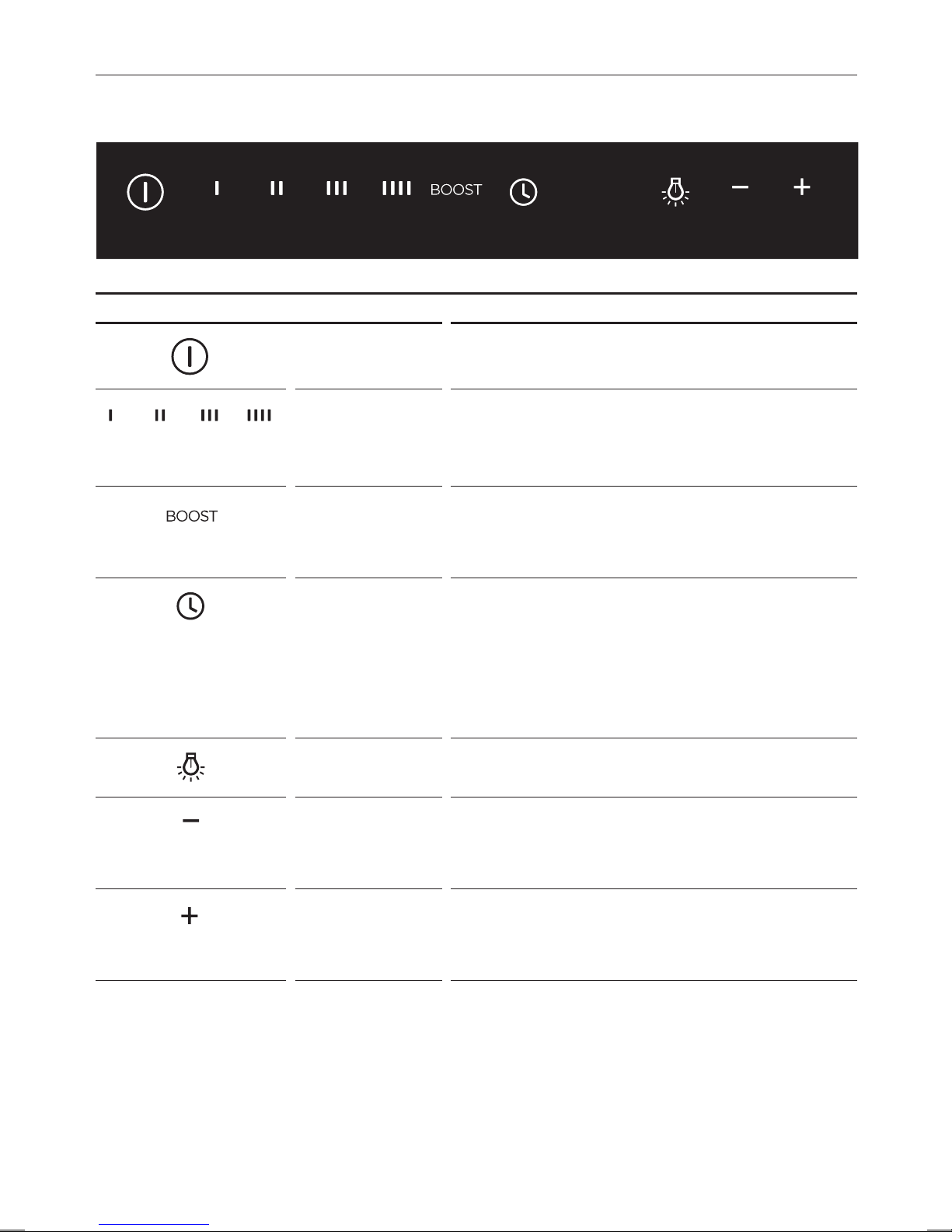

Touch control panel
CONTROL PANEL FEATURES
Power on/off Turn the cooker hood on or off. The fan
automatically turns on to operate at level 1.
Fan speed 1 – 4 Adjust the fan speed levels from 1 – 4 with 1
being the lowest level and 4 being the highest.
The fan speed level icon illuminates red when
selected.
Boost Turn the fan onto boost speed. The icon
flashes red when it is on. The cooker hood will
operate on boost speed for 5minutes and will
then revert to speed 4.
Timer Turn the timer on. The fan operates for
5minutes at the current speed and each
descending speed before turning off.
The timer icon flashes red when the filters
need cleaning. To reset the timer press the
button and it will stop flashing and begin
counting again.
Lights on/off Turn the lights on or off. The lights turn on to
the last level selected.
Reduce
lighting level
Press once to adjust the light to the lowest
level. The icon illuminates red when on the
lowest level. Press and hold to progressively
dim the light level.
Increase
lighting level
Press once to adjust the light to the highest
level. The icon illuminates red when on the
highest level. Press and hold to progressively
increase the light level.

17
CLEANING AND MAINTENANCE
ImpORTANT!
Never use abrasive or oil based cleaners
General maintenance
Before performing any cleaning or maintenance on your cooker hood, ensure that the
power supply is switched off to the hood.
The cooker hood should be cleaned regularly using a mild, liquid detergent to avoid a
build up of grease occurring. Grease deposits are corrosive which can cause damage to
your cooker hood.
Note: in areas of high humidity or coastal environments, cleaning should be carried out
more frequently.
Aluminium filters
 Depending on use, and at least once a month, the
aluminium grease filters should be removed and cleaned
with hot soapy water or in a dishwasher.
 If washed in a dishwasher, the filters should be placed in
an upright position to prevent food from falling on them.
 After rinsing and drying, replace the filters.
Note: some discolouration of the frames may occur.
Removing the aluminium filters:
1Open the glass panel.
2Pull the relative filter catch, tilting it downwards until it disengages from the supports.
3Reverse these instructions when refitting the filters.
Carbon filters – for use in recirculation mode
Active carbon filters are disposable items designed to remove grease and odours from
cooking vapours before the air is channelled back into the kitchen. The active carbon
filters must be replaced periodically to work properly, at least once every three months,
depending on the frequency with which the cooker hood is used.
Note: fully saturated carbon filters can become a
barrier to air movement therefore limiting cooker
hood performance. In the event of fire, grease
laden filters could be flammable and therefore
regular replacement is recommended.
Light bulb replacement
Please note replacement bulbs are not covered
bywarranty.
1Open the glass panel.
2Remove the aluminium filters.
3Unscrew the light bulb.
4Insert the replacement bulb into the lamp socket.
5Replace the aluminium filters.
6Replace the glass panel.
Bulb replacement
A B
C
360˚

18
PARTS AND ACCESSORIES
ITEM REFERENCE NUMBER
LED bulb x2 792556
Aluminium filter 792429
Recirculation carbon filter 50031
Ducting 150mm kit (eaves) 50033
Ducting 150mm kit (wall) 50034
