Please read these instructions before assembly and use of this product.
Adult assembly is required. Tool needed for assembly: Phillips screwdriver (not included).
Requires four D (LR20) alkaline batteries (not included) for operation.
Product features and decorations may vary from photographs.
Swing
Infant Seat Toddler Rocker
IMPORTANT! KEEP FOR FUTURE REFERENCE.

2
©2014 Mattel. All Rights Reserved.
PRINTED IN CHINA BFH06pr-0727
Great Britain: Vanwall Business Park,
Maidenhead SL6 4UB.
Helpline: 01628 500303.
www.service.mattel.com/uk.
Mattel Europa B.V., Gondel 1,
1186 MJ Amstelveen, Nederland.
Australia: Mattel Australia Pty. Ltd.,
658 Church Street, Locked Bag #870,
Richmond, Victoria 3121 Australia.
Consumer Advisory Service 1300 135 312.
New Zealand: 16-18 William Pickering
Drive, Albany 1331, Auckland.
Malaysia: Diimport & Diedarkan Oleh:
Mattel SEA Ptd Ltd. (993532-P) Lot 13.5,
13th Floor, Menara Lien Hoe, Persiaran
Tropicana Golf Country Resort, 47410 PJ.
Malaysia. Tel: [phone],
Fax: [phone].

3
Consumer Information
WARNING!
To prevent serious injury or death from falls or being strangled in the
restraint system:
• Never leave the child unattended.
• This product is not intended for prolonged periods of sleeping.
• It is dangerous to use this product on an elevated surface, e.g. a table.
• Do not move or lift this product with the baby inside it.
• Do not let children play with this product.
• To avoid injury ensure that children are kept away when unfolding and
folding this product.
• Never use the toy bar to carry the product.
• When used as a swing:
- Always use the restraint system.
- Do not use once your child can sit up unaided or weighs more than 9 kg.
- Never use the upright seat position with a child unable to hold head
up unaided.
• When used as an infant seat:
- Always use the restraint system.
- Do not use once your child can sit up unaided or weighs more than 9 kg.
- Suffocation Hazard - Never use on a soft surface (bed, sofa, cushion)
since the product can tip over and cause suffocation in soft surfaces.
- Never use the upright seat position with a child unable to hold head
up unaided.
• When used as a toddler rocker:
- Suffocation Hazard - Never use on a soft surface (bed, sofa, cushion)
since the product can tip over and cause suffocation in soft surfaces.
- Always use the restraint system until child is able to climb in and out of
the product unaided.
- Use only with a child who can sit up unaided.
• Swing and infant seat maximum weight
limit: 9 kg.
• Toddler rocker maximum weight limit:
18 kg.
• This product does not replace a cot or
a bed. Should your child need to sleep,
then it should be placed in a suitable cot
or bed.

4
2 Side Rails
Toy Bar
IMPORTANT! Please remove all parts from the package and identify them before assembly. Some
parts may be packed in the pad.
Parts
2 Retainers
with Lock Nut
2 Swing Frames
2 Swing Bases
Pad with Seat Back Tube
Hint: Please refer to the care
section to remove the seat
back tube for cleaning.
Cross Brace
2 Feet
Fasteners shown actual size. Tighten or loosen all screws with
a Phillips screwdriver. Do not over-tighten the screws.
M5 x 30 mm Screw – 2 M5 x 50 mm Screw – 4
Kickstand Footrest

5
Assembly
1
2
4

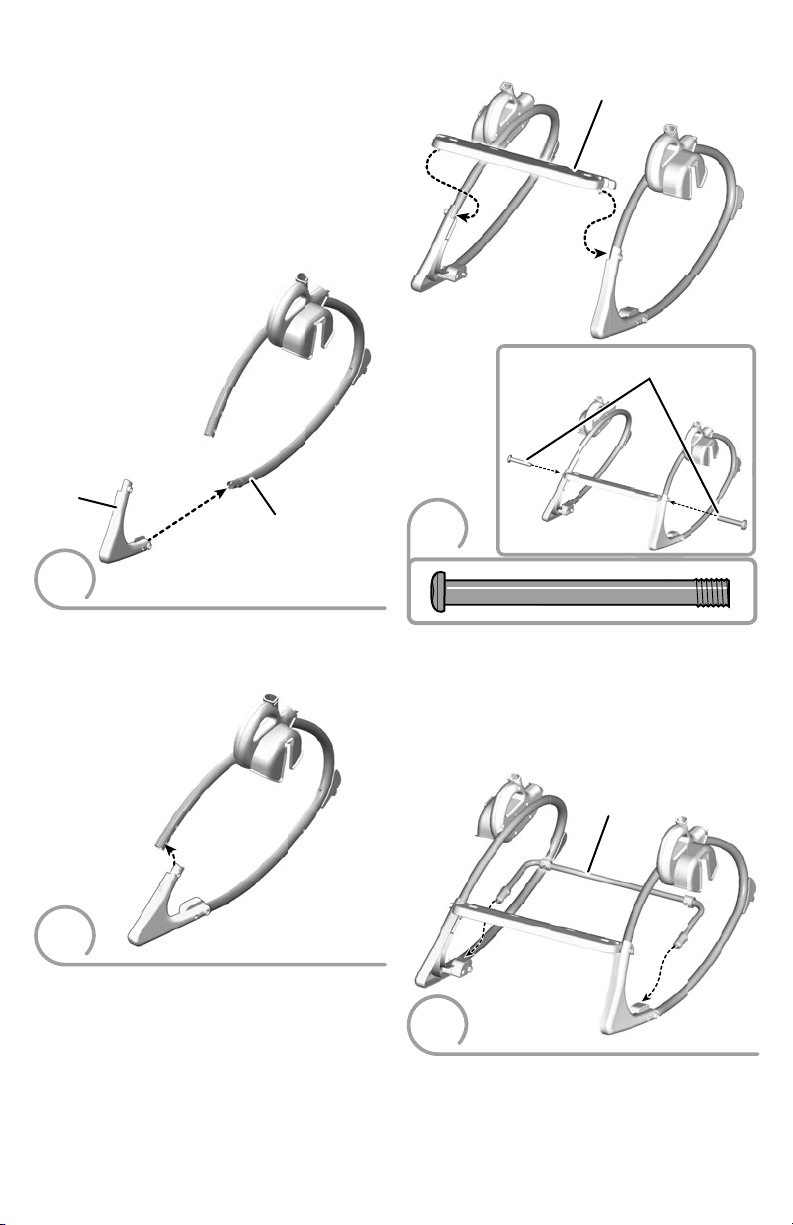

• Slide the socket on a foot onto the tapered
end of a side rail.
Side Rail
Foot
• Fit the peg on the inside of the foot to the
hole in the end of the side rail.
Hint: Each foot is designed to fit the side
rails one way. If a foot does not seem to fit,
remove it and assemble it to the other
side rail.
• Repeat this procedure to assemble the
other foot to the other side rail.
3
• Fit the pegs on the footrest to the
side rails.
• Insert a M5 x 50 mm screw through the
outside of each side rail and into the ends
of the footrest. Tighten the screws.
Footrest
Screws
IMPORTANT! Before each use or assembly,
inspect this product for damaged hardware,
loose joints, missing parts or sharp edges.
Do not use the product if any components
are broken or missing. Do not use access-
ories or replacement parts other than those
approved by the manufacturer.
4
• Insert the ends of the kickstand into the
socket in each foot.
Kickstand

6
7
8
Screws
Assembly
• Insert an M5 x 50 mm screw into each
foot and tighten.
Screws
5
6

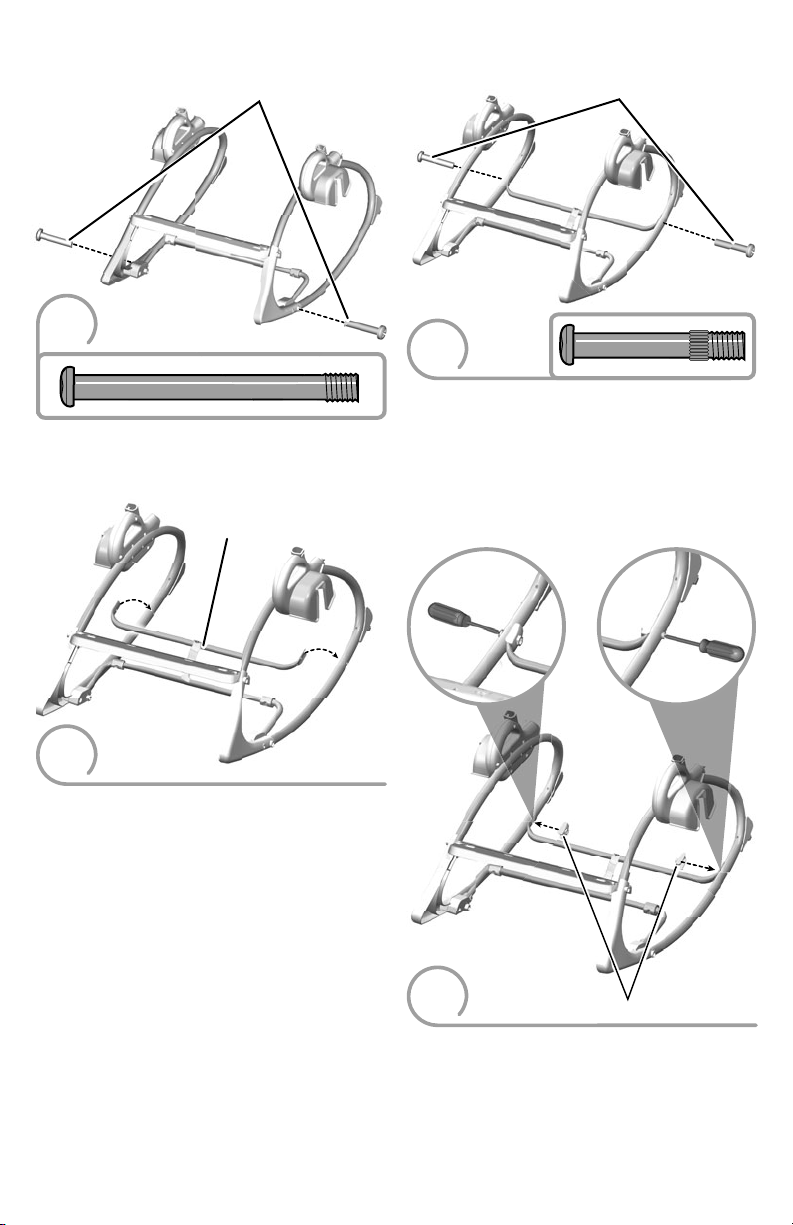

• Fit the cross brace between the side rails,
as shown.
Hint: The cross brace is designed to fit one
way. If it does not seem to fit, turn it around
and try again.
Cross Brace
• Insert an M5 x 30 mm screw through the
outside of each side rail and into the ends
of the cross brace.
IMPORTANT! Please follow the next
assembly (step 7) carefully to completely
secure the cross brace to the side rails.
• Fit a retainer with lock nut onto the end of
each screw and to the inside of a side rail.
Tighten the screws.
Retainers with Lock Nut

7
Assembly

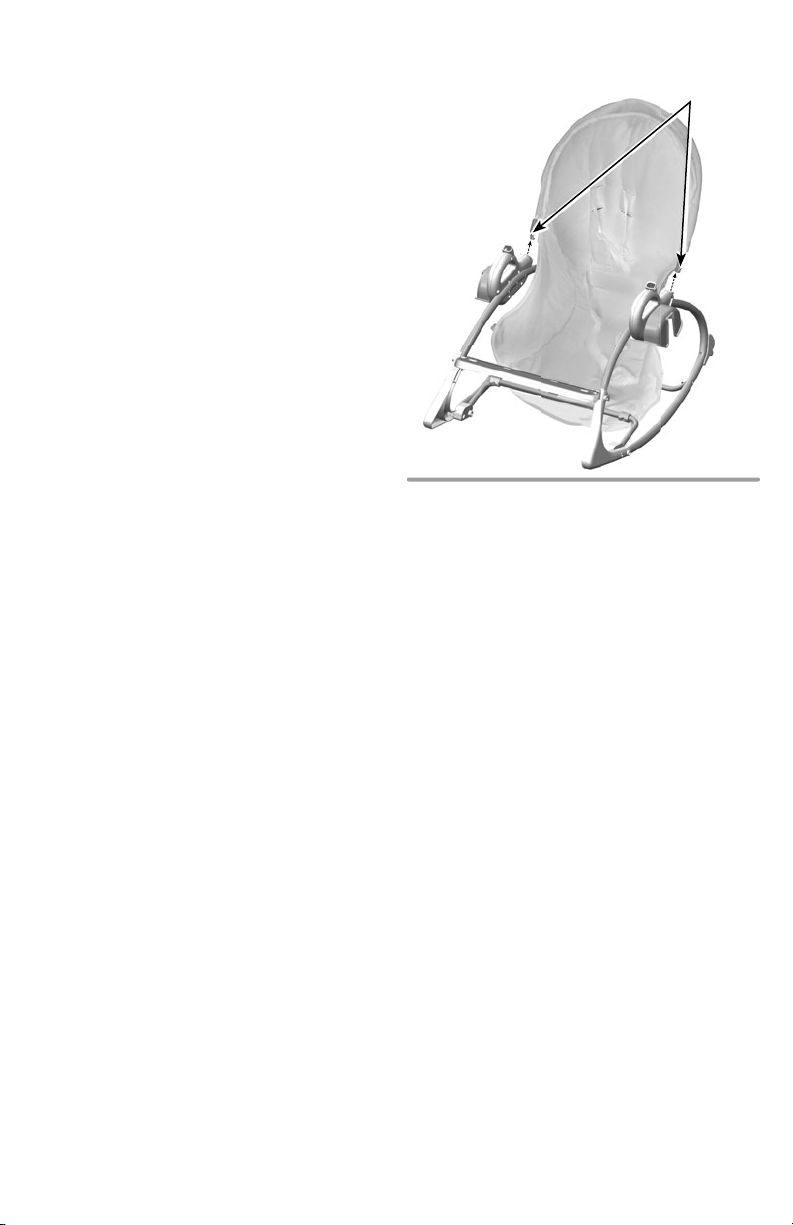

• While pressing the buttons on the ends of
the seat back tube (inside the pad), insert
the seat back tube into the sockets in each
side rail. Push until the buttons "snap" into
place. Make sure you hear a “snap” on
each side.
• Pull the seat back tube up to be sure it is
secure in the side rail sockets.
Press Buttons
Pad with Seat
Back Tube
Side Rail Sockets
911
12
• Fit the lower pocket on the pad around
the footrest.
• Fit the button holes on the lower pad pocket
to the hooks underneath the footrest.
10
• Fasten the buckle on the back of the pad
to the buckle on the cross brace. Make
sure you hear a "click". • Fasten the buckles on each side of the pad
around each side rail. Make sure you hear
a "click" on each side.
Pad Buckles
BACK VIEW
Footrest

8
Assembly
13
15
14
Smaller Baby

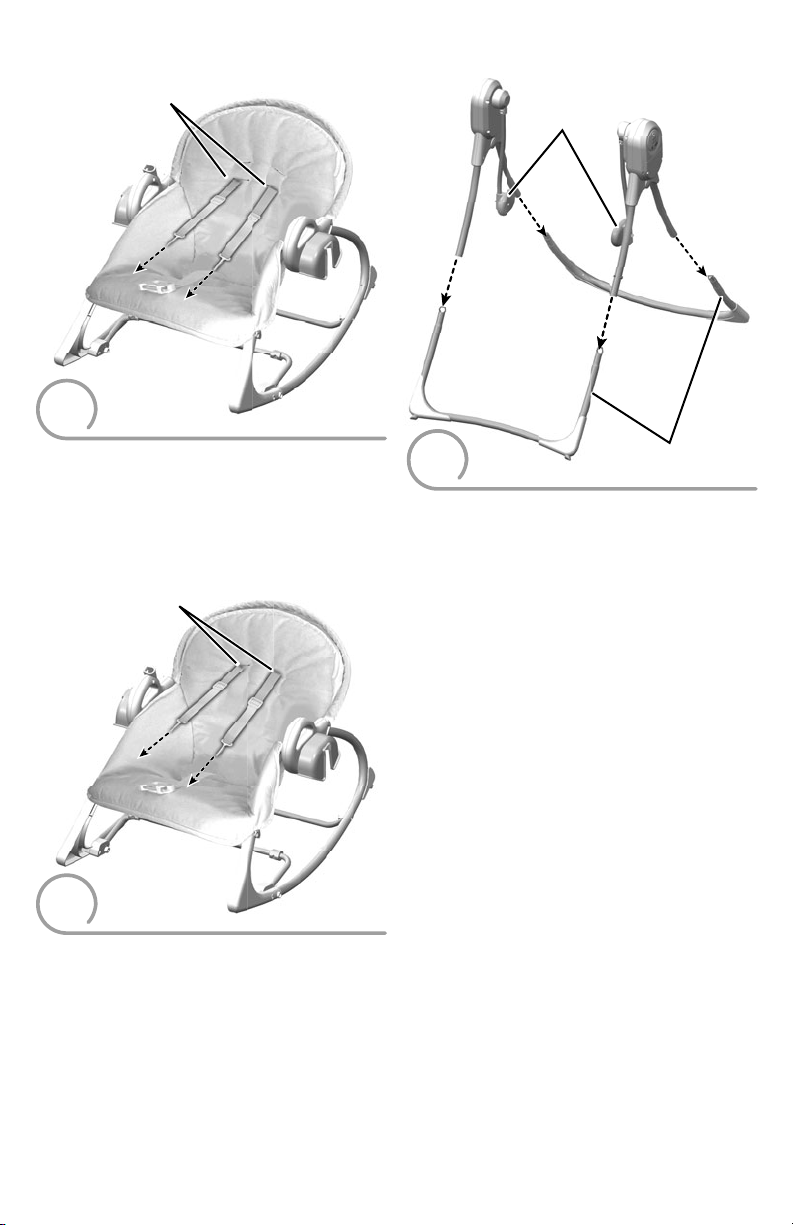

• Insert the ends of the shoulder belts
through the lower slots in the seat
pad back.
Shoulder Belt
Lower Slots
Larger Baby
• Insert the ends of the shoulder belts
through the upper slots in the seat
pad back.
Shoulder Belt
Upper Slots
15

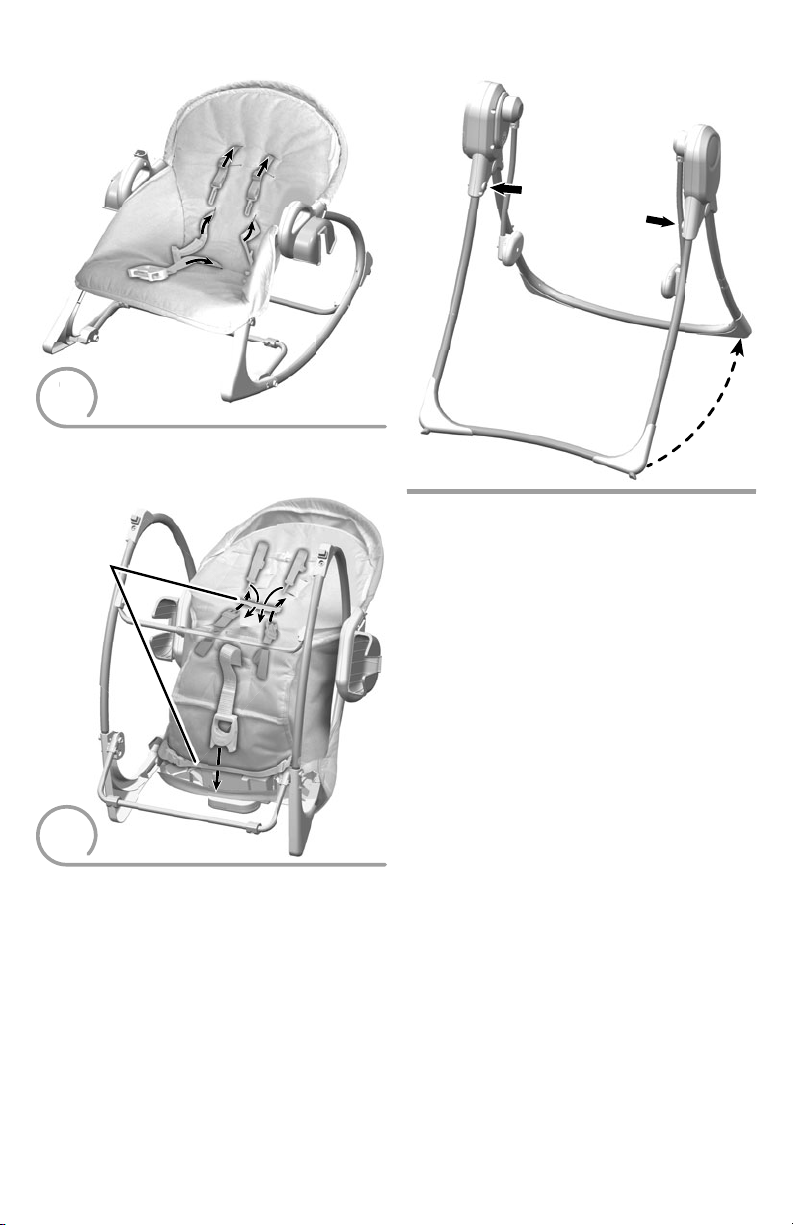

• Position the swing frames so that the
hubs face each other.
• Fit the tubes on the swing frames onto the
tubes on the bases.
Hint: The swing frame tubes are designed
to fit the tubes on each base one way. If the
swing frame tubes do not seem to fit, turn
the base around or try the other base.
Swing Frame
Hubs
Bases

9
Battery Installation
Hint: We recommend using alkaline
batteries for longer battery life.
+ -
1,5V x 4
D (LR20)
• Locate the battery compartment door on
the swing frame.
• Loosen the screws in the battery
compartment door and remove the door.
• Insert four D (LR20) alkaline batteries.
• Replace the battery compartment door
and tighten the screws.
Note: Low battery power causes product
movement to slow and sound to become
faint or stop. If this should happen, replace
the batteries with four D (LR20)
alkaline batteries.
• If this product begins to operate erratically,
you may need to reset the electronics. Turn
the power off and then back on.
Swing Frame
Battery Safety Information
In exceptional circumstances, batteries may
leak fluids that can cause a chemical burn
injury or ruin your product. To avoid
battery leakage:
• Do not mix old and new batteries or
batteries of different types: alkaline,
standard (carbon-zinc) or rechargeable
(nickel-cadmium).
• Insert batteries as indicated inside the
battery compartment.
• Remove batteries during long periods
of non-use. Always remove exhausted
batteries from the product. Dispose of
batteries safely. Do not dispose of this
product in a fire. The batteries inside may
explode or leak.
• Never short-circuit the battery terminals.
• Use only batteries of the same or
equivalent type as recommended.
• Do not charge non-rechargeable batteries.
• Remove rechargeable batteries from the
product before charging.
• If removable, rechargeable batteries are
used, they are only to be charged under
adult supervision.
• Protect the environment by not
disposing of this product with
household waste (2002/96/EC).
Check your local authority for
recycling advice and facilities.

10
Setup and Use
WARNING!
To prevent serious injury or death from falls or being strangled in the
restraint system:
• Never leave the child unattended.
• This product is not intended for prolonged periods of sleeping.
• It is dangerous to use this product on an elevated surface, e.g. a table.
• Do not move or lift this product with the baby inside it.
• Do not let children play with this product.
• To avoid injury ensure that children are kept away when unfolding and
folding this product.
• Never use the toy bar to carry the product.
• When used as a swing:
- Always use the restraint system.
- Do not use once your child can sit up unaided or weighs more than 9 kg.
- Never use the upright seat position with a child unable to hold head
up unaided.
• When used as an infant seat:
- Always use the restraint system.
- Do not use once your child can sit up unaided or weighs more than 9 kg.
- Suffocation Hazard - Never use on a soft surface (bed, sofa, cushion)
since the product can tip over and cause suffocation in soft surfaces.
- Never use the upright seat position with a child unable to hold head
up unaided.
• When used as a toddler rocker:
- Suffocation Hazard - Never use on a soft surface (bed, sofa, cushion)
since the product can tip over and cause suffocation in soft surfaces.
- Always use the restraint system until child is able to climb in and out of
the product unaided.
- Use only with a child who can sit up unaided.

11

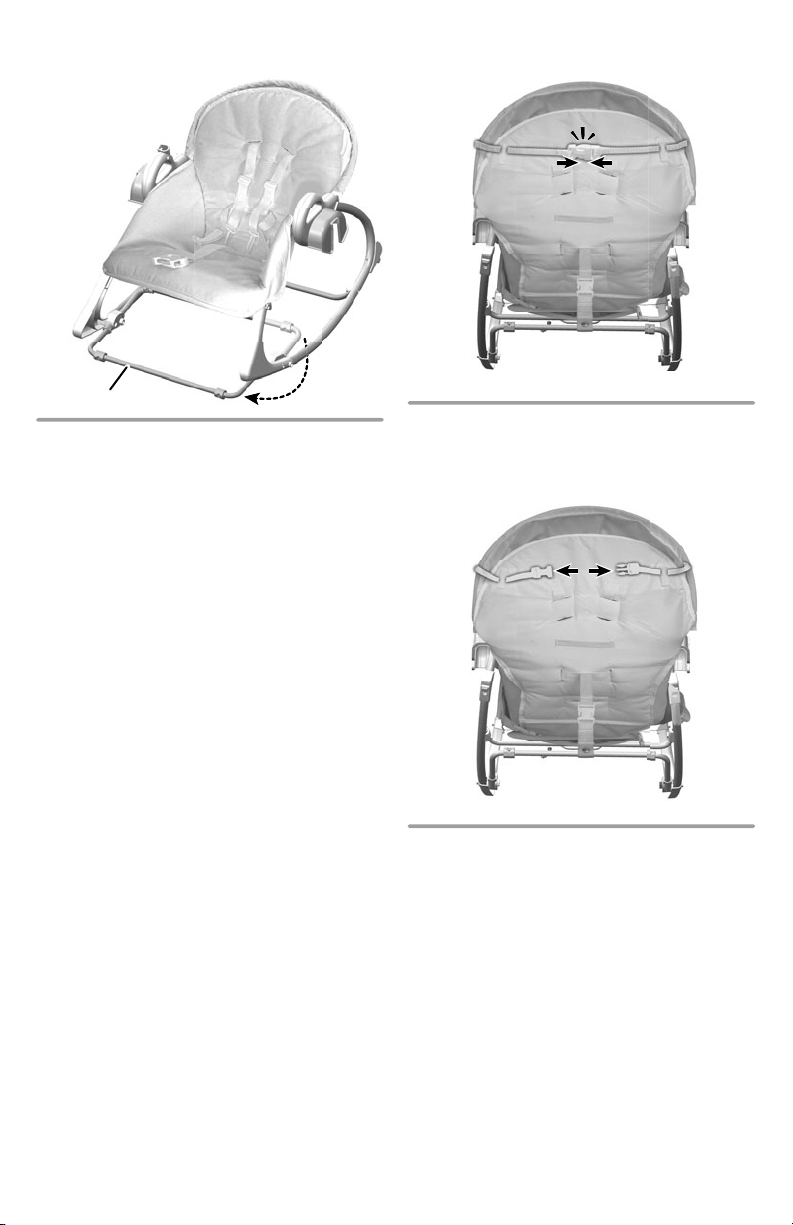

Kickstand
Note: Use the kickstand only when using as
an infant seat.
• Rotate the kickstand out. Push down on
the seat bottom to be sure the kickstand is
in position.
• Lift the seat back and fasten the strap
buckles. Make sure you hear a “click”.
Infant Seat Kickstand Adjustable Seat Back
Upright Position
Recline Position
• Unfasten the strap buckles and lower the
seat back.
Re
cl
in
e
Po
si
ti
on

12
Securing Child
1
Crotch Belt
Waist Belt
Waist Belt
Shoulder Belt
Shoulder Belt

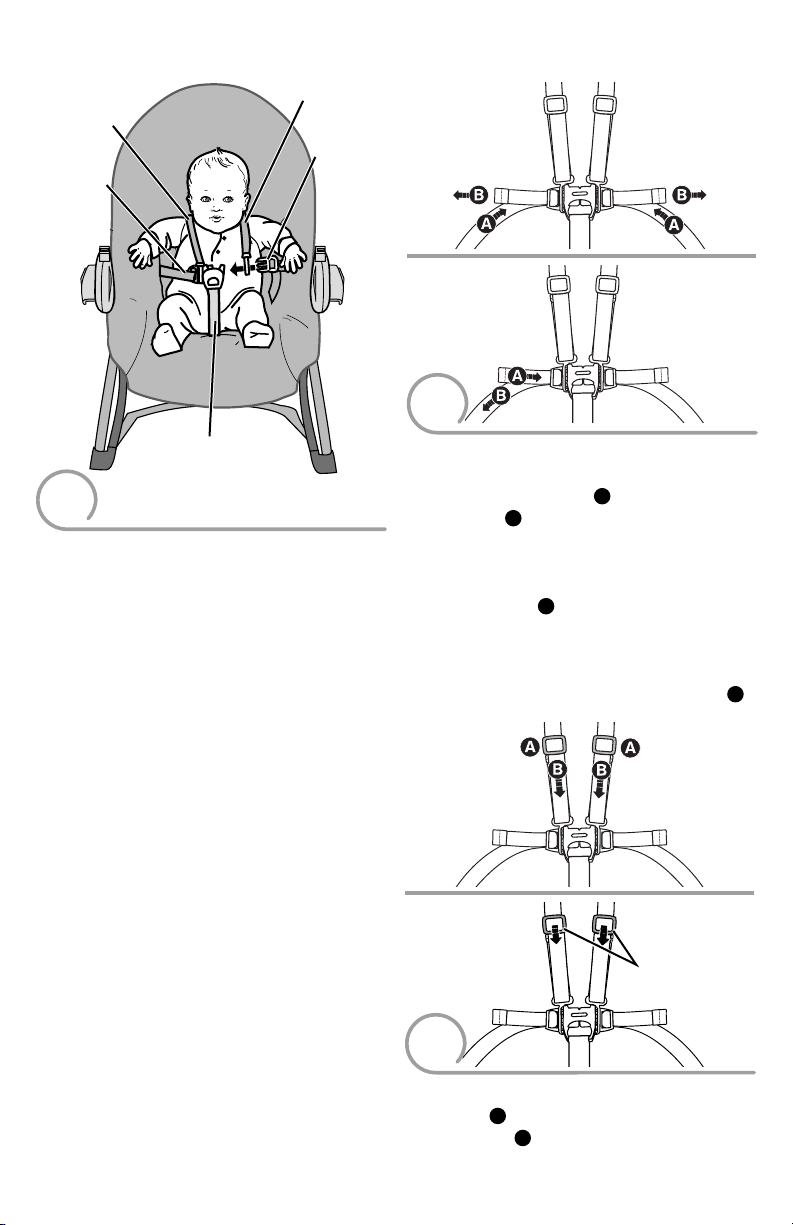

• Place your child in the seat. Position the
crotch belt between your child’s legs.
• Insert the ends of the waist belts through
the slots in the shoulder belts.
• Fasten the waist/shoulder belts to the
crotch restraint. Make sure you hear
a "click" on both sides.
• Check to be sure the restraint system is
securely attached by pulling it away from
your child. The restraint system should
remain attached.
• Tighten the waist/shoulder belts so that
the restraint system is snug against your
child. Please refer to the next section
for instructions to tighten the waist/
shoulder belts.
• To tighten the waist belts: Feed the
anchored end of the belt up through the
buckle to form a loop A. Pull the free end
of the belt B. Repeat this procedure to
tighten the other belt.
• To loosen the waist belts: Feed the free
end of the belt up through the buckle
to form a loop A. Enlarge the loop by
pulling on the end of the loop toward the
buckle. Pull the anchored end of the belt
to shorten the free end of the belt. Repeat
this procedure to loosen the other belt B.
LOOSEN
TIGHTEN
2
3
• To tighten the shoulder belts: Hold the
adjuster Aand pull the front shoulder
strap down B.
• To loosen the shoulder belts: Slide the
adjuster down.
TIGHTEN
Adjusters
LOOSEN

13
• Fit the plugs on each end of the toy bar
into the sockets in each side rail.
Hint: The toy bar is removable. Press the
ends of the latches and lift the toy bar.
Toy Bar Swing Setup
• Fit the seat onto the swing hubs.
• Push down on the seat to be sure it's
secure to the swing hubs.
Swing Hubs

14
Power Switch
Swing Speed
Buttons
Music/Sounds
Button
Volume
Buttons
Swing
• Slide the power switch ON.
• Press the swing speed buttons to
select any of six speed settings.
• Swinging will turn off after approximately
four hours. Press a swing speed button
to restart.
• Be sure to slide the power switch OFF
when not in use.
Soothing 6-speed Swing
Music and Sounds
• Press the music/sounds button to
turn music/sounds ON. Press the button
again to turn music/sounds OFF.
Hint: Music/sounds will turn off after
approximately 20 minutes. Press the music/
sounds button to restart.
• Press the volume buttons to adjust the
volume level.

15
Rocker Use
1
2
• Insert the restraint belts back through the
slots in the pad.
Pad Straps
• Turn the seat face down.
• Tuck the ends of belts under the pad straps.
Swing Frame Storage
• Lift to remove the seat from the swing frame.
• Press the button on each swing frame and
push the bases together.
• Lean against a wall for storage.
• Store this product away from children.
PRESS
PRESS
1

16
Care
• The pad is machine washable. Wash the pad
separately in cold water on the gentle cycle.
Do not use bleach. Tumble dry separately on
low heat and remove promptly.
• The swing and seat frames, toy bar and
toys may be wiped clean using a mild
cleaning solution and a damp cloth. Do
not use bleach. Do not use harsh or
abrasive cleaners. Rinse clean with water
to remove residue. Do not immerse the
swing or seat frames.
Press Buttons
To remove the pad:
• Unfasten the buckles around each side
rail. Unfasten the rear strap buckle on
the pad.
• Remove the lower pocket on the pad from
the footrest.
• Press the seat back tube buttons on each
side rail. Pull to remove the ends of the
seat back tube. Remove the seat back
tube from the sleeve in the pad.
To replace the pad:
• Insert the seat back tube into the sleeve in
the top of the pad.
• Follow the assembly instructions to
assemble the seat back tube and the pad to
the seat frame.
