FASTEX EC220
Clamping elements
3911en
Compact assembly and
operating instructions
Edition 05/2022
Introduction
1
Description
2
Application planning
3
Assembly
4
Disassembly
5
Disposal
6
Services and support
7
Technical data
A

Legal information
Warning notice system
This manual contains notices you have to observe in order to ensure your personal safety, as well as to
prevent damage to property. The notices referring to your personal safety are highlighted in the manual by
a safety alert symbol, notices referring only to property damage have no safety alert symbol. These notices
shown below are graded according to the degree of danger.
DANGER
indicates that death or severe personal injury will result if proper precautions are not taken
WARNING
indicates that death or severe personal injury may result if proper precautions are not taken.
CAUTION
indicates that minor personal injury can result if proper precautions are not taken.
NOTICE
indicates that property damage can result if proper precautions are not taken.
If more than one degree of danger is present, the warning notice representing the highest degree of
danger will be used. A notice warning of injury to persons with a safety alert symbol may also include a
warning relating to property damage.
Qualified Personnel
The product/system described in this documentation may be operated only by personnel qualified for the
specific task in accordance with the relevant documentation, in particular its warning notices and safety
instructions. Qualified personnel are those who, based on their training and experience, are capable of
identifying risks and avoiding potential hazards when working with these products/systems.
Proper use of Flender products
Note the following:
WARNING
Flender products may only be used for the applications described in the catalog and in the relevant
technical documentation. If products and components from other manufacturers are used, these
must be recommended or approved by Flender. Proper transport, storage, installation, assembly,
commissioning, operation and maintenance are required to ensure that the products operate safely
and without any problems. The permissible ambient conditions must be complied with. The
information in the relevant documentation must be observed.
Trademarks All names identified by ® are registered trademarks of Flender GmbH. The remaining trademarks in this
publication may be trademarks whose use by third parties for their own purposes could violate the rights of
the owner.
.
Disclaimer of Liability
We have reviewed the contents of this publication to ensure consistency with the hardware and software
described. Since variance cannot be precluded entirely, we cannot guarantee full consistency. However,
the information in this publication is reviewed regularly and any necessary corrections are included in
subsequent editions.
Flender GmbH
Alfred-Flender-Straße 77
46395 BOCHOLT
Germany
Document order number: 3911de
℗04/2022 Subject to change
Copyright © Flender GmbH 2022.
All rights reserved

4
FASTEX EC220 Clamping element 3911de
Compact assembly and operating instructions 05/2022
Table of contents
1Introduction ...............................................................................................................................5
1.1 Main operation instructions ....................................................................................5
1.2 General information................................................................................................5
1.3 Intended use...........................................................................................................6
1.4 Safety instructions for a clamping element for use in potentially explosive
atmospheres...........................................................................................................6
2Description ................................................................................................................................7
3Application planning ................................................................................................................8
3.1 Transport of the clamping element........................................................................8
3.1 Storage of the clamping element............................................................................8
4Assembly ...................................................................................................................................9
4.1 Assembling the clamping element..........................................................................10
5Disassembly ..............................................................................................................................11
6Disposal .....................................................................................................................................12
7Service und support .................................................................................................................12
ATechnical data...........................................................................................................................13
A.1 Geometry data and tightening torques...................................................................13
Tables
Table 1-1 General warnings ...................................................................................................5
Table 4-1 Recommended assigned fits..................................................................................9
Table 7-1 Geometry data, weights, tightening torques...........................................................14
Figures
Figure 2-1 Construction of the clamping element FASTEX EC220.........................................7
Figure 4-1 Fit assignment ........................................................................................................9
Figure 7-1 Parts overview FASTEX EC220............................................................................13

5
FASTEX EC220 Clamping element 3911de
Compact assembly and operating instructions 05/2022
1 Introduction
1.1 Main operation instructions
These instructions are only valid in conjunction with the associated operating instructions
from the component supplier.
1.2 General information
Instructions
Notice the information and regulations in these installation instructions and in the main
operating instructions from the component supplier.
Please make sure that every person who is commissioned to work on the clamping element
has read and understood these instructions prior to handling the clamping element and
observes all of the points.
Only the knowledge of these instructions can avoid faults on the clamping element and
ensure fault-free and safe operation. Non-adherence to the instructions can cause product or
property damage or personal injury. Flender does not accept any liability for damage or
operating failures that are due to non-adherence to these instructions.
.
Symbols

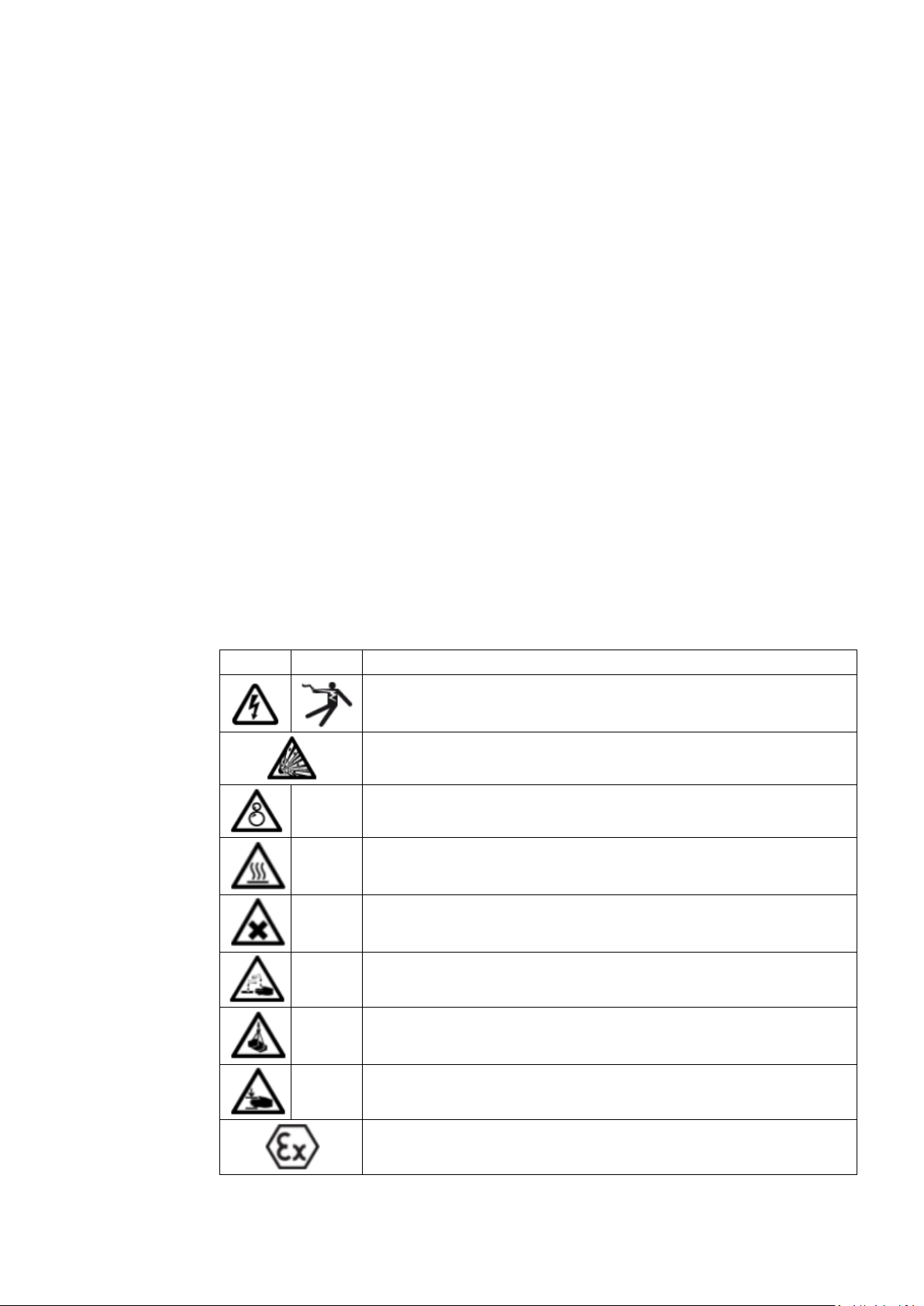

Table 1-1 General warnings
ISO
ANSI
Warning
Warning - hazardous electrical voltage
Warning - explosive substances
---
Warning - entanglement hazard
---
Warning - hot surfaces
---
Warning - substances that are harmful to health or are irritants
---
Warning - corrosive substances
---
Warning - suspended load
---
Warning - hand injuries
ATEX certification

6
FASTEX EC220 Clamping element 3911de
Compact assembly and operating instructions 05/2022
Explanation regarding Machinery Directive 2006/42/EG
The clamping elements described here are components in accordance with the Machinery
Directive and do not require a declaration of incorporation.
Work on the clamping element
Only carry out work on the clamping element when it is not in operation and is not under
load. Secure the drive unit against being switched on accidentally. Attach a notice to the
switch stating clearly that work is being carried out on the clamping element. Ensure that the
entire unit is not under load..
1.3 Intended use
Only use the clamping element according to the conditions specified in the service and
delivery contract and the technical data in the annex. Deviating operating conditions are
considered improper use. The user or owner of the machine or plant is solely liable for any
resulting damage.
When using the clamping element please specifically observe the following:
•Do not make any modifications to the clamping element that go beyond the permissible
machining described in these instructions. This also applies to touch protection facilities.
•Do not use the clamping element as a torque-limiting safety element.
If you have any queries, please contact our customer service (see Service and support
(Page 12)).
1.4 Safety instructions for a clamping element for use in
potentially explosive atmospheres
The assembly supplier is responsible for the guideline-compliant design of the system
clamping element with all associated components. In potentially explosive areas, it must be
ensured that the design torque TCl according to Table 7-1 is not exceeded at any operating
point. The identification and information on the conditions of use can be found in the main
operating instructions of the assembly supplier.

7
FASTEX EC220 Clamping element 3911de
Compact assembly and operating instructions 05/2022
2 Description
The clamping elements described here are universally applicable, self-centering clamping
elements whose function is the tensionally locked transmission of torque between shaft and
hub/hollow shaft.
The installation and operation of the specified clamping elements in combination with
cylindrically bored hubs is described in these instructions.
Design
Detailed information on the dimensions can be found in Appendix A Technical data
(Page 13).
1 Rear cone ring
2 Inner ring
3 Front cone ring
4 Shaft
5 Hollow shaft/hub
6 Hexagon head screws
Figure 2-1 Construction of the clamping element FASTEX EC220
Contact surfaces 1 2 3 4 5 6
Contact surfaces Cone
surfaces
Contact surface clamping
element and hub/hollow shaft
Shaft and hub/hollow shaft

8
FASTEX EC220 Clamping element 3911de
Compact assembly and operating instructions 05/2022
3 Application planning
Check the delivery for damage and for completeness. Report any damage and/or missing
parts to Flender immediately.
The coupling is delivered in preassembled groups. These may be dismantled.
3.1 Transport of the clamping element
WARNING
Severe personal injury due to improper transport
Severe personal injury due to falling components or due to crushing. Damage to clamping
element parts possible due to use of unsuitable transport means.
•Only use lifting gear and load suspension devices with sufficient load bearing capacity
for transport.
•Please observe the symbols applied on the packaging.
3.1 Storage of the clamping element
The clamping element, unless not specifically ordered otherwise, is supplied with
preservation and can be stored for up to 12 months in a dry and dust-free storage room.

9
FASTEX EC220 Clamping element 3911de
Compact assembly and operating instructions 05/2022
4 Assembly
DANGER
Danger due to bursting of the assembly group
If not used as intended, the assembly can burst. There is a risk of fatal injury from flying
fragments. Bursting of the assembly can lead to an explosion in potentially explosive
atmospheres.
•Use the clamping element as intended
Note
Information about the assembly of the clamping element
•Only use undamaged components for the assembly of the clamping element.
•Follow the assembly sequence.
•Please ensure that there is sufficient space at the assembly location and that the
location is tidy and clean in order to be able to assemble and maintain the clamping
element without any risk.
•If a dimension drawing has been created for the clamping element, please observe the
information it contains as a matter of priority
Recommended assigned fits
In the following table you will find the permissible fits of the clamping element and the shaft.
Table 4-1 Recommended assigned fits
component
tolerance
surface quality
Shaft tolerance
j6 (DS 10 bis 30 mm),
h6 (DS 31 bis 50 mm),
g6 (DS 51 bis 500 mm)
Ra ≤ 3,2 µm
Bore tolerance
H6 (DS 10 bis 38 mm),
H7 (DS 81 bis 500 mm)
Ra ≤ 3,2 µm
Figure 4-1 Fit assignment

10
FASTEX EC220 Clamping element 3911de
Compact assembly and operating instructions 05/2022
4.1 Assembling the clamping element
WARNING
The design torque TC l must not be exceeded at any operating point. It must be
ensured that the cylinder head bolts are tightened with the tightening torques
according to Table 7-1
Preparatory work
1. Make sure the surfaces to be joined are in perfect condition.
2. Reused clamping sets must be disassembled and cleaned before being used again. The
conical surfaces and threads as well as the screw head contact surfaces must be
greased with Molykote MoS2.
3. Clean the contact surfaces as well as the shaft (4) and hollow shaft/hub (5).
4. the contact surface between shaft (4) and hub/hollow shaft (5) must not be oiled or
greased. The contact surface between clamping set and hub/hollow shaft may be
greased.
5. Place the inner ring (2) between the rear taper ring (1) and the front taper ring (3)
6. Screw the rear conical ring (1) and front conical ring (3) together without tightening the
hexagon head screws (6)
Assemble
1. Position the preassembled clamping element on the hollow shaft/hub (5) and then guide
both parts onto the shaft (4).
2. Tighten the hexagon head screws (6) slightly so that the clamping element can still be
moved.
3. Align the clamping element on the shaft (4).
4. The shaft must fill the entire length of the clamping set.
5. Tighten the hexagon head screws (6) one after the other in several turns. The prescribed
tightening torque can be found in the section Tightening torques and wrench sizes.

11
FASTEX EC220 Clamping element 3911de
Compact assembly and operating instructions 05/2022
5 Disassembly
Procedure
1. unscrew all hexagon head screws (6) one after the other. These must not be unscrewed
completely.
2. f the rear conical ring (1) and the front conical ring (3) do not loosen, apply pressure at
several points around the circumference of the conical rings.
3. Remove the clamping set with the hollow shaft/hub (5) from the shaft (4). Use suitable
lifting devices for this purpose.
4. Remove the clamping set from the hollow shaft/hub (5). Use suitable lifting devices for
this purpose.
When reinstalling the clamping element please observe the information in the chapter
Assembly (Page 10).

12
FASTEX EC220 Clamping element 3911de
Compact assembly and operating instructions 05/2022
6 Disposal
Dispose of the clamping element parts according to applicable national regulations or recycle
them.
7 Service und support
When ordering spare parts, requesting a customer service technician or in the case of
technical queries, please contact our factory or one of our customer service addresses:
Flender GmbH
Schlavenhorst 100
46395 Bocholt
Deutschland
Tel.: [phone]
Fax.: [phone]
Flender GmbH (http://www.flender.com)

flender.com
A Technical data
A.1 Geometry data and tightening torques
In this section you can find dimension drawings and technical data for the Flender clamping
elements.:
1 Rear cone ring
2 Inner ring
3 Front cone ring
4 Shaft
5 Hollow shaft/hub
6 Hexagon head screws
Figure 7-1 Parts overview FASTEX EC220
1 2 3 4 5 6

flender.com
Table 7-1 Geometry data, weights, tightening torques
mm mm mm mm mm mm Nm mm Nm mm mm kg
10 24 14,5 11 928 M5 3,5 0,1
11 24 14,5 11 938 M5 3,5 0,1
12 24 14,5 11 950 M5 3,5 0,1
12 26 18,5 15 11 50 M5 4 0,2
13 26 18,5 15 11 70 M5 4 0,2
14 26 18,5 15 11 90 M5 4 0,2
14 29 18,5 15 12 85 M5 4 0,2
15 29 18,5 15 12 100 M5 4 0,2
16 29 18,5 15 12 130 M5 4 0,2
15 36 22,5 19 14 130 M5 4 0,2
16 36 22,5 19 14 150 M5 4 0,2
18 36 22,5 19 14 200 M5 4 0,2
19 36 22,5 19 14 180 M5 5 0,2
20 36 22,5 19 14 210 M5 5 0,2
21 36 22,5 19 14 250 M5 5 0,2
24 44 24,5 21 16 310 M5 6 0,3
25 44 24,5 21 16 340 M5 6 0,3
26 44 24,5 21 16 380 M5 6 0,3
28 52 27 23 18 460 M6 12 0,4
30 52 27 23 18 590 M6 12 0,4
31 52 27 23 18 630 M6 12 0,4
32 61 29 25 20 630 M6 12 0,6
35 61 29 25 20 780 M6 12 0,6
36 61 29 25 20 860 M6 12 0,6
38 70 31 27 22 940 M6 12 0,8
40 70 31 27 22 1100 M6 12 0,8
42 70 31 27 22 1300 M6 12 0,8
42 75 34 30 23 1200 M6 12 1,1
45 75 34 30 23 1500 M6 12 1,1
48 75 34 30 23 1900 M6 12 1,1
48 86 34 30 23 1800 M6 12 1,3
50 86 34 30 23 2200 M6 12 1,3
52 86 34 30 23 2400 M6 12 1,3
50 86 34 30 23 2000 M6 12 1,4
55 86 34 30 23 2500 M6 12 1,4
60 86 34 30 23 3100 M6 12 1,4
55 100 37,5 32 25 2500 M8 30 1,8
60 100 37,5 32 25 3200 M8 30 1,8
65 100 37,5 32 25 3900 M8 30 1,8
60 100 37,5 32 25 3200 M8 30 2,6
65 100 37,5 32 25 3900 M8 30 2,6
70 100 37,5 32 25 4600 M8 30 2,6
65 114 44,5 39 30 4800 M8 30 4
70 114 44,5 39 30 6100 M8 30 4
75 114 44,5 39 30 7400 M8 30 4
65 114 44,5 39 30 4700 M8 30 3,8
70 114 44,5 39 30 6000 M8 30 3,8
75 114 44,5 39 30 7200 M8 30 3,8
70 124 49,5 44 34 6900 M8 30 4,7
75 124 49,5 44 34 7500 M8 30 4,7
80 124 49,5 44 34 9000 M8 30 4,7
85 x 155
10
35
13
90 x 155
10
35
13
100 x 170
12
35
13
68 x 115
10
25
10
75 x 138
7
30
13
80 x 145
7
30
13
50 x 90
8
22
10
55 x 100
8
25
10
62 x 110
10
25
10
30 x 60
6
18
8
36 x 72
5
20
10
44 x 80
7
22
10
18 x 44
5
12
8
20 x 50
6
18
8
24 x 50
6
18
8
LS
SW
m
14 x 38
4
10
8
16 x 41
5
14
8
D1x D2
DS
DL
LG
L1
L2
TCl
SC
TA
Size
Dimensions
Limit Torque
hexagon head screw DIN EN ISO 4014 - 10.9
Weight
Screw size
Tightening
torque
Quantity
Screwlength
widht A/F

flender.com
mm mm mm mm mm mm Nm mm Nm mm mm kg
75 136 56,5 50 39 7200 M10 59 6
80 136 56,5 50 39 9000 M10 59 6
85 136 56,5 50 39 11000 M10 59 6
80 141 56,5 50 39 8500 M10 59 5
85 141 56,5 50 39 10000 M10 59 5
90 141 56,5 50 39 12000 M10 59 5
80 160 58,5 52 42 10500 M10 59 5,9
85 160 58,5 52 42 13200 M10 59 5,9
90 160 58,5 52 42 14400 M10 59 5,9
85 160 58,5 52 42 11000 M10 59 8,5
90 160 58,5 52 42 13000 M10 59 8,5
95 160 58,5 52 42 15000 M10 59 8,5
90 160 58,5 52 42 13700 M10 59 9
95 160 58,5 52 42 15800 M10 59 9
100 160 58,5 52 42 18200 M10 59 9
95 175 67,5 60 46 15000 M12 100 11
100 175 67,5 60 46 17000 M12 100 11
105 175 67,5 60 46 20000 M12 100 11
105 192 71,5 64 50 20000 M12 100 15
110 192 71,5 64 50 23000 M12 100 15
115 192 71,5 64 50 26000 M12 100 15
110 192 71,5 64 50 22500 M12 100 14
115 192 71,5 64 50 25500 M12 100 14
120 192 71,5 64 50 28600 M12 100 14
115 210 81 71 56 36000 M16 250 25
120 210 81 71 56 39000 M16 250 25
125 210 81 71 56 44000 M16 250 25
120 210 81 71 56 31700 M16 250 24
125 210 81 71 56 35800 M16 250 24
130 210 81 71 56 40000 M16 250 24
125 220 81 71 56 40000 M16 250 27
130 220 81 71 56 44000 M16 250 27
135 220 81 71 56 49000 M16 250 27
130 220 81 71 56 36800 M16 250 26
135 220 81 71 56 42000 M16 250 26
140 220 81 71 56 46000 M16 250 26
135 236 96 86 71 55000 M16 250 36
140 236 96 86 71 60000 M16 250 36
145 236 96 86 71 65000 M16 250 36
140 236 96 86 71 53300 M16 250 35
145 236 96 86 71 58500 M16 250 35
150 236 96 86 71 63500 M16 250 35
140 246 96 86 71 66000 M16 250 38
150 246 96 86 71 76000 M16 250 38
155 246 96 86 71 82000 M16 250 38
150 246 96 86 71 73700 M16 250 41
155 246 96 86 71 79800 M16 250 41
160 246 96 86 71 85800 M16 250 41
160 270 114 104 88 95000 M16 250 54
165 270 114 104 88 102000 M16 250 54
170 270 114 104 88 110000 M16 250 54
195 x 350
12
65
24
200 x 350
12
65
24
220 x 370
15
80
24
180 x 300
8
60
24
185 x 330
10
65
24
190 x 330
10
65
24
165 x 290
8
60
24
170 x 290
8
60
24
175 x 300
8
60
24
140 x 230
10
45
18
155 x 265
12
50
18
160 x 265
12
50
18
120 x 215
12
40
16
125 x 215
12
40
16
130 x 215
12
40
16
LS
SW
m
110 x 185
9
40
16
115 x 188
9
40
16
D1x D2
DS
DL
LG
L1
L2
TCl
SC
TA
Size
Dimensions
Limit Torque
hexagon head screw DIN EN ISO 4014 - 10.9
Weight
Screw size
Tightening
torque
Quantity
Screwlength
widht A/F

flender.com
mm mm mm mm mm mm Nm mm Nm mm mm kg
170 295 121,5 109 92 120000 M20 490 67
180 295 121,5 109 92 140000 M20 490 67
190 295 121,5 109 92 160000 M20 490 67
180 295 120,5 108 92 160000 M20 490 64
190 295 120,5 108 92 180000 M20 490 64
200 295 120,5 108 92 200000 M20 490 64
190 321 132,5 120 103 165000 M20 490 82
200 321 132,5 120 103 185000 M20 490 82
210 321 132,5 120 103 204000 M20 490 82
210 346 146,5 134 114 216000 M20 490 102
220 346 146,5 134 114 245000 M20 490 102
230 346 146,5 134 114 270000 M20 490 102
230 364 154,5 142 122 274000 M20 490 118
240 364 154,5 142 122 296000 M20 490 118
245 364 154,5 142 122 316000 M20 490 118
240 386 154,5 142 122 311000 M20 490 131
250 386 154,5 142 122 340000 M20 490 131
260 386 154,5 142 122 375000 M20 490 131
250 386 154,5 142 122 352000 M20 490 126
260 386 154,5 142 122 385000 M20 490 126
270 386 154,5 142 122 420000 M20 490 126
250 408 168,5 156 134 389000 M20 490 186
260 408 168,5 156 134 422000 M20 490 186
270 408 168,5 156 134 459000 M20 490 186
270 432 174,5 162 140 443000 M20 490 195
280 432 174,5 162 140 480000 M20 490 195
285 432 174,5 162 140 500000 M20 490 195
280 432 174,5 162 140 462000 M20 490 204
290 432 174,5 162 140 500000 M20 490 204
300 432 174,5 162 140 530000 M20 490 204
290 458 183 168 144 570000 M24 840 239
300 458 183 168 144 610000 M24 840 239
310 458 183 168 144 660000 M24 840 239
300 468 183 168 144 625000 M24 840 260
310 468 183 168 144 670000 M24 840 260
320 468 183 168 144 720000 M24 840 260
315 480 183 168 144 671000 M24 840 280
320 480 183 168 144 695000 M24 840 280
330 480 183 168 144 745000 M24 840 280
330 504 203 188 164 782000 M24 840 316
340 504 203 188 164 841000 M24 840 316
350 504 203 188 164 902000 M24 840 316
340 527 217 202 177 805000 M24 840 408
350 527 217 202 177 861000 M24 840 408
360 527 217 202 177 920000 M24 840 408
360 547 217 202 177 1000000 M24 840 420
370 547 217 202 177 1073000 M24 840 420
380 547 217 202 177 1141000 M24 840 420
380 570 228 213 188 1214000 M24 840 515
390 570 228 213 188 1285000 M24 840 515
400 570 228 213 188 1365000 M24 840 515
380 570 228 213 188 1175000 M24 840 505
390 570 228 213 188 1250000 M24 840 505
400 570 228 213 188 1312000 M24 840 505
400 590 230 213 188 1314000 M27 1250 575
410 590 230 213 188 1382000 M27 1250 575
420 590 230 213 188 1460000 M27 1250 575
480 x 800
30
140
36
500 x 850
24
150
41
440 x 750
24
140
36
460 x 770
28
140
36
470 x 800
30
140
36
390 x 660
21
120
36
400 x 680
21
120
36
420 x 690
24
130
36
350 x 580
24
110
30
360 x 590
24
110
30
380 x 645
20
120
36
320 x 520
20
100
30
330 x 520
22
100
30
340 x 570
24
110
30
260 x 430
14
90
30
280 x 460
16
100
30
300 x 485
18
100
30
LS
SW
m
240 x 405
12
80
30
250 x 405
14
85
30
D1x D2
DS
DL
LG
L1
L2
TCl
SC
TA
Size
Dimensions
Limit Torque
hexagon head screw DIN EN ISO 4014 - 10.9
Weight
Screw size
Tightening
torque
Quantity
Screwlength
widht A/F

flender.com
FASTEX EC220
Compact assembly and operating instructions 3911de
Edition 05/2022
Flender GmbH
Alfred-Flender-Straße 77
46395 Bocholt
Germany
