1
Introduction
The Fluke Model 110, Model 113, Model 114, Model 115, and Model 117 (the Meter or Product) are battery-
powered, true-rms multimeters with a 6000-count display and a bar graph. This manual applies to all models. All
figures show the Model 117 unless indicated.
How to Contact Fluke
To contact Fluke, call one of the following telephone numbers:
• Technical Support USA: 1-800-44-FLUKE (1-800-443-5853)
• Calibration/Repair USA: 1-888-99-FLUKE (1-888-993-5853)
• Canada: 1-800-36-FLUKE (1-800-363-5853)
• Europe: [phone]
• Japan: [phone]
• Singapore: [phone]
• China: [phone]
• Brazil: [phone]
• Anywhere in the world: [phone]
Or, visit Fluke's website at www.fluke.com.
To register your product, visit http://register.fluke.com.
To view, print, or download the latest manual supplement, visit http://us.fluke.com/usen/support/manuals.
To request a printed manual, visit www.fluke.com/productinfo.
Safety Information
For Product safety information, see the printed 110/113/114/115/117 Safety Information included with the
Product or located on the Fluke website.
Unsafe Voltage
To alert you to the presence of a potentially hazardous voltage, the Zsymbol is displayed when the Meter
measures a voltage ≥30 V or a voltage overload (OL) condition. When making frequency measurements >1 kHz,
the Zsymbol is unspecified.
Test Lead Alert
XW Warning
Personal injury or damage to the Meter can occur if you attempt to make a measurement with a
lead in an incorrect terminal.
To remind you to check that the test leads are in the correct terminals, LEAd is briefly displayed and an audible
beep sounds when you move the rotary switch to or from any A(Amps) position.

110/113/114/115/117
Users Manual
2
Product Familiarization
The manual explains features for multiple models. Because models have different features, not all of the
information in the manual may apply to your Meter. Use Table 1to identify the features of your Meter.
Features
Table 1is a list of the features for each Meter.
Table 1. Features
Switch
Position Measurement Function 110 113 114 115 117
OFF The Meter is turned off. zzzzz
xAutomatically selects ac or dc volts based on the sensed input
with a low impedance input. zz
eAC voltage from 0.06 V to 600 V.
Frequency from 5 Hz to 100 kHz. zzzz
DDC voltage from 0.001 V to 600 V. zzzz
lAC voltage from 6.0 to 600 mV, dc-coupled.
DC voltage from 0.1 to 600 mV. zzzz
ΩOhms from 0.1 Ωto 40 MΩ.zzzzz
sContinuity beeper turns on at <20 Ωand turns off at >250 Ω.zzzzz
kCHEK LoZ low impedance measurement function to simultaneously
test for voltage or continuity. z
RDiode Test. Displays OL above 2.0 V. zzz
SFarads from 1 nF to 9999 μF. zzz
j
AC current from 0.1 A to 10 A (>10 to 20 A, 30 seconds on,
10 minutes off). >10.00 A display flashes. >20 A, OL is
displayed. DC-coupled.
Frequency from 45 Hz to 5 kHz.
zz
IDC current from 0.001 A to 10 A (>10 A to 20 A, 30 seconds
on, 10 minutes off). >10.00 A display flashes. >20 A, OL is
displayed.
zz
wNon-contact sensing of ac voltage. z
Note: All ac functions and Auto-V LoZ are true-rms. AC voltage is ac-coupled. Auto-V LoZ, AC mV and
AC amps are dc-coupled.

True-rms Multimeter
Product Familiarization
3
Display
Table 2is a list of the features for each display.

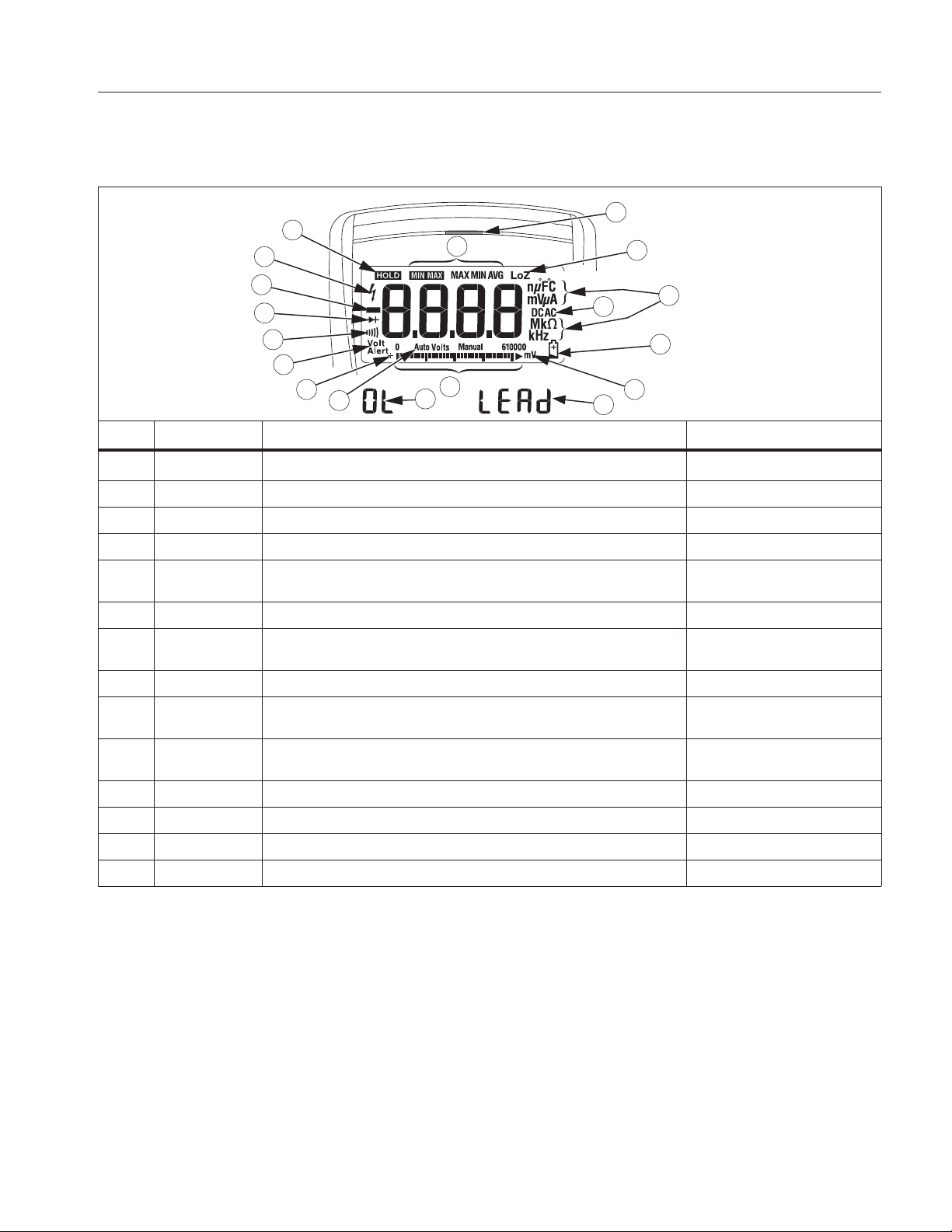

Table 2. Display
No. Symbol Meaning Model
wThe Meter is in the VoltAlert™ non-contact voltage detect mode. 117
sThe Meter function is set to Continuity. 110, 113, 114, 115, 117
RThe Meter function is set to Diode Test 113, 115, 117
OInput is a negative value. 110, 113, 114, 115, 117
ZXUnsafe voltage. Measured input voltage ≥30 V, or voltage
overload condition (OL). 110, 113, 114, 115, 117
KDisplay hold enabled. Display freezes present reading. 110, 113, 114, 115, 117
M
VWX
MIN MAX AVG mode enabled.
Maximum, minimum, average or present reading displays 110, 113, 114, 115, 117
(Red LED) Voltage presence through the non-contact VoltAlert sensor 117
LoZ The Meter is measuring voltage or capacitance with a low input
impedance. 113,114, 115, 117
nμF mV μA
MkΩkHz Measurement units. 110, 114, 115, 117
DC AC Direct current or alternating current 110, 113, 114, 115, 117
NBattery low warning. 110, 113, 114, 115, 117
610000 mV Indicates the Meter’s range selection. 110, 114, 115, 117
(Bar graph) Analog display. 110, 113, 114, 115, 117
VoltAlert
11
7
17 18
12
13
14
9
6
5
4
3
2
1
16
15
8
10

110/113/114/115/117
Users Manual
4
Terminals
Table 3is a list of terminals on the Meter.
No. Symbol Meaning Model

Auto Volts The Meter is in the Auto Volts function. 114, 117
Auto Autoranging. The Meter selects the range for best resolution. 110, 113, 114, 115, 117
Manual Manual ranging. User sets the Meter’s range. 110, 113, 114, 115, 117
+Bar graph polarity 110, 113, 114, 115, 117
0L WThe input is too large for the selected range. 110, 113, 114, 115, 117
LEAd WTest lead alert. Briefly displayed whenever the Meter’s function
switch is rotated to or from any A position. 115, 117
Table 3. Terminals
No. Description Model
Input terminal for measuring ac and dc current to 10 A. 115, 117
Common (return) terminal for all measurements. 110, 113, 114, 115, 117
Input terminal for measuring voltage, continuity, resistance, capacitance,
frequency and testing diodes. 110, 113, 114, 115, 117
Table 2. Display (cont.)
10 A
FUSED
COM
V
A
1
2
3

True-rms Multimeter
Product Familiarization
5
Error Messages
Table 4is a list of error messages for the Meter.
Battery Saver™ (Sleep Mode)
If the Meter is ON, but inactive and not connected to voltage for more than 20 minutes, the display goes blank to
save battery life.To use the Meter, press any button or turn the rotary switch. To disable the Sleep mode, see
Power-Up Options. The Sleep mode is always disabled in the MIN MAX AVG mode.
MIN MAX AVG Recording Mode
The MIN MAX AVG recording mode captures the minimum and maximum input values (ignoring overloads), and
calculates a running average of all readings. When the Meter detects a new high or low, the Meter beeps.
Note
Autoranging and Battery Saver™ are disabled in MIN MAX AVG mode.
1. Select the measurement function and range.
2. Push pto enter MIN MAX AVG mode.
Mand MAX show on the display. The highest reading detected since entering MIN MAX AVG shows
on the display.
3. Push pto step through the low (MIN), average (AVG), and present readings.
4. To pause MIN MAX AVG recording without erasing stored values, push f. (Kshows on the display.)
5. To resume MIN MAX AVG recording, push f again.
6. To exit and erase stored readings, push pfor at least one second, or turn the rotary switch.
Table 4. Error Messages
Error Messages
bAtt Battery must be replaced before the Meter will operate.
CAL Err Calibration required. Meter calibration is required before the Meter will operate.
EEPr Err Internal error. The Meter must be repaired before it will operate.
F11- Err Internal error. The Meter must be repaired before it will operate.

110/113/114/115/117
Users Manual
6
Display HOLD
XW Warning
To avoid electric shock, when Display HOLD is activated, be aware that the display will not
change when you apply a different voltage.
In the Display HOLD mode, the Meter freezes the display.
1. Push fto activate Display HOLD. (Kshows on the display.)
2. To exit and return to normal operation, push for turn the rotary switch.
Backlight
Push Qto toggle the backlight on and off.
The backlight automatically turns off after 40 seconds. To disable backlight auto-off, see Power-Up Options.
Manual and Autoranging
The Meter has both Manual and Autorange modes. The Meter defaults to Autorange. To toggle between Manual
and Autorange, push qfor 1 second.
• In the Autorange mode, the Meter selects the range with the best resolution.
• In the Manual Range mode, you override Autorange and select the range yourself. Push qfor 1 second to
enter Manual range. (Manual shows on the display.) Push qto increment the range. After the highest
range, the Meter wraps to the lowest range.
Note
You cannot manually change the range in the MIN MAX AVG or Display HOLD modes. If you push
qwhile in MIN MAX AVG or Display Hold, the Meter beeps twice, indicating an invalid operation and
the range does not change.
Power-Up Options
To select a Power-Up Option, hold down the button indicated in Table 5while turning the Meter from OFF to any
other function. Power-Up Options are canceled when you turn off the Meter and when sleep mode is activated.
Table 5. Power-Up Options
Button Power-Up Options
fTurns on all display segments until button is released.
pDisables beeper. bEEP shows when enabled.
q113 - Turns on all display segments until button is released.
115, 117 - Enables low impedance capacitance measurements. LCAP shows when enabled.
gDisables Battery Saver™ (Sleep mode). PoFF shows when enabled.
QDisables auto backlight off. LoFF is displayed when enabled.

True-rms Multimeter
Product Familiarization
7
Making Basic Measurements
When connecting the test leads to the circuit or device, connect the common (COM) test lead before connecting
the live lead; when removing the test leads, remove the live lead before removing the common test lead.
XW Warning
To avoid electric shock, injury, or damage to the Meter, disconnect circuit power and discharge
all high-voltage capacitors before testing resistance, continuity, diodes, or capacitance.

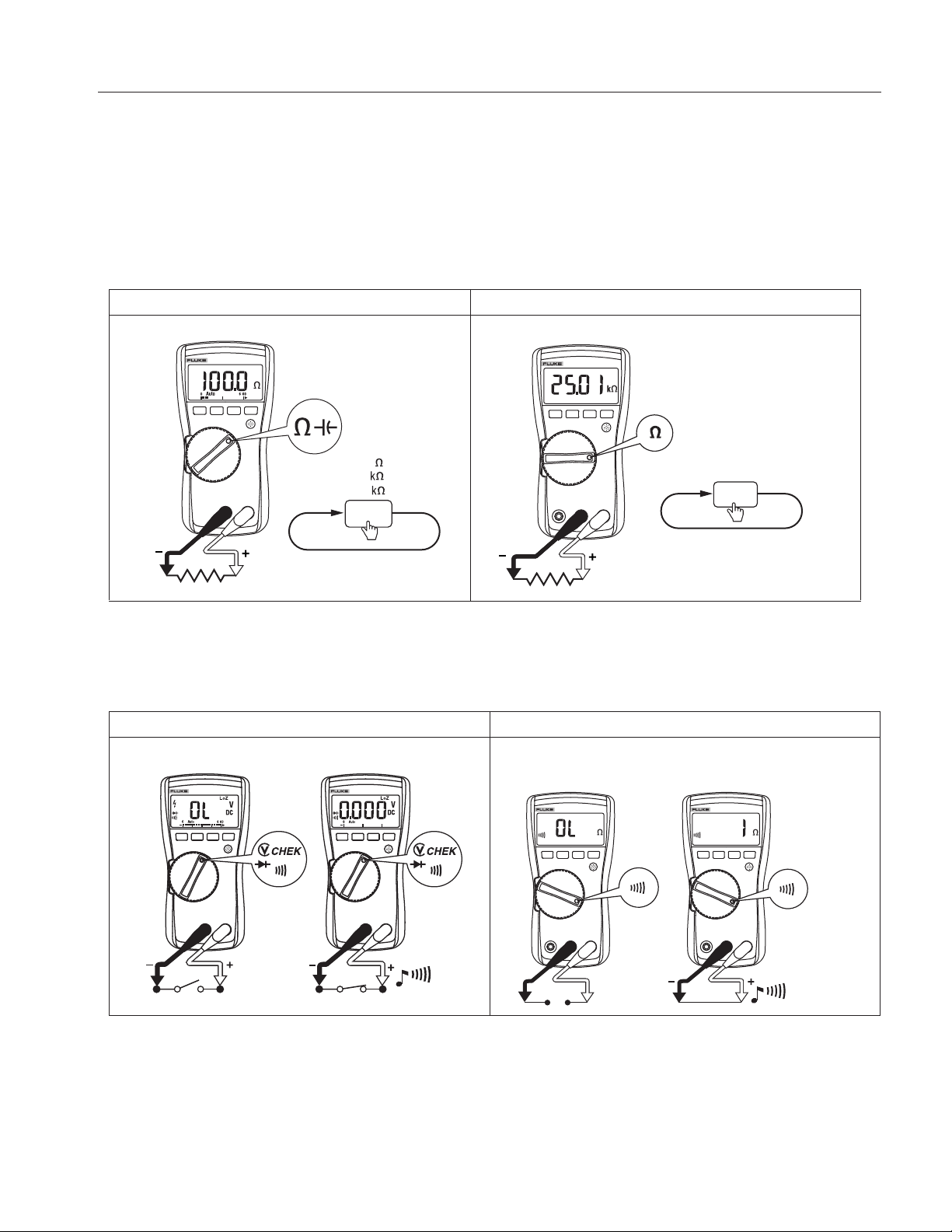

Measuring Resistance
Testing for Continuity
Note
Use the continuity function as a fast, convenient method to check for opens and shorts. For maximum
accuracy in making resistance measurements, use the Meter’s resistance (e)function.
113 110, 114, 115, 117
113 110, 114, 115,117
600
6
60
RANGE
RANGE
600 kΩ
6 kΩ
60 kΩ
600 kΩ
6 MΩ
40 MΩ
Open Short
Open Closed
Open Closed

110/113/114/115/117
Users Manual
8
Measuring AC and DC Voltage
Using Auto Volts Selection (114, 117)
With the function switch in the xposition, the Meter automatically selects a dc or ac voltage measurement
based on the input applied between the V or + and COM jacks.
This function also sets the Meter’s input impedance to approximately 3 kΩto reduce the possibility of false
readings due to ghost voltages.
Measuring AC and DC Millivolts (110, 114, 115, 117)
With the function switch in the lposition, the Meter measures ac plus dc millivolts. Press gto set the
Meter to dc millivolts.
113 110, 114, 115,117
AC for AC Voltage
DC for DC Voltage
60 V6 V 600 V
RANGE
V
Volts AC Volts DC
DC
Millivolts AC Millivolts DC

True-rms Multimeter
Product Familiarization
9
Measuring AC or DC Current (115, 117)
XW Warning
To avoid personal injury or damage to the Meter:
• Never attempt to make an in-circuit current measurement when the open-circuit potential to
earth is >600 V.
• Check the Meter's fuse before testing. See Testing the Fuse (115, 117).
• Use the proper terminals, switch position, and range for your measurement.
• Never place the probes in parallel with a circuit or component when the leads are plugged into
the A (Amps) terminals.
To measure current:
1. Turn circuit power off.
2. Break the circuit
3. Insert the Meter in series with the circuit, and then turn circuit power on.
Measuring Current above 10 Amps (110, 114, 115, 117)
The millivolt and voltage function of the Meter can be used with an optional mV/A output Current Probe to
measure currents that exceed the rating of the Meter. Make sure the Meter has the correct function selected, AC
or DC, for your current probe. Refer to a Fluke catalog or contact your local Fluke representative for compatible
current clamps.
A
1
2 3
