Fluke LinkRunner Duo User manual

LinkRunner Duo TM Network MultiMeter
Quick Reference Guide
Welcome
Thank you for purchasing Fluke Networks LinkRunner Duo! This test tool enables you to quickly verify Ethernet
copper/fiber cables, network connectivity and availability. In addition, the instrument provides multiple tools for
identifying the network device to which it is connected, identifies PoE ports, provides a Report generating function,
and can serve as a reflector (optional feature) for Fluke Networks performance tests. You can use the included
LinkRunner Connect PC application to quickly configure and update the instrument, download and view reports, and
other useful functions.
Safety
To register your LinkRunner Duo or to obtain a keycode for a purchased option, go to
www.flukenetworks.com/register. You can also register by sending e-mail to [e-mail].
What’s in the box?
Item
1. LinkRunner Duo
2. LinkRunner Connect CD
3. Quick Reference Guide
4. WireviewTM Office Locator #1
(not supplied with LRDUO-CE)
5. USB-A – USB-B Mini Cable
6. Registration Card
7. Batteries (4 AA)
8. RJ-45 Coupler
(not supplied with LRDUO-CE)
1
5
8
4
3
7
6
2
PN 3468966, April 2009
© 2009 Fluke Corporation. All rights reserved. Printed in USA
All product names are trademarks of their respective companies.

Cleaning
To prevent moisture from entering the LinkRunner Duo, clean it with a moist cloth only. Do not use organic solvents,
acid, or alkali solutions.
Safety Information
The following symbols are used on the product and in this document:
jNOT FOR CONNECTION TO PUBLIC TELEPHONE SYSTEMS
WPLEASE READ MANUAL FOR SAFETY
) CANADIAN STANDARDS ASSOCIATION CERTIFIED TO CANADIAN AND US STANDARDS
* CLASS 1 LASER PRODUCT. DO NOT LOOK INTO LASER
WWarnings
To avoid possible electric shock or personal injury, follow these guidelines:
•Do not use this product if it is damaged. Before using the product, inspect the case. Look for cracked or
missing plastic.
•Do not operate the product around explosive gas, vapor or dust.
•No serviceable parts. Do not try to service.
•If this product is used in a manner not specified by the manufacturer, the protection provided by the product
may be impaired.
W*Warning Class 1 Laser Product
With an optional SFP fiber adapter installed, this product will contain a Class 1 laser. Do not look into the
laser port because this may cause eye injury.
WCautions
Use the proper terminals and cable for all connections.

External Features - Connections, Buttons, and the LED
1. RJ-45 LAN port
2. SFP 1000BASE-X fiber adapter port
3. Power Button
Power on – press
Power off – press and hold
4. USB port
5. Selection buttons
- Up/Down arrows navigate the selections and adjust values
- Left/Right arrows show additional information and choices
- Select center button to edit a selection or toggle a value
6. Link indicator LED
7. Kensington lock (location on back of LinkRunner Duo)
1
2
7
3
5
4
6
Count on LinkRunner Duo for Answers!
First connect an RJ-45 or fiber cable from the network hub or wall plate to the LinkRunner Duo RJ-45 LAN or
1000BASE-X fiber port. Check the following list of questions and associated answers to see how LinkRunner Duo can
help you get the job done.
Common Questions
¾Is this a good RJ45 Ethernet cable? - use open cable testing and a WireviewTM Office Locator
¾Am I receiving a good fiber signal? - use Home screen dBm measurement
¾Where does this RJ45 cable go? - use toner function or WireviewTM Office Locator
¾Is this cable hooked up to anything? - use Home screen
¾Is this an active Ethernet port? - use Home screen, check for Link and frame utilization
¾What speed/duplex is this device configured for? - use Home screen, check speed/duplex
¾Can I establish Gigabit link to the network? - use Home screen, check for speed
¾Can I get a DHCP address? - configure LinkRunner Duo for DHCP, check for link and PING
¾Can I see traffic from this connection? - use Home screen
¾Is the PC NIC OK? - use Home screen, check for Link
¾Can I PING? - use PING screen
¾Do I have network connectivity? - use PING (Router, DNS, DHCP and custom list)
¾What slot and port am I on? - use LLDP, CDP, EDP
¾Can I use it for throughput testing? - use Reflector screen
¾Can I connect to an 802.1X port? - use Configuration screen and LinkRunner Connect application

Navigation
Home screen – Displays link, speed/duplex, length, utilization, security authentication, connection, and
wire map information.
PING screen – Displays (scrolling from left to right) a Tx/Rx summary of all devices to the right which
will include: the Router, DHCP, DNS, and each user configured IP address.
LLDP (IEEE), EDP (Extreme Networks), CDP (CISCO) screen – Displays the switch address (MAC or IP),
switch name, slot/port, VLAN ID (optional), and VOIP VLAN Reply ID (optional).
Power over Ethernet - Displays the Power over Ethernet voltage levels for each Ethernet connector
pin.
Flash Hub Port screen – Causes the LinkRunner Duo to continuously link and unlink at a selected
speed. This is useful when identifying which port LinkRunner Duo is connected to. Use the
LLDP/EDP/CDP test first if your network supports it.
Reports screen – Allows you to save up to four reports. Each report contains a summary of the Home
screen, PING screen, and LLDP, EDP, CDP screen. The reports must be viewed on the LinkRunner
Connect PC application.
Packet Reflector Screen (optional feature) – Enables packet reflector mode, which allows the
instrument to be used as a remote device for the Fluke Networks MetroScope™ Service Provider’s
network performance tests. Use the Configuration screen to set up the parameters.
Toner screen – Generates a digital tone (IntelliTone) signal , or two different analog tone signals
(400 Hz) and (1 KHz) to be used with the Fluke Networks IntelliTone product or common
analog probes.

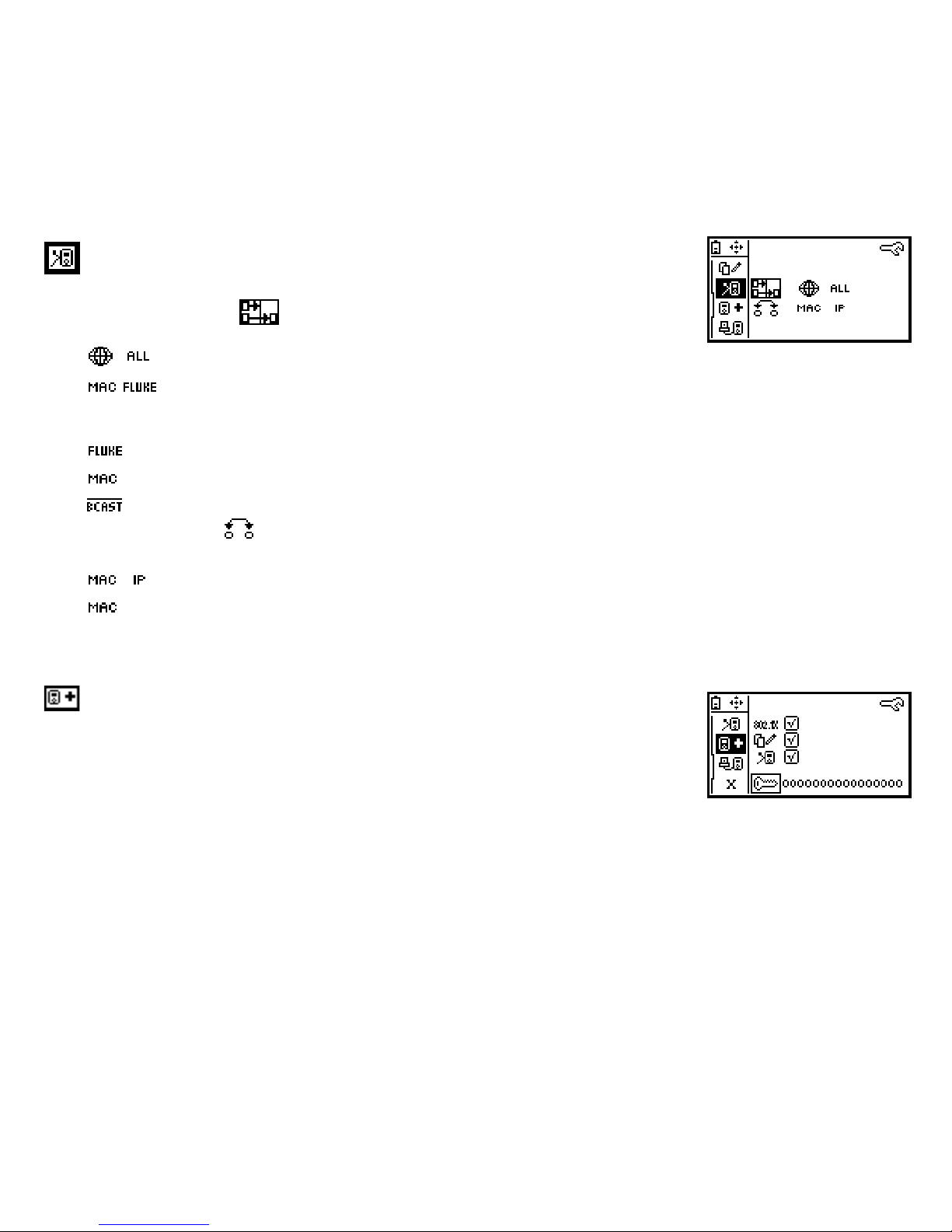

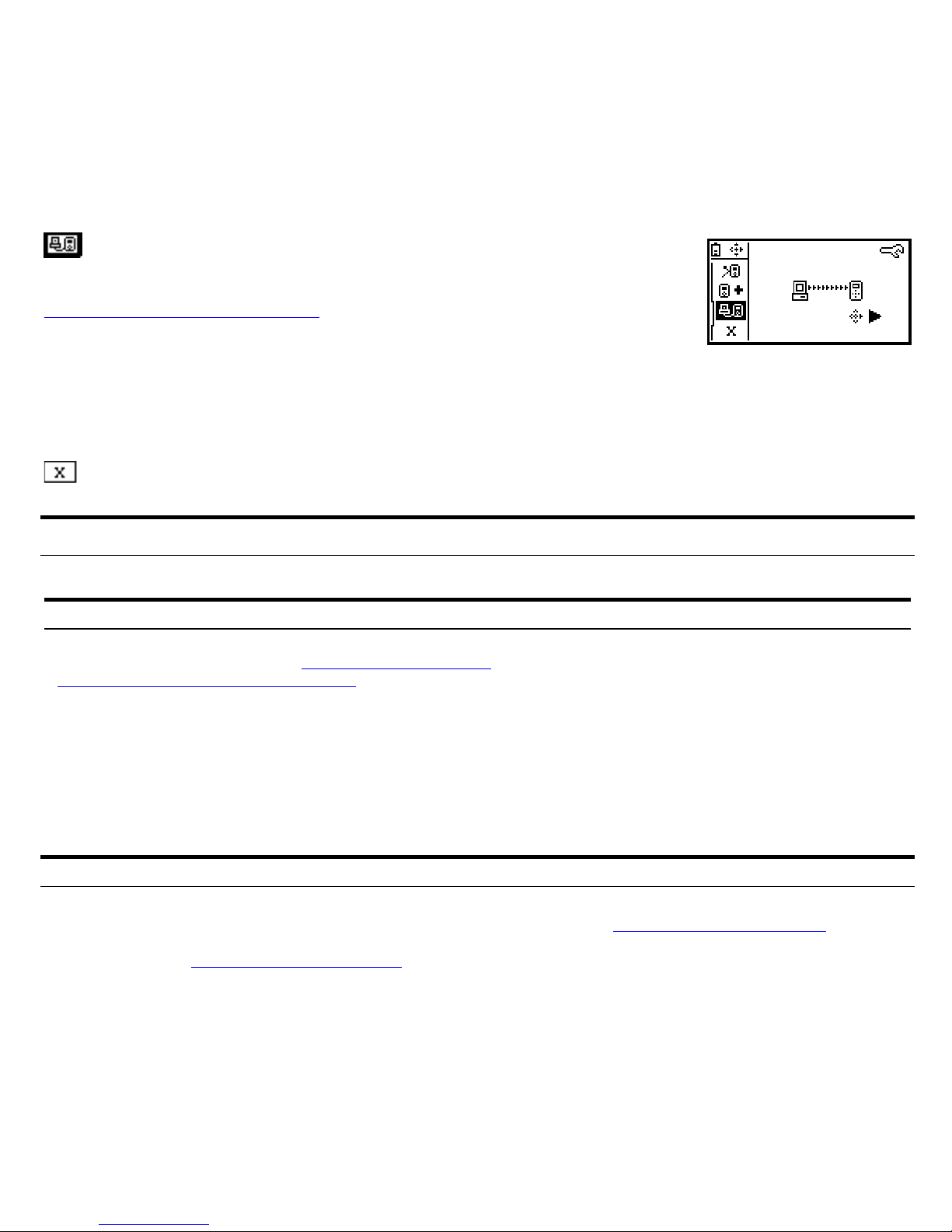

Configuration screen – Multiple menu functions are accessed in this screen. The configuration screen
accesses: the LinkRunner Duo version information; Fiber SFP adapter information; user preferences;
enter up to 10 PING addresses; enable options; edit or delete reports; configure and enable packet
reflector mode; select a VLAN; enable or disable 802.1X security; perform a firmware update; or exit
back to the Home screen. See the Configuration section for details.

1. Scroll up thru the functions
2. Scroll right within a function
3. Scroll down thru the functions
4. Scroll left within a function
5. Select a function
2
5
3
4
1
Is this an active RJ45 LAN port?
Note: If both the RJ45 LAN and 1000BASE-X fiber ports are connected to your network, LinkRunner Duo will try to
link to the RJ45 LAN port first. If link has been established over fiber and you connect also to the RJ45 LAN port, no
change in link will occur.
1. Cable/Link Status:
Straight patch
Crossover patch
Unknown patch (Auto-MDIX
port on hub or switch)
Link Level (displays when low)
2. Advertised speed/duplex
3. Actual link speed/duplex
4. Cable length from LinkRunner Duo to
cable end or device (copper only)
5 1 2
3
4
8
9
7
6
10
11
5. Navigation arrows. Indicates which buttons are active.
6. Highlighted function is the active function. While a function is active, you can scroll to other functions.
Press the center button to select a new function.
7. Activity indicator.
8. Network Utilization logarithmic scale. Above 10% Utilization, scale changes to 100%.
9. PoE voltage present. Wire pairs with PoE voltage show in parentheses.
10. Scroll bar. Indicates relative position on the page.
11. Battery indicator. Shows voltage level as low, medium, or high. The AC adapter icon will be displayed if
the AC adapter (part of the optional LI-ion battery pack) is being used.

Is this an active Fiber port?
1. Fiber/Link Status:
2. Advertised speed/duplex
3. Actual link speed/duplex
4. The optical signal strength being
received by the SFP if DDM (digital
diagnostic monitoring) is supported
by the SFP. Blank indicates no DDM.
Note: The SFP power measurement
accuracy is based on the SFP
manufacturer’s specification.
512
3
8
4
7
6
9
10
5. Navigation arrows. Indicates which buttons are active.
6. Highlighted function is the active function. While a function is active, you can scroll to other
functions. Press the center button to select a new function.
7. Activity indicator.
8. Network Utilization logarithmic scale. Above 10% Utilization, scale changes to 100%.
9. Scroll bar. Indicates relative position on the page.
10. Battery indicator. Shows voltage level as low, medium, or high. The AC adapter icon will be displayed
if the AC adapter (part of the optional LI-ion battery pack) is being used.

Home – Link Information and Wire Map functions
Note:
Wire Map and PoE detection do not apply when connecting to your network through the 1000BASE-X SFP fiber adapter.
The Home screen displays link or Ethernet wire map information depending on
the connection. If the RJ-45 Ethernet cable is connected from the RJ-45 LAN
port to your network, LinkRunner Duo will display link information which will
include link, speed/duplex, cable length to the network connection, and
network utilization. If a fiber cable is connected from the 1000BASE-X SFP fiber
port to your network, everything mentioned above is displayed, minus the
cable length measurement, plus a dBm fiber signal strength measurement.
If LinkRunner Duo detects PoE, this screen will display PoE information. Notice
the PoE label and wire pairs are displayed.
This screen is displayed if LinkRunner Duo has successfully linked, and 802.1X
has been detected and authenticated.
Note: Cable information is obtained through the RJ-45 LAN port only.
Good cable
Unknown cable
Split cable
Shorted cable
Open cable - If the RJ-45 Ethernet cable is not connected to a WireviewTM
Office Locator, or to your network (open cable), LinkRunner Duo will display
cable information.
If the RJ-45 Ethernet cable is connected from the RJ-45 LAN port to a WireviewTM
Office Locator, LinkRunner Duo will display wire map information which
includes length, open, shorts, and wire pair mapping.

Additional Home Screen Messages
LinkRunner Duo
is discovering over Ethernet
LinkRunner Duo
is discovering over fiber
LinkRunner Duo is
discovering/authenticating 802.1X
Detected 802.1X, but failed to
authenticate
Detected 802.1X, but LinkRunner Duo is
not configured for 802.1X
Un-powered Device Token Ring
Telco
The PING function contains several screens that are accessed by scrolling to the right. The first PING screen displays a
summary showing a count for total number of packets transmitted and replies received. As you scroll to the right,
the PING provides details on the Router, DHCP, DNS and up to 10 additional IP addresses are displayed as shown
below.
Summary
Average
Maximum
Minimum
Round trip time
of last packet
Time in milliseconds
The 10 additional IP addresses are entered in the Configuration screen, or by using the LinkRunner Connect PC
application and transferring them via a provided USB cable to the LinkRunner Duo.
Note: If configured for DHCP, and the DHCP server cannot be found, PING will display .

Duplicate IP addresses found is shown as follows:
See the configuration for procedures to set up PING IP addresses.
LLDP, CDP, EDP
The LLDP, CDP, EDP function displays the switch address (MAC for LLDP, IP for
CDP, MAC for EDP), switch name, slot/port information (if available), and VLAN
information (if available ) such as VLAN ID and VOIP VLAN Reply ID. The first
switch discovered is displayed first. Up to 5 switches can be displayed and are
accessed by scrolling to the right. If none can be discovered, use Flash Hub Port to
discover the switch slot/port information.
PoE displays which pins/wires have PoE (power over Ethernet) voltage and their
voltage levels. 0V indicates ground pin/wires.
Flash Hub Port
The Flash Hub Port function will negotiate link and then unlink at a selected
speed allowing you to locate a corresponding switch slot/port by its flashing LED.
The slide bar determines the speed. To the right is faster (rabbit); to the left is
slower (turtle).
IntelliTone
This function can be paired up with the Fluke Networks IntelliToneTM Probe or an
analog probe. It allows you to use LinkRunner Duo as the tone generation device
along with the IntelliTone Probe to trace connections using either a digital tone
(Fluke Networks IntelliToneTM), or two different analog tones.
Digital
ToneAnalog
400 Hz
Tone
Analog
1 kHz
Tone

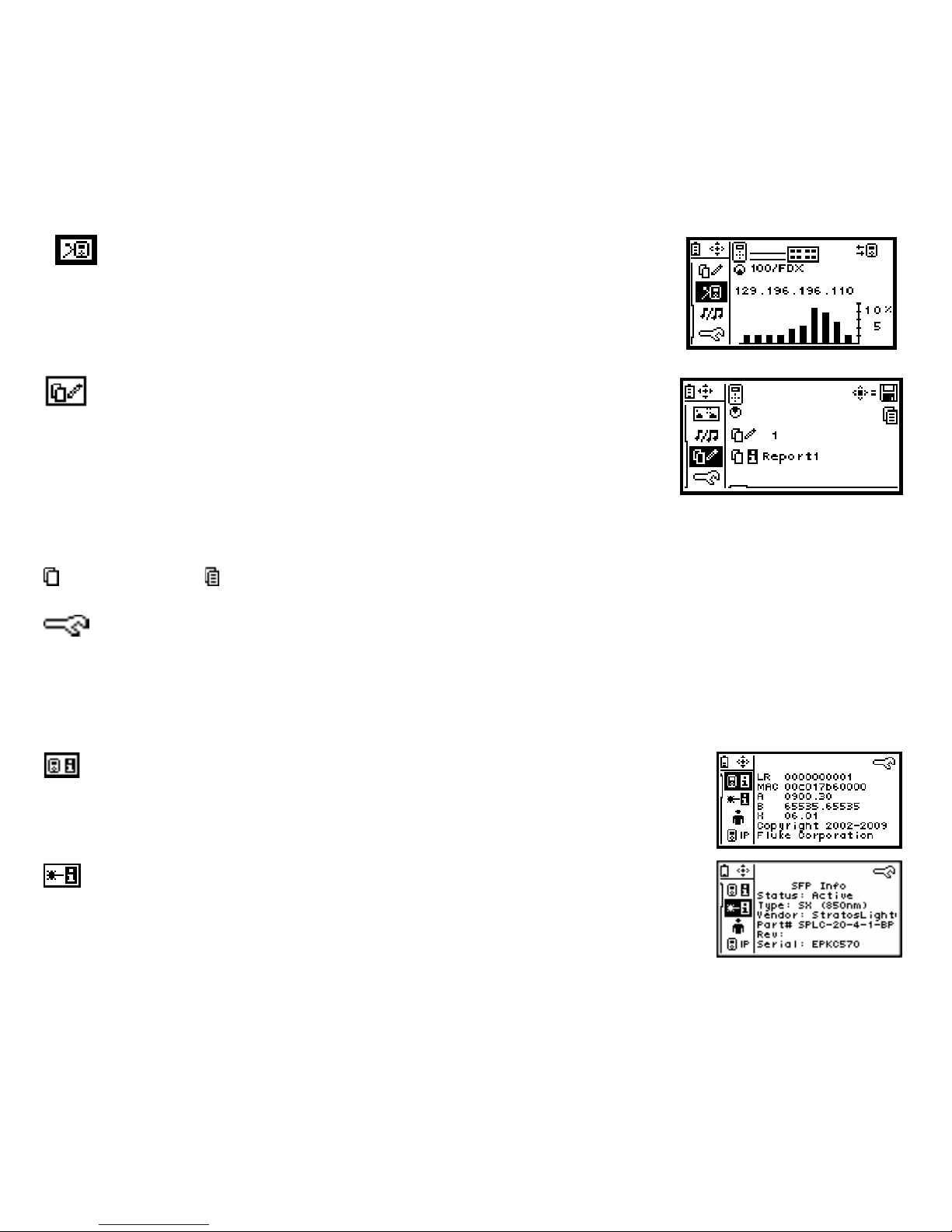

Reflector Mode (optional feature)
Enables packet reflector mode, which allows the instrument to be used as a
remote device for the Fluke Networks network performance tests. Use the
Configuration screen to set up the parameters.
Saving Reports
Allows you to save the report summary information which contains the current
Home screen, PING screen, and LLDP, EDP, CDP screen. Saved reports must be
viewed on a PC using the LinkRunner Connect PC application. Make sure
LinkRunner Duo is connected to a PC using the provided USB cable.
To save a report: Highlight the Report symbol and press the selection button. Use
the left/right arrow keys to select which report number/name to save the
summary information to (default names are Report01 – Report08; which can be
edited from the configuration screen), and press the selection button again.
report empty report saved
Configuration
The Configuration screen accesses multiple functions: It will display the LinkRunner Duo serial number, MAC address,
and version information. It allows you to enable 802.1X security; change the cable length measurements from feet to
meters, set the power off timeout, use DHCP or manually enter the LinkRunner Duo IP address, enter up to 10 IP
addresses to PING, and enable options.
To avoid a duplicate IP address on your network, use DHCP instead of manually entering the IP address.
LinkRunner information
Displays LinkRunner Duo’s serial number, MAC address, and software version
numbers.
Fiber SFP information
Displays status of the SFP fiber adapter, the SFP adapter type, vendor information,
revision code information, and the SFP fiber adapter serial number. Some information
may not be provided by the SFP adapter vendor and will be left blank.
