Horizon Elite™Ice Machine Models with RIDE®Technology
Installation Instructions for Harmony™ or
110CM Symphony™Plus Applications
HCD/HMD/HCF/HMF1810RHS, HCD/HMD/HCF/HMF2110RHS,
HCD/HMD1810NHS, HCD/HMD2110NHS
(See model number congurator on page 2 for details.)
remote condensing
01157866R03
801 Church Lane • Easton, PA 18040, USA
Toll free [phone] • [phone]
www.follettice.com
For applications using 110CM Symphony Plus
and most countertop dispensers manufactured by
Cornelius • Lancer • SerVend

2remote HARMONY and Symphony Plus • RIDE Technology
CAUTION!
§This appliance should be connected by a qualied person in accordance with applicable codes.
§If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualied persons in order to avoid a hazard.
§Connect to potable water supply only.
§This appliance can be used by children aged 8 years and above and persons with reduced physical,
sensory, or mental capabilities, or lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children
should be supervised to ensure that they do not play with the appliance.
§This appliance is intended to be used for household and similar applications such as staff kitchen areas
in shops, offices and other working environments; farm houses and by clients in hotels, motels and other
residential type environments; bed and breakfast type environments; catering and similar non-retail
applications.
§WARNING! To avoid a hazard due to instability of the appliance, it must be xed in accordance with the
instructions.
ConfigurationApplication
S RIDE™
(RIDE remote
ice delivery
equipment)
T Top-mount
425 up to
425 lbs
(193 kg)
710 up to
675 lbs
(306 kg)
1010 up to
1061 lbs
(482 kg)
1410 up to
1466 lbs
(665 kg)
1810 up to
1790 lbs
(812 kg)
2110 up to
2039 lbs
(925 kg)
V Vision™
H Harmony™
B Ice storage bin
J Drop-in
M Ice Manager
diverter valve
system
P Cornelius Profile
PR150
CondenserSeriesVoltageIcemaker
C 208-230/60/1 (icemaking head)
Self-contained only.
D 115/60/1 (icemaking head)
Self-contained and remote. If remote
unit, high side is 208-230/60/1.
E 230/50/1 (icemaking head)
Self-contained only.
F 115/60/1 (icemaking head)
Remote only. High side is
208-230/60/3.
MC Maestro™
Chewblet®
(425 Series)
HC Horizon
Chewblet
(710, 1010,
1410, 1810,
2110 Series)
HM Horizon
Micro Chewblet
HC 1810D SVA
A Air-cooled, self-contained
W Water-cooled, self-contained
R Air-cooled, remote condensing unit
N Air-cooled, no condensing unit for
connection to parallel rack system
Chewblet®Ice Machine Model Number Configurations

3
HARMONY and Symphony Plus • RIDE Technology remote
Front cover
8
Internal connection
7
Ice transport tube
5
External connection
6
Docking assembly
4
Dispenser preparation
3
Site preparation
2
Unpack
1

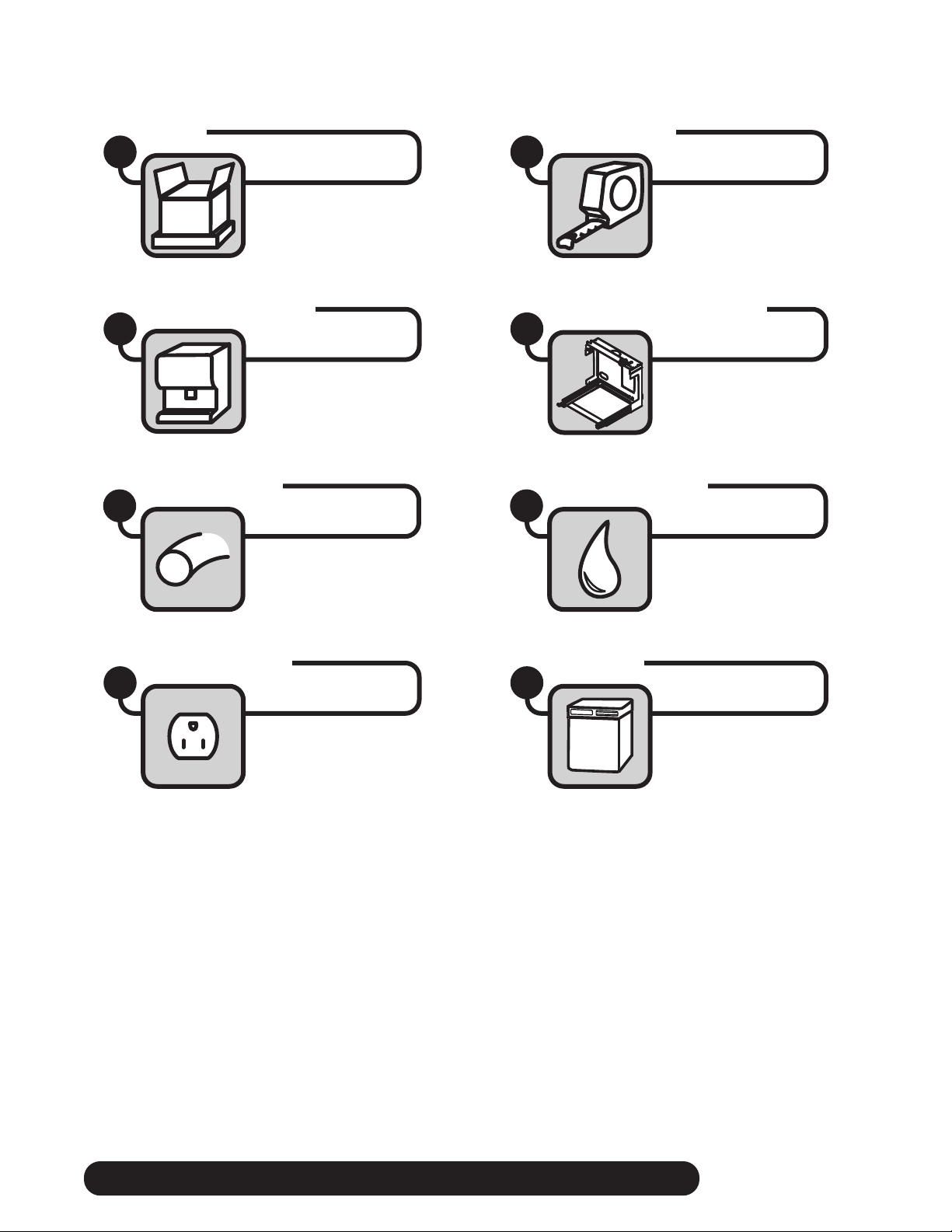

Read and complete the following 8 installation steps

4remote HARMONY and Symphony Plus • RIDE Technology
Carefully unpack and inspect the contents of your Follett ice machine. 1
Unpack
7/16"
7/16"
➊➋➌
➍➎
➏➐
DO NOT TILT ICE MACHINE
TO ACCESS BOLTS!
COMPRESSOR DAMAGE
WILL RESULT
Unpack carton #1
1. 1

5
HARMONY and Symphony Plus • RIDE Technology remote
Prepare the installation site. 2
➎
➍
3/8" ∅ (9,5mm)
NEMA
5-15
➋
➊
➌
7/8" ∅ (22.4 mm)
1" PVC Drain
2 ft. x 1" OD
silicone tubing 3/4" MPT x 1" slip
3/4" barb x 3/4" FPT
➌
1'
➌
1/4" per foot
(6,4 mm per 0,3 m)
3/8"
chassis
drain must
be used
➌
Site preparation
Electrical ➊
• 1810(R/N)HS 120/60/1-5 amps
• 2110(R/N)HS 120/60/1-5 amps
Potable water supply ➋ (3/8” push-in connection, 3/8” OD tubing required)
• 10-70 psi (69-483kpa)
• 45-90 F (7-32 C)
• Follett recommends the use of an in-line water ltration system (item# 00130286)
• This equipment is to be installed with adequate backow protection to comply with applicable
federal, state, and local codes
Drains: ➌ 3/4” Barb for silicone drain, 3/8” push-to-connect for chassis drain
• Minimum 8” radius on silicone drain line. Drain line from the ice machine must have at least
1/4” per foot pitch (6,4mm/0,3m).
Refrigeration lines ➍ and ➎
• 7/8” ∅ (22,4 mm) diameter suction line (insulated) ➍
• 3/8” ∅ (9,5 mm) liquid line ➎
2.1
Provide drainage, water supply and electrical power to within 6 feet (2m) of ice
machine in accordance with local and national codes. Outdoor installation of
low side is not recommended and will void warranty.
Installation site requirements
2.1

6remote HARMONY and Symphony Plus • RIDE Technology
5"
(127 mm)
3.0" ∅
(77,2 mm)
Standard (Cornelius, Lancer, or Servend)
Locate hole position 5" (127 mm) from back
of dispenser top
Back of Top
Front of Top
5"
(127 mm)
3.0" ∅
(77,2 mm)
5" (127 mm)
110CM Symphony Plus
Locate hole position 5" (127 mm) from
back and right of dispenser top
10.00"
9.00"
3.0" ∅
Locate hole position 10" (254 mm) from
back and 9" (229 mm) from right of
dispenser top
Back of Top
Front of Top
Lancer Sensation and Touchpoint
110CM Symphony Plus w/IMDV
R1.750 5" (127 mm)
5" (127 mm)
4" (102 mm)
Lancer Sensation and Touchpoint w/IMDV
10.00"
9.00"
4"

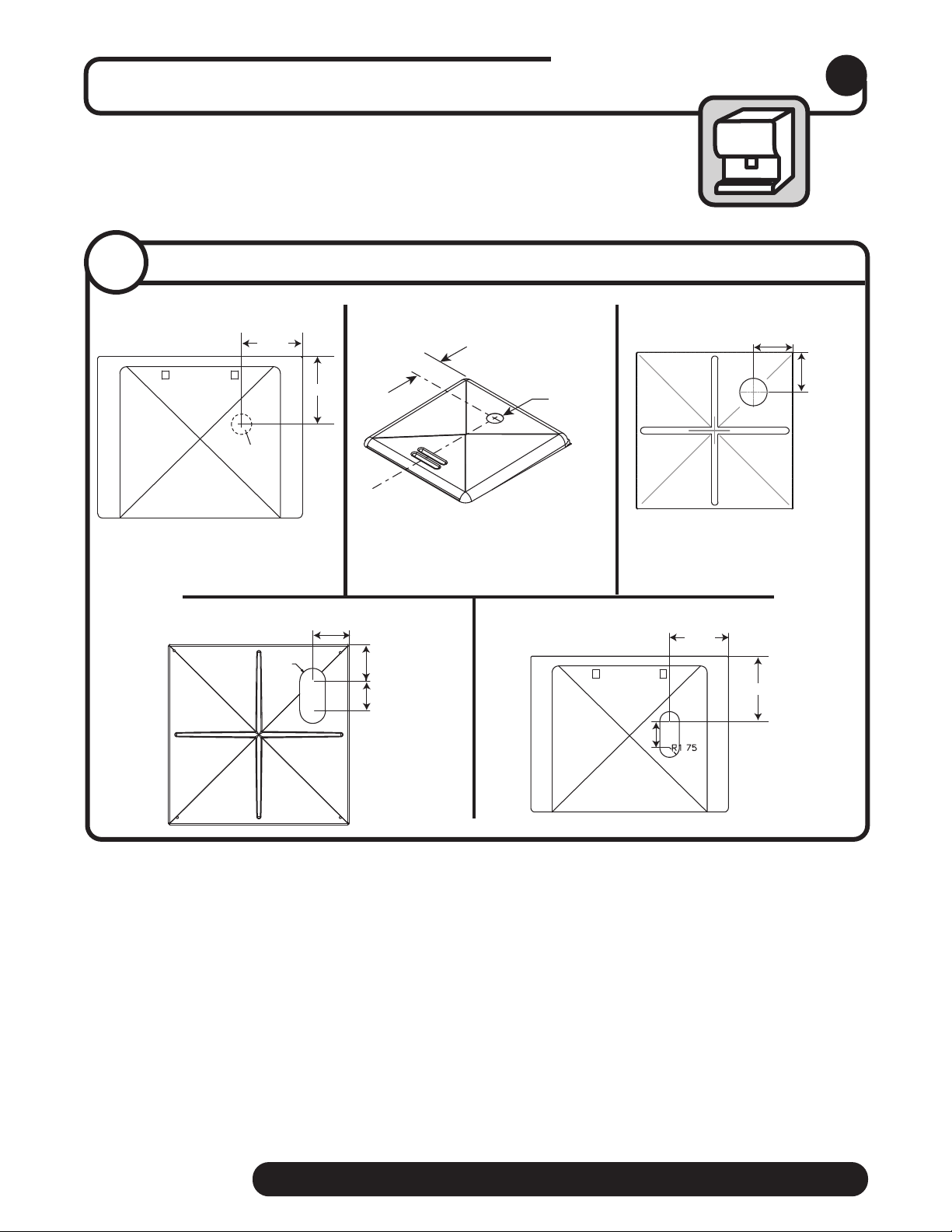

Prepare the dispenser. 3
Dispenser preparation
Attention! The location of the hole in the dispenser top is dependent
on the type of dispenser. Be sure to follow Step 3.1 for the
appropriate dispenser.
Hole location - Harmony (Lancer, Cornelius or Servend), or 110CM Symphony Plus
3.1

7
HARMONY and Symphony Plus • RIDE Technology remote

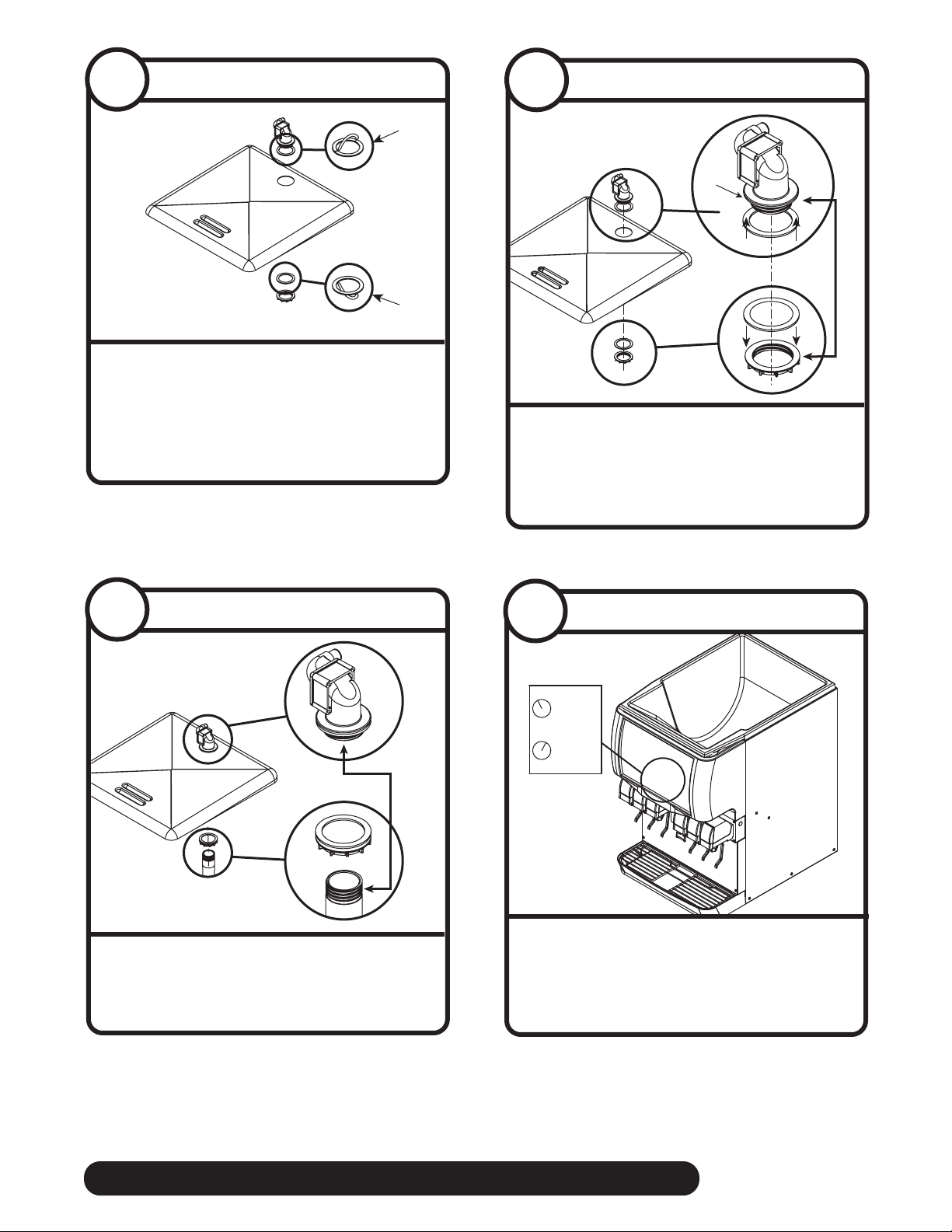

• Remove protective tape from gaskets
Top preparation
3.2
➋
➊
➌
➊
• Apply gaskets ➊
• Install shuttle actuator ➋ through
dispenser top and secure with locking nut
➌
Top preparation
3.3
➋
➊
• Screw 4" (102 mm) extension ➊ into
bottom of shuttle actuator ➋
Top preparation
3.4
OFF
ON
Cornelius models ED, DB, DF, IDC and
FLAVOR FUSION
Adjust the agitation timer located on the Cornelius
PC board to 1 second on, 1 hour off. Note: See
Cornelius manual for more information.
Agitation adjust. – CORNELIUS
3.5

8remote HARMONY and Symphony Plus • RIDE Technology
PRESS IN ON
THIS SIDE TO
TURN SWITCH
ON.
SWITCH
ON
SWITCH
OFF
PRESS IN ON
THIS SIDE TO
TURN SWITCH
OFF.
ROCKER
SWITCHES
(VIEW LOOKING
DOWN)
SIDE VIEW
SIDE VIEW
12345678
OFF
SWITCH
NUMBER
AGITATION FREQUENCY
NO AGITATION
10 MINUTES
20 MINUTES
30 MINUTES
40 MINUTES
50 MINUTES
60 MINUTES
70 MINUTES
80 MINUTES
90 MINUTES
100 MINUTES
110 MINUTES
120 MINUTES
130 MINUTES
140 MINUTES
150 MINUTES
5
6
7
8
O
O
O
O
O
O
O
X
O
O
X
O
O
O
X
X
O
X
O
O
O
X
O
X
O
X
X
O
O
X
X
X
X
O
O
O
X
O
O
X
X
O
X
O
X
O
X
X
X
X
O
O
X
X
O
X
X
X
X
O
X
X
X
X
SWITCH
NUMBER
AGITATION TIME
1 SECOND
2 SECONDS
3 SECONDS
4 SECONDS
3
4
O
O
O
X
X
O
X
X
X = ON
O = OFF
Lancer 4500 series only
Adjust the agitation time to 1 second, and the agitation frequency to 150 minutes. See Lancer
manual for more information.
Agitation adjustments – LANCER 4500 SERIES
3.6
Agitation adjustments – LANCER Sensation and Touchpoint
3.7
No agitation adjustment required

9
HARMONY and Symphony Plus • RIDE Technology remote
Major/Minor
FS-16 Setup
Config Bonus Key
Soda/Plain Water
Config Dispense Only
PC Mode
PC Time
Ice Stir Off
Ice Stir On
Sold Out
Carb Sensors
Ice Bin Sensors
Valve Code Version
Number Of Valves
Reset Defaults No Ye s
Reload Defaults?
1 2 3 4
12 0.104 0.104
1000
Ice Bin Optic
Upper Lower
Sold Out #1
Selection Sold Out
05000
On Time (MSEC)
Off On
Set PC Mode Menu
V:1 B1 DLY1
Dispense Delay
V:2 1:S 2:W 3:S 4:W
V:1 T:F M:S B:W
Bonus Key Setup
Brands Per Side
V:1 L:2 R:1
FS-16 Setup
FS-16 Setup
FS-16 Setup
FS-16 Setup
FS-16 Setup
FS-16 Setup
FS-16 Setup
FS-16 Setup
FS-16 Setup
FS-16 Setup
FS-16 Setup
FS-16 Setup
FS-16 Setup
Soda/Plain Water
OFF Time (MIN)
00150
On Time (MSEC)
01000
1000 500
34 0.104 0.104
On On On On
V:1 B:1
Sold Out #1
Off
Sold Out #1
Ver. 0.200
Lancer FS-16
Sub-CatagoryMain Menu
Initialization Screen
2nd Sub-Catagory
(Boot Up Only)
Cancel Enter
Scrolls through Main Menu
Press "Enter" to enter sub-catagory
Moves curser to right or left
Changes value (number/letter)
Press "Enter" to enter save changes
Press "Cancel" to exit menu
➊
Lancer FS series only
• Hold down “cancel” and “left button” to get to hidden menu ➊
• Type in code 6655
• Type in 150 minutes “off time” and 1810 milliseconds (1 second of time) as the preferred setting
Note: See Lancer manual for more information
Agitation adjustments – LANCER FS SERIES
3.8
Agitation adjustments – SERVEND
3.9
SerVend models only
No agitation adjustment required

10 remote HARMONY and Symphony Plus • RIDE Technology
P/N 307277 — Diverter plate
(single agitator Cornelius
dispensers and left-hand
dispense chute on dual-agitator
Cornelius dispensers)
P/N 307277 — Diverter plate
(single agitator Cornelius
dispensers and left-hand
dispense chute on dual-agitator
Cornelius dispensers)
Single Agitator
Dual Agitator
P/N 00996207 — Diverter plate
(right-hand dispense chute on
dual-agitator dispensers)
Dispenser diverter plate overview (Installation on next page)
3.10

11
HARMONY and Symphony Plus • RIDE Technology remote

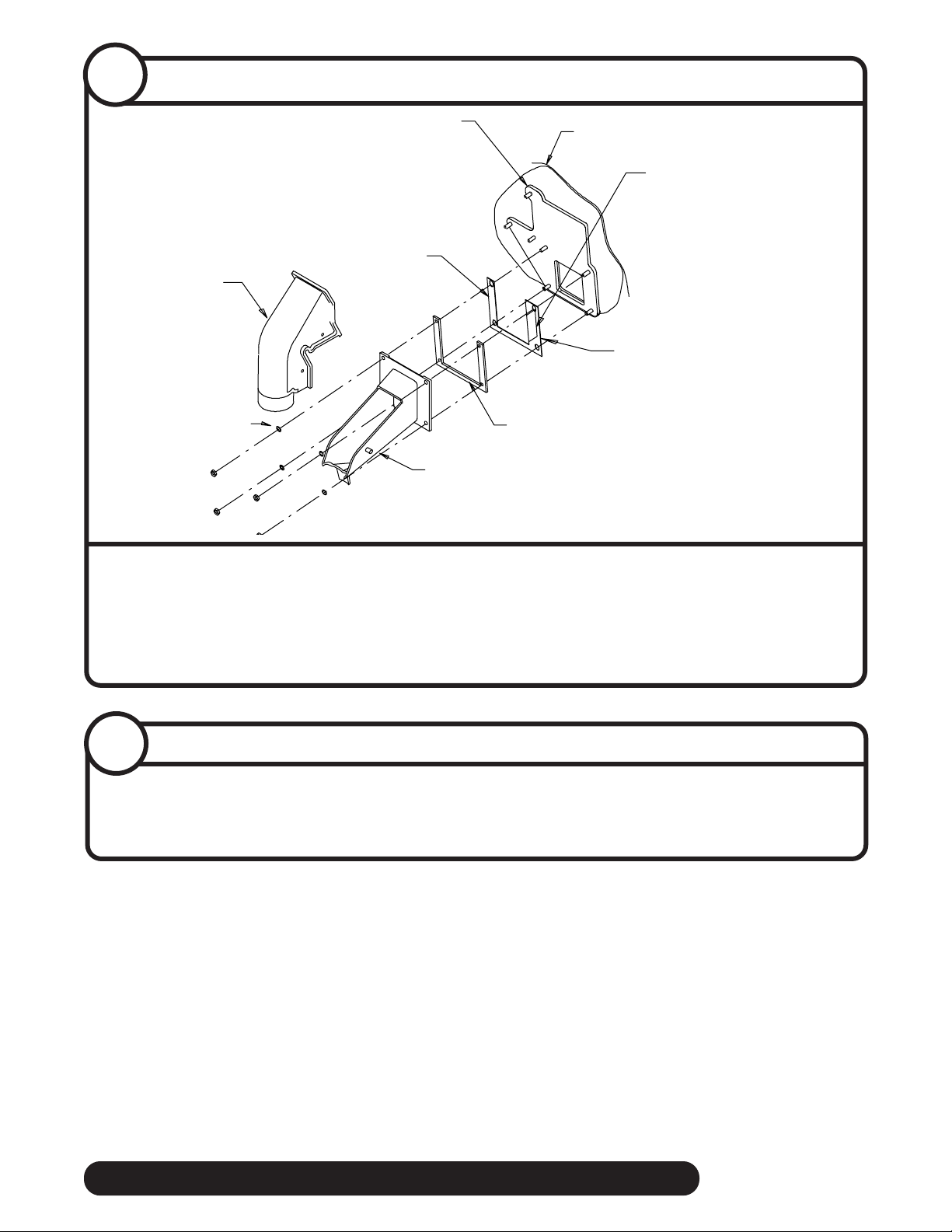

ICE CHUTE
GATE MOUNTING PLATE
GASKET
STORAGE HOPPER
ICE DIVERTER
10-32 WASHER
10-32 NUT
FLANGE EXTENDS INTO
STORAGE HOPPER
THROUGH GATE
OPENING
APPLY RTV TO THIS
SURFACE TO SEAL
TO HOPPER GATE
MOUNTING PLATE
ICE CHUTE
COVER
Cornelius ED, DF and DB series only
These dispensers require the installation of an ice diverter at the dispenser opening.
• Disassemble chute assembly
• Discard factory restrictor plate
• Replace with alternate diverter plate (supplied)
Dispenser diverter plate installation – CORNELIUS ED, DF and DB SERIES
3.11
Agitation adjustments – Cornelius IDC and Flavor Fusion
3.12
These dispensers require modications for compatibility with Chewblet ice. Agitation
times must be set to 1 second ON, 1 hour OFF and the ice restrictor plate must
be adjusted to the fully open position. See your beverage supplier for these
modications.

12 remote HARMONY and Symphony Plus • RIDE Technology

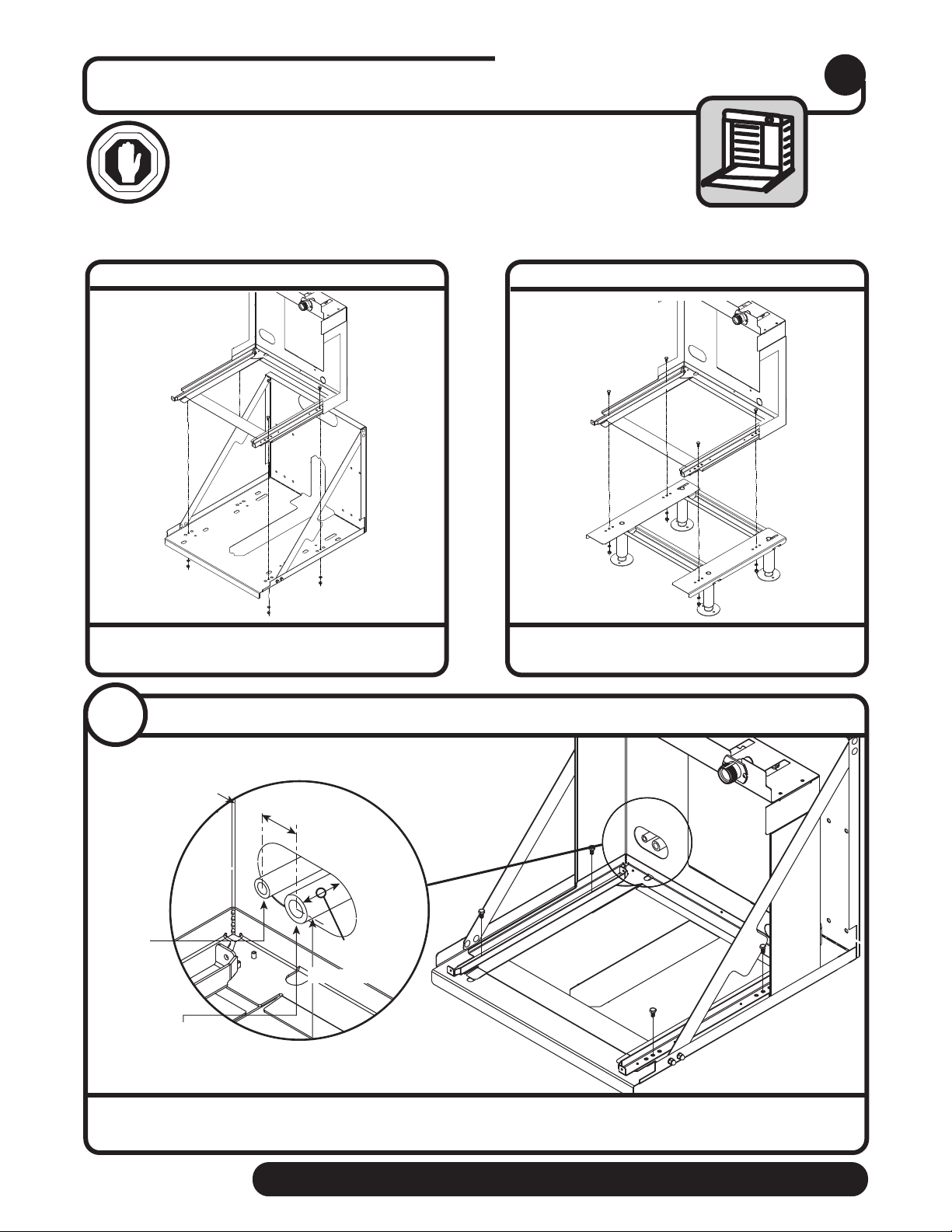

Install the docking assembly.
Docking assembly 4
• Mount docking assembly ➊
• “Rough-in” the refrigerant piping ➋
2.1 Docking assembly
4.1
➊
➊
3/8˝ ∅
high pressure
line
7/8" ∅ low pressure line
2" (50,8 mm)
Stub Typ
1.81" (46 mm)
3.75" (95.3 mm)
2" (50,8 mm)
➋
Machine stand accessory
Wall bracket accessory
• Mount docking assembly to wall bracket
accessory
• Mount docking assembly to machine
stand accessory
Prior to installing the docking assembly, ensure that the drain tting
is oriented (right or left) correctly for your installation. An optional
straight drain tting is also supplied. You may need to remove the
back panel of the docking assembly in order to re-orient or change
the drain tting. Replace back panel prior to mounting the docking
assembly.
BEFORE PROCEEDING

13
HARMONY and Symphony Plus • RIDE Technology remote
DOCKING STATION
• Prior to installing the docking assembly, ensure that the drain tting is oriented (right or left)
correctly for your installation. An optional straight drain tting is also supplied. You may need to
remove the back panel of the docking assembly in order to re-orient or change the drain tting.
Replace back panel prior to mounting the docking assembly.
• Position and screw docking assembly to the bottom of counter inside of access panel/door min.
of 3.25” (83 mm) from the front edge of the cross brace ➊
• The mounting surface for the docking assembly must be solid.
Do not mount directly onto runners or channels.
• There must be no lip or edge that would hinder the ice machine from sliding in or out of the
docking station ➋
• Ice machine must be installed facing forward as shown for service accessibility ➌
Undercounter installation requirements
4.2
No Lip
➋
➌
24" min.
(61 mm
23.5" min.
(59.7 mm)
Access panel/
door on counter
3.25" (83 mm) min.
➊
CROSSBRACE
Top View

14 remote HARMONY and Symphony Plus • RIDE Technology

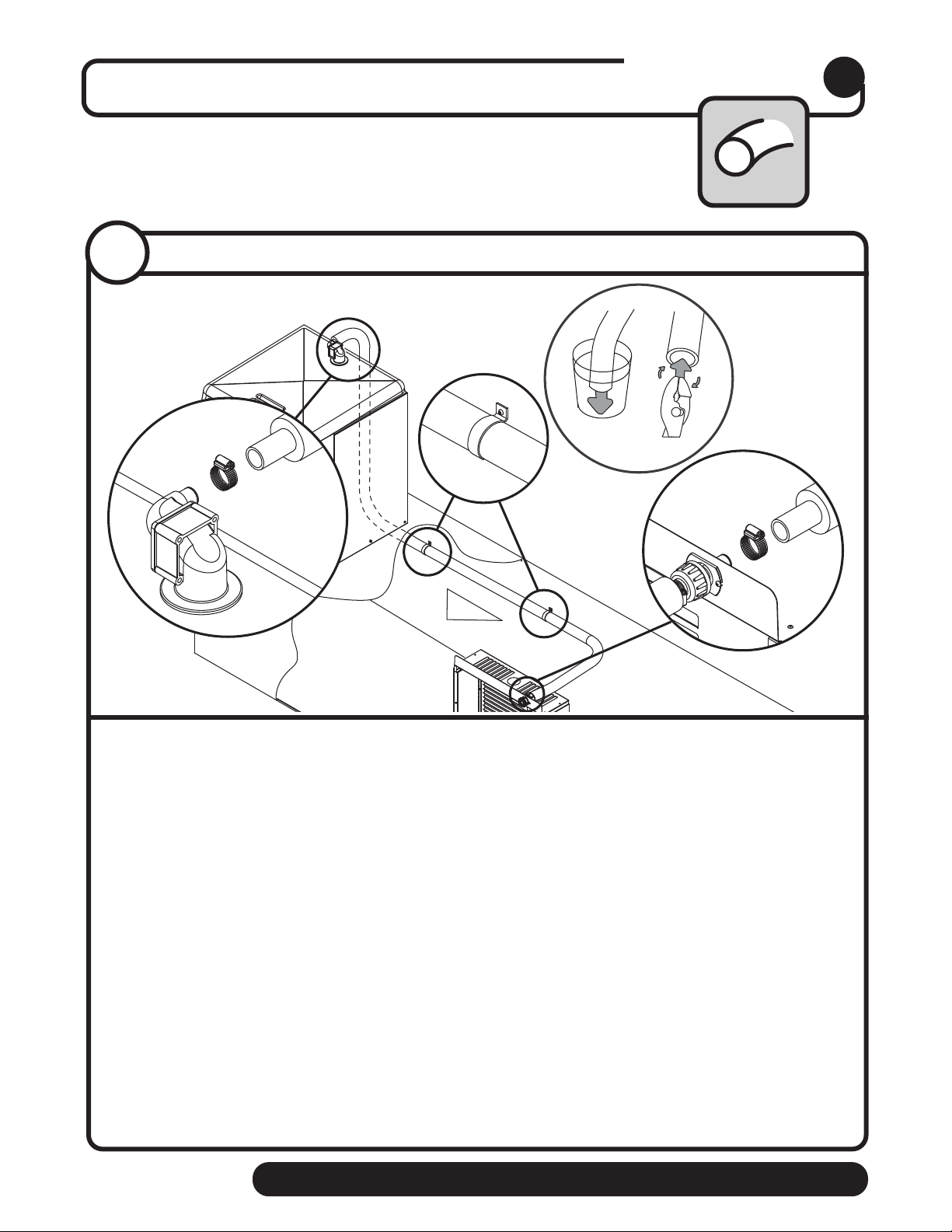

Transport tube
Install the transport tube. 5
➋
1/4"
1'
➌
➑
➒
➓
➊
Hot Water
160 F (71 C)
➍
➏
➐
➎
Ice transport tube tips
• Insulate entire length of ice transport tube ➊
• Secure ice transport tube ➋as needed to prevent dips and traps from forming.
For long tube runs see guide on page 19.
• Pitch ice transport tube at least 1/4" per foot (6,4mm/.3m) ➌
• Ice transport tube must drain towards ice machine
Ice transport tube to dispenser
• Be sure tube ends are square ➍
• Heat end of transport tube in cup of 160 F (71 C) hot water to soften and spread with pliers ➎
before making connection to ease assembly
• Push ice transport tube onto shuttle actuator nipple ➏
• Install hose clamp ➐
Ice transport tube to Ice machine
• Be sure tube ends are square ➑
• Heat end of transport tube in cup of 160 F (71 C) hot water to soften and spread with pliers ➎
before making connection to ease assembly
• Push transport tube onto ice machine nipple ➒
• Install hose clamp ➓
Transport tube installation.
5.1

15
HARMONY and Symphony Plus • RIDE Technology remote
Connect utilities to docking assembly. 6
External connections
Refrigerant
6.2
➊
• Braze supplied quick-connect lines onto
stub-ins ➊.
• Plug must be removed from John Guest
tting.
• Route 3/8" drain tubing through knockout
in back of docking station and insert fully
into John Guest tting connection at the
rear of the machine chassis. Route other
end of 3/8" drain tubing to drain.
• Drain must slope 1/4" inch per foot (6 mm
per 30,4 cm).
Chassis drain plumbing - required
3/4" barb x 3/4" FPT
1" Stand pipe/Drain
2 ft. x 1" OD
silicone tubing
Minimum 8"
radius
➍
3/4" MPT x 1" slip
➎
➌
➋
➊
➏
• Rough-in ice machine potable water
supply ➊. 3/8" push-in connection will be
made at included shut-off valve then at
back of docking station into solenoid.
• Remove access panel if necessary ➋.
• Connect the silicone tubing to the ice
machine 3/4" drain barb ➌.
• Assemble the 3/4" barb x 3/4" FPT to the
3/4" MPT x 1" slip. Connect the other end
of the silicone tubing to the 3/4" barb ➍.
• Connect the 1" slip tting to the 1" stand
pipe/drain ➎.
Note: Minimum 8" radius on silicone
drain line. Drain line from the ice machine
must have at least 1/4" per foot pitch
(6,4mm/0,3m).
• Apply Petrogel to barbed drain tting ➏
• Replace access panel.
Water and drain
6.1

16 remote HARMONY and Symphony Plus • RIDE Technology
Connect docking assembly to ice machine. 7
Internal connections
Refrigeration lines
7. 3
• Slide ice machine into docking assembly
ensuring that drain tube is fully seated on
barbed drain tting ➊
• Insert ice transport tube all the way into
coupling and tighten nut rmly ➋
Ice transport tube installation
7. 1
➊
• Evacuate line set.
• Connect self-sealing liquid and suction
line ttings ➊
➊
➋Mount water
solenoid
➌
➋
➊
• Mount water solenoid to inside rear of
docking assembly using one screw ➊
• Insert potable water line into valve ➋
• Insert into push-in connection of water
solenoid ➌
Water line
7. 2
• Remove twist tie
• Carefully pass cord thru opening and plug
into wall outlet
Power cord
7. 4

17
HARMONY and Symphony Plus • RIDE Technology remote

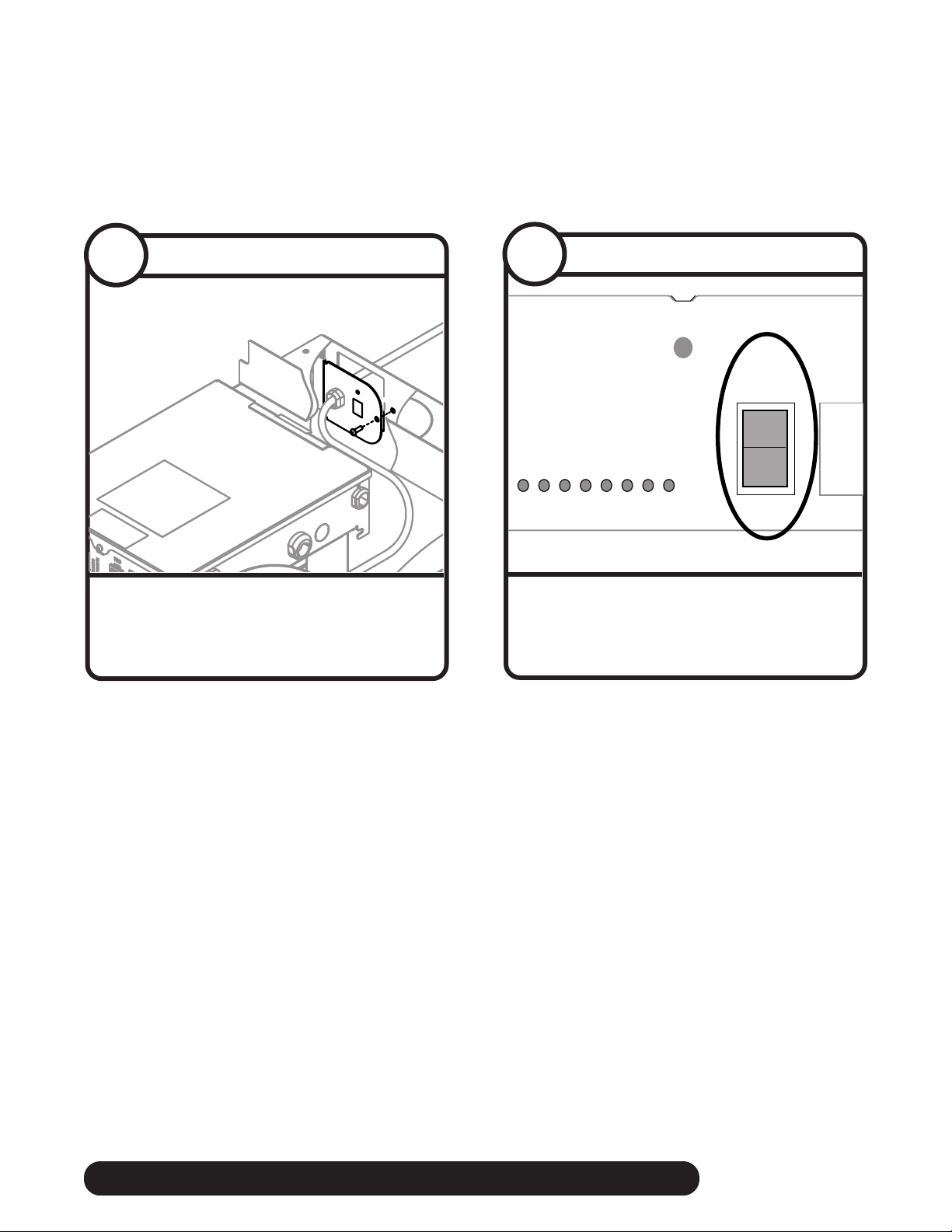

• Position plate into opening and secure
with supplied screw
Power cord
7. 5
CLEANER FULL DRAIN CLOG HIGH PRES HIGH AMPS
SERVICE MAINT/CLEAN LOW WATER TIME DELAY SLEEP CYCLE MAKING ICE LOW BIN POWER ON
CLEAN
TDS
HIGH
LOW
• Set the TDS switch on the electrical box:
HIGH: for extended service life
LOW: for low-scale water
TDS switch
7. 6

18 remote HARMONY and Symphony Plus • RIDE Technology

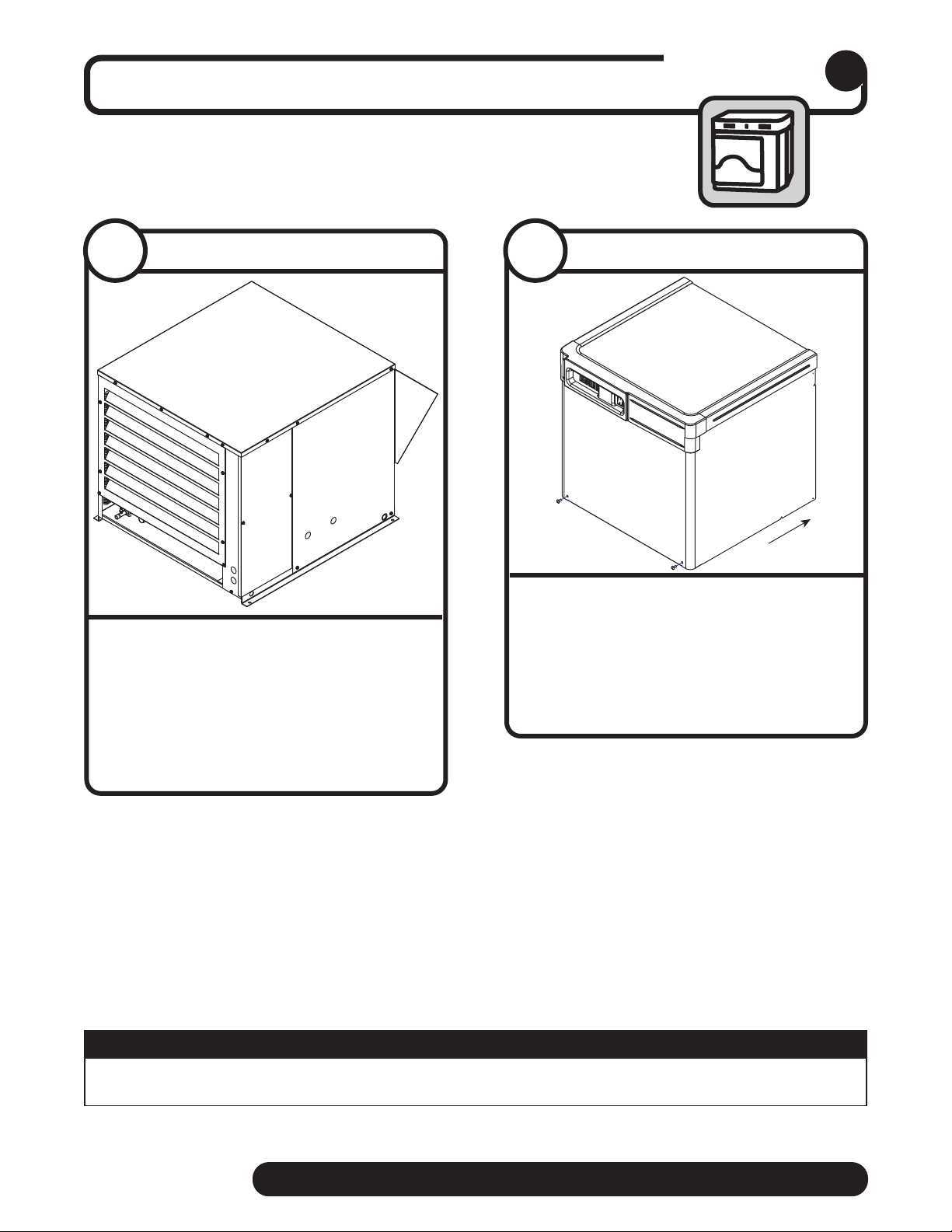

Front cover
Install front cover to ice machine. 8
Install condensing unit
8.1
NOTICE
Ice machine MUST be sanitized prior to operation!
Consult Operation and Service Manual provided with ice machine for sanitizing instructions.
➋➊
• Slide ice machine cover over machine
ensuring that tabs on back of cover
slip under louvers on back of docking
assembly ➊
• Insert and tighten two screws through
cover and into docking assembly ➋
Install ice machine front cover
8.2
• Complete installation of condensing unit
or connection to rack system.
• Required rack system capacity at 0 F
(-18C) evaporator (EPR supplied by
installer).
1810N: 15,700 Btu/hr (3956 kcal/hr)
2110N: 18,200 Btu/hr (4586 kcal/hr)

19
HARMONY and Symphony Plus • RIDE Technology remote
➊
➋1/4"
1'

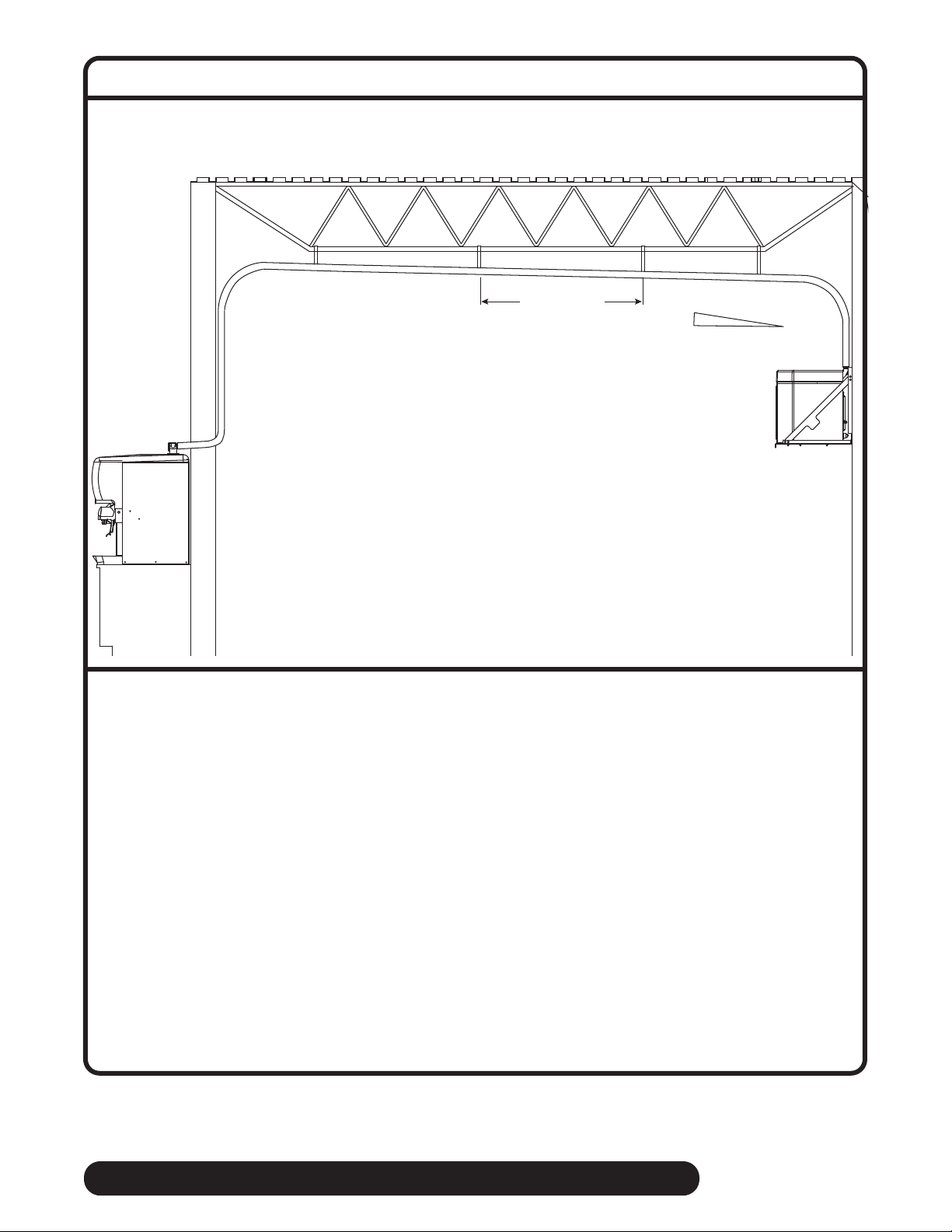

max. 2 ft (.6m)
• Pitch ice transport tube to allow melt water to drain towards ice machine ➊
• Secure insulated ice transport tube at least every 2 ft (.6m) to prevent dips or traps ➋
Long tube run recommendations

01157866R03
©Follett LLC 8/21
801 Church Lane • Easton, PA 18040, USA
Toll free [phone] • [phone]
www.follettice.com
Horizon, Horizon Elite, Maestro, Harmony, Ice Manager, SafeCLEAN, Sani-Sponge and Vision are trademarks of Follett Follett LLC.
Chewblet, RIDE and Follett are registered trademarks of Follett Follett LLC, registered in the US.
