for Living 088-1609-0 User manual

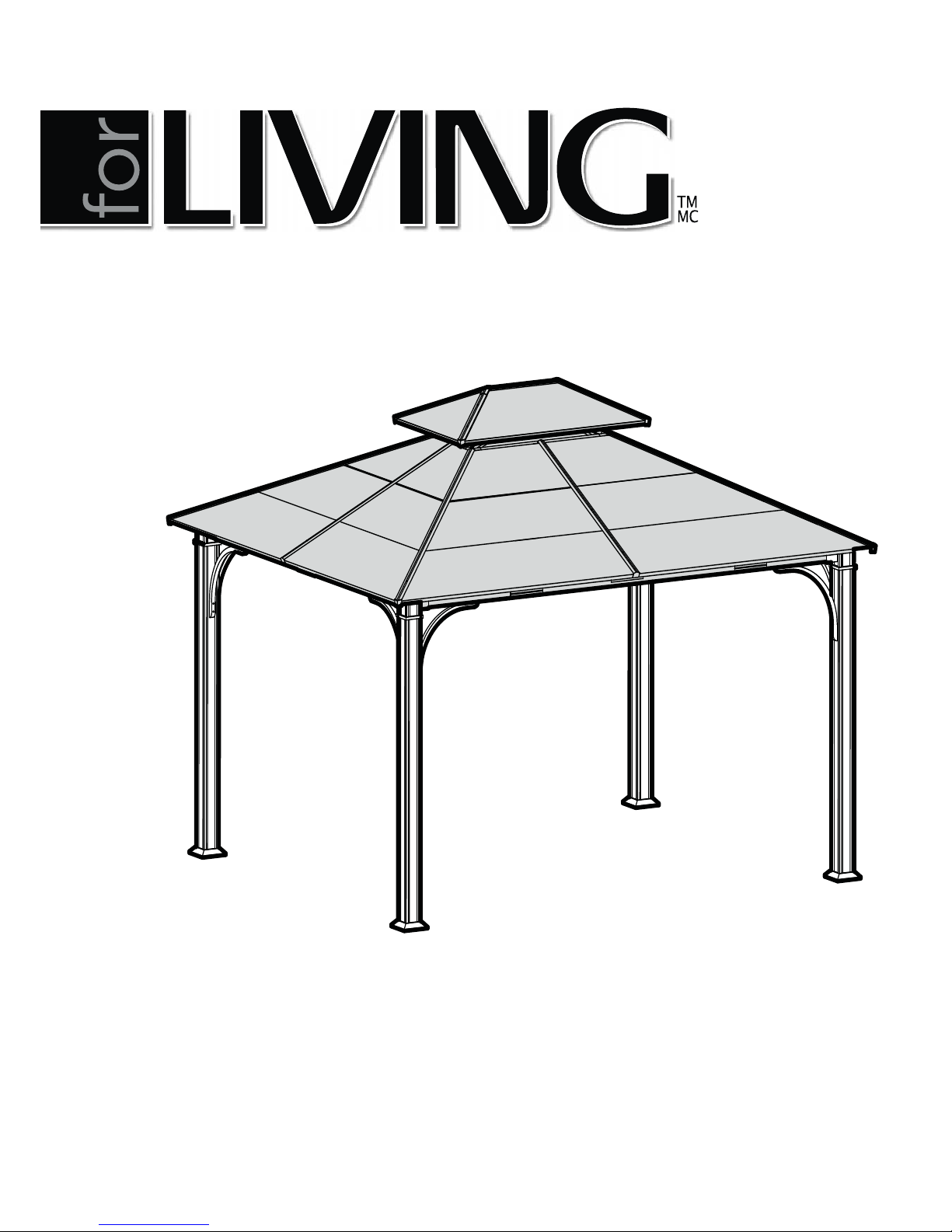

Acadia Collection Gazebo
Model No. 088-1609-0
Toll-free: 1-877-483-6759
IMPORTANT: Please read this manual carefully before beginning assembly of this product.
Keep this manual for future reference.
Assembly Instructions

3
Caution! Always keep children under close supervision while they are playing around this product.
Never leave children unattended. Keep pets away while setting up the gazebo.
Caution! Check municipal by-laws prior to setting up the gazebo.
Imported by Trileaf Distribution Trifeuil Toronto, Canada M4S 2B8
Table of ContentsImportant Safety Instructions
Table of contents 3 Important safety instructions 3 Packaging contents 4 Assembly 7 Cleaning and maintenance 23 Technical data 23 Warranty 24
Warning! To reduce the risk of serious injury, read the following safety instructions before
assembling and using the gazebo.
IMPORTANT: RETAIN FOR FUTURE REFERENCE, AND READ CAREFULLY.
 This product is intended for domestic outdoor use, i.e. decorative and sunshade purposes only.
 Always place and assemble the gazebo on flat horizontal ground.  Consult with your local governing authority and local municipal codes regarding installation of temporary
structures before assembly.
 Ensure there is enough clearance around the product. Before assembling the gazebo, make sure to leave
a distance of not less than 1.8 m (6') from any structures or obstructions, such as fences, garages, houses,
overhanging branches, laundry lines, or electrical wires.
 Anchor the gazebo to the ground with stakes for added safety. Stakes are provided to secure the gazebo to the
(anchors not included).Do not assemble the gazebo on sandy, muddy or loose soil, as stakes are not strong enough
 If more than one gazebo is set up, keep a minimum distance of 3 m (10') between the gazebos.
 Any assembly or maintenance of the gazebo must be carried out by adults only.
 Make sure there is sufficient manpower when assembling or moving the gazebo.
 Some parts may contain sharp edges. Wear protective gloves if necessary.
 Check all nuts and bolts periodically for tightness. If required, tighten them.
 Repairing and replacing parts should be done by a qualified technician.  Always disassemble the gazebo prior to experiencing heavy wind conditions, as it is not designed to withstand
harsh weather, including high wind, rain, and snow and might tip over and could cause injury to bystanders.
 Do not hang any weights on the roof frame.  Do not climb onto the roof of the gazebo. Doing so may cause the gazebo to fall down, thereby resulting in
serious injury.
 During snow days, remove the snow at the top when the snow is thicker than 4" (10 cm).
 After a period of time, usually in 2–3 months, tighten all the bolts.  After a period of use, rinse the ash on the top of gazebo using water. Avoid using acid or alkali wash lotion.
 After a few years, if the paint peels off, use paint of similar color. It is recommended to use outdoor paint.
 If the gazebo will not be used for a long period of time (e.g. during winter time), disassemble and store it in a
clean, dry environment.
 Retain the original packaging to store the gazebo.
Made in China
ground. If you wish to secure the gazebo to a concrete and wood surfaces, use anchors suited for these surfaces
to anchor in these types of soil.
Anchor the gazebo to the ground with stakes for added safety. Stakes are provided to secure the gazebo to the

A
ground. I
f
you wish to secure the gazebo to a concrete and wood sur
f
aces, use anchors suited
f
or these sur
f
aces
gg yp g
(anchors not included).
D

4 5
Product No. 088-1609-0
Packaging Contents
Long side right roof panel3 - 2
Short side roof panel1 - 2 Short side left roof panel2 - 2 Short side right roof panel2 - 2 Short side left roof panel3 - 2 Short side right roof panel3 - 2
Big roof panelcover (corner) 1 - 4 Big roof panelcover (corner) 2 - 4 Big roof panelcover (middle) - 4 Big roof top beam (short side) (1) - 8 Big roof top beam (short side) (2) - 2
Big roof top beam (long side) (1) - 8
Big roof top beam (long side) (2) - 2
Big roof top beam (long side) (3) - 2
Big roof top beam (long side) (4) - 2 Big roof top beam (long side) (5) - 2 Big roof top beam (long side) (6) - 4
H3
I3
J3
K3
L3
M3
N3 N4
O3
W1 W2
Big top frame - 2Upper beam connector - 12 Big top bar - 2Lower beam connector - 8
Small top support beam - 4Short beam - 2 Small top connector - 1Long beam - 2
Hook - 1Arc support - 8
Top roof small panel- 2Long pipe 1 - 2
Long pipe 2 - 2
Short pipe 1 - 2 Short pipe 2 - 2
Top roof long panel- 2
Small top cover - 4 Small top roof cover - 1
Post - 4Top slanting bar - 4
Top beam 1 - 4 Top beam 2 - 4 Top beam 3 - 4
Post connector - 4
Beam connector - 8 Base cover - 4 Base - 4
A1 G2 B1 H2
C1 I2
D1 J2
E1 K2
L2a L2b
F1
G1 H1
I1
A2 A3
B3
B2
C2
D2
E2
Small roof top beam (short side) 1 - 2
Small roof top beam (short side) 2 - 2
Q1
Q2
Slanting bar connector - 4
F2
B4 B5
X1
X2
X3
X4 X5 X6
Small roof top beam (long side) 1 - 2
R1
M2a M2b
Packaging Contents
Long side left roof panel2 - 2
Long side right roof panel2 - 2
E3
F3
Long side left roof panel3 - 2
G3
Long side left roof panel1 - 2 Long side right roof panel1 - 2
C3
D3
4
Big roof top beam (short side) (4) - 2
4
Big roof top beam (short side) (5) - 2
4
Big roof top beam (short side) (6) - 4
W4 W5 W6
Small roof top beam (long side) 2 - 2
R2
4
Big roof top beam (short side) (3) - 2
W3

Caution!
 Proper placement of gazebo is essential. Do not place the gazebo underneath electrical
lines.
 Keep children under close supervision while they are playing around this product. This
product contains small parts which can be swallowed by children.
 Keep fingers away from places where they can be pinched or trapped.
 Do not attempt to assemble the gazebo if any part is missing.
Let us help you! DO NOT RETURN YOUR PRODUCT TO THE STORE. CALL US FIRST! 1-877-483-6759 If you have questions regarding your product, require warranty assistance, or have damaged or missing parts, please call our customer service toll-free helpline.
Contact us for assistance; we’re here to help.
IMPORTANT: Please read and understand this manual before any assembly. Before beginning the assembly of
product, make sure all parts are available. Compare parts with packaging contents list. If any part is missing, or if
you have any questions, contact the service centre at 1-877-483-6759 (toll-free).
Take all parts from the packaging box and position them on a clean floor. Remove all packing materials and place
them back into the box. Do not dispose of the packing materials until assembly is complete. Read each step
carefully before beginning any assembly and make sure you understand each step. If any part is missing, please
call our toll-free number for assistance: 1-877-483-6759.
Needed for assembly:
Hammer Screwdriver Ladders (2 m tall)5people
Assembly
6 7
Product No. 088-1609-0
M6 x 15 Screw - 180 + 9 spare M6 Large flat washer - M6 x 55 Screw - 36 + 2 spare M6 Nut - 68 + 3 spare M6 x 40 Screw - 24+ 2 spare M6 x 15 Bolt - 84 + 4 spare M6 x 65 Bolt - 32+ 2 spare M6 x 20 Bolt - 32+ 2 spare
M6 x 45 Screw - 2 M6 Wrench - 2 M6 x 45 Bolt - 32+ 2 spare
Stake - 16
AA BB
CC
DD
EE
FF
GG
KK
LL
Z
HH
JJ
Packaging Contents
454+ 23 spare
+ 9 spare
+ 23 spare
pare
6 + 2 spare
+ 3 spare
+ 2 spare
+ 4 spare
+ 2 spare
+ 2 spare
+ 2 spare

8 9
Product No. 088-1609-0
Note: When using screws and nuts to assemble the product, always use a flat washer between the frame and the screw and/or nut. This will protect the parts from tear and wear.
Step 1 Requires A1, B1, BB, FF
Step 2 Requires A1, C1, B, F
Attach big top frame (A1) with big top bar (B1) using M6 x 15 bolt (FF) and M6 large flat washer (BB).
FF
BB
B1
A1
C1
A1
BB
BB FF
Attach one end of small top support beam (C1) with the connector of big top frame (A1) using M6 x 15 bolt (FF)
and M6 large flat washer (BB).
BB FF
Step 3 Requires C1, D1, BB, CC, DD
D1
DD
CC
Step 4 Requires D1, E1
D1
E1
Attach the other end of the small top support beam to the small top connector (D1) using M6 nut (DD),
M6 large flat washer (BB) and M6 x 55 screw (CC).
Insert and screw the hook (E1) tightly into the corresponding hole onthe small top connector (D1).
BB CC DD
Assembly
Assembly

10 11
Product No. 088-1609-0
Step 5 Requires C1, Q2, R2, AA, BB
Step 6 Requires C1, Q1, R1, AA, BB
Attach the small roof top beam (short side) 2 (Q2) and the small roof top beam (long side) 2 (R2) to the small
top support beam (C1) using M6 x15 screw (AA) and washer (BB).
R2
C1 Q2
Q1
R1
C1
AA BB
AA BB
Attach the small roof top beam (short side) 1 (Q1) and the small roof top beam (long side) 1 (R1) to the small
top support beam (C1) using M6 x15 screw (AA) and washer (BB).
Step 7 Requires C2, G2, H2, I2, J2, BB, DD, GG, Z
C2
I2
C2 J2
19
C2
C2
G2
H2
GG
Step 8 Requires B2, C2, BB, KK
Attach beam connector (C2) to the post connector (B2) using M6 x 20 bolt (KK) and washer (BB).
B2
KK
C2
BB KK
DD GG Z
BB
(7a) Insert the short beam (I2) and the long beam (J2) betweenthe beam connectors (C2).
(7b) Attach the upper beam connector (G2) to the lower
beam connector (H2) using M6 x 65 bolt (GG),
washer (BB) and nut (DD). Tightenusing the wrench (Z).
Assembly
Assembly

12 13
Product No. 088-1609-0
Step 9 Requires B2, F2, BB, FF
B2
F2
FF
Step 10 Requires G2, I2, J2, BB, FF
FF
J2
G2
I2
BB FF
Attach slanting bar connector (F2) to the post connector (B2) using M6 x15 bolt (FF) and washer (BB).
Attach upper beam connector (G2) to the short beam (I2) and long beam (J2) using M6 x 15 bolt (FF) and
washer (BB).
BB FF
Step 11 Requires A1, A3, B3, BB, FF
FF
A1
B3
A3
Attach one end of the top slanting bar (A3) and the top beam (B3) to the big top frame (A1) using
M6 x 15 bolt (FF) and washer (BB).
Step 12 Requires A3, B3, F2, G2, BB, CC, DD
A3
CC
F2
G2
CC
B3
(12a) Attach the other end of top slanting bar (A3)
to the slanting bar connector (F2) using M6 x 55 screw (CC), washer (BB) and
nut (DD).
(12b) Attach the other end of the top middle
beam (B3) to the upper beam connector (G2)
using M6 x 55 screw (CC), washer (BB) and
nut (DD).
BB FF
BB CC DD BB CC DD
Assembly
Assembly

14 15
Product No. 088-1609-0
Step 13 Requires A3, B4, B5, BB, FF
FF
B4
B5
Step 14 Requires B4, B5, G2, BB, CC, DD
B4
G2
CC
B5
BB FF BB CC DD
Attachthe ends oftopside beams (B4, B5) to the slantingbarconnector(A3) usingM6 x15 bolt (FF) and
washer(BB).
Attachthe otherends ofthe topside beams (B4, B5) to the upperbeamconnector(G2) usingM6 x55 screw(CC),
washer(BB) and nut (DD).

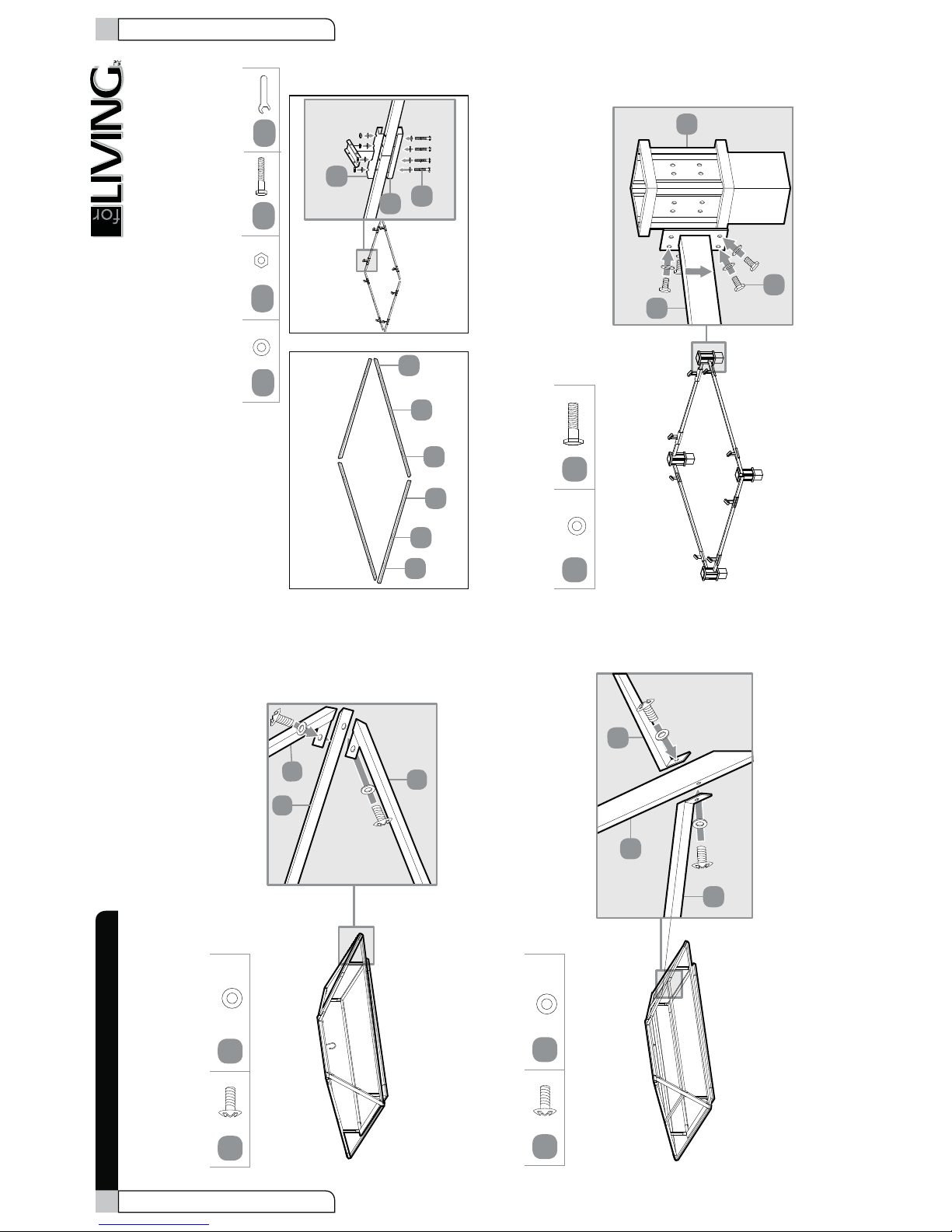

Step 15 Requires F1, G1, AA, BB
F1
G1 AA
Step 16 Requires C1, D1, H1, I1, BB, EE, LL, Z
AA BB
Place the toproofsmall panel (F1) and the toprooflongpanel (G1) onto the small topsupport beamand attach
usingM6 x15 screw(AA) and washer(BB).
H1
H1
C1
EE
I1 LL
D1
(16a) Place the small topcover(H1) onto the small topsupport beam(C1) and attachusing M6 x40 screw(EE) and washer(BB).Tighten
usingthe wrench(Z).
(16b) Place the small toproofcover(I1) onto the small topconnector(D1) and attachusing
M6 x45 screw(LL) and washer(BB).Tighten
usingthe wrench(Z).
BB BB LL Z
EE Z
Assembly
Assembly

16 17
Product No. 088-1609-0
Step 17 Requires W1, W2, W3, W4, W5, W6, AA, BB Attach the big roof top beams (short side) (W1, W2, W3, W4, W5, W6) to the big top frame using
M6 x 15 screw (AA) and washer (BB).
BB
AA
Step 18 Requires X1, X2, X3, X4, X5, X6, AA, BB Attach the big roof top beams (long side) (X1, X2, X3, X4, X5, X6) to the big top frame using M6 x 15 screw (AA) and
washer (BB).
AA
W1
W2
W3
W5
W6
W4
X1
X4
X2 X3
X5
X6
AA
BB
AA
Step 19 Requires B3, L2a, L2b, AA, BB
Attach the one end of long pipes (L2a, L2b) to the top beam (B3) using M6 x 15 screw (AA) and washer (BB).
Repeat the same procedure for connecting short pipes (M2a, M2b) to the top beam.
L2b
B3
L2a
Step 20 Requires M2a, M2b
M2a
24
M2b
BB
AA
Assembly
Assembly

18 19
Product No. 088-1609-0
Step 21 Requires L2a, L2b, A3, AA, BB
Attachthe otherends ofthe longpipes (L2a, L2b) to the topslantingbar(A3) usingM6 x15 screw(AA) and
washer(BB).
Repeat the above procedure forconnectingshort pipes (M2a, M2b) to the topslantingbar.
L2b
A3
L2a
Step 22 Requires M2a, M2b
M2a
M2b
BB
AA
Step 23 Requires C3, D3, E3, F3, G3, H3, AA, BB
Place the longside roofpanels (C3, D3, E3, F3, G3, H3) onto the bigtopframe fromupperend to lowerend and
attachusingM6 x15 screw(AA) and washer(BB).
Place the short side roofpanels (I3, J3, K3, L3, M3) onto the bigtopframe fromupperend to lowerend and
attachusingM6 x15 screw(AA) and washer(BB).
AA
D3
H3
G3
E3
C3
F3
Step 24 Requires I3, J3, K3, L3, M3, AA, BB
I3
J3 K3
L3
M3
AA
BB
AA
BB
AA
Assembly
Assembly

20 21
Product No. 088-1609-0
Step 25 Requires C1, N3
N3
C1
Step 26 Requires B3, N3, N4, O3, BB, EE
Insert the bigroofpanel cover1(N3) into the hole ofthe small topsupport beam(C1).
EE
N4
N3
EE
O3
B3
(26a) Attachthe bigroofpanel cover(corner) 1(N3) and the bigroofpanel cover(corner) 2 (N4) to the topslantingbarusingM6 x40 screw(EE)
and washer(BB).
(26b) Attachthe bigroofpanel cover(middle) (O3) to the topmiddle beam(B3) usingM6 x40 screw( E E )
and washer(BB).

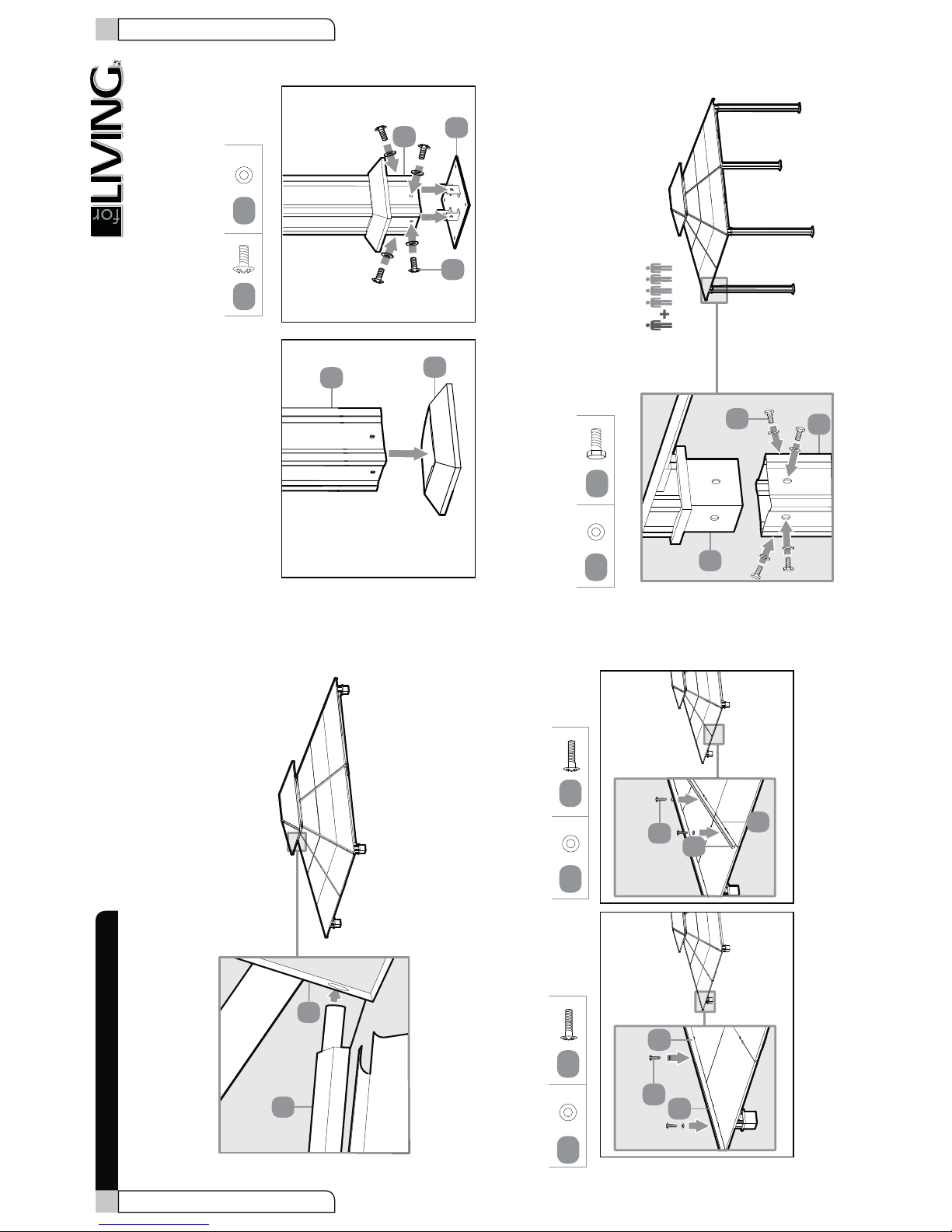

Step 27 Requires A2, D2, E2, AA, BB
Step 28 Requires A2, B2, BB, FF
B2
FF
A2
Lift the pre-assembled roofand insert post connector(B2) into post (A2).Secure themusingM6 x15 bolt (FF)
and washer(BB).This steprequires 5 people.
A2
D2
A2
E2
AA
(27a) Insert post (A2) into base cover(D2).(27b) Attachthe base (E2) into the post (A2) using
M6 x15 screw(AA) and washer(BB).
BB EE BB EE
AA BB
BB FF
Assembly
Assembly

Cleaning and Maintenance
Technical data
22 23
Product No. 088-1609-0
Step 29 Requires C2, K2, BB, HH
K2 HH
C2
Step 30 Requires D2, E2, JJ
Attach arc support (K2) to post and beam connector (C2). Secure them using M6 x 45 bolt (HH) and washer (BB).
E2
JJ
D2
(30a) Move and hold base cover (D2) upwardso
the base (E2) can be anchoredto the ground
using the stakes (JJ). Thenput downthe
base cover.
(30b) The gazebo is ready for use.
JJ
 Do not use bleach, acid, or other abrasive cleaners on the roof panels or beams.
 Steel components of garden accessories and furniture are coated with rust-inhibiting paint. However, due
to the nature of steel, surface oxidation (rusting) will occur if this protective coating is scratched. This is
a natural process. To minimize this condition, it is recommended that care be taken when assembling and
handling the product, in order to prevent the paint from being scratched. Surface rust can be removed easily
by applying a little common cooking oil. If surface oxidation (rusting) occurs and no measures are taken to
correct it, the oxidation may start dripping onto the assembly surface, which may cause rough stains that
could be difficult to remove.
Caution!
 Check all screws and nuts periodically for tightness. Tighten them if required.  Disassemble the gazebo in the reverse order of the assembly steps. Always disassemble
the gazebo completely. A partially disassembled gazebo is not stable enough to resist
wind and bad weather, and therefore can be damaged and/or cause damage.
Dimensions (L x W x H) 3.6 x 4.26 x 3 m
12 x 14 x 10'
Product weight 204 kg
449 lb
BB KK
Assembly

24 Product No. 088-1609-0
This ForLiving™product carries a three (3) yearlimited warrantyagainst defects in workmanshipand materials.
TrileafDistribution agrees to replace the defective product free ofcharge within the stated warrantyperiod,
when returned bythe original purchaserwithproofofpurchase.This product is not guaranteed against wear
orbreakage due to misuse and/orabuse.
Warranty
