SHED BASE INSTRUCTIONS
ISSUE: 0122
FIXING PACK CODE: SBPMFP
Tape
Measure
We recommend using the following tools (NOT SUPPLIED):
Pozidrive
Screwdriver
Drill & 2mm
Drill Bit
Spirit Level
Start at the corners. Pre-drill and screw
through the face of the one timber part into
the end of the other. Use the section layouts
below for guidance on positioning.
Repeat this process for the opposite corners
to form the overall outer frame. Ensure that all
edges and faces of the timber parts are ush.
Measure where the central timber part(s) will
be placed. Use the measurements from the
section layout below for your chosen shed
base. Mark, pre-drill and screw them into
place.
1 2 3
5 x 90mm Screws
QTY: 20
FIXING PACK CONTAINS:
SECTION LAYOUTS
Identify your chosen shed base to follow the correct construction and
measurements provided:
INSTRUCTIONS
PLEASE KEEP PLASTIC BAGS AND
SMALL PARTS AWAY FROM CHILDREN
REMINDER
Always pre-drill
before screwing.
400mm
4’
3’
SBP43M
400mm
5’
3’
SBP53M
527.3mm
3’
6’
SBP63M
546mm
4’
6’
SBP64M
It’s vital that you build your new shed base on level ground in your
desired location.
Forest Garden, Oak Drive, Hartlebury Trading Estate, Hartlebury, Worcestershire, DY10 4JB
77 Camden Street Lower Dublin, D02 XE80, Ireland, Tel: [phone]
Missing something or need more information?
Call our aftersales team on
0333 321 3142
Visit our website for spare instructions and
more information
www.forestgarden.co.uk
546mm
6’
6’
SBP66M
471.5mm
5’
7’
SBP75M
Indicates the timber orientation during
construction. This will apply to all of the
corners for your base.

Part Code Description No.
75470941IPT
Timber Part (75 x 47 x 941mm) 2
75471086IPT Timber Part (75 x 47 x 1086mm) 3
Part Code Description No.
75470941IPT
Timber Part (75 x 47 x 941mm) 2
75471381IPT Timber Part (75 x 47 x 1381mm) 3
Part Code Description No.
75470847IPT
Timber Part (75 x 47 x 847mm) 4
75471770IPT Timber Part (75 x 47 x 1770mm) 2
Part Code Description No.
75471086IPT
Timber Part (75 x 47 x 1086mm) 4
75471826IPT Timber Part (75 x 47 x 1826mm) 2
Part Code Description No.
75471676IPT
Timber Part (75 x 47 x 1676mm) 4
75471826IPT Timber Part (75 x 47 x 1826mm) 2
Part Code Description No.
75471381IPT
Timber Part (75 x 47 x 1381mm) 5
75472121IPT Timber Part (75 x 47 x 2121mm) 2
Part Code Description No.
75471968IPT
Timber Part (75 x 47 x 1986mm) 5
75472121IPT Timber Part (75 x 47 x 2121mm) 2
Part Code Description No.
75471826IPT
Timber Part (75 x 47 x 1826mm) 2
75472266IPT Timber Part (75 x 47 x 2266mm) 5
Part Code Description No.
75472266IPT
Timber Part (75 x 47 x 2266mm) 5
75472416IPT Timber Part (75 x 47 x 2416mm) 2
8' x 8' Shed Base (SBP88M)
8' x 6' Shed Base (SBP86M)
4' x 3' Shed Base (SBP43M)
5' x 3' Shed Base (SBP53M)
6' x 3' Shed Base (SBP63M)
6' x 4' Shed Base (SBP64M)
7' x 5' Shed Base (SBP75M)
7' x 7' Shed Base (SBP77M)
6' x 6' Shed Base (SBP66M)
TREATED TIMBER CONTAINING A BIOCIDAL PRODUCT
CONTROL OF WOOD DESTROYING ORGANISMS
Active Ingredients - Propiconazole, Tebuconazole, IPBC, Permethrine, Benzyl-C12-16-Alkyldimethyl Chlorides. (Dip Treated)
Basic Copper Carbonate, DDA Carbonate, DDA Chloride. (Pressure Treated)
Wear gloves when handling. Avoid inhalation of sawdust. Do not use in contact with drinking water or food. Do not use for animal
bedding or in sh ponds. Dispose of treated wood responsibly.

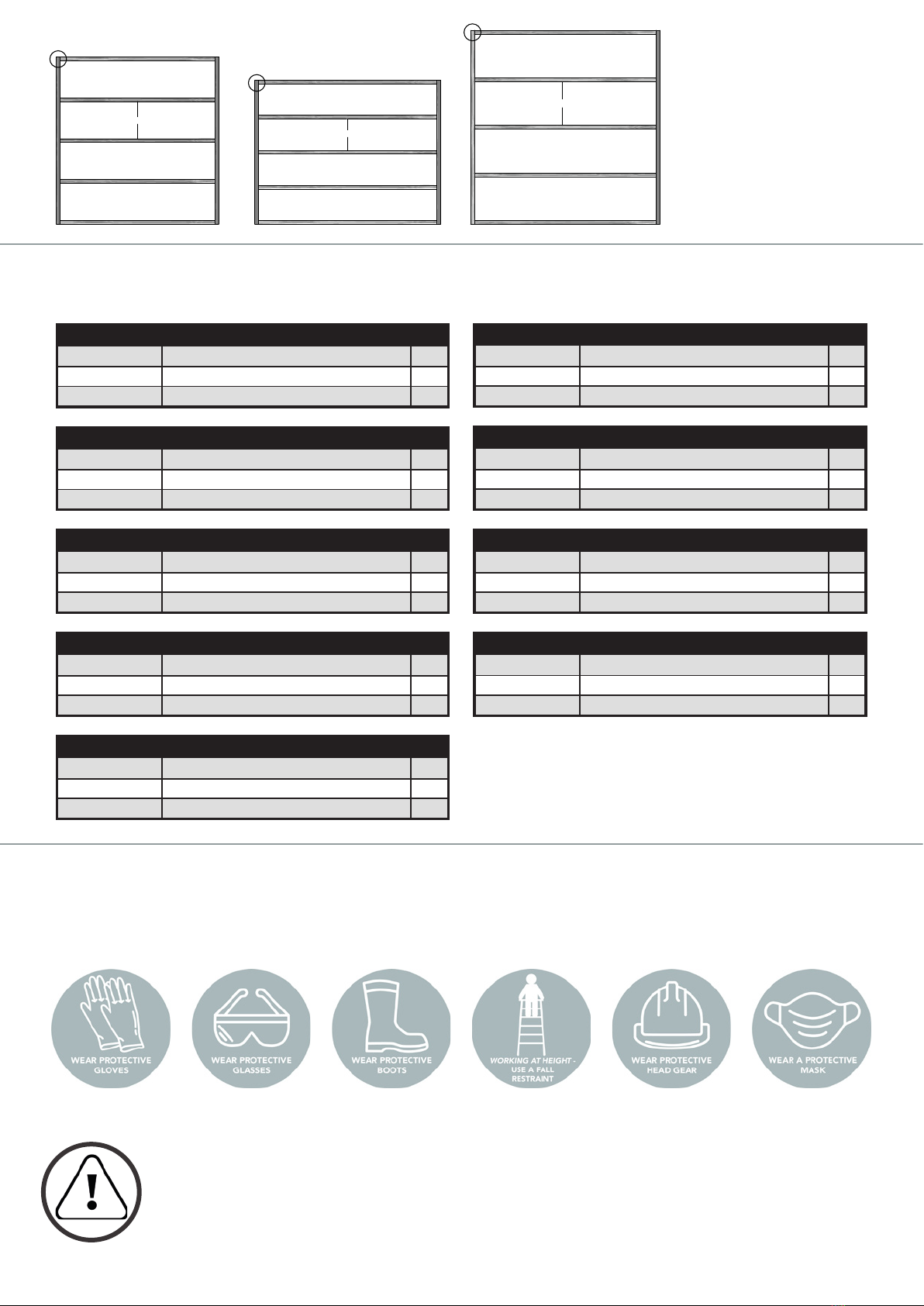

CHECK YOU HAVE ALL YOUR PARTS.
(The parts do not have codes on them. They are listed below should you need to order one.)
471.5mm
7’
7’ 397.75mm
8’
6’
SBP77M SBP86M
545.25mm
8’
8’
SBP88M
Part Code Description No.
75470941IPT
Timber Part (75 x 47 x 941mm) 2
75471086IPT Timber Part (75 x 47 x 1086mm) 3
Part Code Description No.
75470941IPT
Timber Part (75 x 47 x 941mm) 2
75471381IPT Timber Part (75 x 47 x 1381mm) 3
Part Code Description No.
75470847IPT
Timber Part (75 x 47 x 847mm) 4
75471770IPT Timber Part (75 x 47 x 1770mm) 2
Part Code Description No.
75471086IPT
Timber Part (75 x 47 x 1086mm) 4
75471826IPT Timber Part (75 x 47 x 1826mm) 2
Part Code Description No.
75471676IPT
Timber Part (75 x 47 x 1676mm) 4
75471826IPT Timber Part (75 x 47 x 1826mm) 2
Part Code Description No.
75471381IPT
Timber Part (75 x 47 x 1381mm) 5
75472121IPT Timber Part (75 x 47 x 2121mm) 2
Part Code Description No.
75471968IPT
Timber Part (75 x 47 x 1986mm) 5
75472121IPT Timber Part (75 x 47 x 2121mm) 2
Part Code Description No.
75471826IPT
Timber Part (75 x 47 x 1826mm) 2
75472266IPT Timber Part (75 x 47 x 2266mm) 5
Part Code Description No.
75472266IPT
Timber Part (75 x 47 x 2266mm) 5
75472416IPT Timber Part (75 x 47 x 2416mm) 2
8' x 8' Shed Base (SBP88M)
8' x 6' Shed Base (SBP86M)
4' x 3' Shed Base (SBP43M)
5' x 3' Shed Base (SBP53M)
6' x 3' Shed Base (SBP63M)
6' x 4' Shed Base (SBP64M)
7' x 5' Shed Base (SBP75M)
7' x 7' Shed Base (SBP77M)
6' x 6' Shed Base (SBP66M)
HEALTH & SAFETY
We strongly recommend that PPE (Personal Protective Equipment) is used throughout your build to ensure
you are protected from any potential health and safety risks. Do not exempt yourself from wearing PPE.
CHECK & TIGHTEN ALL FIXINGS APPLIED TO THE
PRODUCT ON A REGULAR BASIS
