Fortinet Talkswitch TS-850i Guide

ANSWERS WITH INTELLIGENCE®
TALKSWITCH®START GUIDE
TALKSWITCH
TS-850i AND
TS-860i TELEPHONE
CT.TP005.010903
Copyright ©2011 Fortinet, Inc. All rights reserved. Fortinet®, FortiGate®,
FortiGuard®, FortiCare®, FortiManager®, FortiAnalyzer®, and TalkSwitch®
are registered trademarks of Fortinet, Inc. and other Fortinet names
herein may also be registered trademarks and/or common law trademarks
of Fortinet. Other product or company names may be trademarks of their
respective owners.
Reproduction, adaptation or translation without prior written permission
is prohibited, except as allowed under the copyright laws.
Information in this start guide is subject to change without notice and
does not represent any commitment on the part of TalkSwitch. No part
of this start guide may be reproduced or transmitted in any form or by
any means, electronic or mechanical (including photocopying, recording,
or information storage and retrieval systems) or translated to another
language, for any purpose other than the licensee’s personal use and as
specifically allowed in the licensing agreement, without the express
written permission of TalkSwitch.
CT.TP005.010903
May 2011
EVERY CALL COUNTS 1
Introduction
Congratulations on your purchase of the TS-850i/TS-860i
Cordless DECT Phone!
This guide describes how to install and configure your new
telephone with a TalkSwitch system. For more information,
see the support section at http://global.talkswitch.com.
Installing the base
1. Place the base near a wired Ethernet router, either
on a tabletop or mounted on a wall. Avoid placing
the base in a location with a lot of metal, or near
devices that cause interference.
2. Connect the Ethernet cable from the WAN port on
the base to a LAN port on your router or Ethernet
switch. The TalkSwitch unit must be connected to
the same LAN.
TS-850i base
2 TS-850i AND TS-860i START GUIDE
3. Optionally connect the telephone cable from the
Line port on the base to the telephone wall socket.
This will allow you to use the TS-850i/TS-860i as a
regular phone as well.
4. Connect the power adapter from the power outlet to
the power supply connector.
EVERY CALL COUNTS 3
Installing the handset charger
1. Place the handset charger within the signal range of
the base. The handset has an indoor signal range of
up to 150 feet (50 meters) from the base. Concrete
and metal objects might affect the signal range.
2. Connect the power adapter from the power outlet to
the power supply connector.
TS-860i charger
4 TS-850i AND TS-860i START GUIDE
Installing the batteries
1. Release the battery cover from the bottom.
2. Insert the Li-ion cell battery in the handset, making
sure it is placed as shown in the illustration, and
then slide the battery cover shut.
TS-860i handset
EVERY CALL COUNTS 5
Charging the batteries
1. Place the handset in the handset charger. The
handset turns on, and the battery charge indicator
in the display starts to flash.
2. Charge the batteries for at least 10 hours before
first use.
6 TS-850i AND TS-860i START GUIDE
Registering handsets with the base
1. Press the Reset button on the back of the base. A
five-minute registration period starts, which allows
handsets to register with the base.
NOTE: If you have multiple bases, only reset one base
at a time, and wait five minutes before resetting the
next base.
2. If the handset is turned off, press the Red Phone
key to turn it on.
3. Place the handset in the handset charger. The handset
automatically registers with the base, and the Configure
SIP Domain message appears on the display. This
message indicates that you must configure the TS-850i/
TS-860i as an IP extension, as described later.
A base can support up to three handsets with three
concurrent calls. It can support up to eight handsets if
they aren’t all used at once. If you have more than
three handsets and are getting busy signals, add more
bases to your installation in order to handle more calls.
EVERY CALL COUNTS 7
Once the handset is registered, the left connection
status indicator in the display will turn yellow.
4. Once the handset is registered, you can place
additional handsets in the handset charger for
registration. If the five-minute registration period
has expired, but the handsets aren’t all registered,
press the Reset button on the back of the base to
start a new registration period.
8 TS-850i AND TS-860i START GUIDE
Configuring the TS-850i/TS-860i as an IP extension
You can configure the phone as an IP extension located
within the office, or outside the office (i.e. an external
IP extension).
Before configuring a phone, ensure that no handsets
registered with the associated base are being used. If a
handset is on a call, the call will be terminated when the
system resets the base during configuration of the phone.
NOTE: The TS-850i requires version 6.11 or greater of the
TalkSwitch management software. The TS-860i requires
version 6.50 or greater, which is available in the support
section at http://global.talkswitch.com.
EVERY CALL COUNTS 9
Configuring the TS-850i/TS-860i for use within
the office
If the TS-850i/TS-860i is located within the office, it
connects to your TalkSwitch system over the local area
network (LAN).
1. Launch the TalkSwitch management software.
2. Select the Local Extensions/Fax page.
3. Click the Add button. The Add User / Extension
window appears.
4. Set the Extension type to IP Extension.
5. In a multi-unit system, select the TalkSwitch unit
the extension will be associated with. This unit will
hold the voicemail for the extension. Click Next.
10 TS-850i AND TS-860i START GUIDE
6. Enter the user’s First name and Last name. The names
are used for caller ID and the dial-by-name directory.
7. Assign an Extension number.
8. Select TalkSwitch as the Manufacturer, and then
select the model.
9. Enter the MAC address of the phone:
•YoucanselectthePhone MAC Address from a list
of automatically-detected phones connected to
your LAN. To use this method:
EVERY CALL COUNTS 11
i) Click the Select button. A MAC Selection
window appears and lists TalkSwitch IP
phones of the selected type.
ii) Select the MAC address of the IP phone
associated to the extension, and then click
Select.
• You can enter the Phone MAC Address manually.
This is the required method if you are setting up
an external IP extension. The MAC Address is a
12-digit alphanumeric string located in the
barcode on the bottom of the base station and
the box the phone came in.
Note that multiple IP extensions can share the
same base.
12 TS-850i AND TS-860i START GUIDE
10. Click Finish.
11. In the Extension tab, select the language for prompts
heard by the user of the extension in the System
Prompt Language list.
IP Extension Details area
1. Set the Location to Internal.
2. See Local Extensions/Fax in Help within the
TalkSwitch management software, for instructions on
configuring direct line access, hunt group
permissions, caller ID settings (VoIP only), call
handling and voicemail.
3. After configuring the extensions, choose File >
Save. The TalkSwitch system will automatically
configure each handset.
EVERY CALL COUNTS 13
Configuring the TS-850i/TS-860i for use outside
the office
An external IP extension is located outside the office (e.g.
an office phone within the home), and connects to your
TalkSwitch system over the Internet. The TalkSwitch
system must be equipped with a VoIP module.
Checking the firewall
Run the firewall test to ensure the appropriate ports are
forwarded from the router at the TalkSwitch location to the
TalkSwitch unit acting as proxy. There should be no need to
make any adjustments to the firewall at the remote
location. For more information, see Router port forwarding
in Help within the TalkSwitch management software.
1. Launch the TalkSwitch management software.
2. Select the IP Configuration page.
Warning: Calls to an emergency service number using
an external IP extension will not send the correct
address to the emergency operator. We strongly
recommend that you apply a warning label to any
external IP extension stating:
If an emergency call is made from this phone, you
must provide your address to the emergency
operator.
14 TS-850i AND TS-860i START GUIDE
3. Click Check Firewall. The Firewall Test
window appears.
4. Click Test Ports to run the firewall test and ensure
port forwarding is set up.
Selecting the extension
1. Select the Local Extensions/Fax page.
2. Click the Add button. The Add User / Extension
window appears.
3. Set the Extension type to IP Extension.
4. In a multi-unit system, select the TalkSwitch unit
the extension will be associated with. This unit will
hold the voicemail for the extension. Click Next.
EVERY CALL COUNTS 15
5. Enter the user’s First name and Last name. The names
are used for caller ID and the dial-by-name directory.
6. Assign an Extension number.
7. If necessary, select TalkSwitch as the Manufacturer,
and then select the model.
8. Enter the MAC address of the phone:
•YoucanselectthePhone MAC Address from a list
of automatically-detected phones connected to
your LAN. To use this method:
16 TS-850i AND TS-860i START GUIDE
i) Click the Select button. A MAC Selection
window appears and lists TalkSwitch IP
phones of the selected type.
ii) Select the MAC address of the IP phone
associated to the extension, and then click
Select.
• You can enter the Phone MAC Address manually.
This is the required method if you are setting up
an external IP extension. The MAC Address is a
12-digit alphanumeric string located in the
barcode on the bottom of the base station and
the box the phone came in.
Note that multiple IP extensions can share the
same base.
EVERY CALL COUNTS 17
9. Click Finish.
10. In the Extension tab, select the language for prompts
heard by the user of the extension in the System
Prompt Language list.
IP Extension Details area
1. Set the Location to External.
2. Select the Time Zone of the phone.
3. See Local Extensions/Fax in Help within the
TalkSwitch management software, for instructions on
configuring direct line access, hunt group
permissions, caller ID settings (VoIP only), call
handling and voicemail.
4. After configuring the extensions, choose File >
Save. The TalkSwitch system will create a file used to
configure each handset.
18 TS-850i AND TS-860i START GUIDE
Configuring the external IP extension handset
1. In Idle mode, press the OK key on the handset to
access the Main menu. The OK key is the round key
between the navigation keys.
2. Choose Settings, and then press the OK key.
3. Choose Network settings, and then press the
OK key.
4. Select Provision server, and then press the OK key.
5. Enter the Public IP address or FQDN (fully qualified
domain name) of the TalkSwitch system as provided
by your administrator. To enter a period:
a) Press the Options softkey.
b) Choose Insert symbol, and then press the
OK key.
c) Use the navigation keys to choose the period,
and then press the OK key.
6. Press the Save softkey to accept the changes, and
then press the Back key.
7. When prompted to reboot the base, select Yes. The
TS-850i/TS-860i will automatically download the
configuration from the TalkSwitch system.

This manual suits for next models

1

Other Fortinet Telephone manuals

Fortinet FortiFone FON-C75 User manual

Fortinet

Fortinet FortiFone FON-C75 User manual

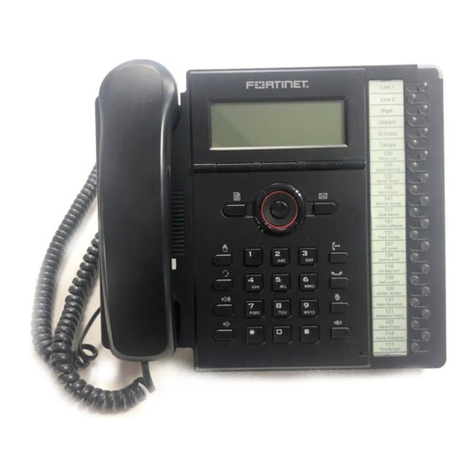

Fortinet FortiFone FON-450i User manual

Fortinet

Fortinet FortiFone FON-450i User manual

Fortinet FortiFone-450i Guide

Fortinet

Fortinet FortiFone-450i Guide

Fortinet FON-350i User manual

Fortinet

Fortinet FON-350i User manual

Fortinet FortiFone-450i User manual

Fortinet

Fortinet FortiFone-450i User manual

Fortinet FortiVoice FVC Series Installation instructions

Fortinet

Fortinet FortiVoice FVC Series Installation instructions

Fortinet FortiFone FON-H25 User manual

Fortinet

Fortinet FortiFone FON-H25 User manual

Fortinet FortiFone FON-570 User manual

Fortinet

Fortinet FortiFone FON-570 User manual

Fortinet FortiVoice Enterprise 200F8 User manual

Fortinet

Fortinet FortiVoice Enterprise 200F8 User manual

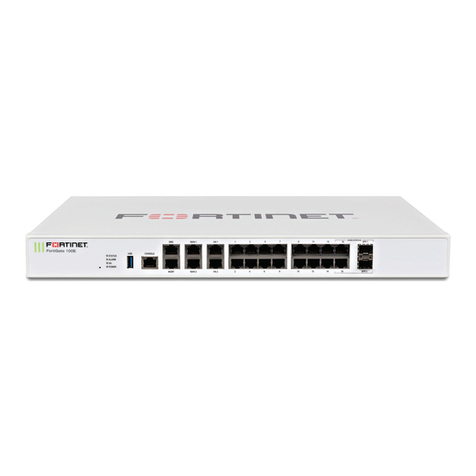

Fortinet FortiVoice Enterprise 100E User manual

Fortinet

Fortinet FortiVoice Enterprise 100E User manual

Fortinet FON-370i User manual

Fortinet

Fortinet FON-370i User manual

Fortinet FortiVoice Service manual

Fortinet

Fortinet FortiVoice Service manual

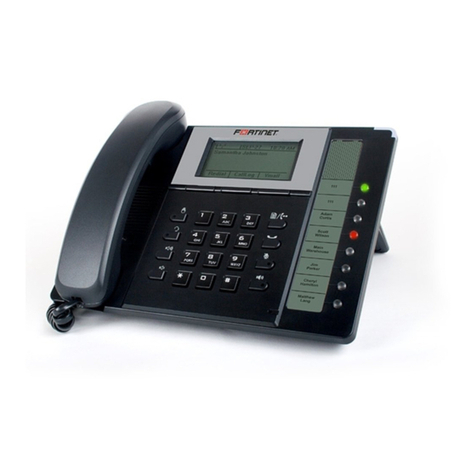

Fortinet FortiFone-350i User manual

Fortinet

Fortinet FortiFone-350i User manual

Fortinet FortiFone FON-380B User manual

Fortinet

Fortinet FortiFone FON-380B User manual

Fortinet FON-860i User manual

Fortinet

Fortinet FON-860i User manual

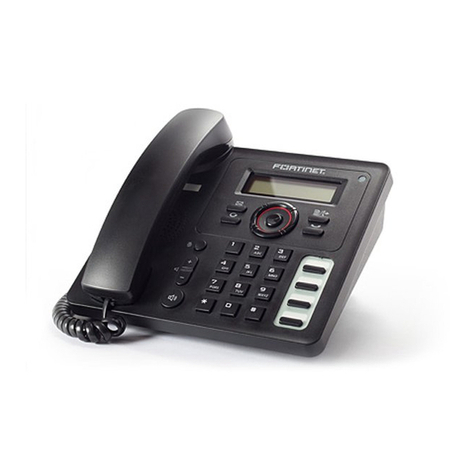

Fortinet FortiFone User manual

Fortinet

Fortinet FortiFone User manual

Fortinet FON-350i Guide

Fortinet

Fortinet FON-350i Guide

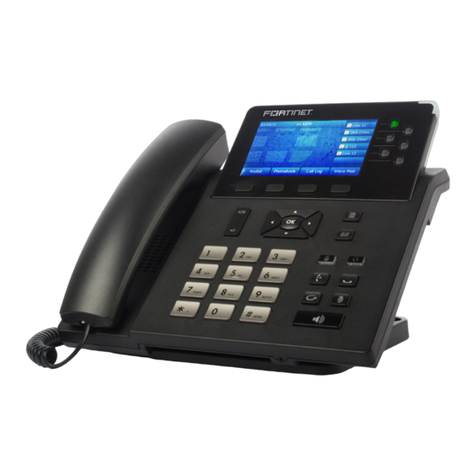

Fortinet FortiFone FON-470i User manual

Fortinet

Fortinet FortiFone FON-470i User manual

Fortinet FortiFone FON-260i User manual

Fortinet

Fortinet FortiFone FON-260i User manual

Fortinet FortiFone FON-C71 User manual

Fortinet

Fortinet FortiFone FON-C71 User manual

Fortinet FortiFone FON-360i User manual

Fortinet

Fortinet FortiFone FON-360i User manual

Fortinet FortiVoice 200D User manual

Fortinet

Fortinet FortiVoice 200D User manual

Fortinet FortiVoice Enterprise Series Manual

Fortinet

Fortinet FortiVoice Enterprise Series Manual

Fortinet FortiFone User manual

Fortinet

Fortinet FortiFone User manual

Popular Telephone manuals by other brands

D-Link DWR-720P user manual

D-Link

D-Link DWR-720P user manual

Comelit FT CCS 03 Technical sheet

Comelit

Comelit FT CCS 03 Technical sheet

Gigaset DX800A user guide

Gigaset

Gigaset DX800A user guide

BELGACOM Twist 129 user manual

BELGACOM

BELGACOM Twist 129 user manual

JSD TestPhone 295B Operation manual

JSD TestPhone

JSD TestPhone 295B Operation manual

Polycom SoundPoint IP 600 SIP user guide

Polycom

Polycom SoundPoint IP 600 SIP user guide

Northway Telephone User instructions

Northway

Northway Telephone User instructions

Grandstream Networks GXV3380 Quick installation guide

Grandstream Networks

Grandstream Networks GXV3380 Quick installation guide

Aastra 6730I Quick reference guide

Aastra

Aastra 6730I Quick reference guide

Lucent Technologies MDW 9030P Installation and use

Lucent Technologies

Lucent Technologies MDW 9030P Installation and use

easyteck G101 quick start guide

easyteck

easyteck G101 quick start guide

tele2 NEC Xen Topaz user guide

tele2

tele2 NEC Xen Topaz user guide

WELLTECH LAN PHONE 101 H.323 - VERSION 111A &... manual

WELLTECH

WELLTECH LAN PHONE 101 H.323 - VERSION 111A &... manual

Ameriphone DIALOGUE XL 50 Features

Ameriphone

Ameriphone DIALOGUE XL 50 Features

Protel Elite Series user guide

Protel

Protel Elite Series user guide

Aastra Ascotel Office 45 user guide

Aastra

Aastra Ascotel Office 45 user guide

DMG Amigo II ETSA2MRA installation manual

DMG

DMG Amigo II ETSA2MRA installation manual

jotron Tron VHF Operator's manual

jotron

jotron Tron VHF Operator's manual

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.
