FortiFone
™
QuickStart Guide
for FON-370i

FortiFone™ QuickStart Guide for FON-370i
Revision 2
August 17, 2015
Copyright © 2015 Fortinet, Inc. All rights reserved. Fortinet®, FortiGate®,
FortiCare®and FortiGuard®, and certain other marks are registered
trademarks of Fortinet, Inc., in the U.S. and other jurisdictions, and other
Fortinet names herein may also be registered and/or common law
trademarks of Fortinet. All other product or company names may be
trademarks of their respective owners. Performance and other metrics
contained herein were attained in internal lab tests under ideal
conditions, and actual performance and other results may vary. Network
variables, different network environments and other conditions may
affect performance results. Nothing herein represents any binding
commitment by Fortinet, and Fortinet disclaims all warranties, whether
express or implied, except to the extent Fortinet enters a binding written
contract, signed by Fortinet's General Counsel, with a purchaser that
expressly warrants that the identified product will perform according to
certain expressly-identified performance metrics and, in such event,
only the specific performance metrics expressly identified in such
binding written contract shall be binding on Fortinet. For absolute clarity,
any such warranty will be limited to performance in the same ideal
conditions as in Fortinet's internal lab tests. In no event does Fortinet
make any commitment related to future deliverables, features or
development, and circumstances may change such that any
forward-looking statements herein are not accurate. Fortinet disclaims
in full any covenants, representations, and guarantees pursuant hereto,
whether express or implied. Fortinet reserves the right to change,
modify, transfer, or otherwise revise this publication without notice, and
the most current version of the publication shall be applicable.
FortiVoice fortivoice.com
Technical Documentation docs.fortinet.com
Knowledge Base kb.fortinet.com
Customer Service & Support support.fortinet.com
Training Services training.fortinet.com
FortiGuard fortiguard.com
Document Feedback [email protected]

Contents i FortiFone™ QuickStart Guide
Contents
Introduction........................................................................... 1
Box includes ............................................................................. 1
Installation............................................................................. 2
Attaching the stand................................................................... 2
For desktop use .................................................................. 2
For wall mounting ............................................................... 2
Connecting the phone .............................................................. 3
Setting up the phone ................................................................ 4
For use as an internal extension ......................................... 4
For use as an external extension ........................................ 4
Using the Phone ................................................................... 5
Troubleshooting.................................................................... 7
Cautions and Warnings........................................................ 8
Environmental specifications.................................................... 8
Safety........................................................................................ 8
E911 and use with Multi-Line Telephone Systems................... 8
Privacy ...................................................................................... 9
Regulatory Notices............................................................. 10
Federal Communication Commission (FCC) — USA ............. 10
European Conformity (CE) — EU............................................ 11
Industry Canada Equipment Standard for Digital Equipment
(ICES) — Canada.................................................................. 11
Warranty .............................................................................. 12

Introduction 1 FortiFone™ QuickStart Guide
Introduction
This guide describes how to set up your phone and provides a brief
overview of its features. Start by configuring an extension in the phone
system. Refer to the FortiVoice Administration Guide for information about
configuring an extension.
For further details about your phone, please see the FON-370i User Guide.
Box includes
The following items are included in the box.

Installation 2 FortiFone™ QuickStart Guide
Installation
Attaching the stand
For desktop use
For wall mounting
1. Attach wall mount stand.
2. Mark and drill two 5/16"(7 mm) holes with a vertical separation of 2¾"
(7 cm).
3. Insert plastic wall anchors (not included) into the holes. Insert and tighten
two screws (not included), leaving about 1/8" (2.5 mm) exposed.

Installation 3 FortiFone™ QuickStart Guide
4. Slide the phone over the screws and ensure the phone is secure. It may
be necessary to remove the phone and tighten or loosen the screws for
secure mounting.
5. Remove the handset hook from the phone as shown below (a). Rotate
the hook 180 degrees and re-install (b).
Connecting the phone
1. Connect the handset cord to the handset and the jack on
the phone.
2. Optionally connect an amplified headset to the jack.

Installation 4 FortiFone™ QuickStart Guide
3. Connect the INTERNET port to the network with the provided Ethernet
cable.
4. Optionally connect your desktop PC to the PC port with an Ethernet
cable (not supplied).
5. If the network supports PoE, a power adapter is not required. The
phone requires 5.5 W to function with PoE. If PoE is not supported on
the network, connect the power adapter to the DC5V power jack.
Setting up the phone
For use as an internal extension
The phone supports plug and play installation and will automatically
download its configuration from the FortiVoice system. The phone will
display the extension number and name when it has registered.
Phones that have not yet been configured in the FortiVoice system will
display No Service and their MAC address will appear in the MAC
selection list in the FortiVoice interface. Once configured, reboot the phone
to download its configuration and register to the system.
For use as an external extension
1. Press and use the navigation keys to select Setting. Press OK.
2. Select Advanced Settings. Press OK.
3. Enter 23646 as the password. Press OK.
4. Select Auto Provision. Press OK.
5. Enter the IP address or FQDN of the FortiVoice system in the URL field.
Press the Save softkey.
6. A window will appear. Press the OK softkey to provision.

Using the Phone 5 FortiFone™ QuickStart Guide

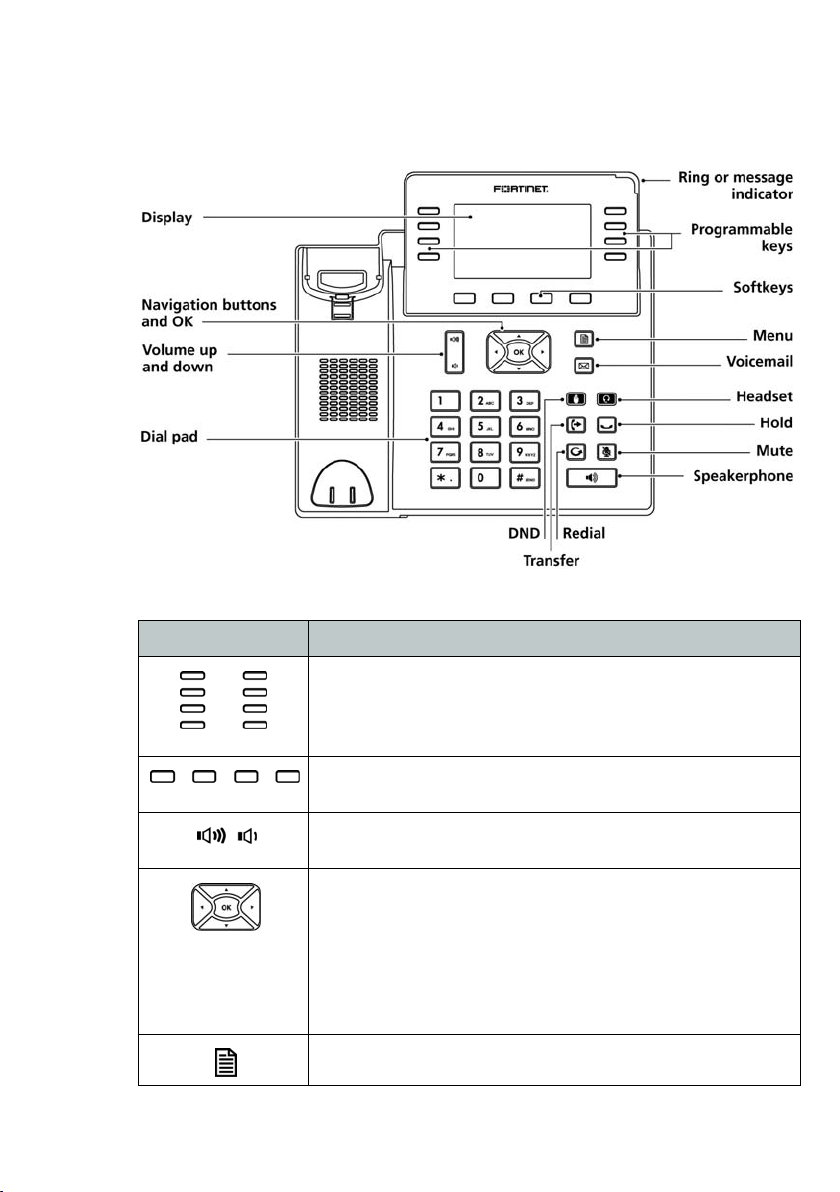

Using the Phone
Button Function
Programmable keys — multicolored light keys that can be
assigned to engage and monitor lines, extensions or
queues. They can also be programmed as function and
speed dial keys.
Softkeys — softkeys change function based on the state of
the phone.
Volume control — adjusts the ring, headset, handset, and
speaker volume.
Navigation buttons and OK button
Left — displays the previous page in the configuration menu.
Right — displays the next page in the configuration menu.
Up — displays the call log when the phone is idle.
Down — displays the phone book when the phone is idle.
OK — center button. Selects current item or save value in
configuration menu.
Menu — displays the configuration menu.

Using the Phone 6 FortiFone™ QuickStart Guide

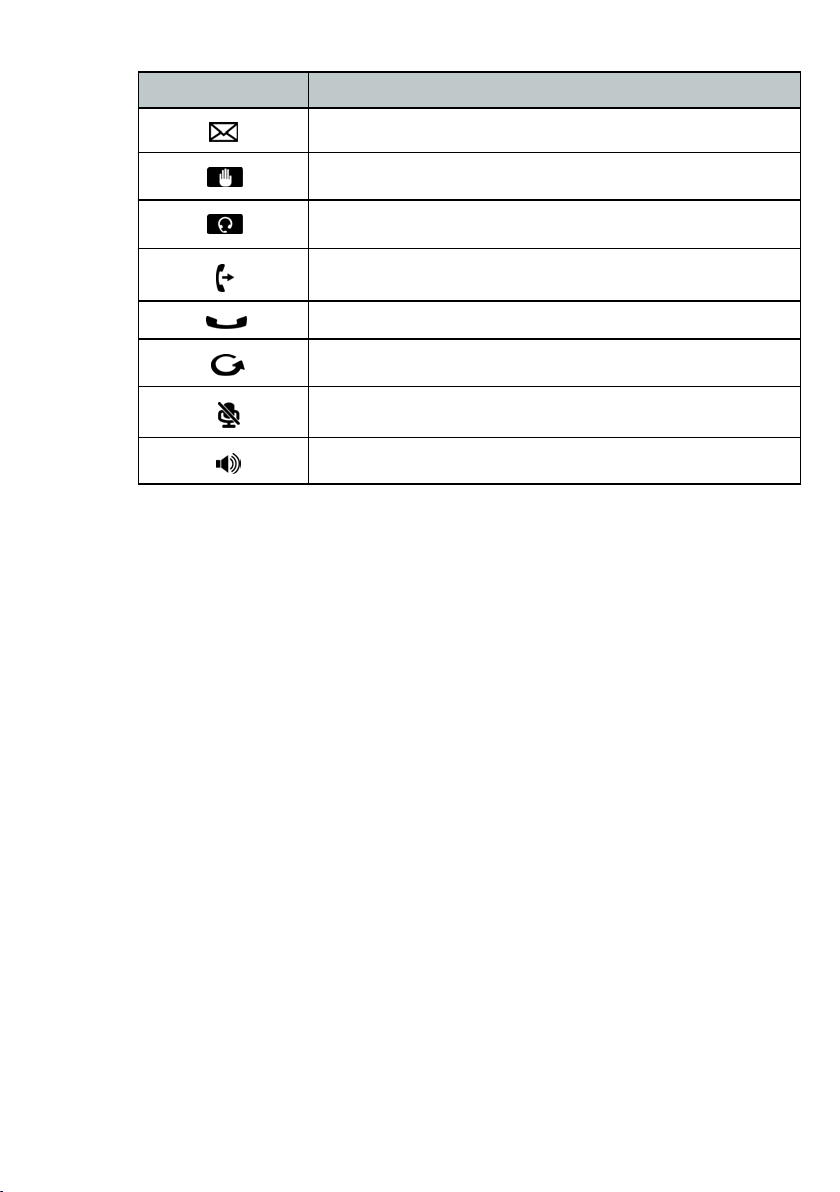

Voicemail — accesses voicemail and voicemail greetings.
DND — toggles do not disturb on and off.
Headset — toggles the headset on and off.
Transfer — transfers a call.
Hold/retrieve — places or retrieves a call on hold.
Redial — dials the last number dialed.
Mute — mutes and unmutes the microphone during calls.
Speakerphone — toggles the speaker on and off.
Button Function

Troubleshooting 7 FortiFone™ QuickStart Guide
Troubleshooting
Symptom Corrective Action
Display is blank Confirm the phone’s power source.
1. If you are using the power adapter:
• Ensure it is plugged in. If it still doesn’t work,
replace the power adapter.
2. If you are using Power over Ethernet (PoE):
• Ensure your Ethernet cable is plugged into the
INTERNET port on the back of your phone.
• Ensure the POE switch is properly configured. If
it still doesn’t work, replace the Ethernet cable.
Phone displays
Obtaining IP
Address for more
than 2 minutes
The DHCP server is not responding.
1. Ensure your DHCP server is online. This is typically
your router.
2. Reboot the router or DHCP server.
3. If you are still experiencing issues, the phone may
require advanced network configuration. Please
contact your administrator or refer to the FON-370i
User Guide.
No Service is
displayed
Your phone is not registered.
1. On the Extension page of the FortiVoice interface,
ensure the MAC address is correctly entered and
the Phone Type is FON-370i. Save your
configuration and reboot the phone.
2. On the phone, ensure the TFTP IP address is
correct. To verify, see “For use as an external
extension” on page 4.
3. If your phone is configured as an external
extension, check the network connection and
firewall settings at the phone system location.
No audio during
a call
1. Check the handset/headset connections.
2. Make sure the phone is properly registered with the
phone system.
3. If your phone is configured as an external
extension, check the network connection and
firewall settings at the phone system location.

Cautions and Warnings 8 FortiFone™ QuickStart Guide
Cautions and Warnings
Environmental specifications
Refer to specific Product Model Data Sheet for Environmental Specifications
(Operating Temperature, Storage Temperature, Humidity, and Altitude).
Référez à la Fiche Technique de ce produit pour les caractéristiques
environnementales (Température de fonctionnement, température de
stockage, humidité et l’altitude).
Safety
This product is intended to be supplied by a Listed Direct Plug-In Power
Unit marked LPS or Class 2 and rated 5 Vdc, 2 A or by 48 Vdc from PoE
source.
Le produit doit être alimenté par un bloc d’alimentation à courant continu
homologué UL de 12 Vdc, 2 A nominal marqué LPS ou Class 2 ou par une
source d’alimentation par Ethernet de 48 Vdc (PoE).
E911 and use with Multi-Line Telephone Systems
Please note the use and operation of this phone as part of a multi-line
telephone system (MLTS) may be subject to state and/or federal E911
MLTS laws that require the MLTS to provide a caller's telephone number,
extension, and physical location to applicable state and/or local
emergency services when a caller initiates a 911 call. The MLTS may not
provide a caller’s telephone number, extension, or physical location
information to emergency services when a caller dials 911, and
compliance with state and/or federal E911 MLTS laws is the sole
responsibility of the purchaser of this phone.
Caution: This equipment is to be used in a Network Environment 0 per
IECTR 62101. This product is connected only to PoE networks without
routing to the outside plant.
Attention : Ce matériel doit être utilisé dans un Environnement Réseau 0
par IECTR 62101. Ce produit est uniquement connecté aux réseaux PoE
sans installation externe de routage.

Cautions and Warnings 9 FortiFone™ QuickStart Guide
Privacy
This phone implements security and encryption technologies. However,
privacy of communications may not be ensured when using this telephone.

Regulatory Notices 10 FortiFone™ QuickStart Guide
Regulatory Notices
Federal Communication Commission (FCC) — USA
This device complies with Part 15 of FCC Rules. Operation is subject to
the following two conditions:
1. this device may not cause harmful interference, and
2. this device must accept any interference received; including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in residential installation. This equipment generates, uses, and can radiate
radio frequency energy, and if it is not installed and used in accordance
with the instruction manual, it may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Warning: Any changes or modifications to this unit not expressly
approved by the party responsible for compliance could void the user’s
authority to operate the equipment.

Regulatory Notices 11 FortiFone™ QuickStart Guide
European Conformity (CE) — EU
This is a Class B product. In a domestic environment, this product may
cause radio interference, in which case the user may be required to take
adequate measures.
Industry Canada Equipment Standard for Digital
Equipment (ICES) — Canada
This Class B digital apparatus complies with Canadian ICES-003.

Warranty 12 FortiFone™ QuickStart Guide
Warranty
This phone is covered by a one-year hardware warranty against
manufacturing defects as set forth in the EULA.
www.fortivoice.com/support
For warranty service:
•In North America, please call 1-866-648-4638 for further information.
•Outside North America, contact your sales representative for return
instructions.
You will be responsible for shipping charges, if any. When you return this
telephone for warranty service, you must present proof of purchase.
