Four e's scientific Ironman iii User manual

Operating Instructions

使用说明书

Water Bath

恒温水浴器

WB301 / Ironman Ⅲ

WB401 / Ironman Ⅳ

Please read the operating instructions in full before starting up and follow the safety instructions.

The appearance and specifications are subject to change without notice.

Contents

Declaration of Conformity

1. Safety Instructions

2. Unpacking

3. Installation

4. Correct use

5. Operation

6. Calibration

7. Faults

8. Maintenance and Cleaning

9. Technical Data

10. Warranty

PREFACE

Welcome to use "Operating Instructions of Water Bath". Users

should read this manual carefully, follow the instructions and

procedures, and be ware of all the cautions when using this

instrument.

DECLARATION OF CONFORMITY

This water bath complies with the relevant standards of

2014/35/EU EN61010-1

2014/30/EU EN55011/B, EN61326-1

YY91037-99

1. SAFETY INSTRUCTIONS

Read the operating instructions in full before starting up and

follow the safety instructions.

• Socket must be earthed (protective ground contact) before use.

• Water must be filled into the chamber before power-on.

• Avoid operating the bath without water.

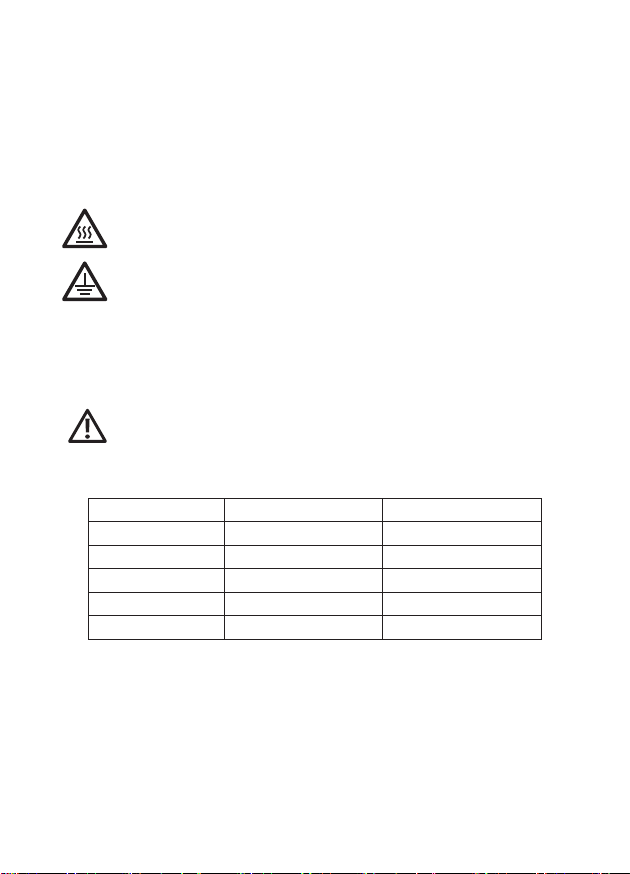

• The symbols below are marked on the equipment and in this

manual to indicate:

Caution: Surfaces can be hot during and after use

Caution: Socket must be earthed

(protective ground contact).

2. UNPACKING

Please unpack the device carefully and check it for damage. It

is important that any transport damage is detected when the

device is unpacked. If necessary, any inventory of the damage

should be made immediately (postal service, railway, haulage

company).

Caution:

If the device/adapter is obviously damaged, please do not

connect the power cord.

Delivery scope

Model

Water bath

Transparent lid

Base tray

Power cable

Operating manual

Ironman Ⅲ

Ironman Ⅳ

⑤ Base tray

⑥ Drain port

⑦ Handle

3. INSTALLATION

3.1 Assembly of the equipment and components

The water bath has three main components, the bath, the lid

and the base tray. The base tray fits into the bath with the feet

downward so that it creates a gap between the bottom of the

chamber and the tray.

Note:

1. For optimum temperature stability, avoid allowing the base

tray and sample container to touch the sides of the chamber

while operating.

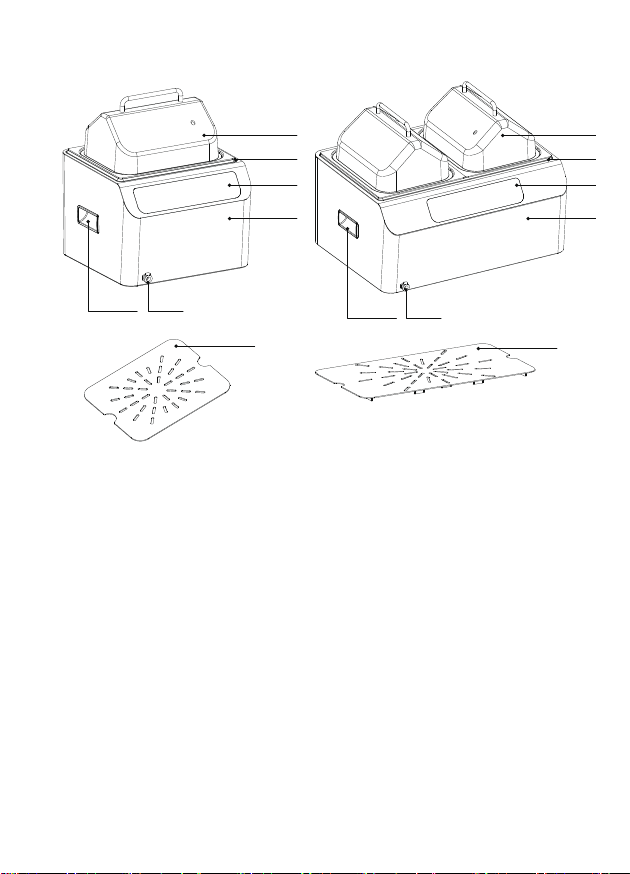

WB301 / Ironman Ⅲ WB401 / Ironman Ⅳ

① Transparent lid

② Stainless-steel chamber

③ LED display

④ Water bath

①

②

③

④

①

②

③

④

⑤⑤

⑦ ⑥ ⑦ ⑥

2. The lid should only be lifted by the handle, as other parts can

become hot during use.

3. It has a vent/thermometer hole–this hole should not be

sealed as pressure could build up inside the bath.

3.2 Instrument placement

Place the water bath on a level, non-combustible surface.

Ensure that the mains plug and the switch are easily accessible.

3.3 Electrical supply

• Check that the supply voltage marked on the serial number

label, and the type of mains plug, are correct for your mains

supply outlet, which must have a ground connection.

• To disconnect the equipment from the mains supply, remove

the mains plug from the mains supply outlet.

4. CORRECT USE

4.1. Avoid operating the bath without water

• Avoid using your bath without water in the chamber. Dry-start

will affect the service life of the key component.

• The bath has an inbuilt protection mechanism known as dry

start protection which will detect this condition in most

circumstances and prevent the bath from continuing to heat.

In this instance the bath will display “ ” and sound an

alarm. If theprotection program fails to detect the dry-heating,

built-in safety temperature cut-out switch will cut off the heating

to protect the water bath when heated to a certain temperature .

Note:

The dry-start protection program is on by default. If you need to

turn it off, please refer to 5.8. Setting the dry-start protection alarm.

The chamber internal surface can become very hot if an

accidental dry start has occurred, even if the dry start cut out

has operated. Avoid touching the chamber until it has been left

to cool.

4.2. Filling the baths

For safe use, please do not fill the bath with water during heating

process. Please turn off the power first if you need to add water.

If filling water triggers a safety warning during the heating process,

please restart the machine to dismiss the warning.

4.3. Emptying the baths

Before emptying any bath, disconnect the device from the power

supply and pull out the plug. Then allow the water temperature

to fall to a safe level and take reasonable precautions to prevent

accidental spillage.

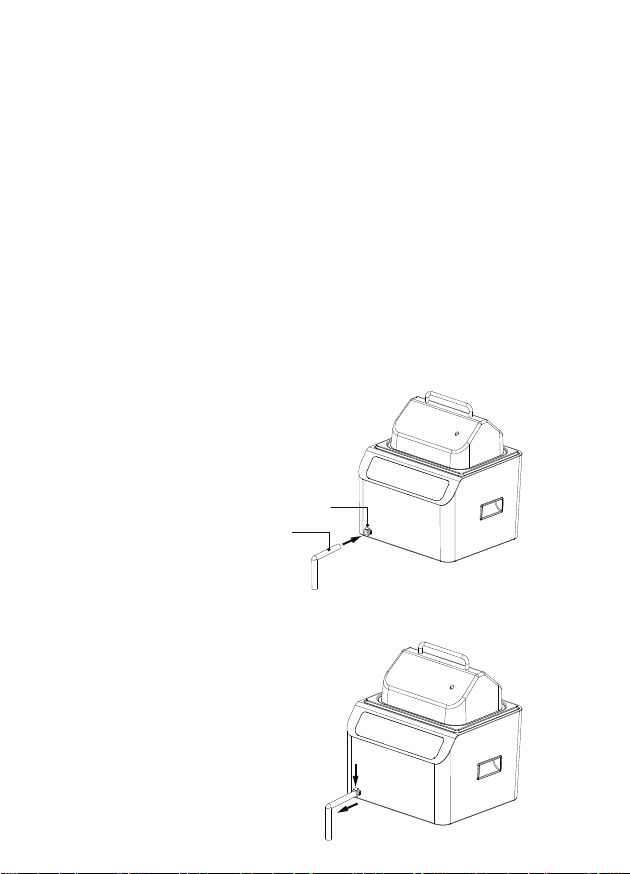

The drainage operation is as follows：

1. Insert the drain pipe into the drain port according to the

direction shown in the figure.

① Drain pipe

② Drain port

2. After draining, loosen the lock of the drain port in the direction

of the arrow as shown in the figure, and then quickly pull out

the drain pipe.

①

②

①②③

④ ⑤ ⑥ ⑦ ⑧

°C

°F

⑨ ⑩

4.4. Using transparent lid

• When the setting temperature is above 60°C , use the lid to

maintain proper temperature control and ensure that the water

temperature reaches the set point.

• The lid will also prevent excessive evaporation that requires

the bath to be filled more often and will save energy.

4.5. Using base tray

• Using the base tray can improve temperature control inside

containers.

• Don’t put the containers or other items into the stainless-steel

chamber directly. Avoid the containers or other items direct

contact with the inside walls of chamber.

5. OPERATION

5.1. Bath controls

①Preset program ② Set ③ ℃ indicator ④ Heating indicator

⑤ Alarm indicator ⑥ ℉ indicator ⑦ Run/Stop

⑧ Countdown ⑨Over-temperature alarm key ⑩℃/℉switch

5.2. Run/Stop

When it is displayed OFF, the water bath is in unheated status.

When it displays the actual temperature, the water bath is in

heating status.

Press to switch run/stop heating

For example:

Current temperature: 50.0℃；

Press the run/stop key to start heating, it displays - - - - and the

current temperature.

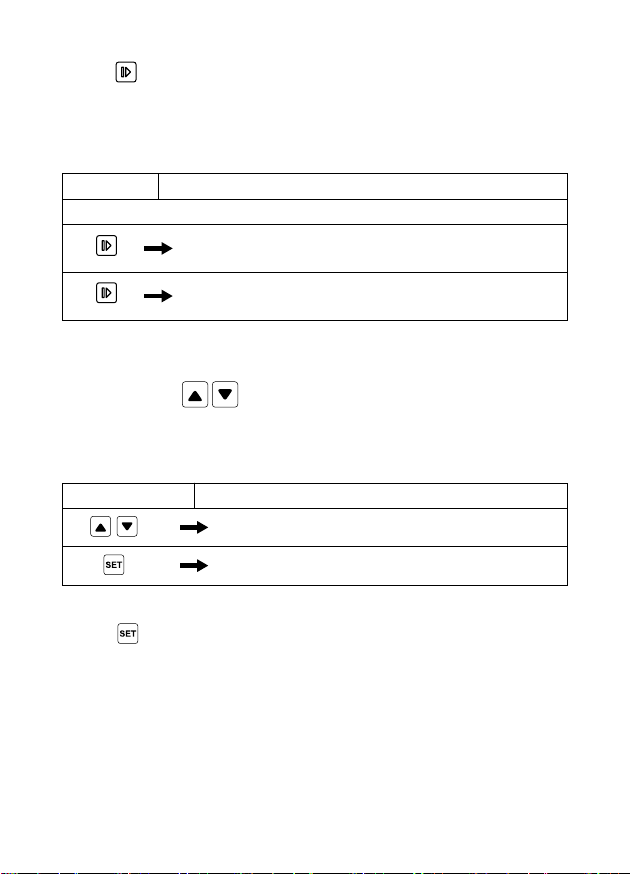

Operation Display

OFF Current temperature

- - - - ＆50.0

OFF

Press the run/stop key to start heating,

it displays the current temperature,

countdown is off

Press the run/stop key again, heating

stops, and the screen displays “OFF”

Operation Display

50.0

37.0

Directly set the heating temperature you

require

Press the set key to save the value then

exit, it displays the current temperature/OFF

5.3. Heating temperature setting

Method 1:

Directly press to enter the temperature setting as

following steps:

For example:

the current temperature is 37.0°C, and set the temperature 50.0°C

Method 2:

Press to enter the temperature setting sub-menu to adjust the

temperature as following steps:

For example:

the current temperature is 37.0°C, and set the temperature 50.0°C

The bath is in unheated status

Operation Display

Press set key to enter the first level menu

Enter the temperature setting submenu

Press set key again to enter the temperature

setting menu option

Set the temperature you require

Press the set key to save the setting then exit,

it displays the current temperature/OFF.

Method 3: Run the preset . Please see the detailed

steps 5.4 for how to configure and run the presets.

5.4. Configuring and running temperature presets

The bath has 3 presets: . Temperature presets allow

you to conveniently store or run bath temperature settings for your

routinely use.

Before you can use presets, you need to store the values you wish

to use in at least one of the presets as the following procedures.

The steps to set the preset program are as follows：

For example:

configuring the preset P1, the current temperature is 37.0°C, preset

the temperature 50.°C

Operation Display

Select the preset you wish to set;

Set the value you wish to use;

Press the preset again to store the value

and the bath with automatically return to

displaying the current temperature/OFF

Operation Display

Press the preset you want to use;

Press “set” to confirm the preset, it displays

the current temperature/OFF.

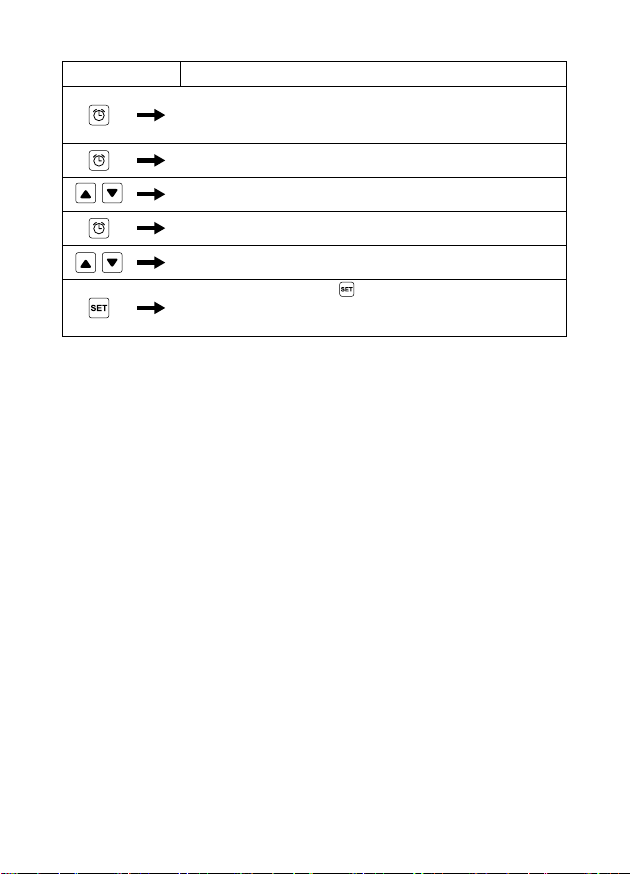

Operation Display

Press the over-temperature alarm key to

enter the setting menu.

Set the over-temperature alarm limit you

require

Press the over-temperature alarm key again

to save the setting, it displays the current

temperature/OFF.

℉ indicator is on

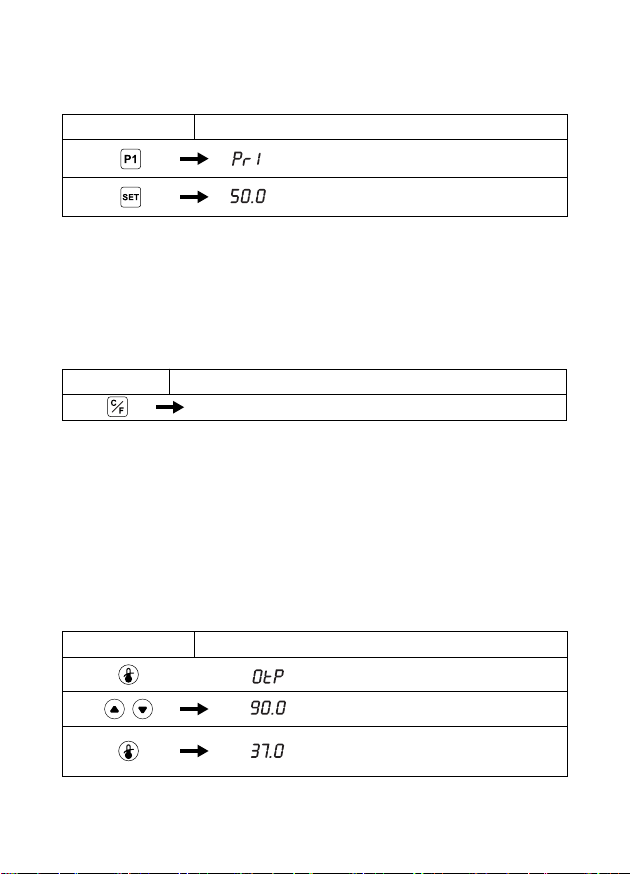

Operation Display

Running the preset as the following procedures

For example: run the preset P1

5.5. Switch between Fahrenheit Temperature (°F) and Celsius

Temperature (°C)

When the °C indicator is on, the unit of temperature is °C; When

the °F indicator is on, the unit of temperature is °F.

Setting procedures as following:

For example: switch “°C” to “°F”.

5.6 Setting the over temperature alarm

Protect the sample by setting the max. temperature that the bath

allows to be heated.

The setting procedures are as following:

For example:

the current temperature is 37.0°C and the over-temperature alarm

limit is 90.0°C

If the liquid temperature exceeds the setting over-temperature alarm

limited temperature, the water bath will stop heating, display “ ”

and start an alarm. The alarm can be turned off by the following

operations:

• Turn off the power, the alarm is turned off, and restart the machine

after the water temperature is lower than the over-temperature

alarm limited temperature ;

• Add some cold water until the water temperature drops below the

over-temperature alarm limited temperature, and the alarm will be

turned off;

• Set the over-temperature alarm limited temperature to above the

water temperature, and the alarm will be turned off.

5.7. Setting the countdown timer

The countdown timer range is 0~99H59min.

After the countdown is over, an alarm will sound three times and

the heating will stop, “OFF” is displayed.

Note:

1. The countdown can start only in heating state. The countdown will

stop once the heating is stopped.

2. In heating state, save the setting value of timer, the countdown

will start immediately.

3. In unheated state, save the setting value of timer, then press the

“Run/Stop” to start countdown.

4. The countdown settings are independent of the temperature

settings. When setting the countdown, take into account the

time required to achieve the set temperature.

The countdown timer setting as following procedures:

For example:

set the countdown time from 0 to 1 hour 10 minutes.

5.8. Setting the dry-start protection alarm

When the device is started, the dry-burning protection function

is automatically turned on.

When the system detects that the inner pot is in a dry state, it

will stop heating and sound analarm.

6. CALIBRATION

6.1. Calibration condition

To ensure accurate calibration results, good calibration conditions

are required:

1. The accuracy of the thermometer should be more than 10 times

that of the water bath display.

2. At a stable ambient temperature (+/-1°C) without air convection.

3. Wait for the liquid to reach the calibration setting temperature

and stabilize for 30 minutes before calibrating.

4. Add water to the water bath to 50 mm above the tray, and place

the thermometer in the center of the water bath, 40 mm away

from the tray.

Operation Display

When the countdown is 0, it displays ---- and the

current temperature, and the countdown is off; when

the countdown is not 0, it displays the length of the

countdown and the current temperature.

The first two digits are flashing; enter the state of

setting countdown hours

Set countdown hours

The last two digits are flashing; enter the state of

setting countdown minutes

Set countdown minutes

Press the to save the setting, or the setting is

invalid. The countdown timer will begin once you save

the setting. The setting will exit automatically after 10S

without operation

----

current temperature
