Four E's Scientific WB301 User manual

Operating Instructions
使用说明书
Water Bath
恒温水浴器
WB301 / Ironman Ⅲ

1
Please read the operating instructions in full before starting up and follow the safety instructions.
The appearance and specifications are subject to change without notice.
Contents
Declaration of Conformity
1. Safety Instructions
2. Unpacking
3. Installation
4. Correct use
5. Operation
6. Calibration
7. Faults
8. Maintenance and Cleaning
9. Technical Data
10. Warranty
3
3
5
5
7
12
14
14
15
15

2
PREFACE
Welcome to the "Operating Instructions of Water Bath". Users
should read this manual carefully, follow the instructions and
procedures, and be ware of all the cautions when using this
instrument.
DECLARATION OF CONFORMITY
This water bath complies with the relevant standards of
2014/35/EU EN61010-1
2014/30/EU EN55011/B, EN61326-1
YY91037-99

3
1. SAFETY INSTRUCTIONS
Read the operating instructions in full before starting up and
follow the safety instructions.
• Socket must be earthed (protective ground contact) before use.
• Water must be filled into the chamber before power-on.
• Avoid operating the bath without water.
• The symbols below are marked on the equipment and in this
manual to indicate:
Caution: Surfaces can be hot during and after use
Caution: Socket must be earthed
(protective ground contact).
2. UNPACKING
Please unpack the device carefully and check it for damage. It
is important that any transport damage is detected when the
device is unpacked. If necessary, any inventory of the damage
should be made immediately (postal service, railway, haulage
company).
Caution:
If the device/adapter is obviously damaged, please do not
connect the power cord.
Delivery scope
Model
Water bath
Transparent lid
Base tray
Power cable
Operating manual
WB301
1
1
1
1
1

4

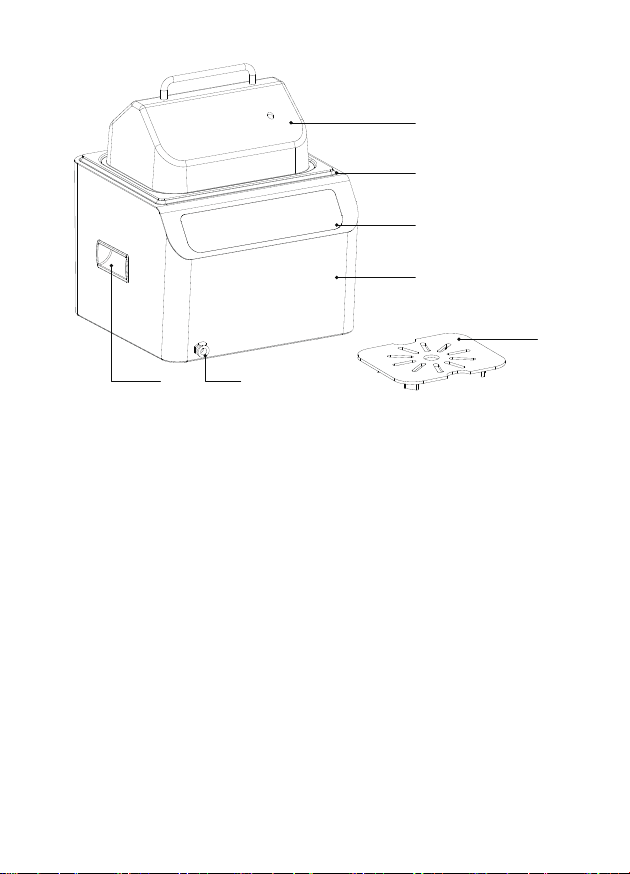

① Transparent lid
② Stainless-steel chamber
③ LED display
④ Water bath
⑤ Base tray
⑥ Drain port
⑦ Handle
①
②
③
④
⑤
⑥⑦
3. INSTALLATION
3.1 Assembly of the equipment and components
The water bath has three main components, the bath, the lid
and the base tray. The base tray fits into the bath with the feet
downward so that it creates a gap between the bottom of the
chamber and the tray.
Note:
1. For optimum temperature stability, avoid allowing the base
tray and sample container to touch the sides of the chamber
while operating.

5
2. The lid should only be lifted by the handle, as other parts can
become hot during use.
3. It has a vent/thermometer hole–this hole should not be
sealed as pressure could build up inside the bath.
3.2 Instrument placement
Place the water bath on a level, non-combustible surface.
Ensure that the mains plug and the switch are easily accessible.
3.3 Electrical supply
• Check that the supply voltage marked on the serial number
label, and the type of mains plug, are correct for your mains
supply outlet, which must have a ground connection.
• To disconnect the equipment from the mains supply, remove
the mains plug from the mains supply outlet.
4. CORRECT USE
4.1. Avoid operating the bath without water
• Avoid using your bath without water in the chamber. Dry-start
will affect the service life of the key component.
• The bath has an inbuilt protection mechanism known as dry
start protection which will detect this condition in most
circumstances and prevent the bath from continuing to heat.
In this instance the bath will display “ ” and sound an
alarm. If theprotection program fails to detect the dry-heating,
built-in safety temperature cut-out switch will cut off the heating
to protect the water bath when heated to a certain temperature .
Note:
The dry-start protection program is on by default. If you need to
turn it off, please refer to 5.8. Setting the dry-start protection alarm.
The chamber internal surface can become very hot if an
accidental dry start has occurred, even if the dry start cut out
has operated. Avoid touching the chamber until it has been left
to cool.

4.2. Emptying the baths
Before emptying any bath, disconnect the device from the power
supply and pull out the plug. Then allow the water temperature
to fall to a safe level and take reasonable precautions to prevent
accidental spillage.
The drainage operation is as follows：
1. Insert the drain pipe into the drain port according to the
direction shown in the figure.
① Drain pipe
② Drain port
2. After draining, loosen the lock of the drain port in the direction
of the arrow as shown in the figure, and then quickly pull out
the drain pipe.
6
①
②

7
①②③
④ ⑤ ⑥ ⑦ ⑧
°C
°F
⑨ ⑩
4.3. Using transparent lid
• When the setting temperature is above 60°C , use the lid to
maintain proper temperature control and ensure that the water
temperature reaches the set point.
• The lid will also prevent excessive evaporation that requires
the bath to be filled more often and will save energy.
4.4. Using base tray
• Using the base tray can improve temperature control inside
containers.
• Don’t put the containers or other items into the stainless-steel
chamber directly. Avoid the containers or other items direct
contact with the inside walls of chamber.
5. OPERATION
5.1. Bath controls
①Preset program ② ③ ℃ indicator ④ Heating indicator
⑤ Alarm indicator ⑥ ℉ indicator ⑦ Run/Stop
⑧ Countdown ⑨Over-temperature alarm key ⑩℃/℉switch
5.2. Run/Stop
When it is displayed OFF, the water bath is in unheated status.
When it displays the actual temperature, the water bath is in
heating status.

Press to switch run/stop heating
For example:
Current temperature: 50.0℃；
Press the run/stop key to start heating, it displays - - - - and the
current temperature.
Operation Display
OFF Current temperature
- - - - ＆50.0
OFF
Press the run/stop key to start heating,
it displays the current temperature,
countdown is off
Press the run/stop key again, heating
stops, and the screen displays “OFF”
Operation Display
50.0
37.0
Directly set the heating temperature you
require
Press the set key to save the value then
exit, it displays the current temperature/OFF
5.3. Heating temperature setting
Method 1:
Directly press to enter the temperature setting as
following steps:
For example:
the current temperature is 37.0°C, and set the temperature 50.0°C
Method 2:
Press to enter the temperature setting sub-menu to adjust the
temperature as following steps:
For example:
the current temperature is 37.0°C, and set the temperature 50.0°C
8
The bath is in unheated status

9
Operation Display
Press set key to enter the first level menu
Enter the temperature setting submenu
Press set key again to enter the temperature
setting menu option
Set the temperature you require
Press the set key to save the setting then exit,
it displays the current temperature/OFF.
Method 3: Run the preset . Please see the detailed
steps 5.4 for how to configure and run the presets.
5.4. Configuring and running temperature presets
The bath has 3 presets: . Temperature presets allow
you to conveniently store or run bath temperature settings for you
routinely use.
Before you can use presets, you need to store the values you wish
to use in at least one of the presets as the following procedures.
The steps to set the preset program are as follows：
For example:
configuring the preset P1, the current temperature is 37.0°C, preset
the temperature 50.°C
Operation Display
Select the preset you wish to set;
Set the value you wish to use;
Press the preset again to store the value
and the bath with automatically return to
displaying the current temperature/OFF

Operation Display
Press the preset you want to use;
Press “set” to confirm the preset, it displays
the current temperature/OFF.
Operation Display
Press the over-temperature alarm key to
enter the setting menu.
Set the over-temperature alarm limit you
require
Press the over-temperature alarm key again
to save the setting, it displays the current
temperature/OFF.
10
℉ indicator is on
Operation Display
Running the preset as the following procedures
For example: run the preset P1
5.5. Switch between Fahrenheit Temperature (°F) and Celsius
Temperature (°C)
When the °C indicator is on, the unit of temperature is °C; When
the °F indicator is on, the unit of temperature is °F.
Setting procedures as following:
For example: switch “°C” to “°F”.
5.6 Setting the over temperature alarm
Protect the sample by setting the max. temperature that the bath
allows to be heated.
The setting procedures are as following:
For example:
the current temperature is 37.0°C and the over-temperature alarm
limit is 90.0°C

If the liquid temperature exceeds the setting over-temperature alarm
limited temperature, the water bath will stop heating, display “ ”
and start an alarm. The alarm can be turned off by the following
operations:
• Turn off the power, the alarm is turned off, and restart the machine
after the water temperature is lower than the over-temperature
alarm limited temperature ;
• Add some cold water until the water temperature drops below the
over-temperature alarm limited temperature, and the alarm will be
turned off;
• Set the over-temperature alarm limited temperature to above the
water temperature, and the alarm will be turned off.
5.7. Setting the countdown timer
The countdown timer range is 0~99H59min.
After the countdown is over, an alarm will sound three times and
the heating will stop, “OFF” is displayed.
Note:
1. The countdown can start only in heating state. The countdown will
stop once the heating is stopped.
2. In heating state, save the setting value of timer, the countdown
will start immediately.
3. In unheated state, save the setting value of timer, then press the
“Run/Stop” to start countdown.
4. The countdown settings are independent of the temperature
settings. When setting the countdown, take into account the
time required to achieve the set temperature.
The countdown timer setting as following procedures:
For example:
set the countdown time from 0 to 1 hour 10 minutes.
11

5.8. Setting the dry-start protection alarm
When the device is started, the dry-burning protection function
is automatically turned on.
When the system detects that the inner pot is in a dry state, it
will stop heating and sound analarm.

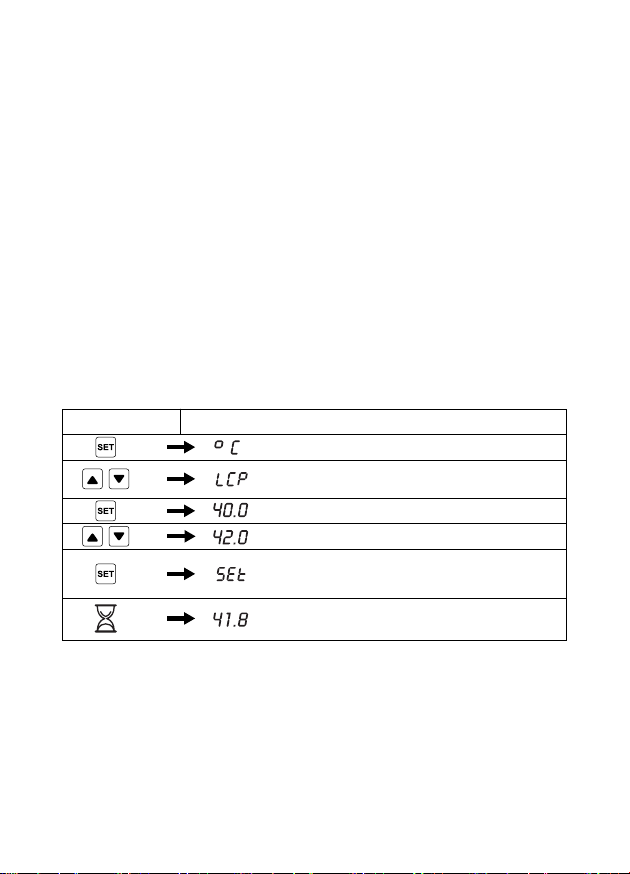

6. CALIBRATION
6.1. Calibration condition
To ensure accurate calibration results, good calibration conditions
are required:
1. The accuracy of the thermometer should be more than 10 times
that of the water bath display.
2. At a stable ambient temperature (+/-1°C) without air convection.
3. Wait for the liquid to reach the calibration setting temperature
and stabilize for 30 minutes before calibrating.
4. Add water to the water bath to 50 mm above the tray, and place
the thermometer in the center of the water bath, 40 mm away
from the tray.
12
Operation Display
When the countdown is 0, it displays ---- and the
current temperature, and the countdown is off; when
the countdown is not 0, it displays the length of the
countdown and the current temperature.
The first two digits are flashing; enter the state of
setting countdown hours
Set countdown hours
The last two digits are flashing; enter the state of
setting countdown minutes
Set countdown minutes
Press the to save the setting, or the setting is
invalid. The countdown timer will begin once you save
the setting. The setting will exit automatically after 10S
without operation
----
current temperature
00:00
current temperature
01:00
current temperature
01:00
current temperature
01:10
current temperature
01:10
current temperature

6.2. Dual point calibration
Due to the influence of ambient temperature, humidity, and pot
structure, the water bath has a certain deviation in temperature
measurement. In order to improve the measurement and control
accuracy, each single instrument is calibrated before shipment.
Includes two calibration options -- low temperature point and high
temperature point.
Low temperature point(LCP): 40°C
High temperature point(HCP): 95°C
Low temperature point calibration:
For example:
Before calibration, the screen displays 40.0 C but the actual liquid
temperature is 42.0°C
After calibration, the screen displays 41.8 C and the actual liquid
temperature is 42.0°C
High temperature point calibration:
For example:
Before calibration, the screen displays 95°C but the actual liquid
temperature is 98.0°C;
After calibration, the screen displays 97.7°C and the actual liquid
temperature is 98.0°C;
Operation Display
Select the menu option
Select the low temperature point calibration
setting menu option
Press SET to enter the calibration value
Enter the reference thermometer value
Press to store the calibration value, or the
setting is invalid. The setting will exit
automatically after 10S without operation
13

Operation Display
Select the menu option
Select the high temperature point calibration
setting menu option
Press set to enter the calibration value
Enter the reference thermometer value
Press to store the calibration value, or the
setting is invalid. The setting will exit
automatically after 10S without operation
7. FAULTS
Possible cause
Temperature sensor short-circuit
Temperature sensor open-circuit
Over-temperature Alarm
1. The initial water temperature is
above the OTP value
2.If the OTP setting value is too low
Dry-start alarm, no water in the
chamber or the water is less than
the Min.amount.
Symptom Action required
Have a competent person check
the temperature sensor or
motherboard for a short circuit
fault.
Check if the sensor is well
contacted.
1. Let water cool.
2.Reset the OTP value.
Switch the bath off and refill the
bath with water
Restart the device after high and low temperature points calibration.
Leave the bath temperature to be stable and check the calibration.
8. MAINTENANCE AND CLEANING
Correct use of the instrument to keep it in good working condition
will help extend its service life.
Disconnect the power supply before maintenance and cleaning.
14

Voltage
Power [W]
Heating temperature range [℃]
(under standard atmosphere)
Temperature stability [℃]
Temperature display accuracy[℃]
Time setting range [min]
Dimensions(W x H x D)[mm]
Reservoir capacity [L]
Weight [kg]
AC100~120V,50/60HZ
AC200~240V,50/60HZ
1000
Room temp. +5～99
±0.3
0.1
0-99H59min
348*349*427
13
7.4
No routine maintenance is required except for cleaning. Clean the
outside of the equipment with a damp cloth soaked in soap, dish
washing liquid or alcohol. Wait for dry before continuing to use.
There are no user serviceable parts inside the unit.
9. TECHNICAL DATA
10. WARRANTY
You have purchased an original laboratory machine which meets
the highest engineering and quality standards. In accordance with
our warranty conditions, the warranty period is 24 months from our
shipment. For claims under the warranty, please contact your local
dealer. You may also send the machine directly to our works,
enclosing the delivery invoice and giving reasons for the claim.
You will be liable for freight costs.
The warranty does not cover worn out parts, accidental damage,
incorrect storage, nor does it apply to faults resulting from improper
use, insufficient care or maintenance not carried out in accordance
with the instructions in this operating manual.
15

请仔细阅读说明书并在说明书的操作指导下安全使用本仪器。
外形和性能指标如有变动，概不另行通知。
前言
符合性声明
1. 安全说明
2. 开箱指引
3. 安装
3.1. 仪器安装
3.2. 仪器摆放
3.3. 电源供应
4. 操作说明
4.1. 操作规范
4.2. 操作设置
4.3. 校准
5. 故障排除
6. 清洁与维护
7. 技术参数
8. 保修
目 录
16
17
17
18
18
20
20
20
20
20
20
21
25
27
27
27
28

17
前言
欢迎使用《恒温水浴器使用说明书》。用户在使用本仪器前应仔细阅读本
说明书，了解相关注意事项，并按照说明书中的指导和规范进行操作。
符合性声明
2014/35/EU EN61010-1; 2014/30/EU EN55011/B, EN61326-1和
YY91037-99 标准的相关要求

18
1. 安全说明
• 为保证安全，使用本仪器前请确认电源插座接地良好。
• 使用时必须先加水到内锅里，再接通电源。
• 避免干烧。
• 以下标志在设备和使用说明书中表示：
注意：表面在使用期间和使用后可能会很热。
注意：必需接地。
2. 开箱指引
• 请小心拆除包装并检查仪器
• 如果发现任何破损，请填写破损报告并立即通知货运公或联系供货商。
注意：
• 如果设备/适配器有明显损坏，请不要连接电源线。
• 包装清单
型号
主机
透明盖子
托盘
电源线
使用说明书
Ironman Ⅲ
1台
1个
1个
1条
1本

19
① 透明盖子 ② 不锈钢内锅 ③ 控制面板 ④ 水浴器主体 ⑤托盘
⑥排水接口 ⑦把手
①
②
③
④
⑤
⑥⑦
3. 安装
3.1. 仪器安装
水浴器有三个主要组成部分：水浴器主体、透明盖子和托盘。托盘支撑
脚需朝下放置，确保内锅与托盘之间存在间隙。
注意：
• 为达到最佳的温度稳定性，在使用水浴器时应该避免托盘与内锅的侧
面直接接触。
• 在使用过程中，透明盖子可能会变热，仅可通过把手提起盖子。
• 盖子有一个通风孔/温度计孔，不要密封该孔，避免内部积聚压力。
3.2. 仪器摆放
将水浴器置于水平且周围无易燃物品的桌面上,确保电源插头和开关容易
触及。
