Framery 2Q Lounge User manual

Framery 2Q Huddle
Installation instructions
English
Version 1.2
Tampere, Finland 19.9.2022

Framery 2Q Huddle
Contents
1 Warranty checklist....................................................................................... 7
2 Important safety and product instructions............................................... 8
2.1 Preface....................................................................................................................8
2.2 Product information................................................................................................ 8
2.3 Copyright.................................................................................................................8
2.4 Manual contents..................................................................................................... 8
2.5 Intended use...........................................................................................................8
2.5.1 Non-conventional use.................................................................................8
2.5.2 Ambient conditions for use.........................................................................9
2.6 Warning, information, and safety symbols in this manual...................................... 9
2.7 Main safety risks related to the installation, maintenance, disassembly, and
use of the product.................................................................................................... 9
2.7.1 Installation, maintenance, and disassembly............................................. 10
2.7.2 Electrical safety........................................................................................ 10
2.7.3 Fire safety.................................................................................................11
2.7.4 Use............................................................................................................12
3 Installation requirements.......................................................................... 14
3.1 Tools and accessories.......................................................................................... 14
3.2 Main dimensions...................................................................................................15
3.3 Installation space..................................................................................................16
3.4 Operating space................................................................................................... 16
4 Prepare the carpet for installation...........................................................17
5 Install the back half of the pod................................................................18
5.1 Install the back half of the floor........................................................................... 18
5.2 Install the back half of the roof............................................................................ 22
5.2.1 Prepare the roof modules (back)............................................................. 22
5.2.2 Attach the roof modules together (back)..................................................24
5.2.3 Install the upper frame (back).................................................................. 26
5.3 Install the wall modules and the roof of the back half of the pod......................... 27
5.3.1 Install the support beam to the wall modules (back)................................27
5.3.2 Assemble the roof support beams (back)................................................ 28
5.3.3 Install the back half of the roof to the wall modules................................. 29
5.3.4 Install the combined roof and walls to the floor (back).............................32
6 Install the front half of the pod................................................................34
6.1 Install the front half of the floor............................................................................34
6.2 Install the front half of the roof.............................................................................36
6.2.1 Prepare the roof modules (front)..............................................................36
6.2.2 Attach the roof modules together (front).................................................. 38
6.3 Install the wall modules and the roof of the front half of the pod..........................41

Framery 2Q Huddle
6.3.1 Install the support beam to the wall modules (front)................................ 41
6.3.2 Install the front half of the roof to the wall modules................................. 42
6.3.3 Install the combined roof and walls to the floor (front)............................. 45
7 Connect the back and front halves of the pod.......................................47
7.1 Check the straightness of the pod halves after connecting..................................50
8 Install the back frames and glasses........................................................56
8.1 Install the left-hand frames...................................................................................56
8.2 Install the first side glass and the center glass.................................................... 59
8.3 Install the right-hand frames and the other side glass......................................... 60
8.4 Finalize the installation of the back frames and glasses......................................63
9 Install the carpet........................................................................................65
10 Install the front frames and glasses......................................................66
10.1 Install the corner and side frames......................................................................66
10.2 Install the control panel...................................................................................... 68
10.3 Install the booking system bracket (optional)..................................................... 72
10.3.1 Install the USB cord into the strike plate-side glass frame (optional)......73
10.3.2 Install the booking system bracket (optional)......................................... 74
10.3.3 Install the 5V unit (optional)................................................................... 80
10.4 Install the side glasses.......................................................................................84
10.5 Install the front center frame.............................................................................. 88
10.6 Finalize the installation of the front frames and glasses.................................... 89
11 Install the control unit.............................................................................90
12 Install the control panel cord and the ceiling threshold......................93
13 Install the door.........................................................................................99
13.1 Install the floor threshold....................................................................................99
13.2 Install the door..................................................................................................100
13.3 Adjust the closing speed of the door............................................................... 103
13.4 Install the lock case..........................................................................................109
13.5 Install the door handle......................................................................................110
13.6 Install the smart lock handle (optional)............................................................ 113
13.6.1 Adjust the strike plate...........................................................................120
13.6.2 Check the lock function........................................................................121
13.7 Adjust the door height...................................................................................... 124
13.8 Adjust the automatic door seal.........................................................................127
14 Install the interior and electrics........................................................... 129
14.1 Install the metal box to the table top................................................................129
14.2 Install the power outlet to the table top............................................................134
14.3 Install the wall bracket and table legs..............................................................136
14.4 Install the power outlet on the table.................................................................138
14.5 Install the power cord from the roof................................................................. 141

Framery 2Q Huddle
14.6 Install the seals................................................................................................ 141
14.7 Install the display bracket and display (optional)............................................. 147
14.8 Install the metal trims and cord duct................................................................150
14.9 Install electrical connections to the control unit................................................154
14.10 Install the motion detector.............................................................................. 158
14.11 Install the lights...............................................................................................159
14.12 Finalize the installation of the table and electrics...........................................161
15 Install the cover panels and the body covers.................................... 166
15.1 Install the roof cover panels.............................................................................166
15.2 Install the roof cover plates..............................................................................167
15.3 Install the wall cover panels.............................................................................168
15.4 Install the bottom body covers......................................................................... 170
15.5 Install the wall body covers..............................................................................171
15.6 Install the roof body covers..............................................................................174
15.7 Finalize the installation of the body covers...................................................... 177
16 Install the whiteboard............................................................................178
17 Finalize the installation......................................................................... 182

Framery 2Q Huddle

Framery 2Q Huddle
1 Warranty checklist
For the product warranty to be valid:
Fill this checklist and send it to Framery after pod installation. Take a photo or scan the filled list and send it to Framery at
[email protected]. Leave the completed list inside the pod.
Country: _________________________________________
City: _________________________________________
Customer: _________________________________________
Pod serial number: _________________________________________
SO number: _________________________________________
Installation company: _________________________________________
Name of technician: _________________________________________
YES
All bolts and screws are tightened according to the instructions
When the door is left open, it is either at standstill or closes
The door is in the middle of the opening
The door handle is not loose and is installed according to instructions
The pod power cord is connected according to the instructions
The light and fans switch on when a person enters the pod
The fans are making a quiet and even sound
Air flows into the pod from the ventilation channels in the roof module
All furniture is installed securely and according to the instructions
Air flows out of the pod from the ventilation channels when the door is closed
The body covers are installed according to the instructions
The light inside the pod switches off after approximately 8 minutes of inactivity
All glasses are installed evenly and according to the instructions
All glass seals are installed according to the instructions

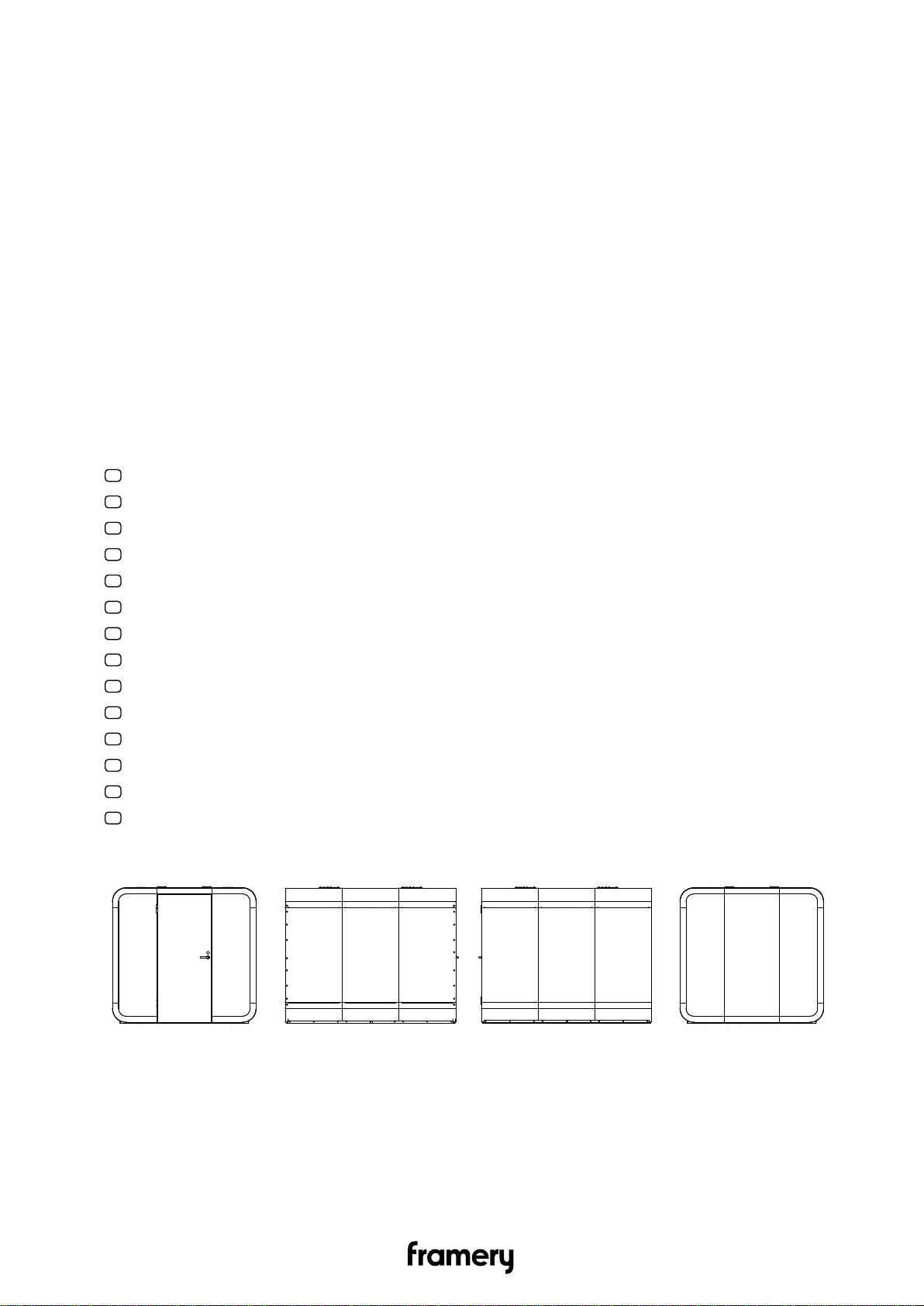

Circle the location of scratches or any other visual defects below. Attach pictures and descriptions of the defects
to the warranty email.
I certify that the pod is installed according to Framery installation instructions and the pod has been checked to be
operating correctly.
Signature and date: ___________________________________________________________
Installation instructions
[email protected]
7

Framery 2Q Huddle
2 Important safety and product instructions
2.1 Preface
This instruction manual describes the installation of the product. Everyone involved in
installing the product must read and understand the contents of the installation and safety
instructions.
This instruction manual gives you necessary information for the correct installation of the
product.
2.2 Product information
The information in this manual corresponds to the product at the time of delivery. All
information included in this manual is valid at the time of publication.
2.3 Copyright
This document must not be copied, presented, or delivered to a third party without explicit
permission from Framery. The use of this document for any purpose other than those
allowed by Framery is prohibited. Framery reserves the right to change the instructions
related to the product without separate notice.
2.4 Manual contents
The installation instructions contain the following information:
• General information about the purpose and content of the instructions
• Information related to safety
• Installation instructions
2.5 Intended use
The Framery 2Q is a pod intended for short term indoor commercial and household use by
one to six (1-6) people at a time.
Warning: WARNING –To reduce the risk of burns, fire, electric shock, or injury to
persons:
Use this product only for its intended use as described in the user instructions. Do not use
attachments not recommended by the manufacturer.
2.5.1 Non-conventional use
Any use or maintenance of the product that is not specifically allowed in the installation,
maintenance, troubleshooting or user instructions is prohibited, including the following:
• Installation, maintenance or disassembly of the pod without reading and understanding
the instructions for those actions
• Use of the pod beyond the limits of use
8Installation instructions
[email protected]

Framery 2Q Huddle
• Making alterations to the pod
• Using the pod in spite of obvious defects or damage
• Using the pod outdoors or in conditions where the temperature or air quality is not safe
• Climbing on top of the product or placing any load on the roof of the product
• Smoking in the pod
2.5.2 Ambient conditions for use
The pod is intended to be used in the following conditions:
• Ambient temperature: +15°C ... +30°C (59°F ... 86°F)
• Humidity: max. 50%
• Sufficient air quality surrounding the product
2.6 Warning, information, and safety symbols in this manual
The warnings in this manual have been divided into the following two categories:
• The term "DANGER" indicates a hazardous situation which, if not avoided, will result in
death or serious injury.
• The term “WARNING” indicates a hazardous situation which, if not avoided, could result
in death or injury.
The safety symbols found in this manual may also be posted on the product. All personnel
who install, disassemble, perform maintenance, or use the product are to be familiar
with and observe all safety symbols, labels, and instructions about the action they are
performing.
Table 1: Hazard
An exclamation point symbol inside a colored triangle indicates a hazardous
situation.
Table 2: Mandatory action
A white symbol inside a colored circle indicates an action that must be taken
to avoid a hazardous situation.
Table 3: Prohibited action
A ring with a diagonal bar indicates an action that is not allowed.
2.7 Main safety risks related to the installation, maintenance, disassembly,
and use of the product
Installation instructions
[email protected]
9

Framery 2Q Huddle
2.7.1 Installation, maintenance, and disassembly
WARNING!
To reduce the risk of burns, fire, electric shock, or injury to persons,
obey the following:
Use cut resistant safety gloves during the installation, maintenance, or
disassembly of the product.
Use steel toed safety boots during the installation, maintenance, or
disassembly of the product.
Use safety glasses during the installation, maintenance, or disassembly of
the product.
Read and understand the instructions and plan your work beforehand.
Obey all local rules and regulations regarding workplace safety.
Keep the work site tidy and free from debris throughout the installation,
maintenance, or disassembly process.
Do not climb on top of the product or place any load on the roof of the
product.
Do not push the the finished product to move it without engaging the optional
casters.
The product is very heavy and moving the product after installation without
engaging the optional casters requires a significant amount of force. Moving
a finished product (not using the optional casters) without disassembly and
reassembly requires an on-site risk assessment to be performed by the party
responsible for moving the product.
2.7.2 Electrical safety
Input for the electrical system: 100-240 VAC (10 A) 50-60 Hz
The maximum load for the electrical system is 6.6 A.
DANGER!
To reduce the risk of electric shock, obey the following:
Disconnect the power cord from the power outlet before starting any
cleaning, maintenance, or disassembly procedures.
The power cord serves as a power disconnect device for pluggable
equipment. The power outlet shall be located near the equipment and shall
be easily accessible.
10 Installation instructions
[email protected]

Framery 2Q Huddle
WARNING!
To reduce the risk of burns, fire, electric shock, or injury to persons,
obey the following:
Connect the power cord to a properly grounded outlet only.

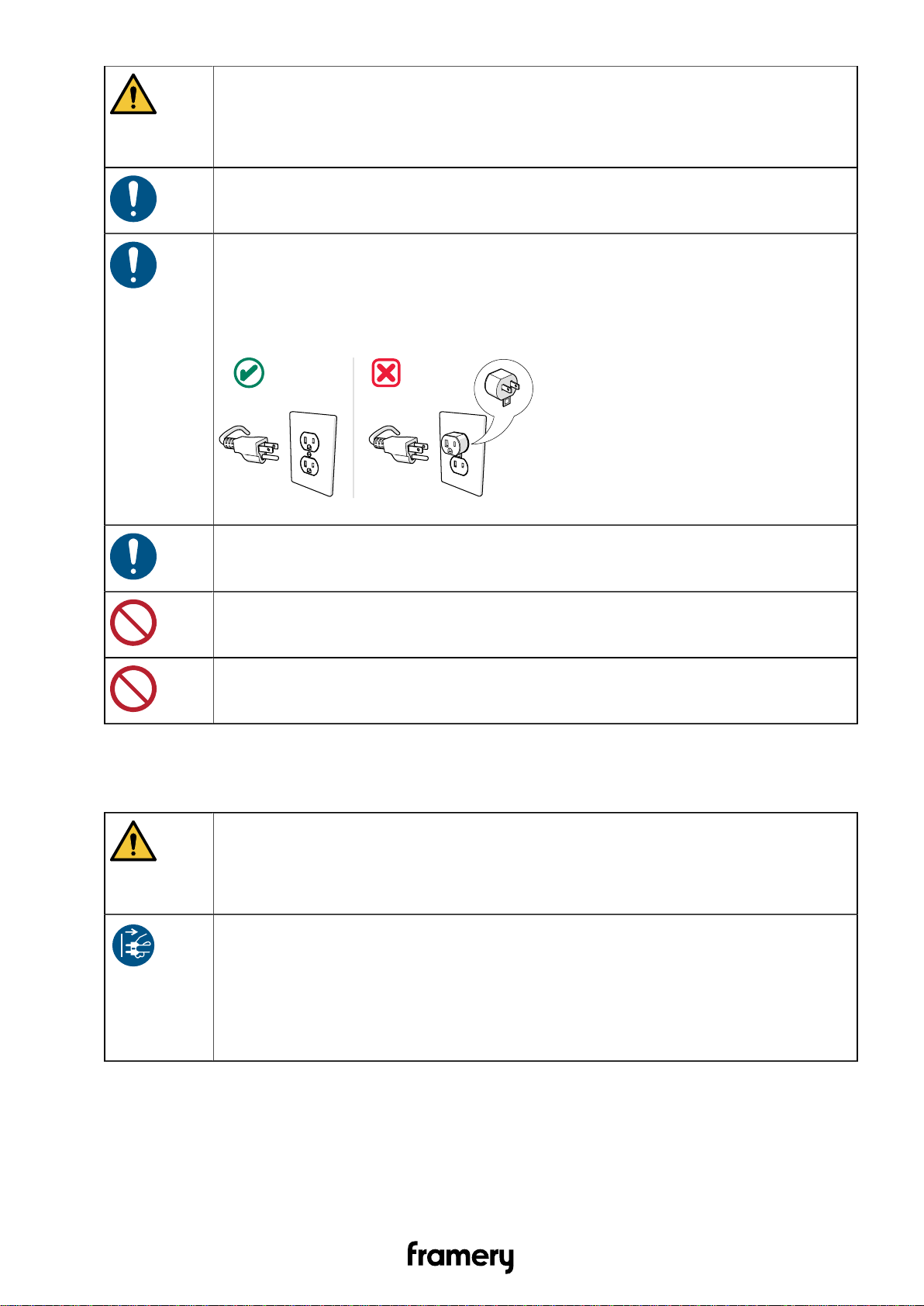

This product is for use on a nominal 120-volt circuit and has a grounding
plug that looks like the plug illustrated in the figure below. Make sure that the
product is connected to an outlet having the same configuration as the plug.
No adapter should be used with this product.
Keep the power cord of the product away from heated surfaces.
Do not use the pod if you notice any defects or damage to the electrical
equipment.
Do not connect any extension cords to the power outlet(s) of the product.
2.7.3 Fire safety
The fire load for the Framery 2Q is approx. 10400 MJ.
WARNING!
To reduce the risk of burns, fire, electric shock, or injury to persons,
obey the following:
If safely possible to perform, disconnect the power cord from the power
outlet if there is a fire inside the product.
The power cord serves as a power disconnect device for pluggable
equipment. The power outlet shall be located near the equipment and shall
be easily accessible.
Fire safety end devices (alarms, sprinklers etc.) can also be installed inside the pods
(instructions available upon request). The need for end devices inside the pod is always
determined by the applicable local authorities.
Installation instructions
[email protected]
11

Framery 2Q Huddle
2.7.4 Use
Maximum loads for the 2Q table options:
• Huddle table: 131lbs (60 kg)
• Lounge side table 33 lbs (15 kg)
• Lounge piaggio table: 78 lbs (35 kg)
Maximum loads for Framery 2Q seats:·
• Lounge back sofa: 900 lbs (408 kg)·
• Lounge side sofa: 900 lbs (408 kg)
Note: Framery does not supply seats for the 2Q Huddle.
Maximum load for the display bracket is 65 lbs (30 kg).
Maximum load for the 2Q Lounge whiteboard bracket is 33 lbs (15 kg).
Note: UL962 compliance is only guaranteed with Framery supplied furniture.
WARNING!
To reduce the risk of burns, fire, electric shock, or injury to persons,
obey the following:
Read and understand the user instructions before using the product.
Note: The following statement applies to use in Japan.
This equipment is not suitable for use in locations where children are likely to
be present.
Note: The following statements apply to use in all other countries.
Close supervision is necessary when this furnishing is used by, or near
children, invalids, or disabled persons.
Keep children away from extended foot support (or other similar parts).
Risk of injury! Keep hands and other body parts clear of the side edges of
the table when raising or lowering the electrically adjustable table top. This
applies to all Framery pods with an electric adjustable table.
Do not use the product if the surrounding conditions are in any way
hazardous; the air circulating inside the pod is derived from the surrounding
space.
Do not use the product if the ventilation is not functioning.
Do not use the product if the ventilation channels are blocked. Keep the
ventilation channels free of lint, hair, and the like.
12 Installation instructions
[email protected]

Framery 2Q Huddle
Do not use the pod if you notice any defects in the electrical equipment or
if the product is not working properly. Disconnect the power cord from the
power outlet and contact your local dealer or the manufacturer immediately.
Do not drop or insert any object into any opening if not specifically instructed
to do so in this manual.
Do not use outdoors.
Do not use where aerosol (spray) products are being used or where oxygen
is being administered.
Do not climb on top of the product or place any load on the roof of the
product.
Do not lean against the product.
Do not smoke inside the product.
Do not obstruct the view through the front and back glasses by posting signs,
decorations, or by installing blinds or draperies that would prevent occupants
from seeing the visible alarm appliances located in the structure where the
pod is installed.
Installation instructions
[email protected]
13

Framery 2Q Huddle
3 Installation requirements
3.1 Tools and accessories

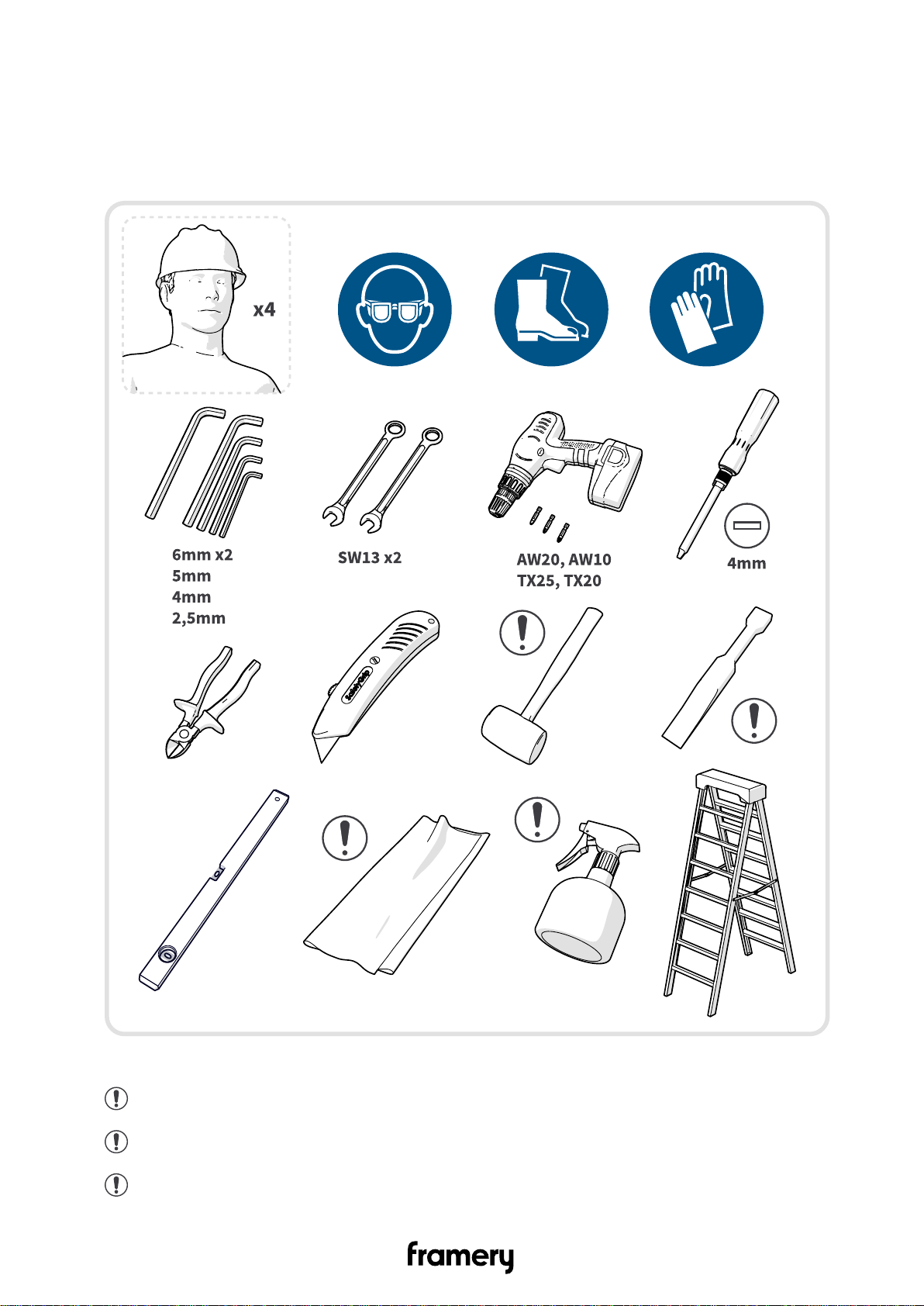

Figure 1: Tools and accessories needed for installation and maintenance
Note: Use a white rubber mallet to prevent marks on the body covers.
Note: Use a plastic chisel to remove the body covers.
Note: Use a separate piece of carpet in the door installation.
14 Installation instructions
[email protected]

Framery 2Q Huddle
Note: Use a lint-free cloth to clean the pod.
Note: Use a mild alcohol-based cleaning solution to clean the pod.
Tip: Use glass washing liquid as a lubricant to help install the seal.
3.2 Main dimensions

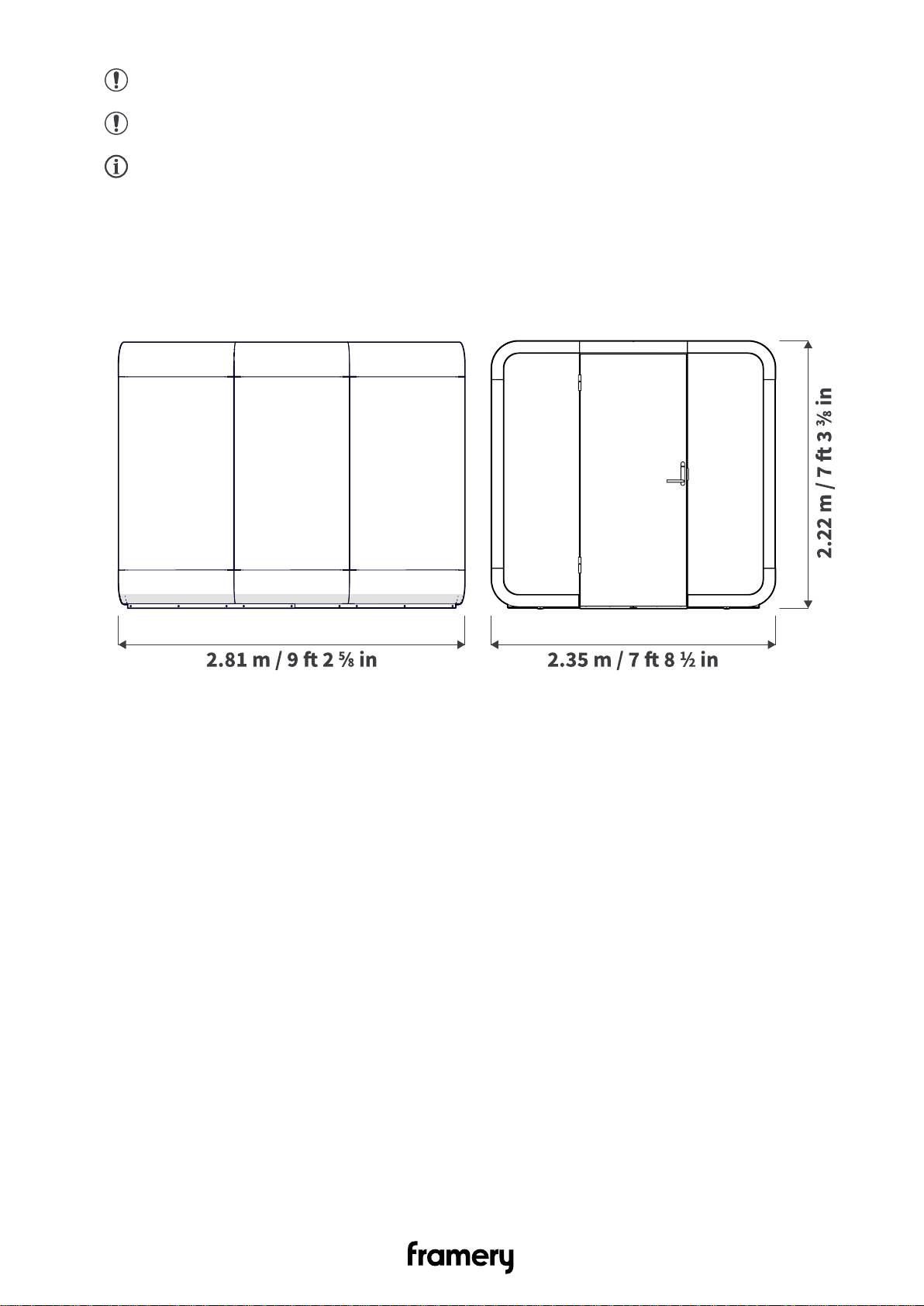

Figure 2: Main dimensions of the 2Q pod
Installation instructions
[email protected]
15

Framery 2Q Huddle
3.3 Installation space

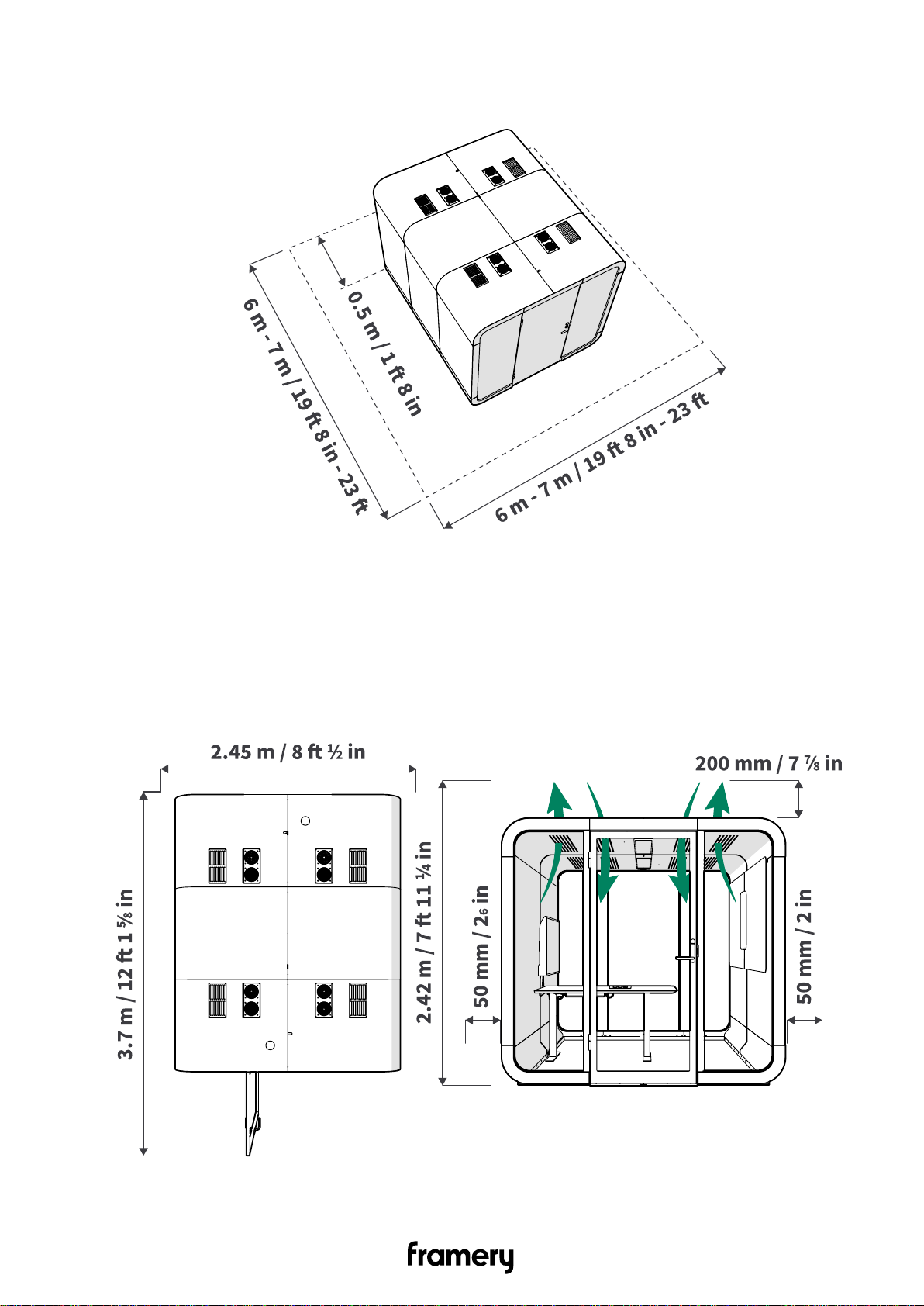

Figure 3: Installation space measurements of the 2Q pod
3.4 Operating space
When in use, the pod needs an area of 2.45 m (8 ft 1/2 in) x 3.7 m (12 ft 1 5/8 in) x 2.42
m (7 ft 11 3/8 in). The dimensions include the minimum recommended space for the air to
circulate: 200 mm (8 in) above the pod and 50 mm (2 in) around the pod.
16 Installation instructions
[email protected]

Framery 2Q Huddle
4 Prepare the carpet for installation

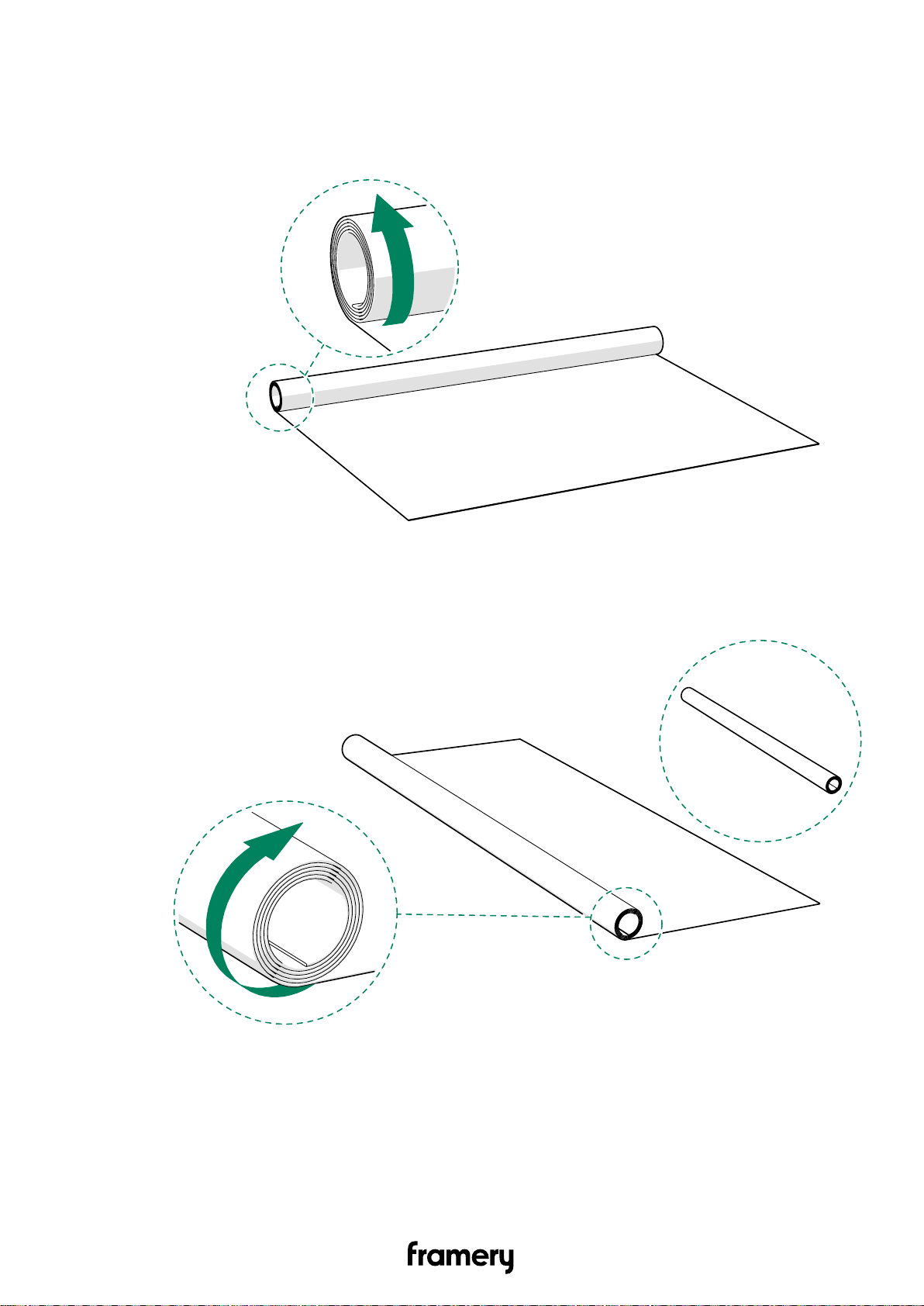

1. Unroll the carpet.
2. Roll the carpet the other side up from the long side.
Installation instructions
[email protected]
17

Framery 2Q Huddle
5 Install the back half of the pod
5.1 Install the back half of the floor

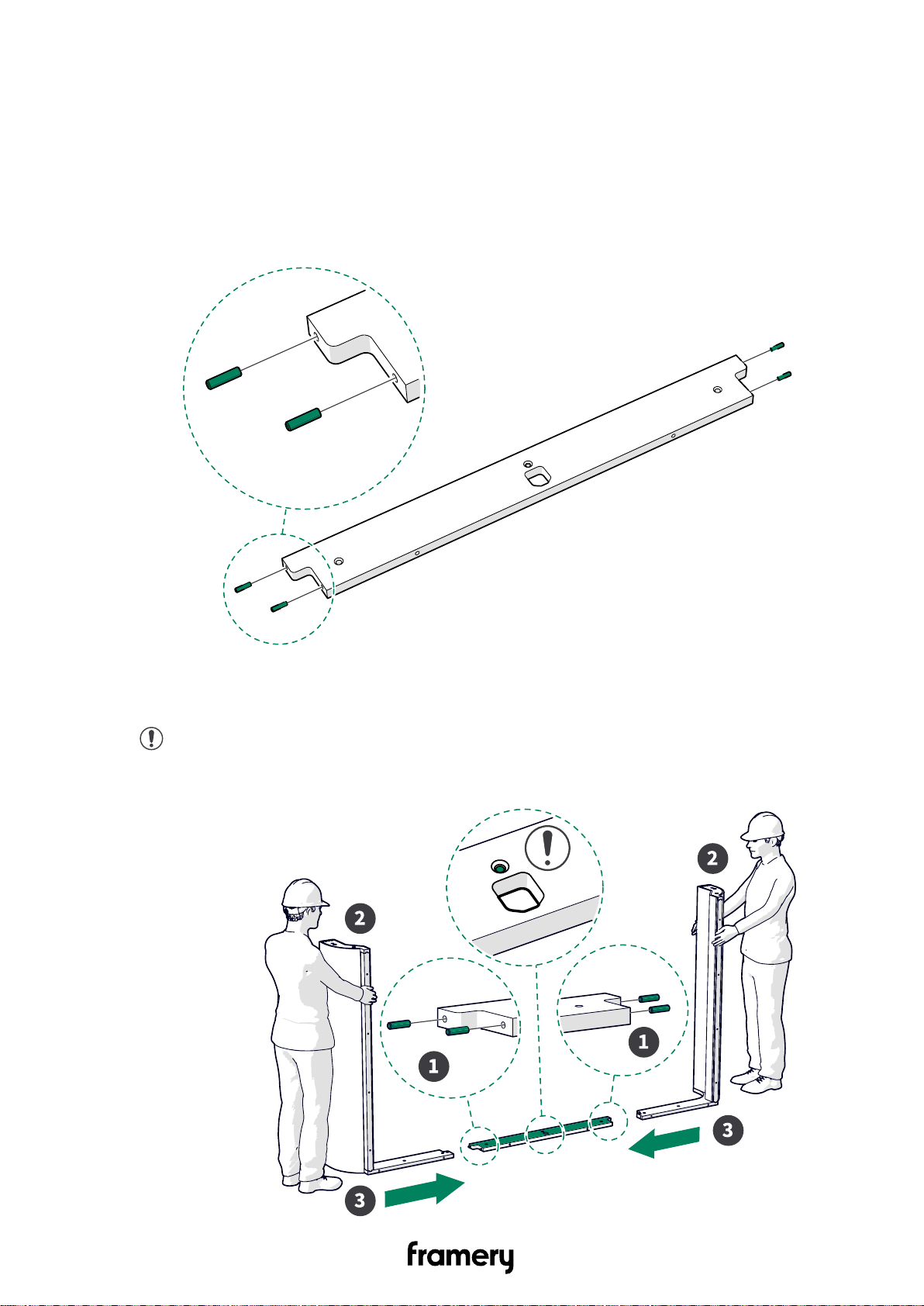

1. Press wooden pins (4 pcs) into the holes in the back I-beam.
2. Stand two corner pieces on their wide ends.
Note: Support both corner pieces at all times. Make sure that the black side of
the I-beam is upwards.
3. Join the wooden pins into the holes in the corner pieces.
18 Installation instructions
[email protected]

Framery 2Q Huddle
4. Press wooden pins (14 pcs) into the corner pieces and the I-beam.
5. Press the floor board onto the wooden pins.
Note: Make sure that the narrow end of the floor board is at the open end of
the back half of the floor.
Installation instructions
[email protected]
19

Framery 2Q Huddle

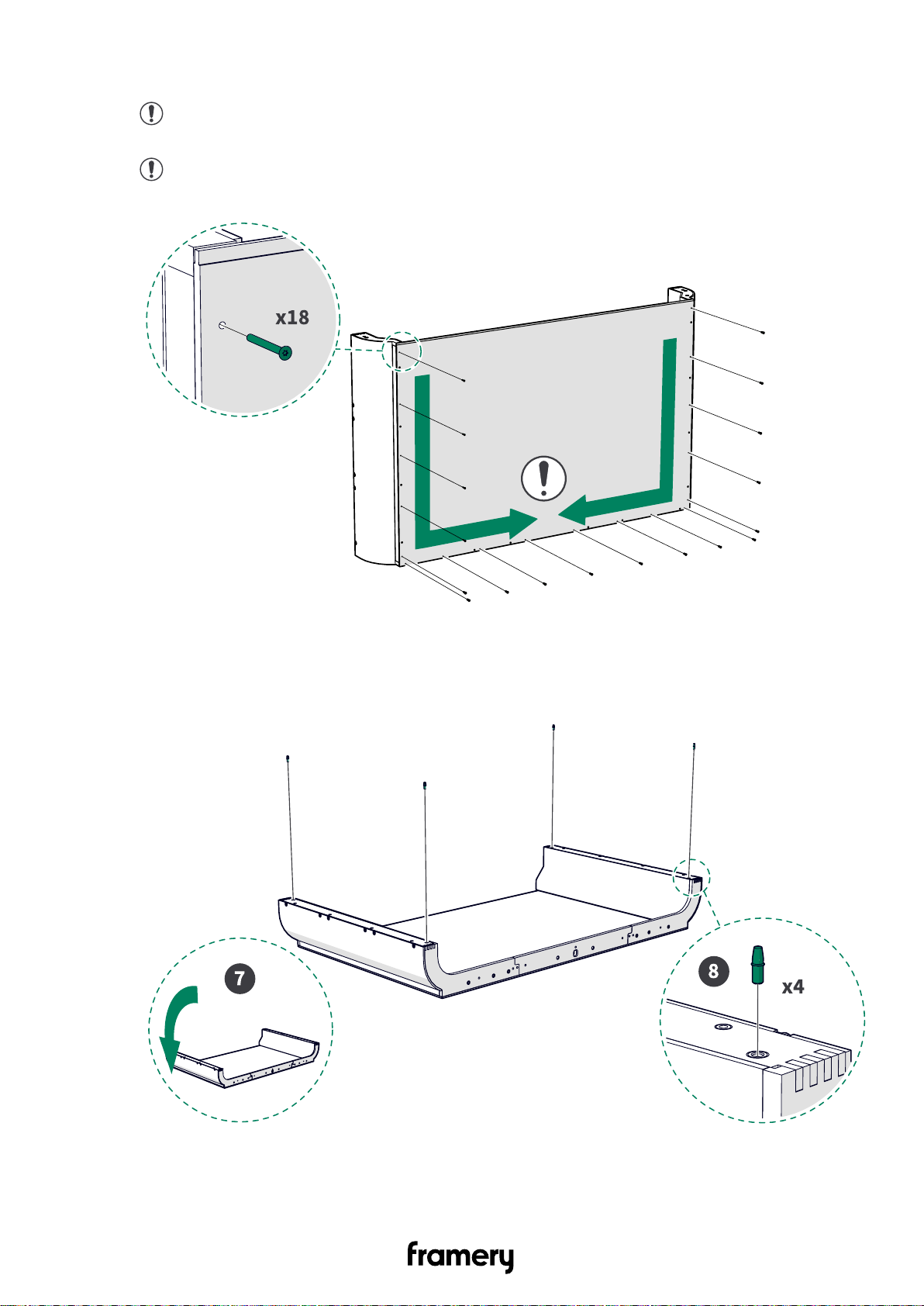

6. Install 5x30 screws (18 pcs).
Note: Install the screws from the ends of the floor module towards the middle.
Make sure that the pins are in place.
Note: Make sure that the screw heads are level with the floor or deeper.
7. Lay down the back half of the floor.
8. Install guide pins (4 pcs) to the installation holes.
There are two guide pins for each floor corner piece.
20 Installation instructions
[email protected]
