Framery Q UL User manual

Framery Q (UL)
User instructions English Version 1.0

Contents
1 Important safety and product instructions............................................... 5
1.1 Preface....................................................................................................................5
1.2 Product information................................................................................................ 5
1.3 Copyright.................................................................................................................5
1.4 Manual contents..................................................................................................... 5
1.5 Intended use...........................................................................................................5
1.5.1 Non-conventional use................................................................................. 5
1.5.2 Ambient conditions for use.........................................................................6
1.6 Warning, information and safety symbols in this manual....................................... 6
1.7 Main safety risks related to the installation, maintenance, disassembly and use
of the product........................................................................................................... 6
1.7.1 Electrical safety.......................................................................................... 7
1.7.2 Fire safety...................................................................................................7
1.7.3 Installation, maintenance and disassembly................................................8
1.7.4 Use..............................................................................................................8
1.8 Location of Product Markings...............................................................................10
2 Entering the pod........................................................................................14
3 Adjusting the turnable table.....................................................................17
4 Connecting electrical equipment............................................................. 18
5 Exiting the pod.......................................................................................... 21
6 Using the optional whiteboard body covers...........................................23
6.1 Before the first use...............................................................................................23
6.2 Daily cleaning....................................................................................................... 23
6.3 Deep cleaning.......................................................................................................23
6.4 FAQ.......................................................................................................................24

1 Important safety and product instructions
1.1 Preface
This instruction manual describes the use of the product. Everyone involved in using the
product must read and understand the contents of the user and safety instructions.
This instruction manual gives you necessary information for the correct use.
1.2 Product information
The information in this manual corresponds to the product at the time of delivery. All
information included in this manual is valid at the time of publication.
1.3 Copyright
This document must not be copied, presented, or delivered to a third party without explicit
permission from Framery. The use of this document for any purpose other than those
allowed by Framery is prohibited. Framery reserves the right to change the instructions
related to the product without separate notice.
1.4 Manual contents
The user instructions contain the following information:
• General information about the purpose and content of the instructions
• Information related to safety
• User instructions
1.5 Intended use
The Framery Q is a pod intended for short term indoor commercial and household use by
one to four (1-4) people at a time.
WARNING: WARNING –To reduce the risk of burns, fire, electric shock, or injury to
persons:
Use this product only for its intended use as described in the user instructions. Do not use
attachments not recommended by the manufacturer.
1.5.1 Non-conventional use
Any use or maintenance of the product that is not specifically allowed in the installation,
maintenance, troubleshooting or user instructions is prohibited, including the following:
• Installation, maintenance or disassembly of the pod without reading and understanding
the instructions for those actions
• Use of the pod beyond the limits of use
• Making alterations to the pod
Framery Q (UL) User instructions
[email protected]
5

• Using the pod in spite of obvious defects or damage
• Using the pod outdoors or in conditions where the temperature or air quality is not safe
• Climbing on top of the product or placing any load on the roof of the product
• Smoking in the pod
1.5.2 Ambient conditions for use
The pod is intended to be used in the following conditions:
• Ambient temperature: +15°C ... +30°C (59°F ... 86°F)
• Humidity: max. 50%
• Sufficient air quality surrounding the product
1.6 Warning, information and safety symbols in this manual
The warnings in this manual have been divided into the following two categories:
• The term "DANGER" indicates a hazardous situation which, if not avoided, will result in
death or serious injury.
• The term “WARNING” indicates a hazardous situation which, if not avoided, could result
in death or injury.
The safety symbols found in this manual may also be posted on the product. All personnel
who install, disassemble, perform maintenance or use the product are to be familiar
with and observe all safety symbols, labels, and instructions about the action they are
performing.

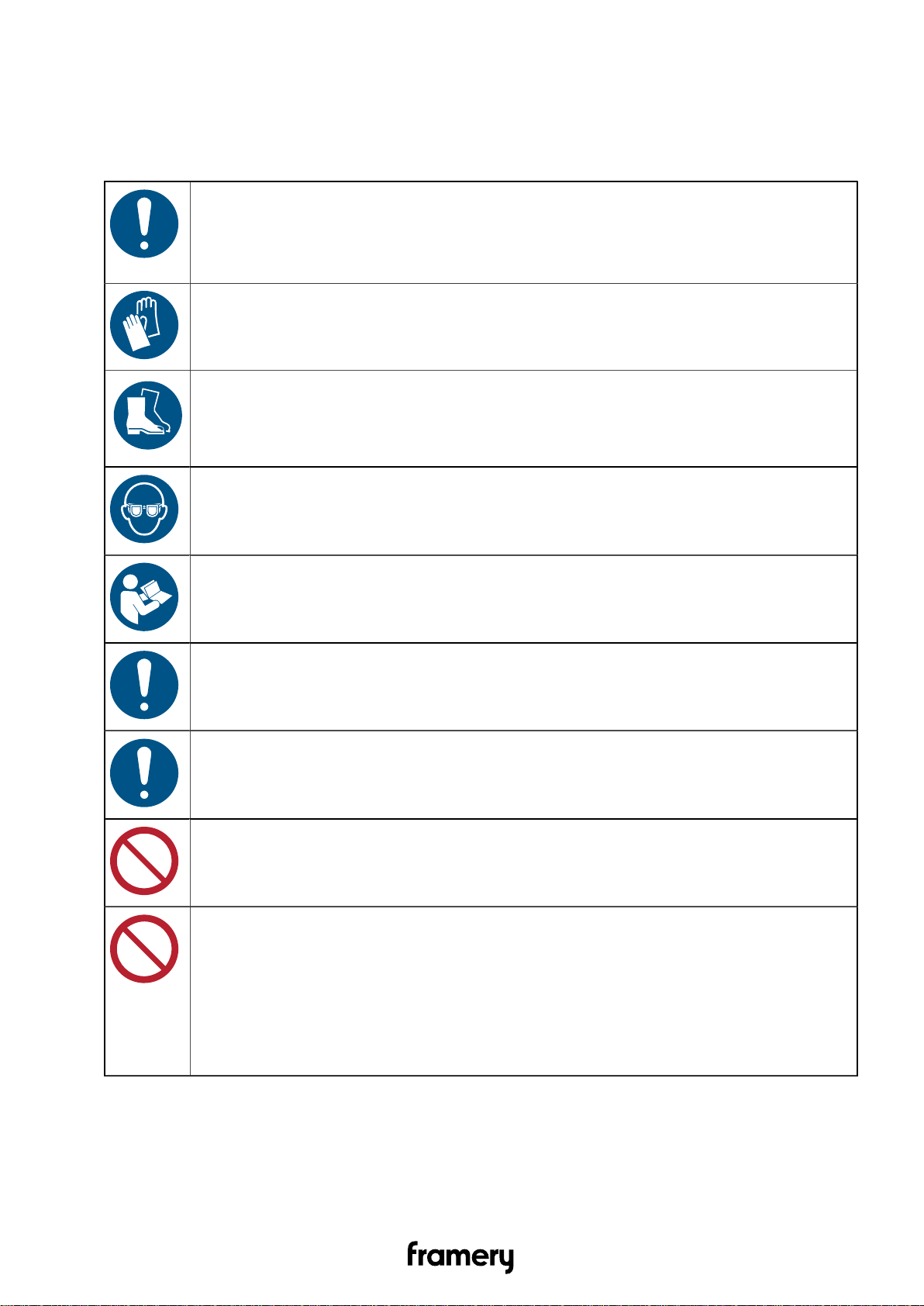

Table 1: Hazard
An exclamation point symbol inside a colored triangle indicates a hazardous
situation.
Table 2: Mandatory action
A white symbol inside a colored circle indicates an action that must be taken to
avoid a hazardous situation.
Table 3: Prohibited action
A ring with a diagonal bar indicates an action that is not allowed.
1.7 Main safety risks related to the installation, maintenance, disassembly
and use of the product
6Framery Q (UL) User instructions
[email protected]

1.7.1 Electrical safety
Input for the electrical system: 100-240 VAC (10 A) 50-60 Hz
The maximum load for the electrical system is 6.6 A.
DANGER!
To reduce the risk electric shock, obey the following:
Disconnect the power cord from the power outlet before starting any cleaning,
maintenance or disassembly procedures.
The power cord serves as a power disconnect device for pluggable equipment.
The power outlet shall be located near the equipment and shall be easily
accessible.
WARNING!
To reduce the risk of burns, fire, electric shock, or injury to persons, obey
the following:
Connect the power cord to a properly grounded outlet only.
Keep the power cord of the product away from heated surfaces.
Do not use the pod if you notice any defects or damage to the electrical
equipment.
Do not connect any extension cords to the power outlet(s) of the product.
1.7.2 Fire safety
The fire load for the Framery Q is approx. 5200 MJ.
WARNING!
To reduce the risk of burns, fire, electric shock, or injury to persons, obey
the following:
If safely possible to perform, disconnect the power cord from the power outlet if
there is a fire inside the product.
The power cord serves as a power disconnect device for pluggable equipment.
The power outlet shall be located near the equipment and shall be easily
accessible.
Framery Q (UL) User instructions
[email protected]
7

Fire safety end devices (alarms, sprinklers etc.) can also be installed inside the pods
(instructions available upon request). The need for end devices inside the pod is always
determined by the applicable local authorities.
1.7.3 Installation, maintenance and disassembly
WARNING!
To reduce the risk of burns, fire, electric shock, or injury to persons, obey
the following:
Use cut resistant safety gloves during the installation, maintenance or
disassembly of the product.
Use steel toed safety boots during the installation, maintenance or disassembly
of the product.
Use safety glasses during the installation, maintenance or disassembly of the
product.
Read and understand the instructions and plan your work beforehand.
Obey all local rules and regulations regarding workplace safety.
Keep the work site tidy and free from debris throughout the installation,
maintenance or disassembly process.
Do not climb on top of the product or place any load on the roof of the product.
Do not push the product to move it if not specifically instructed to do so in this
manual.
The product is very heavy and moving the product after installation requires a
significant amount of force. Moving a finished product without disassembly and
reassembly requires an on-site risk assessment to be performed by the party
responsible for moving the product.
1.7.4 Use
Maximum loads for the Framery Q table options:
• Turnable table: 131 lbs (60 kg)
• Oval table: 131 lbs (60 kg)
• Full width table: 360 lbs (168 kg)
8Framery Q (UL) User instructions
[email protected]

• PAL90: 360 lbs (168 kg)
• PAL110 tables: 360 lbs (168 kg)
Maximum load for Framery Q seats:
• Meeting Maggie sofa: 600 lbs (272 kg)
• PAL90 and PAL110 stool: 300 lbs (136 kg)
Maximum load for the display bracket is 22 lbs (10 kg).
WARNING!
To reduce the risk of burns, fire, electric shock, or injury to persons, obey
the following:
Read and understand the user instructions before using the product.
Close supervision is necessary when this furnishing is used by, or near
children, invalids, or disabled persons.
Keep children away from extended foot support (or other similar parts).
Do not use the product if the surrounding conditions are in any way hazardous;
the air circulating inside the pod is derived from the surrounding space.
Do not use the product if the ventilation is not functioning.
Do not use the product if the ventilation channels are blocked. Keep the
ventilation channels free of lint, hair, and the like.
Do not use the pod if you notice any defects in the electrical equipment or if
the product is not working properly. Disconnect the power cord from the power
outlet and contact your local dealer or the manufacturer immediately.
Do not drop or insert any object into any opening if not specifically instructed to
do so in this manual.
Do not use outdoors.
Do not use where aerosol (spray) products are being used or where oxygen is
being administered.
Framery Q (UL) User instructions
[email protected]
9

Do not climb on top of the product or place any load on the roof of the product.
Do not lean against the product.
Do not smoke inside the product.

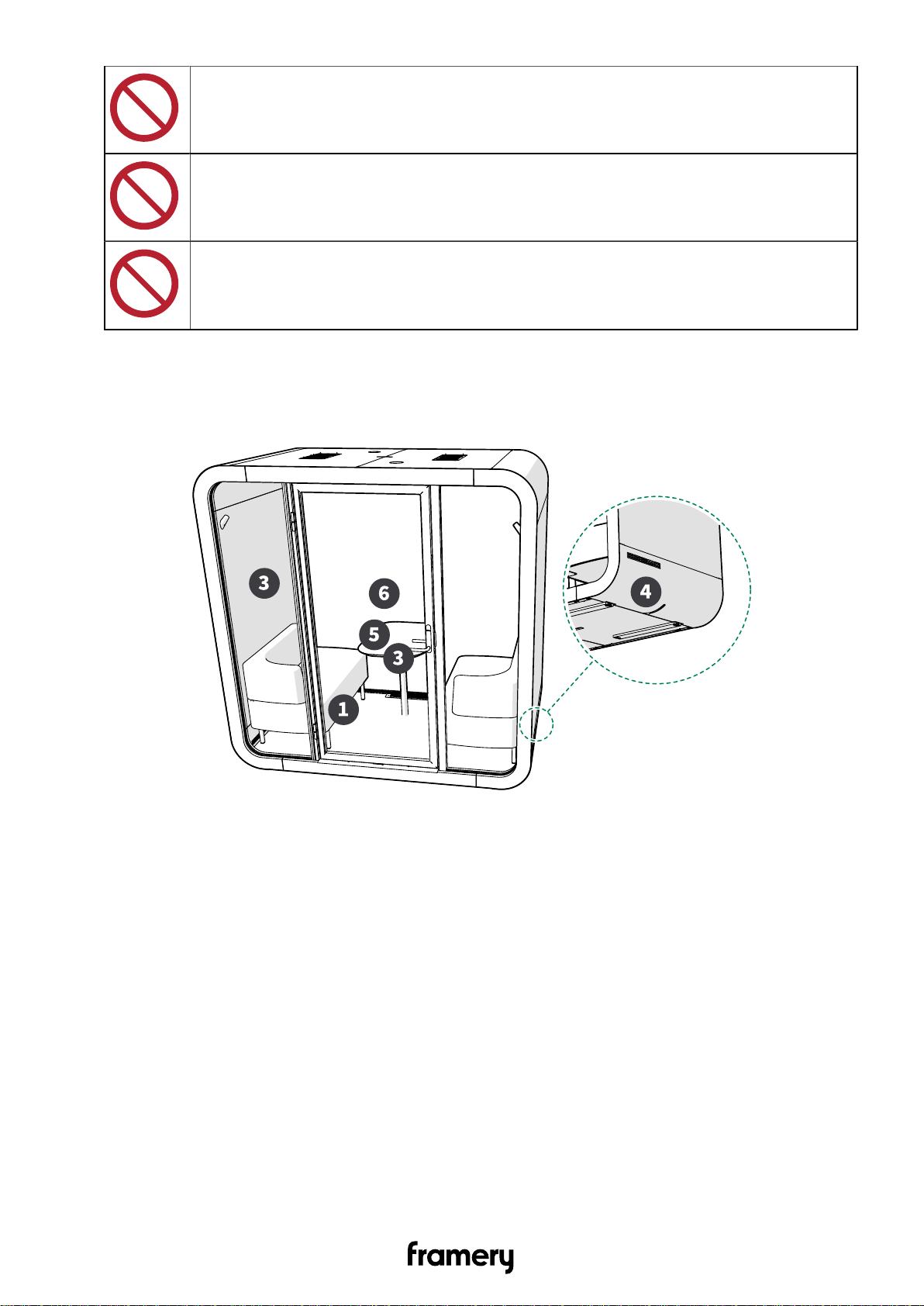

1.8 Location of Product Markings
10 Framery Q (UL) User instructions
[email protected]

Position Label Label text
1. Framery
This furnishing has not been evaluated for
flammability or cigarette ignition resistance
L'inflammabilité ou la résistance à l'allumage d'une
cigarette n'a pas été évaluée pour cette garniture
Framery Q (UL) User instructions
[email protected]
11

Position Label Label text
2. Framery
PRODUCT NO. / N° DE PRODUIT
Product / Produit FRAMERY Q
Input / Entrée 100-240 VAC (10 A) 50-60 HZ
Manufacturer / Fabricant: Framery Oy
WEB: www.frameryacoustics.com Email:
[email protected] Made in Finland /
Fabriqué en Finlande
Attention! Always connect the product correctly
to a grounded socket to avoid danger for fire or
electrical shocks.
Product evaluated class A (ASTM E84 / UL 723)
Attention! Branchez toujours le produit dans
une prise reliée à la terre pour éviter tout risque
d’incendie ou de choc électrique.
Produit de classe A (ASTM E84 / UL 723)
3. SN / N° de série: MANUFACTURE DATE / DATE
DE FABRICATION: [month] - [year]
4. Framery
WARNING - Risk of fire and shock Use only ‘SJT’
type ‘16’ AWG cord
AVERTISSEMENT - Risque d’incendie et de
choc électrique, utiliser uniquement un cordon
d'alimentation ‘SJT’ de type ‘16’ AWG
5. Framery
WARNING Risk of injury Maximum table load 131
lbs / 60 kg
L'AVERTISSEMENT Risque de blessure Poids
maximal autorisé 131 lbs / 60 kg
6. Framery
WARNING Risk of injury Maximum load 22 lbs / 10
kg
L'AVERTISSEMENT Risque de blessure Poids
maximal autorisé 22 lbs / 10 kg
12 Framery Q (UL) User instructions
[email protected]

Position Label Label text
7. Framery
WARNING Risk of injury Maximum table load 360
lbs / 168 kg
L'AVERTISSEMENT Risque de blessure Poids
maximal autorisé 360 lbs / 168 kg
SAVE THESE INSTRUCTIONS
Framery Q (UL) User instructions
[email protected]
13

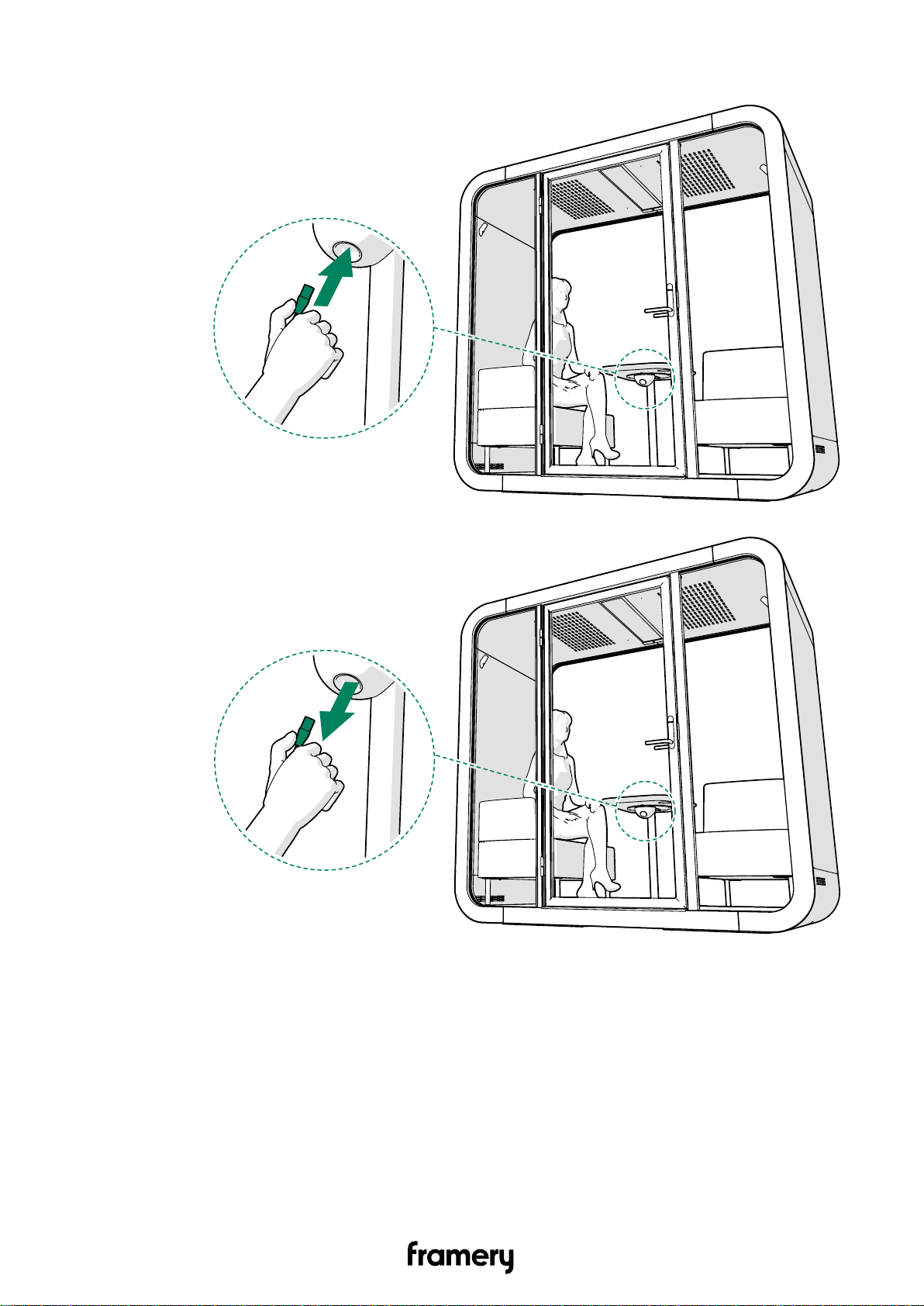

2 Entering the pod
1. Push down on the door handle.
2. Pull the door open.
14 Framery Q (UL) User instructions
[email protected]

3. Enter the pod.
4. Pull the door shut.
Framery Q (UL) User instructions
[email protected]
15

5. Sit on the seat.
16 Framery Q (UL) User instructions
[email protected]

3 Adjusting the turnable table
If equipped with the turnable table (available with the Meeting Maggie interior), the tabletop
can be turned up to 90 degrees.
1. Sit on the seat to determine the need for adjustments.
2. To adjust the position of the table top, gently push/pull the table top from its sides until
the desired position is reached.
Framery Q (UL) User instructions
[email protected]
17

4 Connecting electrical equipment
1. To connect your device to the power outlet, insert the power cord plug of your device to
the power outlet of the table.
2. To disconnect your device, remove the power cord plug of your device from the power
outlet.
18 Framery Q (UL) User instructions
[email protected]

3. To connect USB powered devices, use the USB connector of the power outlet.
Framery Q (UL) User instructions
[email protected]
19

4. If equipped with the optional LAN data cartridge, connect your LAN cable to either of
the data cartridge connectors.
20 Framery Q (UL) User instructions
[email protected]
