Franke PF5200 User manual

LIMITED LIFETIME WARRANTY
All faucets installed in a private residence will carry a limited lifetime
warranty on all mechanical parts to be free of manufacturing defects
in material and workmanship under normal usage. All chrome finishes
carry a limited lifetime warranty; all other finishes are warranted for
five (5) years form the original date of purchase.
Marine and Outdoor Installation
warranted for Marine and Outdoor installations.
This warranty applies only to the original owner, providing the product
has been installed in accordance with our installation instructions,
used as recommended and in a normal residential application. In the
event of a warranty claim, the owner will be required to provide proof
of purchase - save sales receipt. This warranty covers all components
which make the product operational. Franke, at its option, may repair
or replace the product or components necessary to restore the pro-
duct to good working condition. Franke reserves the right to inspect
the installation prior to the actual replacement of the product or com-
ponent part. This warranty does not cover misuse or abuse, acciden-
tal damages, scuffs or scratches, improper installation, abnormal
usage, negligence or damage caused by improper maintenance or
cleaning. Normal wear of parts is excluded from the warranty.
Damage caused by impurities or acts beyond our control are not
covered. Any product or part which has been repaired or altered in
any manner outside of Franke's factory, unless previously authorized
in writing by Franke, will void warranty. Any replacement excludes
transportation and any labor re-installation costs. This warranty
does not allow recovery of incidental or consequential damages such
as loss of use, delay, property damage or other consequential dama-
ge, and Franke accepts no liability for such damages.
The Franke warranty is limited to the above conditions and to the
warranty period specified herein and is exclusive.Franke DISCLAIMS
all other warranties, expressed or implied, including IMPLIED
WARRANTIES OF MERCHANTABILITY AND/OR FITNESS
FOR A PARTICULAR PURPOSE. This warranty gives you
specific legal rights that may vary from state to state.
Further information
For any further information about our products, about the installation of
IISTR111007/P#C08960

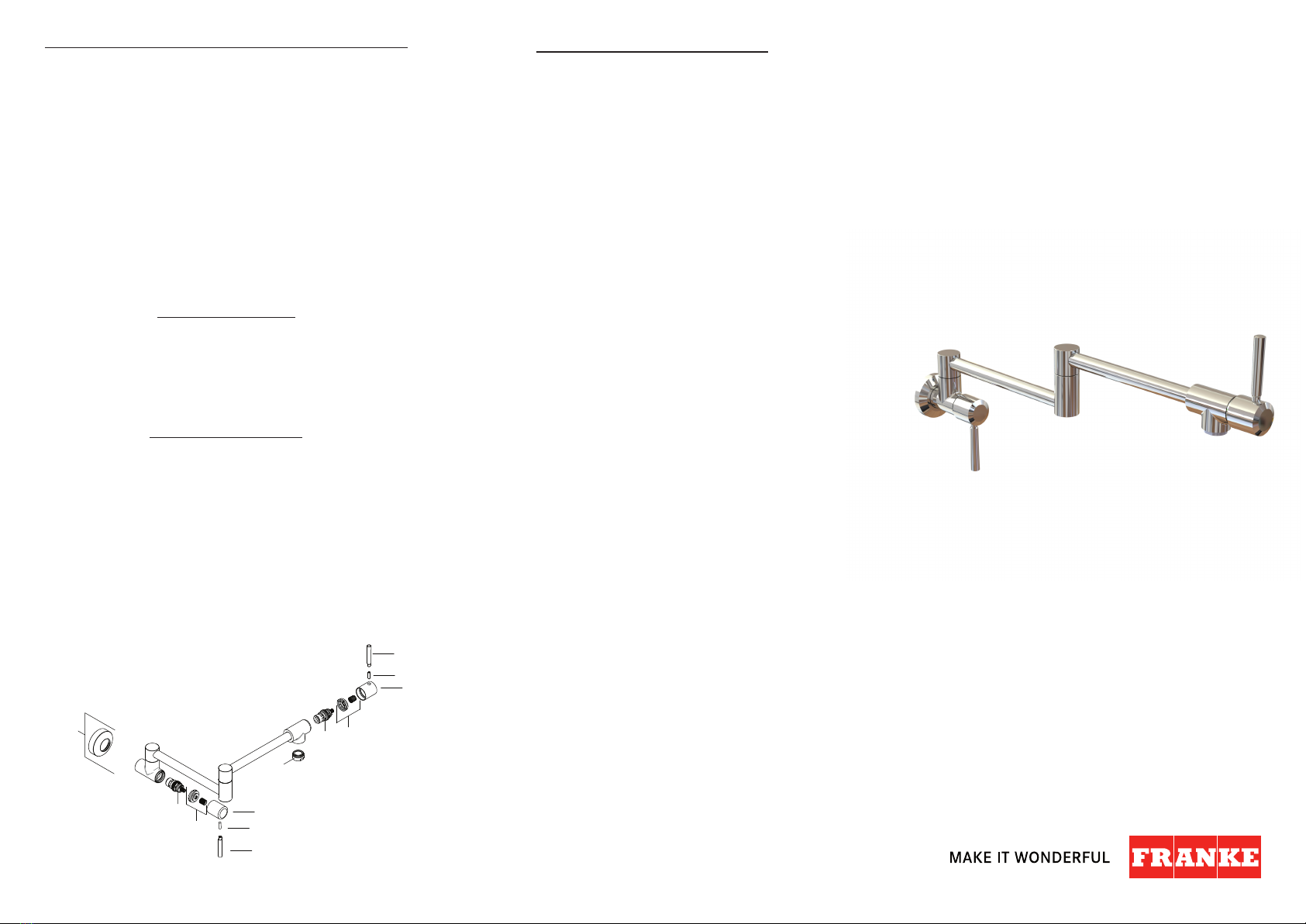

INSTALLATION MANUAL
PF5200 - PF5220 - PF5270 - PF5280
STANDARD MAINTENANCE AND TROUBLESHOOTING
REPLACING THE CARTRIDGE
1. Shut o the cold water supply to the faucet.
2. Turn on the faucet briey to relieve any pressure inside the faucet.
3. Move the faucet handle to the “ OFF” position.
4. Remove pin handle C from the lever handle.
5. Remove the pin handle set screw B using an allen key.
6. Pull the lever handle A from the faucet body .
7. Use 20 mm socket to unscrew cartridge D from faucet body
and
replace with new cartridge , tighten new ceramic cartridge,
DO NOT exceed 177 in-lbs of torque.
8. Re-assemble faucet in reverse order.
9. Test for leakage.
GENERAL MAINTENANCE
Clean aerator periodically for any buildup .
Do not use harsh detergents, solvents, chemical agents, metallic sponges,
etc. that could harm the surface and damage the nish.
SPARE / REPLACEMENT LIST
A+B+C+G. Handle assembly F5217*
F4315Cartridge.D
E. Aerator F4316*
F. Escutcheon F5218*
them or about the guarantee, please contact our customer service
department:
Franke Kitchen Systems
800 Aviation Parkway
Smyrna, TN 37167, USA
Phone: 800-626-5771
Email: [email protected]
ABSINTHE POT FILLER
the original purchaser of its faucets effective January 1, 2003.
:Franke faucets are NOT
Franke Kitchen Systems,LLC extends the following warranty to
REV. 1.06/2017
CH chrome
SN satin nickel
*Must specify nish
Clean only with a soft sponge and soapy water.
A
B
C
G
G
A
B
C
D
D
E
F
PN polished nickel
MB matt black
TECHNICAL DATA
NOTE:
CONTENTS IN BOX
1 Faucet assembly
2 Escutcheon
INSTALLATION INSTRUCTIONS
1
Contact us immediatly if you see inconsistencies.
Phone: (1- 800-626-5771)
website: www.franke.us/ks
email: ks-customerservice.us@franke.com
1. For best results, Franke recommends this faucet be installed by a
licensed, professional plumber. Please read over the instructions before
beginning the installation. Make sure to observe all local plumbing and
building codes during installation of this faucet.
2. Remove all contents from the package and check for completeness.
3. Turn o cold water supply.
4. This faucet requires a ½” NPT male nipple (6) at the desired faucet
location for proper installation. The nipple must have adequate bracing
to support the weight of the faucet.
ATTENTION: The faucet should be connected to cold water only!
5. The water supply nipple (6) should extend from the nished wall
1/2” minimum and 9/16 “ maximum as shown in gure 1.
NOTE: For steps 6-10, refer to gure 2.
6. Install the pin handle set screws (4) into the handle (3) with a 2.5 mm
allen key as illustrated. Thread the pin handles (5) onto the set screws (4)
hand tight.
7. Apply thread sealing tape or thread sealant onto the cold water supply
nipple (6).
8. Slide the escutcheon (2) onto the faucet body (1) and thread the faucet
body onto the water supply nipple (6).
9. Tighten body until connection is water tight and the faucet is level
10. Slide the escutcheon down the faucet body (1) against the nished
mounting surface
11. Remove the aerator using a 7/8” (22mm) wrench and turn on the water
and let it run for several seconds to ush any debris from the faucet.
While the faucet is on check for leaks. Turn o the faucet and reinstall the
aerator – see gure 3
Flow Rate
Recommended Water Pressure
Max. Water Pressure
Hole Size For Faucet
Certies this faucet complies with ASME A112.18.1 / CSA B125.1
& NSF 61, NSF 372 and AB1953
2 GPM at 60 PSI
30-75 PSI
145 PSI
1 3/8”
2
2
13
3
3
3
4
4
3Pin handle set screws x 2
4 Pin handles x 2
4
5
4
5
9/16” max
6
Figure 1
Figure 2
Figure 3
2.5 mm
2.5 mm
1/2” min

This manual suits for next models

3
