Franke EOS FFB3350 User manual

LIMITED LIFETIME WARRANTY
Franke Kitchen Systems, LLC (Franke) extends the following
warranty to the original purchaser of its faucets effective
January 1, 2003.
All faucets installed in a private residencewill carry a limited
lifetime warranty on all mechanical parts to be free of manufacturing
defects in material and workmanship under normal usage. This
faucet is also warranted for outdoor installations for a period of
five (5) years from the original date of purchase. All chrome finishes
carry a limited lifetime warranty; all other finishes are warranted for
five (5) years from the original date of purchase.
This warranty applies only to the original owner, providing the
product has been installed in accordance with our installation
instructions, used as recommended and in a normal residential
application. In the event of a warranty claim, the owner will be
required to provide proof of purchase - save sales receipt. This
warranty covers all components which make the product operational.
Franke, at its option, may repair or replace the product or
components necessary to restore the product to good working
condition. Franke reserves the right to inspect the installation prior
to the actual replacement of the product or component part. This
warranty does not cover misuse or abuse, accidental damages,
scuffs or scratches, improper installation, abnormal usage, negligence
or damage caused by improper maintenance or cleaning. Normal
wear of parts is excluded from the warranty. Damage caused by
impurities or acts beyond our control are not covered. Any product
or part which has been repaired or altered in any manner outside of
Franke’s factory, unless previously authorized in writing by Franke,
will void warranty. Any replacement excludes transportation and
any labor re-installation costs. This warranty does not allow
recovery of incidental or consequential damages such as loss of
use, delay, property damage or other consequential damage,
and Franke accepts no liability for such damages.
The Franke warranty is limited to the above conditions and to the
warranty period specified herein and is exclusive. Franke DISCLAIMS
all other warranties, expressed or implied, including IMPLIED
WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A
PARTICULAR PURPOSE. This warranty gives you specific legal rights
that may vary from state to state.
Further information
For any further information about our products, about the installation
of them or about the guarantee, please contact the customer
service department at:
Franke Kitchen Systems, LLC
Kitchen Systems Division
800 Aviation Parkway
Smyrna, TN 37167
Phone: [phone]
Fax: [phone]
www.franke.us/ks.com
STANDARD MAINTENANCE AND TROUBLESHOOTING
Replacing the Cartridge
1. Shut off the water supply to the faucet
2. Turn on the faucet briefly to relieve any pressure inside the faucet
3. Move the faucet handle to the “OFF” position
4. Remove set screw from handle using an Allen key
5. Pull the lever handle E from the faucet body
6. Unscrew the cartridge cap D
7. Unscrew the cartridge nut C
8. Lift ceramic disk cartridge B from the body and replace it with
new cartridge. Ensure the 2 lugs on the bottom of the cartridge
sit properly in the locating holes in the faucet body.
9. Re-assemble faucet in reverse order
10. Test for leakage
General Maintenance
• Clean aerator periodically for any buildup
• Do not use harsh detergents, solvents, chemical agents,
especially any containing CHLORINE, or metallic sponges as
these can damage the surface finish
• Clean only with soft sponge and soapy water
• ATTENTION! For outdoor installation product must be
protected from freezing temperatures. Disconnect hot and
cold supply hosesfrom home, open the handle to drain out all
water.Cover faucet with protective covering to keep warm.

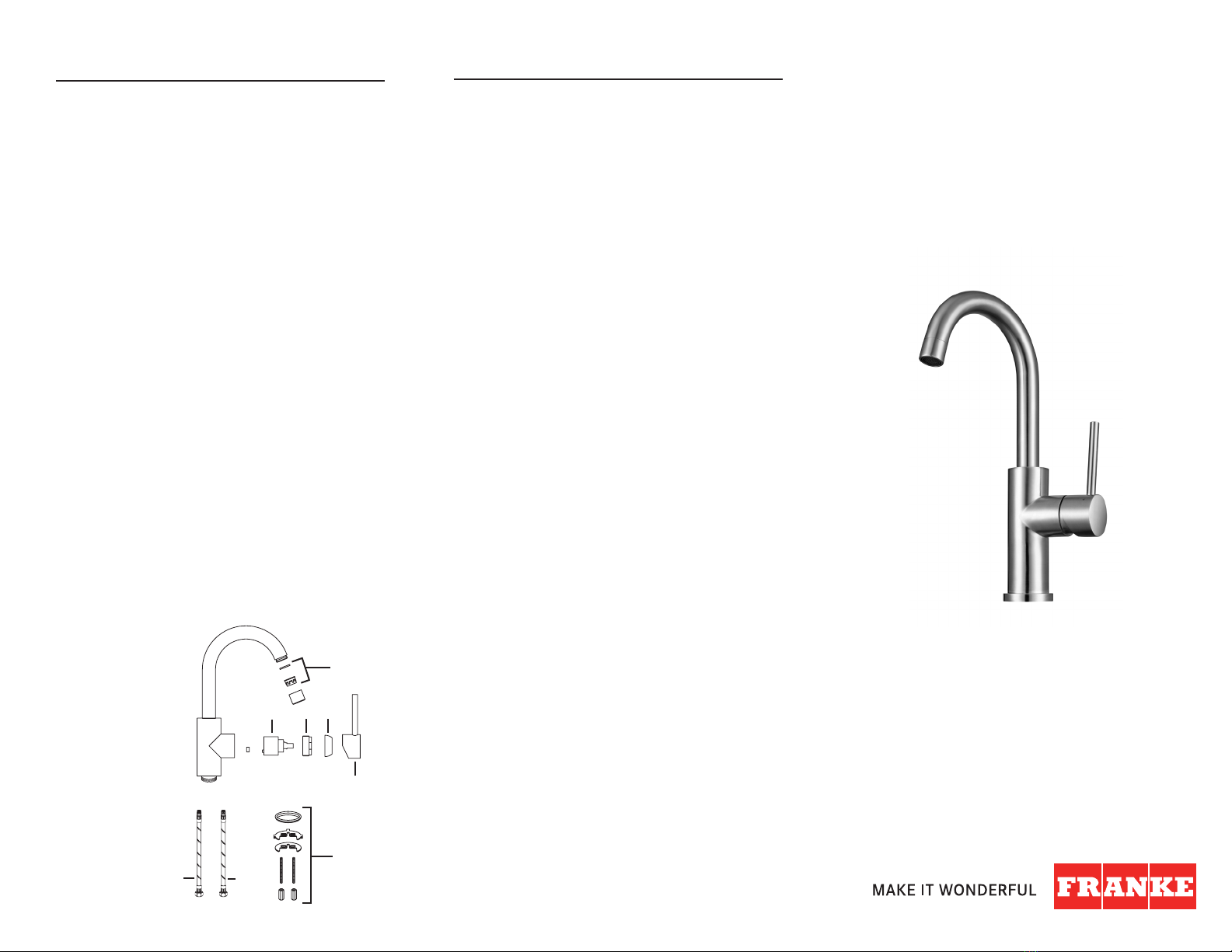

Spare/Replacement List
A. F3410 Aerator and O-ring
B. F206502 Cartridge
C. F3505 Cartridge Nut
D. F3504 Cartridge Cap
E. F3302 Handle Assembly
F. F3304 Fastening Set
G. F3508 Cold Supply Hose
H. F3509 Hot Supply Hose
INSTALLATION MANUAL
EOS
FFB3350 Bar Faucet
E.
H.
B.
A.
F.
C. D.
G.

TECHNICAL DATA
• Flow rate –1.75 gpm at 60 psi
• Recommended water pressure – 30-85 psi
• Max water pressure – 115 psi
• Max water temperature – 158o F
• Hole size for faucet – 1 3 /8"
Note
Contact us immediately if you see inconsistencies:
• Phone: [phone]
• Email: [email protected]
• Website: www.franke.us/ks.com
Contents in Box
A. Faucet assembly
B. Supply hoses
C. Allen wrench
D. Escutcheon
E. O-ring
F. Rubber and steel mounting washers
G. Mounting pins and nuts
INSTALLATION INSTRUCTIONS
1. Remove all contents from the package and check for
completeness.
2. Turn off water supply.
3. Remove faucet (1) and hardware from its protective packaging –
faucet comes assembled. Remove fixing hardware.
4. Cut mounting hole 1 3
/8" in diameter (35mm) in the desired
position (if one isn’t available).
5. Ensure rubber o-ring (2) is in the base of the faucet and install
faucet into mounting hole – DO NOT use putty or other sealant
at this location.
6. Install the mounting hardware to the mounting pins (3) in the
following order: Rubber mounting washer (4), steel mounting
washer (5), mounting nuts (6). Tighten mounting nuts (6) to
secure faucet.
7. Connect the supply hoses (7 & 8) to the water supply in the
home.
8. Remove the aerator by hand, turn on the water and flush the
faucet for any debris. Check for leaks, and reinstall the aerator.
D.
E.
F.
G.
C.B.
A.
6.
5.
4.
3.
2.
1.
7. 8.
