Franke PESCARA PFD4400 User manual

LIMITED LIFETIME WARRANTY
All faucets installed in a private residence will carry a limited lifetime
warranty on all mechanical parts to be free of manufacturing defects
in material and workmanship under normal usage. All chrome finishes
carry a limited lifetime warranty; all other finishes are warranted for
five (5) years form the original date of purchase.
Marine and Outdoor Installation
warranted for Marine and Outdoor installations.
This warranty applies only to the original owner, providing the product
has been installed in accordance with our installation instructions,
used as recommended and in a normal residential application. In the
event of a warranty claim, the owner will be required to provide proof
of purchase - save sales receipt. This warranty covers all components
which make the product operational. Franke, at its option, may repair
or replace the product or components necessary to restore the pro-
duct to good working condition. Franke reserves the right to inspect
the installation prior to the actual replacement of the product or com-
ponent part. This warranty does not cover misuse or abuse, acciden-
tal damages, scuffs or scratches, improper installation, abnormal
usage, negligence or damage caused by improper maintenance or
cleaning. Normal wear of parts is excluded from the warranty.
Damage caused by impurities or acts beyond our control are not
covered. Any product or part which has been repaired or altered in
any manner outside of Franke's factory, unless previously authorized
in writing by Franke, will void warranty. Any replacement excludes
transportation and any labor re-installation costs. This warranty
does not allow recovery of incidental or consequential damages such
as loss of use, delay, property damage or other consequential dama-
ge, and Franke accepts no liability for such damages.
The Franke warranty is limited to the above conditions and to the
warranty period specified herein and is exclusive.Franke DISCLAIMS
all other warranties, expressed or implied, including IMPLIED
WARRANTIES OF MERCHANTABILITY AND/OR FITNESS
FOR A PARTICULAR PURPOSE. This warranty gives you
specific legal rights that may vary from state to state.
Further information
For any further information about our products, about the installation of
IISTRPN109113/P#C08960

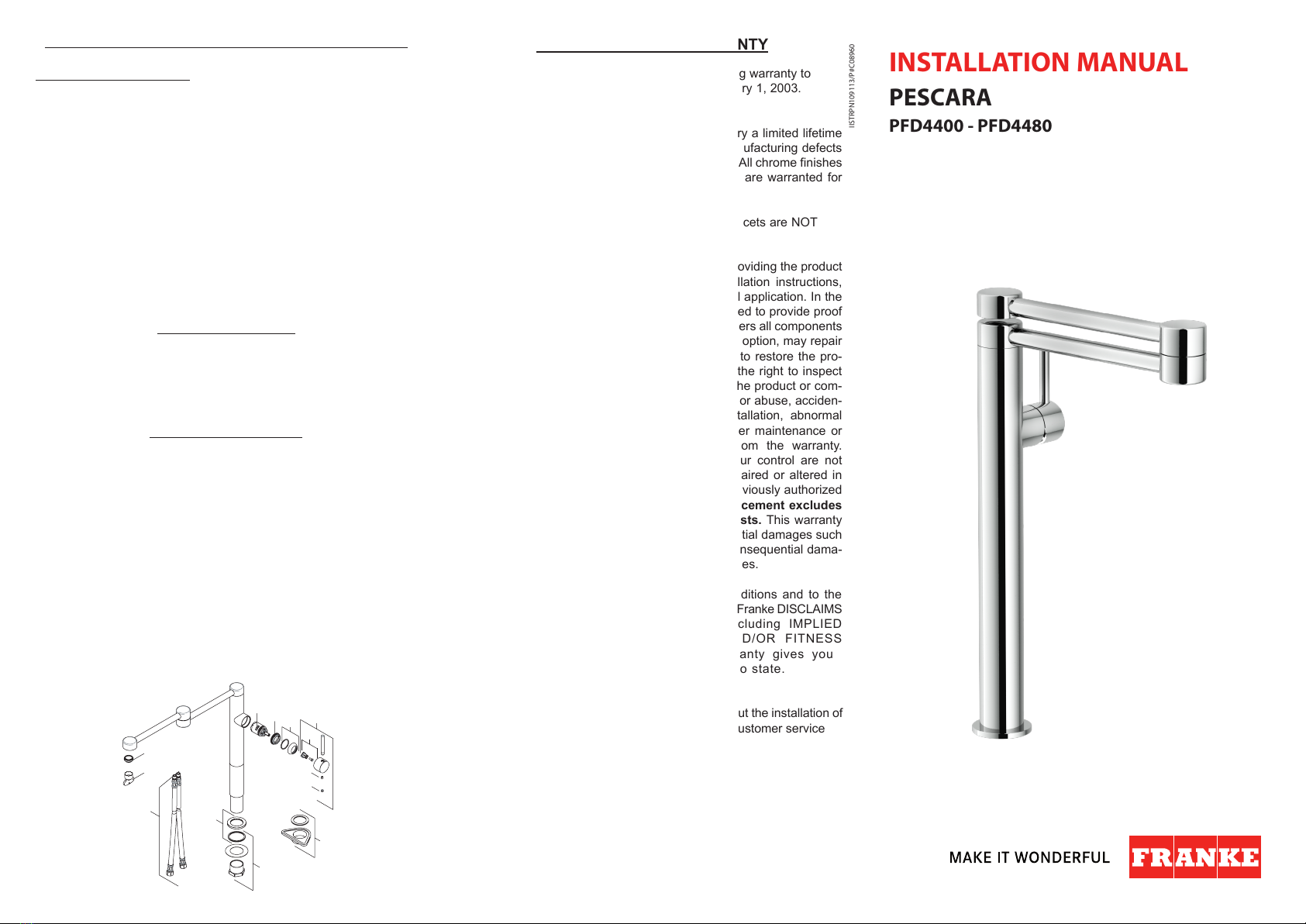

INSTALLATION MANUAL
PFD4400 - PFD4480
STANDARD MAINTENANCE AND TROUBLESHOOTING
REPLACING THE CARTRIDGE
1. Shut o the water supply to the faucet.
2. Turn on the faucet briey to relieve any pressure inside the faucet.
3. Move the faucet handle to the “ OFF” position.
4. Remove indicator cap C from the lever handle.
5. Remove the screw B using an allen key.
6. Pull the lever handle A from the faucet body .
7. Slide the cap D o of the lock nut E.
8. Unscrew the cartridge lock nut E.
9. Lift ceramic disk cartridge F from the body and repalce it with a new
one. Ensure the two lugs on bottom of the cartridge sit properly in the
allocated holes at the base of the body.
10. Re-assemble faucet in reverse order.
11. Test for leakage.
GENERAL MAINTENANCE
Clean aerator periodically for any buildup .
Do not use harsh detergents, solvents, chemical agents, metallic sponges,
etc. that could harm the surface and damage the nish.
Clean only with a soft sponge and soapy water.
Do not store chemicals or cleaning agents in the immediate vicinity of the
faucet and connection hoses. Chemical vapors could cause damage.
SPARE / REPLACEMENT LIST
them or about the guarantee, please contact our customer service
department:
Franke Kitchen Systems
800 Aviation Parkway
Smyrna, TN 37167, USA
Phone: [phone]
Email: [email protected]
PESCARA
the original purchaser of its faucets effective January 1, 2003.
:Franke faucets are NOT
Franke Kitchen Systems,LLC extends the following warranty to
C
B
A
D
E
F
G
H
K
I
J
M
L
REV. 0.06/2016
A+B+C+G. Handle assembly F4302*
F2902*p with o-ringaC.D
E. Lock nut F2903
F. Cartridge F2904
H Aerator
I. Aerator Key
J.Escutcheon
K.
Mounting Hardware Kit
L. Supply hoses
M. Fixing Kit
F4311
F4313
F4309*
F3110
F3709
F3125
CH chrome
SN satin nickel
*Must specify nish

TECHNICAL DATA
NOTE:
CONTENTS IN BOX
1 Faucet assembly
2 Rubber washer
3 Rubber washer
4 Plastic ange
INSTALLATION INSTRUCTIONS
1
3
4
5
7
8
Contact us immediatly if you see inconsistencies.
Phone: [phone])
website: www.frankeksd.com
email: [e-mail]
1. Remove all contents from the package and check for completeness.
2. Turn o water supply.
3. Cut a mounting hole 1 3/8 diameter (35mm) in the desired position in
counter top or sink (if one isn’t available).
4. Place the rubber washer (2) over the mounting shank.
ATTENTION: The washer should be sitting between the countertop and
faucet base.
DO NOT use putty or other sealant at this location.
NOTES:
Solid surface installation: The countertop mounting surface needs to
be at and free of debris otherwise the faucet may not sit properly.
For tile installations, avoid installing faucet near or on top of grout lines.
This may cause a weak joint between the faucet and the counter and
could cause leaks.
5. Install the mounting hardware to the base of the faucet body in
the following order - rubber washer (3); plastic ange (4) and the
xing plate (5) as illustrated.
6. Secure the faucet by tightening the Fixing Nut (6) onto the
mounting shank of the faucet the body (1).
7. Connect the exible supply hoses (7) to the water supply in the house.
8. Remove the aerator using the aerator key, turn on water, ush the
faucet for any debris and check for leaks.
Reinstall the aerator and ensure everything is functioning properly.
Flow Rate
Recommended Water Pressure
Max. Water Pressure
Recommended Hot Water Temp.
Hole Size For Faucet
Certies this faucet complies with ASME A112.18.1 / CSA B125.1
& NSF 61, NSF 372 and AB1953
1.75 GPM at 60 PSI
30-75 PSI
145 PSI
120°-140° F
1 3/8”
5 Fixing plate
6 Fixing nut
2
6
7 Flexible supply hoses
8 Key for aerator
2
3
4
5
6
7
1
9
9 Optional pin handle
