Freecom Mobile Drive II User manual

Rev. 902
USER MANUAL
MOBILE DRIVE II
EXTERNAL MOBILE HARD DRIVE / 2.5" / USB 2.0

2
EN
Freecom Mobile Drive II
Dear user!
Thank you for choosing the Freecom Mobile Drive II as an external hard drive. For
optimal use and performance we advise you to read this manual carefully before using
this product.
Freecom Technologies • Germany
www.freecom.com
Contents of the box
Please check the contents of the box; the following items should be included:
•external Freecom Mobile Drive II*
• Data cable (USB 2.0)
•Manual, safety manual and application software pre-installed on the hard drive
•Quick Install Guide
* Operation without power pack possible, power supply occurs over the USB port.
When the power provided by the USB port is not sufficient, visit www.freecom.com/support for an optional
AC adapter.
Warning !
All rights reserved. The products named in this manual are only used for identification
purposes and may be trademarks or registered trademarks of the respective companies.
This device was designed for home or office use.
Warning! This device is equipment complying with EN55022 class A. This equipment can
cause radio disturbances in a residential area. If this is the case, the user has to take ap-
propriate measures and assume all responsibility and costs for. It may not be used near
or with any life-sustaining systems.
Freecom cannot be made liable for any damages, loss of data or damage following thereof
-whatsoever (including, without limitation, damages for loss of business profits, business
interruption, loss of business information, or other pecuniary loss) arising out of the use
of or inability to use this Freecom product, even if Freecom has been advised of the pos-
sibility of such damages.
We reserve the right to upgrade our products in keeping with technological advances.

3
EN
User manual
General Information ...........................................................................................................page 4
Precautionary measures....................................................................................................page 5
Freecom Mobile Drive II ...................................................................................................page 6
Chapter 1:
Hardware Installation.........................................................................................................page 7
Chapter 2:
Driver Installation ................................................................................................................page 7
Chapter 3:
Installation of the application software ......................................................................page 8
Chapter 4:
Freecom Hard Drive Protection Tool ...........................................................................page 10
Chapter 5:
Using Freecom Turbo USB 2.0 (only PC) .....................................................................page 19
Chapter 6:
Partitioning your Freecom Mobile Drive II ................................................................page 20
Table of Contents
© 2009 Freecom Technologies

4
EN
Freecom Mobile Drive II
* To achieve optimal performance from the Freecom Mobile Drive II your PC should be equipped with an USB
2.0 port.
General Information
The following hardware and software requirements must be fulfilled to ensure trouble-
free operation.
System requirements
In order to use the Freecom Mobile Drive II, following components are needed:
PC:
• Intel Pentium III / AMD Duron 900 MHz or higher
• 256 MB RAM (Vista: 512 MB RAM) or higher
• Available USB 2.0 or USB 1.1 port*
• Internet connection for online warranty registration and software updates and
downloads
•Operating system: Windows 2000, Windows XP, Windows Vista
Mac:
• PowerPC G3/G4/G5, Mac Book Pro or Intel Mac
• 256 MB RAM or higher
• Available USB 2.0 or USB 1.1 port*
• Internet connection for online warranty registration and software updates and
downloads
•Operating system: Mac OS X v10.4 or higher

5
EN
General Information
Precautionary measures
To ensure that your Freecom Mobile Drive II functions properly, please take note of the
following precautions. If these are not followed, you may void your warranty and dam-
age the Freecom Mobile Drive II.
• Safely remove the Freecom Mobile Drive II via your operating system (the "unplug or
eject hardware" option in the Windows taskbar) before disconnecting the USB cable
or power cable and before switching off the device. Failing to do so may result in data
loss.
•Do not drop the Freecom Mobile Drive II or expose it to other kinds of sudden me-
chanical shocks as this may result in data loss and damage to the Freecom Mobile
Drive II.
•Do not use the Freecom Mobile Drive II when the ambient temperature is below 10°C
or above 35°C.
•If the Freecom Mobile Drive II is moved from a cool environment to a warmer envi-
ronment, please allow the drive to acclimatize to the ambient temperature before
operating the device. Failing to do so may lead to condensation within the drive
enclosure, which in turn may cause the drive to malfunction.
•Do not place liquids or drinks on the Freecom Mobile Drive II. When liquids are spilled
and get in contact with the electronics within the drive enclosure, it will damage the
drive and will cause the drive to malfunction.
•Do not use the Freecom Mobile Drive II in a dusty environment. Dust inside the
enclosure may damage the internal electronics and result in drive malfunction.
•Opening the Freecom Mobile Drive II will void the warranty.
• Since USB 2.0 is backwards compatible with USB 1.1, the Freecom Mobile Drive II
can be connected to all USB ports. When connected to a USB 1.1 port, however, the
performance (data transfer rate) of the Freecom Mobile Drive II will be much lower
than when the drive is connected to a USB 2.0 port.
On some computers it might occur that the USB port does not deliver enough
power to the Mobile Drive II. In that case, you need to use an external power
supply.
For safety reasons you must only use Freecom’s Power Supply Part.No. 30921.
Don’t use any other power supply!

6
EN
Freecom Mobile Drive II
Freecom Mobile Drive II
The hi-speed data transfer through the USB 2.0 interface makes it ideally suitable for
data-storage, file sharing, backup, archiving, audio playback and all applications that
need fast file access.
For your convenience, the Freecom Mobile Drive II has been partitioned (1 partition) and
pre-formatted (FAT32 file system). The FAT32formatensures maximum interchangeabil-
ity of the Freecom Mobile Drive II between different computers. Should you choose to
format the Freecom Mobile Drive II in another file system (e.g. NTFS), please be aware of
possible problems when connecting the Freecom Mobile Drive II to another computer
than the one you used for formatting.

7
EN
1
Hardware Installation
Chapter 1: Hardware Installation

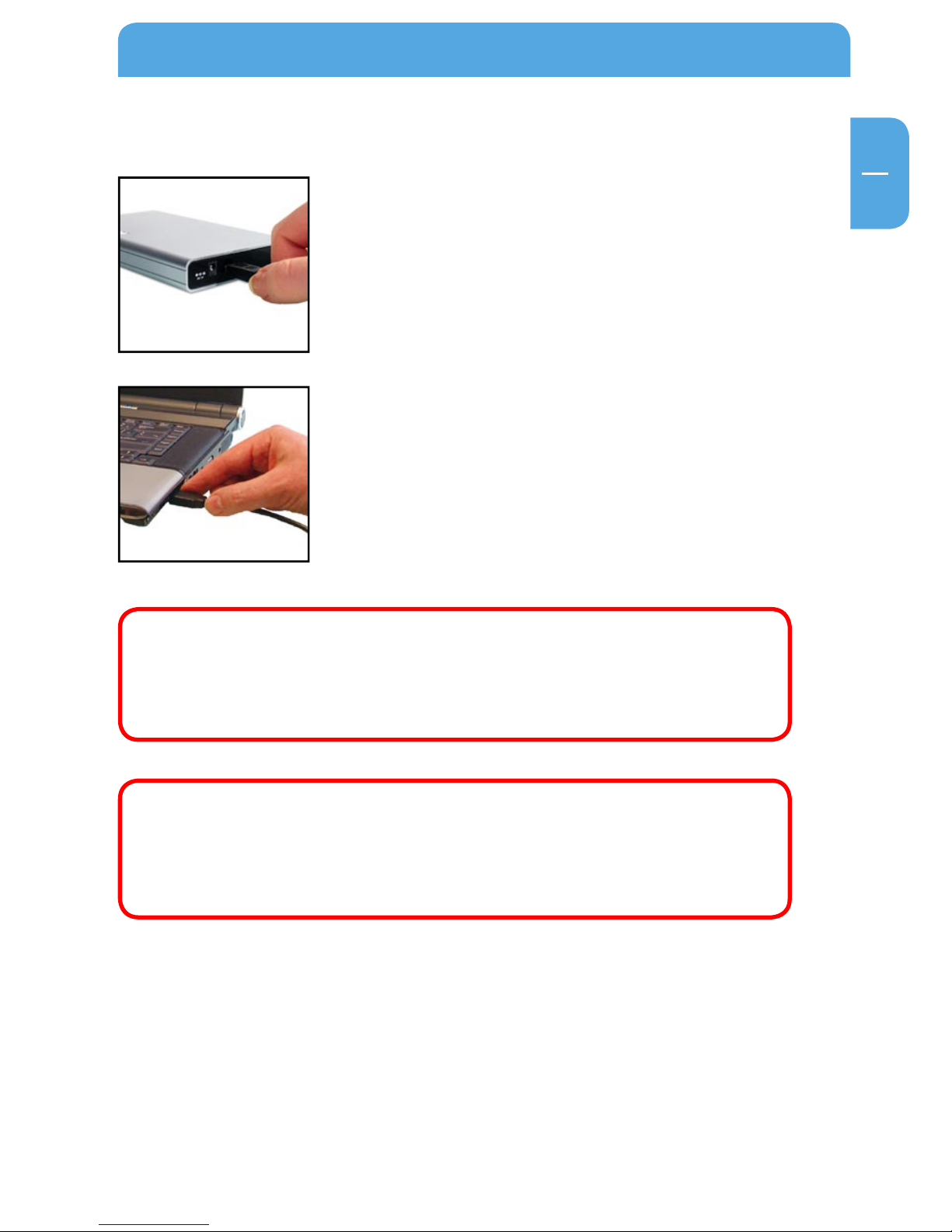

1. Connect the USB cable to the Freecom Mobile Drive II.
2. Plug the cable into the USB port on your computer.
Since USB 2.0 is backwards compatible with USB 1.1, the Freecom Mo-
bile Drive II can be connected to all USB ports. When connected to a USB
1.1 port, however, the performance (data transfer rate) of the Freecom
Mobile Drive II will be much lower than when the drive is connected to
a USB 2.0 port.
On some computers it might occur that the USB port does not deliver
enough power to the Mobile Drive II. In that case, you need to use an
external power supply.
For safety reasons you must only use Freecom’s Power Supply Part.No.
30921. Don’t use any other power supply!
Chapter 2: Driver Installation
Under Windows 2000 / XP / Vista and Mac OS X a separate Freecom driver is not required.
The drivers will be installed automatically by the operating system after plugging in the
Freecom Mobile Drive II into the USB port of the computer.

8
EN
3
Freecom Mobile Drive II
Chapter 3: Installation of the application software
3.1 Installation software PC

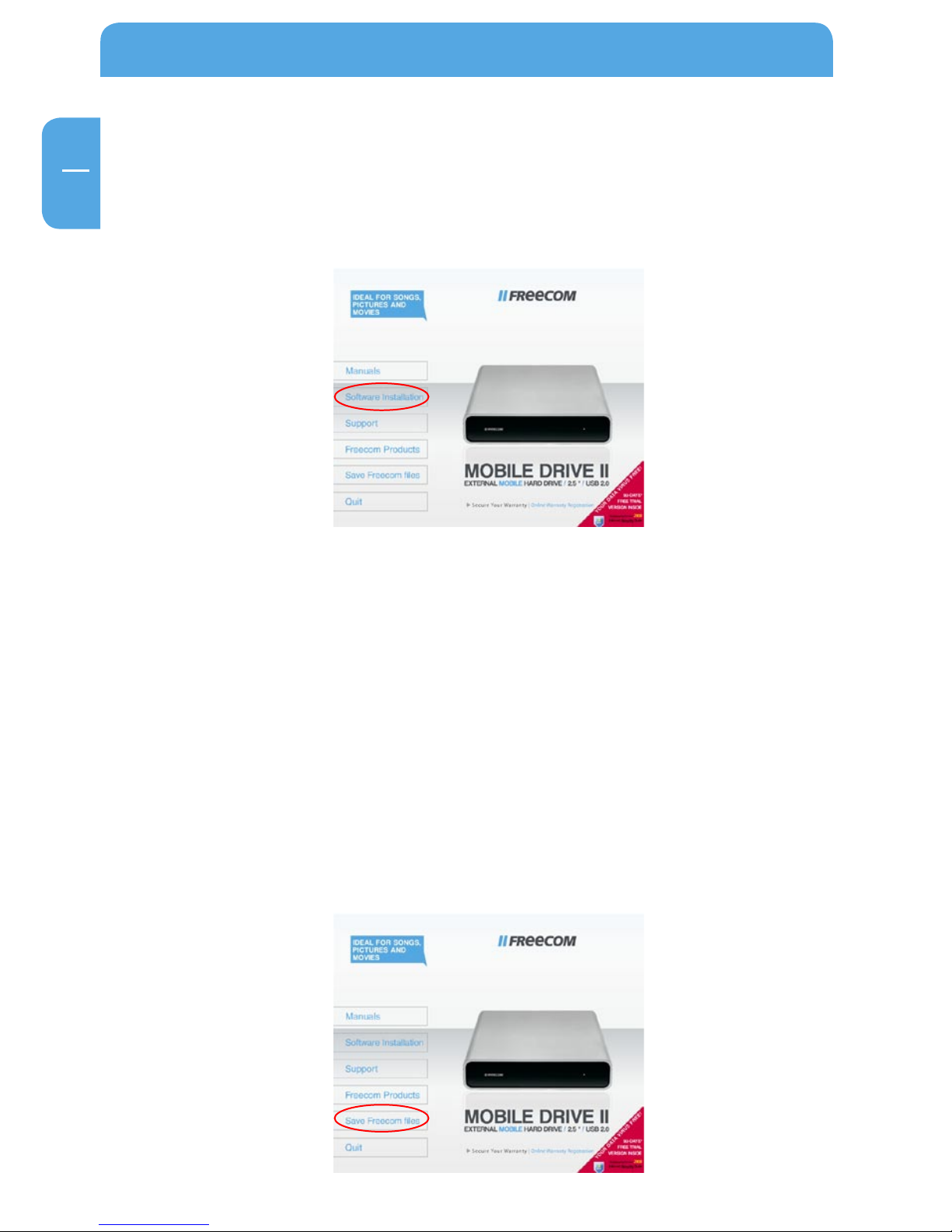

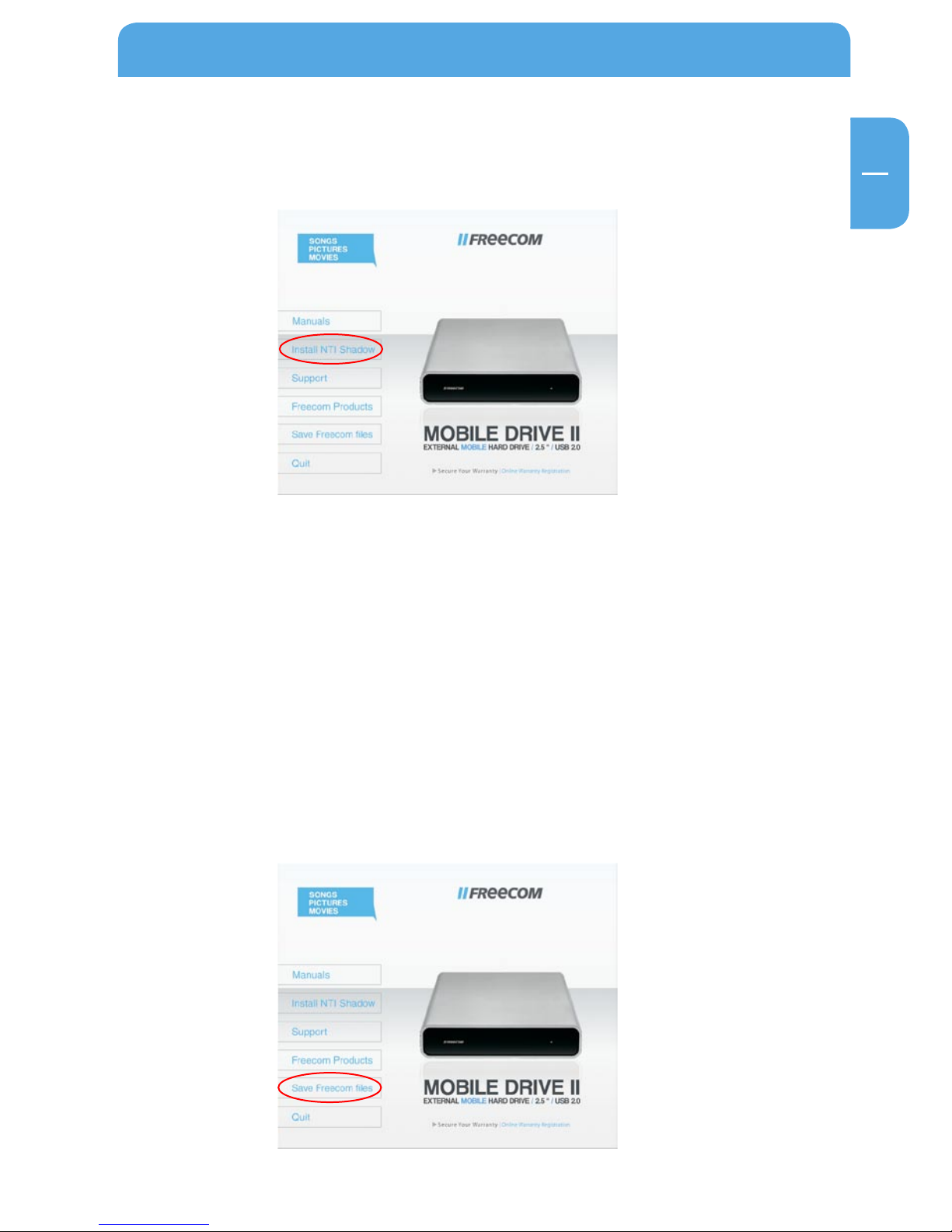

1. Click on"StartPC.exe" in themain directory ofthe hard drive.TheFreecom start menu
opens.
2. Click on "Software Installation" -> "NTI Shadow", "NTI Ripper" or other software. The
installation starts now. Follow the instructions on the screen, confirm with "Next" in
order to continue with the installation.
3.1.1 Saving Freecom data
The user manuals and complementary software (when applicable) are pre-loaded
onto the hard drive. We recommend that you save these files to your computer ("My
Documents"/"Freecom"), to always have a backupof these files incase you (accidentally)
reformat the drive or delete these files from the drive.
Saving these files from the external hard drive to your computer is easy:
1. Click on the button „Save Freecom files“.
2. All provided data on the Freecom hard drive will be saved to the folder "Freecom" in
"My Documents".

9
EN
3
Installation of the application software
3.2 Installation software Mac
1. Click on "Start MAC" in the main directory of the hard drive. The Freecom start menu
opens.
2. Click on "Install NTI Shadow". The installation starts now. Follow the instructions on
the screen, confirm with "Next" in order to continue with the installation.
3.2.1 Saving Freecom data
The user manuals and complementary software (when applicable) are pre-loaded onto
theharddrive.Werecommendthatyousave these filestoyourcomputer("Documents"/
"Freecom"), to always have a backup of these files in case you (accidentally) reformat
the drive or delete these files from the drive.
Saving these files from the external hard drive to your computer is easy:
1. Click on the button "Save Freecom files".
2. All provided data on the Freecom hard drive will be saved to the folder "Freecom" in
"Documents".

10
EN
4
Freecom Mobile Drive II
Chapter 4: Freecom Hard Drive Protection Tool
4.1 Using the Freecom Hard Drive Protection Tool (PC)
Your Freecom Mobile Drive II is equipped with a password protection feature. This pro-
vides the best possible protection. Your data is always protected, even if the internal
hard drive is taken out of the enclosure and connected to a computer, you still will not
be able to access the data.
If your PC is shut down or sent to hibernation, we recommend to completely disconnect-
ing the Mobile Drive II from your PC in order to reactivate the password protection. Some
PCs keep USB devices supplied with power when being in hibernation mode, therefore
you remain logged in with your password.
4.1.1 Configuring the password protection
1. Connectyour FreecomMobile Drive II toyour PC. A HardDisk Drive (“FREECOMHDD”)
and a Virtual CD-ROM Drive (“Password”) will appear in “My Computer”.
The Virtual CD-ROM Drive is an undeletable partition on your Mobile Drive II on
which the Freecom Hard Drive Protection software is stored. This ensures that you
always have the password protection application available when needed, it can not
be accidentally deleted.

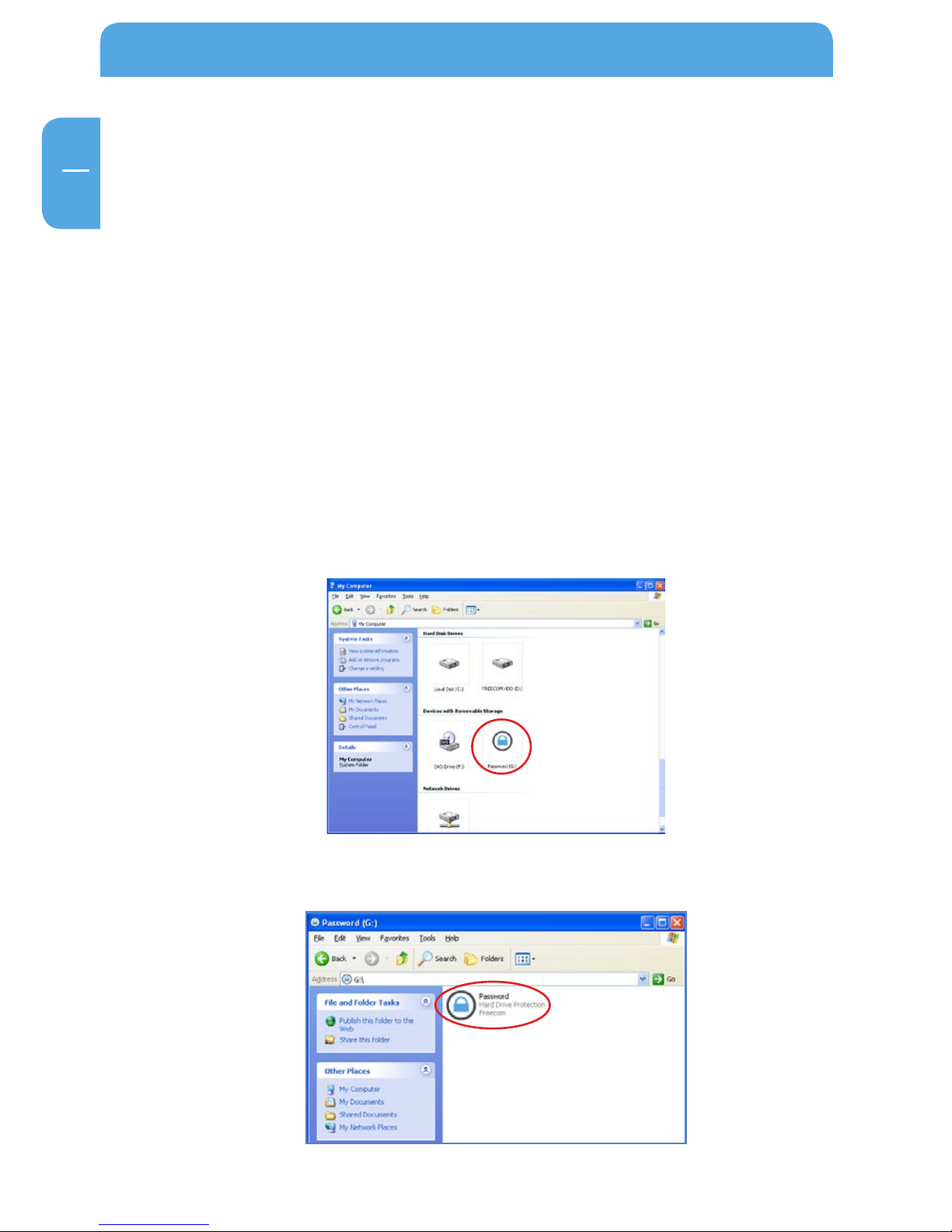

2. If the virtual CD-ROM drive does not automatically open after the harddrivehas been
connected, double-click on the virtual CD ROM drive icon (“Password”) to open it.

11
EN
4
Freecom Hard Drive Protection Tool

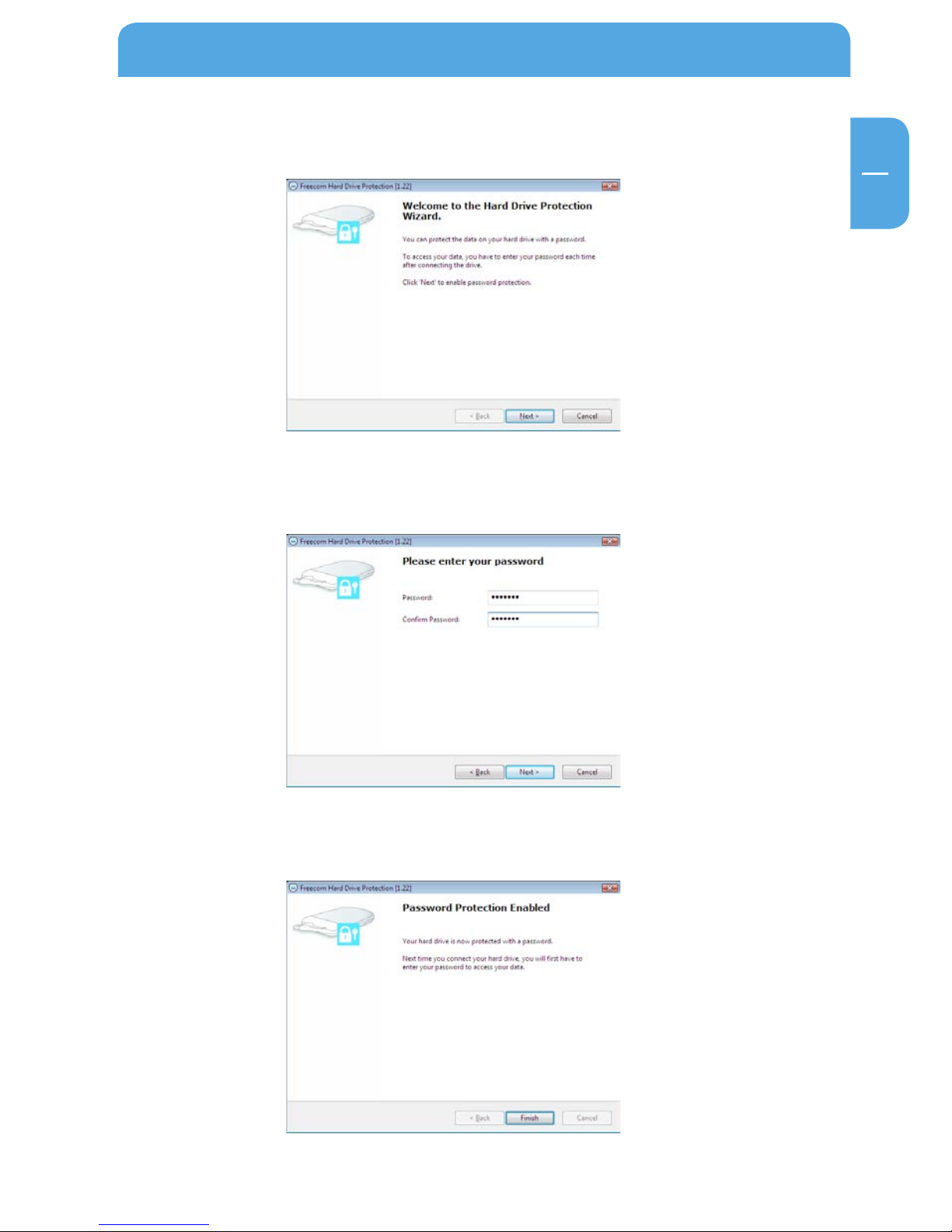

3. Double-clickonthe„Password.exe“symboltoruntheFreecomHardDriveProtection
software. The Hard Drive Protection Wizard will open. Click “Next” to proceed.
4. Enter a password. This password will be required to access the protected partition.
Confirm the password in the second field and click “Next”.
5. Your hard drive is now protected with a password. Click “Finish” to exit the wizard.

12
EN
4
Freecom Mobile Drive II
Accessing the password-encrypted hard drive
1. Open the virtual CD-ROM Drive and double-click on “Password.exe”. The Freecom
Hard Drive Protection tool opens.
2. Enter your password and click “Finish”. Your password-protected hard drive will now
be accessible in “My Computer”.
I lost my password, what can I do now?
If you lose your password, you will not be able to access your data anymore. The only way
to continue using your Mobile Drive II is to erase and format the hard drive.
Attention!Whenerasingandformattingtheharddrive,alldatapreviously
stored on the drive will be erased. All data on the drive will be deleted!
Follow these steps to erase and format your hard drive:
1. Run “Password.exe” from the virtual CD-ROM Drive.

13
EN
4
Freecom Hard Drive Protection Tool

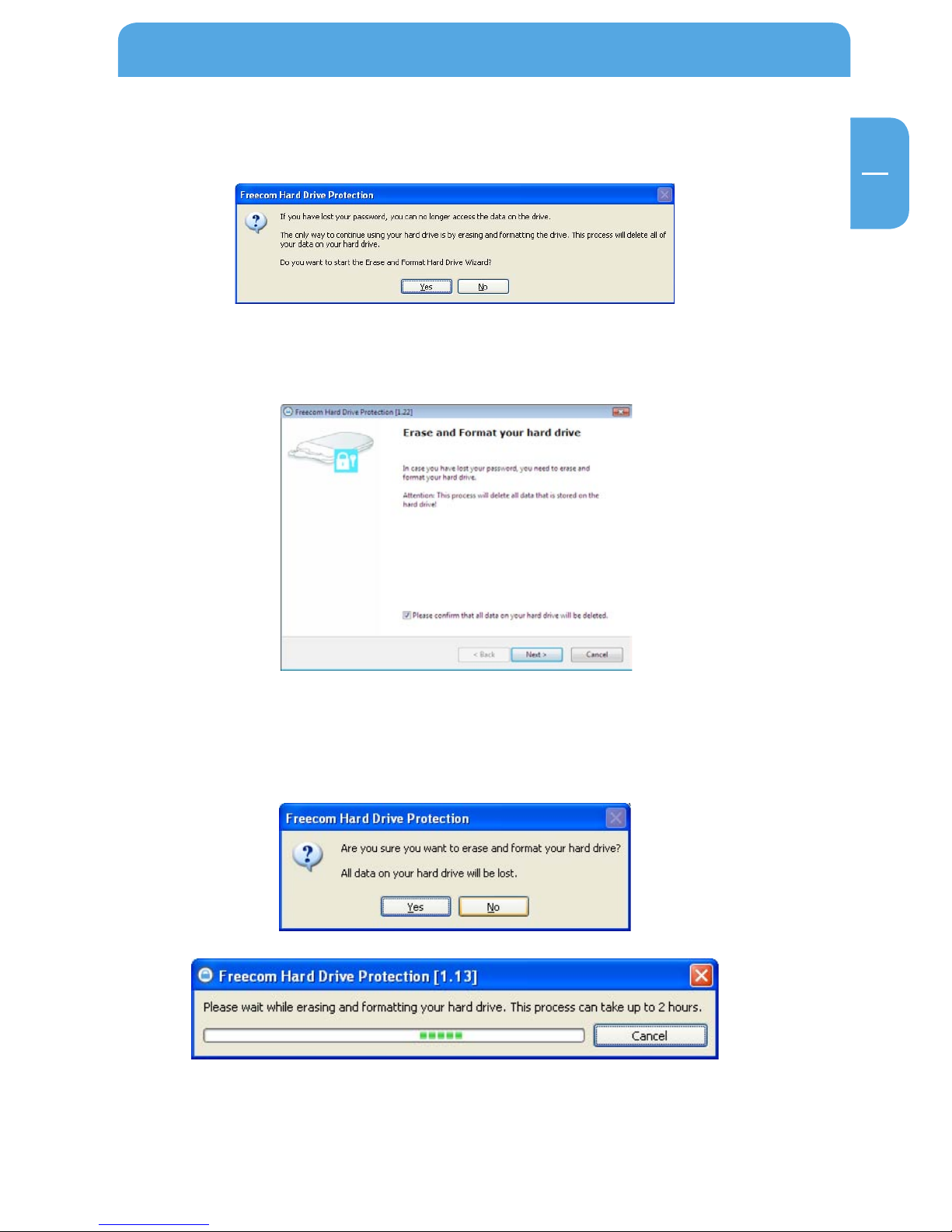

2. Click on “Lost your password?” and confirm that you want to start the “Erase and
Format Hard Disk Wizard”.
3. To continue, you have to confirm that all data on your hard disk will be deleted. Click
on “Next” to continue.
4. In a final step, you have to confirm once again that you want to erase and format
the hard disk. Clicking on “Yes” in this step will irreversibly delete all your data. This
might take up to two hours.

14
EN
4
Freecom Mobile Drive II

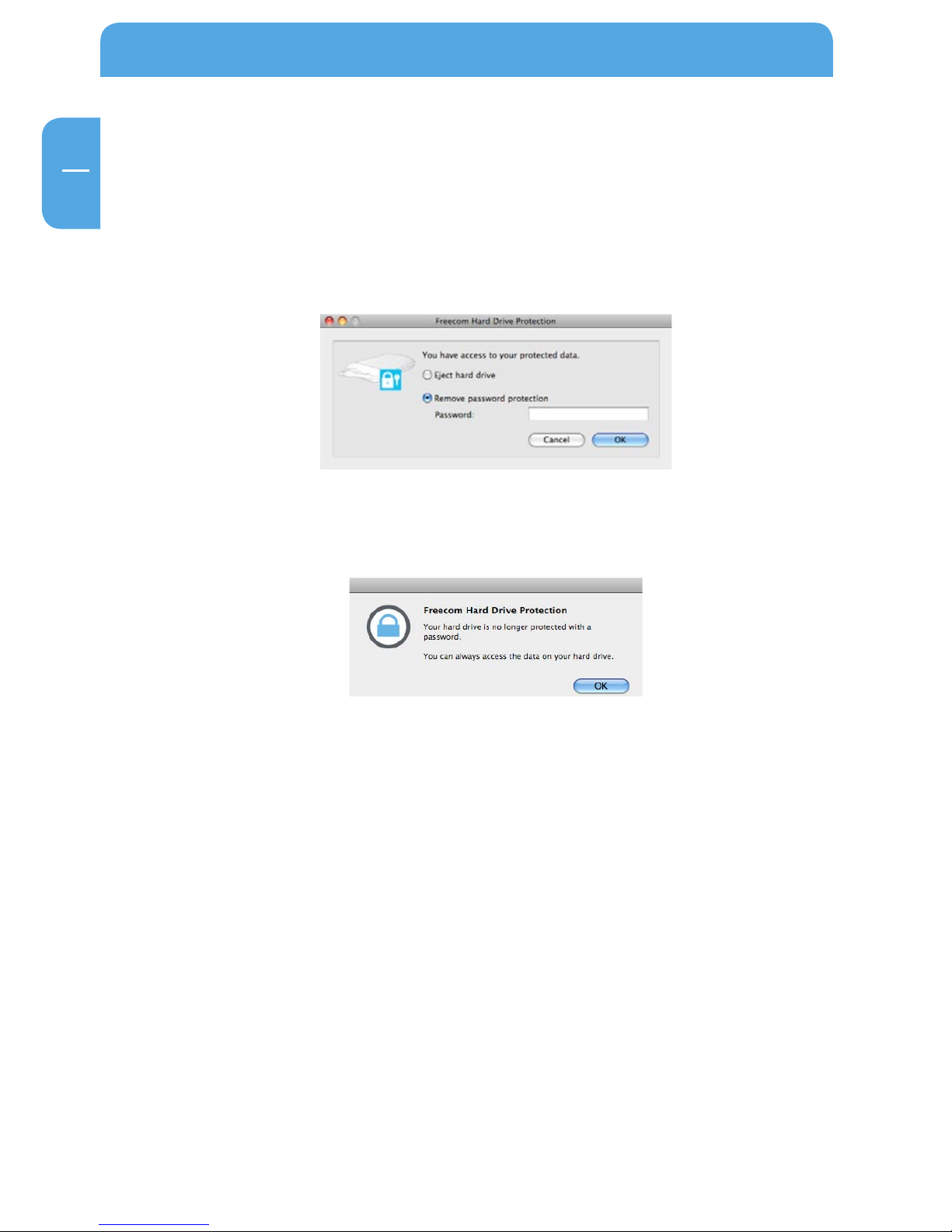

Removing the password encryption
It is possible to remove the password protection feature, meaning that the data on the
drive will always be visible when you connect the drive.
1. Make sure you already run the “Password.exe” to have access to your protected data.
2. Onceyouhaveaccesstoyourprotecteddata, runthe“Password.exe”againandselect
“Remove password encryption”. Click on “Next” to continue.
3. Enter your password and click on “Next”.
4. The password protection will now be removed and you will always have access to
your data.

15
EN
4
Freecom Hard Drive Protection Tool
4.2 Using the Freecom Hard Drive Protection Tool (Mac)
Your Freecom Mobile Drive II is equipped with a password protection feature. This pro-
vides the best possible protection. Your data is always protected, even if the internal
hard drive is taken out of the enclosure and connected to a computer, you still will not
be able to access the data.
If your Mac is shut down or sent to hibernation, we recommend to completely discon-
necting the Mobile Drive II from your Mac in order to reactivate the password protection.
Some Macs keep USB devices supplied with power when being in hibernation mode,
therefore you remain logged in with your password.
4.2.1 Configuring the password protection
1. Connect your Freecom Mobile Drive II to your Mac. A Hard Disk Drive (“FREECOM
HDD”) and a Virtual CD-ROM Drive (“Password”) will appear.
The Virtual CD-ROM Drive is an undeletable partition on your Mobile Drive II on
which the Freecom Hard Drive Protection software is stored. This ensures that you
always have the password protection application available when needed, it can not
be accidentally deleted.

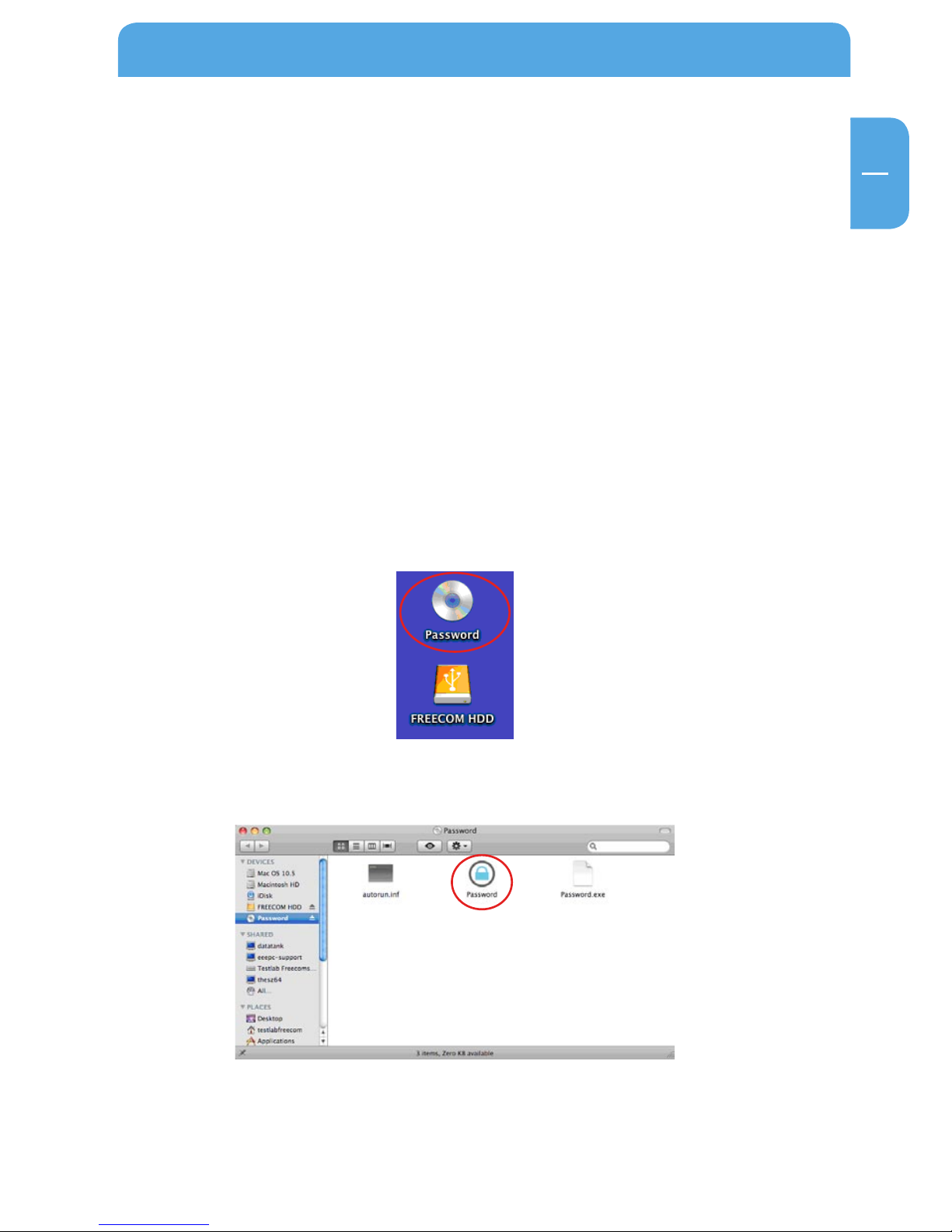

2. Open the CD-ROM drive and double-click on “Password”.

16
EN
4
Freecom Mobile Drive II
3. Enter a password. This password will be required to access the protected partition.
Confirm the password in the second field and click on “OK”.
Accessing the password-encrypted hard disk
1. Connect your Freecom Mobile Drive II to your Mac. A window will open, stating that
the inserted disk is not readable. Click on “Ignore”.
2. Run“Password”fromtheCD-ROMdrive.Youwillbepromptedtoenteryourpassword
to access the hard drive. Enter your password and click on “OK”. You will have full
access to your Mobile Drive II now.

17
EN
4
Freecom Hard Drive Protection Tool
I lost my password, what can I do now?
If you lose your password, you will not be able to access your data anymore. The only way
to continue using your Mobile Drive II is to erase and format the hard drive.
Attention!Whenerasingandformattingtheharddrive,alldatapreviously
stored on the drive will be erased. All data on the drive will be deleted!
Follow these steps to erase and format your hard drive:
1. Run “Password” from the virtual CD-ROM Drive and click on “Lost password”. You
will be asked if you want to erase and format your hard drive. Click on “Continue”.
2. Check the box to confirm that all data on your hard disk will be deleted and click
on “Erase”. Your hard disk will be erased and formatted, this might take up to two
hours.

18
EN
4
Freecom Mobile Drive II
Removing the password encryption
It is possible to remove the password protection feature, meaning that the data on the
drive will always be visible when you connect the drive.
1. Make sure you already run “Password” to have access to your protected data.
2. Once you have access to your protected data, run “Password” again and select “Re-
move password protection”.
3. Enter your password and click on “OK”.
4. The password protection will now be removed and you will always have access to
your data.

19
EN
5
Using Freecom Turbo USB 2.0 (only PC)
Chapter 5: Using Freecom Turbo USB 2.0 (only PC)
By installing the Turbo USB 2.0 driver for your Mobile Drive II, the data transfer rate can
be significantly increased (up to 40% faster transfer speed compared to standard High-
Speed USB).
Enabling the Turbo USB 2.0 driver
1. Connect the Freecom Mobile Drive II to your PC.
2. Run “Start.exe” from your Mobile Drive II and go to Software Installation -> Freecom
Turbo USB 2.0.
3. The Freecom Turbo USB 2.0 Wizard will open.
4. Check the drive and click on “Configure” to enable the Turbo USB2.0 driver for the
Freecom Mobile Drive II.
Disabling the Turbo USB 2.0 driver
1. Connect the Freecom Mobile Drive II to your PC.
2. Run “Start.exe” from your Mobile Drive II and go to Software Installation -> Freecom
Turbo USB 2.0.
3. TheFreecomTurboUSB2.0Wizardwillopen.Uncheckthedriveandclickon“Configure”
to disable the Freecom Turbo USB 2.0 driver for the Freecom Mobile Drive II.

20
EN
6
Freecom Mobile Drive II
Chapter 6: Partitioning your Freecom Mobile Drive II
6.1 General information
Your Freecom Mobile Drive II was partitioned and formatted to provide you with the
maximum availablecapacity andcompatibility. FAT32was chosen as file systemtoassure
that you will be able to read your files on any PC. It is recommended not to change the
current configuration of your Freecom Mobile Drive II.
For some users another file system might fit better for their needs. This manual describes
current limitations of most common file systems and Instructions to enable you to adapt
the Freecom Mobile Drive II to your needs.
6.2 File System features
Please refer to the tables below for an overview:
File systems supported by different operating systems
File system
Operating system
FAT FAT32 NTFS HFS+
Windows 2000 yes yes yes no
Windows XP / Vista yes yes yes no
Mac OS X yes yes yes (only read) yes
Maximum size of a partition
File system
Operating system
FAT FAT32 NTFS HFS+
Windows 2000 4 GB* 32 GB 16 TB -
Windows XP / Vista 4 GB* 32 GB 16 TB -
Mac OS X 10.1.x - 128 GB - 2 TB
Mac OS X 10.2.x - 128 GB - 8 TB
Mac OS X 10.3.x - ( -> 128 GB) - 16 TB
Mac OS X 10.4.x - ( -> 128 GB) - 16 TB
Mac OS X 10.5.x - ( -> 128 GB) - 16 TB
* FAT partitions larger than 2 GB can only be administrated by Windows 2000 / XP / Vista.
