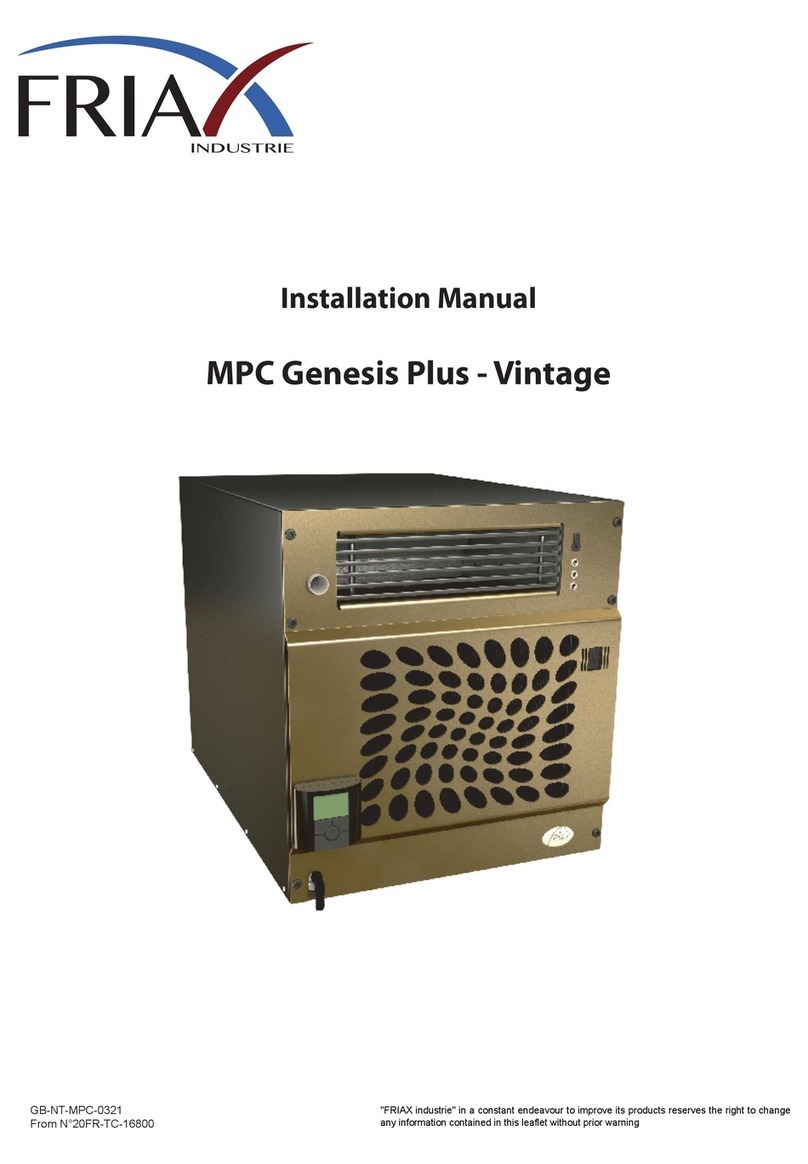

Friax MPC Genesis Series User manual

Installation Manual
MPC Genesis - Vintage
Les caractéristiques données dans cette fiche technique peuvent évoluer sans avis
préalable, avec les améliorations que "FRIAX Industrie" entend toujours apporter à
sa production.
GB-NT-MPCA-0218
R
INDUSTRIE
France
®

MPCA
Genesis - Vintage
MPCA
Genesis - Vintage
Emballage
MPCA
Genesis - Vintage
P
H
L
2
Contents of the package
Thank you for choosing a FRIAX's Monobloc system to control the aging of your wine.
Take the me to read this manual. It will help you understand the steps to install and adjust the MPC series.
What is a cellar Monobloc system FRIAX ?
The MPC serie is a refrigeraon system specially designed to keep the opmum temperature and humidity at
the aging of your wines. The system is composed of three essenals elements which are the evaporator, the
condenser unit and the regulaon box. These elements are interconnected by a refrigerant pipe and an
electrical connecon.
At the delivery, you must find in your package, your Monobloc, the installaon manual and the accessories
describde on page 3. Check package to detect any damage on the carton. Note on the delivery of the carrier all
the observaons about the package condion, this could be useful in case of damage.
If in doubt contact your dealer.
When unpacking check that the material inside the package corresponds to the checklist on the box.
Safety
-Be sure to install the unit in a sheltered place.
-It is advisable to remove the device from its packaging with the help of someone.
-Connect the power supply once the enƟre installaƟon is complete.
Offpallet dimensions:
750 mm x 490 mm x 510 mm ( P x L x H)

MPCA
Genesis - Vintage
Données techniques
3
MPCA 20 MPCA 20 C
Cooling capacity +6°C 500 W 500 W
Cooling capacity +12°C 610 W 610 W
Voltage 230 V - 50Hz 230 V - 50 Hz
Current heaƟng mode -
Power consumpƟon 230 W / 1,2 A 230 W / 1.2 A
Airflow cellar side
1 m 1 m
Refrigerant R290 R290
nominal outside temperature
28°C 28°C
4 - 18 °C 4 - 18 °C
Weight 45 kg 49 kg
-
Current cooling mode 2,41 A 3,24 A
210 m3/h
210 m3/h
Temperature seƫng range
Airflow outside
250 m3/h
250 m3/h
Power cable lenght
Genesis & Vintage Genesis
Condensate evaporator tray
No Yes
MPCA
Genesis - Vintage
Accessories
Monobloc FRIAX comes with
- A box with wireless remote, table stand for remote control and two baeries
- A flexible drain tube Ø 16 2m length
- A bag containing screws fixing brackets on the air condioner, this leaflet and a fing
20/27 for hose Ø 10 on Vintage versions

Outside
28°C
Cellar
12°C
Condenser
Evaporator
4
260
48 42
204
19243
567
198 75
285
43
25
350
25326
374 139
Evaporator air inlet
Regulation LED + synchronization button Power Supply
Condenseur air outlet
Evaporator air outlet
Condensor air inlet
Dimensions
MPCA
Genesis - Vintage
OperaƟng principal

MPCA
Genesis - Vintage
Installation
Position of the opening in the bottom of the cabinet
5
90 mini
285
75
43
5
13
260 23
199
75199
26023
285
60

MPCA
Genesis - Vintage
Installation
6
567
570 between cleat
60 mini
480 mini
11
60
90

MPCA
Genesis - Vintage
Installation
ConnecƟon of the drain
Only units not equipped with the KBEC opon (condensate evaporaon pan kit) must be
connected to a drain.
Connect the drain
• Connect the drain tube (Ø 16) to the end
of the elbow with the supplied collar.
7

MPCA
Genesis - Vintage
+
+
-
-
Wirless remote control
Power supply: 2 x 1.5V (AAA) provided
60
83
80
26
8
The remote control could be installed in any room. Its maximum range is 100m in a
completely open area. This distance could be extremly reduced by thickness of walls
and the locaon of the cellar. It is possible to fix directly the remote to the unit by
using the screw holes on the MPC facade.

9
MPCA
Genesis - Vintage
Wireless remote
Configuration type
Key lock indicator
Crankcase heater indicator
Silent indicator (EC fan evaporator)
Heating indicator
Cooling indicator
Condenser temperature probe
Humidifier indicator (
VINTAGE model )
Cellar temperature probe
Parameter number
Setup mode
Radio frequency signal
Temperature or humidity indicator (option)
Battery charge level indicator
°C / °F or humidity (%) unit indicator
Speed condensor fan
Speed evaporator fan
Time (12 AM/PM or 24 h)
existing if EC evaporator fan
existing if EC condenser fan
Minus for negatives values
Lighting control
%
1
23456789
10
11
12
14
15
13
18
17 16
OK
-
+
Menu key
Return
Navigation key
Start key
Stand by
Stop
Navigation key
Validation key
-Red : heating mode
-Green : cooling mode
-Flashing red : Alarm
19
20
21
22
12
13
14
15
16
17
18
19
20
21
22
1
2
3
4
5
6
7
8
9
10
11

10
MPCA
Genesis - Vintage
First start
Step I - Set the cellar fan speed
-For MPC 30 select the value * and confirm.
-For MPC 48 select the value * and confirm.
* For speed value, see the specific installaon instrucons when the appliance is installed outside the cave
(mounng OUT) and the evaporator is ducted.
Step II - StarƟng
Seng the
speed evapora-
tor fan cellar
Even if the screen
is blank Press
for 6 seconds
Change the
screens with
OK
OK
confirm with
-
+
Change the value with
or
Access to
menu
Parameters Display Handling
See below the value
set according to the
device
Login with
Shorten the waing
period ** hold
Start the unit with the
remote control
The unit starts in heang
or cooling mode. If the set
is idencal to the tempe-
rature of the cellar, the
screen shows no opera-
on.
The unit starts.
If the icons and
are flashing the unit is in
standby mode.
Press
for 2 seconds
or
becomes xed
or
xed or ashing
** It is the preheating of the compressor crankcase heater which avoid any blow of liquid during the
rst start. It is preferable to respect this period until its completion
To exit the menu,
press
funcons Handling Views Remarks
Remarks
