Friedrich SH15 User manual

Hazardgard®
Hazardous Location
Room Air Conditioner
Equipment is certied in accordance with:
ISA 12.12.01 and NFPA 70-10
(National Electric Code)
Article 501 ATEX*
Class I , Div. 2 Groups A,B,C,& D II 3 G Ex nA nC IIC T4 Gc
DEMKO 15 ATEX 1364X
Article 505 IECEx*
Class I , Zone 2, Groups IIA IIB + H and IIC Ex nA nC IIC T Gc IECEx UL15.0051X
8˚ C ≤ Tamb ≤ 55˚ C
240/220 V, 50 HZ :SH20*
230/208V : SH15, SH20
230/208V, 60 HZ ; 240/220V, 50 HZ : SH 24*
6/17 93031008_00
Installation & Operation Manual

2
Table of Contents
Operation and Care Instructions
Your Safety and the safety of others............................................................................................................................................ 2
General Instructions..................................................................................................................................................................... 3
Filter Information .......................................................................................................................................................................... 4
Special Features .......................................................................................................................................................................... 5
Control Panel................................................................................................................................................................................ 5
Underwriters Laboratories ........................................................................................................................................................... 6
Installation Instructions
Electrical Requirements............................................................................................................................................................... 7
Installation Hardware ................................................................................................................................................................... 8
Unpacking the Unit.................................................................................................................................................................. 9-10
Outdoor / Indoor Clearances.......................................................................................................................................................11
Through-the-Wall ...................................................................................................................................................................12-14
Sash Window ........................................................................................................................................................................ 15-20
Chassis Wiring and Preparation ........................................................................................................................................... 21-24
Chassis Installation ...............................................................................................................................................................25-26
Maintenance Checklist............................................................................................................................................................... 27
WARRANTY ............................................................................................................................................................................... 28
WARNING
ADVERTENCIA
AVERTISSEMENT
THINK
SAFETY
FIRST
To avoid the buildup Para evitar la acumulación de
o
f electrostatic charge, cargas electrostáticas, limpie
r
egularly clean the unit regularmente la unidad con un
with a damp cloth. paño húmedo.
Pour éviter l’accumulation de
c
harges électrostatiques,
ne
ttoyer régulièrementl’appareil
avec un chiffonhumide.
Do not remove,
disable or bypass this
unit’s safety devices.
Doing so may cause,
fire, injuries or death.
No eliminar, desactivar o pasar
por alto los dispositivos
de seguridad de la unidad. Si
lo hace podria producirse
fuego, lesiones o muerte.
Ne pas supprimer, désactiver
ou contourner cette l’unité des
dispositifs de sécurité. Faire
vous risqueriez de provoquer,
le feu, les blessures ou la mort.
Do not open when an
explosive atmosphere
is present.
No abra cuando se encuentre
en una atmósfera explosiva.
Ne pas ouvrir lorsque une
atmosphère explosive est
présente.
Do not separate
when energized.
No separar cuando se
encuentre bajo tensión.
Ne pas séparer sous
tension.

3
Congratulations!
Thank you for your decision to purchase the Friedrich Hazardgard (Hazardous Duty Room Air Conditioner). Your new Friedrich has
been carefully engineered and manufactured to give you many years of dependable, efcient operation, maintaining a comfortable
temperature and humidity level. Many extra features have been built into your unit to assure quiet operation, the greatest
circulation of cool, dry air, and the most economic operation.
General Instructions
This Installation and Operation Manual has been designed to insure maximum satisfaction in the performance of your unit. For years of trouble-free
service, please follow the installation instructions closely. We cannot overemphasize the importance of proper installation. We have added new infor-
mation to the basic instructions to help you achieve proper installation.
WARNING
Refrigeration system under high pressure.
Do not puncture, heat, expose to flame or incinerate.
Only certified refrigeration technicians should service
this equipment.
R410A systems operate at higher pressures than R22
equipment. Appropriate safe service and handling
practices must be used.
Only use gauge sets designed for use with R410A. Do
not use standard R22 gauge sets.
WARNING
Please read this manual thoroughly prior to equipment
installation or operation.
It is the installer’s responsibility to properly apply and
install the equipment. Installation must be in
conformance with the NFPA 70-2008 National Electric
Code or current edition, International Mechanic Code
2009 or current edition and any other applicable local
or national codes.
Failure to do so can result in property damage,
personal injury or death.
1. Carefully read and follow the installation instructions.
2. Make sure the unit is the right capacity for the area to be
cooled. An undersized unit makes the unit work too hard,
using more electricity than needed and increases wear. An
oversized unit will cycle on and off too rapidly, and therefore
cannot control humidity very well.
3. When you rst turn on your Friedrich, set the thermostat to
its coldest position to cool the room. When the desired tem-
perature is reached, turn the thermostat control toward the
“warmer” position until you hear a click and the compressor
goes off. The thermostat will then cycle the compressor to
maintain the selected temperature.
4. Clean the lter frequently (See Filter Information)
5. Do not block the air ow to and from the unit. Make sure the
louvers are directed to give even distribution of air through-
out the room. Caution: If air directed into a restricted area
such as a corner, this may cause the unit to cycle on and off
rapidly, which could damage your unit.
6. A dir ty lter or improperly set controls can affect the cooling
ability of the unit.
7. If cooling is weak and you have veried that the lter is
clean and the controls are properly set, the unit may be low
on refrigerant, and you should call your Friedrich service
provider to check the unit.
8. Keep blinds, shades and drapes closed on the sunny side of
the room being cooled.
9. Proper room insulation helps your unit maintain the desired
inside temperature.
10. Whenever possible, shade west-facing windows with aw-
nings , trees, or window tinting.
11. Keep window treatments away from the unit to provide free
air ow.
Here are some suggestions to help you use your new Friedrich most efciently:
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual
and on your appliance. Always read and obey all safety messages.
This is a safety Alert symbol. This symbol alerts you
to potential hazards that can kill or hurt you and
others.
All safety messages will follow the
safety alert
symbol with the word “WARNING” or “CAUTION”.
These words mean:
Indicates a hazard which, if not
avoided, can result in severe
personal injury or death and damage
to product or other property.
Indicates a hazard which, if not
avoided, can result in personal injury
and damage to product or other property.
All safety messages will tell you what the potential hazard is, tell you
how to reduce the chance of injury, and tell you what will happen if
the instructions are not followed.
Indicates property damage can
occur if instructions are not followed
WARNING
CAUTION
NOTICE

4
Filter Information
The lter in your Friedrich removes dust, pollen and other impurities from the air as they are drawn through the unit. The lter is
permanent and reusable, and has a germicidal treatment which is not affected by periodic washing.
A clogged, dirty lter reduces the air ow through the unit and reduces its efciency. You should check the lter every seven to ten
days, depending on the amount your unit is used. Clean the lter regularly
Figure 1
FILTER
RETAINER CLIPS
The filter can be removed for cleaning by opening the front of
the unit and releasing the filter from its retaining clips.

5
• Permanent Split-Capacitor, totally enclosed fan motor to
assure efcient operation even under adverse electrical
conditions.
• Motor has a special stainless steel shaft to resist corrosion
and a hermetically sealed overload for arc-free operation.
• High capacity compressor with internal hermetically sealed
overload.
• Contains transient voltage suppressor to protect controls
against transient voltage spikes. Provides solid state switches
for arc- free operation.
• Hot gas bypass low ambient control to permit operation without
freezing at outdoor ambient temperatures as low as 45°F (7°C).
• IP44 Environmentally sealed electrical components protect
against ingress of moisture ( ATEX & IECEx )
• Polyester powder nish, oven-baked for an attractive, long-
lasting nish
• Copper tubing/aluminum hydrophilic coated n coils
• Galvanized steel cabinet and base pan, all bonderized.
• Slide-out chassis for easy installation in window or through–
the–wall.
• Extra insulation inside, including completely insulated plenum
chamber for quieter, more efcient cooling.
• Entire unit test run in environmental chamber before crating.
• Eight-way air ow control for uniform circulation
• Condensate drain with exclusive mosquito trap.
• 15amp or 20amp circuit with time-delay fuse required.
Accommodates direct wiring.
• Long lasting 3/8” (10mm) thick air lter, germicidally treated,
easily removed for cleaning
Hazardgard Special Features

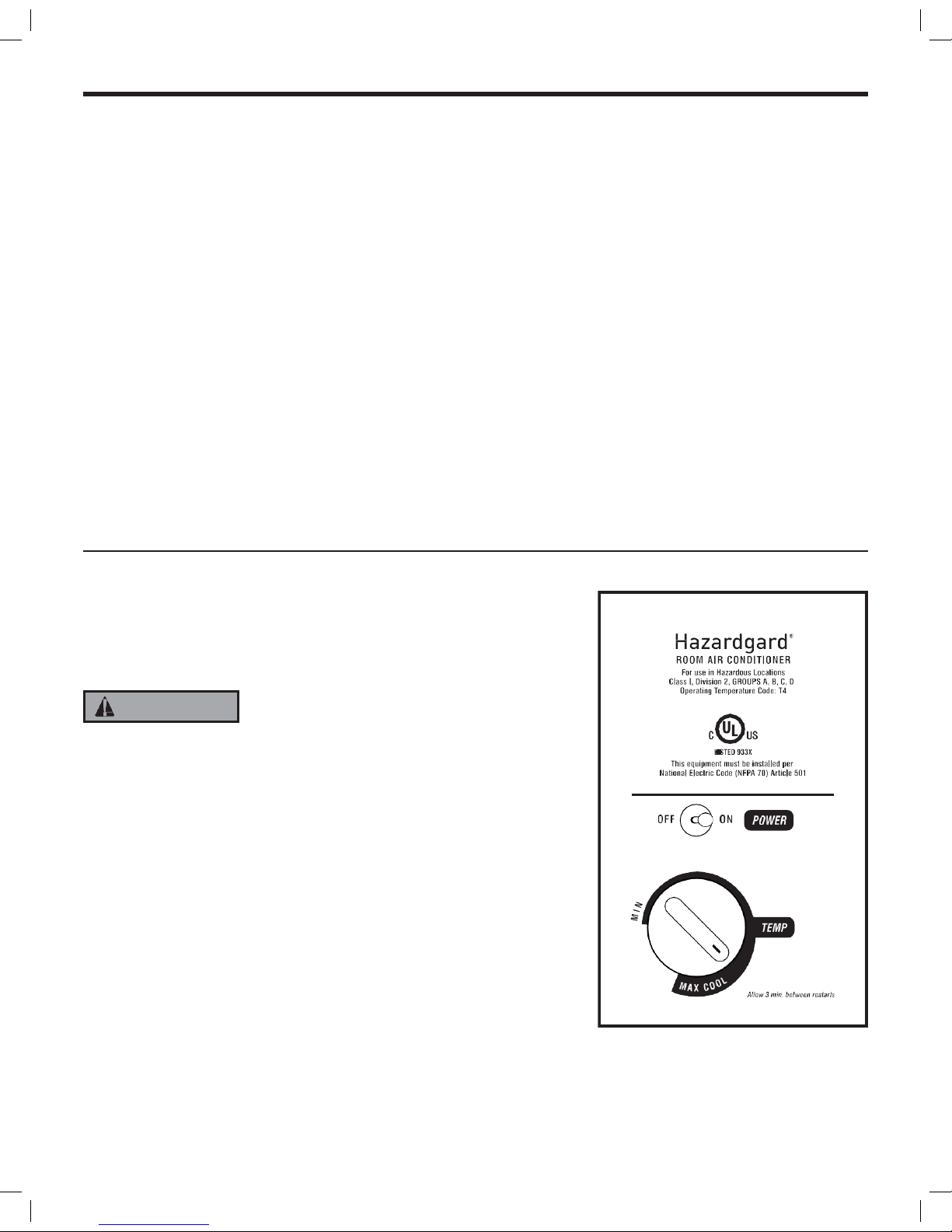

Control Panel
Function Control (Power)
This switch is a double pole, single throw toggle switch.
ON - Turns everything on.
OFF - Turns everything off.
WARNING
POWER MUST BE DISCONNECTED AT
CIRCUIT BREAKER/FUSE BEFORE SERVICING!
Temperature Control
The knob at the bottom is the thermostat which is a cross ambient type
used to maintain the desired comfort level. The thermostat reacts only to
a change in temperature at the bulb location - turn the knob clockwise to
set cooler, counter- clockwise for warmer.
Friedrich leads with the rst UL Listed Room Air Conditioners designed
to cool living quarters and other enclosures situated in hazardous loca-
tions where specic volatile ammable liquids or gases are handled or
used with enclosed containers or systems.
Friedrich Hazardgard room air conditioners are designed to meet the
National Electrical Code, Article 500 requirements for Class I, Division
2, Groups A,B,C,D Hazardous locations, CERTIFIED BY UNDERWRITERS
LABORATORIES FOR USE IN CLASS 1, DIVISION 2, GROUPS A,B,C,D
HAZARDOUS LOCATIONS.
Friedrich Air Conditioning quality has been proven by more than 30 years of successful experience from the Gulf of Mexico
to the searing sands of the Arabian Desert.

6
SH20N50AT and SH24N20AT Adhere to the following certications:
CERTIFIED PER STD. NO. ANSI/ISA 12.12.01,2013
PER STD. NO. IEC 60079-0, 6th Edition PER STD. NO. IEC 60079-15, 4th Edition
PER STD. NO. CAN/CSA C22.2 NO. 213-M1987
PER STD. NO. CENELEC EN 60079-0: 2012 + A11: 2013
PER STD. NO. CENELEC EN 60079-15: 2010
CERTIFICATION DEMKO 15 ATEX 1364X II 3 G Ex nA nC IIC T4 Gc
IECEX UL15.0051X DEMKO 15 ATEX 1364X
SH20N50AT & SH24N20AT
Specic Conditions of Use:
• Provision shall be made to prevent the rated voltage being exceeded by
the transient disturbances of more than 140% of the peak rated voltage..
• The equipment must be installed only for use in locations providing
adequate protection against the entry of solid foreign objects or water
capable of impairing safety.
• Only permanently wired cables may enter the cable glands. The user
shall provide for the required strain relief.
• Degree of protection will be safeguarded only when sealing and cable
entry ttings are properlytted. The Manufacturer’s instructions must
be followed.
• Cable Glands shall be mounted into the enclosurein such a way that they
are mechanically protected against impact force.
• To avoid the buildup of electrostatic charge, regularly clean the unit with
a damp cloth.
• The appliance is not to be used by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction.
Children to be supervised not to play with the appliance.
NOTICE: To maintain IP44 protection, the Hazardgard
unit must be installed in accordance to the installation
instructions stated in this document.
The following additional previous editions of Standards noted under
the “Standards” section of this Certicate where applied to integral
Components as itemized below. There are no signicant safety related
changes between these previous editions and the editions noted
under the “Standards” section.
Junction Box, Part No. 25. 10 16
08, manufactured by Rose.
IEC 60079-7:2006-
07, IEC 60079-31:
ATEX & ICEX Standards Specic to Models SH20N50AT & SH24N20AT

7
Installation Instructions
Models SH15, SH20 and SH24
NOTE: THIS MANUAL INCLUDES INSTALLATION INSTRUCTIONS FOR BOTH WINDOW MOUNT
AND THROUGH- THE WALL INSTALLATIONS
WARNING
Explosion Hazard
Electrical Shock Hazard
Electrically connect unit in accordance with NEC
Code Article 501. Failure to do so can result in
death, explosion, fire or electrical shock
Electrical Requirements
ALL FIELD WIRING MUST MEET THE REQUIREMENTS OF THE NATIONAL ELECTRICAL CODE (ANSI/NFPA
70) ARTICLE 501.
THE FIELD-PROVIDED CIRCUIT PROTECTION DEVICE (HACR CIRCUIT BREAKER OR TIME DELAY FUSE) MUST NOT EXCEED THE
AMPACITY INDICATED ON THE PRODUCT NAMEPLATE.
IMPORTANT: Before you begin the actual installation of your air conditioner, check local electrical codes and the information below.
Your power supply must be the same A.C. voltage and frequency (hertz) as marked on the name plate located on the chassis. Only
alternating current (A.C.), no direct current (D.C.), can be used.
An overloaded circuit will invariably cause malfunction or failure of the air conditioner; therefore, it is extremely important that the
electrical power is adequate. Consult your dealer or power company if in doubt.
The following instructions are for HAZARDGARD models and cabinet sizes listed below.
GROUPS CABINET SIZE (H x W X D)
SMALL CHASSIS SH15 15 15/16” x 25 15/16” x 27 3/8”
(405 mm x 660 mm x 695 mm)
MEDIUM CHASSIS SH20, SH 24 17 15/16” x 25 15/16” x 27 3/8”
(455 mm x 660 mm x 695 mm)
Model Number Plug Type Circuit Rating
Time Delay Fuse
SH15 Junction Box 250V-15 Amp
SH20, SH24 Junction Box 250V-15 Amp, 250V-20 Amp

8
Window Mount Installation Hardware
ITEM
No. DESCRIPTION QTY.
SHELL MOUNTING PARTS
1SUPPORT BRACKET 2
2SCREW, 10 - 24 x 1” HEX HEAD 4
3 10 - 24 FLAT WELDNUT 4
4SCREW, SHEET METAL #12A x 2” 7
WINGBOARD ANGLE MOUNTING
5WINGBOARD ANGLE, TOP 1
6WINGBOARD ANGLE, SIDE 2
7SCREW, SHEET METAL #8A x 3/8” 2
WINGBOARD MOUNTING PARTS
8WINGBOARD (MASONITE) 1
9J TYPE SPEED NUT 4
10 WINGBOARD CLIP (SPRING STEEL) 4
11 SCREW. #8A x 1/2” PHILLIPS TRUSS HD. 4
WINDOW SEALING
12 WINDOW SEAL GASKET (DARK FOAM) 1
ITEM #5 SEE ACCESSORY DETAIL IMAGE
ITEM #6 SEE ACCESSORY DETAIL IMAGE
ITEM #12 SEE ACCESSORY DETAIL IMAGE

9
Unpacking The Unit
STEP 1 Cut the packing straps and remove box pulling it up, remove corner-post and protective packing, conserve the berboard
wing board in a safe place, it will be used later.
Figure 2
Figure 3
Figure 4
STEP 2 Remove decorative plastic return air grille to a safe area away from the unit.
STEP 3 Remove the installation hardware, two gaskets from beneath the unit, and place them in a safe area away from the unit.
STEP 4 Remove the chassis retainer by removing the far right screw in the basepan (see Figure 4); save this screw to reattach the
chassis retainer after installation.

10
Unpacking The Unit
Figure 5
Figure 6
Figure 7
STEP 5 Remove and discard the two retainer screws and plastic bushings located at the rear of the unit. (Figure 5)
STEP 6 While an assistant holds the cabinet stationary, use the hand pull at the front of the base pan (see Figure 6) to pull the chassis
out of the cabinet.
STEP 7 Remove white foam blocks used to restrain the compressor during shipment. Also remove junction box from under fan motor.

11
Installation: Outdoor/Indoor Clearances
Figure 8
Figure 9

12
Shell Installation: Through-the-wall Installations (as unit is shipped)
WARNING
Falling Object Hazard
Not following Installation Instructions
for mounting your air conditioner can
result in property damage, injury, or
death.
Wall Preparation
The maximum wall thickness permissible without special construction is determined by the model size to be installed. THE OUT- SIDE
CABINET CONDENSER AIR INTAKE LOUVERS MUST NOT BE BLOCKED BY EXTENDING INSIDE THE WALL
AREA. Observe the maximum wall thickness shown as dimension “A”in (Figure 10).
Special Instructions For Extra Thick Walls
For installation in walls exceeding the maximum thickness shown as dimension A, the following suggested construction may apply.
(See Figure 10).
Figure 10
EXTRA THICKWALL CONSTRUCTION
3.25" (82.55 MM)
MAXIMUM
WALLTHICKNESS
CONDENSER
AIR INTAKE
LOUVERS
Top View
TOP VIEW SHOWING BEVELEDSIDES
FOR AIR
INTAKE a 45 deg angle
should
be maintained.
WALL BELOW
UNIT MUST ALSO BE BEVELED TO
ASSURE PROPER TILT ANGLE.
No louver should be
blocked. Maintain a
45 deg angle until
you clear the wall
CONDENSER AIR
INTAKE LOUVERS
STEP 1 CHECKING WIRING AND PLUMBING: Check all wiring and plumbing inside and outside the wall to be sure none will be broken
where the hole is to be cut.
STEP 2 HOLE CONSTRUCTION: Depending on the size of the unit to be installed, layout the hole dimensions in accordance with the
chart below (See Figure 11). Cut and frame in the hole to the nished dimensions. Use 2” x 4” material for framing and follow
the suggested typical installations in (Figure 12, 13 or 14 on Page 13.
NOTE: IF THE WALL CONSTRUCTION IS TYPICAL FRAME OR 2 X 4 STUDDING WITH BRICK OR STONE VENEERS, LOCATE THE HOLE
NEXT TO ONE OF THE STUDS. FOR MASONRY, CONCRETE OR CINDER BLOCK WALLS, LOCATE THE HOLE FOR CONVENIENCE.
Figure 11
HOLE SIZE REQUIREMENTS
NOTE: THESE DIMENSIONS ARE FOR FINISHED HOLE SIZE
FINISHED
DIMENSION
SH15
CHASSIS
SH20, SH24
CHASSIS
A16-3/16” 18-3/16”
B26-3/16” 26-3/16”

13
CABINET
CAULK ALL
SIDES
INSIDE AND
OUTSIDE
SHIM TO FILL IN VOID AT
THE TOP AND SIDES WITH
WOOD AS REQUIRED
Figure 12 FRAME WALL CONSTRUCTION Figure 13 BRICK VENEER CONSTRUCTION
CAULK ALL
SIDES INSIDE
AND OUTSIDE CABINET
SHIM TO FILL IN VOID AT
THE TOP AND SIDES WITH
WOOD AS REQUIRED
Figure 14 SOLID MASONRY CONSTRUCTION
MORTAR
CABINET
CAULK ALL
SIDES INSIDE
AND OUTSIDE

14
STEP 3 Slide the cabinet into the hole far enough to allow the guide-channel of the sill plate to contact the inside wall surface
(See Figure 15).
STEP 4 Drill three (3) 5/32” diameter pilot holes through holes in sill-plate into the framing and install three (3) #12 x 2” long screws
(Item #4) (See Figure15).
NOTICE
Instructions for mounting sleeve with slope must be observed to
prevent entry of water into room. Potential property damage can
occur if instructions are not followed.
NOTE: ALTERNATE FA STENERS WHICH MAY BE USED FOR SECURING THE SILL PLATE IN THE WALL, AND THE SUPPORT BRACKETS
TO THE OUTSIDE WALL ARE NOT FURNISHED, BUT ARE AVAILABLE AT A LOCAL HARDWARE STORE.
MOLLY OR TOGGLE BOLT EXPANSION ANCHOR BOLT
STEP 5 Drill two (2) 5/32” (4 mm) dia. pilot holes in each side at the locations shown (Figure 15) and install four (4) #12 x 2” screws
(Item #4). If the hole construction in Step 2 provides a sturdy mount with solid vertical studs, no support brackets are
required. The installation must support the weight of the unit plus an additional weight of 400 pounds (185 kg) on the rear of
the cabinet. The support brackets may be used for through-the-wall installations as shown in (Figure 15), for additional support.
STEP 6 If desired, trim around the cabinet on the room side with a suitable frame molding furnished by the installer (See Figure 15).
STEP 7 Skip to chassis wiring and preparation on page 21 for Non ATEX or page 23 for ATEX and IECEx.
Figure 15 TYPICAL INSTALLATION

15
D E T A I L 1 6 - B
D E T A I L 1 6 - A
A
B
TOP ANGLE (ITEM #5)
CABNET
SILL PLATE TAB
SIDE ANGLE (ITEM #6)
2 REQUIRED
8-A X 3/8" LONG SCREW
(ITEM #7) 2 REQUIRED
TAB
TAB
LOOP
Shell (Cabinet) Preparation for Installation
STEP 1 Remove still plate and bend the taps up and reinstall. See (DETAIL 16-A).
STEP 2 Take the side angles (item #6) and engage its loops in the tabs (both sides) of the sill plate. (DETAIL 16-A).
STEP 3 Take the top Flange (item #5) and engage its tabs in the top loops of the side anges (DETAIL 16-B).
STEP 4 Install two (2) screws (Item #7) to secure the top angle tabs and the side angle in the side of the cabinet (Detail 16-B).
Figure 16

16
Shell Installation: Sash Window Installations
WARNING
Falling Object Hazard
Not following Installation Instructions
for mounting your air conditioner can
result in property damage, injury, or
death.
STEP 1 Check the window sill and frame to be sure they are in good condition and rmly anchored to the wall. Repair if necessary.
STEP 2 CABINET MOUNTING: Raise the lower window sash 1/4” more than the height of the cabinet. Carefully slide the cabinet through
the open window until the sill plate channel rests behind the window sill and the top support angle (Item #5) rests against the
window (See Figure 17). Center the cabinet side to side and drill three (3) 5/32” diameter pilot holes into the window sill using
the holes in the cabinet sill plate as a guide. Install three (3) #12A x 2” long screws (Item #4) (See Figure 17).
Figure 17
STEP 3 OUTSIDE SUPPORT MOUNTING: Assemble the support brackets (Item #1) to the bottom rails of the cabinet with four (4) 10-24
1” long screws (Item #2) and four (4) 10–24 at nuts (Item #3). Adjust the support brackets to bring the bottom pads in contact
with the wall surface. (See Figure 18.)
A 1” x 4” or 2” x 4” SPACER SHOULD BE USED BETWEEN THE WALL AND THE SUPPORT BRACKETS WHEN
INSTALLED ON ALUMINUM OR VINYL SIDING). Drill 5/32” (4 mm) diameter pilot holes, and secure the brackets to the wall
with two (2) #12A x 2” long screws (Item #4). Adjust the support brackets to provide an approximate 3/8” (10 mm) down slope
towards the outside for drainage. Tighten all screws. (See Figure 18).
Figure 18
3/8" (10 MM) DOWN SLOPE
10 - 24 X 1" HEX HEAD
SCREW (ITEM #2)
SUPPORT BRACKET
(ITEM 1)
A 1" X 4" OR 2" X 4" SPACER SHOULD BEUSED BE-
TWEEN THE WALL AND BRACKET WHEN INSTALLED ON
ALUMINUM, ASBESTOS ORVINYLSIDING.
#12A X 2" SCREW
(ITEM#4)
SUPPORT BRACKET
(ITEM 1)
10 - 24 FLAT WELD
NUT (ITEM #3)

17

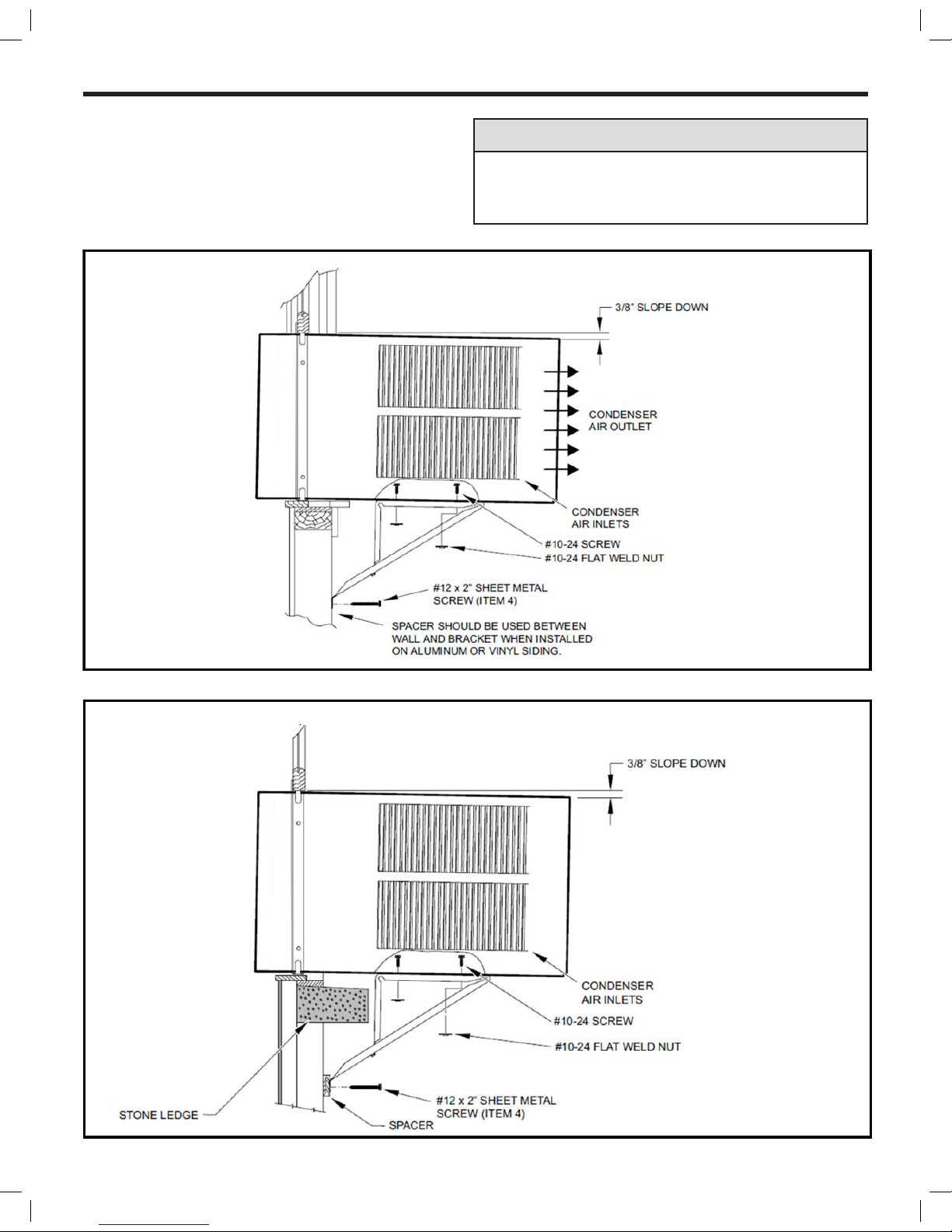

Figure 19
The illustrations below show a standard frame construction
installation as well as some suggested ways of adapting the
support bracket to thick walls and large brick ledges.
NOTICE
Instructions for mounting sleeve with slope must be observed
to prevent entry of water into room.
Failure to follow instructions can result in property damage.
Figure20
Typical Installation: Sill Plate

18
Typical Installation: Sill Plate (cont.)
Figure 21
Figure 22

19
Figure 23
Figure 24
STEP 5 ASSEMBLE CLIPS TO WINGBOARD PANELS: Assemble “J” type speed nuts (Item #9) and spring steel clips (Item #10) to the
edges of the cut wingboard panels (See Figure 24).
STEP 4 CUT WINGBOARD PANELS: Measure and cut the wingboard panels from the supplied masonite (Item #8) to t the spaces
between the side window channels and the sides of the cabinet (See Figure 23).
NOTE: AFTER CUTTING PANELS, MAKE A TRIAL TEST TO SEE IF THEY FIT THE SPACE WITH ABOUT 1/8” CLEARANCE BEFORE
GOING TO STEP 5.

20
Figure 25
SECTION A -A
TOP OF CABINET
WINDOW JAM
CLIP (ITEM10)
PLACE WINGBOARD PANEL IN
WINDOW JAM TO COMPRESS
THE
SPRINGS INSIDE THE
RUNNERS,
AND SWING THE PANEL INTO
PLACE
INDICATED BY THE DOTTEDLINE.
STEP 6 INSTALL SIDE WINGBOARD PANELS: Be sure that the cabinet has been secured to the window sill and the outside support
brackets have been installed as shown in (Figures 19 and 20) on Page 17. Raise the window sash and install the right and left
side wingboard panels (See Figure 25).
STEP 7 INSTALL WINDOW SEALING GASKETS: Measure and cut the dark foam window seal gasket (Item#12) and install it between
the upper glass panel and the top part of the lower sash (Figure 26).
Figure 26
NOTE FOR REASONS OF SECURITY , THE CUSTOMER MUST PROVIDE A MEANS OF PREVENTING THE WINDOW FROM OPENING.
STEP 8 When possible, caulk the outside of the installation with industrial type caulking to prevent air and water leaks.
STEP 9 Skip to chassis wiring and preparation on page 21 for Non ATEX or page 23 for ATEX and IECEx.
