Friedrich Room Air Conditioners User manual

920-132-02 (3-07)
2007 Parts Manual
Room Air Conditioners
Money
Fan
Timer Operation
Set Hr.
Stop
Start
Temperature
Fan
Cool
On/Off
Power
Cooler
Only Speed Saver®
Warmer

2
TABLE OF CONTENTS
PORTABLE "Q" SERIES UNITS .............................................................................................................................4-8
SMALL CHASSIS "S" SERIES UNITS (115 & 230 VOLT) ....................................................................................9-16
MEDIUM CHASSIS "M" SERIES UNITS (115 & 230 VOLT)...............................................................................17-21
LARGE CHASSIS "L" SERIES UNITS................................................................................................................22-25

4

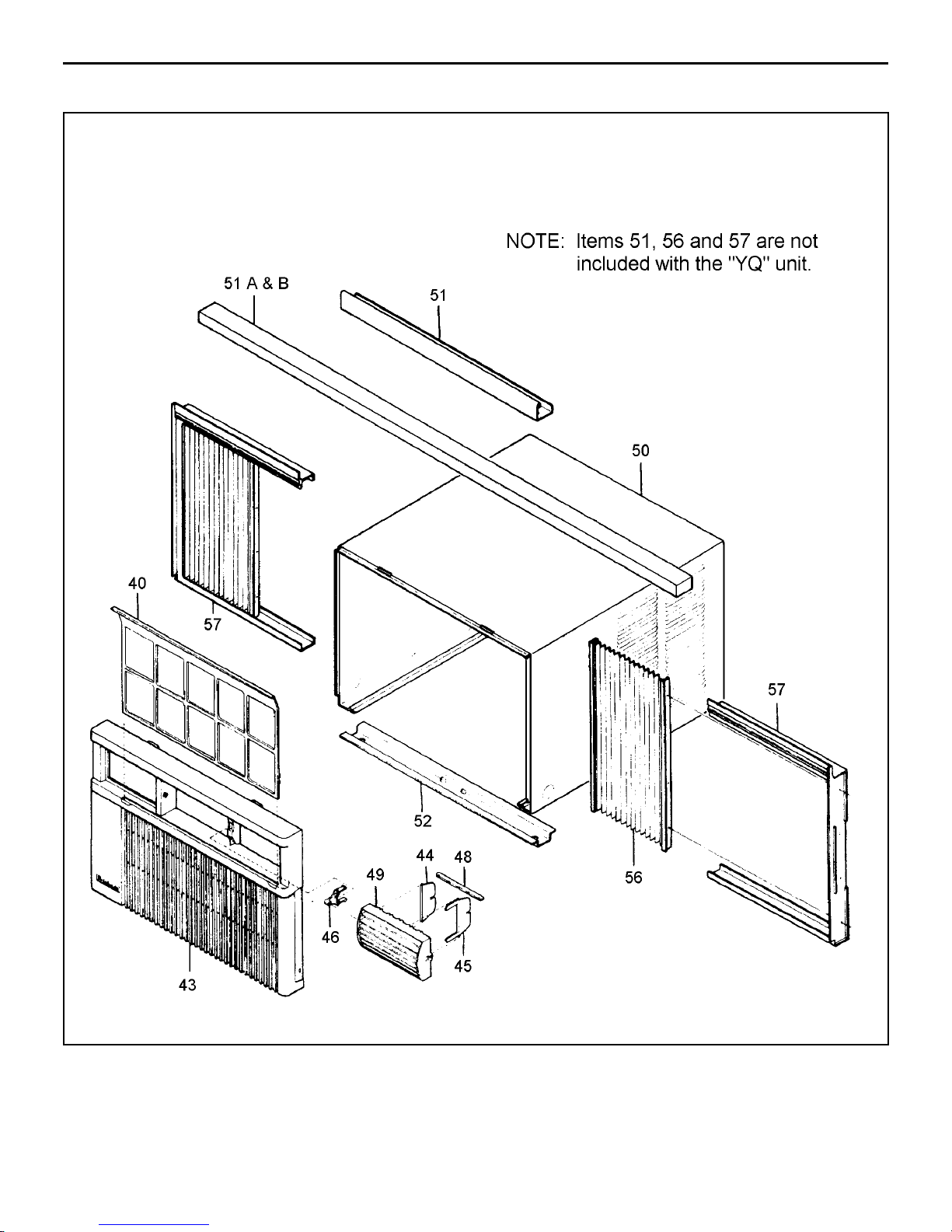

CABINET PARTS
PORTABLE "Q" SERIES

5
CABINET PARTS
PORTABLE "Q" SERIES

6
PORTABLE "Q" SERIES
* PARTS NOT SHOWN
REF DESCRIPTION PART NO. XQ EQ YQ CODE
ELECTRICAL PARTS
XQ05L10A-A XQ05L10A-B XQ06L10A-B XQ08L10A-A XQ10L10A-A XQ12L10A-A EQ08L11A-A YQ07L10A-A YQ07L10A-B
1THERMOSTAT 61828401 1 1 120
1THERMOSTAT 61822401 1 120
2THERMOSTAT, DEFROST 60442500 1 1 122
3ELECTRONIC BOARD 61921192 111111 340
*REMOTE CONTROL 61826606 111111 350
*RESISTOR 61900500 1 1 1 200
4OVERLOAD 61764528 1 190
4OVERLOAD 61764539 111 190
4OVERLOAD 61764519 1 190
4OVERLOAD 61764507 1 1 1 1 190
5CAPACITOR 61080570 1 150
5CAPACITOR 61080550 1111 111150
5CAPACITOR 61080528 1 150
6SUPPLY CORD 60500330 111111111220
7SWITCH ROTARY 6 POS 60441607 1 1 130
7SWITCH ROTARY 6 POS 60441610 1 130
*HEATER 61929611 1 193
9FAN MOTOR 61871468 1110
9FAN MOTOR 61871451 11111 110
9FAN MOTOR 61871452 111110
9A SOLENOID, REV. VALVE 25063505 1 240
*SOLENOID and REVERSING VALVE 25022022 1 240
REFRIGERATION PARTS
XQ05L10A-A XQ05L10A-B XQ06L10A-B XQ08L10A-A XQ10L10A-A XQ12L10A-A EQ08L11A-A YQ07L10A-A YQ07L10A-B
10 COMPRESSOR 61562832 1 1 1 1 600
10 COMPRESSOR 61716671 1 600
10 COMPRESSOR 61985100 1 600
10 COMPRESSOR 61985101 1 1 600
10 COMPRESSOR 61716670 1 600
11 EVAPORATOR COIL 61600257 1 1 400
11 EVAPORATOR COIL 61600258 1 1 1 400
11 EVAPORATOR COIL 61600268 1 1 400
11 EVAPORATOR COIL 62050018 1 400
11 EVAPORATOR COIL 62050020 1 400
12 CONDENSER COIL 61600352 1 410
12 CONDENSER COIL 61600519 1 1 1 1 1 410
12 CONDENSER COIL 62050319 1 410
12 CONDENSER COIL 61600515 1 410
12 CONDENSER COIL 62103404 1 410
*DRIER, LIQUID 61481300 1111111 480
*DRIER, SUCTION 61828200 1 1 480
13 CHECK VALVE 61824400 1 1 510
14 REVERSING VALVE 25018305 1 500
*SOLENOID and REVERSING VALVE 25022022 1 500
15 CAPILLARY TUBE 03760473 1 471
15 CAPILLARY TUBE 03760520 1 471
15 CAPILLARY TUBE 03760545 1 1 1 1-HTG 471
15 CAPILLARY TUBE 03760513 1 1 471
15 CAPILLARY TUBE (HTG) 03760500 1 471
15 CAPILLARY TUBE (CLG) 03760554 1 1 471

7
PORTABLE "Q" SERIES
* PARTS NOT SHOWN
REF DESCRIPTION PART NO. XQ EQ YQ CODE
CHASSIS PARTS
XQ05L10A-A XQ05L10A-B XQ06L10A-B XQ08L10A-A XQ10L10A-A XQ12L10A-A EQ08L11A-A YQ07L10A-A YQ07L10A-B
16 SHROUD, CONDENSER 61627601 111111111720
17 FAN BLADE 61634000 1 710
17 FAN BLADE 61634001 11111 111710
18 BLOWER WHEEL 60610604 1 700
18 BLOWER WHEEL 60610606 111 11700
18 BLOWER WHEEL 60610612 1 1 1 700
20 COVER BLOWER 61619513 11111 111745
20 COVER BLOWER 61619517 1 745
21 WRAPPER, SCROLL, 61990605 111111111741
22 FRONT, BLOWER 61928801 1 742
22 FRONT, BLOWER 61990700 111111 11742
23 DECK, BLOWER 61619405 1 745
23 DECK, BLOWER 61990500 111111 11745
28 BASE PAN 61626312 1111 11730
28 BASE PAN 61626313 1 1 730
28 BASE PAN 61626314 1 730
29 COVER, UNIT TOP 61619513 111111111746
30 DRAIN PAN, EVAP. 61638400 111111111840
32 INNER WALL 61597317 111111 777
32 INNER WALL 61597316 1 1 777
32 INNER WALL 61597318 1 777
33 FAN MOTOR MOUNT 61776900 1 900
33 FAN MOTOR MOUNT 61776903 11111 111900
*SCREW, FAN MTR. MT. 21004672 444444444999
34 CONTROL MT. BRACKET 61619612 1 1 1 763
34 CONTROL MT. BRACKET 61923901 111111 763
37 CONTROL DEC. PANEL 61715921 1 1 1 760
38 PANEL ASSLY, L\S 61924300 1 1 765
38 PANEL ASSLY, L\S 61924900 1111 111765
39 CONTROL KNOBS 61911605 2 2 2 761
*HOLDER, TSTAT BULB 61900500 1 1 1 764
*HOLDER, THERMISTER 61925001 111111 764
40 FILTER, AIR 61632315 111111111754
*LINK EXHAUST DOOR 61639301 111111 811
*EXHAUST DOOR 61632202 111111 810
*WIRE CLIP, EXHAUST 60301800 111111 999
*SLIDE EXHAUST DOOR 61923802 111111 999
43 FRONT, DECORATIVE 61637716 111111111750
50 SHELL, OUTER ASSY 61623001 111111111720
51 ANGLE, TOP SUPPORT 61627313 111111 999
52 CHANNEL, SILL 61627211 111111111999
*SCRIPT, FRIEDRICH 60169110 111111111999
51A GASKET, CHASSIS SEAL 61717300 111111111780
51B GASKET, WINDOW SEAL 60073300 111111 780
*BAG ASSLY (SCREWS) 61778700 111111 999
*BAG ASSLY (SCREWS) 61778701 1 1 1 999
*COUNTER WEIGHT 61715800 222211222999
*SEAL, FAN MOTOR 60217902 111111111780
52 GROMMET, COMP. MT. 61028900 333333333790
53 SCREW, COMP. MT. 91400400 333333333999
56 CURTAIN ASSLY. 61680205 111111 999
*CARTON, SHIPPING 61841918 111111111999
*PAD SHIPPING TOP 61769700 111111111999
*PAD SHIPPING BOTTOM 61716400 111111111999
OPTIONAL ACCESSORIES
*ANTI-ICE KIT 61680600 111
*START ASSIST (PTCR) 61008903 111111111
*DRAIN KIT, DC-2 01900235 111111111

8

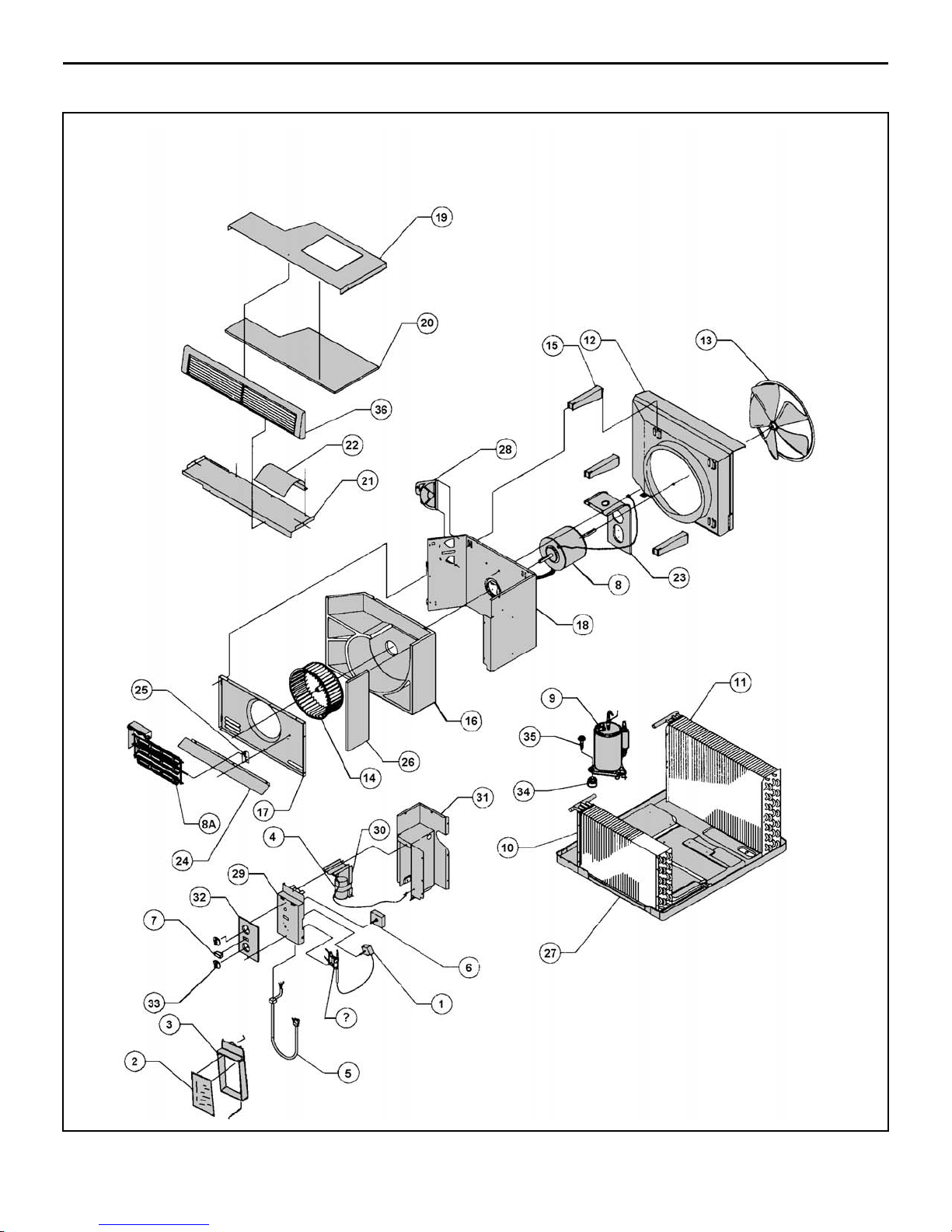

SMALL CHASSIS "S" SERIES
CHASSIS PARTS (ES, SS & YS)

9

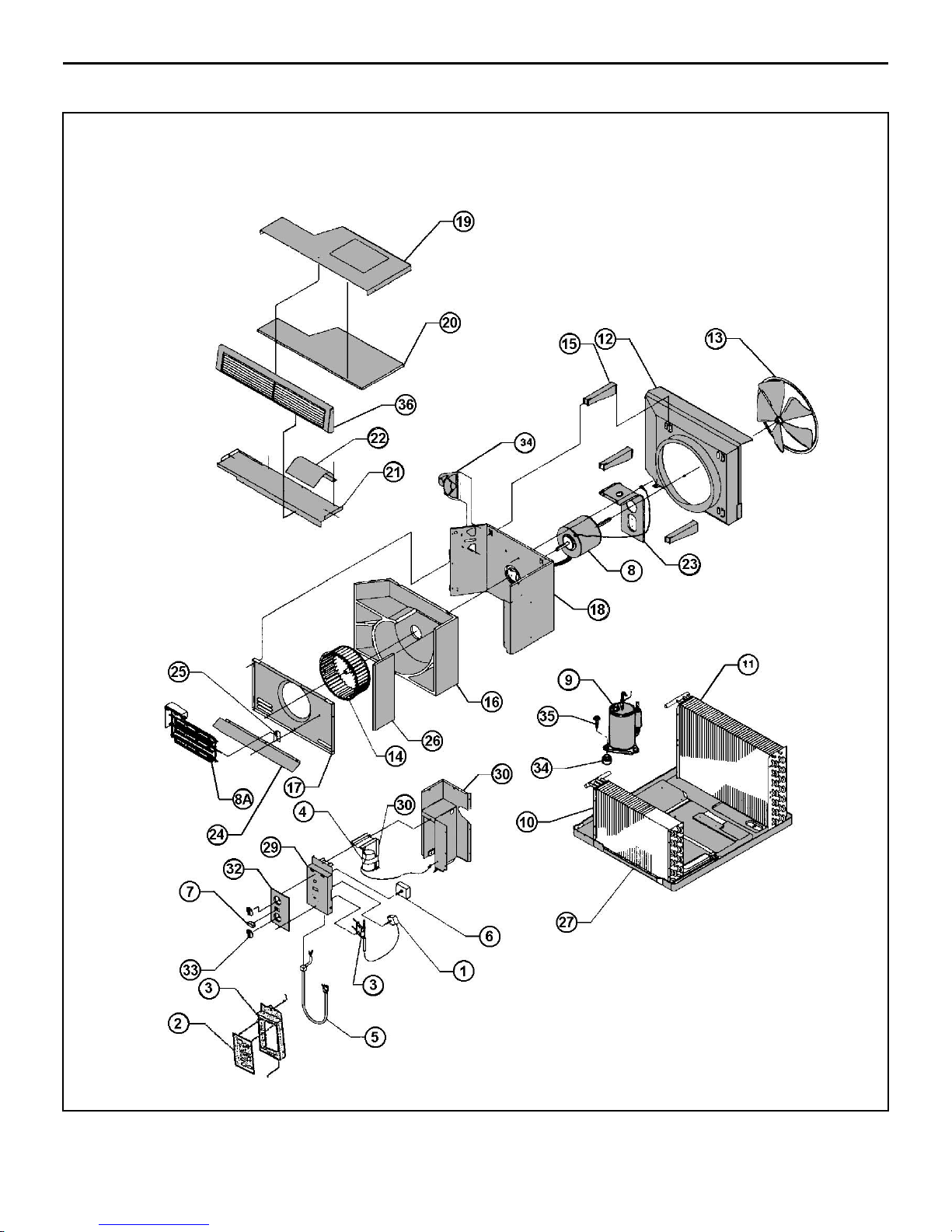

CHASSIS PARTS (ES, SS & YS)
SMALL CHASSIS "S" SERIES

10
SMALL CHASSIS "S" SERIES - 115V
* PARTS NOT SHOWN
REF DESCRIPTION PART NO. KS SS YS CODE
ELECTRICAL PARTS
KS12L10-C KS12L10-D KS15L10-B SS08L10-C SS08L10-D SS10L10-C SS12L10-D SS14L10-C YS09L10-D YS09L10-E
1 THERMOSTAT 61828500 111 120
1 THERMOSTAT 61828400 1 1 120
* THERMOSTAT, DEFROST 61350314 1 1 122
2 ELECTRONIC CTRL. 61921193 11111 331
* REMOTE CONTROL 61826606 11111 350
3 RESISTOR 61808000 111 11 200
* OVERLOAD 61764519 11 11 11 190
* OVERLOAD 61764544 1 1 190
* OVERLOAD 61764507 1 1 190
4 CAPACITOR 61080535 11 11 150
4 CAPACITOR 61080554 1 150
4 CAPACITOR 61080569 111 11 150
5 SUPPLY CORD 60500321 1111111111 220
6 SWITCH SYS. 6 POS. 60607205 111 130
6 SWITCH SYS. 8 POS. 60607204 1 1 130
7 SWITCH (YES - NO) 61806105 111 11 132
8 FAN MOTOR 61871444 1111111111 110
* SOLENOID COIL 25063505 1 240
*SOLENOID and REVERSING VALVE 25022022 1 500
REFRIGERATION PARTS
KS12L10-C KS12L10-D KS15L10-B SS08L10-C SS08L10-D SS10L10-C SS12L10-D SS14L10-C YS09L10-D YS09L10-E
9 COMPRESSOR 61716641 1 600
9 COMPRESSOR 61716671 1 1 1 600
9 COMPRESSOR 61716653 1 1 600
9 COMPRESSOR 61562832 1 1 600
9 COMPRESSOR 61716665 1 1 600
10 EVAPORATOR COIL 62050014 1 1 1 400
10 EVAPORATOR COIL 61850101 1 1 400
10 EVAPORATOR COIL 61850100 1 1 1 1 1 400
11 CONDENSER COIL 61850303 1 1 410
11 CONDENSER COIL 61850217 1 410
11 CONDENSER COIL 61850302 1 1 410
11 CONDENSER COIL 62050317 1 1 1 410
11 CONDENSER COIL 62050302 1 1 410
* DRIER, LIQUID 60308101 11111111 480
* DRIER, SUCTION 61828200 11 11 480
* CHECK VALVE 61824400 1 1 510
* REVERSING VALVE 25018305 1 500
* REVERSING VALVE & SOLENOID 25022022 1 500
* CAPILLARY TUBE 03760518 1 471
* CAPILLARY TUBE 03760520 1 471
* CAPILLARY TUBE 03760473 1 1 1 471
* CAPILLARY TUBE 03760548 1 471
* CAPILLARY TUBE 03760501 1 1 471
* CAPILLARY TUBE 03760452 1 1 471
* CAPILLARY TUBE 03760556 1 1 471

11
* PARTS NOT SHOWN
REF DESCRIPTION PART NO. KS SS YS CODE
CHASSIS PARTS
KS12L10-C KS12L10-D KS15L10-B SS08L10-C SS08L10-D SS10L10-C SS12L10-D SS14L10-C YS09L10-D YS09L10-E
12 SHROUD, SML W/SUMP LOOP 61803601 1111111111 720
13 FAN BLADE, CONDENSER 60542003 1111111111 710
14 BLOWER WHEEL, EVAPORATOR 60610603 111 1 11 700
14 BLOWER WHEEL, EVAPORATOR 60610604 111 1 700
15 BRACE, COND. SHROUD 61802600 3333333333 722
16 SCROLL 61814905 1111111111 743
17 BLOWER FRONT 61817300 1111111111 742
* INSULATION, INNER WALL 61816900 1111111111 781
18 INNER WALL 61907300 1111111111 777
19 COVER, TOP 61906700 1111111111 746
20 INSULATION, TOP COVER 61816701 1111111111 781
21 DECK 61817100 1111111111 745
22 AIR FOIL 61820200 1111111111 744
23 MOUNT, FAN MOTOR 61802500 1111111111 900
27 BASE PAN 61803439 1 1 730
27 BASE PAN 61803441 111 111 730
27 BASE PAN 61809013 1 1 730
* DRAIN PAN 61803800 1111111111 840
* BELLOWS, DRAIN VALVE 60179903 1 1 801
* GRILLE, REAR 61818500 1111111111 771
28 DOOR, SLIDE ASSLY. 61821500 1111111111 810
* CONNECTOR, SLIDE DOOR 61814800 1111111111 811
29 PANEL, CTRL. MT. 61807250 111 11 999
29 PANEL, CTRL. MT. 61807251 11111 999
30 BRACKET, CAP. MT 61820400 1111111111 999
* PANEL, L/S 61937200 1111111111 999
31 PARTITION, CTRL. BOX 61802800 1111111111 999
32 DECORATIVE PANEL 61822658 111 999
32 DECORATIVE PANEL 61823350 1 1 999
33 KNOBS, CTRL. 61493906 222 22 761
* HOLDER, THERMISTER 61925001 11111 764
* HOLDER, AIR FILTER 60865900 2222222222 756
* FILTER, AIR 60865808 1111111111 754
* CLAMP, SUPPLY CORD 91500305 2222222222 999
* BRACKET, RESISTO BLOCK 61820600 111 11 999
34 GROMMET, COMPRESSOR 61028900 3333333333 790
35 SCREW, COMPRESSOR MT. 91400400 3333333333 999
* COUNTER WEIGHT 61715800 3333333333 999
36 PLENUM ASSLY. 61810206 1111111111 753
SMALL CHASSIS "S" SERIES - 115V

12
* PARTS NOT SHOWN
DESCRIPTION PART NO. KS SS YS CODE
CHASSIS PARTS
KS12L10-C KS12L10-D KS15L10-B SS08L10-C SS08L10-D SS10L10-C SS12L10-D SS14L10-C YS09L10-D YS09L10-E
* LEVER, FRESH & EXHAUST 61809205 1111111111 813
* KNOB, FRESH & EXHAUST 61809305 1111111111 814
37 INTAKE GRILLE 61808906 1111111111 772
* LATCH, INTAKE GRILLE 61989000 2222222222 752
38 OUTER SHELLASSLY 61825705 1111111111 770
39 SILL PLATE 61808413 1111111111 999
* CHASSIS GUIDE, SHELL 61819601 2222222222 999
* FRIEDRICH SCRIPT 60169110 1111111111 999
* PUSHNUTS, SCRIPT 91002900 2222222222 999
40 WINGBOARD 60294415 11111111 999
41 BRACKET, SUPPORT 61109513 22222222 999
42 ANGLE, WINGBOARD 61819811 22222222 999
43 ANGLE, TOP 61819711 11111111 999
44 GASKET, VINYL. 60610304 11111111 780
* HARDWARE BAG(SCREWS) 60846016 11111111 999
45 GASKET, CHASSIS. 61717301 1111111111 780
45 GASKET, WINDOW. 60610304 11111111 780
* CARTON, SHIPPING 61839801 1111111111 999
OPTIONAL ACCESSORIES
* WINDOW KIT WIKS 11
* DRAIN KIT, DC-2 01900235 1111111111 999
* START KIT, CAP.\RELAY 61008903 1111111111 160
* ANTI-ICE KIT 61680600 1111111111 250
SMALL CHASSIS "S" SERIES - 115V

13
* PARTS NOT SHOWN
SMALL CHASSIS "S" SERIES - 230V
REF DESCRIPTION PART NO. ES SS YS CODE
ELECTRICAL PARTS
ES12L33-B ES12L33-C ES16L33-B SS12L30-C SS12L30-D SS16L30-C YS13L33-B YS13L33-C
1 THERMOSTAT 61828400 111 11 120
* RESISTOR 61808001 111 11 200
* THERMOSTAT, DEFROST 61350314 1 1 122
* REMOTE CONTROL 61826606 1 1 1 399
2 ELECTRONIC CTR. 61921194 1 1 1 331
* OVERLOAD 61764521 1 1 1 190
* OVERLOAD 61764556 1 1 190
* OVERLOAD 61764540 11 11 190
4 CAPACITOR 61080534 1 1 150
4 CAPACITOR 61080536 11 11 11 150
5 SUPPLY CORD 60500323 111 11 220
5 SUPPLY CORD 60500322 1 1 1 220
6 SWITCH, SYS. 8 POS. 60607204 111 11 130
7 SWITCH (YES - NO) 61806105 111 11 132
8 FAN MOTOR 61871441 11111111 110
* SOLENOID 25063605 1 240
*SOLENOID and REVERSING VALVE 25022022 1 240
8A HEATER 61878610 111 11 210
* FUSE LINK 61596301 111 11 192
* LIMITER, HEATER 61827902 111 11 193
REF DESCRIPTION PART NO. ES SS YS CODE
REFRIGERATION PARTS
ES12L33-B ES12L33-C ES16L33-B SS12L30-C SS12L30-D SS16L30-C YS13L33-B YS13L33-C
9 COMPRESSOR 61716628 1 1 600
9 COMPRESSOR 61716645 11 11 600
9 COMPRESSOR 62199704 1 1 600
10 EVAPORATOR COIL 61850100 11 11 11 400
10 EVAPORATOR COIL 61850101 400
10 EVAPORATOR COIL 62050014 1 1 400
11 CONDENSER COIL 61850302 1 1 1 1 410
11 CONDENSER COIL 61850306 1 410
11 CONDENSER COIL 62050303 1 1 410
11 CONDENSER COIL 62050310 1 410
* DRIER, LIQUID 60308101 11111111 480
* DRIER, SUCTION 61828200 1 1 480
* CHECK VALVE 61824400 1 1 510
* REVERSING VALVE 25018305 1 500
*REVERSING VALVE and SOLENOID 25022022 1 500
* CAPILLARY TUBE 03760543 1 1 471
* CAPILLARY TUBE 03760545 1 1 471
* CAPILLARY TUBE 03760473 11 11 471
* CAPILLARY TUBE 01390005 1 1 471

14
* PARTS NOT SHOWN
REF DESCRIPTION PART NO. ES SS YS CODE
CHASSIS PARTS
ES12L33-B ES12L33-C ES16L33-B SS12L30-C SS12L30-D SS16L30-C YS13L33-B YS13L33-C
12 SHROUD, CONDENSER 61803601 11111111 720
13 FAN BLADE 60542003 11111111 710
14 BLOWER WHEEL 60610603 1 1 700
14 BLOWER WHEEL 60610616 111111 700
15 BRACE, COND. SHROUD 61802600 33333333 722
16 SCROLL 61814905 11111111 743
17 BLOWER FRONT 61817300 11111111 742
19 COVER, TOP 61906700 11111111 746
21 DECK 61817100 11111111 745
23 MOUNT, FAN MOTOR 61802500 11111111 900
25 BRACKET, HEATER MT. 61818900 111 11 999
27 BASE PAN 61809015 111 730
27 BASE PAN 61803441 1 1 1 730
27 BASE PAN 61809013 1 1 730
* DRAIN PAN 61803800 11111111 840
* BELLOWS, DRAIN VALVE 60179903 111 11 801
* GRILLE, REAR 61818500 11111111 771
28 DOOR, SLIDE ASSLY. 61821500 11111111 810
* CONNECTOR, SLIDE DOOR 61814800 11111111 811
29 PANEL, CTRL. MT. 61807251 1 1 1 999
29 PANEL, CTRL. MT. 61807250 111 11 999
30 BRACKET, CAP. MT 61820400 11111111 999
* PANEL, L\S 61937200 11111111 999
31 PARTITION, CTRL. BOX 61802800 1 1 1 999
31 PARTITION, CTRL. BOX 61802801 111 11 999
32 DECORATIVE PANEL 61823360 111 11 999
33 KNOBS, CTRL. 61493915 222 22 761
* HOLDER, THERMISTER 61925001 1 1 1 764
* HOLDER, AIR FILTER 60865900 22222222 756
* FILTER, AIR 60865808 11111111 754
* CLAMP, SUPPLY CORD 91500306 22222222 999
* BRACKET, RESISTO BLOCK 61820600 111 11 999
34 GROMMET, COMPRESSOR 61028900 33333333 790
35 SCREW, COMPRESSOR MT. 91400400 33333333 999
36 PLENUM ASSLY. 61810206 11111111 753
* KNOB,FRESH AIR & EXHAUST 61809305 11111111 761
SMALL CHASSIS "S" SERIES - 230V

15
* PARTS NOT SHOWN
REF DESCRIPTION PART NO. ES SS YS CODE
CHASSIS PARTS
ES12L33-B ES12L33-C ES16L33-B SS12L30-C SS12L30-D SS16L30-C YS13L33-B YS13L33-C
37 INTAKE GRILLE 61808906 11111111 772
* LATCH, INTAKE GRILLE 61989000 22222222 752
38 OUTER SHELLASSLY 61825705 11111111 770
39 SILL PLATE 61808413 11111111
* CHASSIS GUIDE, SHELL 61819601 22222222
* FRIEDRICH SCRIPT 60169110 11111111
* PUSHNUTS, SCRIPT 91002900 22222222
40 WINGBOARD 60294415 111
41 BRACKET, SUPPORT 61109513 222
42 ANGLE, WINGBOARD 61819811 222
43 ANGLE, TOP 61819711 111
44 GASKET, VINYL 60610304 111
* HARDWARE BAG(SCREWS) 60846017 111 11
* HARDWARE BAG(SCREWS) 60846016 111
45 GASKET, CHASSIS 61717301 11111111
45 GASKET, WINDOW 60610304 111
* CARTON, SHIPPING 61841908 11111111
OPTIONAL ACCESSORY ITEMS
*DRAIN KIT, DC-2 01900235 11111111 999
*START KIT, CAP.\RELAY 61008903 11111111 160
SMALL CHASSIS "S" SERIES - 230V

16
CHASSIS PARTS (EM, KM, SM, & YM)
MEDIUM CHASSIS "M" SERIES

17
CABINET & MOUNTING PARTS (EK, EM, KM, SM, YM)
MEDIUM CHASSIS "M" SERIES

18
MEDIUM CHASSIS "M" SERIES
* PARTS NOT SHOWN
REF DESCRIPTION PART NO. EM KM SM YM CODE
ELECTRICAL PARTS
EM18L34-B EM24L35-B KM18L30-B KM24L30-B SM18L30A-B SM18L30A-C SM21L30-C SM21L30-D SM24L30-B YM18L34-B YM18L34-C
1 THERMOSTAT 61828500 1 1 120
1 THERMOSTAT 61828400 11 11 120
* RESISTOR 61808001 1111 11200
* THERMOSTAT, DEF. 61350314 1 1 122
2 ELECTRONIC BOARD 61921194 11111 331
* REMOTE CONTROL 61826606 11111 350
* OVERLOAD 61764522 1 1 190
* OVERLOAD 61764556 1 1 190
* OVERLOAD 61764557 1 1 190
4 CAPACITOR 61080557 1 1 150
4 CAPACITOR 61080529 1 1 111150
4 CAPACITOR 61080534 1 1 1 1 150
5 SUPPLY CORD 60500340 1 1 1 220
5 SUPPLY CORD 60500322 1 1111 220
5 SUPPLY CORD 60500323 1 1 220
5 SUPPLY CORD 60500341 1 220
6 SWITCH SYS. 8 POS. 60607204 11 11130
6 SWITCH SYS. 6 POS. 60607205 1 1 130
7 SWITCH (YES - NO) 61806105 1111 11132
8 FAN MOTOR 61871432 1111111111 110
* SOLENOID COIL 25063605 1 240
*SOLENOID and REVERSING VALVE 25022032 1 240
8A HEATER 61878617 1 210
8A HEATER 61878611 1 1 1 210
REFRIGERATION PARTS
9 COMPRESSOR 61716652 1 1 1 600
9 COMPRESSOR 61716651 1 1 600
9 COMPRESSOR 61716663 1 1 600
9 COMPRESSOR 62199704 1 1 600
9 COMPRESSOR 61716660 1 1 600
10 EVAPORATOR COIL 61850011 1 1 400
10 EVAPORATOR COIL 61850002 1 400
10 EVAPORATOR COIL 62050016 1 400
10 EVAPORATOR COIL 61850023 1 1 400
10 EVAPORATOR COIL 62050017 111111400
11 CONDENSER COIL 61850222 1 1 410
11 CONDENSER COIL 62050215 1 1 410
11 CONDENSER COIL 61850200 1 1 1 1 410
11 CONDENSER COIL 61850205 1 1 410
11 CONDENSER COIL 61850215 1 1 410
* DRIER, LIQUID 60308101 11111111111480
* CHECK VALVE 61822400 1 1 471
* REVERSING VALVE 25018705 1 500
* REVERSING VALVE and SOLENOID 25022032 1 500
* CAPILLARY TUBE 03760479 3 471
* CAPILLARY TUBE 01389975 1 1 471
* CAPILLARY TUBE 03760545 33 11471
* CAPILLARY TUBE 03760511 1 1 471
* CAPILLARY TUBE 03760452 3 3 3 3 471

19
MEDIUM CHASSIS "M" SERIES PARTS LIST
* PARTS NOT SHOWN
REF DESCRIPTION PART NO. EM KM SM YM CODE
CHASSIS PARTS
EM18L34-B EM24L35-B KM18L30-B KM24L30-B SM18L30A-B SM18L30A-C SM21L30-C SM21L30-D SM24L30-B YM18L34-B YM18L34-C
12 SHROUD, CONDENSER 61804901 11111111111720
13 FAN BLADE, COND. 60542004 11111111111710
14 BLOWER WHEEL, EVAP. 60610617 1 1 1111 700
14 BLOWER WHEEL, EVAP. 60610618 1 1 111 700
15 BRACE, COND.SHROUD 61802600 33333333333722
16 SCROLL 61817505 11111111111743
17 BLOWER FRONT 61817400 11111111111742
23 MOUNT, FAN MOTOR 61804100 11111111111900
25 BRACKET, HTR 61818900 11 11730
27 BASE PAN 61809015 11 11730
27 BASE PAN 61803441 11 111 730
27 BASE PAN 61803411 1 1 730
* BELLOWS, DRAIN VALVE 60179903 11 11 801
* DRAIN PAN, EVAP. 61803800 11111111111840
* GRILLE, REAR 61818501 1111111111212771
28 DOOR, SLIDE ASY 61821500 11111111111810
* CONNECTOR SLIDE ASY 61814800 11111111111 811
* WIRE CLIP, SLIDE ASSY 60301800 11111111111999
29 PANEL, CTRL. MOUNT 61811050 1111 11999
29 PANEL, CTRL. MOUNT 61811051 11111 999
32 DECORATIVE PANEL 61823360 11 11999
32 DECORATIVE PANEL 61822658 1 1 999
33 KNOBS, CRTL. 61493915 2222 22761
* BRACKET,RESISTOR BLK 61820600 1111 11999
* HOLDER, THERMISTOR 61925001 11111 764
* HOLDER, AIR FILTER 61823000 22222222222756
* FILTER, AIR 60865809 11111111111754
* CLAMP, SUPPLY CORD 91500308 22 22999
* CLAMP, SUPPLY CORD 91500307 999
* CLAMP, SUPPLY CORD 91500305 999
* CLAMP, SUPPLY CORD 91500306 2222222 999
34 GROMMET, COMP. 61028900 3 333333333 790
34 GROMMET, COMP. 01150934 3 790
35 SCREW, COMP. 91400400 33333333333999
36 PLENIUM ASLY. 61810206 11111111111753
37 GRILLE, INTAKE 61811111 11111111111 772
* LATCH, GRILLE INTAKE 61989000 22212222222999
38 OUTER SHELL 61825706 11111111111770
39 SILL PLATE 61808413 11111111111999
* CHASSIS GUIDE, SHELL 61819601 22222222222999
* CHASSIS RETAINER 61826400 11111111111999
* FRIEDRICH SCRIPT 60169110 11111111111999
* PUSHNUTS, SCRIPT 91002900 22222222222 999
40 WINGBOARD 60294415 1111111 999
41 BRACKET, SUPPORT 61109513 2222222 999
42 ANGLE, WINGBOARDS 61819813 2222222 999
43 ANGLE, TOP SUPPORT 61819711 1111111 999
* HARDWARE (SCREWS) 60846017 11 11999
* HARDWARE (SCREWS) 60846016 1111111 999
45 GASKET, CHASSIS 61717301 11111111111780
45 GASKET, WINDOW 60073300 1111111 780
46 GASKET, VINYL 60610304 1111111 780
* CARTON, SHIPPING 61841916 11111111111999
OPTIONAL ACCESSORY ITEMS
* DRAIN KIT, DC-2 01900235 11111111111
* START KIT, CAP.\RELAY 61008903 11111111111

20
CHASSIS PARTS (SL, EL, & YL)
LARGE CHASSIS "L" SERIES

21
CABINET & MOUNTING PARTS (SL, EL, & YL)
LARGE CHASSIS "L" SERIES
