Froggit DP10 User manual

1
DP10
Leaf wetness sensor
Manual (EN)
Support/updates/manuals/spare parts/compatible products:
www.froggit.de / [email protected]

2
Overview
Figure 1: Leaf wetness sensor
Temperature sensor:
 his sensor can be simulated as a leaf and detects the moisture content of the
nearby leaf or plant.
 ransmits readings every 79.5 seconds.
 LCD display for current reading.
When paired with a DP1500 Wi-Fi gateway:
 Displays temperature readings on the live data page of the WS View app
(requires the DP1500 and your smartphone to use the same Wi-Fi network).
 Up to 8 channels are supported. he channel names can be edited in the app.
 Battery level information is displayed in the WS View app.
When paired with a weather station onsole (HP1000SE PRO series / WH3900):
 Real-time temperature data shown on the display (HP1000SE PRO series
only).
 Up to 8 channels are supported. he channel names can be edited on the
console.
 Use of Ecowitt Weather Server:View current temperature data, historical
records and graphs on the website.
 Receive email alerts from the server.
 Remote monitoring with smartphone, laptop or computer by visiting the
website.
Setup ( ommissioning):
Inserting the battery
1. remove the battery compartment on the back of the transmitter by removing
the screw (see figure 2) (Make sure the rubber seal is inta t when
installing or removing the battery ompartment):

3
Figure 2: Inserting the battery
2. insert a 1.5 V AA battery (pay attention to the polarity: the flat side of the
battery must be against the spring side of the battery compartment).
he temperature reading is immediately displayed on the LCD screen and is
normally updated every 79.5 seconds (the sensor transmission update period).
Note: If no reading is displayed on the screen, make sure the battery is
inserted correctly or a proper reset has been performed. Make sure the battery
is inserted correctly. Do not insert the battery upside down.
3. close the battery cover
Pla ement of the sensor:
his unit can be mounted on a crossbar (compatible diameter range: 19~29mm; not
included) using the supplied hose clamp.
Figure 3
o mount the unit on a vertical mast (compatible diameter range: 25.4~50.8mm; not
included):

4

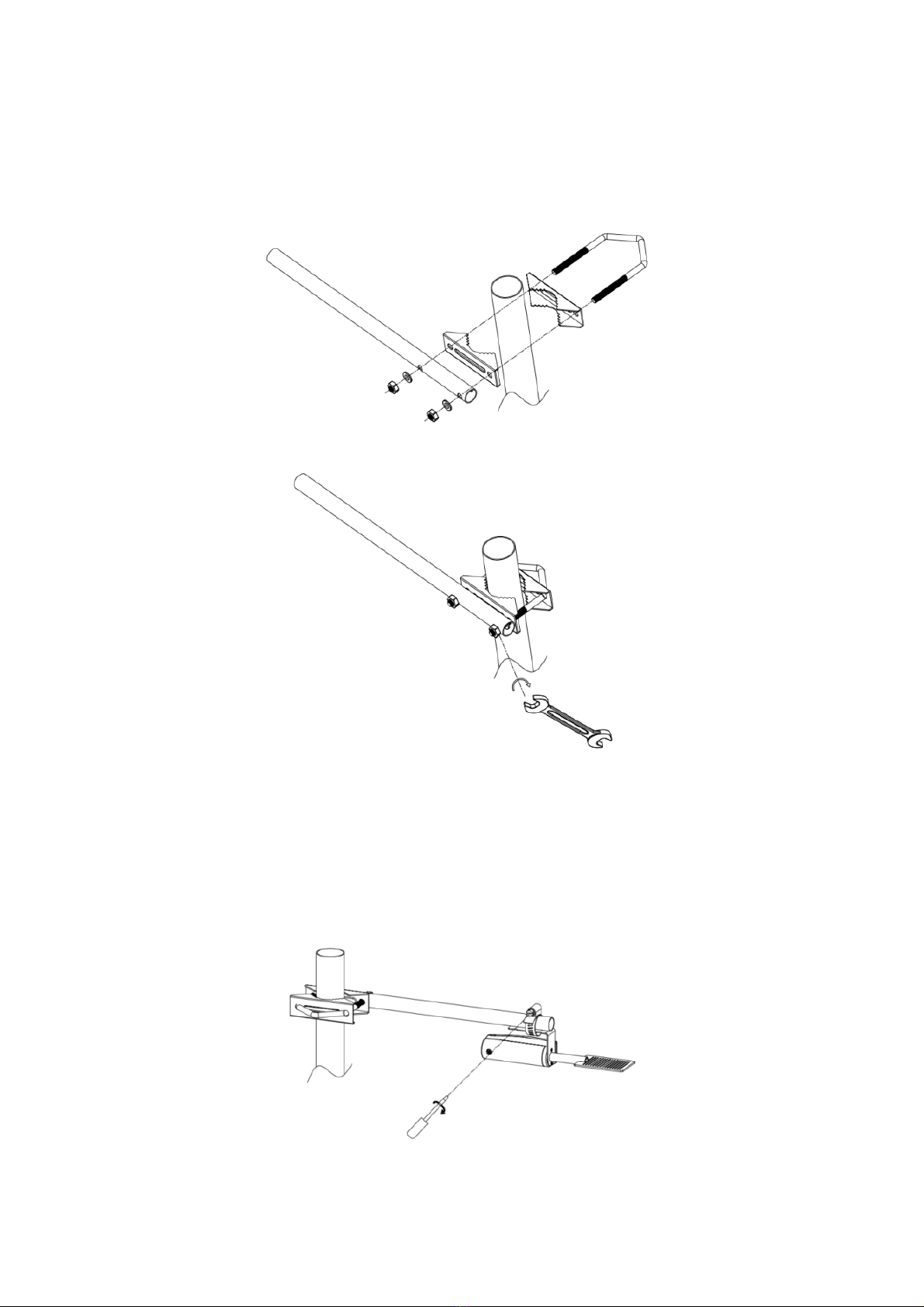

 Mount the bracket set and crossbar (optional) on a vertical mast as shown in
Figure 4:
Figure 4
When tightening the nut: Turn the nut by hand until no more turns are possible,
then use a spanner to turn 1/3 ~ 1/2 turn and no more.
Atta h the unit to the rossbar (not in luded) with the supplied hose lamp:
Figure 5

5
Figure 5: Fastening the sensor to the crossbar
Alignment or tilt: Make sure that the sensor side (PCB grid visible) is facing
upwards and adjust the sensor so that it is level with the leaf to be monitored.
Normally the inclination should be between 0 and 30 degrees. his simulates
the real wet conditions matched to the leaves.
Wi-Fi Configuration:
o view sensor data on your mobile app and receive email alerts on our
weather server, you need to pair this device with our froggit DP1500 or our
HP1000SE PRO Series / WH3900 weather station (each sold separately).
Pairing with froggit DP1500:
If the DP1500 has already been in use and you have never set up a DP10
sensor before, simply switch on the sensor and the DP1500 will automatically
accept the sensor data.
Note: he DP1500 can support up to 8 DP10 temperature sensors. Each new
sensor will be recognised as a new channel according to the power-up
sequence. You can assign a label to the channel on each sensor to distinguish
it. he channel name can be edited both in the app and on ecowitt.net (the
name edited in the app is not synchronised with the ecowitt.net website and
should be edited separately on the device setup page on ecowitt.net).
If you want to use a new DP10 sensor to replace the old one (which is already
configured on a specific channel), please try the following:
1. open the Sensor ID page in the WS View app and locate your old sensor ID.
Switch off the old sensor and switch on the new sensor. 3.
On the Sensor ID page, click 'Register New'.
he new sensor will then be enrolled and the old sensor will be deleted.
View online data with WS View:
When the Wi-Fi configuration is complete (to tell the DP1500 to connect to
your Wi-Fi network), your sensor data and the sensor's battery voltage
information will be displayed in the WS View app on the Live Data page.

Note:
Your smartphone and the DP1500 must be on the same network when
viewing live data from your sensor in the WS View App. Live data refers to
actual data received from the DP1500 and is not stored
However, the data is always transferred to and stored in the www.ecowitt.net
Cloud (under your registered account, and you can access it at any time via
your browser).
Set email alerts:
Once your device has been successfully added t
you can set alerts for the sensor on the website to receive email notifications.
6
Your smartphone and the DP1500 must be on the same network when
viewing live data from your sensor in the WS View App. Live data refers to
actual data received from the DP1500 and is not stored
in the WS View App.
However, the data is always transferred to and stored in the www.ecowitt.net
Cloud (under your registered account, and you can access it at any time via
Once your device has been successfully added t
o the Ecowitt weather server,
you can set alerts for the sensor on the website to receive email notifications.
Your smartphone and the DP1500 must be on the same network when
viewing live data from your sensor in the WS View App. Live data refers to
in the WS View App.
However, the data is always transferred to and stored in the www.ecowitt.net
Cloud (under your registered account, and you can access it at any time via
o the Ecowitt weather server,
you can set alerts for the sensor on the website to receive email notifications.

Spe ifi ations:

Power supply: 1x1.5V AA battery (not included).

Frequency: 868 MHz
Caution !
his booklet may contain
errors
hecked and correction are
included
We disclaim any
responsibility
he specification of this
pro
7
Power supply: 1x1.5V AA battery (not included).
Frequency: 868 MHz
errors
or misprints. he information is
contains
included
in subsequence editions.
responsibility
for any printing error, or their
consequences
pro
duct may change without prior notice.
contains
is regularly c
consequences
.

8
Gerneral safety insru tions
Danger of asphyxiation:
Keep all packaging materials (plastic bags, rubber bands, etc.) away from children.
here is a danger of suffocation!
Danger of burns:
Caution! Leaking / leaking battery acid can lead to burns! Avoid contact of battery
acid with eyes, mucous membranes and skin. In case of contact, rinse the affected
areas immediately with clear water and consult a doctor.
Risk of ele tri sho k:
Children must not be unattended with the device, because the device contains
electronic parts which are operated by means of a power source. he device may
only be used as described in the instructions. If not, there is a risk of electric shock.
Danger of fire & explosion:
Use only recommended batteries. Never short-circuit the unit or batteries. Never
throw the device or batteries into a fire! Overheating and improper handling may
result in short circuits which can cause fires and explosions.
Important:
If there is a defect, contact your dealer immediately. Never disassemble the device!
he dealer will contact the service department. Never expose the device to water!
Protect the device from vibrations. Only use recommended batteries. Never mix
batteries - Always replace empty batteries with a complete set of full power batteries.
If the unit is not powered for a longer period of time or is not in use, remove the
batteries from the unit. he manufacturer accepts no liability for incorrectly inserted
batteries
Notes on the return of batteries according to §12 BatterieVO: Batteries do not belong
in the household waste. Please dispose of all batteries as required by law, disposal in
domestic waste is expressly prohibited. Batteries and rechargeable batteries can be
dispensed free of charge at municipal collection points or in the shops on the spot.
his manual may not be reproduced in any form without the written permission of the
publisher, even in excerpts.
his manual may contain errors and misprints. However, the information in this

9
manual is regularly reviewed and corrections made in the next issue. We accept no
liability for technical errors or printing errors, and their consequences.
All trademarks and copyrights are acknowledged.
www.froggit.de
HS Group GmbH & Co. KG
Escherstr.31
50733 Koeln
Germany
elefon
E-Mail
0221 / 367 48 05
[email protected]
Registergericht Amtsgericht
Koeln HRA 26493
Komplementaer: HS Group
Verwaltungsgesellschaft mbH
Sitz Koeln
Registergericht Amtsgericht
Koeln HRB 64734
Geschaeftsfuehrer: Peter
Haefele, Carl Schulte
UStId DE237971721
WEEE Reg. Nr. 66110125
declaration of conformity
Hereby we declare, HS-Group GmbH & Co.KG, Escherstr. 31, 50733 D-Cologne,
that this product is in compliance with the essential requirements and other relevant
provisions of Directive 2014/53/EU.
he declaration of conformity for this product can be found at: www.froggit.de or on
request.
