INTRODUCTION
Thank you for selecting Wi-fi weather station with 6-in-1 professional sensor. This system
gathers and automatically uploads accurate and detailed weather data to Weather
Underground website - the famous weather service which allows weather observers to upload
their local weather data with automated personal weather stations (PWS) - at which you can
access and upload your weather data freely . This product offers professional weather observers
or serious weather enthusiasts robust performance with a wide range of options and sensors .
You will get your own local forecast, high/lows, totals or averages and graphs for virtually all
weather variables without using a PC .
Wi-fi Weather Station includes a 6-in-1 wireless outdoor sensor which transmits outdoor
temperature, humidity, wind speed, wind direction, rainfall and UV with solar power . Also,
the included wireless indoor sensor, which can add to a sensor array of maximum 7 units,
transmits your indoor temperature & humidity to the console . Both sensors are fully assembled
and calibrated for your easy installation . They send data at a low power radio frequency to the
console from up to 150m/450 feet away (line of sight) .
In the main console, a high-speed processor is embedded to analyze the received weather
data and these real-time data can be published to Wunderground.com through your home
Wi-fi router. The console can also synchronize with internet time server to keep the time and
weather data time stamp of high precision . The wide-viewing-angled with high-contrasted
LCD display shows informative weather readings with advanced features, such as high/low
alert alarm, different weather index, multi-functional bar chart and MAX/MIN records . With the
built-in sunrise/sunset and moon phase feature, this system is truly a remarkably personal yet
professional weather station for your own backyard .
Note:
This instruction manual contains useful information on the proper use and care of this product .
Please read this manual through to fully understand and enjoy its features, and keep it handy
for future use .
OVERVIEW

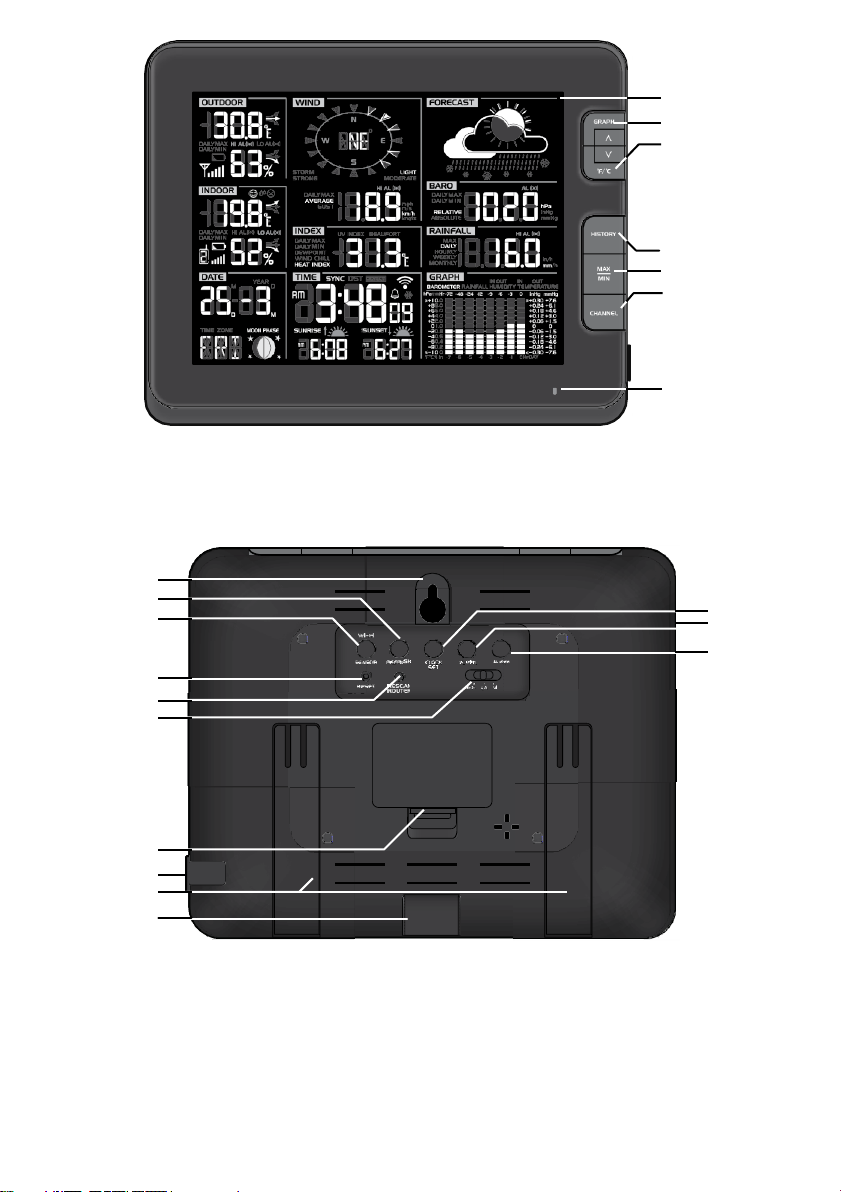

MAIN CONSOLE
1 . [ BARO ] key
2 . [ WIND ] key
3 . [ ALARM / SNOOZE ] key
4 . [ INDEX ] key
5 . [ RAINFALL ] key
1 2 3
4 5

4
6 . LCD display
7 . [ GRAPH / Λ ] key
8 . [ °F / °C / V ] key
9 . [ HISTORY ]key
10 . [ MAX / MIN ] key
11 . [ CHANNEL ] key
12 . Status LED
13
. Wall mounting holder
14 . [ REFRESH ] key
15 . [ Wi-fi / SENSOR ] key
16 . [ CLOCK SET ] key
17 . [ ALARM ] key
18 . [ ALERT ] key
19 . [ RESET ] key
20 . [ RESCAN ROUTER ] key
21 . Backlight dimmer sliding
switch (Off / Lo / Hi)
22 . Battery compartment
23 . USB socket (for firmware
update only)
24 . Table stand
25 . Power jack
13
14
15
16
17
18
19
20
21
22
23
24
25
6
7
8
9
10
11
12

5

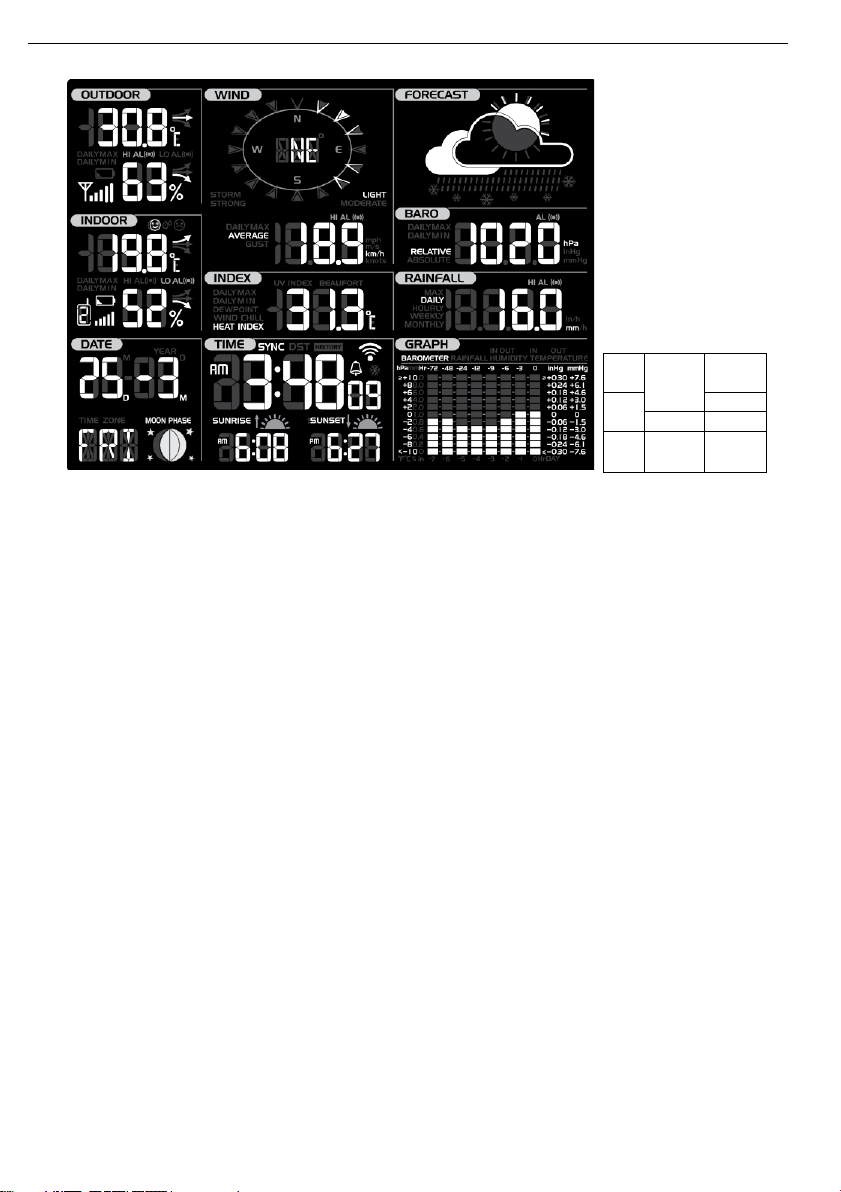

LCD DISPLAY
1
. Outdoor temperature & humidity
2 . Indoor temperature & humidity
3 . Calendar & moon phase
4 . Wind direction & speed
5 . Weather index
6 . Time, sunrise/sunset & system status
7 . Weather forecast
8 . Barometer
9 . Rainfall
10 . Multi-function historical bar cha
1
4
7
2
8
5
9
3
6
10

6
INSTALLATION AND SETUP
WIRELESS INDOOR SENSOR
Pairing the wireless Indoor sensor with the console
1 . Remove the battery door of the sensor .
2 . Insert 2 x AA size batteries into the battery compartment . Make sure you insert them the
right way according to the polarity information marked on the battery compartment .
3 . Close the battery door. The transmission status LED will begin to flash every 1 minute.
Note:
- If you need to re-assign the sensor channel, firstly slide the channel slide switch to the
new channel that you decided, then press [ SENSOR ] key on the console, and then press
[RESET ] key on the sensor to pair the sensor with the console again .
- Avoid placing the sensors in direct sunlight, rain or snow .
- Toavoid the sensor/s and console pairing failure during new console setup, please power
up the sensor/s first, and then press [ RESET ] key on the main unit
(no need on sensors) .
Placing the wireless Indoor sensor

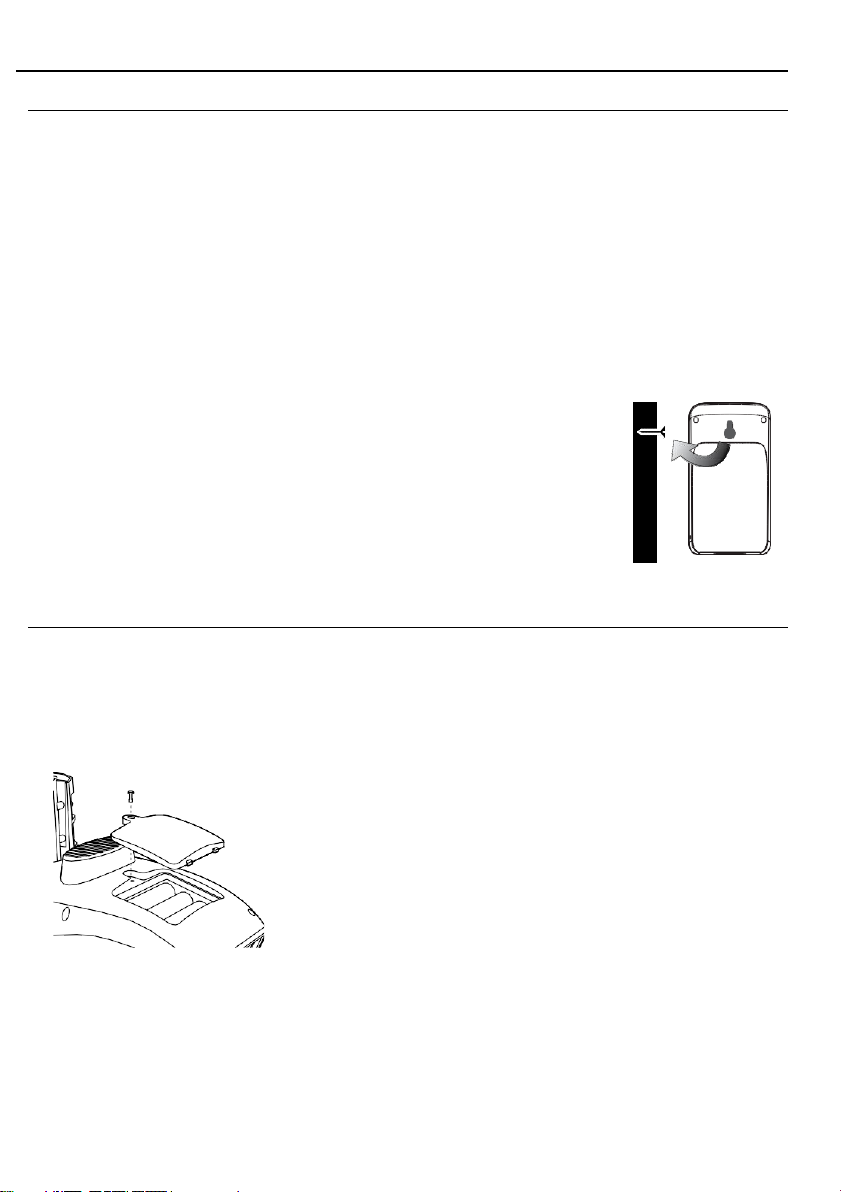

Place a screw on the wall that you wish to hang the sensor on . Hang
the sensor onto the screw by the wall mounting holder . Youcan also
place the sensor on a table by itself .
WIRELESS OUTDOOR SENSOR
Yourwireless outdoor sensor measures wind-speed, wind-direction, rainfall, UV index,
temperature and humidity for you .
Pairing the wireless outdoor sensor with the console
1 . Unscrew the battery door at the bottom of the unit and
insert the batteries according to the polarity information
marked on the battery compartment .
2 . Screw on tightly .
3 . Once the batteries are installed, the transmission status
LED will begin to flash.
Note:
- Ensure the battery door screw locked well .
- Ensure the transmission status LED is flashing every 12
seconds .
Installing the wireless outdoor sensor
Install the wireless outdoor sensor to an open location with no obstructions above and around
the sensor for accurate rain and wind measurement .

7
Mounting guideline
1 . Install the sensor at least 1.5m off the ground for better
and more accurate wind measurements .
2 . Choose an open area within 150 meters from the main
console .
3 . Install the sensor as level as possible to achieve
accurate rain and wind measurements . Use the level
indicator on the sensor to ensure a level installation .
4 . Mount the sensor with the wind meter end pointing to
North to correctly orient the direction of the wind vane .
Mountin
g pole
and
stand
(not
included
)
At least
1.5m
from
ground
MAIN CONSOLE
Backup battery installation
1 . Remove the battery door of the main console .
2 . Insert 3 new AAA batteries .
3 . Close the battery door .
Powering up the console
1 . Plug the adaptor into the DC jack .
2 . Press [ RESET ] key to re-start the console .
3 . After reset, all LCD segments will show . The console will enter AP (access point) mode and
the status LED will turn on green .

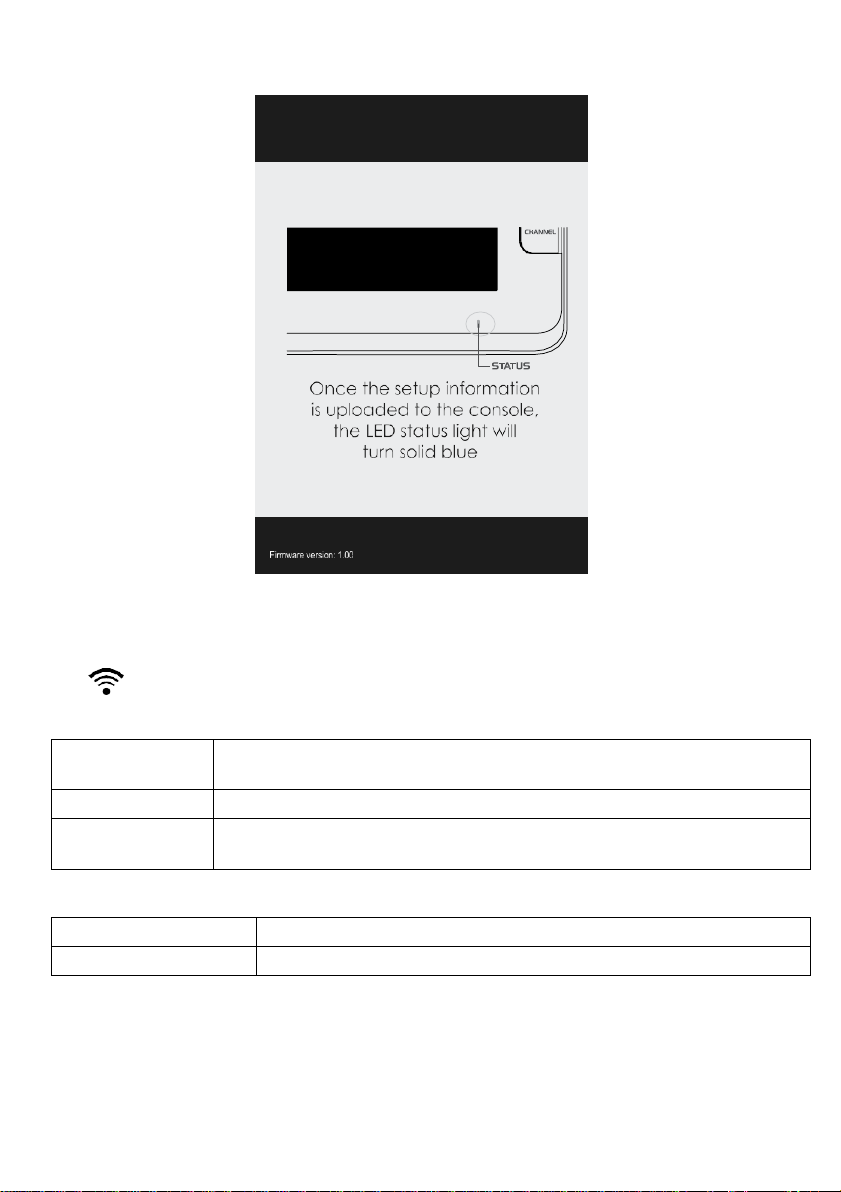

The Console status LED can show the following status: LED
Status LED status
AP mode for setup
Flash green light
Connected to Wi-fi router
Blue light
Search the Wi-fi router and fail connection
Flash blue light
Firmware update
Flash red light
Manual sensor pairing mode by pressing [ Wi-fi / SENSOR ] key
Flash cyan light
Refresh the upload data and sync internet time by press [ Refresh ] key
Flash purple

8
Note:
This console has a dual backup system which allows you to backup different settings and
history records .
Backup item list
- Time & Date
-
Bar chart records
By battery backup
- Max/Min records
-
Past 24 hours weather
- Alert setting values
history data records
- Router setting
-
Latitude and longitude
By built-in memory backup
- Weather server setting
-
Time Zone offset
- Time server link
-
Channel history
Setting the console's time zone
This weather station console will synchronize the clock with the UTC time server once you set
the time server and connected to the internet . In order to display the correct time and activate
the sunrise/sunset function, you need to set the correct time zone:
1 . Press and hold [ CLOCK SET ] key for 2 seconds to enter time zone setting in time setting
mode .
2 . Press [ ] or [ ] key to select the correct time zone .
3 . Press [ CLOCK SET ] key again to enter the next setting .
4 . The setting sequence: Time zone → DST ON/OFF → Hour → Minute → Second → 12/24
hour format → Year → Month → Date → M-D/D-M format → TIME SYNC ON/OFF →
Language
5 . Press [ CLOCK SET ] key to save and exit the setting mode, or the unit will automatically
exit the setting mode 60 seconds later without pressing any button .
Pairing the wireless indoor and outdoor sensors with the console
The console will automatically search and connect to your wireless indoor and outdoor sensor .
You can also press [ Wi-fi / SENSOR ] key to search for your sensors manually . Once your
sensors pair up successful, the sensor signal strength indication and weather information will
appear on your console display .
Note:
The status LED will flash cyan light, once you press [ Wi-fi / SENSOR ] key to search the
sensors manually .
CREATE AWUNDERGROUND ACCOUNT AND SETUP WI-FI CONNECTION
A. Register your Wi-fi personal weather station (PWS)
1 . In https://www.wunderground.com click on the "Join" button on the top right corner to open
the registration page . Follow the instructions to create your account .

9
Step 2
Note:
You need to validate your email address before you can register your weather station . Click
“Send Validation Email” to receive an email from wunderground.com that contains a validation
link. Click on the link to finish the validation.
2
. After you have created your account and completed the Email validation, please go back to
the WUndergound web page . Click “ ” button on the top right corner to open the drop-
down menu and select “Add Weather Station” to create your station ID .
Step 1
3
. Pin the location on the map . Enter the height above ground of the wireless outdoor sensor
you installed . Jot down the longitude/latitude value for the further setup step .

10
4 . Enter a name for your PWS, then choose “Other” for “Station Hardware” . Once you have
completed, click “Submit” .
5 . Jot down Your Station ID and Station key for the further setup step .

11
B. Setup the Wi-fi Console to transmit weather data to wunderground.com
1 . When you plug the adaptor into the DC jack to power up the Wi-fi console during the first
time start up, or press and hold the [ Wi-Fi / SENSOR ] key for 6 seconds in normal mode,
the Status LED on the main console will flash green light to signify that it has entered into
the AP mode, in which the console is ready for the Wi-fi setup.

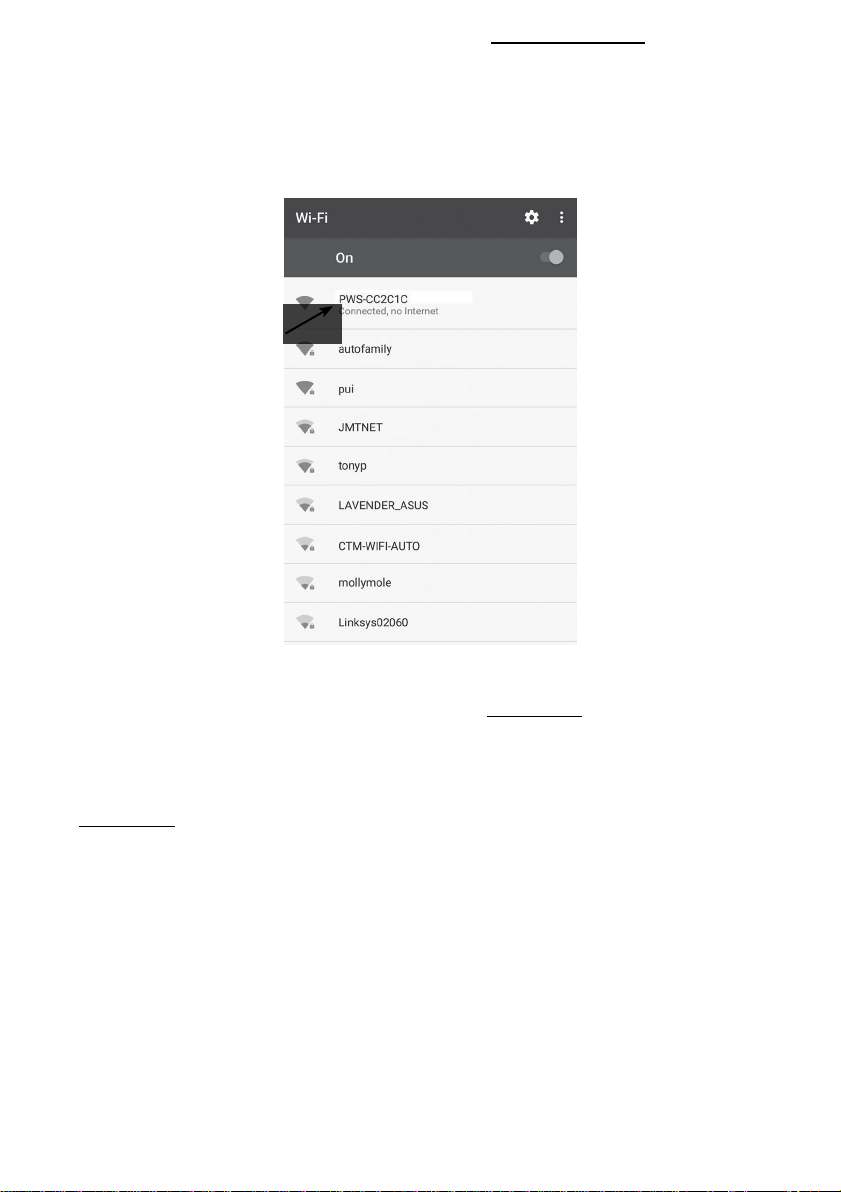

2 . Use your Wi-fi enabled smart phone or computer device to directly connect to the console’s
SSID: PWS-XXXXXX .
3
. Once connect, open the internet browser and enter 192.168.1.1 into the URL blank, then
press the Enter key to access the console’s setup interface.
Note:
- Since different web browsers are slightly different, please make sure you enter the
192.168.1.1 in the URL blank .
4 . Fill in the connection information for the setup interface . Your PWS will base on this
information to connect the Wi-fi router.
Note:
- Depending on your web browser, the layout of the setup interface will be a bit different .
- Tofind your latitude and longitude, visit Google Maps and directly click on the location that
you want to check and the latitude and longitude will be shown (negative value of latitude
represents South, negative value of longitude represents West) .
Language:

12
5 . Click “Apply”to finish the setup. If all the information you entered is correct, the setup
interface will show as the following. If it does not change, check and fill in the missing
information .
Once the setup is completed, the Wi-fi console will disconnect the Wi-fi connection with your
smart phone or computer and start to search for the router that you have assigned . If the
connection is successful, the status LED of the Wi-fi console will change to blue and the Wi-fi
icon will show on the LCD without flashing.
Wi-fi setup device requirements
Supported device
Built-in Wi-fi with AP mode function smart devices, laptops or PCs:
Android smartphone, Android pad, iPhone, iPad or Windows laptop
Wi-fi standard
802 .11 b/g/n, supports AP mode
Web browser
Browsers that support HTML 5, such as the latest version of Chrome,
Safari, IE, Edge, Firefox or Opera
Router requirements
Wi-fi standard
802 .11 b/g/n
Security type supported
WEP/ WPA / WPA2 / open (for routers with no password)

13
VIEWINGLIVEWEATHERDATA
1 . To view the wireless outdoor sensor's live data in a web browser (PC or mobile version),
please visit www .wunderground.com, and then, In the menu bar, enter your “station ID” in the
searching box . The weather information will show up on the next page .
2
. You can also use the Apple ipad's "WunderStation" app to login your own weather station and
view your CH 1 wireless Indoor sensor's temperature and humidity live data .

14
OPERATION AND OTHER SETTING OF THECONSOLE
TIME & DATE, MOON PHASE, SUNRISE & SUNSET
The TIME and DATE information windows locate at the bottom left of the console display . You
can view all the time related information and console status in these two sections .
Moon Phase
The moon phase is determined by the time, date and time zone . The following table explains
the moon phase icons of the Northern and Southern hemispheres . Please refer to ORIENTING
THE 6-IN-1 SENSOR TOWARDS SOUTH section about how to setup for the Southern
hemispheres .
Sunrise & Sunset Time
The console indicates your location’s sunrise & sunset time by the time zone, latitude and
longitude you entered . Please insert the correct information in the regarding settings . If the
latitude and longitude values do not match the time zone, the sunrise & sunset time cannot be
shown .
Northern hemisphere
Moon Phase
Southern hemisphere
New Moon
WaxingCrescent
First quarter
Waxing Gibbous
Full Moon
Waxing Gibbous
Third quarter
WaxingCrescent

15
Wi-fi CONNECTIONSTATUS
As soon as the console successfully connects to the Wi-fi router, the Wi-fi signal icon “ ”
will appear on the LCD display. If the Wi-fi signal is not stable or the console is trying to connect
to the router, the icon will flash.
If the icon disappears, it means the console cannot connect to the Wi-fi router or enter the AP
mode .
TIME SERVER CONNECTION STATUS
After the console has connected to the internet, it will attempt to connect to the internet time
server to obtain the UTC time . Once the connection succeeds and the console's time has been
updated, the “” icon will appear on the LCD . The time will automatically synchronize
Internet time server at 12:00AM and 12:00PM per day . Also you can press the [ REFRESH ]
key to get the internet time manually within 1 minute .
SETTING DATE & TIME
Wi-fi Weather Station is designed to obtain the local time from and to synchronize with the
assigned internet time server. If you want to use this device offline, you can set the time and
date manually .
1 . In normal mode, press and hold [ CLOCK SET ] key for 2 seconds to enter date and time
setting mode .
2 . Press [ GRAPH / Λ ] or [ °F / °C / V ] key to adjust the value, or press and hold to change
rapidly .
3 . While in date and time setting mode, press [ CLOCK SET ] key to switch to the next
setting .
4 . The setting sequence is: Time Zone → DST ON/OFF → Hour → Minute → Second →
12/24Hr → Year → Month → Day → M-D/D-M → Internet time sync ON/OFF → Language
5 . After completing the language setting, press [ CLOCK SET ] key to save and exit the
setting mode .
TIME ZONE
setting
00H → 01H...23H → -23H...-01H → 00H
DST ON/OFF
setting
Hour > Minute >
Second setting
→→
12/24Hr setting
/
Year > Month >
Day setting
→→
M-D/D-M setting
Month-Day / Day-Month
Internet time
sync
Language
EN ↔ FR ↔ DE ↔ ES ↔
IT ↔ NL ↔ RU ↔ EN

16
SETTING ALARM TIME
1 . In normal time mode, press and hold [ ALARM ] key for 2 seconds until the alarm hour digit
flashes to enter alarm time setting mode.
2 . Press [ GRAPH / Λ ] or [ °F / °C / V ] key to adjust the value, or press and hold to change
rapidly .
3 . The setting sequence is: Hour → Minute .
4 . After completing the minute setting, press [ ALARM ] key to save and exit the setting mode .
Note:
- The alarm will automatically be turned on with the icon “ ” displays after you set
the alarm time .
- Press [ ALARM / SNOOZE ] key to stop the current alarm and enter snooze . The alarm
icon will flash continuously. The alarm will sound again after 5 minutes. Snooze can be
operated continuously in 24 hours .
- When the alarm sounds, it will stop automatically without pressing any button in 2 minutes .
Also, you can press and hold the [ ALARM / SNOOZE ] key for 2 seconds or press
[ALARM ] key to stop the current alarm . The alarm will repeat in the next day .
ACTIVATING ALARM AND TEMPERATURE PRE-ALARMFUNCTION
1 . In normal mode, press [ ALARM ] key to show the alarm time for 5 seconds .
2 . When the alarm time displays, press [ ALARM ] key again to activate the alarm function .
Or press [ ALARM ] key twice to activate the alarm with ice pre-alarm function .
Note:
Once the ice pre alert activates, the preset alarm will sound 30 minutes earlier if the outdoor
temperature is below -3°C .
INDOOR AND OUTDOOR TEMPERATURE &HUMIDITY
Youcan view the in/outdoor channels' temperature & humidity readings and the related
information at the top-left or middle left column of the LCD .
Note:
In normal mode, press [ °F / °C / V ] key to switch between °C/°F .
The OUTDOOR Window
The OUTDOOR window displays the thermo-hygro readings of wireless
outdoor 6-in-1 weather sensor .
Wireless outdoor sensor signal strength:
Note: Please locate the console where can receive good sensor signal .
Alarm with ice-alert
Alarm on
Alarm off
No signal
Weak signal
Good signal

17

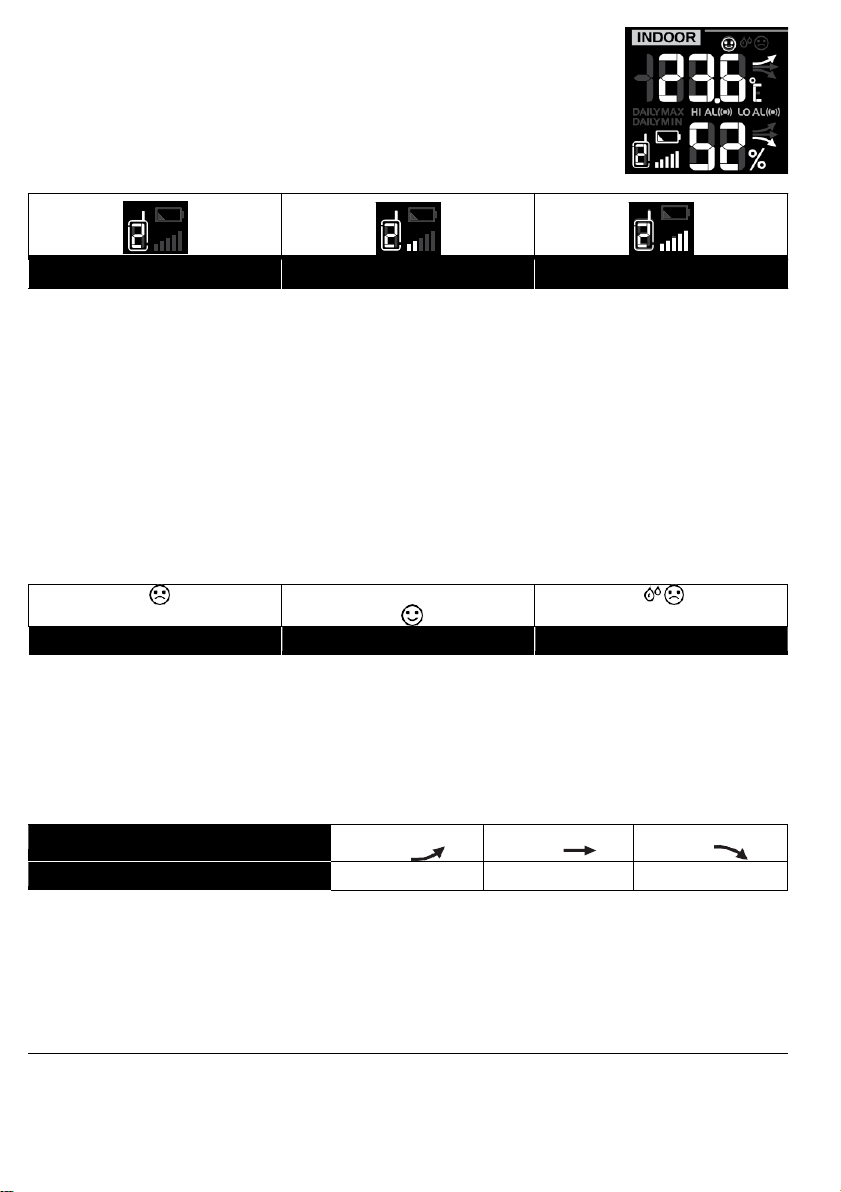

The INDOOR Window
The INDOOR window displays the thermo-hygro reading of wireless
indoor thermo-hygro sensor(s) (Ch.1 -Ch.7)
Wireless Indoor sensor signalstrength:
Note: Please locate the sensors where console can receive good signal .
Viewing Different Indoor Channel
This console is capable to pair with up to 7 wireless indoor thermo-hygro sensors . If you have 2
or more sensors, you can press [ CHANNEL ] key to switch between different indoor channels
in normal mode, or press and hold [ CHANNEL ] key for 2 seconds to toggle auto-cycle mode
to display the connected channels at 4 second intervals .
During auto-cycle mode, press [ CHANNEL ] key to stop the auto cycle and display the current
channel .
Comfort Indication
The comfort indication is a pictorial indication based on indoor air temperature and humidity in
an attempt to determine comfort level . Each indoor channel has independent comfort indication .
Too cold
Comfortable
Too hot
Note:
Comfort indication can vary under the same temperature, depending on the humidity .
There is no comfort indication when temperature is below 0°C (32°F) or over 60°C (140°F) .
Temperature / Humidity Trend
The temperature / humidity trend indicator shows the trends of changes in the forthcoming few
minutes . Arrows indicate a rising, steady or falling trend .
Arrow indicator
Temperature / Humidity trend
Rising
Steady
Falling
Note:
When temperature is below -40°C, the LCD will display “Lo” . If temperature is above 80°C,
LCD will display “HI” .
When humidity is below 1%, LCD will display “Lo” . If humidity is above 99%, LCD will display
“HI” .
WIND
The wind speed, direction and related information will be displayed in the WIND window at the
top-row-middle .
Good signal
Weak signal
No signal

18
Viewing Wind Direction
Past wind directions
indicator of last 5
minutes
Wind direction in 360°
or 16-direction
Real time wind
directionindicator
Wind speed level
Average / gust wind
speed
To select the wind display mode
In normal mode, press [ WIND ] key to switch between AVERAGE wind speed and GUST wind
speed .
To set the wind speed unit and direction display format
1 . In normal mode, press and hold [ WIND ] key for 2 seconds to enter into wind speed unit
mode and the unit will flash. And then press [ GRAPH / Λ ] or [ °F / °C / V ] key to change
the wind speed unit in this sequence: m/s → km/h → knots → mph
2 . Press [ WIND ] key again to enter into wind direction display format setting mode . The wind
direction reading will flash. And then press [ GRAPH / Λ ] or [ °F / °C / V ] key to select the
display format between 360° and 16-direction .
3 . Press [ WIND ] key again to return to normal mode .
Wind Speed Level
Level
LIGHT
MODERATE
STRONG
STORM
Speed
0.1km/h ~19km/h
20km/h ~ 49km/h
50km/h ~ 88km/h
> 89km/h
WEATHERINDEX
The weather index window (INDEX), in the middle of the LCD, displays the UV INDEX,
BEAUFORT, WIND CHILL, HEAT INDEX and DEWPOINT .
In normal mode, press [ INDEX ] key to view the weather indices in this sequence: UV INDEX
→ BEAUFORT → WIND CHILL → HEAT INDEX → DEWPOINT
Note:
In normal mode, press [ °F / °C / V ] key to switch between °C/°F .
UV Index
The UV index reflects the UV data collected by the wireless
outdoor sensor that the detectable range is 0~16.

19
1
. In normal mode of the console, press and hold [ INDEX ] key for 10 seconds to enter into
UV index calibration mode
2 . Use [ GRAPH / Λ ] or [ °F / °C / V ] key to adjust the UV gain magnification factor
3 . Press the [ INDEX ] key twice to confirm and exit the setting
Note:
- The default UV gain magnification factor is 1.0, and can be adjusted up or downin
increments of 0 .1 .
Beaufort Scale
The Beaufort scale is an international scale of wind velocities
ranging from 0 (calm) to 12 (Hurricane force) .
Beaufort
Scale
Description
Wind Speed
Land Condition
0
Calm
< 1 km/h
Calm . Smoke rises vertically .
< 1 mph
< 1 knots
< 0 .3 m/s
1
Light air
1.1 ~ 5km/h
Smoke drift indicates wind direction .
Leaves and wind vanes are
stationary .
1 ~ 3 mph
1 ~ 3 knots
0.3 ~ 1.5 m/s
2
Light breeze
6 ~ 11 km/h
Wind felt on exposed skin
. Leaves
rustle . Wind vanes begin to move .
4 ~ 7 mph
4 ~ 6 knots
1.6 ~ 3.3 m/s
3
Gentle breeze
12 ~ 19 km/h
Leaves and small twigs constantly
moving, light flags extended.
8 ~ 12 mph
7 ~ 10 knots
3.4 ~ 5.4 m/s

20
4
Moderate breeze
20 ~ 28 km/h
Dust and loose paper raised
. Small
branches begin to move .
13 ~ 17 mph
11 ~ 16 knots
5.5 ~ 7.9 m/s
5
Fresh breeze
29 ~ 38 km/h
Branches of a moderate size move
.
Small trees in leaf begin to sway .
18 ~ 24 mph
17 ~ 21 knots
8.0 ~ 10.7 m/s
6
Strong breeze
39 ~ 49 km/h
Large branches in motion . Whistling
heard in overhead wires . Umbrella
use becomes difficult. Empty plastic
bins tip over .
25 ~ 30 mph
22 ~ 27 knots
10.8 ~ 13.8 m/s
7
High wind
50 ~ 61 km/h
Whole trees in motion
. Effort needed
to walk against the wind .
31 ~ 38 mph
28 ~ 33 knots
13.9 ~ 17.1 m/s
8
Gale
62 ~ 74 km/h
Some twigs broken from trees .
Cars veer on road . Progress on foot
is seriously impeded
39 ~ 46 mph
34 ~ 40 knots
17.2 ~ 20.7 m/s
9
Strong gale
75 ~ 88 km/h
Some branches break off trees,
and some small trees blow over .
Construction /temporary signs and
barricades blow over .
47 ~ 54 mph
41 ~ 47 knots
20.8 ~ 24.4 m/s
10
Storm
89 ~ 102 km/h
Trees are broken off or uprooted,
structural damage likely .
55 ~ 63 mph
48 ~ 55 knots
24.5 ~ 28.4 m/s
11
Violent storm
103 ~ 117 km/h
Widespread vegetation and structural
damage likely .
64 ~ 73 mph
56 ~ 63 knots
28.5 ~ 32.6 m/s
12
Hurricane force
≥ 118 km/h
Severe widespread damage to
vegetation and structures . Debris and
unsecured objects are hurled about .
≥ 74 mph
≥ 64 knots
≥ 32.7m/s
