FrontLine AQUAGLASS Plus User manual

AQUAGLASS+ FRAMELESS
CORNER ENTRY
Installtion Instructions
900x900x1900mm

●Please read these instructions in full before installing
●Check that the tray has been installed to the manufacturer’s instructions.
Please note - All product is supplied without a tray.
IMPORTANT
GENERAL SAFETY INSTRUCTIONS
●Opening wall adjustments
900x900mm Corner Entry - adjustment = (875 - 900)x(875 - 900)mm
●This product is heavy and requires two people during lifting and operations.
●Glass is delicate, support on cardboard to minimise risk of damage.
●Do not fix the wall profile to newly plastered, painted or papered walls as chemical
reaction may cause discolouration to the surface finish.
●lmportant: The wall plugs included in this pack are for solid walls only. If the product
is to be mounted on a partition or stud wall, specialised fixings should be purchased
separately.
●Fixing tips; A piece of insulating tape or a couple of layers of masking tape applied to
the wall before marking out the fixing holes will help stop the drill from wandering,
particularly on tiled surfaces.
●When working near a basin or bath insert the plug into the waste, this will help you
avoid losing small parts. Also take care not to drop accessories or tools onto the
bath or basin, use a towel or bathmat to protect delicate surfaces.
●CAUTION!
Before drilling into any walls check that there are no hidden cables or pipes. Exercise
great care when using power tools near water. The use of a residual current device
(RCD) or cordless drill is recommended. Always double check the positioning and
measurements before drilling holes.

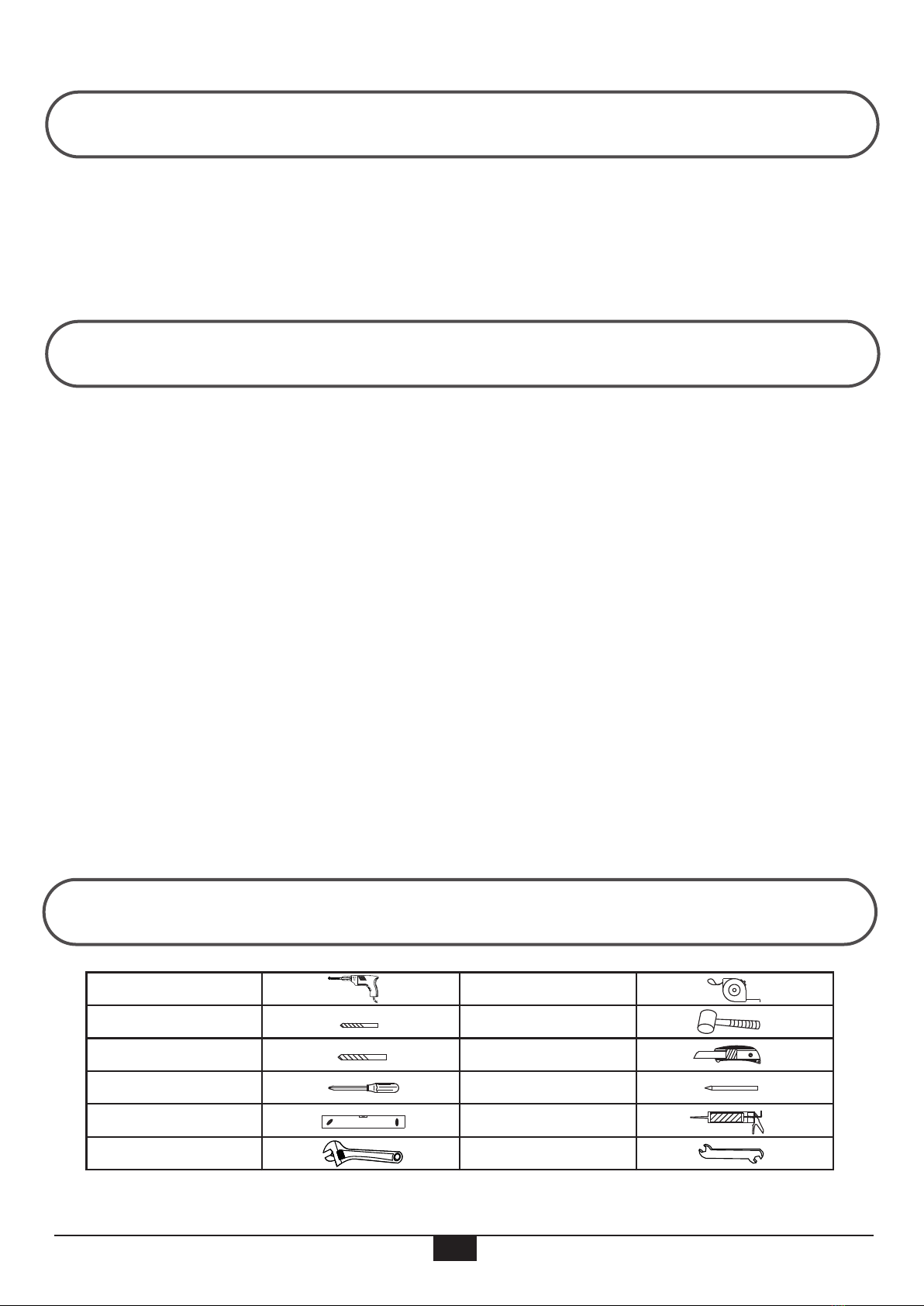

Tools required (not supplied)
Electric drill
drill(Ø3.2mm)
drill(Ø6mm)
cross tip
screw driver
spirit level
tape measure
rubber hammer
knife
silicone sealant
spanner
wrench
pencil
1

ST4X10
IDENTIFICATION OF PARTS
Fixings & fittings supplied
2
Quantity
Part
Item No.: Quantity
Part
Item No.:
x 2
x 2
x 2
x 4
x 1
x 4
x 2
x 4
x 14
x 2
x 18
x 1
x 2
x 2
x 6
x 2
x 2
x 4
x 2
x 2 x 1
x 2
x 1
x 4
x 1
x 1
x 1
ST4X30
8EE10
8EE3
8EE8
8EE4
8EE9
8EE5
8EE1
8EE7
8EE6
8EE2
8EE15
8EE14
8EE11
8EE12
8EE13
8EE22
8EE16
8EE20
8EE17
8EE18
8EE21
8EE19
8EE25
8EE24
8EE27
8EE26
8EE23
c b a
a b
a
b
a
b
a b
2.5 4
8EE18
8EE12
8EE3
8EE23
8EE22
8EE14
8EE8a 8EE8b
8EE4a
8EE9a 8EE9b
8EE5
8EE15
8EE4b
8EE16
8EE24
8EE1
8EE7a
8EE7b
8EE6
8EE2
8EE17
8EE19
8EE21
8EE20
8EE10
8EE13
8EE14
8EE4c 8EE11

3
1. - Take a spirit level to make sure the tray is placed horizontally.
- Put the wall profiles(8EE3) against the wall and make sure
the profiles to be 5mm away from the outside edge. Adjust the
profiles to ensure they are vertical by using a spirit level.
- Mark the holes on the wall.
2X
8EE3
5mm
ab
cd
8EE3
8EE3
2X
2. - Drill the holes(Ø6mm) according to the marks and insert
the wall plugs(8EE1) into the holes.
- Fix the wall profiles(8EE3) on the wall with screws(8EE2).
8EE1 8EE2
8X 8X
8EE3
ST4X30
8EE1
8EE3
8EE2
6
Ø
ab
c

4
3.
- Put T templet(8EE27) next to the wall profiles on the corner
and make sure T templet is right against wall profile on the
corner. Mark the holes on the wall accordingly.
- Drill the holes(Ø6mm) according to the marks and insert
the wall plugs(8EE1) into the holes.
- Fix the wall seats(8EE19) on the wall with screws(8EE2).
ab
x 1 x 2
8EE27 8EE19
8EE19
cd
8EE1
8EE1
8EE2
8EE2
4X 4X
ST4X30
4.
- Insert the fixed glass panels(8EE5) into the wall profiles.
- There is 25mm of adjustment on each profile, allowing for
the positioning of the frame. Adjust the position of vertical
profiles and wall profiles to suitable position.
Fix the wall seats(8EE19) on the end of rail profiles(8EE22) -
with screws(8EE2). Connect rail profile with wall seats
with wall brackets(8EE20) by fasten inner screws.
- Join the two rail profiles by connection part(8EE23).
0-25mm
a
x 2
8EE5
x 4
ST4X30
8EE2 8EE23
8EE5 8EE5
8EE20
8EE19
8EE2
8EE25b
b
cd
8EE21 8EE23
8EE25b
x 1 x 1
4
x 4
8EE21 8EE25b
x 2 x 2 x 2
8EE19 8EE22 8EE20

5
5.
- Put the bottom brackets(8EE7) on the bottom of the the fixed
panels and mark the holes for the brackets. Drill the holes
(Ø 6 mm) according to the marks and insert the wall plugs
(8EE1) into the holes. Fix the brackets(8EE7) with screws
(8EE2) on the tray. Put the covers(8EE6) on the screws.
Attach the vertical sealers(8EE8) onto the fixing panels.-
a
d
b
8EE7a 8EE7b
8EE1
8EE2
8EE6
8EE8a 8EE8b
x 1 x 1 x2 x 2 x 2
ST4X30
8EE6
8EE2
8EE8 8EE1
8EE7
c
a
ba b
8EE8a 8EE8b
6.
- Assemble rollers(8EE12) on the door panels(8EE10)
with tool(8EE26).
- Attach bottom seals(8EE15) on the bottom of the doors.
- Attach magnetic seals(8EE14) on the handle side of doors.
- Attach vertical anti-water seals(8EE9) on the other side of
the doors.
a
8EE12
8EE26
8EE10
8EE26
8EE10 8EE12
8EE15
8EE9
8EE9a
8EE14 8EE14 8EE14
8EE15
8EE14
x 4 x 2
x 2
x 2
x 2
x 1
b
c
e
d
f
8EE15
8EE9a 8EE9b
a
b

6
7.
x 2
8EE26
- Put the door panels onto the rail profiles.
- Assemble the fixing parts(8EE11) on the door panels
below the rail profiles. 8EE11 is eccentric, please
adjust the distance between rail profile and 8EE11
to be 0.5mm.
- Adjust the top rollers to make sure the door panels is vertical
and the magetic seals can be well absorbed.
- The roller’s washer is eccentric. Please adjust the eccentric
washer to right position and fasten the nut.
Roller adjustment:
a. screw off the small hex screw by wrench 8EE26.
b. screw the eccentric washer clockwise to make the door rise or screw the
eccentric washer anticlockwise to make the door go down by using the other
end of the wrench. Pay attention on the door's movement, stop screwing
once the door reach to the right position.
c. screw up the small hex screw to get the roller locked.
x 4
8EE11
8EE11
0.5mm
a
- Mount handles(8EE13) on the sliding doors with hex key
(8EE25a).
- Connect the bottom aluminum strips(8EE16) and joint part
(8EE24) together.
- Apply silicone glue on the back of the aluminium strips.
- Insert the aluminium strips into bottom brackets(8EE7).
c d
ab
x 2 x 1
8EE16
8EE16
8EE24
8EE16
8EE24
x 1
8EE25a
2.5
x 2
8EE13
8.

7
10.
- Put top caps(8EE18) on the vertical profiles and top caps
(8EE17) on the wall profiles.
x 2
x 2
8EE18
8EE17
8EE17
8EE17
8EE18
8EE18
a
b
9. - Drill the holes (Ø 3.2 mm) on vertical profiles into wall profiles.
- Use rubber washers(8EE4c) and screws(8EE4b) to fix them
in place. Cover the screws with caps(8EE4a).
8EE4c
8EE4b
8EE4a
a
b
Ø
3.2
x 6
8EE4
3.2
ST4X10
c b a

8
11. - Finally, at all points connected to the wall, shower tray/floor
and the profiles, use silicone sealant only on the outside of
the shower enclosure. Please do ot use showering within 24
hours after silicon sealant.
Cleaning and Maintenance:
Please do not use abrasive or strong cleaning solution on the shower enclosure, such as alcohol, petroleum liquids or
any other chemical clearner with acidic contents. Should there be any dirty stains on the shower enclosure, please clean
it with a soft lint free cloth and warm soapy water. Please rinse it with clean water afterwards.
After the installation is complete, if there is any noise druing glass door movement, please add a small quantity of lubricant
onto the roller wheel, bottom guide and track where applicable.
After installtion is complete and you are still encountering problems with your enclosure, our sales technicians will be
happy to assist.
For information and support phone: [phone]
V17C14
